A位La/Sr 共掺杂PbZrO3薄膜的制备及储能特性优化

doi:10.15541/jim20240087

摘要/Abstract

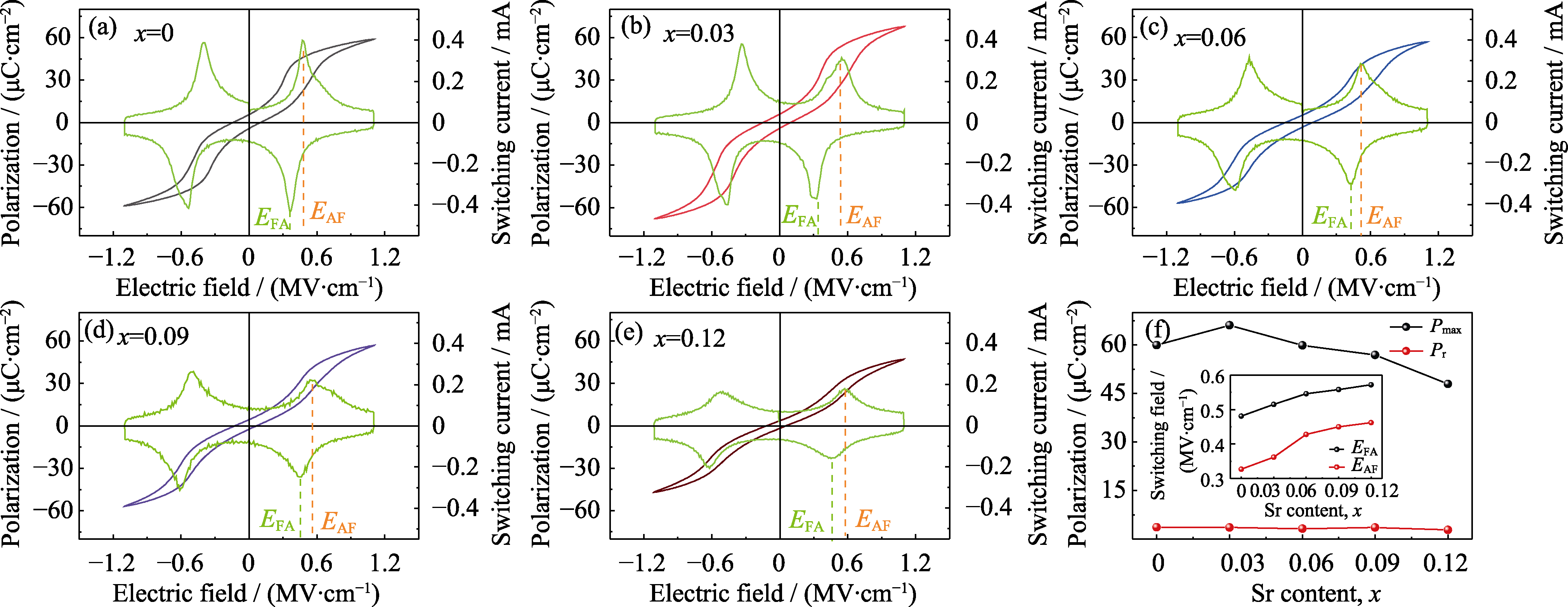

摘要： 反铁电材料凭借超高的功率密度,在电介质能量存储领域具有极高的研究热度。锆酸铅(PbZrO₃, PZO)是反铁电材料的典型代表,也是研究最为广泛的反铁电材料之一,如何提升锆酸铅基材料的储能性能是目前的研究重点。本工作在La³⁺掺杂PZO的基础上,进一步将小半径的Sr²⁺掺入到PZO钙钛矿结构的A位,实现了PbZrO₃基反铁电薄膜储能性能的进一步提升。采用溶胶-凝胶法制备了A位La/Sr共掺杂Pb_0.94-_xLa_0.04Sr_xZrO₃(Sr-PLZ-x, x = 0, 0.03, 0.06, 0.09, 0.12)系列反铁电薄膜,系统研究了Sr²⁺掺杂对Sr-PLZ-x反铁电薄膜的晶体结构,以及铁电性能、储能性能和疲劳性能等的影响。结果表明：随着Sr²⁺的掺入量x的增加,Sr-PLZ-x 薄膜的晶格常数不断减小,薄膜的饱和极化强度先略增加并保持,后逐渐降低。同时,Sr-PLZ-x薄膜的容忍因子逐步降低,薄膜转折电场不断增大,反铁电性逐渐增强,击穿场强有所提高,Sr-PLZ-x薄膜的储能性能得到提高。在x=0.03时,Sr-PLZ-x反铁电薄膜的储能密度和效率分别达到31.7 J/cm³和71%,储能性能达到最优。同时Sr²⁺的掺入也使得Sr-PLZ-x反铁电薄膜的疲劳特性得到进一步优化,其中x=0.12组分薄膜样品在经历了10⁷次循环后,储能密度和储能效率仅有3.4%和2.7%的衰减。综上所述,A位La/Sr共掺杂的方法,可有效提高锆酸铅基反铁电薄膜的储能性能。

关键词: 元素掺杂, 锆酸铅, 反铁电, 储能

Abstract: Antiferroelectric materials have been extensively studied in the field of dielectric energy storage due to the ultra-high power density. PbZrO₃, as a prototype of antiferroelectric materials, has been one of the most studied antiferroelectric materials, and the research on methods to enhance the energy storage performance of lead zirconate-based materials is the focus of the current study. In this work, further improvement of the energy storage performance of PbZrO₃-based antiferroelectric thin films was realized by further doping small-radius Sr²⁺ into the A-site of the PZO perovskite structure on the basis of La³⁺-doped PZO. A series of antiferroelectric thin films of A-site La/Sr co-doped Pb_0.94-_xLa_0.04Sr_xZrO₃(Sr-PLZ-x, x = 0, 0.03, 0.06, 0.09, 0.12) were prepared by Sol-Gel method, and the effects of Sr²⁺ doping on the crystal structure and electrical properties such as ferroelectricity, energy storage, and fatigue properties of Sr-PLZ-x antiferroelectric films were systematically investigated. The results show that with the doping of Sr²⁺, the lattice constants are gradually reduced, and the saturation polarization of the films first slightly increases and maintains, then gradually decreases. The tolerance factor of Sr-PLZ-x films reduced with increasing Sr²⁺ content, and the antiferroelectricity of the films are enhanced. Both the switching field and the breakdown strength are increased, resulting in an improved energy storage performance of Sr-PLZ-x films. At x=0.03, the energy storage performance of Sr-PLZ-x antiferroelectric films reaches the highest, with the energy storage density and efficiency are 31.7 J/cm³ and 71%, respectively. Meanwhile, the doping of Sr²⁺ also makes the fatigue characteristics of Sr-PLZ-x antiferroelectric films further improved. The x=0.12 film exhibited only 3.4% and 2.7% degradation in energy storage density and energy storage efficiency after 10⁷ cycles. In summary, the doping method of A-site La/Sr co-doping can effectively improve the energy storage performance of lead zirconate-based antiferroelectric films.

Key words: elemental doping, lead zirconate, antiferroelectric, energy storage

中图分类号:

TB34

沈浩, 陈倩倩, 周渤翔, 唐晓东, 张媛媛. A位La/Sr 共掺杂PbZrO₃薄膜的制备及储能特性优化[J]. 无机材料学报, DOI: 10.15541/jim20240087.

SHEN Hao, CHEN Qianqian, ZHOU Boxiang, TANG Xiaodong, ZHANG Yuanyuan. Preparation and Energy Storage Properties of A-site La/Sr Co-doped PZO Thin Films[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20240087.

参考文献

[1] HAO X H, ZHAI J W, KONG L B,et al. A comprehensive review on the progress of lead zirconate-based antiferroelectric materials. Progress in Materials Science, 2014, 63: 1.
[2] WANG X W, YANG F, YU K X,et al. PbZrO₃-based anti-ferroelectric thin films for high-performance energy storage: a review. Advanced Materials Technologies, 2023, 8(10): 2202044.
[3] ZHANG M H,FULANOVIC L,ZHAO C H,et al. Review on field-induced phase transitions in lead-free NaNbO₃-based antiferroelectric perovskite oxides for energy storage. Journal of Materiomics, 2023, 9(1): 1.
[4] KO D L, HSIN T, LAI Y H,et al. High-stability transparent flexible energy storage based on PbZrO₃/muscovite heterostructure. Nano Energy, 2021, 87: 106149.
[5] PALNEEDI H, PEDDIGARI M, HWANG G T,et al. High-performance dielectric ceramic films for energy storage capacitors: progress and outlook. Advanced Functional Materials, 2018, 28(42): 1803665.
[6] GUO B, JIN F, LI L,et al. Design strategies of high-performance lead-free electroceramics for energy storage applications. Rare Metals, 2024, 43(3): 853.
[7] CAI H H, YAN S G, ZHOU M X,et al. Significantly improved energy storage properties and cycling stability in La-doped PbZrO₃ antiferroelectric thin films by chemical pressure tailoring. Journal of the European Ceramic Society, 2019, 39(15): 4761.
[8] AHN C W, AMARSANAA G, WON S S,et al. Antiferroelectric thin-film capacitors with high energy-storage densities, low energy losses, and fast discharge times. ACS Applied Materials & Interfaces, 2015, 7(48): 26381.
[9] GAO H C, HAO X H, ZHANG Q W,et al. Electrocaloric effect and energy-storage performance in grain-size-engineered PBLZT antiferroelectric thick films. Journal of Materials Science: Materials in Electronics, 2016, 27(10): 10309.
[10] ZOU K L, HE C H, YU Y X,et al. Ultrahigh energy efficiency and large discharge energy density in flexible dielectric nanocomposites with Pb_0.97La_0.02(Zr_0.5Sn_xTi_0.5-_x)O₃ antiferroelectric nanofillers. ACS Applied Materials & Interfaces, 2020, 12(11): 12847.
[11] LI Y Z, LIN J L, BAI Y,et al. Ultrahigh-energy storage properties of (PbCa)ZrO₃ antiferroelectric thin films via constructing a pyrochlore nanocrystalline structure. ACS Nano, 2020, 14(6): 6857.
[12] PENG B L, ZHANG Q, LI X,et al. Large energy storage density and high thermal stability in a highly textured (111)-oriented Pb_0.8Ba_0.2ZrO₃ relaxor thin film with the coexistence of antiferroelectric and ferroelectric phases. ACS Applied Materials & Interfaces, 2015, 7(24): 13512.
[13] YANG L T, KONG X, LI F,et al. Perovskite lead-free dielectrics for energy storage applications. Progress in Materials Science, 2019, 102: 72.
[14] BAETTIG P, SCHELLE C F, LESAR R,et al. Theoretical prediction of new high-performance lead-free piezoelectrics. Chemistry of Materials, 2005, 17(6): 1376.
[15] YUAN Y, SUN B W, GUO M Y,et al. Antiferroelectric-ferroelectric phase transition and negative electrocaloric effect in alkaline-earth element doped PbZrO₃ thin films. Journal of Alloys and Compounds, 2022, 899: 163165.
[16] BHARADWAJA S S N, SAHA S, BHATTACHARYYA S,et al. Dielectric properties of La-modified antiferroelectric PbZrO₃ thin films. Materials Science and Engineering: B, 2002, 88(1): 22.
[17] BHARADWAJA S S N, LAHA A, HALDER S,et al. Reversible and irreversible switching processes in pure and lanthanum modified lead zirconate thin films. Materials Science and Engineering: B, 2002, 94(2/3): 218.
[18] PARUI J, KRUPANIDHI S B.Enhancement of charge and energy storage in sol-gel derived pure and La-modified PbZrO₃ thin films.Applied Physics Letters, 2008, 92(19): 192901.
[19] BHARADWAJA S S N, KRUPANIDHI S B. Study of La-modified antiferroelectric PbZrO₃ thin films.Thin Solid Films, 2003, 423(1): 88.
[20] HAO X H, ZHAI J W, YAO X.Improved energy storage performance and fatigue endurance of Sr-doped PbZrO₃ antiferroelectric thin films.Journal of the American Ceramic Society, 2009, 92(5): 1133.
[21] HAO X H, ZHAI J W, ZHOU J,et al. Structure and electrical properties of PbZrO₃ antiferroelectric thin films doped with barium and strontium. Journal of Alloys and Compounds, 2011, 509(2): 271.
[22] HAERTLING G H, LAND C E.Hot-pressed (Pb,La)(Zr,Ti)O₃ ferroelectric ceramics for electrooptic applications.Journal of the American Ceramic Society, 1971, 54: 1.
[23] DAI X H, VIEHLAND D.Effects of lanthanum modification on the antiferroelectric-ferroelectric stability of high zirconium-content lead zirconate titanate.Journal of Applied Physics, 1994, 76(6): 3701.
[24] BREVAL E, WANG C, DOUGHERTY J P,et al. PLZT phases near lead zirconate: 2. determination by capacitance and polarization. Journal of the American Ceramic Society, 2006,89(12): 3681.
[25] PAN W Y, ZHANG Q M, BHALLA A,et al. Field-forced antiferroelectric-to-ferroelectric switching in modified lead zirconate titanate stannate ceramics. Journal of the American Ceramic Society, 1989, 72(4): 571.
[26] HAO X H, ZHAI J W.Electric-field tunable electrocaloric effects from phase transition between antiferroelectric and ferroelectric phase.Applied Physics Letters, 2014, 104(2): 022902.
[27] ZHANG T D, LI W L, HOU Y F,et al. High-energy storage density and excellent temperature stability in antiferroelectric/ferroelectric bilayer thin films. Journal of the American Ceramic Society, 2017, 100(7): 3080.
[28] PAN Z B, WANG P, HOU X,et al. Fatigue‐free aurivillius phase ferroelectric thin films with ultrahigh energy storage performance. Advanced Energy Materials, 2020, 10(31): 2001536
[29] JIANG S L, ZHANG L, ZHANG G Z,et al. Effect of Zr:Sn ratio in the lead lanthanum zirconate stannate titanate anti-ferroelectric ceramics on energy storage properties. Ceramics International, 2013, 39(5): 5571.
[30] LIU X H, LI Y, SUN N N,et al. High energy-storage performance of PLZS antiferroelectric multilayer ceramic capacitors. Inorganic Chemistry Frontiers, 2020, 7(3): 756.
[31] ZHANG Q F, DAN Y, CHEN J,et al. Effects of composition and temperature on energy storage properties of (Pb,La)(Zr,Sn,Ti)O₃ antiferroelectric ceramics. Ceramics International, 2017, 43(14): 11428.
[32] ZHANG T D, ZHAO Y, LI W L,et al. High energy storage density at low electric field of ABO₃ antiferroelectric films with ionic pair doping. Energy Storage Materials, 2019, 18: 238.
[33] LOU X J, WANG J.Unipolar and bipolar fatigue in antiferroelectric lead zirconate thin films and evidences for switching-induced charge injection inducing fatigue.Applied Physics Letters, 2010, 96(10): 102906
[34] ZHOU L, ZIMMERMANN A, ZENG Y P,et al. Fatigue of field-induced strain in antiferroelectric Pb_0.97La_0.02(Zr_0.77Sn_0.14Ti_0.09)O₃ ceramics. Journal of the American Ceramic Society, 2004, 87(8): 1591.
[35] LIU X, ZHAO Y Y.Research progress of antiferroelectric energy storage ceramics.Electronic Components and Materials, 2020, 39(11): 55.
