基于DPEPA聚合物凝胶电解质的准固态钠离子电池

doi:10.15541/jim20240206

无机材料学报 ›› 2024, Vol. 39 ›› Issue (12): 1331-1338.DOI: 10.15541/jim20240206 CSTR: 32189.14.10.15541/jim20240206

所属专题：【能源环境】储能电池(202412)

基于DPEPA聚合物凝胶电解质的准固态钠离子电池

孔剑锋¹(), 黄杰成¹, 刘兆林², 林存生²(), 王治宇¹^,²()

1.大连理工大学化工学院, 精细化工国家重点实验室, 大连 116024
2.中节能万润股份有限公司新材料开发分公司, 烟台 265503

收稿日期:2024-04-22 修回日期:2024-05-09 出版日期:2024-06-24 网络出版日期:2024-06-24
通讯作者: 王治宇, 教授. E-mail: zywang@dlut.edu.cn;
林存生, 高级工程师. E-mail: lincunsheng@valiant-cn.com
作者简介:孔剑锋(1999-), 男, 硕士研究生. E-mail: fengfeng1014@mail.dlut.edu.cn
基金资助:
国家重点研发计划(2022YFB4101600);国家重点研发计划(2022YFB4101605);国家自然科学基金(52372175);大连市科技创新基金(2023JJ12GX020);中央高校基本科研业务费(DUT24ZD406)

Development of Quasi-solid-state Na-ion Battery Based on DPEPA-derived Gel Polymer Electrolyte

KONG Jianfeng¹(), HUANG Jiecheng¹, LIU Zhaolin², LIN Cunsheng²(), WANG Zhiyu¹^,²()

1. State Key Lab of Fine Chemicals, School of Chemical Engineering, Dalian University of Technology, Dalian 116024, China
2. Branch of New Material Development, Valiant Co., Ltd., Yantai 265503, China

Received:2024-04-22 Revised:2024-05-09 Published:2024-06-24 Online:2024-06-24
Contact: WANG Zhiyu, professor. E-mail: zywang@dlut.edu.cn;
LIN Cunsheng, senior engineer. E-mail: lincunsheng@valiant-cn.com
About author:KONG Jianfeng (1999-), male, Master candidate. E-mail: fengfeng1014@mail.dlut.edu.cn
Supported by:
National Key R&D Program of China(2022YFB4101600);National Key R&D Program of China(2022YFB4101605);National Natural Science Foundation of China(52372175);Innovation and Technology Fund of Dalian(2023JJ12GX020);Fundamental Research Funds for the Central Universities(DUT24ZD406)

摘要/Abstract

摘要：

与锂离子电池相比, 钠离子电池由于使用价格低廉且钠资源储量丰富, 在实现低成本、规模化储能方面极具优势与市场竞争力。但高度易燃、易泄漏的液态电解液使常规钠离子电池在破损、短路、热失控等情况下存在安全隐患, 并且液态电解液较低的电化学稳定性也制约了钠离子电池应用性能的进一步提升。本研究提出了一种简便易行的原位热聚合方法, 基于二季戊四醇戊-/己-丙烯酸(DPEPA)的自由基聚合反应制备了离子电导率为1.97 mS·cm^-1, 钠离子迁移数为0.66, 且具有宽电化学稳定窗口的高性能聚合物凝胶电解质。研究发现DPEPA的最低未占据分子轨道(LUMO)能级低于碳酸乙烯酯(EC)与碳酸二乙酯(DEC)溶剂, 可与NaPF₆在负极表面共同优先分解形成稳定的有机-无机复合固体电解质界面膜, 抑制电解液溶剂分解。在此电解质中匹配Na(Ni_1/3Fe_1/3Mn_1/3)O₂(NFM)正极与硬碳(HC)负极, 构建的准固态钠离子全电池在120 mA·g^-1电流密度下稳定循环300次后, 容量保持率达92%, 并在20~80 ℃温度区间具有99~120 mAh·g^-1的比容量。利用原位X射线衍射仪揭示了NFM正极的高度结构可逆储钠机制与Na⁺在HC负极中的“吸附-填孔”存储机制。研究表明引入含有低LUMO能级聚合物的凝胶电解质是在增强电池安全性的同时, 提升固态钠离子电池电化学稳定性的有效手段。

关键词: 钠离子电池, 准固态电池, 聚合物凝胶电解质, 原位热驱动自由基聚合, 储钠机制

Abstract:

Compared to Li-ion batteries, Na-ion batteries hold significant advantages and market value for achieving low-cost and large-scale energy storage, thanks to the utilization of cheap and abundant Na resources. However, the use of highly flammable liquid electrolytes with leaky risk raises safety concerns for conventional Na-ion batteries under abuse conditions such as mechanical damage, short-circuiting, and thermal runaway. Limited electrochemical stability of liquid electrolytes also hinders further enhancement of the performance of Na-ion batteries for practical use. This study reports a facile way for the preparation of high-performance gel polymer electrolyte (GPE) by thermal-driven radical in-situ polymerization of dipentaerythritol penta-/hexa-acrylat (DPEPA). This GPE exhibits an ionic conductivity of 1.97 mS·cm^-1, a Na⁺ transference number of 0.66, and a broad electrochemical stability window. The DPEPA displays a lower lowest unoccupied molecular orbit (LUMO) energy level than that of ethylene carbonate (EC) and diethyl carbonate (DEC) solvents, allowing for its preferential decomposition alongside NaPF₆ on the anode surface. This leads to a stable organic-inorganic composite film of solid-state electrolyte interphase, inhibiting the decomposition of electrolyte solvents on the anode surface. The quasi-solid-state Na-ion battery employing Na(Ni_1/3Fe_1/3Mn_1/3)O₂ (NFM) cathode and hard carbon (HC) anode in this GPE exhibits a high capacity retention rate of 92% after 300 stable cycles at a current density of 120 mA·g^-1, while achieving the specific capacities of 99-120 mAh·g^-1 within a wide temperature range of 20-80 ℃. In-situ X-ray diffractometer analysis reveals the highly reversible structural evolution of the NFM cathode during Na storage and the “adsorption-pore-filling” mechanism of Na⁺ storage in the HC anode. All data in this research demonstrates that introducing polymers with low LUMO energy levels proves an effective approach to enhance the electrochemical stability of solid-state Na-ion batteries while improving cell safety.

Key words: Na-ion battery, quasi-solid-state battery, gel polymer electrolyte, thermal-driven radical in-situ polymerization, Na storage mechanism

中图分类号:

TQ152

孔剑锋, 黄杰成, 刘兆林, 林存生, 王治宇. 基于DPEPA聚合物凝胶电解质的准固态钠离子电池[J]. 无机材料学报, 2024, 39(12): 1331-1338.

KONG Jianfeng, HUANG Jiecheng, LIU Zhaolin, LIN Cunsheng, WANG Zhiyu. Development of Quasi-solid-state Na-ion Battery Based on DPEPA-derived Gel Polymer Electrolyte[J]. Journal of Inorganic Materials, 2024, 39(12): 1331-1338.

图/表 6

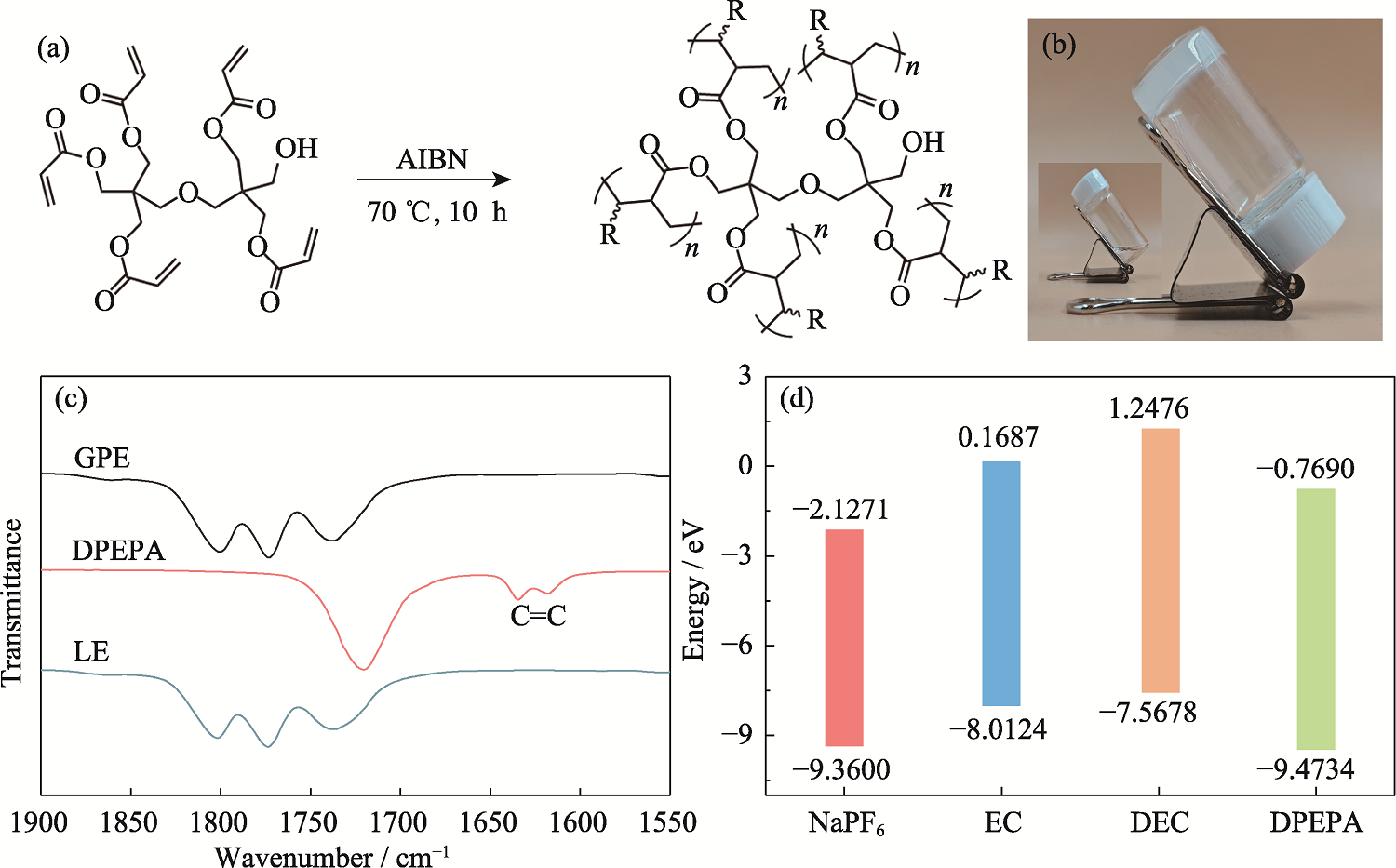

图1 GPE的合成与结构

Fig. 1 Synthesis and structure of GPE (a) Thermal-driven radical in-situ polymerization of DPEPA; (b) Optical image of DPEPA-based GPE; (c) FT-IR spectra of GPE, DPEPA and liquid electrolyte (LE); (d) HOMO and LUMO energy levels of NaPF6, EC, DEC and DPEPA

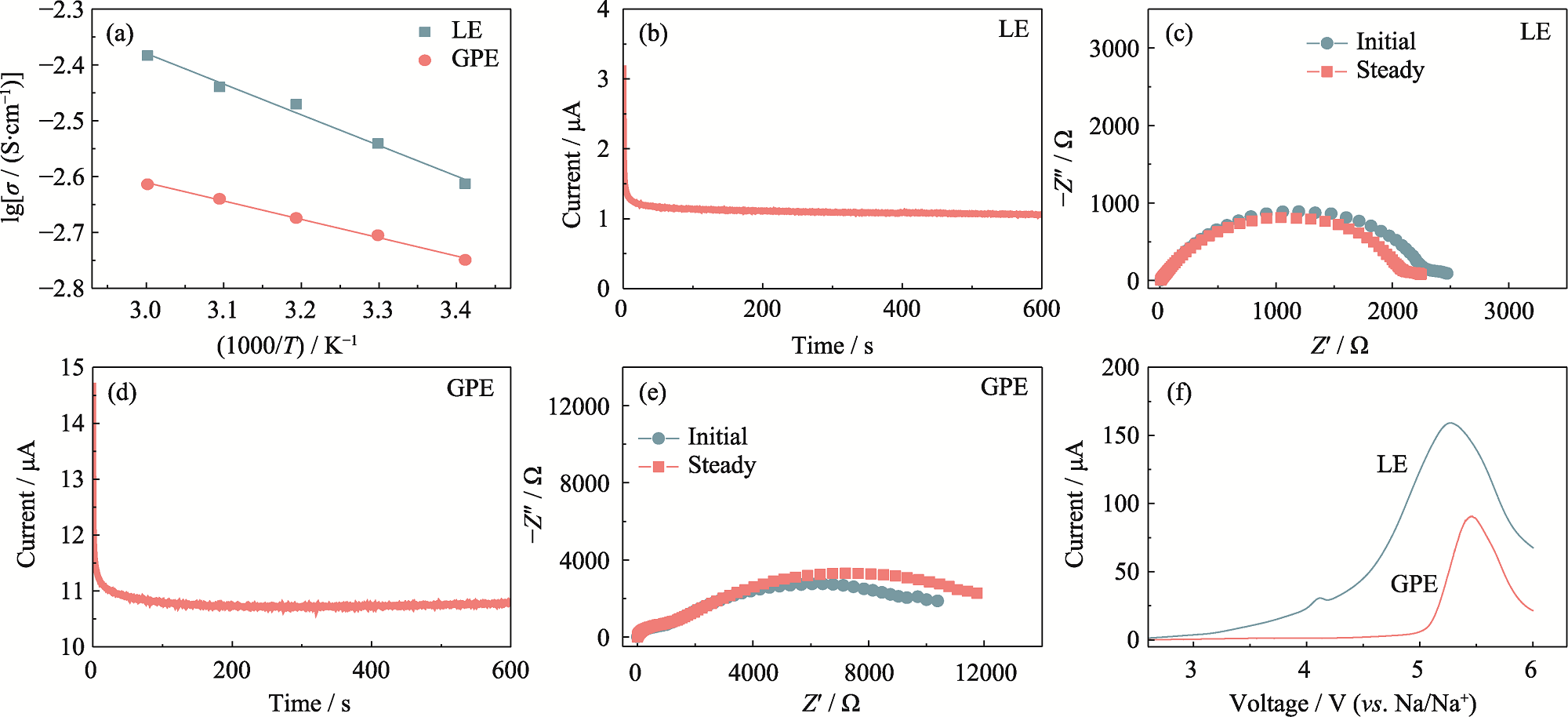

图2 GPE与LE的电化学性能

Fig. 2 Electrochemical performance of GPE and LE (a) Ionic conductivities of LE and GPE at various temperatures; (b) Chronoamperometry profile and (c) Nyquist plot of LE; (d) Chronoamperometry profile and (e) Nyquist plot of GPE; (f) LSV curves of LE and GPE at a scan rate of 1 mV·s-1

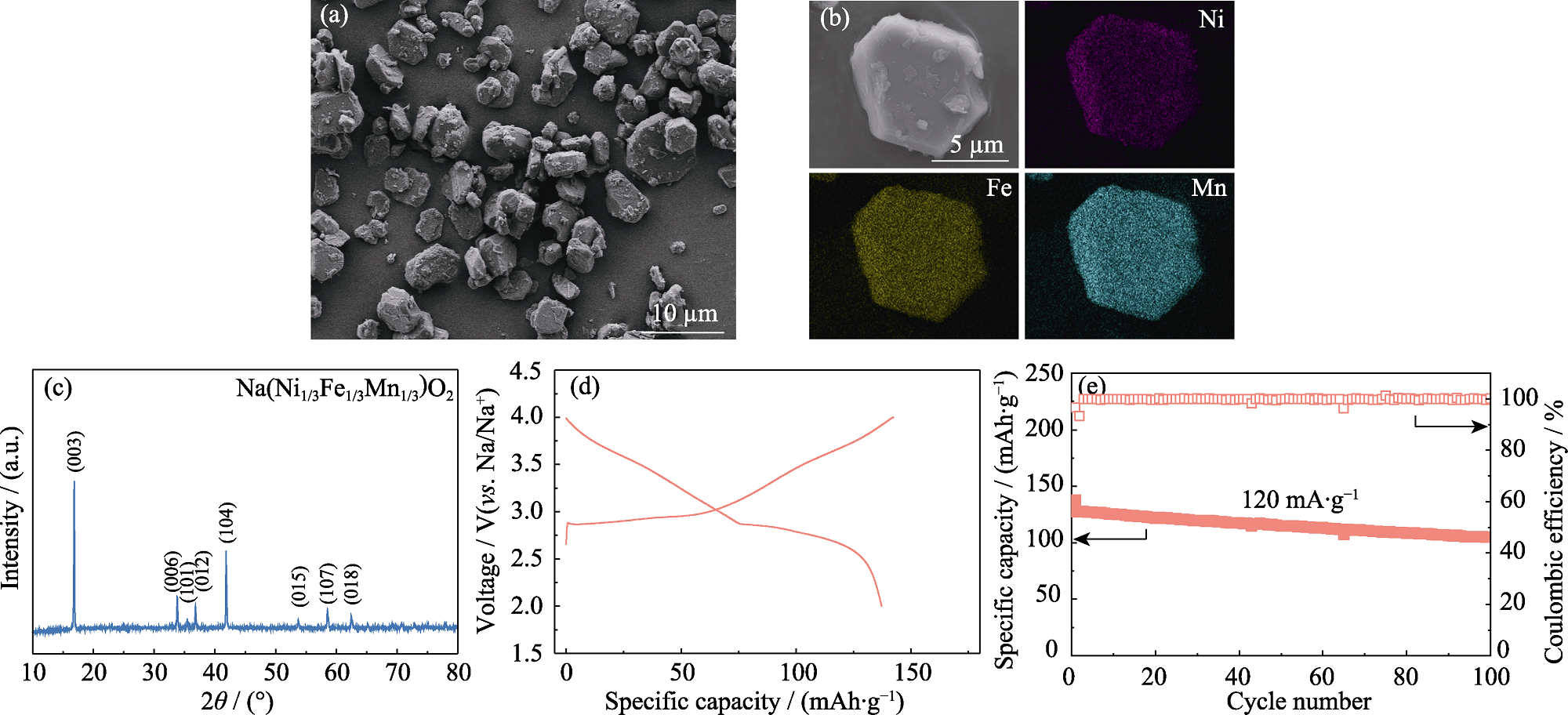

图3 NFM正极的形貌结构及其在钠离子半电池中的电化学性能

Fig. 3 Morphology and structure of NFM cathode, as well as its electrochemical performance in half cell (a) SEM image, (b) elemental mappings and (c) XRD pattern of NFM; (d) Charge-discharge curves of NFM cathode at a current density of 12 mA·g-1; (e) Cycling performance of NFM cathode at 120 mA·g-1

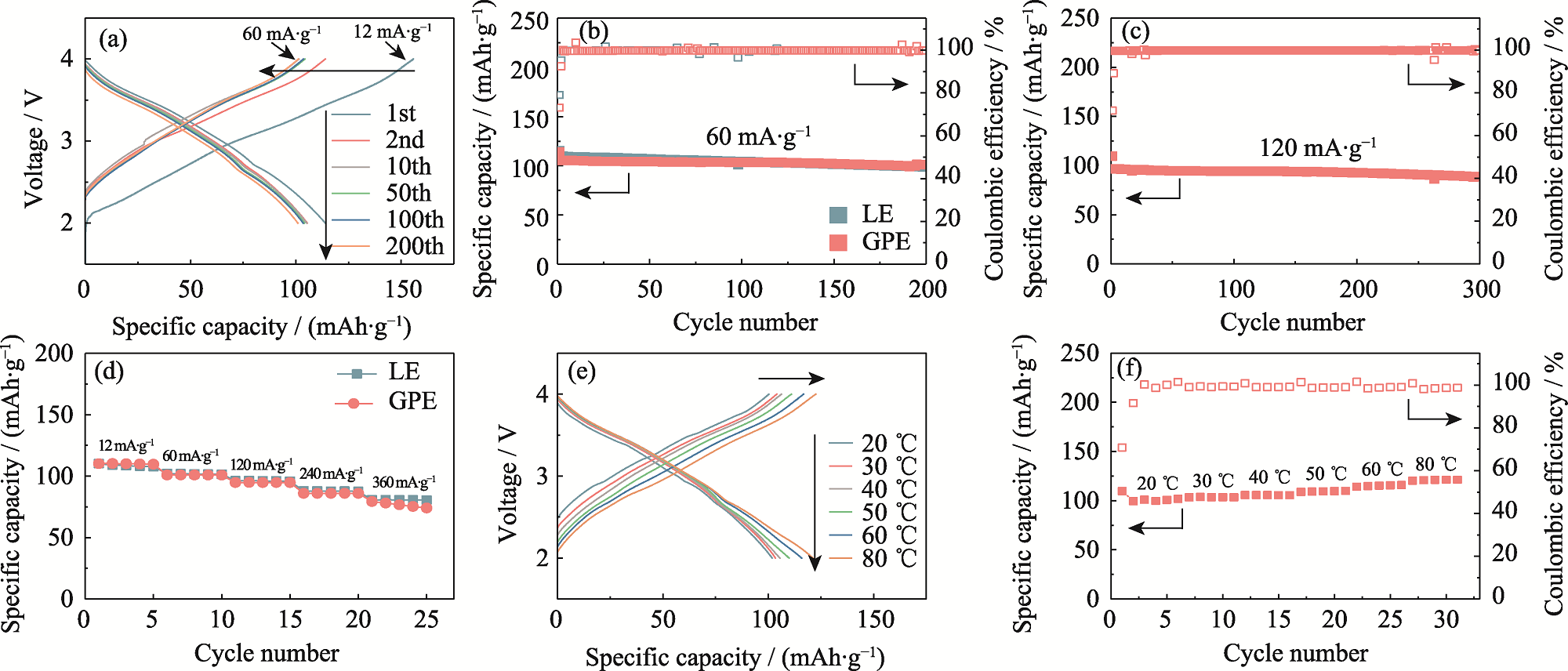

图4 在GPE或LE中匹配NFM正极与HC负极构建的准固态钠离子全电池的电化学性能

Fig. 4 Electrochemical performance of quasi-solid-state Na-ion full cell using NFM cathode and HC anode in GPE or LE (a) Charge-discharge curves of the full cell using GPE at a current density of 60 mA·g-1 with the first cycle conducted at a current density of 12 mA·g-1; (b) Cycling performance of the full cell using LE or GPE at 60 mA·g-1; (c) Cycling performance of the full cell using GPE at 120 mA·g-1; (d) Rate capability of the full cell using LE or GPE at various current densities of 12-360 mA·g-1; (e) Charge-discharge curves and (f) capacity retention of the full cell using GPE in a temperature range of 20-80 ℃ at 60 mA·g-1. Colorful figures are available on website

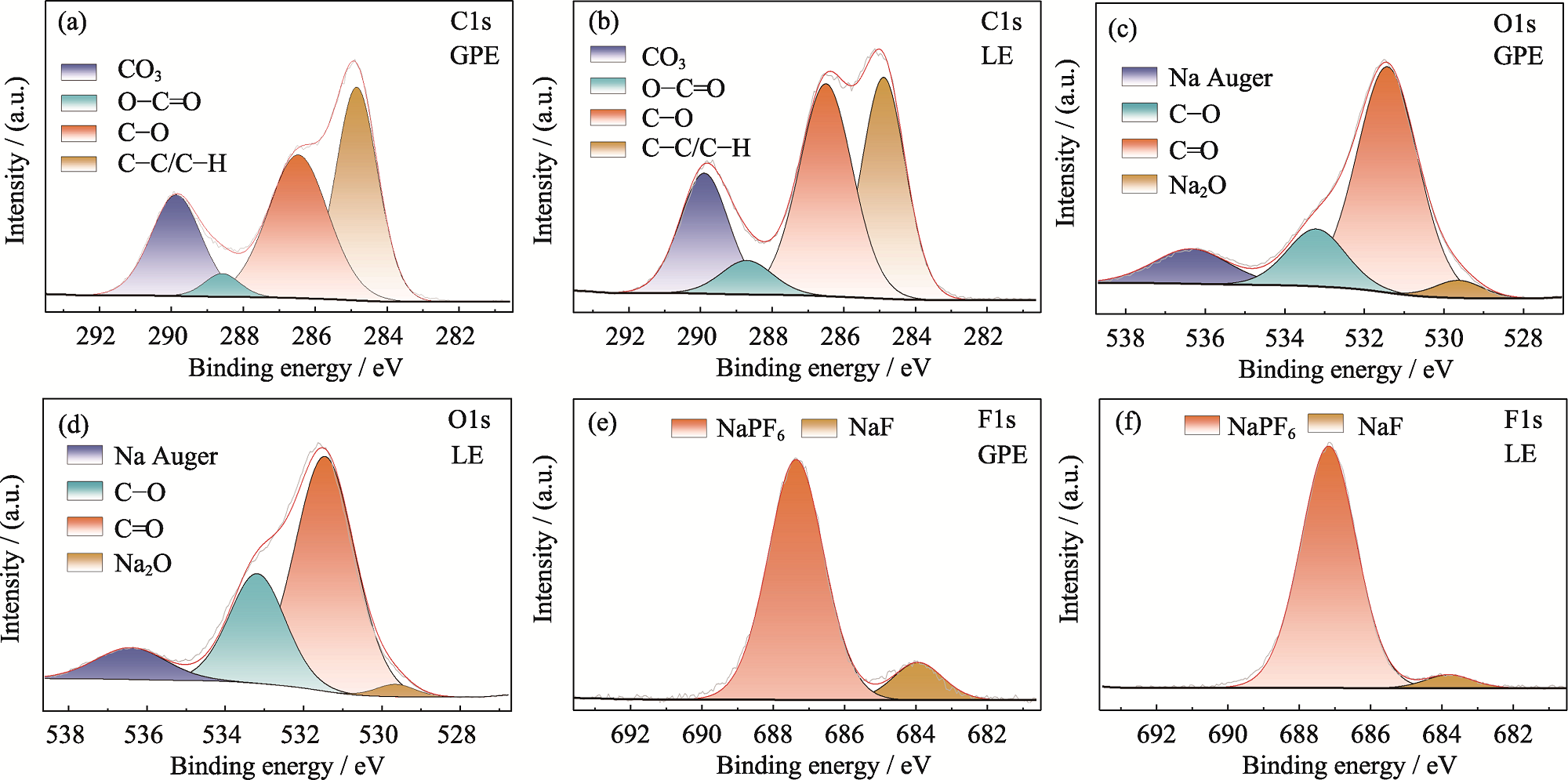

图5 在GPE或LE中循环后的HC负极表面SEI膜的化学组成

Fig. 5 Chemical composition of SEI films on HC anode after cycling in GPE or LE High-resolution (a, b) C1s, (c, d) O1s and (e, f) F1s XPS spectra of SEI film formed in (a, c, e) GPE or (b, d, f) LE Colorful figures are available on website

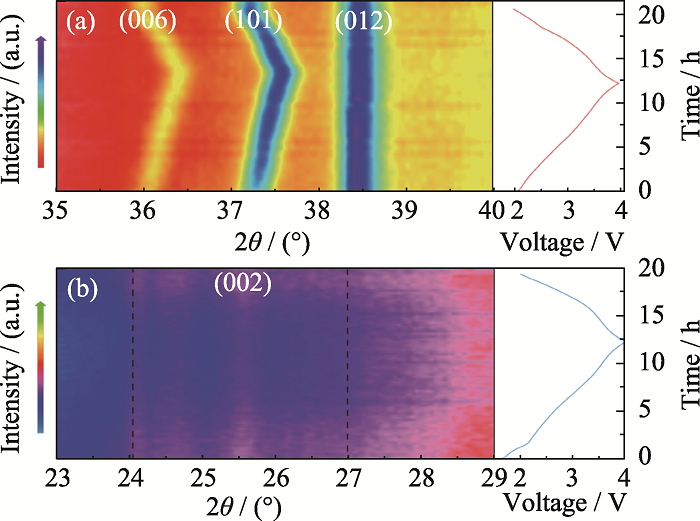

图6 NFM正极与HC负极在钠离子全电池中的储钠机制原位分析

Fig. 6 In-situ analysis of the mechanism for Na storage of NFM cathode and HC anode in Na-ion full cell In-situ XRD patterns of (a) NFM cathode and (b) HC anode within a voltage range of 2.0-4.0 V

参考文献 24

[1]	LIU Y Z, MENG X Y, WANG Z Y, et al. Development of quasi-solid-state anode-free high-energy lithium sulfide-based batteries. Nature Communications, 2022, 13(1):4415. DOI PMID
[2]	LIAO Y Q, YUAN L X, HAN Y, et al. Pentafluoro (phenoxy) cyclotriphosphazene stabilizes electrode/electrolyte interfaces for sodium-ion pouch cells of 145 Wh kg^-1. Advanced Materials, 2024, 36(16):e2312287.
[3]	ZHAO A, FANG Y J, AI X P, et al. Mixed polyanion cathode materials: toward stable and high-energy sodium-ion batteries. Journal of Energy Chemistry, 2021, 60: 635.
[4]	WANG X, HUANG H J, ZHOU F, et al. High-voltage aqueous planar symmetric sodium ion micro-batteries with superior performance at low-temperature of -40 ℃. Nano Energy, 2021, 82: 105688.
[5]	NIMKAR A, SHPIGEL N, MALCHIK F, et al. Unraveling the role of fluorinated alkyl carbonate additives in improving cathode performance in sodium-ion batteries. ACS Applied Materials & Interfaces, 2021, 13(39):46478.
[6]	LI W K, ZHAO N, BI Z J, et al. Na₃Zr₂Si₂PO₁₂ ceramic electrolytes for Na-ion battery: preparation using spray-drying method and its property. Journal of Inorganic Materials, 2022, 37(2):189.
[7]	LIANG J N, LUO J, SUN Q, et al. Recent progress on solid-state hybrid electrolytes for solid-state lithium batteries. Energy Storage Materials, 2019, 21: 308.
[8]	LI D, LEI C, LAI H, et al. Recent advancements in interface between cathode and garnet solid electrolyte for all solid state Li-ion batteries. Journal of Inorganic Materials, 2019, 34(7):694. DOI
[9]	BI Z J, SHI R D, LIU X N, et al. In situ conversion reaction triggered alloy@antiperovskite hybrid layers for lithiophilic and robust lithium/garnet interfaces. Advanced Functional Materials, 2023, 33(43):2307701.
[10]	WEN P C, LU P F, SHI X Y, et al. Photopolymerized gel electrolyte with unprecedented room-temperature ionic conductivity for high- energy-density solid-state sodium metal batteries. Advanced Energy Materials, 2021, 11(6):2002930.
[11]	BI Z J, HUANG W L, MU S, et al. Dual-interface reinforced flexible solid garnet batteries enabled by in-situ solidified gel polymer electrolytes. Nano Energy, 2021, 90: 106498.
[12]	BI Z J, SUN Q F, JIA M Y, et al. Molten salt driven conversion reaction enabling lithiophilic and air-stable garnet surface for solid-state lithium batteries. Advanced Functional Materials, 2022, 32(52):2208751.
[13]	ZHANG T W, ZHANG J, YANG S, et al. Facile in situ chemical cross-linking gel polymer electrolyte, which confines the shuttle effect with high ionic conductivity and Li-ion transference number for quasi-solid-state lithium-sulfur battery. ACS Applied Materials & Interfaces, 2021, 13(37):44497.
[14]	SWORAKOWSKI J, LIPINSKI J, JANUS K. On the reliability of determination of energies of HOMO and LUMO levels in organic semiconductors from electrochemical measurements. A simple picture based on the electrostatic model. Organic Electronics, 2016, 33: 300.
[15]	ZHOU L, CAO Z, ZHANG J, et al. Engineering sodium-ion solvation structure to stabilize sodium anodes: universal strategy for fast-charging and safer sodium-ion batteries. Nano Letters, 2020, 20(5):3247. DOI PMID
[16]	ZHANG L B, DESHMUKH J, HIJAZI H, et al. Impact of calcium on air stability of Na[Ni_1/3Fe_1/3Mn_1/3]O₂ positive electrode material for sodium-ion batteries. Journal of the Electrochemical Society, 2023, 170(7):070514.
[17]	FONDARD J, IRISARRI E, COURRÈGES C, et al. SEI composition on hard carbon in Na-ion batteries after long cycling: influence of salts (NaPF₆, NaTFSI) and additives (FEC, DMCF). Journal of the Electrochemical Society, 2020, 167(7):070526.
[18]	ZHAO S W, HUANG F Q. Weakly solvating few-layer-carbon interface toward high initial coulombic efficiency and cyclability hard carbon anodes. ACS Nano, 2024, 18(2):1733. DOI PMID
[19]	LIU M Q, WU F, GONG Y T, et al. Interfacial-catalysis-enabled layered and inorganic-rich SEI on hard carbon anodes in ester electrolytes for sodium-ion batteries. Advanced Materials, 2023, 35(29):2300002.
[20]	ZHOU X Z, ZHANG Q, ZHU Z, et al. Anion-reinforced solvation for a gradient inorganic-rich interphase enables high-rate and stable sodium batteries. Angewandte Chemie International Edition, 2022, 61(30):e202205045.
[21]	LU Z Y, GENG C N, YANG H J, et al. Step-by-step desolvation enables high-rate and ultra-stable sodium storage in hard carbon anodes. Proceedings of the National Academy of Sciences of the United States of America, 2022, 119(40):e2210203119.
[22]	LI Y M, HU Y S, TITIRICI M M, et al. Hard carbon microtubes made from renewable cotton as high-performance anode material for sodium-ion batteries. Advanced Energy Materials, 2016, 6(18):1600659.
[23]	LI Y, HU Y S, QI X, et al. Advanced sodium-ion batteries using superior low cost pyrolyzed anthracite anode: towards practical applications. Energy Storage Materials, 2016, 5: 191.
[24]	TANG Z, ZHANG R, WANG H Y, et al. Revealing the closed pore formation of waste wood-derived hard carbon for advanced sodium-ion battery. Nature Communications, 2023, 14(1):6024. DOI PMID
