基于低含水量普鲁士蓝正极的准固态钠离子电池

doi:10.15541/jim20240063

无机材料学报

基于低含水量普鲁士蓝正极的准固态钠离子电池

王琨鹏¹, 刘兆林², 林存生², 王治宇^1,2

1.大连理工大学化工学院, 精细化工国家重点实验室, 大连 116024;
2.中节能万润股份有限公司新材料开发分公司, 烟台 265503

收稿日期:2024-02-04 修回日期:2024-04-02 出版日期:2024-04-19 网络出版日期:2024-04-19
作者简介:王琨鹏(2000-), 男, 硕士研究生. E-mail: kpwang@mai.dlut.edu.cn.
基金资助:
国家重点研发计划 (2022YFB4101600, 2022YFB4101605); 国家自然科学基金(52372175); 大连市科技创新基金(2023JJ12GX020); 中央高校基本科研业务费(DUT22LAB125);

Development of Quasi-solid-state Na-ion Battery Based on Water-minimal Prussian Blue Cathode

WANG Kunpeng¹, LIU Zhaolin², LIN Cunsheng², WANG Zhiyu^1,2

1. State Key Lab of Fine Chemicals, School of Chemical Engineering, Dalian University of Technology, Dalian 116024, China;
2. Branch of New Material Development, Valiant Co. Ltd., Yantai 265503, China

Received:2024-02-04 Revised:2024-04-02 Published:2024-04-19 Online:2024-04-19
About author:WANG Kunpeng (2000-), male, Master candidate. E-mail: kpwang@mai.dlut.edu.cn
Supported by:
National Key R&D Program of China (2022YFB4101600, 2022YFB4101605); National Natural Science Foundation of China (52372175); The Innovation and Technology Fund of Dalian (2023JJ12GX020); The Fundamental Research Funds for the Central Universities (DUT22LAB125)

摘要/Abstract

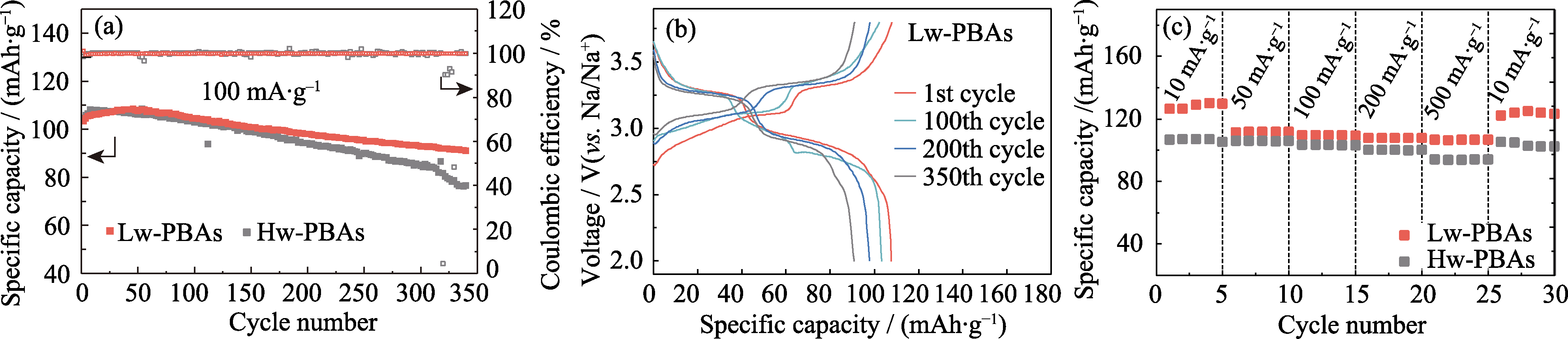

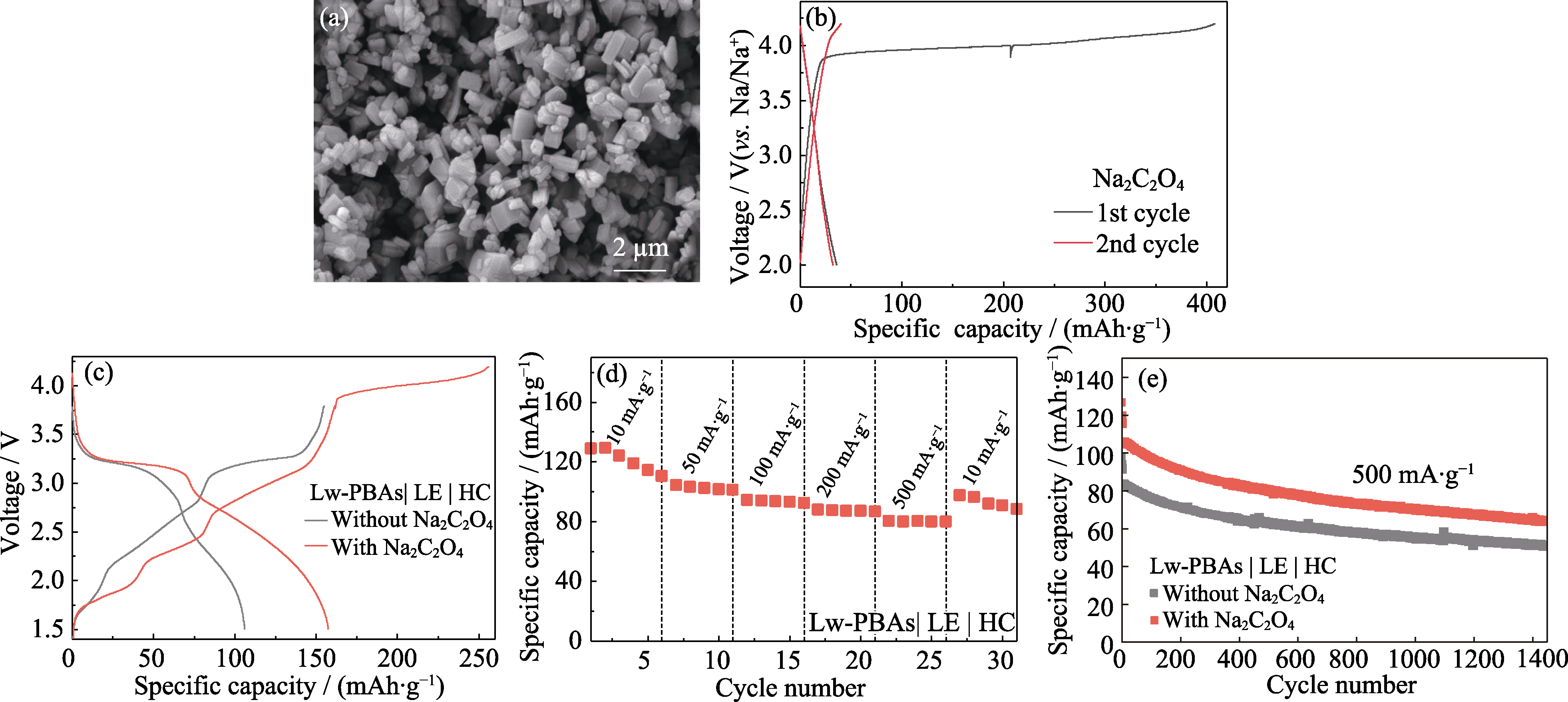

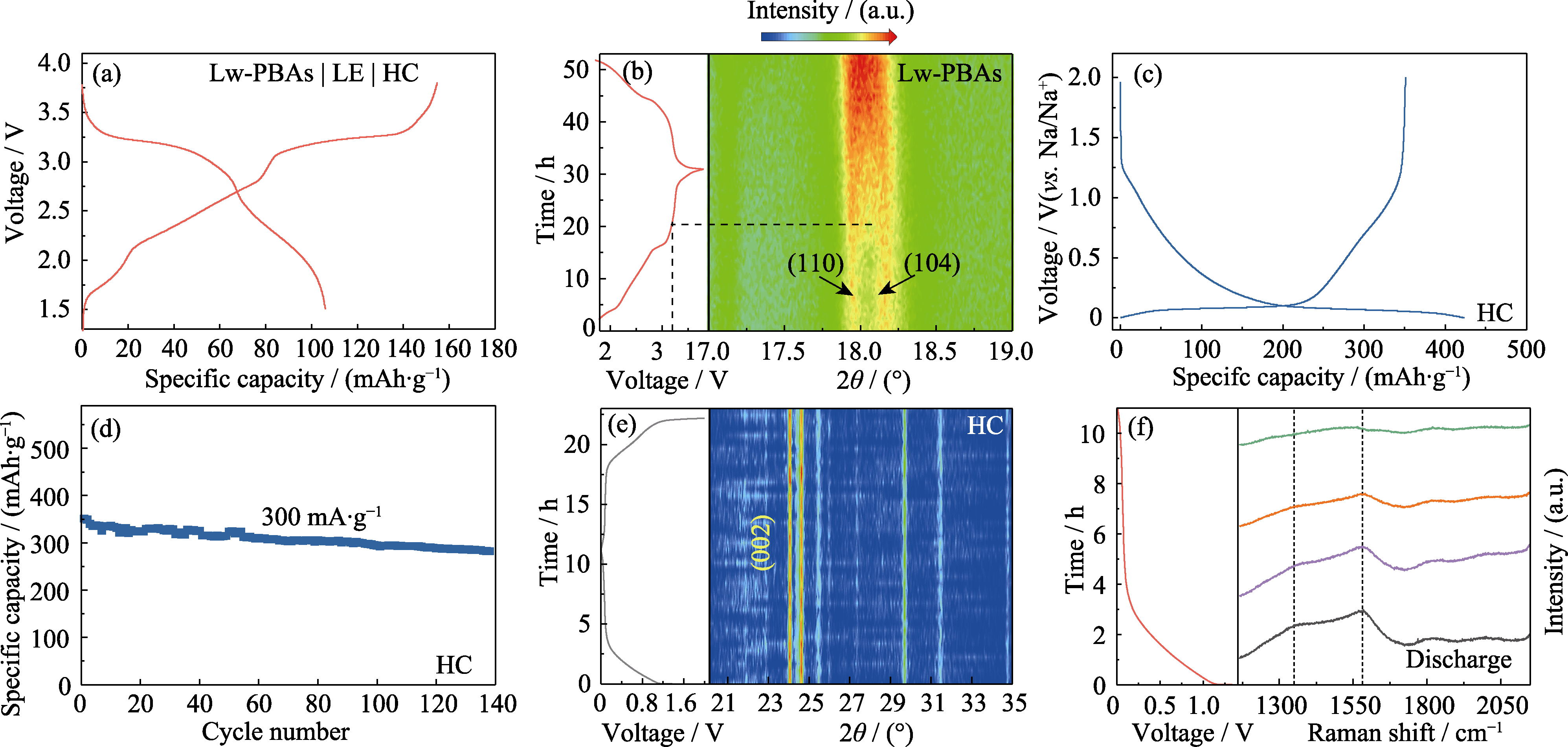

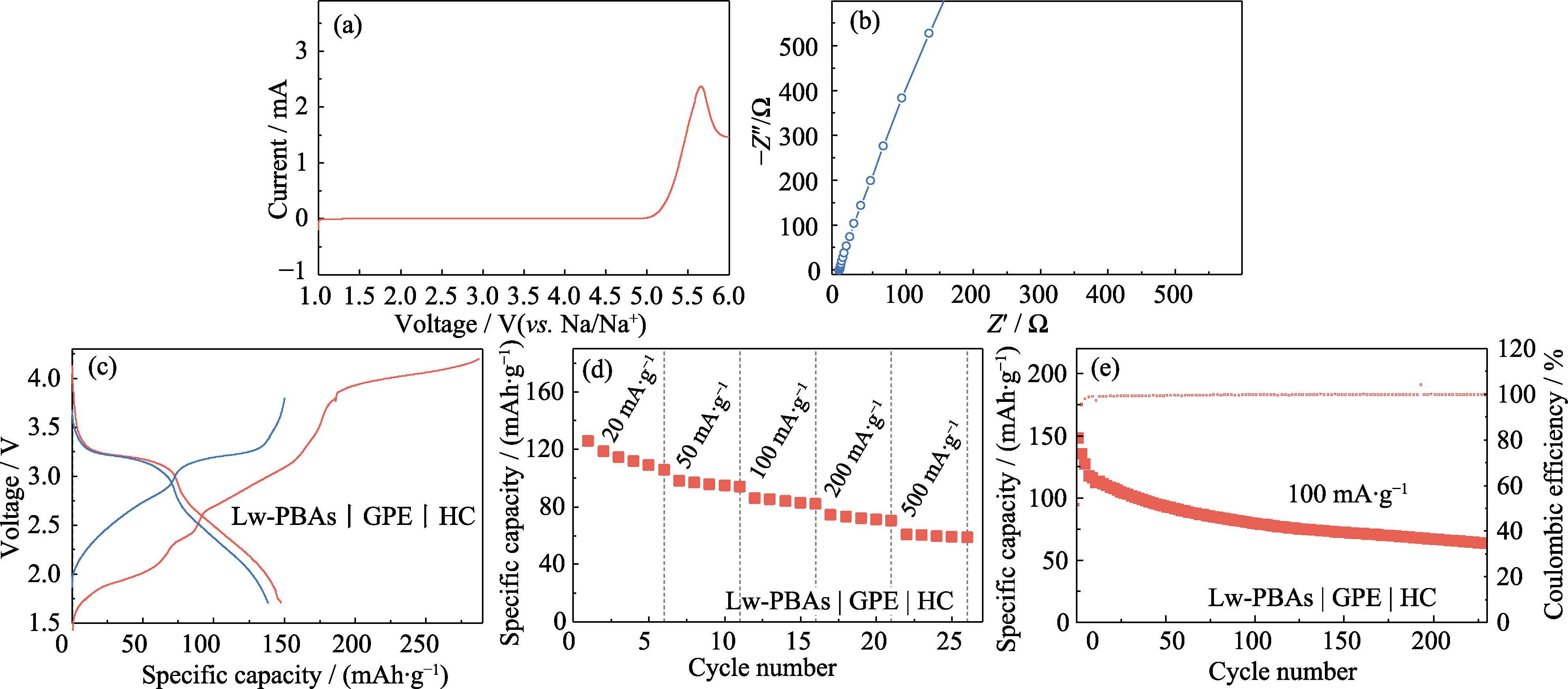

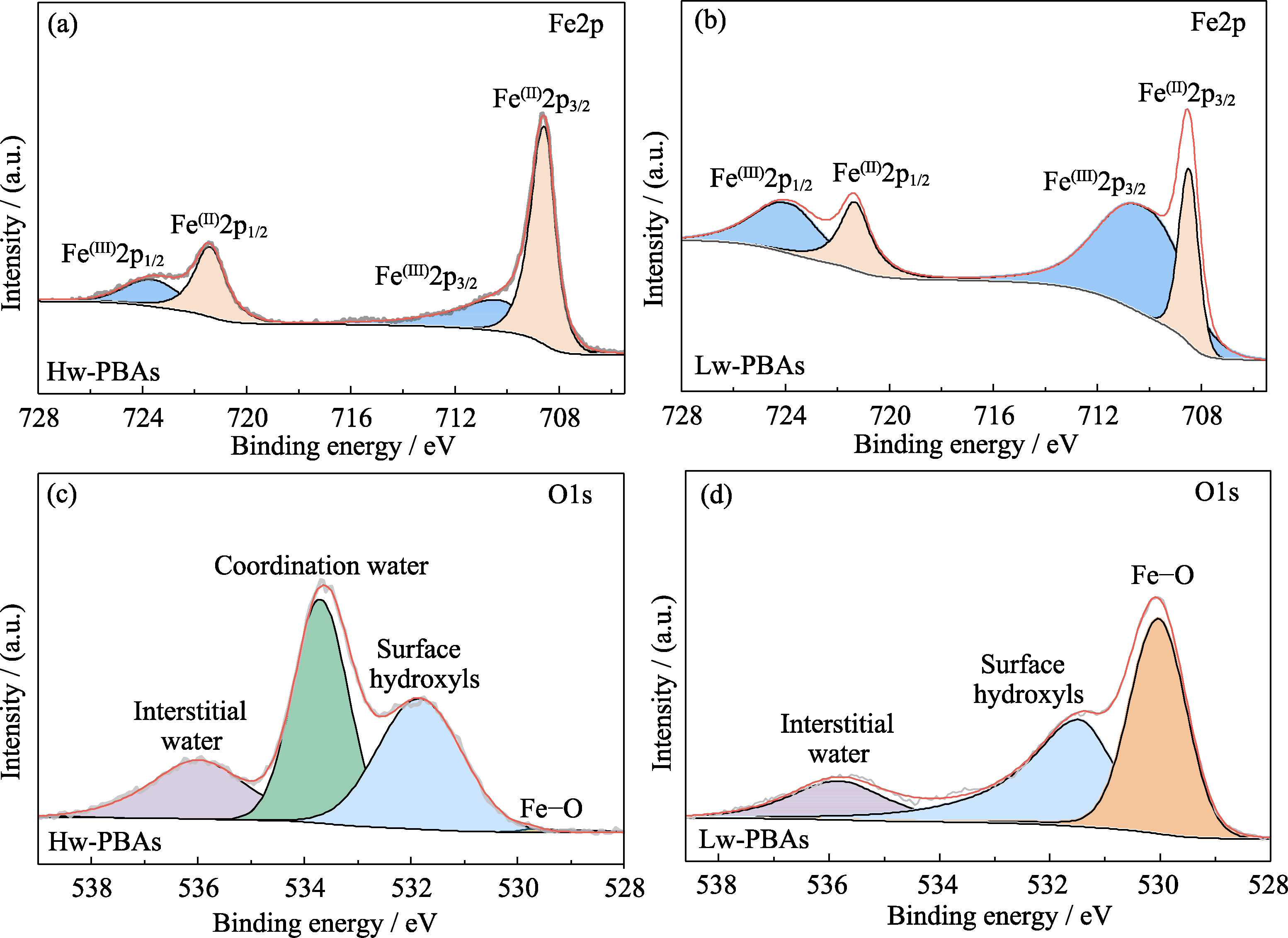

摘要： 与锂离子电池相比,钠离子电池具有低成本、低温性能与安全性更佳等优势,在成本与可靠性敏感的应用领域备受瞩目。高容量、低成本的普鲁士蓝类材料(PBAs)是极具前景的钠离子电池正极材料,但结构中存在的结晶水导致电池性能快速衰减,是限制其应用的瓶颈。本研究提出了一种简便易行的热处理策略,以高效脱除PBAs正极材料中的结晶水,340次循环后的容量保持率由73%提升到88%。利用原位技术揭示了PBAs正极在充放电过程中,晶体结构由三方向立方结构不可逆转变,造成首次库仑效率损失的机制,并针对性地提出在正极中添加Na₂C₂O₄钠补偿剂以解决这一问题。在此基础上,采用高离子电导率、高电化学稳定性的聚乙二醇二丙烯酸酯(PEGDA)准固态电解质,匹配添加Na₂C₂O₄钠补偿剂的低含水量PBAs正极与硬碳(HC)负极,构建了高性能准固态钠离子电池。此类电池在20~500 mA‧g^-1电流密度下,比容量为58~105 mAh‧g^-1,并可稳定循环超过200次。研究表明高效脱除结晶水,可以显著提高PBAs正极的稳定性与比容量。

关键词: 钠离子电池, 准固态电池, 普鲁士蓝正极, 原位分析

Abstract: In comparison to Li-ion batteries, Na-ion batteries offer the benefits of low cost, good low-temperature performance, and safety, attracting great attention in the cost- and reliability-sensitive applications. With high capacity and low cost, Prussian blue-like materials (PBAs) stand as promising cathode materials for Na-ion batteries. However, the presence of crystalline water within their structure induces fast performance decay of the battery, serving as a critical bottleneck limiting their application. This work reports a facile thermal treatment strategy to effectively remove crystalline water from PBAs cathode materials, improving capacity retention from 73% to 88% after 340 cycles. The in-situ analysis uncovers that the initial loss of Coulombic efficiency of PBAs cathode is a result of its irreversible transformation from a trigonal form to cubic phase upon cycling. This issue can be addressed by introducing of Na₂C₂O₄ to compensate the irreversible Na loss in the cathode. On this basis, a high-performance quasi-solid-state Na-ion battery is built by pairing a low-water-content PBAs cathode with Na₂C₂O₄ additive and a hard carbon (HC) anode within a poly(ethylene glycol) diacrylate (PEGDA)-based quasi-solid-state electrolyte with high ionic conductivity and electrochemical stability. This battery exhibits the specific capacities ranging from 58 to 105 mAh‧g^-1 at current densities of 20 to 500 mA‧g^-1, capable of sustaining stable cycling for over 200 cycles. This study underscores the significant improvement in stability and capacity of PBAs anode by the efficient removal of crystalline water in them.

Key words: Na-ion battery, quasi-solid-state battery, Prussian blue cathode, in-situ analysis

中图分类号:

TQ152

王琨鹏, 刘兆林, 林存生, 王治宇. 基于低含水量普鲁士蓝正极的准固态钠离子电池[J]. 无机材料学报, DOI: 10.15541/jim20240063.

WANG Kunpeng, LIU Zhaolin, LIN Cunsheng, WANG Zhiyu. Development of Quasi-solid-state Na-ion Battery Based on Water-minimal Prussian Blue Cathode[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20240063.

参考文献

[1] WANG W L, GANG Y, PENG J, et al. Effect of eliminating water in prussian blue cathode for sodium-ion batteries. Adv. Funct. Mater., 2022, 32(25): 2111727.
[2] MENG X Y, LIU Y Z, WANG Z Y, et al. A quasi-solid-state rechargeable cell with high energy and superior safety enabled by stable redox chemistry of Li₂S in gel electrolyte. Energy Environ. Sci., 2021, 14(4): 2278.
[3] CHE H Y, CHEN S L, XIE Y Y, et al. Electrolyte design strategies and research progress for room-temperature sodium-ion batteries. Energy Environ. Sci., 2017, 10(5): 1075.
[4] LI W K, ZHAO N, BI Z J,et al. Na₃Zr₂Si₂PO₁₂ ceramic electrolytes for Na-ion battery: preparation using spray-drying method and its property. J. Inorg. Mater., 2022, 37(2) : 189.
[5] LI D, LEI C, LAI H, et al. Recent advancements in interface between cathode and garnet solid electrolyte for all solid state Li-ion batteries. J. Inorg. Mater., 2019, 34(7): 694.
[6] KIM K J, BALAISH M, WADAGUCHI M, et al. Solid‐state Li-metal batteries: challenges and horizons of oxide and sulfide solid electrolytes and their interfaces. Adv. Energy Mater., 2021, 11(1): 2002689.
[7] GAO H, GUO B, SONG J, et al. A composite gel-polymer/glass-fiber electrolyte for sodium-ion batteries. Adv. Energy Mater., 2015, 5(9): 1402235.
[8] LIU Y Z, MENG X Y, SHI Y, et al. Long-life quasi-solid-state anode-free batteries enabled by Li compensation coupled interface engineering. Adv. Mater., 2023, 35(42): e2305386.
[9] DU G Y, TAO M L, LI J, et al. Low-operating temperature, high-rate and durable solid-state sodium-ion battery based on polymer electrolyte and prussian blue cathode. Adv. Energy Mater., 2020, 10(5): 1903351.
[10] PENG J, ZHANG W, LIU Q N, et al. Prussian blue analogues for sodium-ion batteries: past, present, and future. Adv. Mater., 2022, 34(15): 2108384.
[11] LU Y H, WANG L, CHENG J G, et al. Prussian blue: a new framework of electrode materials for sodium batteries. Chem. Commun., 2012, 48(52): 6544.
[12] SÅNGELAND C, MOGENSEN R, BRANDELL D, et al. Stable cycling of sodium metal all-solid-state batteries with polycarbonate-based polymer electrolytes. ACS Appl. Poly. Mater., 2019, 1(4): 825.
[13] KIM T, HYEOK AHN S, SONG Y Y, et al. Prussian blue-type sodium-ion conducting solid electrolytes for all solid-state batteries. Angew. Chem. Int. Ed., 2023, 62(42): e202309852.
[14] SONG J, WANG L, LU Y H, et al. Removal of interstitial H₂O in hexacyanometallates for a superior cathode of a sodium-ion battery. J. Am. Chem. Soc., 2015, 137(7): 2658.
[15] LIU Y, FAN S, GAO Y, et al. Isostructural synthesis of iron-based prussian blue analogs for sodium-ion batteries. Small, 2023, 19(43): e2302687.
[16] WANG W, GANG Y, HU Z, et al. Reversible structural evolution of sodium-rich rhombohedral prussian blue for sodium-ion batteries. Nat. Commun., 2020, 11: 980.
[17] YOU Y, YU X Q, YIN Y X, et al. Sodium iron hexacyanoferrate with high Na content as a Na-rich cathode material for Na-ion batteries. Nano Res., 2014, 8(1): 117.
[18] REN W H, QIN M S, ZHU Z X, et al. Activation of sodium storage sites in prussian blue analogues via surface etching. Nano Lett., 2017, 17(8): 4713.
[19] ZHANG H, GAO Y, PENG J, et al. Prussian blue analogues with optimized crystal plane orientation and low crystal defects toward 450βWh?kg^-1 alkali-ion batteries. Angew. Chem. Int. Ed., 2023, 62(27): e202303953.
[20] ZHANG Z H, AVDEEV M, CHEN H C, et al. Lithiated prussian blue analogues as positive electrode active materials for stable non-aqueous lithium-ion batteries. Nat. Commun., 2022, 13: 7790.
[21] JIANG M, HOU Z, MA H, et al. Resolving deactivation of low-spin Fe sites by redistributing electron density toward high-energy sodium storage. Nano Lett., 2023, 23(22): 10423.
[22] TANG Z, ZHANG R, WANG H Y, et al. Revealing the closed pore formation of waste wood-derived hard carbon for advanced sodium-ion battery. Nat. Commun., 2023, 14: 6024.
[23] NIU Y B, GUO Y J, YIN Y X, et al. High-efficiency cathode sodium compensation for sodium-ion batteries. Adv. Mater., 2020, 32(33): e2001419.
