铁电超晶格的研究进展

doi:10.15541/jim20220601

无机材料学报 ›› 2023, Vol. 38 ›› Issue (6): 606-618.DOI: 10.15541/jim20220601

铁电超晶格的研究进展

林俊良¹(), 王占杰²()

1.辽宁大学轻型产业学院, 沈阳 110036
2.沈阳工业大学材料科学与工程学院, 沈阳 110870

收稿日期:2022-10-13 修回日期:2022-11-14 出版日期:2023-02-07 网络出版日期:2023-02-07
通讯作者: 王占杰, 教授. E-mail: wangzj@imr.ac.cn
作者简介:林俊良(1991-), 男, 博士, 讲师. E-mail: jllin14s@163.com
基金资助:
辽宁省教育厅科学研究经费项目(LJKZ0100);辽宁省教育厅科学研究经费项目(LZGD2017005)

Research Progress on Ferroelectric Superlattices

LIN Junliang¹(), WANG Zhanjie²()

1. College of Light Industry, Liaoning University, Shenyang 110036, China
2. School of Materials Sciences and Engineering, Shenyang University of Technology, Shenyang 110870, China

Received:2022-10-13 Revised:2022-11-14 Published:2023-02-07 Online:2023-02-07
Contact: WANG Zhanjie, professor. E-mail: wangzj@imr.ac.cn
About author:LIN Junliang (1991-), male, PhD, lecturer. E-mail: jllin14s@163.com
Supported by:
Scientific Research Fund Project of the Educational Department of Liaoning Province of China(LJKZ0100);Scientific Research Fund Project of the Educational Department of Liaoning Province of China(LZGD2017005)

摘要/Abstract

摘要：

铁电超晶格是由两种或两种以上的铁电材料或非铁电材料在晶胞尺度下交替生长而形成，并具有层状周期性结构的人工薄膜材料。铁电超晶格由于其中存在大量的异质界面, 异常显著的界面效应使其具有优异的铁电、压电、介电和热释电等性能, 甚至表现出其构成材料不具备的新功能特性。铁电超晶格不仅为研究复杂氧化物材料界面电荷和晶格之间的相互作用提供了一个理想的平台, 还将在下一代集成铁电器件中发挥不可或缺的作用。随着制备和表征手段不断进步, 研究人员能够在原子尺度上设计和调控铁电超晶格的微结构和化学成分以提高铁电超晶格的功能特性。铁电极化是铁电薄膜材料最基本的性质, 除了用于信息存储, 还在调节集成铁电器件(如压电器件、光伏器件和电热器件)的能量转换性能方面也发挥着重要作用。因此, 铁电超晶格的铁电极化强度的大小直接决定了由其构成的集成铁电器件的功能特性和实际应用价值。本文首先介绍了铁电超晶格的结构特征、分类以及几种典型的功能特性, 然后结合近期的研究结果重点阐述了影响铁电超晶格极化性能的几种因素, 包括应变效应、静电耦合效应、缺陷效应和周期厚度等, 最后展望了铁电超晶格的未来研究方向, 以期为该领域的研究提供参考。

关键词: 超晶格, 应变效应, 静电耦合效应, 界面效应, 铁电性能, 综述

Abstract:

Ferroelectric superlattices are artificial film materials with layered periodic structure formed by an alternate growth of two or more ferroelectric materials or non-ferroelectric materials at unit cell scale. Ferroelectric superlattices can exhibit excellent ferroelectric, piezoelectric, dielectric, and pyroelectric properties due to the existence of a large number of heterogeneous interfaces and the remarkable interface effect, and even show new functional properties that are not available in their constituent materials. Therefore, ferroelectric superlattices not only provide an ideal platform for studying interactions between charges and lattices at the interface of complex oxide materials, but also play an indispensable role in the next generation of integrated ferroelectric devices. With the development of preparation and characterization methods, researchers can design and control the microstructure and chemical composition at atomic scale to improve the functional properties of ferroelectric superlattice thin films. Ferroelectric polarization is the most basic property of ferroelectric film materials. In addition to being used for information storage devices, ferroelectric polarization also plays an important role in regulating the energy conversion performance of integrated ferroelectric devices such as piezoelectric devices, photovoltaic devices and electrocaloric devices. Therefore, the ferroelectric polarization intensity of ferroelectric superlattices directly determines their functional characteristics and practical application value of integrated ferroelectric devices composed of them. In this short review paper, we firstly introduced the structural characteristics, classification and several typical functional characteristics of ferroelectric superlattices, and then focused on several factors affecting the polarization performance of ferroelectric superlattices based on recent research results, including strain effect, electrostatic coupling effect, defect effect, and period thickness. Finally, we looked forward to the future research directions in ferroelectric superlattices to provide reference for the research in this field.

Key words: superlattice, strain effect, electrostatic coupling effect, interface effect, ferroelectric property, review

中图分类号:

O484

林俊良, 王占杰. 铁电超晶格的研究进展[J]. 无机材料学报, 2023, 38(6): 606-618.

LIN Junliang, WANG Zhanjie. Research Progress on Ferroelectric Superlattices[J]. Journal of Inorganic Materials, 2023, 38(6): 606-618.

图/表 9

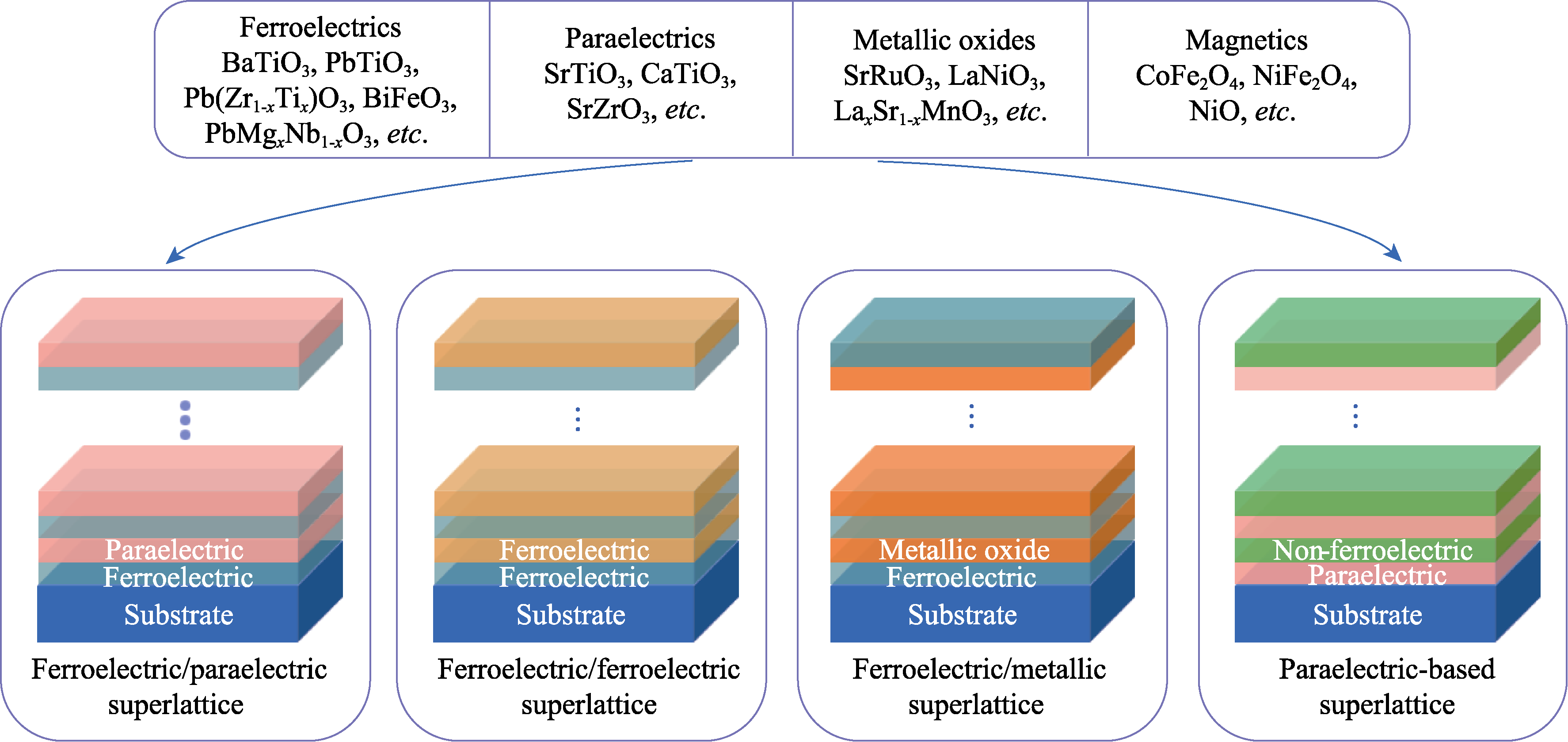

图1 铁电超晶格的组成分类示意图

Fig. 1 Schematic diagram of composition classifications of ferroelectric superlattices

图2 铁电/顺电超晶格中发现的极化拓扑结构示意图[28]

Fig. 2 Schematic diagrams of topological polar structures found in ferroelectric/paraelectric superlattices[28] (a, b) Maps of the polar atomic displacement vectors showing the flux-closure array in the PbTiO3 layer; (c) Schematics of four newly identified topological polar structures in ferroelectric films

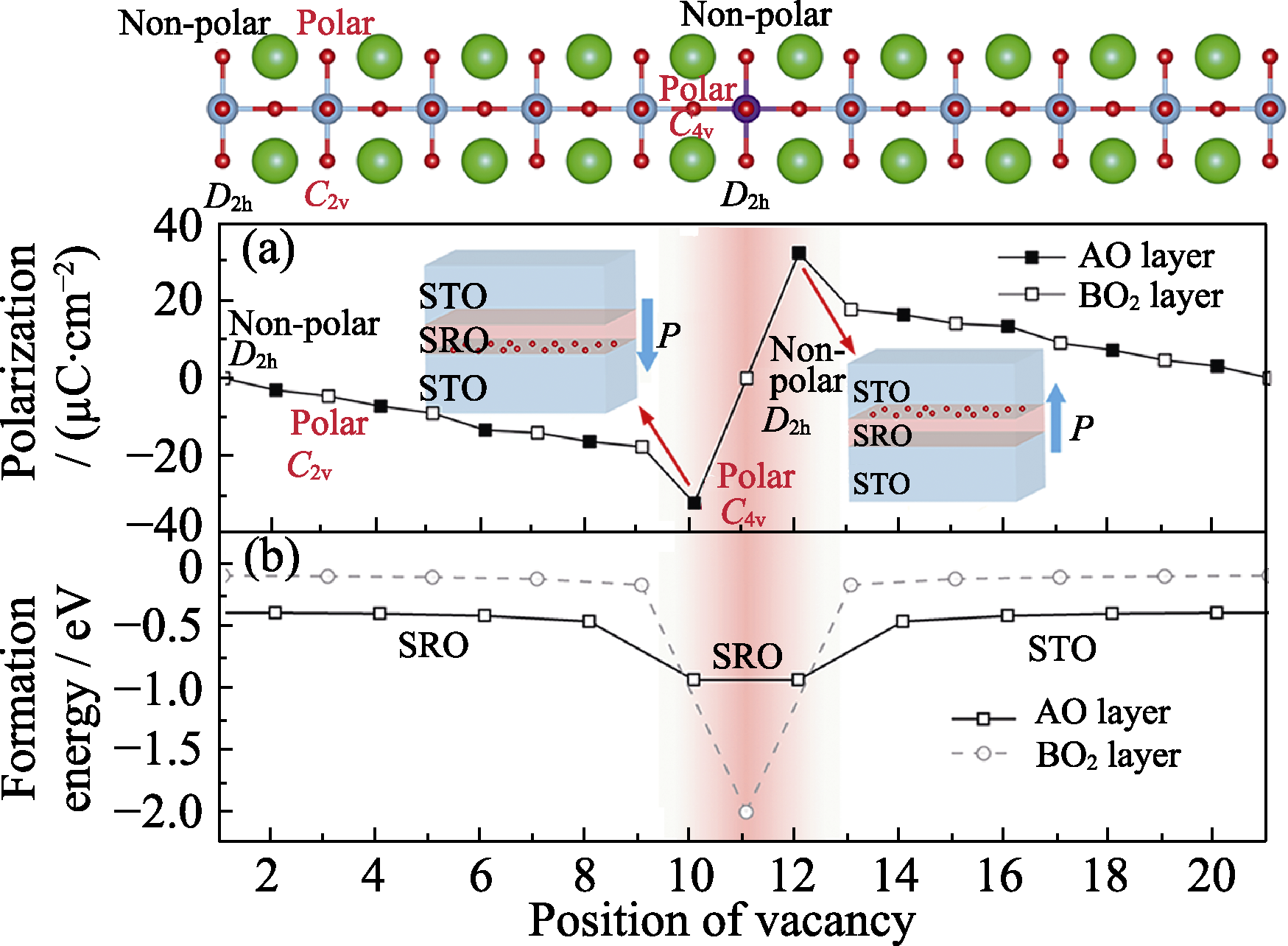

图3 (SrTiO3)9/(SrRuO3)1超晶格中氧空位存在时不同位置的极化强度和氧空位形成能的第一性原理计算结果[56]

Fig. 3 Position dependence of average net polarization and oxygen vacancy formation energy calculated from the first principles when an oxygen vacancy is introduced into the (SrTiO3)9/(SrRuO3)1 superlattice[56] (a) Average net polarization; (b) Oxygen vacancy formation energy

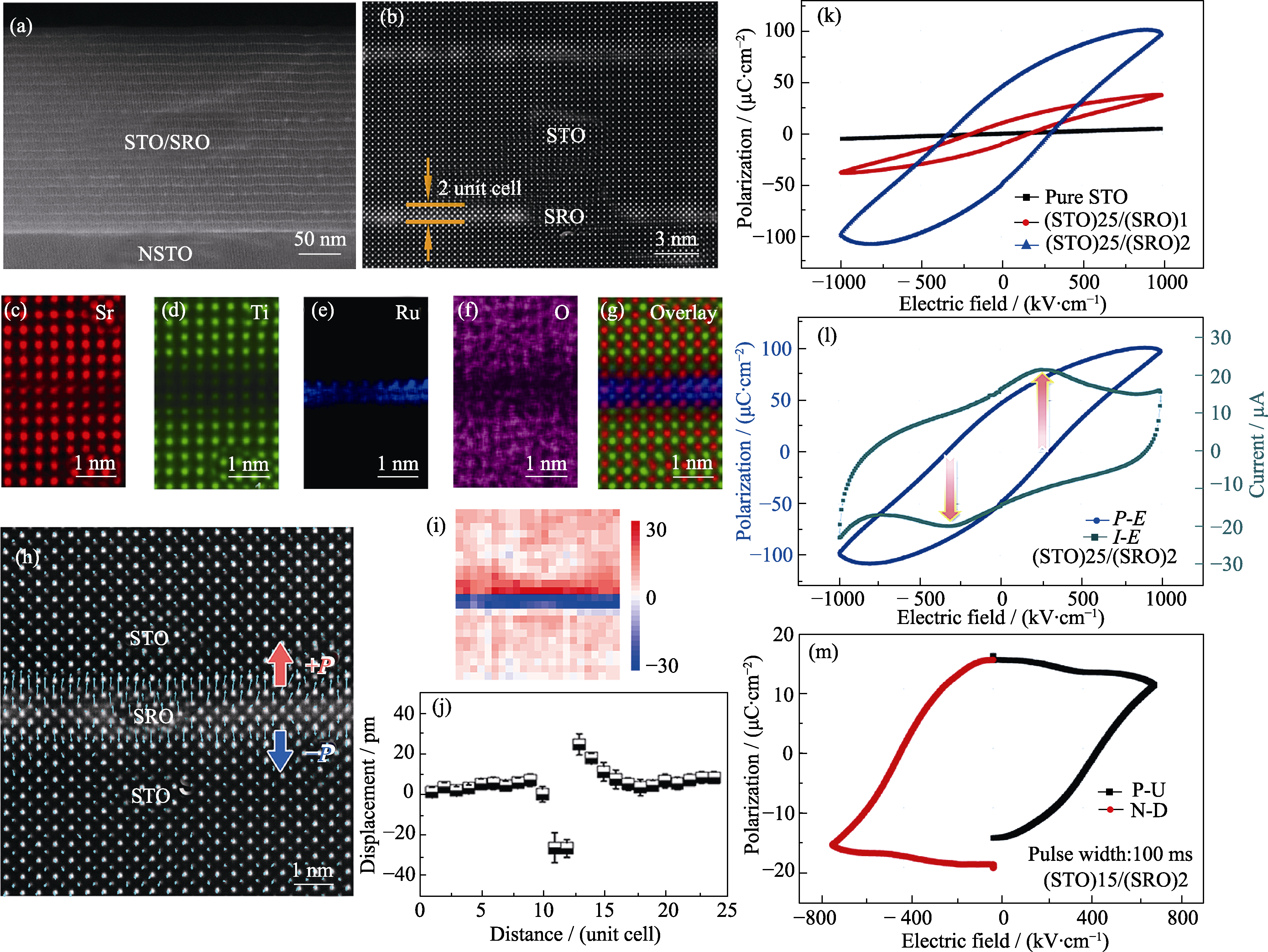

图4 (SrTiO3)25/(SrRuO3)2超晶格的STEM图像和铁电性能表征结果[59]

Fig. 4 STEM images and ferroelectric properties of the (SrTiO3)25/(SrRuO3)2 superlattice[59] (a, b) Low-magnification and high-magnification HAADF-STEM images; (c-g) Atomically resolved EDS mappings; (h-j) Polar vector distribution; (k-m) Ferroelectric properties

图5 BaTiO3/SrTiO3/CaTiO3三色铁电超晶格[10]

Fig. 5 BaTiO3/SrTiO3/CaTiO3 tricolor superlattices[10] (a) Cross-sectional atomic number (Z)-contrast scanning transmission electron microscopy (Z-STEM) image and atomic structure diagram; (b, c) P-E hysteresis loops, lattice constants and polarizations with different period thicknesses Colorful figures are available on website

图6 (BaTiO3)n/(SrTiO3)n超晶格的周期厚度与极化性能的关系[90]

Fig. 6 Polarization properties of the (BaTiO3)n/(SrTiO3)n superlattices under different period thicknesses[90] (a) BaTiO3 c-axis parameter and remnant polarization as a function of the number (n) of unit cells in (BaTiO3)n/(SrTiO3)n superlattice; (b) Remnant polarization as a function of the c-axis parameter of BaTiO3; (c) Sketch of possible ferroelectric domains with different superlattice period thicknesses 1 Å = 0.1 nm

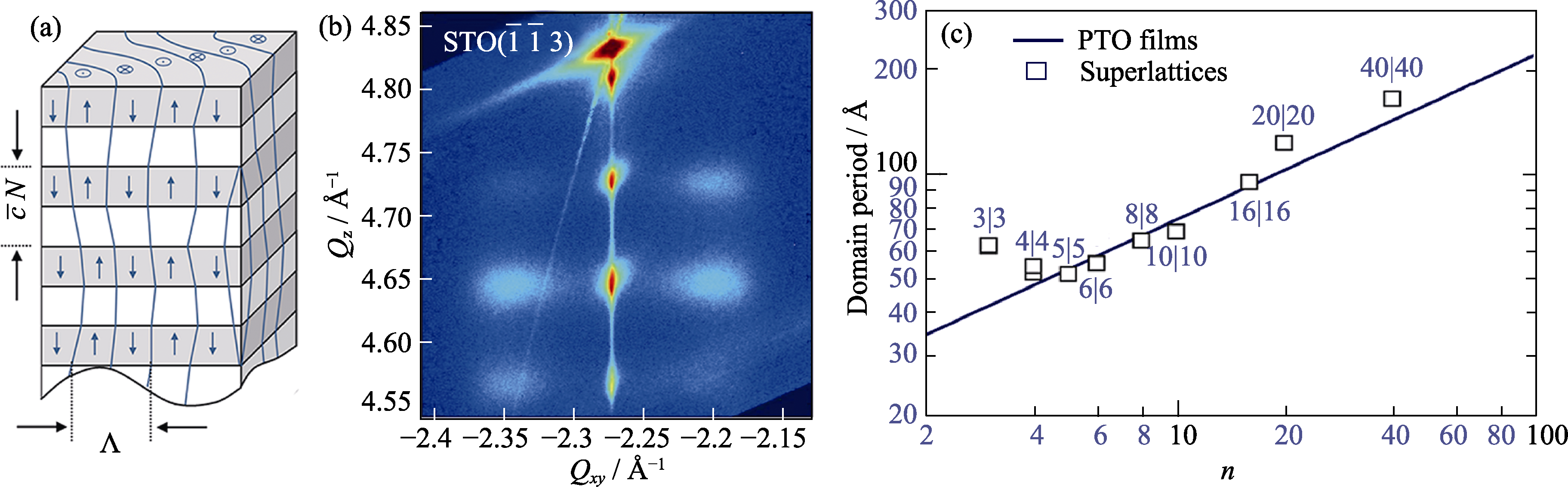

图7 (PbTiO3)n/(SrTiO3)n超晶格中的180°铁电畴结构[95]

Fig. 7 180° domain structures in the (PbTiO3)n/(SrTiO3)n superlattices[95] (a) Schematic diagram of the 180° domain structure; (b) Reciprocal space map; (c) Domain periodicities along the [100] direction as a function of PbTiO3 layer thickness 1 Å = 0.1 nm

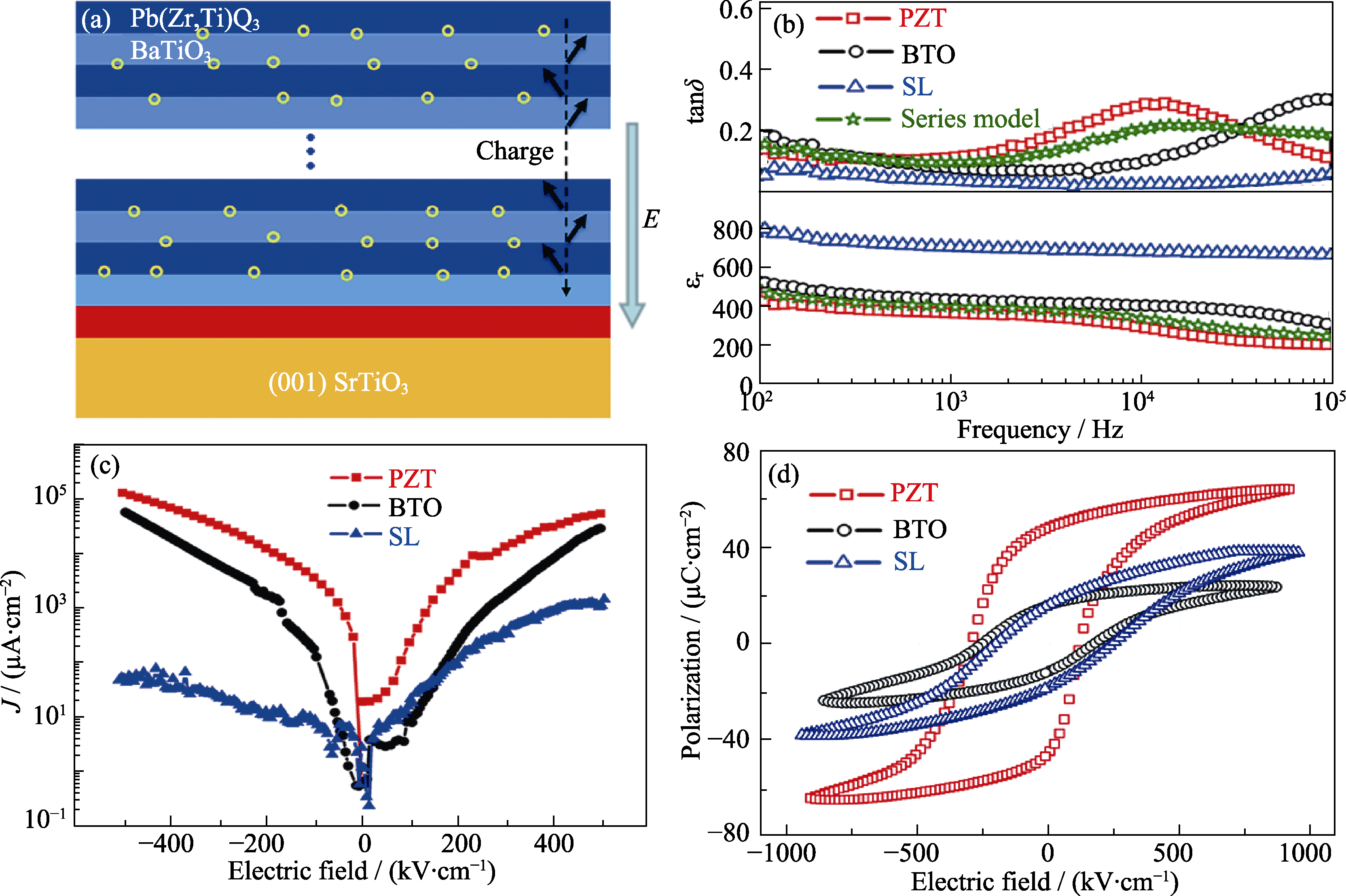

图8 BaTiO3/Pb(Zr0.52Ti0.48)O3铁电超晶格的电学性能[9]

Fig. 8 Electrical properties of the BaTiO3/Pb(Zr0.52Ti0.48)O3 ferroelectric superlattice[9] (a) Schematic diagram of space charges accumulation; (b) Dielectric properties; (c) Leakage current curves; (d) P-E hysteresis loops

图9 具有不同导电层厚度的BaTiO3/LaNiO3超晶格[61]和PbZr0.52Ti0.48O3/SrRuO3超晶格[62]

Fig. 9 BaTiO3/LaNiO3[61] and PbZr0.52Ti0.48O3/SrRuO3[62] superlattices with different metallic layer thicknesses (a, b) P-E hysteresis loops and leakage current curves of the BaTiO3/LaNiO3 superlattices with different LaNiO3 thicknesses; (c) TEM, (d) HRTEM images and (e) P-E hysteresis loops of the PbZr0.52Ti0.48O3/SrRuO3 superlattices with different SrRuO3 thicknesses Colorful figures are available on website

参考文献 104

[1]	MARTIN L W, RAPPE A M. Thin-film ferroelectric materials and their applications. Nature Reviews Materials, 2016, 2(2):16087. DOI
[2]	WANG Z J, BAI Y. Resistive switching behavior in ferroelectric heterostructures. Small, 2019, 15(32):1805088. DOI URL
[3]	KIM J Y, CHOI M J, JANG H W. Ferroelectric field effect transistors: progress and perspective. APL Materials, 2021, 9(2):021102. DOI URL
[4]	LEE Y C, TSAI C C, LI C Y, et al. Fabrication and function examination of PZT-based MEMS accelerometers. Ceramics International, 2021, 47(17):24458. DOI URL
[5]	RAMESH R, SCHLOM D G. Creating emergent phenomena in oxide superlattices. Nature Reviews Materials, 2019, 4: 257. DOI
[6]	DAWBER M, BOUSQUET E. New developments in artificially layered ferroelectric oxide superlattices. MRS Bulletin, 2013, 38(12):1048. DOI URL
[7]	TENNE D A, BRUCHHAUSEN A, LANZILLOTTI-KIMURA N D, et al. Probing nanoscale ferroelectricity by ultraviolet Raman spectroscopy. Science, 2006, 313(5793):1614. PMID
[8]	SEO S S A, LEE J H, LEE H N, et al. Ferroelectricity in artificial bicolor oxide superlattices. Advanced Materials, 2007, 19(18):2460. DOI URL
[9]	HE B, WANG Z. Enhancement of the electrical properties in BaTiO₃/PbZr_0.52Ti_0.48O₃ ferroelectric superlattices. ACS Applied Materials & Interfaces, 2016, 8(10):6736.
[10]	LEE H N, CHRISTEN H M, CHISHOLM M F, et al. Strong polarization enhancement in asymmetric three-component ferroelectric superlattices. Nature, 2005, 433(7024):395. DOI
[11]	HONG L, WU P, LI Y, et al. Piezoelectric enhancement of (PbTiO₃)_m/(BaTiO₃)_n ferroelectric superlattices through domain engineering. Physical Review B, 2014, 90(17):174111. DOI URL
[12]	WANG Z, CAO H, LIU Q, et al. The enhanced ferroelectricity in Sr_1-_δTiO₃/BaTiO₃superlattices with Sr deficiency. Journal of Physics D: Applied Physics, 2020, 53(31):314004. DOI URL
[13]	BOUSQUET E, DAWBER M, STUCKI N, et al. Improper ferroelectricity in perovskite oxide artificial superlattices. Nature, 2008, 452(7188):732. DOI
[14]	XU B, WANG D, ZHAO H J, et al. Hybrid improper ferroelectricity in multiferroic superlattices: finite-temperature properties and electric-field-driven switching of polarization and magnetization. Advanced Functional Materials, 2015, 25(24):3626. DOI URL
[15]	RAVICHANDRAN J, YADAV A K, CHEAITO R, et al. Crossover from incoherent to coherent phonon scattering in epitaxial oxide superlattices. Nature Materials, 2014, 13(2):168. DOI PMID
[16]	CAO Y, WANG Z, PARK S Y, et al. Artificial two-dimensional polar metal at room temperature. Nature Communications, 2018, 9(1):1547. DOI PMID
[17]	YE M, HU S, ZHU Y, et al. Electric polarization switching on an atomically thin metallic oxide. Nano Letters, 2021, 21(1):144. DOI PMID
[18]	NIRANJAN M K, WANG Y, JASWAL S S, et al. Prediction of a switchable two-dimensional electron gas at ferroelectric oxide interfaces. Physical Review Letters, 2009, 103(1):016804. DOI URL
[19]	VERISSIMO-ALVES M, GARCIA-FERNANDEZ P, BILC D I, et al. Highly confined spin-polarized two-dimensional electron gas in SrTiO₃/SrRuO₃ superlattices. Physical Review Letters, 2012, 108(10):107003. DOI URL
[20]	OHTA H, KIM S, MUNE Y, et al. Giant thermoelectric Seebeck coefficient of a two-dimensional electron gas in SrTiO₃. Nature Materials, 2007, 6(2):129. PMID
[21]	ZHOU P X, LIU H M, YAN Z B, et al. Magnetic properties and electronic structures of (YTiO₃)₂/(BaTiO₃)_n superlattices. Journal of Applied Physics, 2014, 115(17): 17D710.
[22]	ZUBKO P, WOJDEŁ J C, HADJIMICHAEL M, et al. Negative capacitance in multidomain ferroelectric superlattices. Nature, 2016, 534(7608):524. DOI
[23]	GAO W, KHAN A, MARTI X, et al. Room-temperature negative capacitance in a ferroelectric-dielectric superlattice heterostructure. Nano Letters, 2014, 14(10):5814. DOI PMID
[24]	GRAF M, ARAMBERRI H, ZUBKO P, et al. Giant voltage amplification from electrostatically induced incipient ferroelectric states. Nature Materials, 2022, 21(11):1252. DOI PMID
[25]	YADAV A K, NELSON C T, HSU S L, et al. Observation of polar vortices in oxide superlattices. Nature, 2016, 530(7589):198. DOI
[26]	HONG Z, CHEN L Q. Switchable polar spirals in tricolor oxide superlattices. Acta Materialia, 2019, 164:493. DOI
[27]	DAS S, TANG Y L, HONG Z, et al. Observation of room- temperature polar skyrmions. Nature, 2019, 568(7752):368. DOI
[28]	TANG Y L, ZHU Y L, MA X L. Topological polar structures in ferroelectric oxide films. Journal of Applied Physics, 2021, 129(20):200904. DOI URL
[29]	HONG Z, DAMODARAN A R, XUE F, et al. Stability of polar vortex lattice in ferroelectric superlattices. Nano Letters, 2017, 17(4):2246. DOI PMID
[30]	JANG H W, KUMAR A, DENEV S, et al. Ferroelectricity in strain-free SrTiO₃ thin films. Physical Review Letters, 2010, 104(19):197601. DOI URL
[31]	LUO B, WANG X, TIAN E, et al. Electronic structure, optical and dielectric properties of BaTiO₃/CaTiO₃/SrTiO₃ ferroelectric superlattices from first-principles calculations. Journal of Materials Chemistry C, 2015, 3(33):8625. DOI URL
[32]	TABATA H, TANAKA H, KAWAI T. Formation of artificial BaTiO₃/SrTiO₃ superlattices using pulsed laser deposition and their dielectric properties. Applied Physics Letters, 1994, 65(15): 1970. DOI URL
[33]	DAS S, HONG Z, MCCARTER M, et al. A new era in ferroelectrics. APL Materials, 2020, 8(12):120902. DOI URL
[34]	DAS S, GHOSH A, MCCARTER M R, et al. Perspective: emergent topologies in oxide superlattices. APL Materials, 2018, 6(10):100901. DOI URL
[35]	BENYOUSSEF M, BELHADI J, LAHMAR A, et al. Tailoring the dielectric and energy storage properties in BaTiO₃/BaZrO₃ superlattices. Materials Letters, 2019, 234: 279. DOI URL
[36]	SUN Z, MA C, LIU M, et al. Ultrahigh energy storage performance of lead-free oxide multilayer film capacitors via interface engineering. Advanced Materials, 2017, 29(5):1604427. DOI URL
[37]	ARAMBERRI H, FEDOROVA N S, INIGUEZ J. Ferroelectric/ paraelectric superlattices for energy storage. Science Advances, 2022, 8(31):eabn4880. DOI URL
[38]	YUN Y, MUHLENBEIN L, KNOCHE D S, et al. Strongly enhanced and tunable photovoltaic effect in ferroelectric- paraelectric superlattices. Science Advances, 2021, 7(23):eabe4206. DOI URL
[39]	JI Y, CHEN W J, ZHENG Y. The emergence of tunable negative electrocaloric effect in ferroelectric/paraelectric superlattices. Journal of Physics D: Applied Physics, 2020, 53(50):505302. DOI
[40]	LIN J L, WANG Z J, ZHAO X, et al. Microstructures and ferroelectric properties of PbTiO₃/PbZrO₃ superlattices deposited by pulse laser deposition. Ceramics International, 2018, 44(17):20664. DOI URL
[41]	CHOI T, LEE J. Structural and dielectric properties of artificial PbZrO₃/PbTiO₃ superlattices grown by pulsed laser deposition. Thin Solid Films, 2005, 475(1/2):283. DOI URL
[42]	BASTANI Y, BASSIRI-GHARB N. Enhanced dielectric and piezoelectric response in PZT superlattice-like films by leveraging spontaneous Zr/Ti gradient formation. Acta Materialia, 2012, 60(3):1346. DOI URL
[43]	VREJOIU I, ZHU Y, LE RHUN G, et al. Structure and properties of epitaxial ferroelectric PbZr_0.4Ti_0.6O₃/PbZr_0.6Ti_0.4O₃ superlattices grown on SrTiO₃ (001) by pulsed laser deposition. Applied Physics Letters, 2007, 90(7):072909. DOI URL
[44]	LUPI E, GHOSH A, SAREMI S, et al. Large polarization and susceptibilities in artificial morphotropic phase boundary PbZr_1-_xTi_xO₃ superlattices. Advanced Electronic Materials, 2020, 6(3):1901395. DOI URL
[45]	LU Y. Dielectric and ferroelectric behaviors in Pb(Mg_1/3Nb_2/3)O₃- PbTiO₃ rhombohedral/tetragonal superlattices. Applied Physics Letters, 2004, 85(6):979. DOI URL
[46]	LIN Q, WANG D, CHEN Z, et al. Periodicity dependence of the built-in electric field in (Ba_0.7Ca_0.3)TiO₃/Ba(Zr_0.2Ti_0.8)O₃ ferroelectric superlattices. ACS Applied Materials & Interfaces, 2015, 7(47):26301.
[47]	KANNO I, HAYASHI S, TAKAYAMA R, et al. Superlattices of PbZrO₃ and PbTiO₃ prepared by multi-ion-beam sputtering. Applied Physics Letters, 1996, 68(3):328. DOI URL
[48]	LIANG Y C, LIANG Y C. Effects of substrate temperature on the physical properties of strained BaTiO₃/LaNiO₃ artificial superlattices. Journal of Crystal Growth, 2005, 285(3):345. DOI URL
[49]	TSENG J Y, WU T B. Dielectric enhancement in (001)-textured BaTiO₃/LaNiO₃superlattice. Materials Chemistry and Physics, 2004, 88(2/3):433. DOI URL
[50]	XIA J, SIEMONS W, KOSTER G, et al. Critical thickness for itinerant ferromagnetism in ultrathin films of SrRuO₃. Physical Review B, 2009, 79(14):140407(R). DOI URL
[51]	SCHERWITZL R, GARIGLIO S, GABAY M, et al. Metal- insulator transition in ultrathin LaNiO₃ films. Physical Review Letters, 2011, 106(24):246403. DOI URL
[52]	LIAO Z, LI F, GAO P, et al. Origin of the metal-insulator transition in ultrathin films of La_2/3Sr_1/3MnO₃. Physical Review B, 2015, 92(11):125123. DOI URL
[53]	CALLORI S J, GABEL J, SU D, et al. Ferroelectric PbTiO₃/ SrRuO₃ superlattices with broken inversion symmetry. Physical Review Letters, 2012, 109(6):067601. DOI URL
[54]	ROWLEY S E, SPALEK L J, SMITH R P, et al. Ferroelectric quantum criticality. Nature Physics, 2014, 10(5):367. DOI
[55]	YIN L H, SHI T F, ZHANG R R, et al. Electric dipoles via Cr³⁺(d³) ion off-center displacement in perovskite DyCrO₃. Physical Review B, 2018, 98(5):054301. DOI URL
[56]	HE R, LIN J L, LIU Q, et al. Emergent ferroelectricity in otherwise nonferroelectric oxides by oxygen vacancy design at heterointerfaces. ACS Applied Materials & Interfaces, 2020, 12(40):45602.
[57]	TSURUMI T, HARIGAI T, TANAKA D, et al. Artificial ferroelectricity in perovskite superlattices. Applied Physics Letters, 2004, 85(21):5016. DOI URL
[58]	YANG K, WANG C, LI J, et al. Structural and polarization properties of short-period SrZrO₃/SrTiO₃superlattices. Physical Review B, 2007, 75(22):224117. DOI URL
[59]	LIN J L, SUN Y, HE R, et al. Colossal room-temperature ferroelectric polarizations in SrTiO₃/SrRuO₃ superlattices induced by oxygen vacancies. Nano Letters, 2022, 22(17):7104. DOI URL
[60]	STARSCHICH S, MENZEL S, BÖTTGER U. Evidence for oxygen vacancies movement during wake-up in ferroelectric hafnium oxide. Applied Physics Letters, 2016, 108(3):032903. DOI URL
[61]	LIN J L, WANG Z J, ZHAO X, et al. Significantly enhanced ferroelectric and dielectric properties in BaTiO₃/LaNiO₃ superlattices. Scripta Materialia, 2020, 179: 102. DOI URL
[62]	LIN J L, WANG Z J, ZHAO X, et al. Effect of SrRuO₃ layer thickness on electrical properties of Pb(Zr_0.52Ti_0.48)O₃/SrRuO₃ superlattices. Ceramics International, 2020, 46(7):9328. DOI URL
[63]	O’NEILL D, BOWMAN R M, GREGG J M. Dielectric enhancement and Maxwell-Wagner effects in ferroelectric superlattice structures. Applied Physics Letters, 2000, 77(10):1520. DOI URL
[64]	DARINSKII B M, SIDORKIN A S, SIGOV A S. Influence of misfit stresses on the dielectric permeability of ferroelectric superlattices BaTiO₃/BaZrO₃. Nanocomposites, 2021, 7(1):154. DOI URL
[65]	CHEN M J, NING X K, WANG S F, et al. Enhanced polarization and dielectricity in BaTiO₃:NiO nanocomposite films modulated by the microstructure. RSC Advances, 2017, 7(61):38231. DOI URL
[66]	OKATAN M B, MISIRLIOGLU I B, ALPAY S P. Contribution of space charges to the polarization of ferroelectric superlattices and its effect on dielectric properties. Physical Review B, 2010, 82(9):094115. DOI URL
[67]	HADJIMICHAEL M, LI Y, YEDRA L, et al. Domain structure and dielectric properties of metal-ferroelectric superlattices with asymmetric interfaces. Physical Review Materials, 2020, 4(9):094415. DOI URL
[68]	PETROV P K, ZOU B, WANG Y, et al. STO/BTO modulated superlattice multilayer structures with atomically sharp interfaces. Advanced Materials Interfaces, 2014, 1(3):1300116. DOI URL
[69]	KANNO I. Piezoelectric MEMS: ferroelectric thin films for MEMS applications. Japanese Journal of Applied Physics, 2018, 57(4):040101. DOI URL
[70]	SINSHEIMER J, CALLORI S J, BEIN B, et al. Engineering polarization rotation in a ferroelectric superlattice. Physical Review Letters, 2012, 109(16):167601. DOI URL
[71]	COOPER V R, RABE K M. Enhancing piezoelectricity through polarization-strain coupling in ferroelectric superlattices. Physical Review B, 2009, 79(18):180101(R). DOI URL
[72]	SHARMA N D, LANDIS C M, SHARMA P. Piezoelectric thin- film superlattices without using piezoelectric materials. Journal of Applied Physics, 2010, 108(2):024304. DOI URL
[73]	JIN C, GENG W, WANG L, et al. Tuning ferroelectricity and ferromagnetism in BiFeO₃/BiMnO₃ superlattices. Nanoscale, 2020, 12(17):9810. DOI URL
[74]	GUO M, TAN G, YANG W, et al. Resistive switching and ferroelectric properties in BiFeO₃ superlattice films. Materials Letters, 228: 13. DOI URL
[75]	CUI Z, GRUTTER A J, ZHOU H, et al. Correlation-driven eightfold magnetic anisotropy in a two-dimensional oxide monolayer. Science Advances, 2020, 6(15):eaay0114. DOI URL
[76]	JEONG S G, HAN G, SONG S, et al. Propagation control of octahedral tilt in SrRuO₃ via artificial heterostructuring. Advanced Science, 2020: 2001643.
[77]	GU M, XIE Q, SHEN X, et al. Magnetic ordering and structural phase transitions in a strained ultrathin SrRuO₃/SrTiO₃ superlattice. Physical Review Letters, 2012, 109(15):157003. DOI URL
[78]	GARCÍA-FERNÁNDEZ P, VERISSIMO-ALVES M, BILC D I, et al. First-principles modeling of the thermoelectric properties of SrTiO₃/SrRuO₃superlattices. Physical Review B, 2012, 86(8):085305. DOI URL
[79]	CHOI K J. Enhancement of ferroelectricity in strained BaTiO₃ thin films. Science, 2004, 306(5698):1005. DOI URL
[80]	SCHLOM D G, CHEN L Q, EOM C B, et al. Strain tuning of ferroelectric thin films. Annual Review of Materials Research, 2007, 37(1):589. DOI URL
[81]	WARUSAWITHANA M P, KENGLE C S, ZHAN X, et al. Asymmetric ferroelectricity by design in atomic-layer superlattices with broken inversion symmetry. Physical Review B, 2021, 104(8):085103. DOI URL
[82]	HWANG J, FENG Z, CHARLES N, et al. Tuning perovskite oxides by strain: electronic structure, properties, and functions in (electro)catalysis and ferroelectricity. Materials Today, 2019, 31: 100. DOI URL
[83]	ZHU Z Y, WANG S Q, FU Y M. First-principles study of properties of strained PbTiO₃/KTaO₃ superlattice. Chinese Physics Letters, 2016, 33(2):026302. DOI URL
[84]	RONDINELLI J M, FENNIE C J. Octahedral rotation-induced ferroelectricity in cation ordered perovskites. Advanced Materials, 2012, 24(15): 1961. DOI URL
[85]	AGUADO-PUENTE P, GARCIA-FERNANDEZ P, JUNQUERA J. Interplay of couplings between antiferrodistortive, ferroelectric, and strain degrees of freedom in monodomain PbTiO₃/SrTiO₃ superlattices. Physical Review Letters, 2011, 107(21):217601. DOI URL
[86]	NAKHMANSON S M, RABE K M, VANDERBILT D. Polarization enhancement in two- and three-component ferroelectric superlattices. Applied Physics Letters, 2005, 87(10):102906. DOI URL
[87]	CHEN B, GAUQUELIN N, STRKALJ N, et al. Signatures of enhanced out-of-plane polarization in asymmetric BaTiO₃ superlattices integrated on silicon. Nature Communications, 2022, 13(1):265. DOI
[88]	ORTEGA N, KUMAR A, RESTO O, et al. Compositional engineering of BaTiO₃/(Ba,Sr)TiO₃ ferroelectric superlattices. Journal of Applied Physics, 2013, 114(10):104102. DOI URL
[89]	BOLDYREVA K, PINTILIE L, LOTNYK A, et al. Thickness- driven antiferroelectric-to-ferroelectric phase transition of thin PbZrO₃ layers in epitaxial PbZrO₃/Pb(Zr_0.8Ti_0.2)O₃ multilayers. Applied Physics Letters, 2007, 91(12):122915. DOI URL
[90]	KHESTANOVA E, DIX N, FINA I, et al. Untangling electrostatic and strain effects on the polarization of ferroelectric superlattices. Advanced Functional Materials, 2016, 26(35):6446. DOI URL
[91]	LIM K G, CHEW K H, WANG D Y, et al. Charge compensation phenomena for polarization discontinuities in ferroelectric superlattices. Europhysics Letters, 2014, 108(6):67011. DOI URL
[92]	CHEW K H, LIM K G, ONG L H. Polarization discontinuity and interface charges in ferroelectric superlattices. Ferroelectrics, 2016, 490(1):149. DOI URL
[93]	WU X, RABE K M, VANDERBILT D. Interfacial enhancement of ferroelectricity in CaTiO₃/BaTiO₃superlattices. Physical Review B, 2011, 83(2):020104(R). DOI URL
[94]	SEO S S A, LEE H N. Strain-coupled ferroelectric polarization in BaTiO₃-CaTiO₃ superlattices. Applied Physics Letters, 2009, 94(23):232904. DOI URL
[95]	ZUBKO P, JECKLIN N, TORRES-PARDO A, et al. Electrostatic coupling and local structural distortions at interfaces in ferroelectric/paraelectric superlattices. Nano Letters, 2012, 12(6):2846. DOI PMID
[96]	AIDHY D S, RAWAT K. Coupling between interfacial strain and oxygen vacancies at complex-oxides interfaces. Journal of Applied Physics, 2021, 129(17):171102. DOI URL
[97]	LI W, ZHAO R, TANG R, et al. Vertical-interface-manipulated conduction behavior in nanocomposite oxide thin films. ACS Applied Materials & Interfaces, 2014, 6(8):5356.
[98]	LIU Y, ZHU Y L, TANG Y L, et al. Local enhancement of polarization at PbTiO₃/BiFeO₃ interfaces mediated by charge transfer. Nano Letters, 2017, 17(6):3619. DOI URL
[99]	LIN J L, HE R, LU Z, et al. Oxygen vacancy enhanced ferroelectricity in BTO:SRO nanocomposite films. Acta Materialia, 2020, 199: 9. DOI URL
[100]	COOPER V R, JOHNSTON K, RABE K M. Polarization enhancement in short period superlattices via interfacial intermixing. Physical Review B, 2007, 76(2):020103(R). DOI URL
[101]	PERTSEV N A, TYUNINA M. Interfacial nanolayers and permittivity of ferroelectric superlattices. Journal of Applied Physics, 2011, 109(12):126101. DOI URL
[102]	HUNG C L, CHUEH Y L, WU T B, et al. Characteristics of constrained ferroelectricity in PbZrO₃/BaZrO₃ superlattice films. Journal of Applied Physics, 2005, 97(3):034105. DOI URL
[103]	ISHIBASHI Y, OHASHI N, TSURUMI T. Structural refinement of X-ray diffraction profile for artificial superlattices. Japanese Journal of Applied Physics, 2000, 39(1):186. DOI
[104]	KAN D, ASO R, SATO R, et al. Tuning magnetic anisotropy by interfacially engineering the oxygen coordination environment in a transition metal oxide. Nature Materials, 2016, 15(4):432. DOI PMID
