高储能密度聚合物基多层复合电介质的研究进展

doi:10.15541/jim20220343

无机材料学报 ›› 2023, Vol. 38 ›› Issue (2): 137-147.DOI: 10.15541/jim20220343 CSTR: 32189.14.10.15541/jim20220343

所属专题：【信息功能】介电、铁电、压电材料（202409）

高储能密度聚合物基多层复合电介质的研究进展

谢兵¹(), 蔡金峡¹, 王铜铜¹, 刘智勇¹, 姜胜林², 张海波³

1.南昌航空大学材料科学与工程学院, 南昌 330063
2.华中科技大学光学与电子信息学院, 武汉 430074
3.华中科技大学材料科学与工程学院, 武汉 430074

收稿日期:2022-06-19 修回日期:2022-09-21 出版日期:2023-02-20 网络出版日期:2022-10-28
作者简介:谢兵(1983-), 男, 博士, 副教授. E-mail: xieb@nchu.edu.cn
基金资助:
国家自然科学基金(52162018);中国航空科学基金(2020Z056056001);江西省杰出青年基金(20224ACB214007);南昌航空大学研究生创新专项基金(YC2022-s703)

Research Progress of Polymer-based Multilayer Composite Dielectrics with High Energy Storage Density

XIE Bing¹(), CAI Jinxia¹, WANG Tongtong¹, LIU Zhiyong¹, JIANG Shenglin², ZHANG Haibo³

1. School of Materials Science and Engineering, Nanchang Hangkong University, Nanchang 330063, China
2. School of Optics and Electronic Information, Huazhong University of Science and Technology, Wuhan 430074, China
3. School of Materials Science and Engineering, Huazhong University of Science and Technology, Wuhan 430074, China

Received:2022-06-19 Revised:2022-09-21 Published:2023-02-20 Online:2022-10-28
About author:XIE Bing (1983-), male, PhD, associate professor. E-mail: xieb@nchu.edu.cn
Supported by:
National Natural Science Foundation of China(52162018);Aeronautical Science Foundation of China(2020Z056056001);Jiangxi Provincial Natural Science Foundation(20224ACB214007);Innovation Special Foundation for Graduate Students of Nanchang Hangkong University(YC2022-s703)

摘要/Abstract

摘要：

薄膜电容器是现代电力装置与电子设备的核心电子元件, 受限于薄膜介质材料的介电常数偏低, 当前薄膜电容器难以获得高储能密度(指有效储能密度, 即可释放电能密度), 从而导致薄膜电容器体积偏大, 应用成本过高。将具有高击穿场强的聚合物与高介电常数的纳米陶瓷颗粒复合, 制备聚合物/陶瓷复合电介质, 是实现薄膜电容器高储能密度的有效策略。对于单层结构的0-3型聚合物/陶瓷复合电介质, 其介电常数与击穿场强难以同时获得有效提升, 限制了储能密度的进一步提高。为了解决此矛盾, 研究者们叠加组合高介电常数的复合膜与高击穿场强的复合膜, 制备了2-2型多层复合电介质, 能够协同调控极化强度与击穿场强来获取高储能密度。研究表明, 调控多层复合电介质的介观结构与微观结构, 可以实现优化电场分布、协同调控介电常数与击穿场强等目标。本文综述了近年来包括陶瓷/聚合物和全有机聚合物在内的多层聚合物基复合电介质的研究进展，重点阐述了多层结构调控策略对储能性能的提升作用，总结了聚合物基多层复合电介质的储能性能增强机制, 并讨论了当前多层复合电介质面临的挑战和发展方向。

关键词: 薄膜电容器, 多层聚合物基复合电介质, 介电常数, 击穿场强, 储能密度, 综述

Abstract:

Film capacitors are the core electronic components of modern power devices and electronic equipment. However, due to the low dielectric constant, it is difficult to obtain high energy storage density (effective energy storage density or discharged energy density) for present film capacitors, leading to a large device size and high application cost. To improve the energy storage density of film capacitors, a nanocomposite approach is an effective strategy via combining high dielectric constant of the ceramic nanoparticles with high breakdown strength of the polymer matrix. Nevertheless, for single-layer structure of 0-3 polymer/ceramic composites, the dielectric constant and breakdown strength are difficult to be effectively enhanced at the same time, which limits the further improvement of energy storage density. To solve this contradiction, researchers have combined the composite film with high dielectric constant and high breakdown strength in a superposition to prepare 2-2 type multilayer composite dielectrics, which can achieve synergistic regulation of polarization strength and breakdown strength to obtain high energy storage density. The optimization of electric field distribution and the synergistic regulation of dielectric constant and breakdown strength can be achieved through mesoscopic and microstructural modulation of multilayer composite dielectrics. In this paper, the research progress of multilayer polymer-based composite dielectrics including ceramic/polymer multilayer structure and all-organic polymer multilayer structure in recent years is reviewed. Effect of multi-layer structure control strategy on the improvement of energy storage performance is emphasized. Moreover, enhancement mechanism of energy storage performance of polymer-based multilayer structure composite dielectric is summarized. Finally, challenges and development directions of multilayer composite dielectrics are discussed.

Key words: film capacitor, multilayer polymer-based composite dielectric, dielectric constant, breakdown strength, energy storage density, review

中图分类号:

TQ174

谢兵, 蔡金峡, 王铜铜, 刘智勇, 姜胜林, 张海波. 高储能密度聚合物基多层复合电介质的研究进展[J]. 无机材料学报, 2023, 38(2): 137-147.

XIE Bing, CAI Jinxia, WANG Tongtong, LIU Zhiyong, JIANG Shenglin, ZHANG Haibo. Research Progress of Polymer-based Multilayer Composite Dielectrics with High Energy Storage Density[J]. Journal of Inorganic Materials, 2023, 38(2): 137-147.

图/表 7

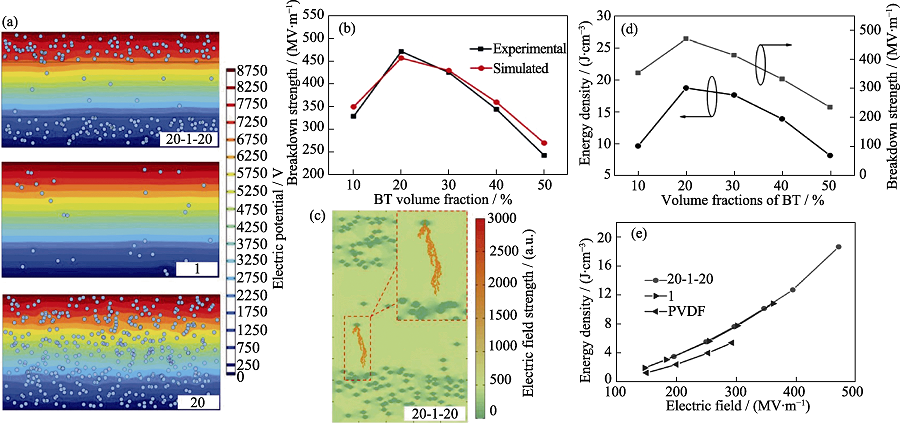

图1 PVDF基复合材料及三明治结构BT/PVDF复合材料[28]

Fig. 1 PVDF-based composites and sandwich-structured BT/PVDF composites[28] (a) Electric field distribution simulation diagram; (b) Breakdown field strength; (c) COMSOL multi-physics field simulation; (d, e) Energy density

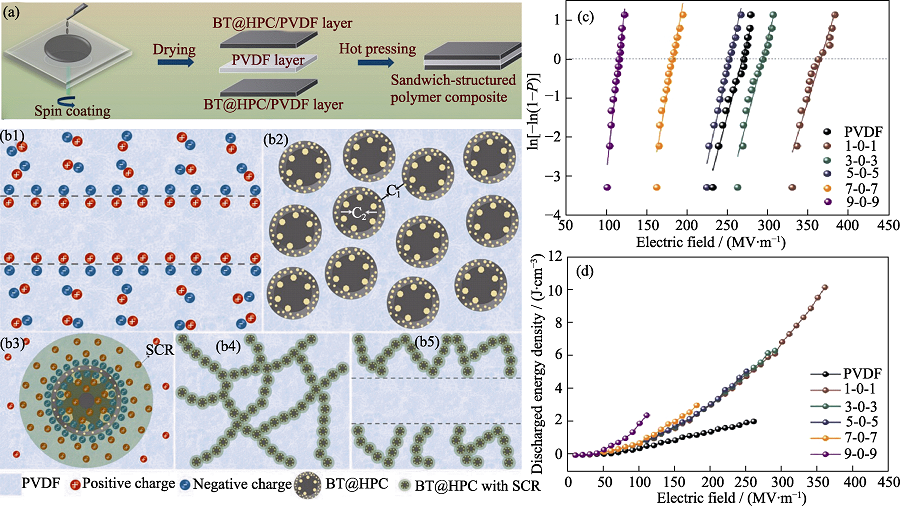

图2 BT@HPC/PVDF复合材料[27]

Fig. 2 BT@HPC/PVDF composite[27] (a, b1) Schematic diagram of preparation and space charge polarization distribution of BT@HPC/PVDF composites; (b2) Microcapacitor networks constructed by BT@HPC; (b3) Generated space charge region (SCR) surrounding BT@HPC in the PVDF matrix; (b4) Space charge regions in single-layer structural composites; (b5) Three-layer structural composites; (c) Weibull breakdown distribution; (d) Discharged energy density Colorful figures are available on website

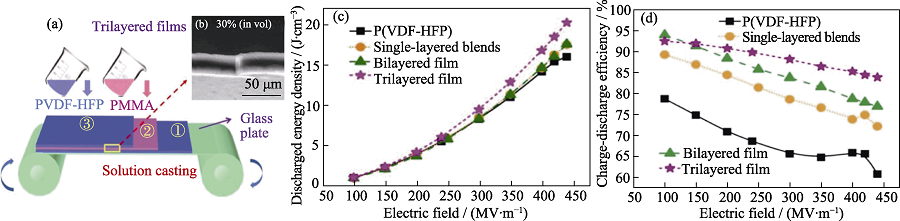

图3 全有机PMMA/P(VDF-HFP)复合膜的制备示意图、SEM截面图以及放电能量密度和充放电效率[35]

Fig. 3 Schematic preparation of all-organic PMMA/P(VDF-HFP) films, cross-sectional SEM image, discharged energy density, and charge-discharge efficiency[35] (a) Schematic illustration of PMMA/P(VDF-HFP) films; (b) SEM cross-sectional image; (c) Discharged energy density; (d) Charge-discharge efficiency

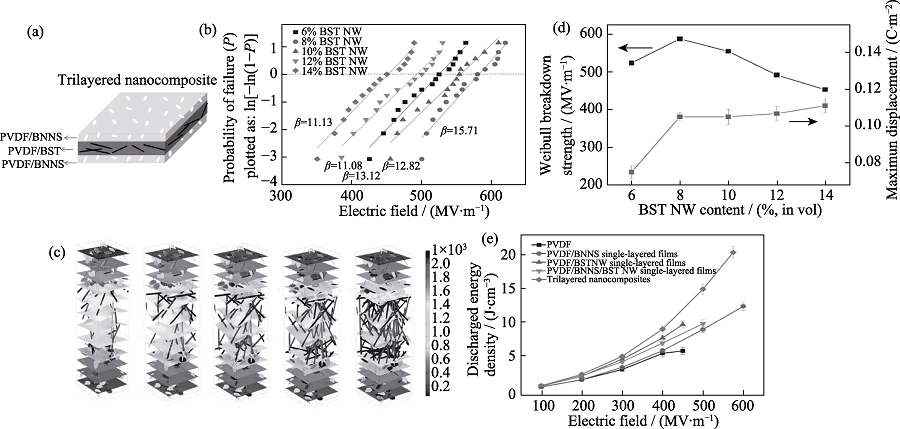

图4 以PVDF/BNNS为外层, PVDF/BST为中间层的三层复合薄膜[26]

Fig. 4 Three-layer composite film with PVDF/BNNS as the outer layer and PVDF/BST as the middle layer[26] (a) Structure schematic; (b) Weibull plots for the trilayer-structured nanocomposites indicating the failure distribution; (c) The development of electrical trees in the trilayer-structured nanocomposites with different BST NW contents at 550 MV·m−1; (d) Weibull breakdown strength and maximum electrical displacement; (e) Discharged energy density

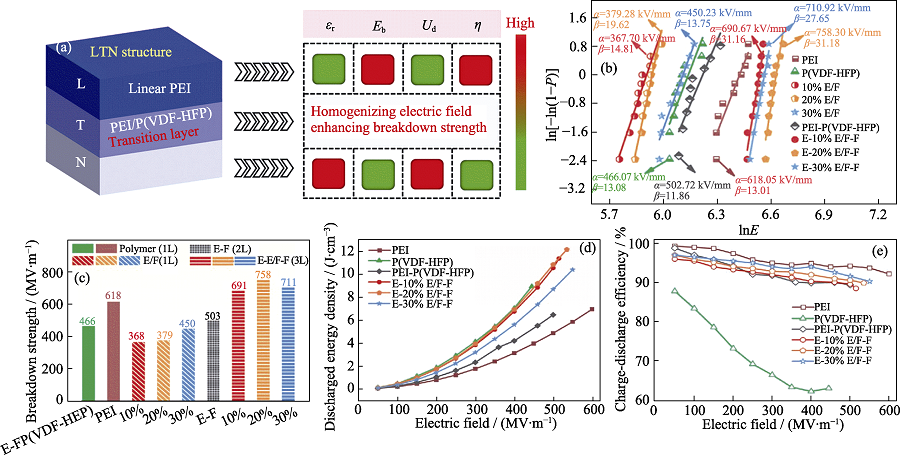

图5 非对称LTN结构多层复合材料的介电储能性能[45]

Fig. 5 Dielectric energy storage properties of multilayer composites with asymmetric LTN structure[45] (a) Dielectric energy storage properties of multilayer composites with asymmetric LTN structure; (b) Weibull breakdown distribution; (c) Derived breakdown strength; (d) Discharged energy density; (e) Charge-discharge efficiency (b, d, e) E/F in volume fraction

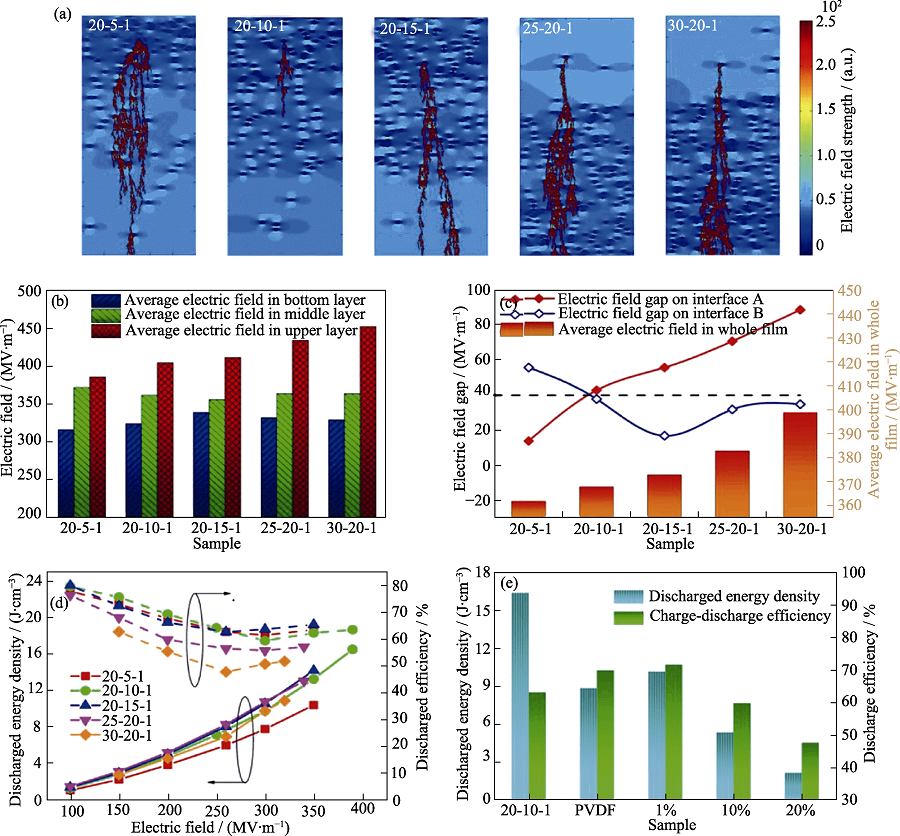

图6 梯度结构BaTiO3/PVDF纳米复合材料(GLN)[46]

Fig. 6 Gradient-structured BaTiO3/PVDF nanocomposites (GLN)[46] (a) Electric field distribution and growth of breakdown channels; (b) Average electric field in each layer of GLNs; (c) Electric field gap at different interfaces and average electric field in the GLN sample; (d, e) Discharged energy density and charge-discharge efficiency

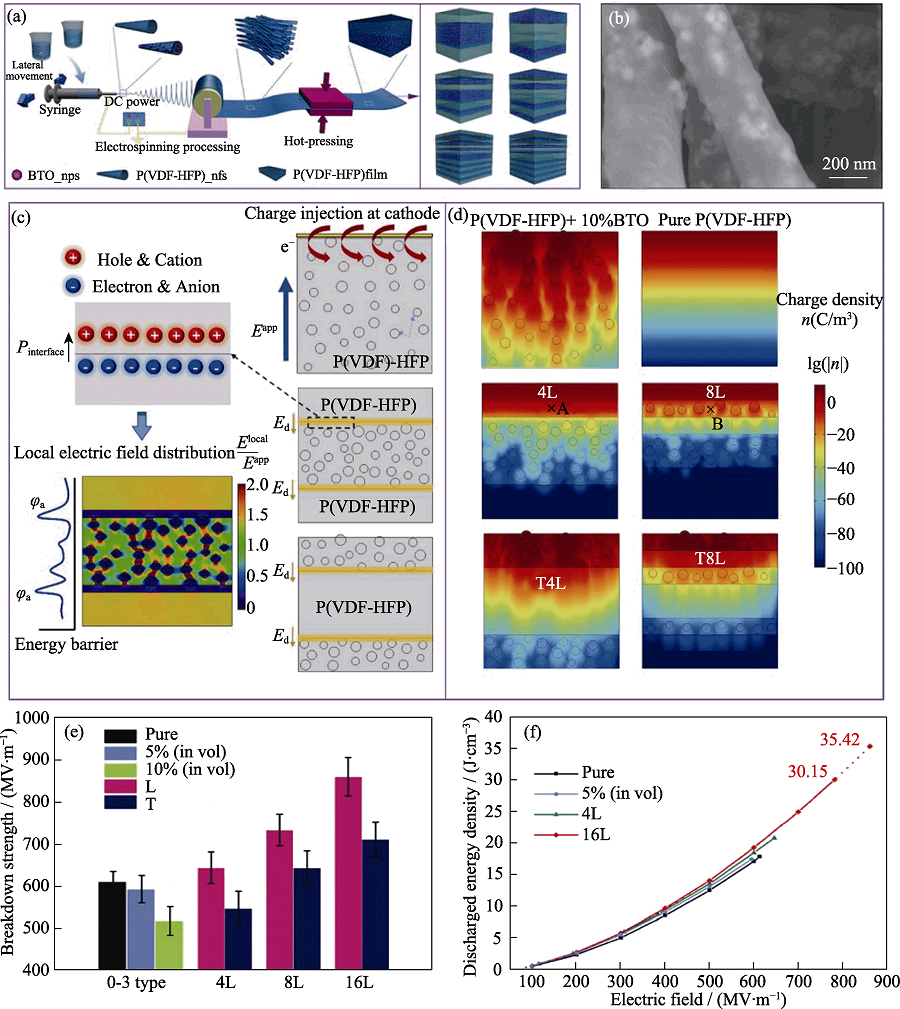

图7 P(VDF-HFP)/BT纳米复合材料以及P(VDF-HFP)-P(VDF-HFP)/BT多层纳米复合材料[48]

Fig. 7 P(VDF-HFP)/BT nanocomposites and P(VDF-HFP)-P(VDF-HFP)/BT multilayer nanocomposites[48] (a) Schematic illustration of the preparation; (b) SEM image of P(VDF-HFP)-10% BTO; (c, d) Polarization interface ions and induced depolarization and phase field simulation of multilayer nanocomposites; (e) Breakdown strength of multilayer composites and control group; (f) Discharged energy density of different types of composites

参考文献 50

[1]	ZHANG X, LI B W, DONG L, et al. Superior energy storage performances of polymer nanocomposites via modification of filler/polymer interfaces. Advanced Materials Interfaces, 2018, 5(11): 1800096. DOI URL
[2]	TAN D Q. Review of polymer-based nanodielectric exploration and film scale-up for advanced capacitors. Advanced Functional Materials, 2020, 30(18): 1808567. DOI URL
[3]	XIE B, WANG Q, ZHANG Q, et al. High energy storage performance of PMMA nanocomposites utilizing hierarchically structured nanowires based on interface engineering. ACS Applied Materials & Interfaces, 2021, 13(23): 27382.
[4]	HUANG X, SUN B, ZHU Y, et al. High-k polymer nanocomposites with 1D filler for dielectric and energy storage applications. Progress in Materials Science, 2019, 100: 187.
[5]	YANG M Z, JIANG J Y, SHEN Y. Progress in the research of high energy density dielectric energy storage materials. Journal of Silicates, 2021, 49(7): 1249.
[6]	HAN Z, WANG Q. Recent progress on dielectric polymers and composites for capacitive energy storage. iEnergy, 2022, 1(1): 50. DOI URL
[7]	HU H, ZHANG F, LUO S, et al. Recent advances in rational design of polymer nanocomposite dielectrics for energy storage. Nano Energy, 2020, 74: 104844.
[8]	GUO M, JIANG J, SHEN Z, et al. High-energy-density ferroelectric polymer nanocomposites for capacitive energy storage: enhanced breakdown strength and improved discharge efficiency. Materials Today, 2019, 29: 49. DOI URL
[9]	XIE B, ZHANG H, ZHANG Q, et al. Enhanced energy density of polymer nanocomposites at a low electric field through aligned BaTiO₃ nanowires. Journal of Materials Chemistry A, 2017, 5(13): 6070. DOI URL
[10]	ZHAO C, HUANG Y, WU J. Multifunctional barium titanate ceramics via chemical modification tuning phase structure. InfoMat, 2020, 2(6): 1163. DOI URL
[11]	LI L, XIE B, LIU Z, et al. Improved energy storage performance of Ba_0.4Sr_0.6TiO₃ by doping high polarization BiFeO₃. Ceramics International, 2021, 47(10): 14647. DOI URL
[12]	DAI Z, XIE J, LIU W, et al. Effective strategy to achieve excellent energy storage properties in lead-free BaTiO₃-based bulk ceramics. ACS Applied Materials & Interfaces, 2020, 12(27): 30289.
[13]	YANG H, YAN F, LIN Y, et al. Enhanced energy storage properties of Ba_0.4Sr_0.6TiO₃ lead-free ceramics with Bi₂O₃-B₂O₃-SiO₂ glass addition. Journal of the European Ceramic Society, 2018, 38(4): 1367. DOI URL
[14]	ZHANG Q, TONG H, CHEN J, et al. High recoverable energy density over a wide temperature range in Sr modified (Pb,La)-(Zr,Sn,Ti)O₃ antiferroelectric ceramics with an orthorhombic phase. Applied Physics Letters, 2016, 109(26): 262901. DOI URL
[15]	ZHANG Q, BHARTI V, KAVARNOS G. Poly(vinylidene fluoride) (PVDF) and its copolymers. Encyclopedia of Smart Materials, 2002, 44: 234.
[16]	WAN B Q, ZHENG M S, CHA J W. Advances in polyimide composite energy storage dielectric materials. Insulation Materials, 2021, 54(11): 23.
[17]	XIE B, ZHANG Q, ZHANG L, et al. Ultrahigh discharged energy density in polymer nanocomposites by designing linear/ferroelectric bilayer heterostructure. Nano Energy, 2018, 54: 437. DOI URL
[18]	PING J B, FENF Q K, ZHENG M M, et al. Preparation and dielectric/energy storage properties of surface-modified polypropylene films. Insulation Materials, 2022, 55(5): 49.
[19]	THAKUR Y, ZHANG B, DONG R, et al. Generating high dielectric constant blends from lower dielectric constant dipolar polymers using nanostructure engineering. Nano Energy, 2017, 32: 73. DOI URL
[20]	ZHANG T, ZHAO X, ZHANG C, et al. Polymer nanocomposites with excellent energy storage performances by utilizing the dielectric properties of inorganic fillers. Chemical Engineering Journal, 2021, 408: 127314. DOI URL
[21]	WANG J, LIU S H, CHEN C Q, et al. Interfacial modification and energy storage properties of barium titanate-based/polyvinylidene fluoride composite dielectric materials. Journal of Physics, 2020, 69(21): 59.
[22]	LI Y, ZHOU Y, ZHU Y, et al. Polymer nanocomposites with high energy density and improved charge-discharge efficiency utilizing hierarchically-structured nanofillers. Journal of Materials Chemistry A, 2020, 8(14): 6576. DOI URL
[23]	XIE B, WANG T, CAI J, et al. High energy density of ferroelectric polymer nanocomposites utilizing PZT@SiO₂ nanocubes with morphotropic phase boundary. Chemical Engineering Journal, 2022, 434: 134659. DOI URL
[24]	WANG P J, ZHOU D, GUO H H, et al. Ultrahigh enhancement rate of the energy density of flexible polymer nanocomposites using core-shell BaTiO₃@MgO structures as the filler. Journal of Materials Chemistry A, 2020, 8(22): 11124. DOI URL
[25]	PAN Z, YAO L, ZHAI J, et al. Excellent energy density of polymer nanocomposites containing BaTiO₃@Al₂O₃ nanofibers induced by moderate interfacial area. Journal of Materials Chemistry A, 2016, 4(34): 13259. DOI URL
[26]	LIU F, LI Q, CUI J, et al. High-energy-density dielectric polymer nanocomposites with trilayered architecture. Advanced Functional Materials, 2017, 27(20): 1606292. DOI URL
[27]	LIANG X, YU X, LV L, et al. BaTiO₃ internally decorated hollow porous carbon hybrids as fillers enhancing dielectric and energy storage performance of sandwich-structured polymer composite. Nano Energy, 2020, 68: 104351. DOI URL
[28]	WANG Y, CUI J, YUAN Q, et al. Significantly enhanced breakdown strength and energy density in sandwich-structured barium titanate/poly(vinylidene fluoride) nanocomposites. Advanced Materials, 2015, 27(42): 6658. DOI
[29]	JIANG J, SHEN Z, QIAN J, et al. Ultrahigh discharge efficiency in multilayered polymer nanocomposites of high energy density. Energy Storage Materials, 2019, 18: 213. DOI URL
[30]	JI X M, SUN B Z, LI C, et al. Research progress on enhancing dielectric energy storage density of polymer matrix composites using multilayer thin film technology. Materials Guide, 2022, 36(9): 185.
[31]	WANG Y, CHEN J, LI Y, et al. Multilayered hierarchical polymer composites for high energy density capacitors. Journal of Materials Chemistry A, 2019, 7(7): 2965. DOI URL
[32]	NIU Y, DONG J, HE Y, et al. Significantly enhancing the discharge efficiency of sandwich-structured polymer dielectrics at elevated temperature by building carrier blocking interface. Nano Energy, 2022, 97: 107215. DOI URL
[33]	FENG M, FENG Y, ZHANG T, et al. Recent advances in multilayer- structure dielectrics for energy storage application. Advanced Science, 2021, 8(23): 2102221. DOI URL
[34]	SUN Q, WANG J, ZHANG L, et al. Achieving high energy density and discharge efficiency in multi-layered PVDF-PMMA nanocomposites composed of 0D BaTiO₃ and 1D NaNbO₃@SiO₂. Journal of Materials Chemistry C, 2020, 8(21): 7211. DOI URL
[35]	CHEN J, WANG Y, YUAN Q, et al. Multilayered ferroelectric polymer films incorporating low-dielectric-constant components for concurrent enhancement of energy density and charge- discharge efficiency. Nano Energy, 2018, 54: 288. DOI URL
[36]	ZHANG W, GUAN F, JIANG M, et al. Enhanced energy storage performance of all-organic sandwich structured dielectrics with FPE and P(VDF-HFP). Composites Part A: Applied Science and Manufacturing, 2022: 107018.
[37]	LUO B, WANG X, WANG H, et al. P(VDF-HFP)/PMMA flexible composite films with enhanced energy storage density and efficiency. Composites Science and Technology, 2017, 151: 94. DOI URL
[38]	WANG Y, WANG L, YUAN Q, et al. Ultrahigh energy density and greatly enhanced discharged efficiency of sandwich-structured polymer nanocomposites with optimized spatial organization. Nano Energy, 2018, 44: 364. DOI URL
[39]	XIE B, ZHU Y, MARWAT M A, et al. Tailoring the energy storage performance of polymer nanocomposites with aspect ratio optimized 1D nanofillers. Journal of Materials Chemistry A, 2018, 6(41): 20356. DOI URL
[40]	ZHU Y, ZHU Y, HUANG X, et al. High energy density polymer dielectrics interlayered by assembled boron nitride nanosheets. Advanced Energy Materials, 2019, 9(36): 1901826. DOI URL
[41]	LI Q, ZHANG G, LIU F, et al. Solution-processed ferroelectric terpolymer nanocomposites with high breakdown strength and energy density utilizing boron nitride nanosheets. Energy & Environmental Science, 2015, 8(3): 922.
[42]	AI D, LI H, ZHOU Y, et al. Tuning nanofillers in in situ prepared polyimide nanocomposites for high-temperature capacitive energy storage. Advanced Energy Materials, 2020, 10(16): 1903881. DOI URL
[43]	CHEN S, MENG G, KONG B, et al. Asymmetric alicyclic amine-polyether amine molecular chain structure for improved energy storage density of high-temperature crosslinked polymer capacitor. Chemical Engineering Journal, 2020, 387: 123662. DOI URL
[44]	MIAO W, CHEN H, PAN Z, et al. Enhancement thermal stability of polyetherimide-based nanocomposites for applications in energy storage. Composites Science and Technology, 2021, 201: 108501. DOI URL
[45]	SUN L, SHI Z, HE B, et al. Asymmetric trilayer all-polymer dielectric composites with simultaneous high efficiency and high energy density: a novel design targeting advanced energy storage capacitors. Advanced Functional Materials, 2021, 31(35): 2100280. DOI URL
[46]	WANG Y, WANG L, YUAN Q, et al. Ultrahigh electric displacement and energy density in gradient layer-structured BaTiO₃/PVDF nanocomposites with an interfacial barrier effect. Journal of Materials Chemistry A, 2017, 5(22): 10849. DOI URL
[47]	WANG Y, LI Y, WANG L, et al. Gradient-layered polymer nanocomposites with significantly improved insulation performance for dielectric energy storage. Energy Storage Materials, 2020, 24: 626. DOI URL
[48]	JIANG J, SHEN Z, QIAN J, et al. Synergy of micro-/mesoscopic interfaces in multilayered polymer nanocomposites induces ultrahigh energy density for capacitive energy storage. Nano Energy, 2019, 62: 220. DOI URL
[49]	FENG M, CHI Q, FENG Y, et al. High energy storage density and efficiency in aligned nanofiber filled nanocomposites with multilayer structure. Composites Part B: Engineering, 2020, 198: 108206. DOI URL
[50]	ZENG Y, SHEN Z H, SHEN Y, et al. High energy density and efficiency achieved in nanocomposite film capacitors via structure modulation. Applied Physics Letters, 2018, 112(10): 103902. DOI URL
