基于熵工程及SHS动力学的BiAgSeS本征低热导率起源探究

doi:10.15541/jim20200698

无机材料学报 ›› 2021, Vol. 36 ›› Issue (9): 991-998.DOI: 10.15541/jim20200698 CSTR: 32189.14.10.15541/jim20200698

所属专题：【虚拟专辑】热电材料(2020~2021)

基于熵工程及SHS动力学的BiAgSeS本征低热导率起源探究

杨东旺¹(), 罗婷婷¹^,², 苏贤礼¹, 吴劲松¹^,², 唐新峰¹()

1.武汉理工大学材料复合新技术国家重点实验室, 武汉 430070
2.武汉理工大学纳微结构研究中心, 武汉 430070

收稿日期:2020-12-04 修回日期:2021-02-03 出版日期:2021-09-20 网络出版日期:2021-03-12
通讯作者: 唐新峰, 教授. E-mail: tangxf@whut.edu.cn
作者简介:杨东旺(1989-), 男, 博士. E-mail: ydongwang@whut.edu.cn

Unveiling the Intrinsic Low Thermal Conductivity of BiAgSeS through Entropy Engineering in SHS Kinetic Process

YANG Dongwang¹(), LUO Tingting¹^,², SU Xianli¹, WU Jinsong¹^,², TANG Xinfeng¹()

1. State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan 430070, China
2. Nanostructure Research Center, Wuhan University of Technology, Wuhan 430070, China

Received:2020-12-04 Revised:2021-02-03 Published:2021-09-20 Online:2021-03-12
Contact: TANG Xinfeng, professor. E-mail: tangxf@whut.edu.cn
About author:YANG Dongwang (1989-), male, PhD. E-mail: ydongwang@whut.edu.cn
Supported by:
National Natural Science Foundation of China(51872219);Fundamental Research Funds for the Central Universities(WUT: 2020IVA097);Funds for Postdoctoral Innovative Research Posts in Hubei Province(20201jb010)

摘要/Abstract

摘要：

探索热电材料的超快速制备技术并优化其性能具有重要意义。本研究通过自蔓延高温合成技术快速制备得到BiAgSeS化合物。动力学过程研究表明, Bi熔化是激活并触发原料混合物发生自蔓延反应的关键, 非平衡过程中产生的高浓度纳米及原子尺度应力应变区与螺旋位错为材料生长提供了永不消逝的台阶源, 并在材料等离子体活化烧结致密化过程中进一步主导晶粒长大, 最终在材料晶界处留下大量纳米孔洞。相比于传统熔融法结合等离子体活化烧结技术, 本技术制备的材料的电导率略有提高, 晶格热导率则下降约6%, 最终材料ZT值在整个温区均有提高, 并在773 K时取得最大值0.5。

关键词: 热电, 铋银硒硫化物, 熵工程, 自蔓延高温合成, 孤对电子

Abstract:

It is of great significance to find the ultra-rapid preparation technology of materials and realize the optimization of electroacoustic transport properties in the research of thermoelectric materials. In this study, BiAgSeS compounds were successfully prepared by self-propagating high temperature synthesis (SHS), of which the kinetic process was systematically studied. It is found that the melting of Bi is the key to activate and initiate SHS reaction. In addition, the high concentrations of nano- and atomic-scale strain field regions, and screw dislocations produced in the non-equilibrium SHS process provide an everlasting step source for material growth and make the grains possess the layered structure. In the process of material densification, the step source continues to play a role in dominating grain growth, and thus leaving nanopores at the grain boundary. Because of these defects, compared with samples via melting-quenching (MQ) combined with plasma activated sintering (PAS), the SHS+PAS samples can slightly increase the electrical conductivity and significantly reduce the lattice thermal conductivity by ~6%. Finally, the thermoelectric properties are optimized, and the ZT is improved in the whole temperature range with the maximum value of 0.5 obtained at 773 K.

Key words: thermoelectric, BiAgSeS, entropy engineering, self-propagating high-temperature synthesis, lone pair electron

中图分类号:

TQ174

杨东旺, 罗婷婷, 苏贤礼, 吴劲松, 唐新峰. 基于熵工程及SHS动力学的BiAgSeS本征低热导率起源探究[J]. 无机材料学报, 2021, 36(9): 991-998.

YANG Dongwang, LUO Tingting, SU Xianli, WU Jinsong, TANG Xinfeng. Unveiling the Intrinsic Low Thermal Conductivity of BiAgSeS through Entropy Engineering in SHS Kinetic Process[J]. Journal of Inorganic Materials, 2021, 36(9): 991-998.

图/表 11

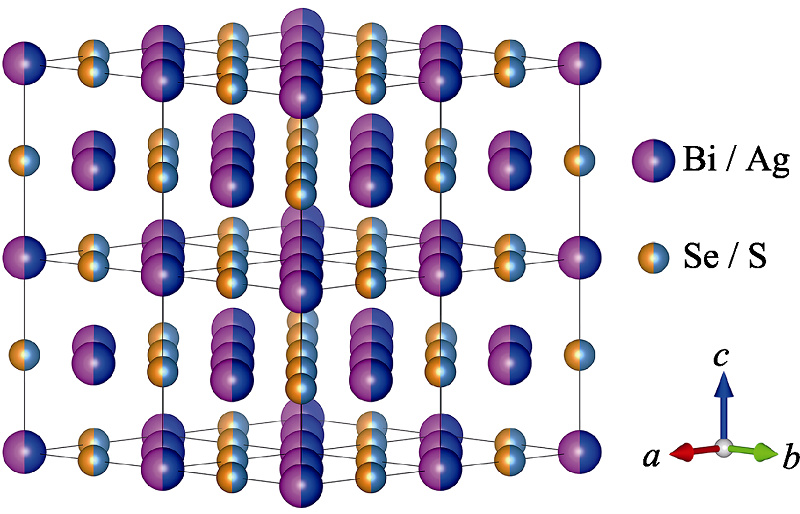

Fig. 1 Crystal structure of BiAgSeS

Fig. 2 Photographs (a) for different stages of the SHS reaction process, temperature profile (b) of the SHS reaction, and XRD pattern (c) of the SHS product

Fig. 3 Heat flow (a) at a heating rate of 85 K/min and a cooling rate of 50 K/min, and XRD patterns (b) of the products with temperature cutting off at 373, 400, 513 and 573 K

Fig. 4 (a) Surface morphologies of the combustion wave quenching sample, (b) XRD patterns for typical regions, (c-f) FESEM images of microstructure and composition analysis from reactants to products (c) Mixture zone #1; (d) Preheating zone #2; (e) Reaction zone #3; (f) Product zone #4

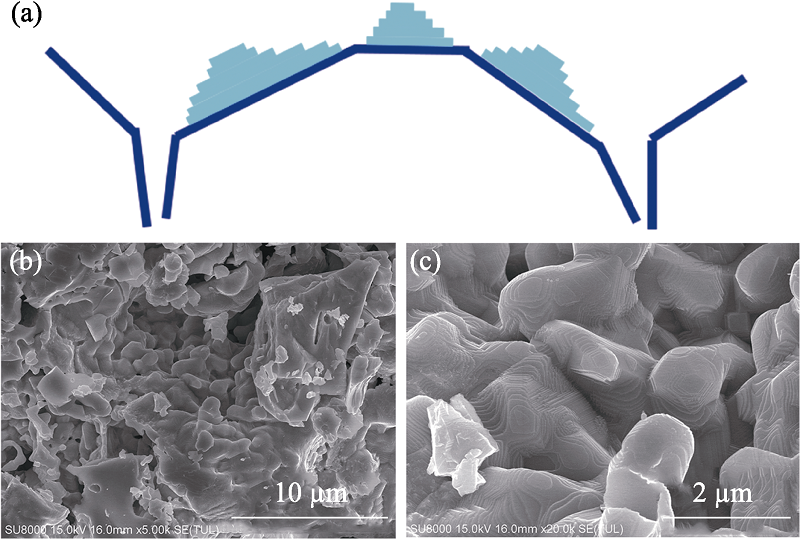

Fig. S1 (a) Schematic diagram of the unstability of the crystal growth of BiAgSeS in SHS reaction; (b, c) the microstructure of SHS powder by FESEM

Fig. 5 Fracture surface morphologies of (a) MQ+PAS and (b) SHS+PAS BiAgSeS samples, and (c) secondary electron and (d) back scattering images of a polished surface of SHS+PAS sample

Fig. S2 Elemental distributions on the surface of “SHS+PAS” sample

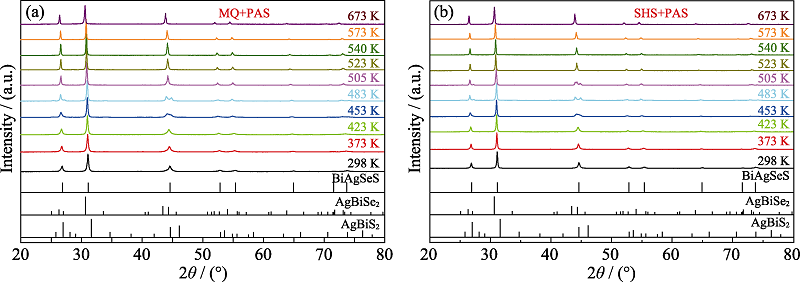

Fig. 6 High temperature XRD patterns of (a) MQ+PAS and (b) SHS+PAS BiAgSeS bulk materials

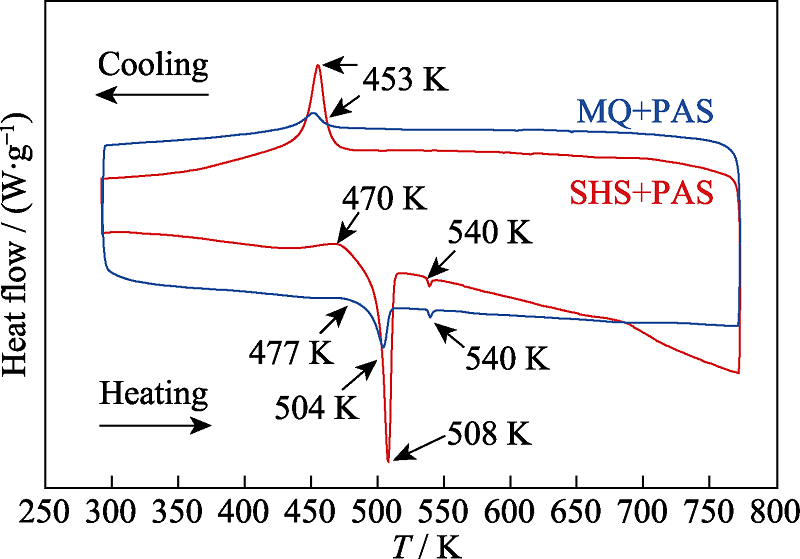

Fig. 7 DSC heat flow curves of MQ+PAS and SHS+PAS bulk samples at a heating and cooling rate of 5 K/min

Fig. 8 Microstructures in BiAgSeS (a) Low-magnification TEM image revealing highly nanoscale distorted regions; (b) HRTEM image exhibiting highly atomic scale distortions; (c, e) HRTEM images depicting highly density of defects, including screw dislocation and strain-field domains; (d, e) Enlarged views of yellow marked regions in (c, e)

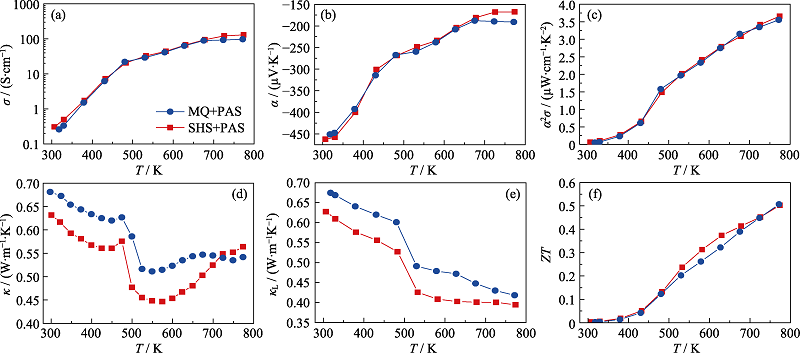

Fig. 9 Thermoelectric performance of BiAgSeS samples (a) Electrical conductivity; (b) Seebeck coefficient; (c) Power factor; (d) Total thermal conductivity; (e) Lattice thermal conductivity; (f) Figure of merit ZT

参考文献 27

[1]	ROWE D M, CRC Handbook of Thermoelectrics. Boca Raton: CRC Press, 1995.
[2]	HE J, KANATZIDIS M G, DRAVID V P. High performance bulk thermoelectrics via a panoscopic approach. Materials Today, 2013, 16(5):166-176. DOI URL
[3]	SNYDER G J, TOBERER E S. Complex thermoelectric materials. Nature Materials, 2008, 7:105-114. DOI URL
[4]	ZHAO L D, LO S H, ZHANG Y, et al. Ultralow thermal conductivity and high thermoelectric figure of merit in SnSe crystals. Nature, 2014, 508(7496):373-377. DOI URL
[5]	SHI X, YANG J, SALVADOR J R, et al. Multiple-filled skutterudites: high thermoelectric figure of merit through separately optimizing electrical and thermal transports. Journal of the American Chemical Society, 2011, 133(20):7837-7846. DOI URL
[6]	ZHAO W, LIU Z, SUN Z, et al. Superparamagnetic enhancement of thermoelectric performance. Nature, 2017, 549(7671):247-251. DOI URL
[7]	LIU R, CHEN H, ZHAO K, et al. Entropy as a gene-like performance indicator promoting thermoelectric materials. Advanced Materials, 2017, 29(38):1702712. DOI URL
[8]	HU L, ZHANG Y, WU H, et al. Entropy engineering of SnTe: multi-principal-element alloying leading to ultralow lattice thermal conductivity and state-of-the-art thermoelectric performance. Advanced Energy Materials, 2018, 8(29):1802116. DOI URL
[9]	QIU Y, JIN Y, WANG D, et al. Realizing high thermoelectric performance in GeTe through decreasing the phase transition temperature via entropy engineering. Journal of Materials Chemistry A, 2019, 7(46):26393-26401. DOI URL
[10]	YEH J W, CHEN S K, LIN S J, et al. Nanostructured high-entropy alloys with multiple principal elements: novel alloy design concepts and outcomes. Advanced Engineering Materials, 2004, 6(5):299-303. DOI URL
[11]	SENKOV O N, MILLER J D, MIRACLE D B, et al. Accelerated exploration of multi-principal element alloys with solid solution phases. Nature Communications, 2015, 6:1-10.
[12]	ZHANG Y, ZUO T T, TANG Z, et al. Microstructures and properties of high-entropy alloys. Progress in Materials Science, 2014, 61:1-93. DOI URL
[13]	PEI Y, SHI X, LALONDE A, et al. Convergence of electronic bands for high performance bulk thermoelectrics. Nature, 2011, 473(7345):66-69. DOI URL
[14]	PEI Y, LALONDE A, IWANAGA S, et al. High thermoelectric figure of merit in heavy hole dominated PbTe. Energy & Environmental Science, 2011, 4(6):2085-2089.
[15]	HEREMANS J P, JOVOVIC V, TOBERER E S, et al. Enhancement of thermoelectric efficiency in PbTe by distortion of the electronic density of states. Science, 2008, 321(5888):554-557. DOI URL
[16]	GUIN S N, CHATTERJEE A, NEGI D S, et al. High thermoelectric performance in tellurium free p-type AgSbSe₂. Energy & Environmental Science, 2013, 6(9):2603-2608.
[17]	PAN L, BÉRARDAN D, DRAGOE N. High thermoelectric properties of n-type AgBiSe₂. Journal of the American Chemical Society, 2013, 135(13):4914-4917. DOI URL
[18]	PARKER D S, MAY A F, SINGH D J. Benefits of carrier-pocket anisotropy to thermoelectric performance: the case of p-type AgBiSe₂. Physical Review Applied, 2015, 3(6):064003. DOI URL
[19]	GUIN S N, BISWAS K. Cation disorder and bond anharmonicity optimize the thermoelectric properties in kinetically stabilized rocksalt AgBiS₂ nanocrystals. Chemistry of Materials, 2013, 25(15):3225-3231. DOI URL
[20]	CHAMBERLAIN A L, FAHRENHOLTZ W G, HILMAS G E. Pressureless sintering of zirconium diboride. Journal of the American Ceramic Society, 2006, 89(2):450-456. DOI URL
[21]	PEI Y L, WU H, SUI J, et al. High thermoelectric performance in n-type BiAgSeS due to intrinsically low thermal conductivity. Energy & Environmental Science, 2013, 6(6):1750-1755.
[22]	SU X, FU F, YAN Y, et al. Self-propagating high-temperature synthesis for compound thermoelectrics and new criterion for combustion processing. Nature Communication, 2014, 5(1):4908-4914. DOI URL
[23]	HU T, YANG D, SU X, et al. Interpreting the combustion process for high-performance ZrNiSn thermoelectric materials. ACS Applied Materials & Interfaces, 2017, 10:864-872.
[24]	YANG D, SU X, YAN Y, et al. Manipulating the combustion wave during self-propagating synthesis for high thermoelectric performance of layered oxychalcogenide Bi₁-_xPb_xCuSeO. Chemistry of Materials, 2016, 28:4628-4640. DOI URL
[25]	YANG D, SU X, MENG F, et al. Facile room temperature solventless synthesis of high thermoelectric performance Ag₂Se via a dissociative adsorption reaction. Journal of Materials Chemistry A, 2017, 5:23243-23251. DOI URL
[26]	MERZHANOV A G. SHS processes: combustion theory and practice. Arch. Combustionis, 1981, 1:4.
[27]	XIAO C, QIN X, ZHANG J, et al. High thermoelectric and reversible p-n-p conduction type switching integrated in dimetal chalcogenide. Journal of the American Chemical Society, 2012, 134(44):18460-18466. DOI URL
