无机材料学报 ›› 2021, Vol. 36 ›› Issue (9): 950-958.DOI: 10.15541/jim20200675 CSTR: 32189.14.10.15541/jim20200675
收稿日期:
2020-11-26
修回日期:
2020-12-31
出版日期:
2021-09-20
网络出版日期:
2021-01-25
通讯作者:
闫 爽, 讲师. E-mail: yanye150@outlook.com
作者简介:
储宇星(1994-), 男, 硕士研究生. E-mail: 434611816@qq.com
基金资助:
CHU Yuxing1(), LIU Hairui1,2, YAN Shuang1(
)
Received:
2020-11-26
Revised:
2020-12-31
Published:
2021-09-20
Online:
2021-01-25
Contact:
YAN Shuang, lecturer. E-mail: yanye150@outlook.com
About author:
CHU Yuxing(1994-), male, Master candidate. E-mail: 434611816@qq.com
Supported by:
摘要:

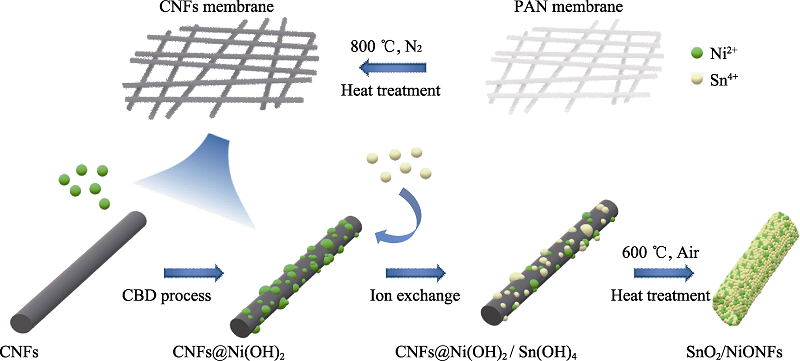

采用静电纺丝技术结合化学沉淀法和高温煅烧处理, 制备了具有不同Sn含量的SnO2/NiO复合半导体纳米纤维。采用扫描电子显微镜(SEM), X射线衍射仪(XRD)和能量色散X射线光谱仪(EDS)对样品的形貌, 结构以及各元素含量进行表征。以乙醇为目标气体, 探究SnO2/NiO纳米纤维的气体传感性质, 以及Sn含量对复合纳米纤维气敏性能的影响。研究结果表明, SnO2/NiO复合纳米纤维具有三维网状结构, SnO2复合对NiO纳米纤维的气敏性能具有明显的增强作用。随着SnO2含量的增加, 复合纤维对乙醇气体的响应灵敏度增强, 其中响应最高的复合纳米纤维在最佳工作温度160 ℃条件下对体积分数为100×10-6乙醇气体的响应灵敏度为13.4, 是NiO纳米纤维最大响应灵敏度的8.38倍。与市面常见的乙醇气体传感器MQ-3相比, SnO2/NiO复合纳米纤维的最佳工作温度更低, 响应灵敏度更高, 具有一定的实际应用价值。
中图分类号:
储宇星, 刘海瑞, 闫爽. SnO2/NiO复合半导体纳米纤维的制备及气敏性能研究[J]. 无机材料学报, 2021, 36(9): 950-958.
CHU Yuxing, LIU Hairui, YAN Shuang. Preparation and Gas Sensing Properties of SnO2/NiO Composite Semiconductor Nanofibers[J]. Journal of Inorganic Materials, 2021, 36(9): 950-958.

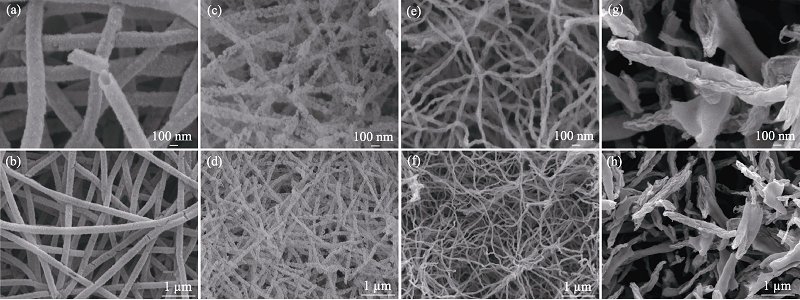

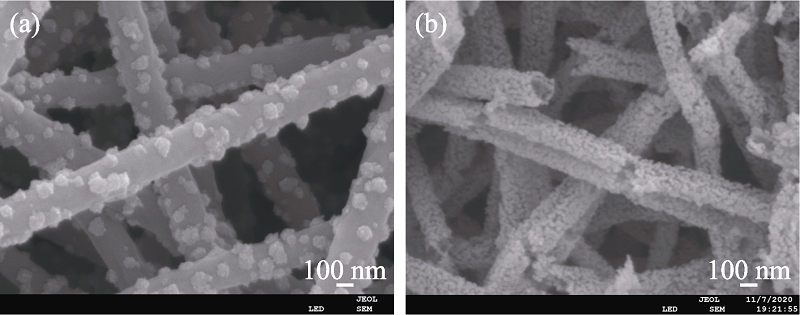

图3 (a, b)SnO2/NiO-1 NFs、(c, d)SnO2/NiO-2 NFs、(e, f)SnO2/NiO-3 NFs和(g, h) SnO2/NiO-4 NFs的SEM照片
Fig. 3 SEM images of (a, b) SnO2/NiO-1 NFs, (c, d) SnO2/NiO-2 NFs, (e, f) SnO2/NiO-3 NFs, and (g, h) SnO2/NiO-4 NFs
Sample | Ni/% | Sn/% |
---|---|---|
NiO NFs | 100 | 0 |
SnO2/NiO-1 NFs | 76.79 | 23.21 |
SnO2/NiO-2 NFs | 25.46 | 74.54 |
SnO2/NiO-3 NFs | 0.51 | 99.49 |
SnO2/NiO-4 NFs | 0.08 | 99.92 |
表1 NiO NFs和SnO2/NiO NFs样品中Ni和Sn元素的相对摩尔百分含量
Table 1 Relative molar percentages of Ni and Sn in NiO NFs and SnO2/NiO NFs samples
Sample | Ni/% | Sn/% |
---|---|---|
NiO NFs | 100 | 0 |
SnO2/NiO-1 NFs | 76.79 | 23.21 |
SnO2/NiO-2 NFs | 25.46 | 74.54 |
SnO2/NiO-3 NFs | 0.51 | 99.49 |
SnO2/NiO-4 NFs | 0.08 | 99.92 |
图4 SnO2/NiO-1 NFs、SnO2/NiO-2 NFs、SnO2/NiO-3 NFs和SnO2/NiO-4 NFs的XRD图谱
Fig. 4 XRD patterns of SnO2/NiO-1 NFs, SnO2/NiO-2 NFs,SnO2/NiO-3 NFs, and SnO2/NiO-4 NFs
Sample | Grain size, D/nm | Grain boundary density, $\delta $/(×109, mm-2) |
---|---|---|
SnO2/NiO-1 NFs | 11.1 | 8.12 |
SnO2/NiO-2 NFs | 7.4 | 18.46 |
SnO2/NiO-3 NFs | 6.3 | 25.16 |
SnO2/NiO-4 NFs | 6.3 | 25.16 |
表2 SnO2/NiO NFs样品的晶粒尺寸(D)和晶界密度(δ)
Table 2 Respective grain size (D) and grainboundary density (δ) of SnO2/NiO NFs samples
Sample | Grain size, D/nm | Grain boundary density, $\delta $/(×109, mm-2) |
---|---|---|
SnO2/NiO-1 NFs | 11.1 | 8.12 |
SnO2/NiO-2 NFs | 7.4 | 18.46 |
SnO2/NiO-3 NFs | 6.3 | 25.16 |
SnO2/NiO-4 NFs | 6.3 | 25.16 |

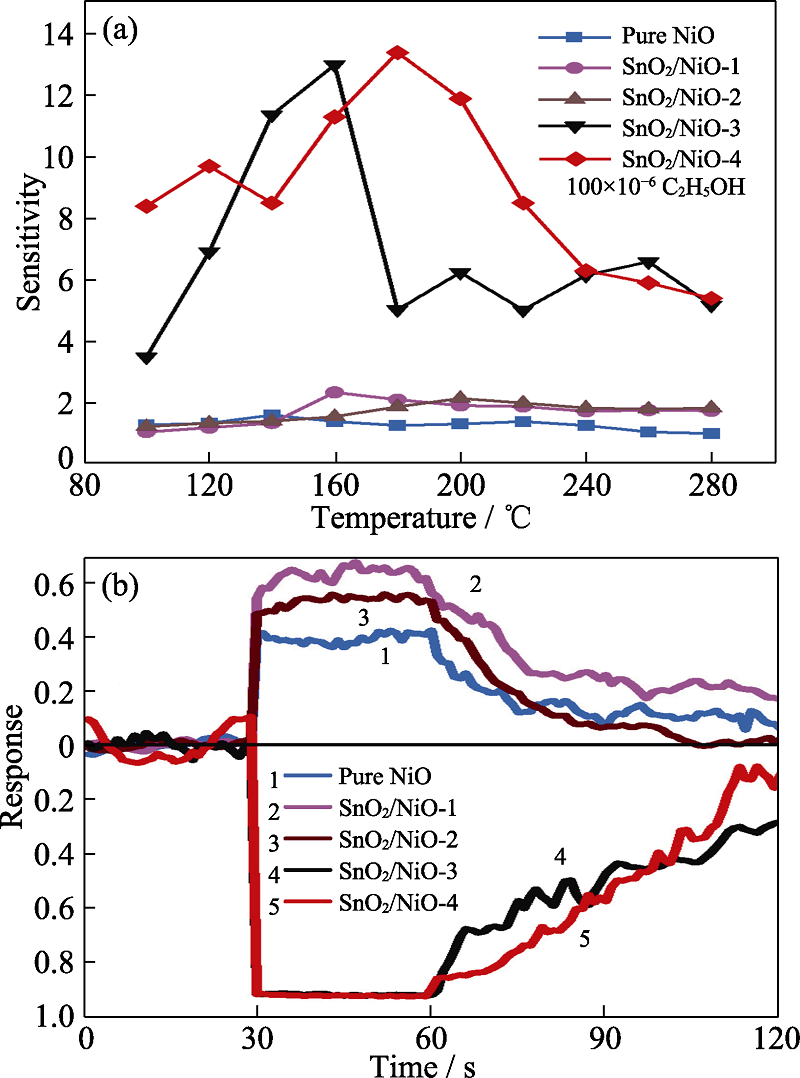

图5 NiO NFs、SnO2/NiO-1 NFs、SnO2/NiO-2 NFs、 SnO2/NiO-3 NFs和SnO2/NiO-4 NFs在不同温度下对乙醇气体的灵敏度曲线(a), 在最佳工作温度下对体积分数为100×10-6乙醇气体的响应恢复曲线(b)
Fig. 5 (a) Sensitivity curves of NiO NFs, SnO2/NiO-1 NFs, SnO2/NiO-2 NFs, SnO2/NiO-3 NFs, and SnO2/NiO-4 NFs to ethanol gas at different temperatures, and (b) response recovery curve to 100×10-6 ethanol gas (volume fraction) at the optimal working temperature
图6 SnO2/NiO-1 NFs、SnO2/NiO-2 NFs、SnO2/NiO-3 NFs和SnO2/NiO-4 NFs对各种目标气体的选择性(100 mg/L)
Fig. 6 Selectivity of SnO2/NiO-1 NFs, SnO2/NiO-2 NFs, SnO2/NiO-3 NFs, and SnO2/NiO-4 NFs to various target gases(100 mg/L)

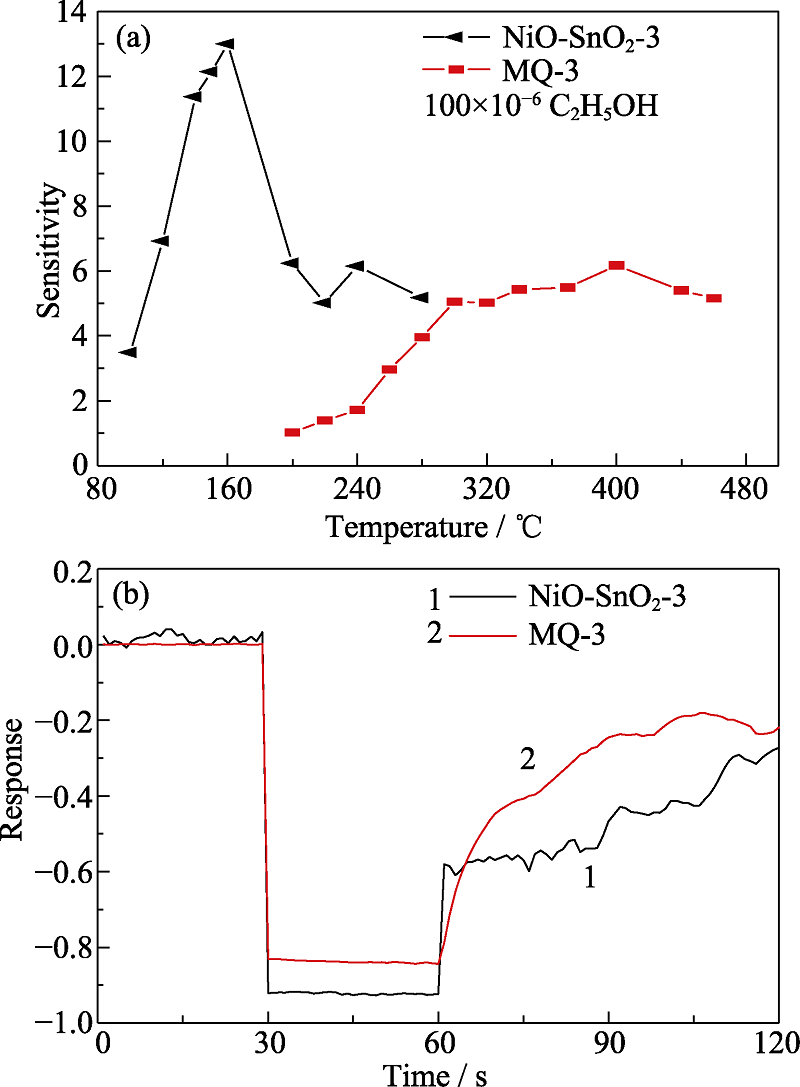

图7 SnO2/NiO-3 NFs和MQ-3在不同工作温度下对体积分数为100×10-6乙醇气体的灵敏度曲线(a), 最佳工作温度下对体积分数为100×10-6乙醇气体的响应恢复曲线(b)
Fig. 7 (a) Sensitivity curves of SnO2/NiO-3 NFs and MQ-3 to 100×10-6 ethanol gas at different working temperatures, and (b) response recovery curve to 100×10-6 ethanol gas at the optimal working temperature
Materials | Temperature/ ℃ | Response/(100 mg·L-1) | Ref. |
---|---|---|---|
Hierarchical SnO2 | 300 | 24.1 | [ |
ZnO-SnO2 nanofibers | 300 | 18.0 | [ |
Horseshoe-shaped SnO2 | 225 | 17.3 | [ |
NiO-decorated SnO2nanorods | 300 | 30.0 | [ |
SnO2/NiO composite nanofibers | 160 | 13.0 | This work |
表3 文献报道的部分SnO2基乙醇传感器特性与本工作的比较
Table 3 Comparison of the characteristics of some SnO2-based ethanol sensors reported in the literature with this work
Materials | Temperature/ ℃ | Response/(100 mg·L-1) | Ref. |
---|---|---|---|
Hierarchical SnO2 | 300 | 24.1 | [ |
ZnO-SnO2 nanofibers | 300 | 18.0 | [ |
Horseshoe-shaped SnO2 | 225 | 17.3 | [ |
NiO-decorated SnO2nanorods | 300 | 30.0 | [ |
SnO2/NiO composite nanofibers | 160 | 13.0 | This work |
