Ce, Pr离子双掺LuAG透明陶瓷制备及光学性能

doi:10.15541/jim20160223

无机材料学报 ›› 2016, Vol. 31 ›› Issue (10): 1099-1102.DOI: 10.15541/jim20160223 CSTR: 32189.14.10.15541/jim20160223

Ce, Pr离子双掺LuAG透明陶瓷制备及光学性能

周鼎^{1, 2}, 施鹰¹, 范灵聪¹, 林德宝¹, 孙泽清², 徐家跃²

(1. 上海大学材料科学与工程学院电子信息材料系, 上海 200072; 2. 上海应用技术大学, 材料科学与工程学院晶体生长研究所, 上海 201418)

收稿日期:2016-04-01 修回日期:2016-06-22 出版日期:2016-10-20 网络出版日期:2016-09-23
作者简介:周鼎 (1982– ), 男, 博士研究生. E-mail: ben82powder@hotmail.com
基金资助:
国家自然科学基金(61475097);上海市联盟计划项目(LM201521)

Fabrication and Optical Properties of Ce, Pr Co-doped LuAG Transparent Ceramics

ZHOU Ding^{1, 2}, SHI Ying¹, FAN Ling-Cong¹, LIN De-Bao¹, SUN Ze-Qing², XU Jia-Yue²

(1. Department of Electronics and Information Materials, School of Materials Science and Engineering, Shanghai University, Shanghai 200072, China; 2. Institute of Crystal Growth, School of Materials Science and Engineering, Shanghai Institute of Technology, Shanghai 201418, China)

Received:2016-04-01 Revised:2016-06-22 Published:2016-10-20 Online:2016-09-23
About author:ZHOU Ding. E-mail: ben82powder@hotmail.com
Supported by:
National Natural Science Foundation of China (61475097);Shanghai Alliance Research Program (LM201521)

摘要/Abstract

摘要：

以NH₄OH+NH₄HCO₃混合溶液作为复合沉淀剂, 利用反向滴定共沉淀法制备了不同浓度Ce, Pr共掺杂LuAG沉淀前驱体, 并研究了Pr掺杂浓度为 0.25at%, Ce掺杂浓度分别为0、0.1at%、0.2at%和0.3at%的LuAG透明陶瓷的光学性能。沉淀前驱体经马弗炉1200℃煅烧2 h后所得粉体的分散性较好, 一次颗粒尺寸约为60 nm。该粉体经干压和冷等静压成型后, 在H₂气氛1800℃下烧结6 h制备出透明陶瓷, 经双面抛光后透明陶瓷在800 nm波长处直线透过率达到82%。X射线激发的发射光谱表明, 共掺使Pr离子5d-4f的发射能量传递给Ce离子, 有助于提高LuAG透明陶瓷在550 nm发光中心的发光强度。0.2at%Ce和0.25at%Pr共掺杂时, 透明陶瓷的发光强度达到最大。

关键词: Ce离子, Pr离子, LuAG透明陶瓷, 光学性能

Abstract:

Cerium and Praseodymium co-doped Lu₃Al₅O₁₂ nanocrystalline powders were synthesized by reverse titration, using ammonium hydroxide (NH₄OH) and ammonium hydrogen carbonate (NH₄HCO₃) mixed precipitator. The optical properties of 0.25at%Pr: LuAG ceramics doped with 0, 0.1at%, 0.2at% and 0.3at% Ce³⁺ ions were measured. The Ce, Pr: LuAG powders showed a weak agglomeration with a primary particle size of about 60 nm after calcining at 1200℃ for 2 h. Ce, Pr co-doped LuAG transparent ceramics were obtained after green compacts were cold isostatic pressed and sintered in flowing H₂ atmosphere at 1800℃ for 6 h. The in-line transmittance of the double face polished Ce, Pr co-doped LuAG ceramic at 800 nm wavelength was 82%. The X-ray excited emission spectrum showed that the emission intensity at 550 nm wavelength was enhanced in Ce, Pr co-doped LuAG transparent ceramics by energy transfer from 5d-4f of Pr³⁺ ions to Ce³⁺ ions, and the emission intensity reached maximum value when the dopant contents were 0.2at%Ce and 0.25at%Pr.

Key words: Ce³⁺ ion, Pr³⁺ ion, LuAG tansparent ceramic, optical properties

中图分类号:

TB383

周鼎, 施鹰, 范灵聪, 林德宝, 孙泽清, 徐家跃. Ce, Pr离子双掺LuAG透明陶瓷制备及光学性能[J]. 无机材料学报, 2016, 31(10): 1099-1102.

ZHOU Ding, SHI Ying, FAN Ling-Cong, LIN De-Bao, SUN Ze-Qing, XU Jia-Yue. Fabrication and Optical Properties of Ce, Pr Co-doped LuAG Transparent Ceramics[J]. Journal of Inorganic Materials, 2016, 31(10): 1099-1102.

图/表 6

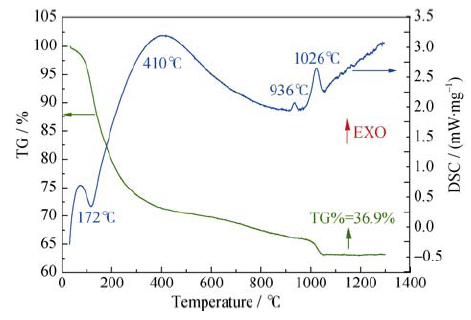

图1 反向共沉淀法制备的Ce, Pr: LuAG沉淀前驱体的TG-DSC曲线

Fig. 1 TG-DSC curves of the Ce, Pr: LuAG precursor prepared by reverse co-precipitant method

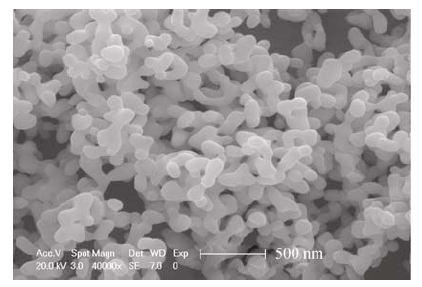

图2 1200℃/2 h煅烧后Y2粉体的SEM照片

Fig. 2 SEM image of Y2 powders calcined at 1200℃ for 2 h

图3 Y2前驱粉体经1200℃煅烧2 h所得粉体的TEM(a)和HR-TEM(b)照片

Fig. 3 TEM (a) and HR-TEM (b) morphologies of Y2 powders calcined at 1200℃ for 2 h

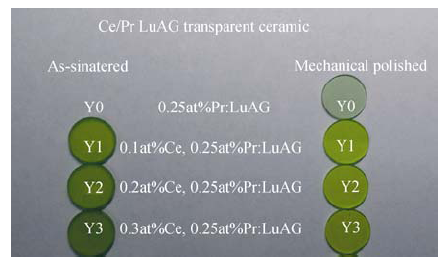

图4 1800℃/6 h烧结的Y0-Y3透明陶瓷样品的照片

Fig. 4 Pictures of Ce, Pr: LuAG transparent ceramics (Y0-Y3)

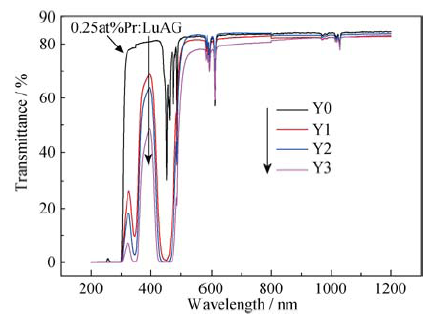

图5 Y0-Y3透明陶瓷的光学透过率曲线

Fig. 5 In-line transmittance curves of Y0-Y3 transparent ceramics

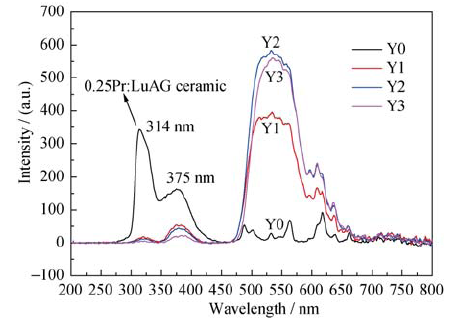

图6 Y0-Y3透明陶瓷的X射线激发下的发射光谱

Fig. 6 X-ray exited emission spectra of Y0-Y3 transparent ceramics

参考文献 13

[1]	VAN EIJK C.Inorganic Scintillators in Positron Emission Tomography. Radiation Detectors for Medical Applications. Netherland: Springer Netherlands, 2006: 259-274.
[2]	VAN EIJK C.Inorganic scintillators in medical imaging.Physics in Medicine and Biology. 2002, 47(8): R85-R106.
[3]	MOSES W.Recent advances and future advances in time-of-flight PET.Nuclear Instruments and Methods in Physics Research Section A: Accelerators Spectrometers, Detectors and Associated Equipment. 2007, 580(2): 919-924.
[4]	NIKL M, MIHOKOVA E, PEJCHAL J, et al.Scintillator materials Achievements, opportunities, and puzzles.IEEE Transactions on Nuclear Science. 2008, 55(3): 1035-1041.
[5]	OGINO H, YOSHIKAWA A, NIKL M, et al.Scintillation characteristics of Pr-doped Lu3Al5O12 single crystals.Journal of Crystal Growth. 2006, 292(2): 239-242.
[6]	SHEN Y Q, SHI Y, PAN Y B, et al.Fabrication and 2D-mapping of Pr: Lu3Al5O12 scintillator ceramics with high light yield and fast decay time.Journal of Inorganic Materials, 2014, 29(5): 534-538.
[7]	HU C, LIU S P, FENG S D, et al.Flat panel X-ray imaging of LuAG: Ce, Mg ceramic scintillators.Journal of Inorganic Materials, 2015, 30(8): 814-818.
[8]	NIU X J, XU J Y, ZHOU D, et al.Synthesis and growth of Ce, Pr: YLuAG crystal for LED application.Journal of Inorganic Materials, 2015, 30(11): 1181-1186.
[9]	KAMADA K, TSUTSUMI K, USUKI Y, et al.Crystal growth and scintillation properties of 2-inch-diameter Pr: Lu3Al5O12 (Pr: LuAG) single crystal.IEEE Transactions on Nuclear Science. 2008, 55(3): 1488-1491.
[10]	DROZDOWSKI W, DORENBOS P, HAAS J, et al.Scintillation properties of praseodymium activated Lu3Al5O12 single crystals.IEEE Transactions on Nuclear Science. 2008, 55(4): 2420-2424.
[11]	OGIEGLO J, ZYCH A, JUSTEL T, et al.Luminescence and energy transfer in Lu3Al5O12 scintillators co-doped with Ce3+and Pr3+.Optical Materials, 2013, 35(3): 322-331.
[12]	YANAGIDA T, FUJIMOTO Y, KAMADA K, et al.Scintillation properties of transparent ceramic Pr: LuAG for different Pr concentration.IEEE Transactions on Nuclear Science, 2012, 59(5): 1-6.
[13]	HAYASHI K, TOYODA S, TAKEBE H, et al.Phase transformation of alumina derived from ammonium aluminum carbonate hydroxide (AACH).J. Ceramic Society Japan, 1991, 99(7): 550-555.
