CaxSr1-xBi2Nb2O9无铅压电陶瓷制备及其高温稳定性研究

doi:10.15541/jim20150068

无机材料学报 ›› 2015, Vol. 30 ›› Issue (9): 989-994.DOI: 10.15541/jim20150068 CSTR: 32189.14.10.15541/jim20150068

Ca_xSr_1-_xBi₂Nb₂O₉无铅压电陶瓷制备及其高温稳定性研究

姚忠冉¹, 初瑞清¹, 徐志军¹, 郝继功¹, 李国荣²

(1. 聊城大学材料科学与工程学院, 聊城252059; 2. 中国科学院上海硅酸盐研究所, 上海200050)

收稿日期:2015-02-01 修回日期:2015-04-02 出版日期:2015-09-20 网络出版日期:2015-08-19
作者简介:姚忠冉(1991–), 男, 硕士研究生. E-mail: yaozr05130928@163.com
基金资助:
国家自然科学基金( 51372110, 51402144, 51302124);国家高技术研究发展计划(863计划, 2013AA030801);山东省自然科学基金(ZR2012EMM004, ZR2012AL06);广东省科技计划(2013B091000001);山东省自主创新及成果转化专项(2014CGZH0904);山东省高等学校科技计划项目(J14LA10, J14LA11), 聊城大学研究基金(318011301, 318011306)

Preparation and High Temperature Stability of Ca_xSr_1-_xBi₂Nb₂O₉ Lead-free Piezoelectric Ceramics

YAO Zhong-Ran¹, CHU Rui-Qing¹, XU Zhi-Jun¹, HAO Ji-Gong¹, LI Guo-Rong²

(1. College of Materials Science and Engineering, Liaocheng University, Liaocheng 252059, China; 2. Shanghai Institute of Ceramics, Chinese Academy of Science, Shanghai 200050, China)

Received:2015-02-01 Revised:2015-04-02 Published:2015-09-20 Online:2015-08-19
About author:YAO Zhong-Ran. E-mail: yaozr05130928@163.com
Supported by:
National Natural Science Foundation of China (51372110, 51402144, 51302124);National High Technology Research and Development Program of China (2013AA030801);Natural Science Foundation of Shandong Province of China (ZR2012EMM004, ZR2012AL06);Science and Technology Planning Project of Guangdong Province, China (2013B091000001);Independent innovation and achievement transformation in Shandong Province special, China (2014CGZH0904);Project of Shandong Province Higher Educational Science and Technology Program(J14LA10, J14LA11);Research Foundation of Liaocheng University (318011301, 318011306)

摘要/Abstract

摘要：

采用传统固相法制备了Ca_xSr_1-_xBi₂Nb₂O₉(x=0、0.10、0.25、0.40)无铅压电陶瓷, 研究了Ca²⁺掺杂量对其微观结构、电学性能及其高温稳定性的影响。掺入Ca²⁺并未改变SrBi₂Nb₂O₉陶瓷的晶体结构; 随着Ca²⁺掺杂量的增加, 陶瓷晶粒由片状向长条状转变; 陶瓷的矫顽场(E_c)下降, 剩余极化强度(P_r)先增大后减小; 陶瓷的居里温度由450℃升高到672℃。当x=0.10时, 陶瓷具有较好的综合性能: 2P_r=14.8 μC/cm², d₃₃=22 pC/N, T_c=488℃; 当退火温度达到400℃时, 压电常数d₃₃仍达到20 pC/N, 说明该材料具有较好的温度稳定性, 可以在400℃的高温环境中应用。

关键词: 陶瓷, Ca2+掺杂, CaxSr1-xBi2Nb2O9, 电学性能

Abstract:

Ca_xSr_1-_xBi₂Nb₂O₉ (x=0, 0.10, 0.25, 0.40) ceramics were prepared by solid-state reaction method, and their microstructure, electrical and temperature stability properties were systematically investigated. It is found that Ca-doping does not change the phase structure of SrBi₂Nb₂O₉. With increasing Ca²⁺ contents, microstructure of the Ca_xSr_1-_xBi₂Nb₂O₉ceramics changes from sheet to long strips. The remnant polarization (P_r) increases firstly and then decreases, reaching the maximum value at x=0.01, while the coercive field (E_c) decreases gradually. Furthermore, Ca-doping can also improve the Curie temperature, which increases from 450℃ to 672℃ with increase of Ca²⁺ contents. The optimum electrical properties can be obtained at x=0.10 as 2P_r=14.8 μC/cm², d₃₃=22 pC/N and T_c=488℃. In addition, after annealing at 400℃, the piezoelectric constant (d₃₃) of the ceramics remains 20 pC/N, showing good temperature stability for high temperature applications.

Key words: ceramic, Ca2+-doping, CaxSr1-xBi2Nb2O9, electrical properties

中图分类号:

TM282

姚忠冉, 初瑞清, 徐志军, 郝继功, 李国荣. Ca_xSr_1-_xBi₂Nb₂O₉无铅压电陶瓷制备及其高温稳定性研究[J]. 无机材料学报, 2015, 30(9): 989-994.

YAO Zhong-Ran, CHU Rui-Qing, XU Zhi-Jun, HAO Ji-Gong, LI Guo-Rong. Preparation and High Temperature Stability of Ca_xSr_1-_xBi₂Nb₂O₉ Lead-free Piezoelectric Ceramics[J]. Journal of Inorganic Materials, 2015, 30(9): 989-994.

图/表 6

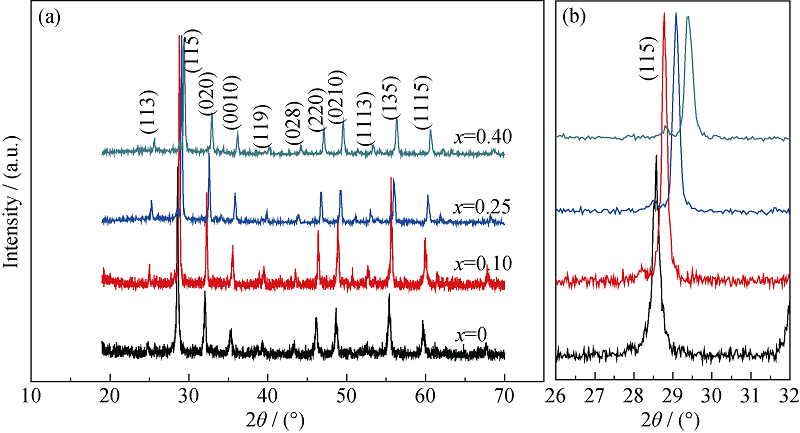

图1 CaxSr1-xBi2Nb2O9 (1100℃/2 h)陶瓷样品的XRD谱图

Fig. 1 XRD patterns of CaxSr1-xBi2Nb2O9 ceramics sintered at 1100℃ for 2 h

图2 CaxSr1-xBi2Nb2O9 (1100℃/2 h)陶瓷断面的SEM照片

Fig. 2 SEM images of the fracture surface microstructure for CaxSr1-xBi2Nb2O9 ceramics sintered at 1100℃ for 2 h

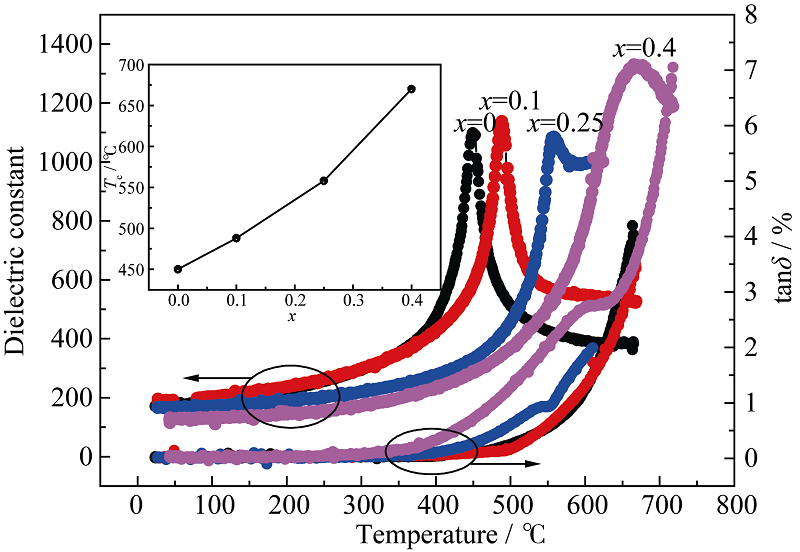

图3 CaxSr1-xBi2Nb2O9陶瓷样品在10 kHz测试频率下的介温图谱和介电损耗tanδ

Fig. 3 Temperature dependence and dielectric loss tanδ of dielectric response at 10 kHz for CaxSr1-xBi2Nb2O9 ceramics nset is the relation between Tc and x

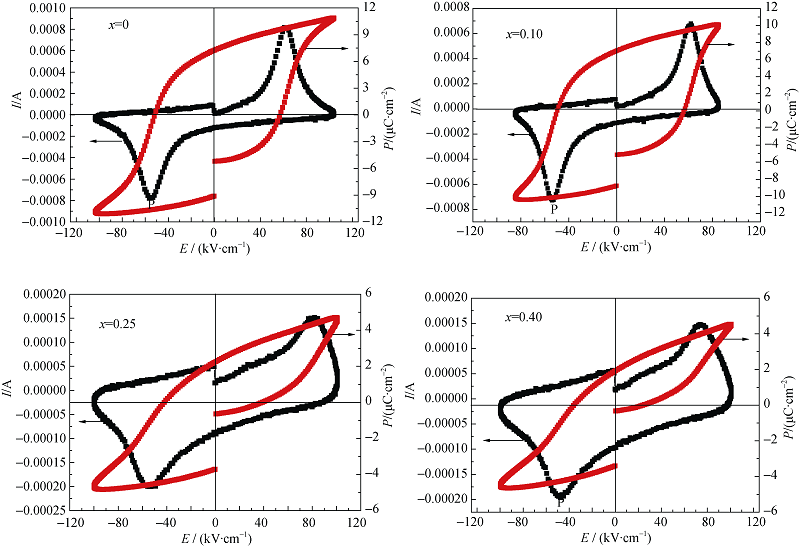

图4 180℃下CaxSr1-xBi2Nb2O9陶瓷样品的电滞回线和电流曲线

Fig. 4 Ferroelectric P-E hysteresis and I-E loops of CaxSr1-xBi2Nb2O9 ceramics (180℃)

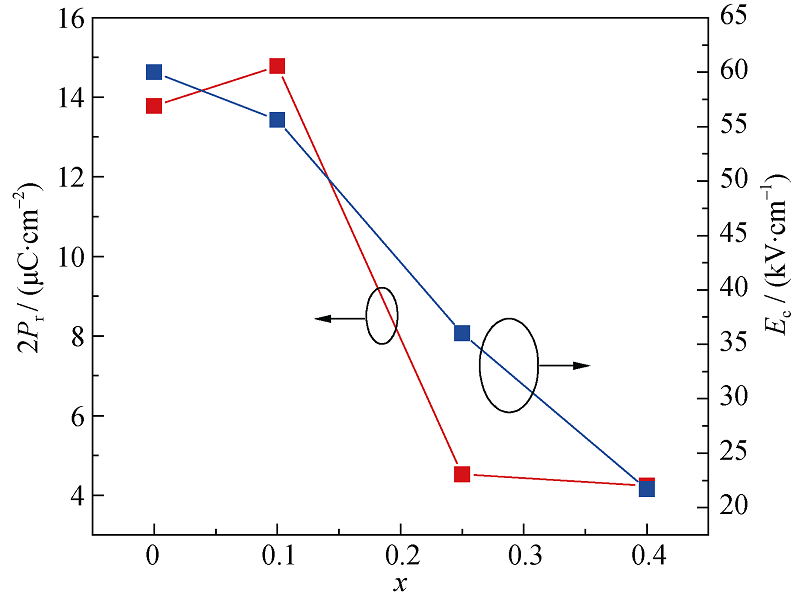

图5 CaxSr1-xBi2Nb2O9陶瓷剩余极化强度2Pr和矫顽场强Ec与x的关系

Fig. 5 Remnant polarization (Pr) and coercive field (Ec) of CaxSr1-xBi2Nb2O9 ceramics as a function of x

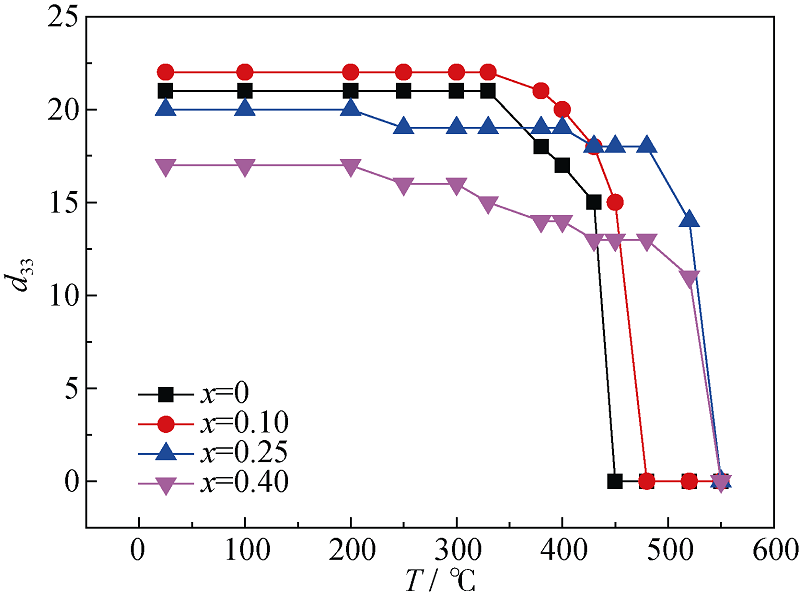

图6 CaxSr1-xBi2Nb2O9陶瓷压电常数(d33)与退火温度(T)的关系

Fig. 6 Relationship between piezoelectric constant (d33) and heat treatment temperature (T) of the CaxSr1-xBi2Nb2O9 ceramics

参考文献 27

[1]	ZHU K J, SU L K, JI H L, et al.Hydrothermal solvothermal synthesis of (K, Na)NbO3 lead-free piezo-electric ceramics and its properties.Journal of Inorganic Materials, 2010, 25(11): 1159-1163.
[2]	TANG F S,DU HL, LIU D J, et al.Sintering characteristic and piezoelectric properties of lead-free (K0.5Na0.5)NbO3-LiNbO3 ceramics.Journal of Inorganic Materials, 2007, 22(2): 323-327.
[3]	YAN H X, LI C E, ZHOU J G, et al.Structures and properties of bismuth layer-structured piezoelectric ceramics with high Tc.Journal of Inorganic Materials, 2000, 15(2): 209-220.
[4]	XU Z J, CHU R Q, HAO J G, et al.Study on high temperature performances for bismuth layer-structured (Sr1-xCax)2Bi4Ti5O18 (0≤x≤1) ceramics.Journal of Alloys and Compounds, 2009, 487(1): 585-590.
[5]	HUANG X Y, CHEN Z G, ZHENG X, et al.Dielectric and piezoelectric properties of Ca1-x(Li, Ce)x/2Bi4Ti4O15 ceramics.Journal of Rare Earths, 2007, 25(1): 158-162.
[6]	PENG Z H, CHEN Q, WU J G, et al.Dielectric properties and impedance analysis in Aurivillius-type (Na0.25K0.25Bi0.5)1-x (LiCe)x/2[]x/2Bi4Ti4O15 ceramics.Journal of Alloys and Compounds, 2012, 541: 310-316.
[7]	ZHANG Y D, ZHOU D, GUO J, et al.Microwave dielectric properties of the (1-x)(Mg0.95Zn0.05)TiO3-x(Ca0.8Sm0.4/3)TiO3 temperature stable ceramics.Materials Letters, 2014, 132: 200-202.
[8]	JIN S, SALVADO IMM, COSTA MEV.Structure, dielectric and ferroelectric anisotropy of Sr2-xCaxBi4Ti5O18 ceramics.Materials Research Bulletin, 2011, 46(3): 432-437.
[9]	SIMÕES AZ, RICCARDI CS, CAVALCANTE LS, et al. Impact of oxygen atmosphere on piezoelectric properties of CaBi2Nb2O9 thin films.Acta Materialia, 2007, 55(14): 4707-4712.
[10]	WEI T, ZHAO C Z, ZHOU Q J, et al.Bright green upconversion emission and enhanced ferroelectric polarization in Sr1-1.5xErxBi2Nb2O9.Optical Materials, 2014, 36(7): 1209-1212.
[11]	FANG P, XI Z, LONG W, et al.Ferroelectric, dielectric and piezoelectric properties of Sr0.6(BiNa)0.2Bi2Nb2O9 ceramics.Materials Research Bulletin, 2013, 48(11): 4907-4910.
[12]	FANG P, XI Z, LONG W, et al.Structure and electrical properties of SrBi2Nb2O9-based ferroelectric ceramics with lithium and cerium modification.Journal of Alloys and Compounds, 2013, 575: 61-64.
[13]	SUN L, CHU J H, YANG P X, et al.Influence of substitution of Nd3+ for Bi3+ on structure and piezoelectric properties of SrBi2-x NdxNb2O9 (x=0, 0.1, 0.2 and 0.4).Transactions of Nonferrous Metals Society of China, 2009, 19(6): 1459-1463.
[14]	LIN D M, XIAO D Q, YU P, et al.Researches and progresses of bismuth layer-based lead-free piezoelectric ceramics.Journal of Functional Materials, 2002, 34(5): 491-495.
[15]	WU Y, FORBESS MJ, SERAJI S, et al.Doping effect in layer structured SrBi2Nb2O9 ferroelectrics.Journal of Applied Physics, 2001, 90(10): 5296.
[16]	JAIN R, GUPTA V, MANSINGH A, et al.Ferroelectric and piezoelectric properties of non-stoichiometric Sr1-xBi2+2x/3Ta2O9 ceramics prepared from Sol-Gel derived powders.Materials Science and Engineering: B, 2004, 112(1): 54-58.
[17]	HUANG S, FENG C, GU M, et al.Dielectric properties of SrBi2-xLaxNb2O9(0≤x≤0.35) ceramics.Journal of Alloys and Compounds, 2009, 472(1): 262-266.
[18]	CHENG R F, XU Z J, CHU R Q, et al.Study on structural and electrical properties of (Mo1/2Sr1/2)4+ doped Bi1/2Na1/2TiO3 based lead-free piezoceramics.Journal of Functional Materials, 2014, 45(15): 15080-15083.
[19]	DU H L, LI Y, SHI X.Effect of ion substitution of PbBi2Nb2O9 bismuth layered ceramics on the dielectric properties.Piezoelectectrics & Acoustooptics, 2009, 31(2): 247-250.
[20]	KHASA S, SINGH P, SANGHI S, et al.Structural analysis and dielectric characterization of Aurivillius type CaSrBi2Nb2O9 ceramics.Journal of Integrated Science and Technology, 2014, 2(1): 13-21.
[21]	SIMÕES A Z, RIES A, RICCARDI CS, et al. High Curie point CaBi2Nb2O9 thin films: a potential candidate for lead-free thin-film piezoelectrics.Journal of Applied Physics, 2006, 100(7): 074110.
[22]	ZHAO Y, DU H L, LI H L.Preparation and properties improvement of bismuth layer-structured piezoelectric ceramics.Journal of The Chinese Ceramic Society, 2008, 36(9): 1262-1266.
[23]	WANG C M, ZHANG S, WANG J F, et al.Electromechanical properties of calcium bismuth niobate (CaBi2Nb2O9) ceramics at elevated temperature.Materials Chemistry and Physics, 2009, 118(1): 21-24.
[24]	PUJA G, YADAV K L.Effect of V5+ doping on structural and dielectric properties of SrBi2Nb2O9 synthesized at low temperature,Physical B, 2006, 382(1): 245.
[25]	JUN Z, XIANG-YU M, WANG-PING L.Effect of Bi3+ content on the properties of SrBi4Ti4O15 ferroelectric ceramics.Journal of Yangzhou University, 2003, 6(1): 33-36.
[26]	山东大学压电铁电物理教研室. 压电陶瓷及其应用. .山东人民出版社, 1974, 67-69.
[27]	WANG C M, WANG J F, ZHANG S, et al.Electromechanical properties of A-site (LiCe)-modified sodium bismuth titanate (Na0.5Bi4.5Ti4O15) piezoelectric ceramics at elevated temperature.Journal of Applied Physics, 2009, 105(9): 94-110.
