Ag doped HgS Quantum Dots: a pH-tunable Near-infrared-Ⅱ Fluorescent Nanoprobe

doi:10.15541/jim20190031

Abstract

Abstract:

Design and preparation of near-infrared (NIR) especially NIR-Ⅱ (1000-1700 nm) fluorescence probe with favorable biocompatibility and high quantum yield have become the focus of noninvasive fluorescent imaging in recent years. In this study, Ag doped HgS QDs (HgAgS QDs) were prepared at different synthetic pH. With the increase of pH, the fluorescence emission peak of the HgAgS QDs red-shifted and then blue-shifted, reaching a maximum emission wavelength of 1110 nm (QY=8.12%) at pH 6.0. Atomic absorption spectroscopy showed that the doping amount of Ag (Ag/Hg ratio) changed regularly in HgAgS QDs prepared at different pH solutions, which was consistent with change of fluorescence emission position. It was proved that pH could tune the position of fluorescence emission peak by adjusting the doping amount of Ag. Moreover, the quantum yield (QY) of HgAgS QDs increased firstly and then decreased, presenting an optimum of 13.23% (λ_em=1100 nm) at pH 7.0. Cell viability tests demonstrated that the doping amount of Ag showed no significant effect on cytotoxicity. And all HgAgS QDs had no cytotoxicity at the concentration range of 1-50 μg/L, thus can be used as a pH-tunable NIR-Ⅱ fluorescent probe. These findings provide a promising application in the NIR fluorescent imaging and an interesting insight into the design and preparation of the NIR-Ⅱ fluorescence nanoprobe.

Key words: NIR-Ⅱ fluorescence, HgAgS quantum dots, pH-tunable, hot injection

CLC Number:

TQ174

WANG Jun-Cheng, YANG Fei-Fei, GAO Guan-Bin, SUN Tao-Lei. Ag doped HgS Quantum Dots: a pH-tunable Near-infrared-Ⅱ Fluorescent Nanoprobe[J]. Journal of Inorganic Materials, 2019, 34(11): 1156-1160.

Figures/Tables 9

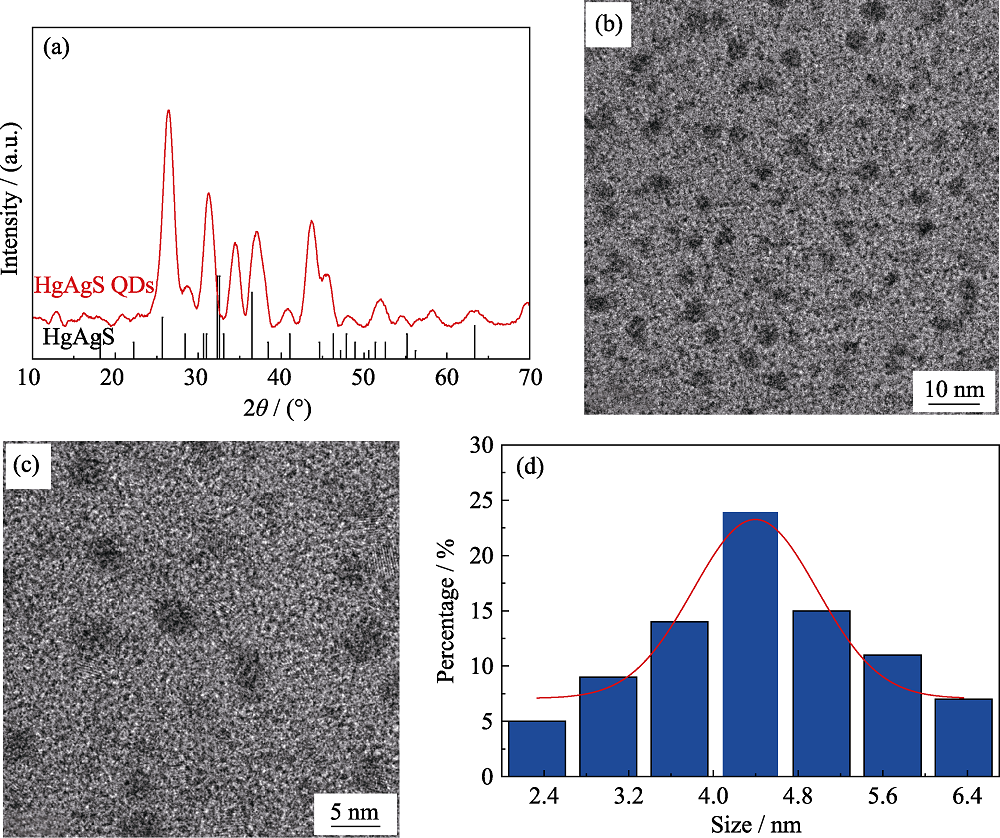

Fig. 1 XRD pattern (a), TEM image (b), HR-TEM image (c), and size distribution (d) of HgAgS QDs

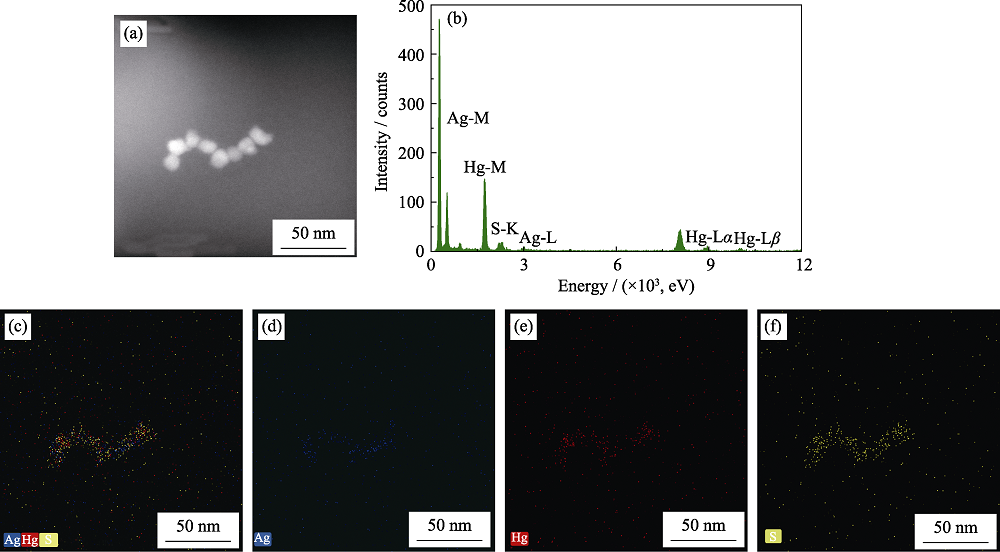

Fig. 2 High-angle annular dark field (HAADF), STEM image (a) and EDS (b) of HgAgS QDs; Mixed elements mapping of HgAgS QDs (c) with corresponding single element Ag(blue) (d), Hg(red) (e) and S(yellow) (f) elements distribution

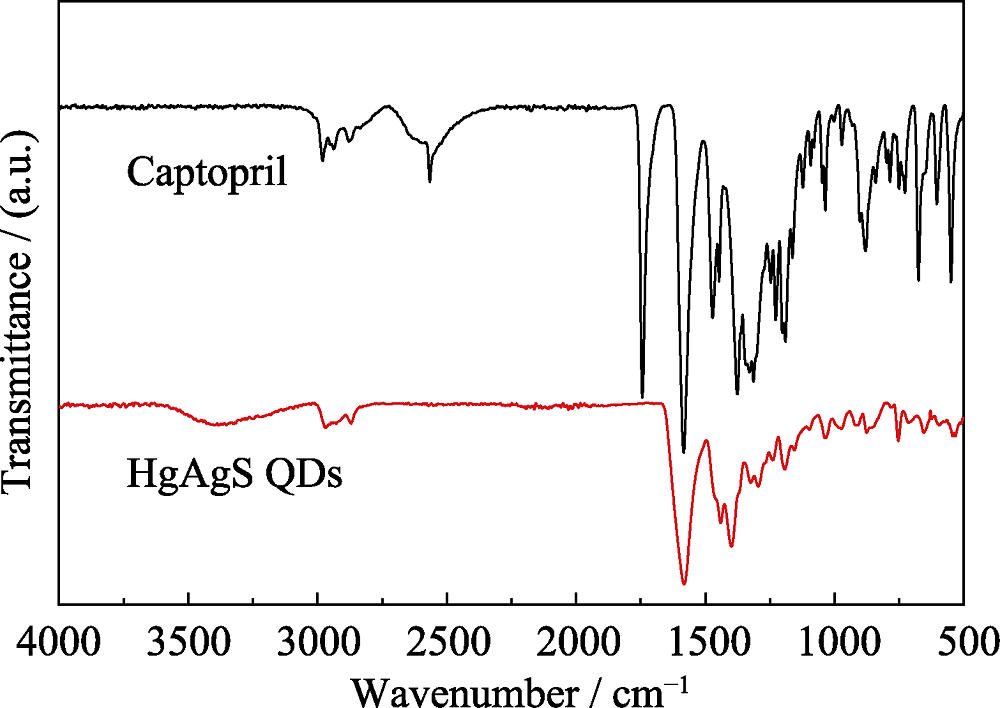

Fig. 3 FT-IR spectra of captopril and HgAgS QDs

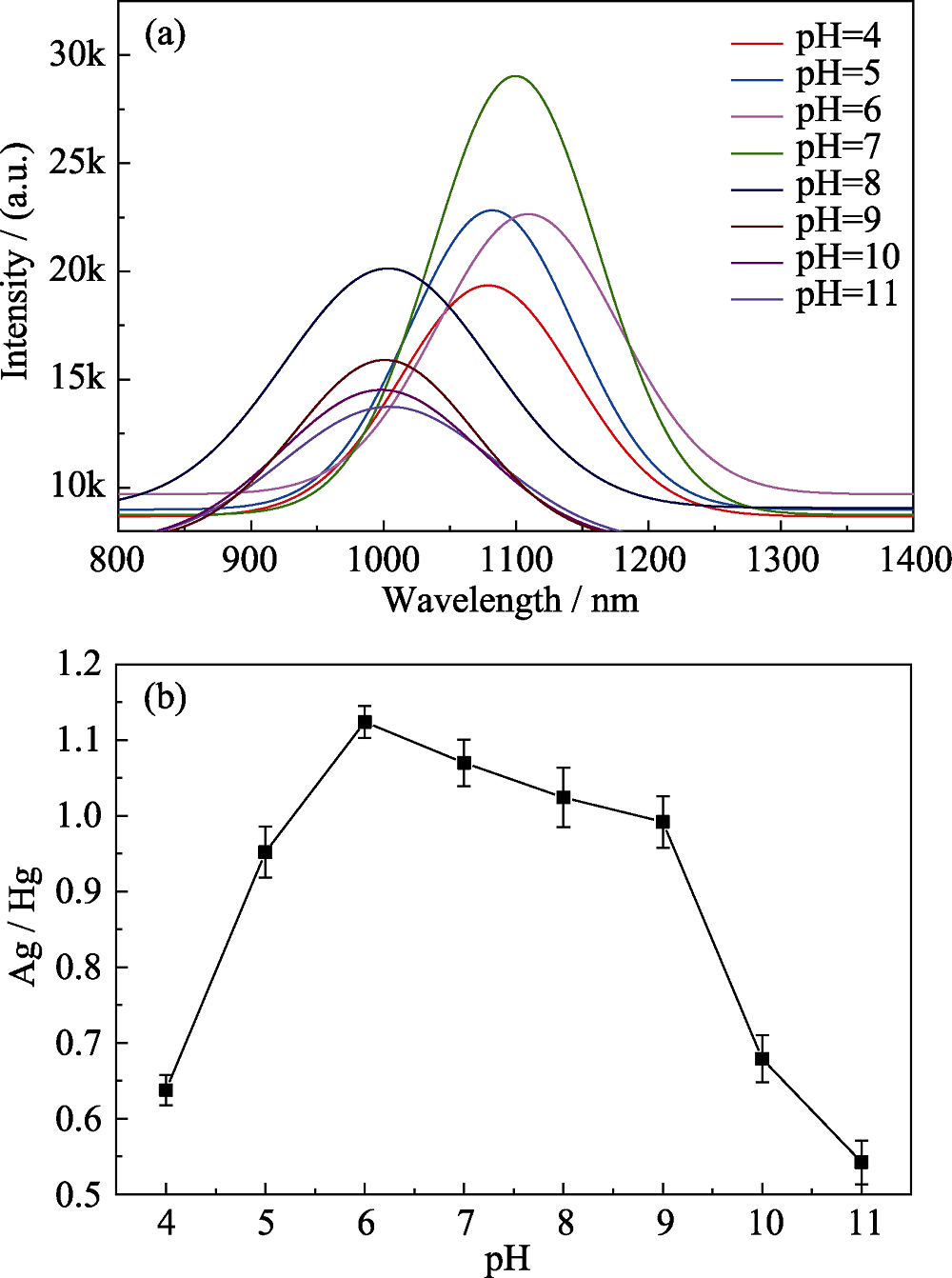

Fig. 4 Fluorescence (a) and Ag/Hg value (b) of HgAgS QDs with different synthetic pH (Ex=400 nm) (colourful edition is available on website)

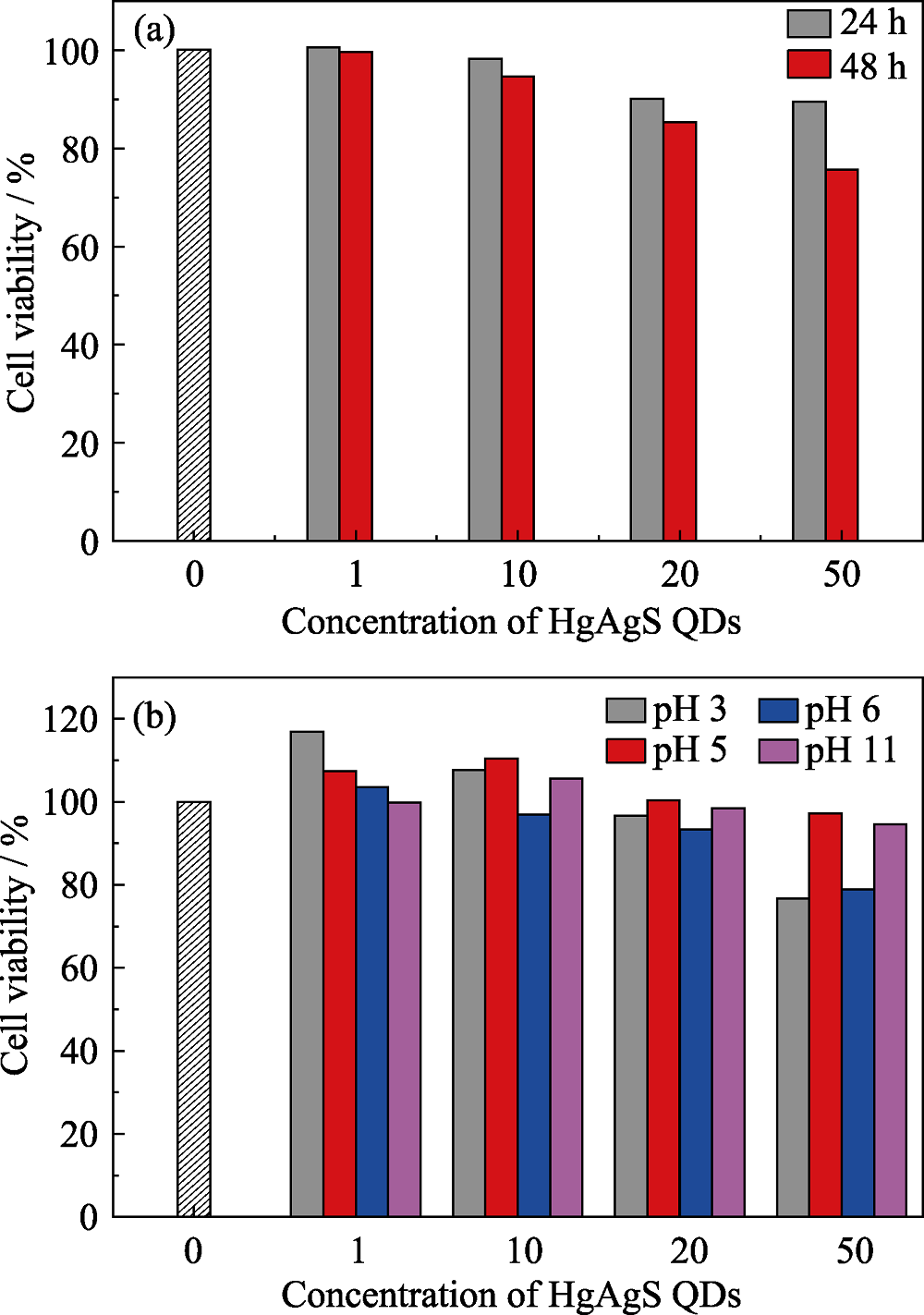

Fig. 5 Cell viability of HgAgS QDs prepared at pH 6.0 on INS-1 cells for 24 and 48 h (a), and cell viability of HgAgS QDs prepared at pH=3.0, 5.0, 6.0 and 11.0 on PC12 cells (b). Concentrations of HgAgS QDs were 0, 1, 10, 20 and 50 μg/L

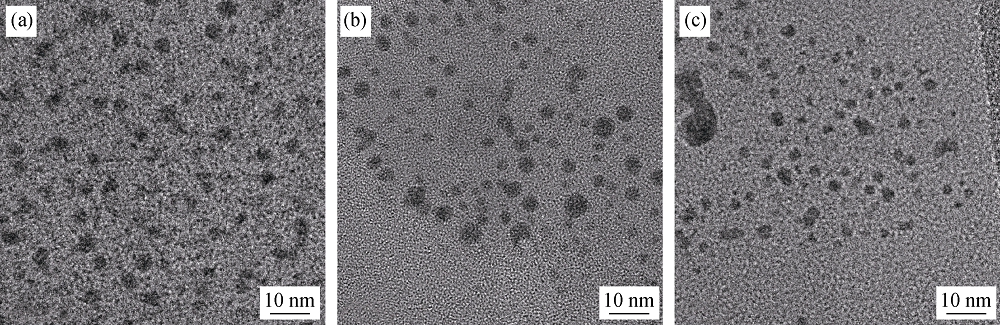

Fig. 6 Fig. S1 HR-TEM images of HgAgS QDs synthesized at pH 5 (a), 9 (b) and 11 (c)

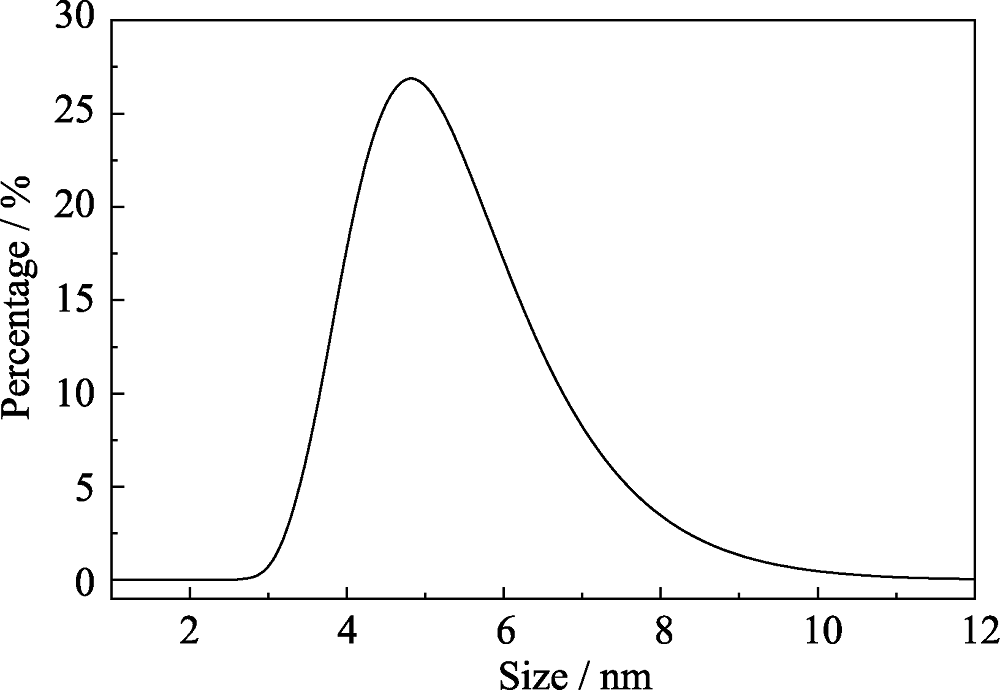

Fig. 7 Fig. S2 Hydrate particle size of HgAgS QDs

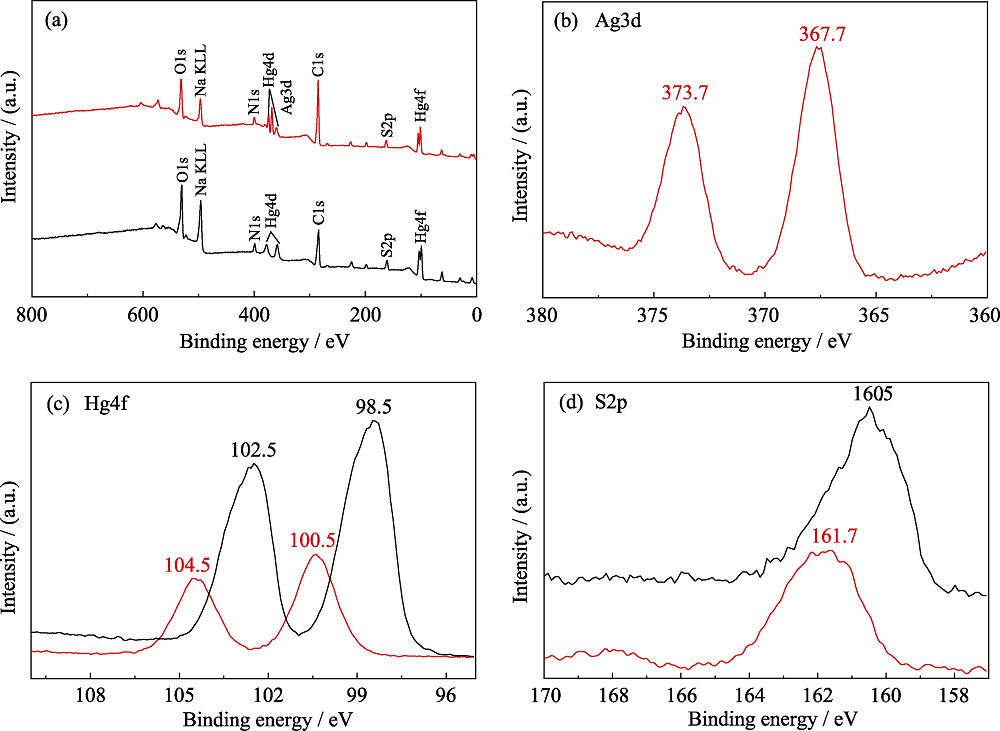

Fig. 8 Fig. S3 Survey spectra (a), Ag3d (b), Hg4f (c) and S2p (d) spectra of HgS QDs (black curves) and HgAgS QDs (red curves)

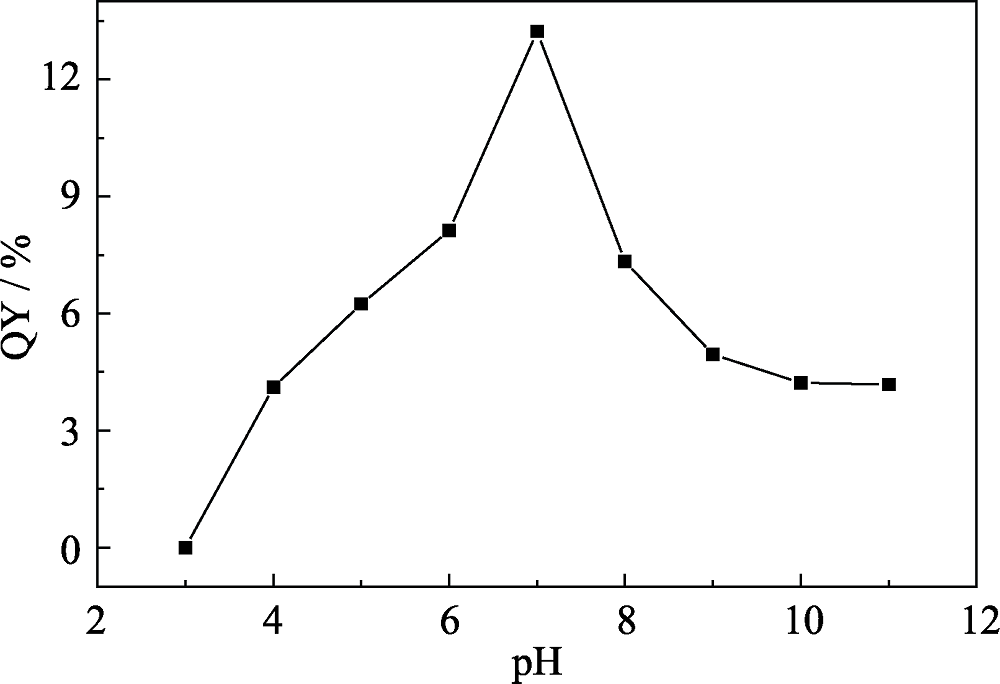

Fig. 9 Fig. S4 QYs of HgAgS QDs, Ex = 400 nm
