Preparation of High-entropy Boride Powders for Plasma Spraying by Inductive Plasma Spheroidization

doi:10.15541/jim20250008

Abstract

Abstract:

Fabrication of feedstock powders is a critical technology that directly influences the microstructure and performance of plasma-sprayed coatings. Conventional boron thermal reduction methods for synthesizing high-entropy boride powders encounter several limitations such as prolonged processing time, impurity contamination, and inability to obtain spray-ready powders. In this work, an inductive plasma spheroidization (IPS) process was employed to fabricate (Zr_1/4Hf_1/4Ta_1/4Ti_1/4)B₂ high-entropy powders for plasma spraying in contrast to the other two traditional powder preparation routes. The morphology, internal structure, particle size distribution, density, and other fundamental properties of powders were systematically characterized. The effects of different powder fabricating processes on the microstructure and fundamental properties of high-entropy boride powders were systematically investigated, thereby validating the broad applicability of this methodology for synthesizing high-entropy boride powders. The results demonstrate that using commercial micron-sized boride powders as precursors, a hybrid process combining mixing, spray drying, sintering with IPS facilitates the fabrication of high-entropy powders with homogeneous elemental distribution. The resulting powders exhibit spherical morphology, smooth surfaces, high internal density, and high apparent/tap density. Further experiments on synthesizing different high-entropy borides with varied compositions confirm the extensive applicability of this method. The formation mechanism of high-entropy solid solutions is elucidated through first-principles calculations combined with the unique characteristics of IPS process. This work proposes a promising method for fabricating high-entropy ceramic powders suitable for plasma-spray coatings.

Key words: inductive plasma spheroidization, high entropy ceramic powder, boride, powders for spray

CLC Number:

TQ174

YU Leyangyang, ZHAO Fangxia, ZHANG Shuxin, XU Yixiang, NIU Yaran, ZHANG Zhenzhong, ZHENG Xuebin. Preparation of High-entropy Boride Powders for Plasma Spraying by Inductive Plasma Spheroidization[J]. Journal of Inorganic Materials, 2025, 40(7): 808-816.

Figures/Tables 12

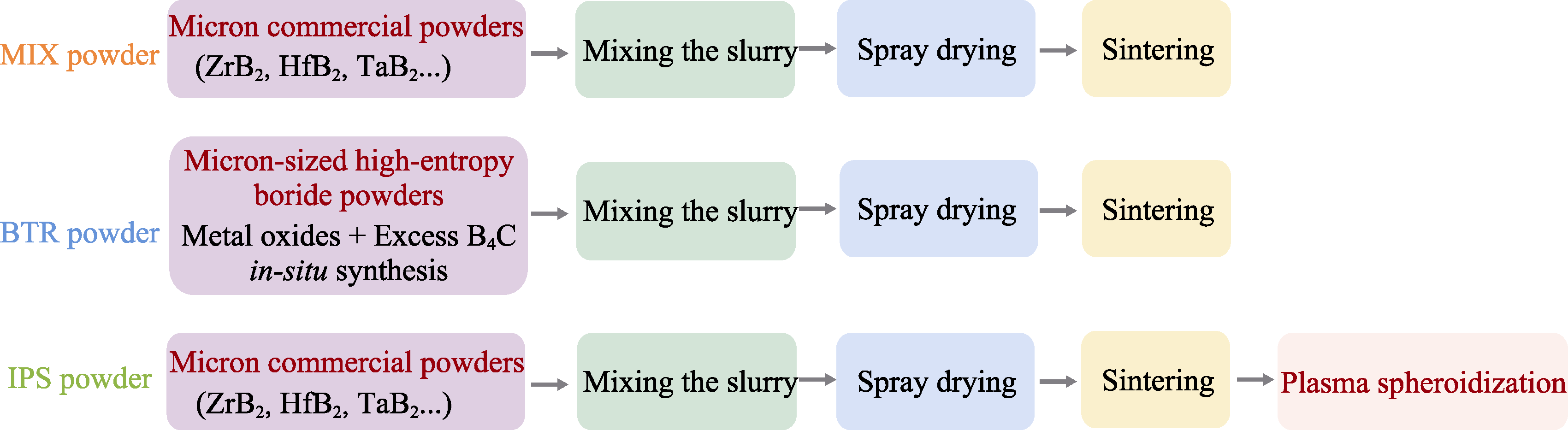

Fig. 1 Flow chart for preparation of different (Zr1/4Hf1/4Ta1/4Ti1/4)B2 powders

Table 1 Process parameters for powder preparation by inductive plasma spheroidization

Parameter	Value
Second gas (H₂)/slpm	30-60
Primary gas (Ar)/slpm	120-150
Chamber pressure/psig	3-7
Powder feed rate/(g·min^-1)	20-40

Fig. 2 Cellular modeling of binary transition metal boride

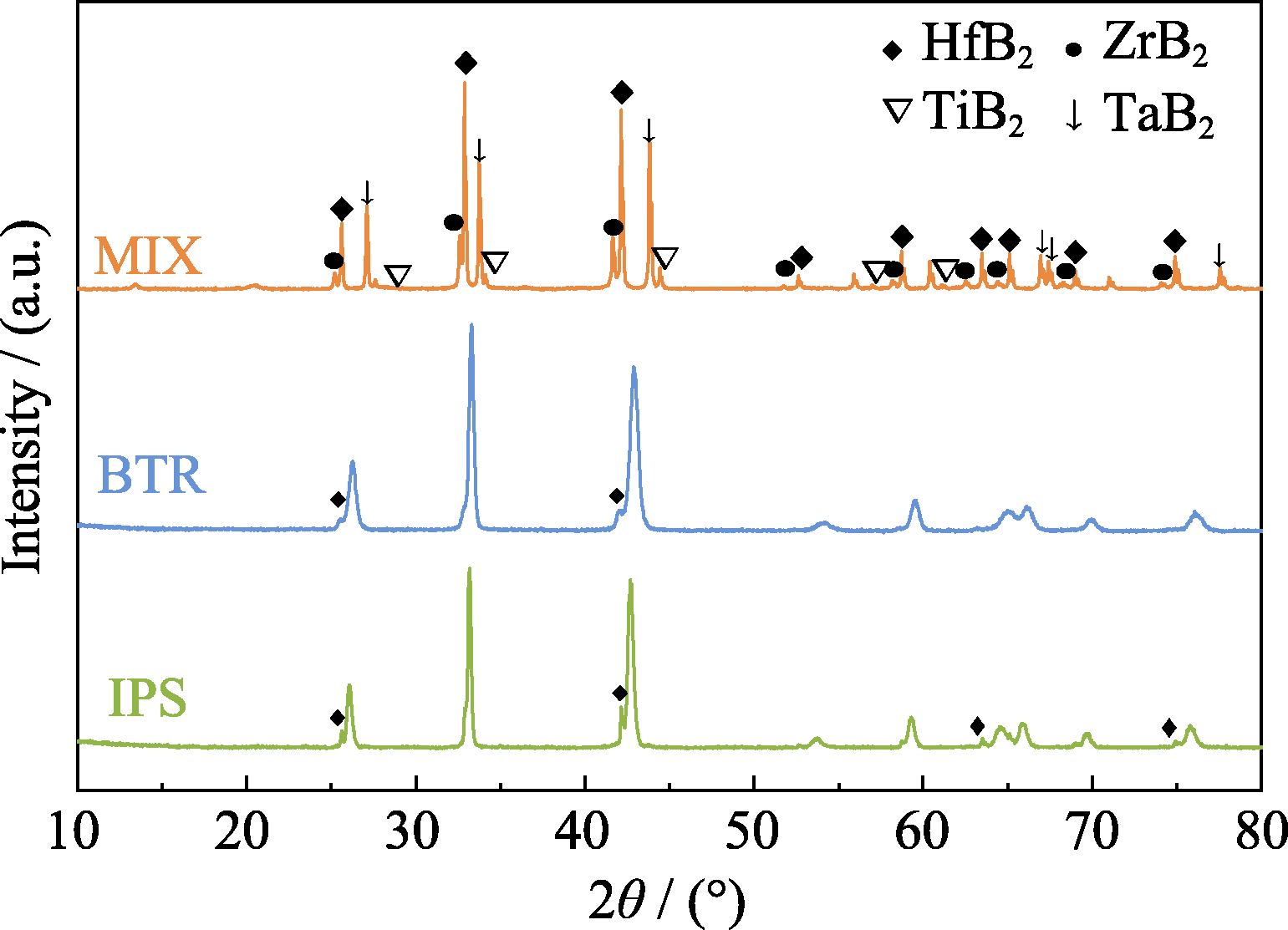

Fig. 3 XRD patterns of (Zr1/4Hf1/4Ta1/4Ti1/4)B2 powders prepared by different processes

Fig. 4 SEM images and EDS mappings of MIX (a1-a4), BTR (b1-b4), and IPS (c1-c4) powders

Table 2 Particle size distribution, apparent and tap densities of three kinds of (Zr1/4Hf1/4Ta1/4Ti1/4)B2 powders

Powder	D₁₀/μm	D₅₀/μm	D₉₀/μm	D₉₇/μm	Apparent density/(g·cm^-3)	Tap density/(g·cm^-3)
MIX	16.53	33.14	61.72	77.85	1.93	2.38
BTR	19.65	34.92	66.66	79.61	2.25	2.82
IPS	11.08	28.65	56.61	73.30	4.40	4.77

Fig. 5 TG-DSC curves of (Zr1/4Hf1/4Ta1/4Ti1/4)B2 powders prepared by three processes (a) and Gibbs free energy for the oxidation reaction of single-component borides (b) Colorful figures are available on website

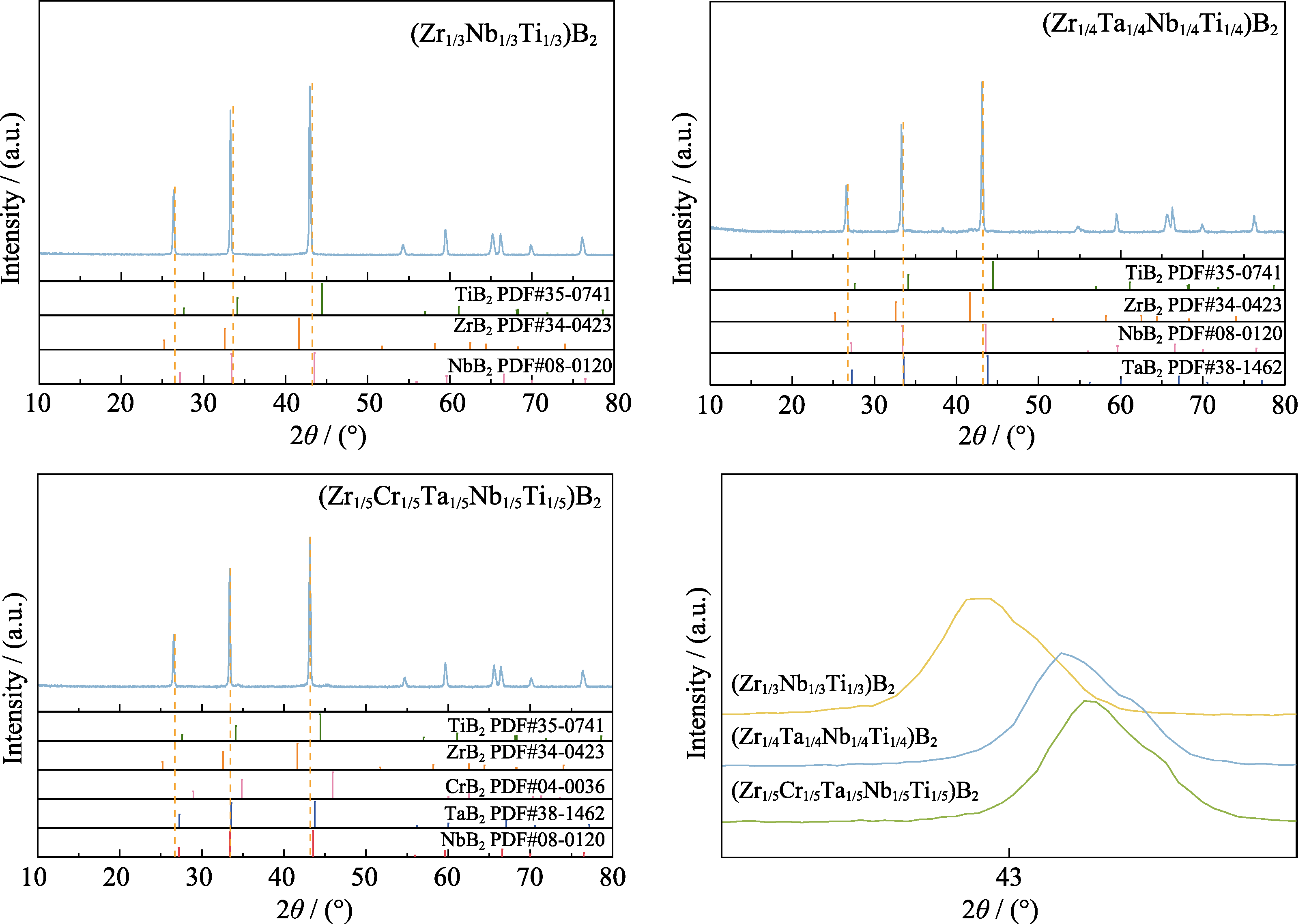

Fig. 6 XRD patterns of (Zr1/3Nb1/3Ti1/3)B2, (Zr1/4Ta1/4Nb1/4Ti1/4)B2, and (Zr1/5Cr1/5Ta1/5Nb1/5Ti1/5)B2 powders prepared by IPS

Fig. 7 SEM images and EDS mappings of (Zr1/3Nb1/3Ti1/3)B2 (a), (Zr1/4Ta1/4Nb1/4Ti1/4)B2 (b), and (Zr1/5Cr1/5Ta1/5Nb1/5Ti1/5)B2 (c) powders prepared by IPS Table shows the corresponding element contents (in atom) of spot 1-spot 6

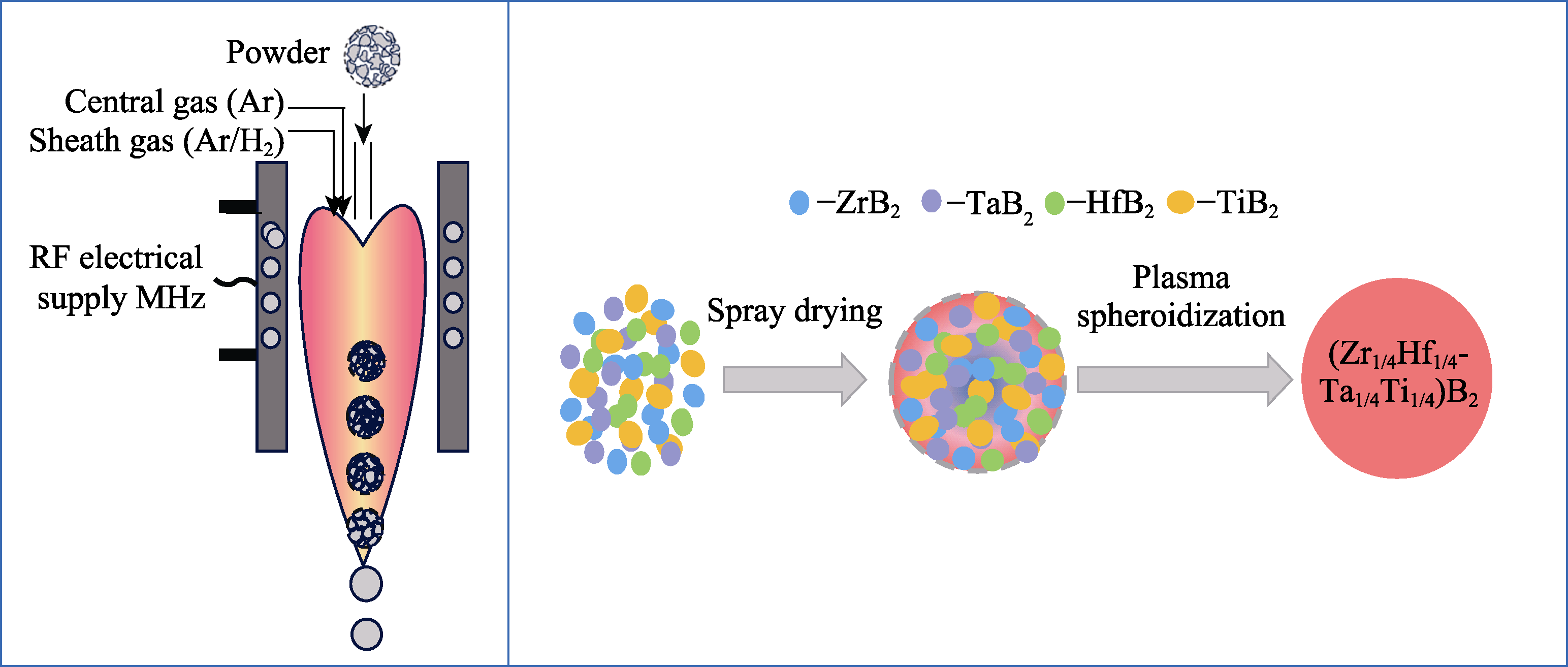

Fig. 8 Schematic diagram of inductive plasma spheroidization

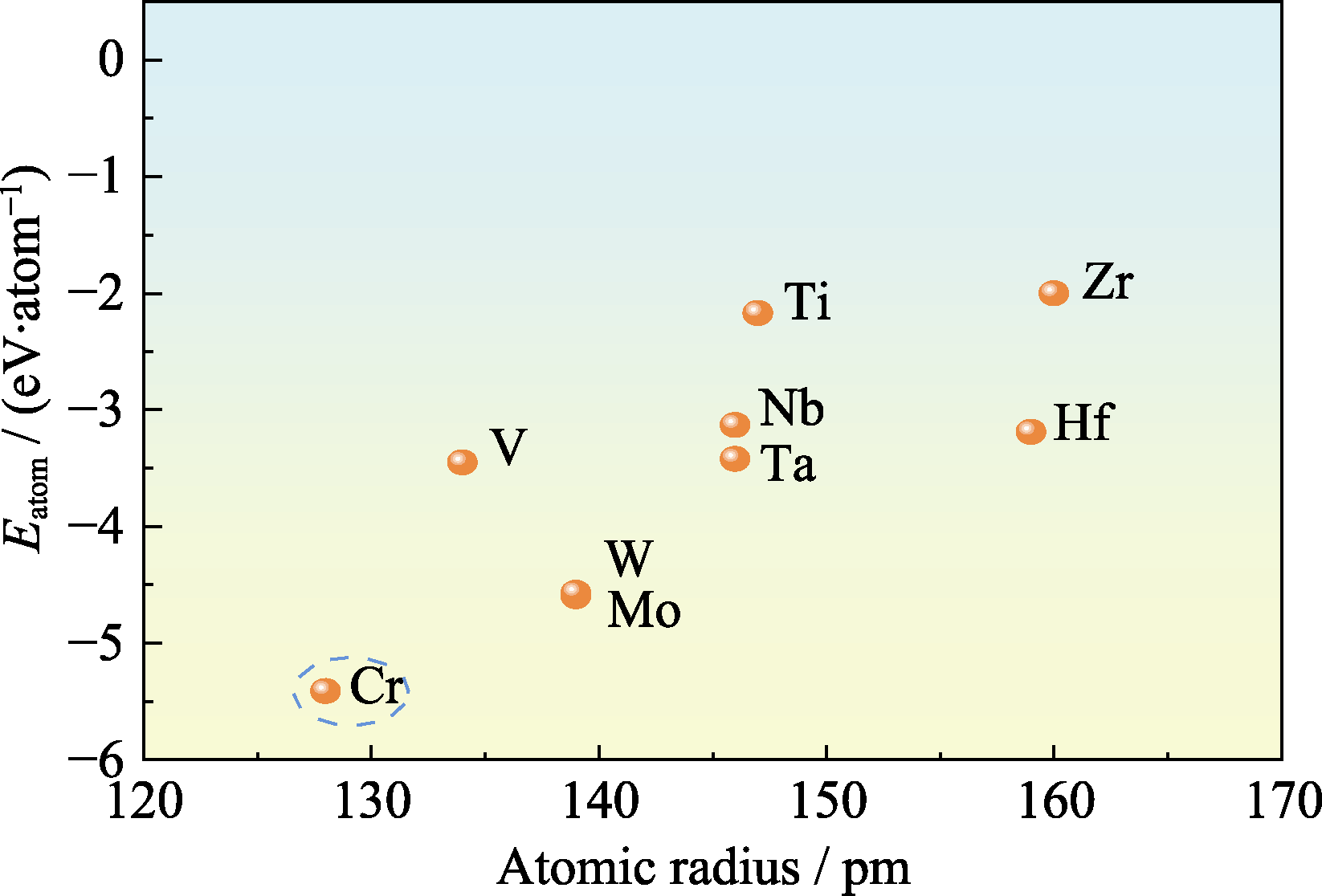

Fig. 9 Atomic radii and ground-state energies of different transition metals Me

Table 3 Density functional theory energies (Etot) and cohesive energies (Ecoh) of (Me0.5Zr0.5)B2

(Me_0.5Zr_0.5)B₂	E_tot/(eV·atom^-1)	E_coh/(eV·atom^-1)
(Ti_0.5Zr_0.5)B₂	-49.14	-7.29
(V_0.5Zr_0.5)B₂	-49.06	-7.06
(Cr_0.5Zr_0.5)B₂	-48.38	-6.62
(Nb_0.5Zr_0.5)B₂	-50.57	-7.37
(Mo_0.5Zr_0.5)B₂	-50.22	-7.07
(Hf_0.5Zr_0.5)B₂	-51.37	-7.49
(Ta_0.5Zr_0.5)B₂	-52.20	-7.59
(W_0.5Zr_0.5)B₂	-51.72	-7.32
