Layered Metal Organic Framework for Effective Removal of 137Cs from Aqueous Solution

doi:10.15541/jim20190434

Abstract

Abstract:

¹³⁷Cs is one of the most intractable β-emitters which is commonly generated from nuclear weapons test and nuclear power station. Due to the nature of high solubility and mobility, the effective sequestration of ¹³⁷Cs ⁺ from radioactive waste solution is considered as a long-term challenge. In this work, a two-dimensional layered anion framework material (SZ-6) was synthesized through conventional solvothermal reaction and the Cs ⁺ removal properties were systematically investigated. Single Crystal X-ray Diffraction (SCXRD) analysis revealed that SZ-6 adopts layer packed structure with large tetramethylammonium cations loaded between the layers which is greatly beneficial to cation exchange process. Powder X-ray Diffraction (XRD) and Scanning Electron Microscope (SEM) confirmed the material with high purity and excellent hydrolytic stability. Batch experiments were used to investigate the adsorption behavior towards Cs ⁺ in aqueous solutions. The adsorption kinetics of SZ-6 could be achieved within 5 min, which is currently one of the fastest sorbents for the removal of Cs ⁺. Meanwhile, SZ-6 exhibits superior decontamination capability over a wide pH range from 4 to 12. Furthermore, it possesses marked selectivity in the presence of large excess of Na ⁺, K ⁺, Ca ²⁺ competing cations.

Key words: Metal Organic Frameworks, radionuclide, ¹³⁷Cs, adsorption, kinetics

CLC Number:

X591

LI Guodong, JI Guoxun, SUN Xinli, DU Wei, LIU Wei, WANG Shuao. Layered Metal Organic Framework for Effective Removal of ¹³⁷Cs from Aqueous Solution[J]. Journal of Inorganic Materials, 2020, 35(3): 367-372.

Figures/Tables 10

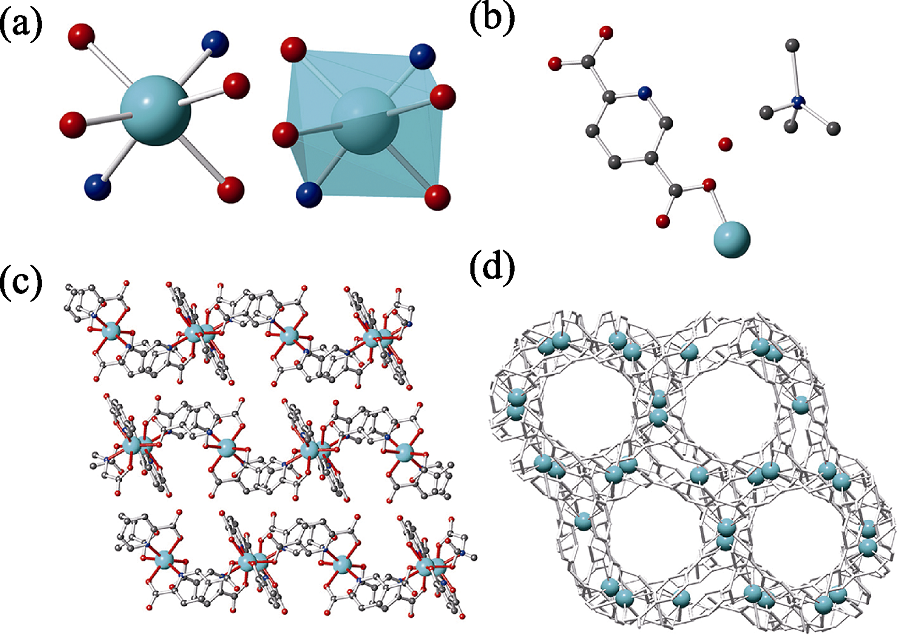

Fig. 1 Crystal structure of SZ-6 (a) Coordination environment of In3+ center; (b) Asymmetric unit of SZ-6; (c ) Layer packed structure of SZ-6 along the a axis; (d) Rhombic channels viewed along the c axis Atom colors: In = cyan, C = anthracite, N = blue, O =red

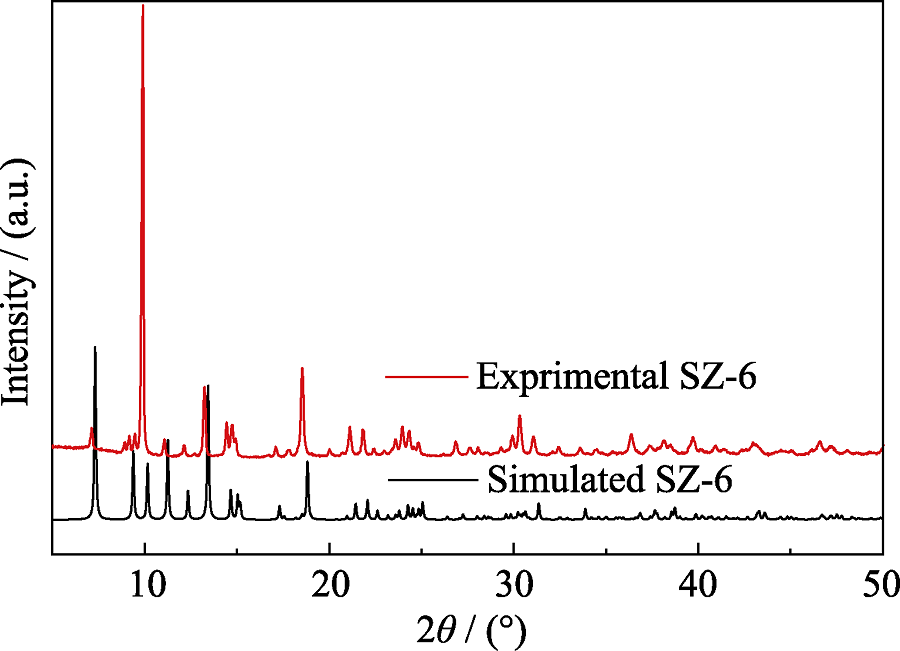

Fig. 2 Powder XRD patterns of SZ-6

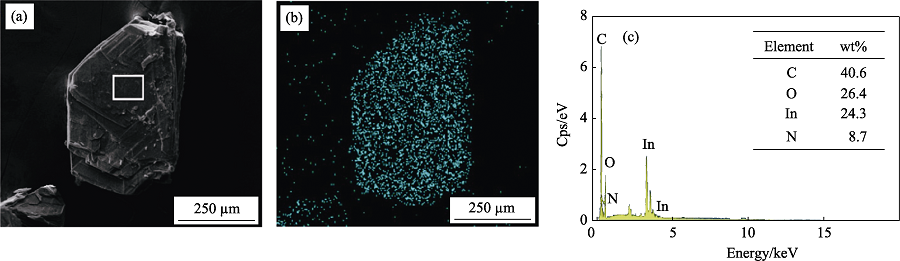

Fig. 3 SEM-EDS analyses of SZ-6 (a) SEM image, (b) Distribution of In; (c) EDS pattern of SZ-6

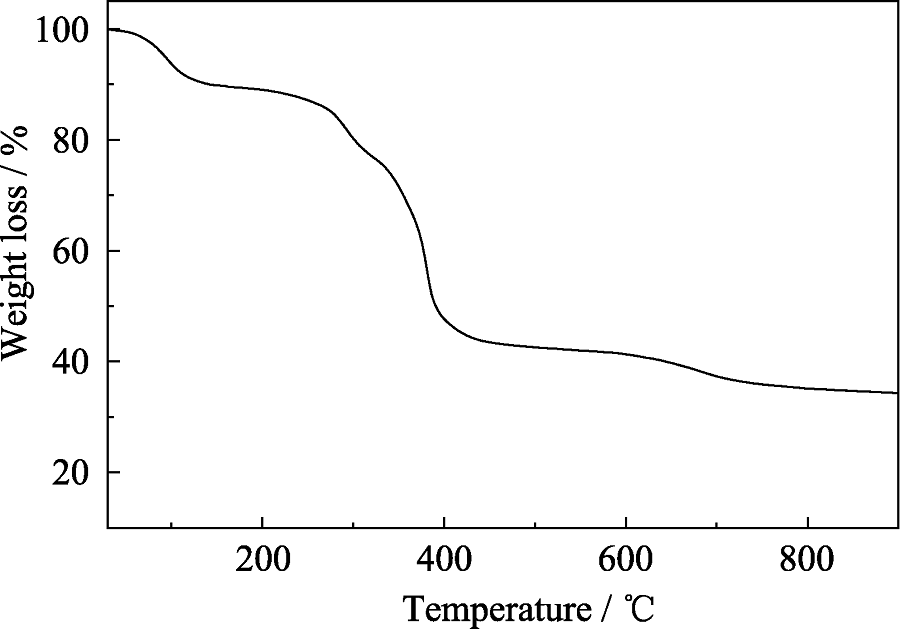

Fig. 4 Thermogravimetric analysis curve of SZ-6

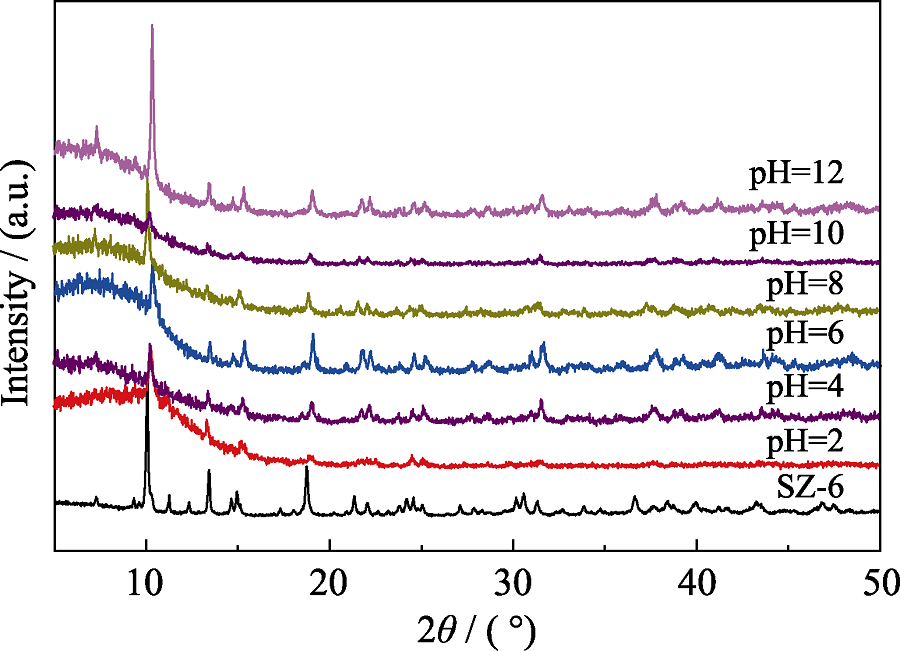

Fig. 5 PXRD patterns of samples before and after immersed in Cs+ aqueous solutions with different pH

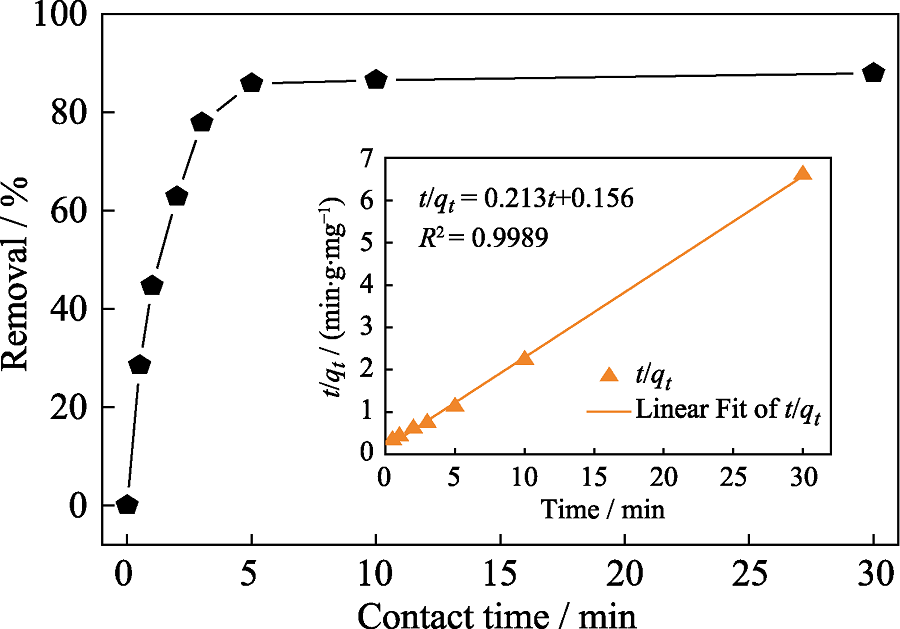

Fig. 6 Uptake kinetics of Cs+ Inset: simulation curve of Pseudo-second-order model

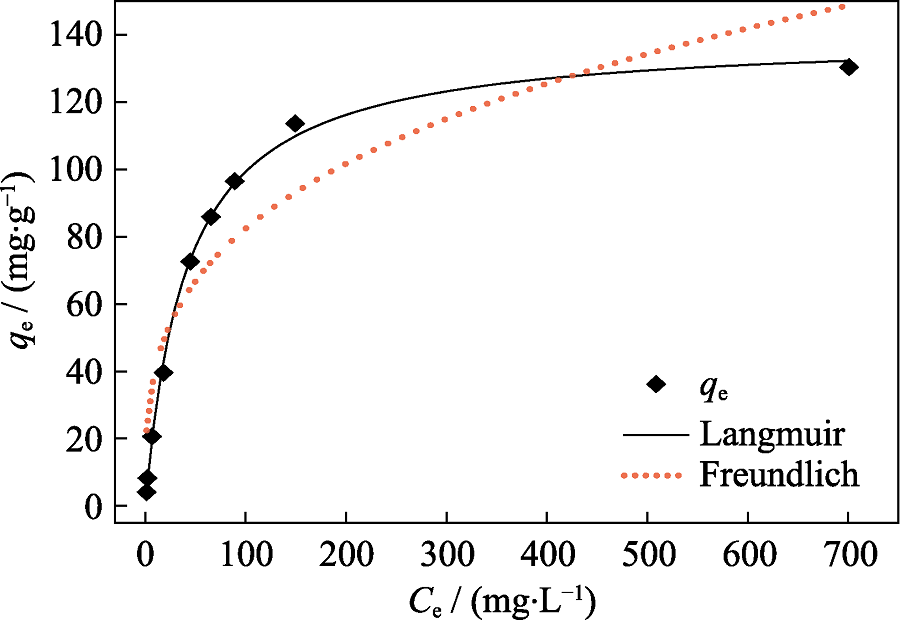

Fig. 7 Sorption isotherm curves of Cs+ by SZ-6 (Solid curve: Langmuir equilibrium isotherm model; Dotted curve: Freundlich equilibrium isotherm model)

Table 1 Fitting parameters of Langmuir model and Freundlich model

Langmuir			Freundlich
q_m/(mg·g^-1)	K_L/(mg·g^-1)	R²	k_F/(mg·g^-1)	n	R²
140.005	0.024	0.997	20.368	3.295	0.844

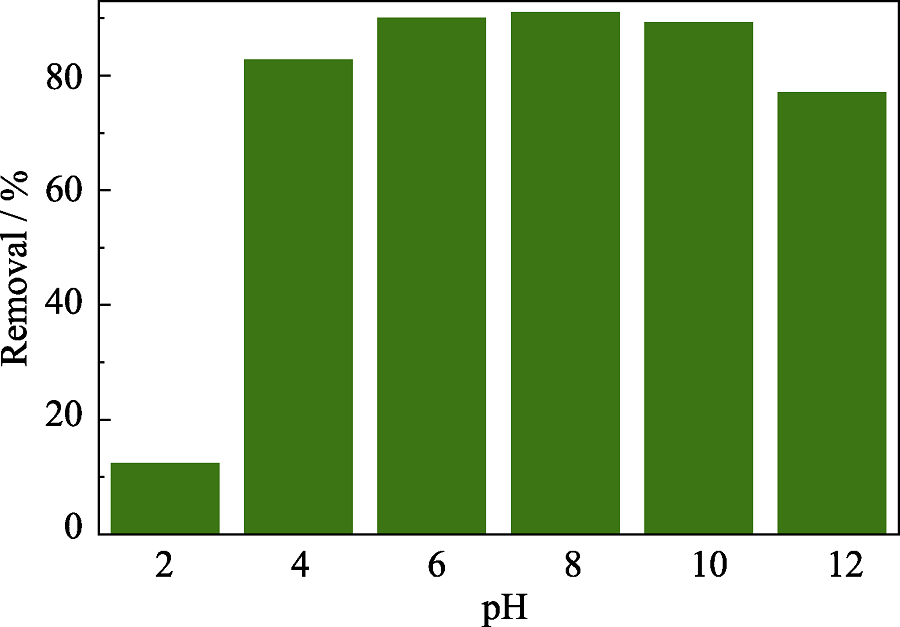

Fig. 8 Effect of pH of solution on the adsorption of Cs+ by SZ-6

Table 2 Effect of Na+, K+, Ca2+ on the removal of Cs+ by SZ-6

Competing cation		Cs⁺/Na⁺	Cs⁺/K⁺	Cs⁺/Ca²⁺
Solid/Liquid /(g•L^-1)		2	2	5
Cs⁺ removal/%	MR=1 : 1	87.2	84.7	91.2
	MR=1 : 10	84.2	75.7	90.1
	MR=1 : 20	75.8	65.5	85
	MR=1 : 30	70.3	59	73.7
	MR=1 : 50	63.5	49.3	65.7

References 21

[1]	QI X H, DU K Z, FENG M L , et al. A two-dimensionally microporous thiostannate with superior Cs + and Sr²⁺ ion-exchange property. Journal of Materials Chemistry A, 2015,3(10):5665-5673.
[2]	GAO Y J, FENG M L, ZHANG B , et al. An easily synthesized microporous framework material for the selective capture of radioactive Cs + and Sr²⁺ ions. Journal of Materials Chemistry A, 2018,6(9):3967-3976.
[3]	WANG X X, CHEN L, WANG L , et al. Synthesis of novel nanomaterials and their application in efficient removal of radionuclides. Science China-Chemistry, 2019,62(8):933-967.
[4]	LI J, WANG X X, ZHAO G X , et al. Metal-organic framework-based materials: superior adsorbents for the capture of toxic and radioactive metal ions. Chemical Society Reviews, 2018,47(7):2322-2356.
[5]	WANG X X, YU S J, WANG X K . Removal of radionuclides by metal-organic framework-based materials. Journal of Inorganic Materials, 2019,34(1):17-26.
[6]	VELLINGIRI K, KIM K H, POURNARA A , et al. Towards high-efficiency sorptive capture of radionuclides in solution and gas. Progress in Materials Science,, 2018,94:1-67.
[7]	LI G D, JI G X, LIU W , et al. A hydrolytically stable anionic layered indium-organic framework for the efficient removal of ⁹⁰Sr from seawater. Dalton Transactions, 2019,48:17858-17863.
[8]	MERTZ J L, FARD Z H, MALLIAKAS C D , et al. Selective removal of Cs⁺, Sr²⁺, and Ni²⁺ by K₂_xMg_xSn₃-_xS₆ (x=0.5-1),(KMS-2) relevant to nuclear waste remediation. Chemistry of Materials, 2013,25(10):2116-2127.
[9]	ALI I M, ZAKARIA E S, ALY H F . Highly effective removal of Na-22, Cs-134 and Co-60 from aqueous solutions by titanosilicate: a radiotracer study. Journal of Radioanalytical and Nuclear Chemistry, 2010,285(3):483-489.
[10]	PAVEL C C, POPA K, BILBA N , et al. The sorption of some radiocations on microporous titanosilicate ETS-10. Journal of Radioanalytical and Nuclear Chemistry, 2003,258(2):243-248.
[11]	EL-KAMASH A M . Evaluation of zeolite A for the sorptive removal of Cs + and Sr²(+) ions from aqueous solutions using batch and fixed bed column operations . Journal of Hazardous Materials, 2008,151(2/3):432-445.
[12]	MANOS M J , Unique pore selectivity for Cs⁺ and exceptionally high NH₄⁺ exchange capacity of the chalcogenide material K₆Sn[Zn₄Sn₄S₁₇]. Journal of the American Chemical Society, 2006,128(27):8875-8883.
[13]	POOJARY D M, CAHILL R A, CLEARFIELD A . Synthesis, crystal-structures, and ion-exchange properties of a novel porous titanosilicate. Chemistry of Materials, 1994,6(12):2364-2368.
[14]	PAVEL C C, POPA K . Investigations on the ion exchange process of Cs⁺ and Sr²⁺ cations by ETS materials. Chemical Engineering Journal, 2014,245:288-294.
[15]	DOBELIN N, ARMBRUSTER T . Microporous titanosilicate AM-2: ion-exchange and thermal stability. Microporous and Mesoporous Materials, 2007,99(3):279-287.
[16]	DING N, KANATZIDIS M G . Selective incarceration of caesium ions by Venus flytrap action of a flexible framework sulfide. Nature Chemistry, 2010,2(3):187-191.
[17]	DATTA S J, MOON W K, CHOI D Y , et al. A novel vanadosilicate with hexadeca-coordinated Cs⁺ ions as a highly effective Cs⁺ remover. Angewandte Chemie-International Edition, 2014,53(28):7203-7208.
[18]	MANOS M J, KANATZIDIS M G . Highly efficient and rapid Cs⁺ uptake by the layered metal sulfide K₂_xMn_xSn_3-_xS₆ (KMS-1). Journal of the American Chemical Society, 2009,131(18):6599-6607.
[19]	PARK Y, LEE Y C, SHIN W S , et al. Removal of cobalt, strontium and cesium from radioactive laundry wastewater by ammonium molybdophosphate-polyacrylonitrile (AMP-PAN). Chemical Engineering Journal, 2010,162(2):685-695.
[20]	NAEIMI S, FAGHIHIAN H . Performance of novel adsorbent prepared by magnetic metal-organic framework (MOF) modified by potassium nickel hexacyanoferrate for removal of Cs⁺ from aqueous solution. Separation and Purification Technology, 2017,175:255-265.
[21]	ZHANG J R, CHEN L H, DAI X , et al. Distinctive two-step intercalation of Sr²⁺ into a coordination polymer with record high Sr-90 uptake capabilities. Chem., 2019,5(4):977-994.
