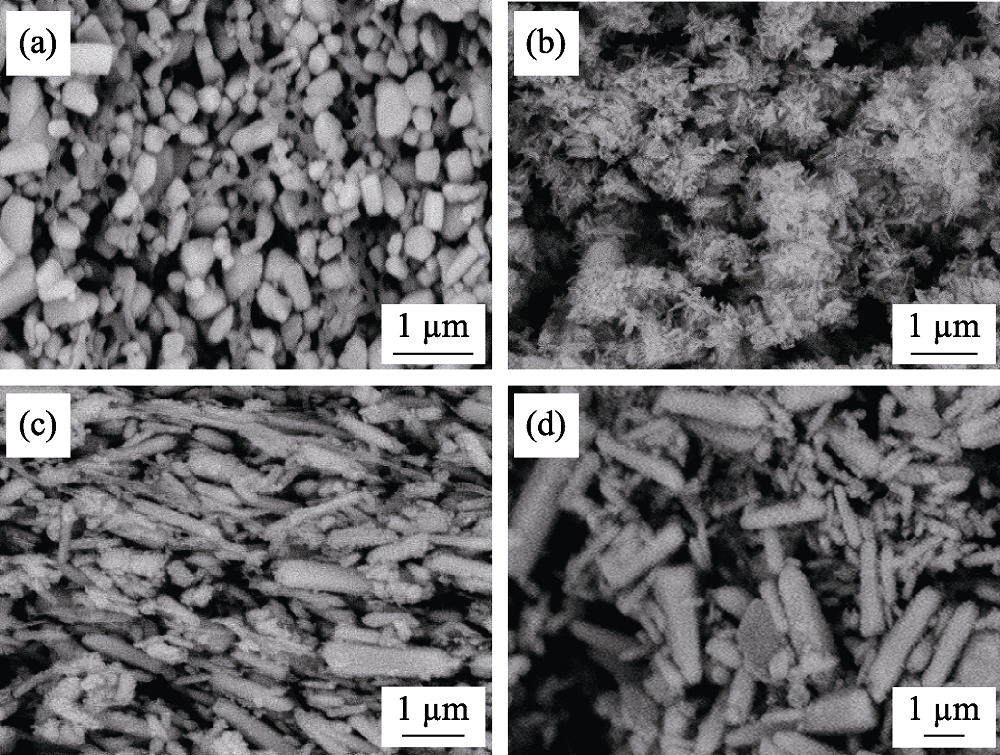

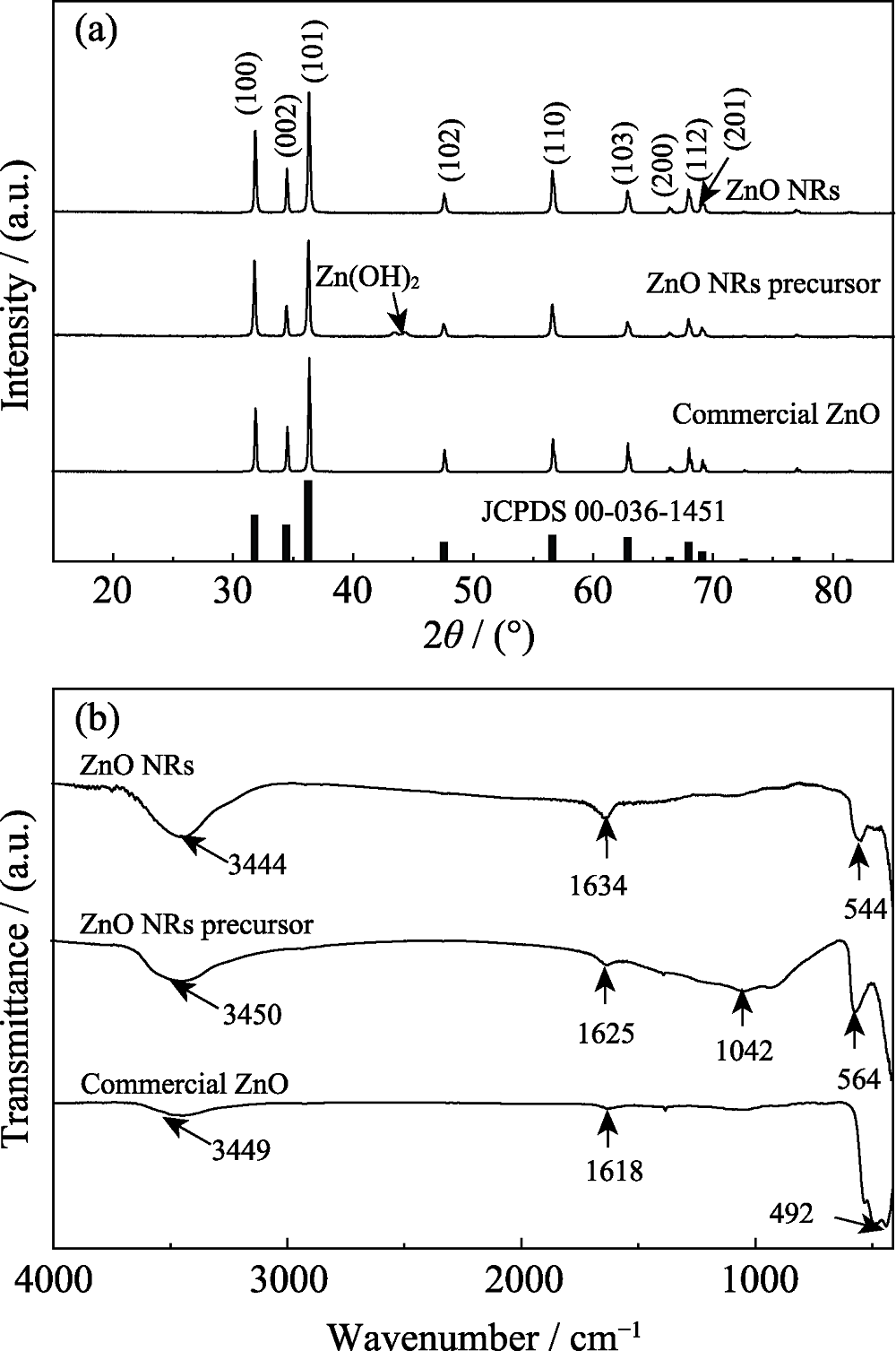

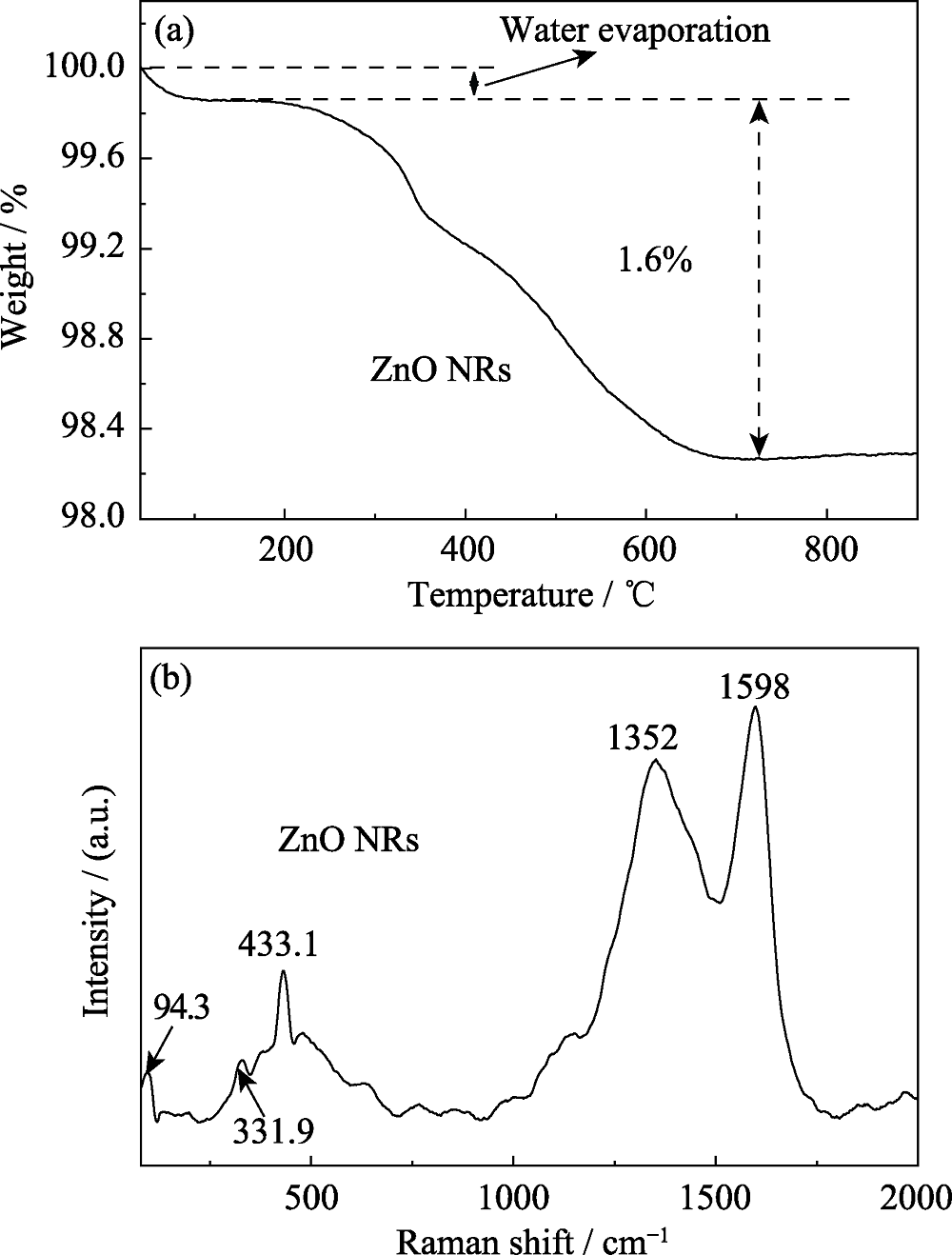

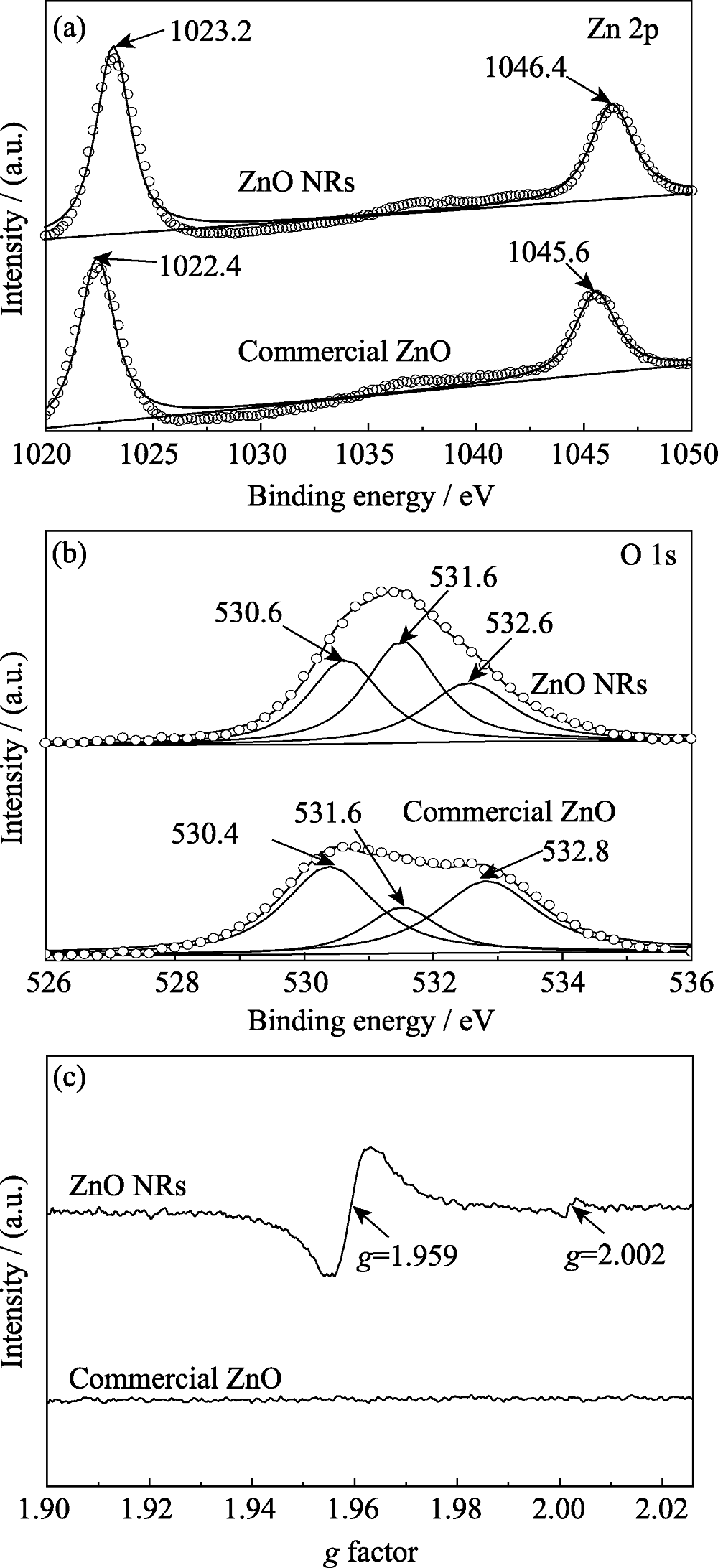

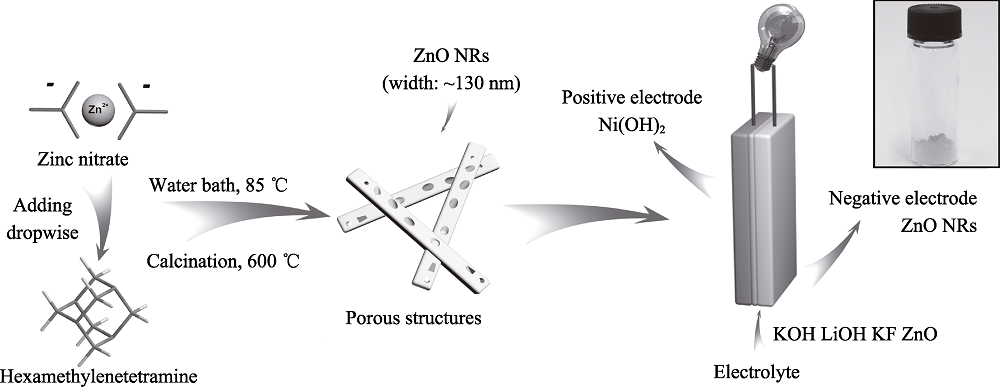

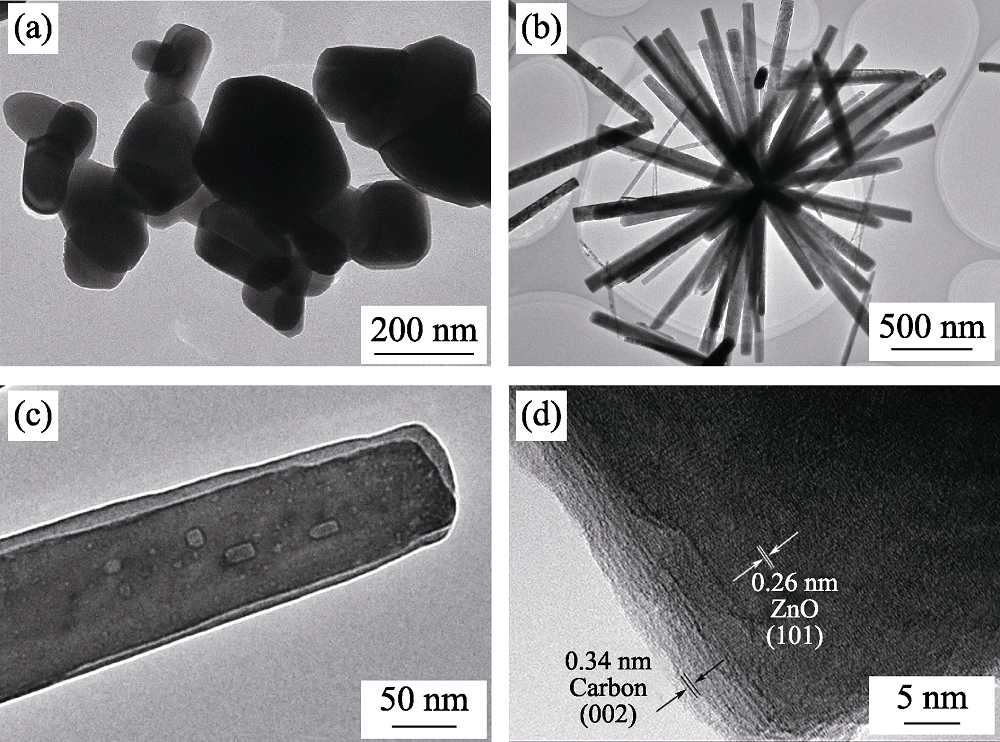

ZHU Zeyang,WEI Jishi,HUANG Jianhang,DONG Xiangyang,ZHANG Peng,XIONG Huanming. Preparation of ZnO Nanorods with Lattice Vacancies and Their Application in Ni-Zn Battery[J]. Journal of Inorganic Materials, 2020, 35(4): 423-430.

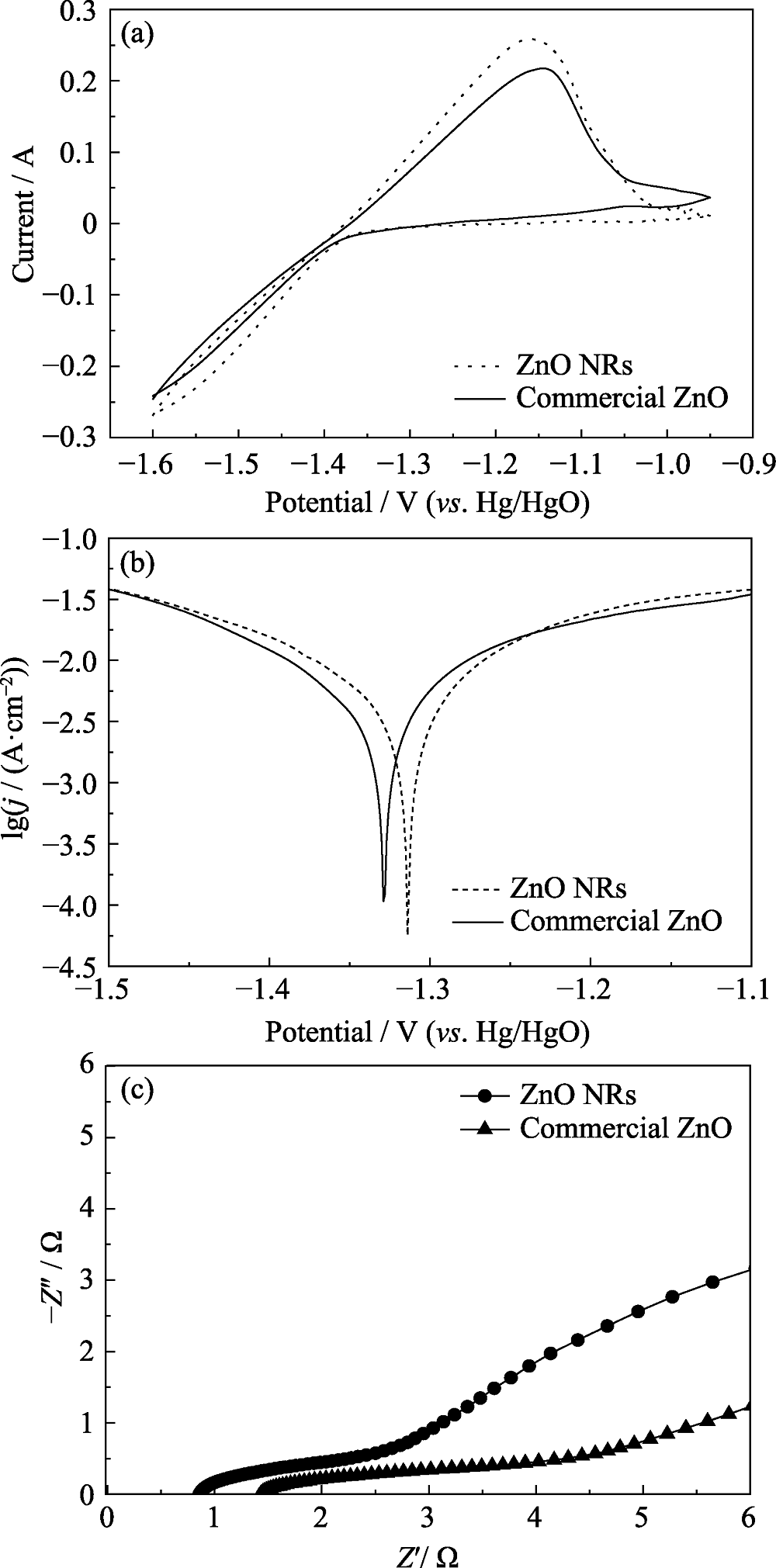

Fig. 6 Electrochemical performances of commercial ZnO and ZnO NRs electrodes (a) CV curves at a scan rate of 10 mV·s-1; (b) Tafel plots; (c) Nyquist plots
Electrode | Tafel plots | EIS | ||
---|---|---|---|---|
Ecorr/V (vs. Hg/HgO) | Icorr/(mA·cm-2) | RS/Ω | RCT/Ω | |
Commercial ZnO | -1.327 | 5.01×10-3 | 1.4 | 7.9 |
ZnO NRs | -1.311 | 3.01×10-3 | 0.9 | 3.0 |
Table 1 Parameters of Tafel plots and EIS for commercial ZnO and ZnO NRs
Electrode | Tafel plots | EIS | ||
---|---|---|---|---|
Ecorr/V (vs. Hg/HgO) | Icorr/(mA·cm-2) | RS/Ω | RCT/Ω | |
Commercial ZnO | -1.327 | 5.01×10-3 | 1.4 | 7.9 |
ZnO NRs | -1.311 | 3.01×10-3 | 0.9 | 3.0 |

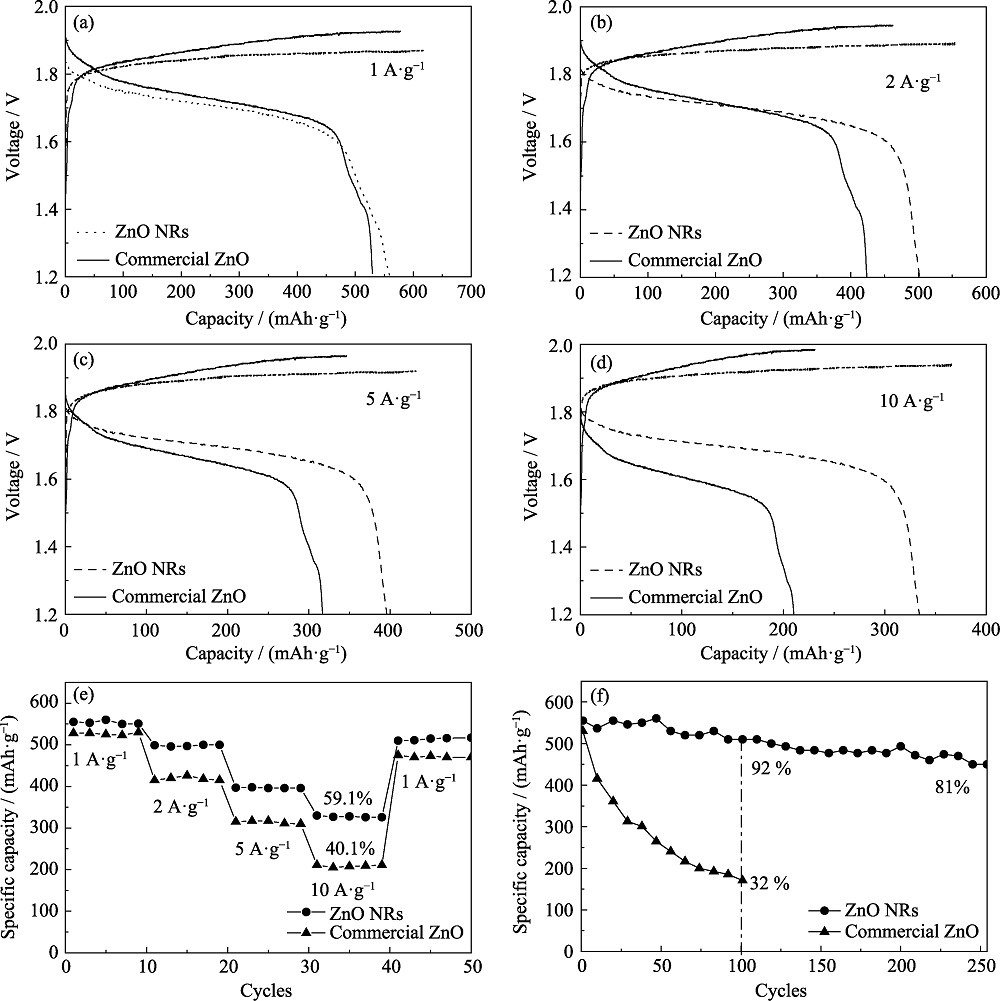

Fig. 7 Electrochemical performances of the Ni(OH)2//commercial ZnO and Ni(OH)2//ZnO NRs (a-d) Charge-discharge curves at different current densities; (e) Rate capabilities; (f) Cycling performances
Sample | Current density | Capacity retention/% |
---|---|---|
ZnO@Bi/C[ | 1C-5C | ~52.5 |
ZnO@RGO[ | 1C-5C | ~58.3 |
SnO2@ZnO[ | 1C-8C | ~24.0 |
ZnO-N2@C[ | 1C-10C | ~56.4 |
This work | 1.5C-15C | ~59.1 |
Table 2 Rate performances of different ZnO negative materials
Sample | Current density | Capacity retention/% |
---|---|---|
ZnO@Bi/C[ | 1C-5C | ~52.5 |
ZnO@RGO[ | 1C-5C | ~58.3 |
SnO2@ZnO[ | 1C-8C | ~24.0 |
ZnO-N2@C[ | 1C-10C | ~56.4 |
This work | 1.5C-15C | ~59.1 |
Sample | Capacity retention |
---|---|
Spherical ZnO[ | 0.2C, 100 cycles, ~64% |
ZnO/PPy16.8%[ | 1C, 100 cycles, ~74% |
12wt% TPP-modified ZnO[ | 1C, 50 cycles, ~89% |
This work | 1.5C, 100 cycles, ~92% |
Table 3 Cycling performances of different ZnO negative materials
Sample | Capacity retention |
---|---|
Spherical ZnO[ | 0.2C, 100 cycles, ~64% |
ZnO/PPy16.8%[ | 1C, 100 cycles, ~74% |
12wt% TPP-modified ZnO[ | 1C, 50 cycles, ~89% |
This work | 1.5C, 100 cycles, ~92% |
