Hollow-structured CoSe2/C Anode Materials: Preparation and Sodium Storage Properties for Sodium-ion Batteries

doi:10.15541/jim20220224

Abstract

Abstract:

Transition metal selenides (TMSs) with the merits of their versatile material species, ample abundance and high theoretical specific capacity have been regarded as attractive anode materials for sodium-ion batteries (SIBs). However, the large volume changes during the electrochemical reactions which result in limited cycle performance hinder their commercialization. Herein, the hollow structure composed of CoSe₂ and carbon skeleton (denoted as H-CoSe₂/C), derived from the metal organic framework material ZIF-67 using tannic acid as the etching agent, was used as the anode for SIBs. Owing to the unique hollow structure which can alleviate the volume change of the material, H-CoSe₂/C exhibited excellent sodium ions storage performances in terms of cycling stability. Compared with the solid counterpart, the reversible specific capacity of the H-CoSe₂/C electrode remains 383.4 mAh·g^-1 after 350 cycles at a current density of 50 mA·g^-1 with the capacity retention of 83.6%. Even at 500 mA·g^-1, the capacity retention can still reach 72.2% after 350 cycles. This work manifests that hollow structure can provide enough space to alleviate the problem of volume changes for TMSs during the sodiation/desodiation process, thus the cycle performances can be improved.

Key words: sodium-ion battery, anode material, metal organic framework, CoSe₂, hollow structure

CLC Number:

TQ174

WANG Jing, XU Shoudong, LU Zhonghua, ZHAO Zhuangzhuang, CHEN Liang, ZHANG Ding, GUO Chunli. Hollow-structured CoSe₂/C Anode Materials: Preparation and Sodium Storage Properties for Sodium-ion Batteries[J]. Journal of Inorganic Materials, 2022, 37(12): 1344-1350.

Figures/Tables 13

Fig. 1 Schematic illustrations of preparation of H-CoSe2/C and CoSe2/C

Fig. 2 (a) SEM, (b) TEM, (c) HRTEM images and (d) EDS elemental mappings of Co, Se, and C of H-CoSe2/C

Fig. 3 XRD patterns of (a) ZIF-67, TA-Co and H-Co/C, (b) H-CoSe2/C and CoSe2/C, (c) Raman spectra of H-CoSe2/C and CoSe2/C, (d) C1s, (e) Co2p, and (f) Se3d XPS spectra of H-CoSe2/C

Fig. 4 (a) CV curves of H-CoSe2/C at scan rate of 0.1 mV·s-1, and (b) cycle performance of H-CoSe2/C and CoSe2/C (50 mA·g-1)

Fig. 5 SEM images of (a, c) H-CoSe2/C and (b, d) CoSe2/C after (a, b) 1 and (c, d) 350 cycles

Fig. 6 (a) CV curves at different scan rates, (b) corresponding lgi versus lgv plots at each redox peak (i: peak current, v: scan rate), (c) histogram of pseudo capacitive contribution at different scan rates, and (d) capacitive contribution at scan rate of 1.5 V·s-1 of H-CoSe2/C electrode Colorful figures are available on website

Fig. 7 (a) Schematic diagram of the working mechanism, (b) charge-discharge curves and (c) cycle performance at 500 mA·g-1 of Na0.44MnO2/H-CoSe2/C full cell Colorful figures are available on website

Fig. S1 SEM images of (a) ZIF-67, (b) TA-Co, (c) H-Co/C, and (d) H-CoSe2/C samples

Fig. S2 TEM images of (a) ZIF-67, (b) TA-Co, (c) H-Co/C, and (d)H-CoSe2/C samples

Fig. S3 (a) SEM and (b) TEM images of CoSe2/C

Fig. S4 (a) Charge-discharge curves of H-CoSe2/C electrode at 50 mA·g-1; (b) Rate performances of H-CoSe2/C and CoSe2/C; (c) Cycle performance of H-CoSe2/C and CoSe2/C at 500 mA·g-1

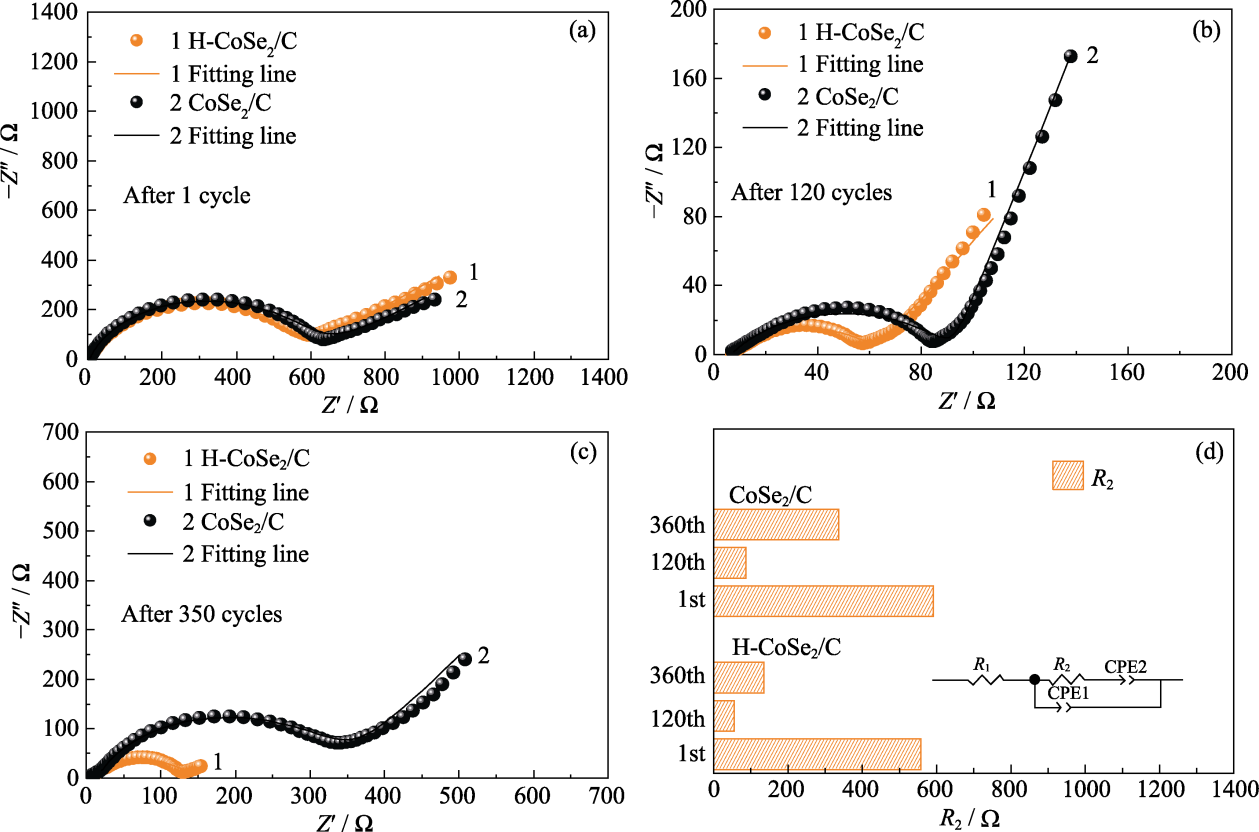

Fig. S5 EIS spectra of H-CoSe2/C and CoSe2/C after (a) 1 cycle, (b) 120 cycles, and (c) 350 cycles and (d) corresponding histogram of R2 with inset showing equivalent circuit model

Fig. S6 (a) Charge-discharge curves and (b) cycle performance of Na0.44MnO2 cathode at 500 mA·g-1
