Photothermal Enhanced Photocatalytic Properties of Titanium Dioxide (B)/Glass Fiber Cloth

doi:10.15541/jim20180547

Abstract

Abstract:

Titanium dioxide (B)/glass fiber cloth (B-T/GFC) composites with photothermal enhanced photocatalytic properties were prepared by using a facile chemical synthesis and Sol-Gel method, using the glass fiber cloth and TiH₂ as substrate and precursor, respectively. XRD, SEM and TEM were employed to investigate the composition, structure and morphology of B-T/GFC composite. Different properties of the materials were studied by spectrophotometer, optical contact angle measuring instrument and solar simulator. The results show that the composite surface is composed of anatase black TiO₂ with a disordercoating of about 1 nm. Meanwhile, the B-T/GFC composite with high hydrophobicity has strong absorption ability in the wavelength range from 250 nm to 2000 nm. Compared with glass fiber cloth, the B-T/GFC composite reveals better photothermal ability under sunlight with one solar intensity (1 kW/m ²). The photocatalytic degradation ability of B-T/GFC composite in organic pollutants cutting waste solution is better than those of pure black TiO₂ (B-T) and P25. After irradiation for 2 h, the degradation of COD over B-T/GFC composite is about 1.3 times higher than that of P25. The B-T/GFC composite possessing excellent photothermal enhanced photocatalytic properties performance may lead to a range of novel applications.

Key words: black titanium dioxide, Sol-Gel method, photothermal, photocatalysis

CLC Number:

TQ174

ZHU Ben-Bi,ZHANG Wang,ZHANG Zhi-Jian,ZHANG Jian-Zhong,IMRAN Zada,ZHANG Di. Photothermal Enhanced Photocatalytic Properties of Titanium Dioxide (B)/Glass Fiber Cloth[J]. Journal of Inorganic Materials, 2019, 34(9): 961-966.

Figures/Tables 7

Fig. 1 Different magnification SEM images of B-T/GFC (a-c), and the corresponding EDS pattern of B-T/GFC (d)

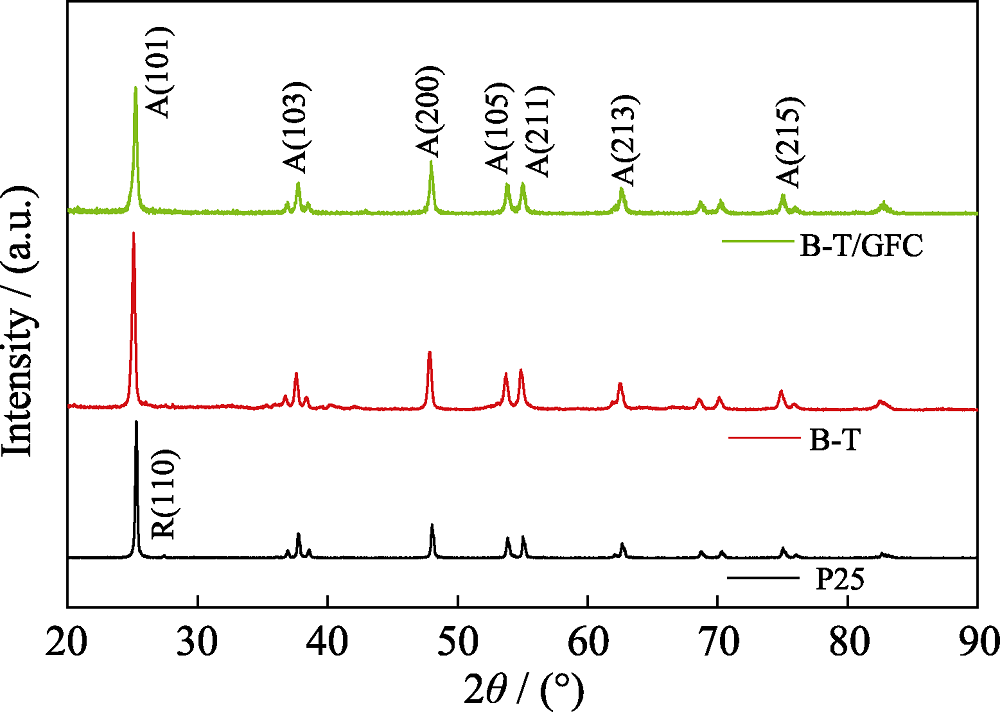

Fig. 2 XRD patterns of B-T/GFC, B-T and P25

Fig. 3 Different magnification TEM images (a,b), HRTEM image (c) of B-T/GFC , and SAED pattern of B-T/GFC (d)

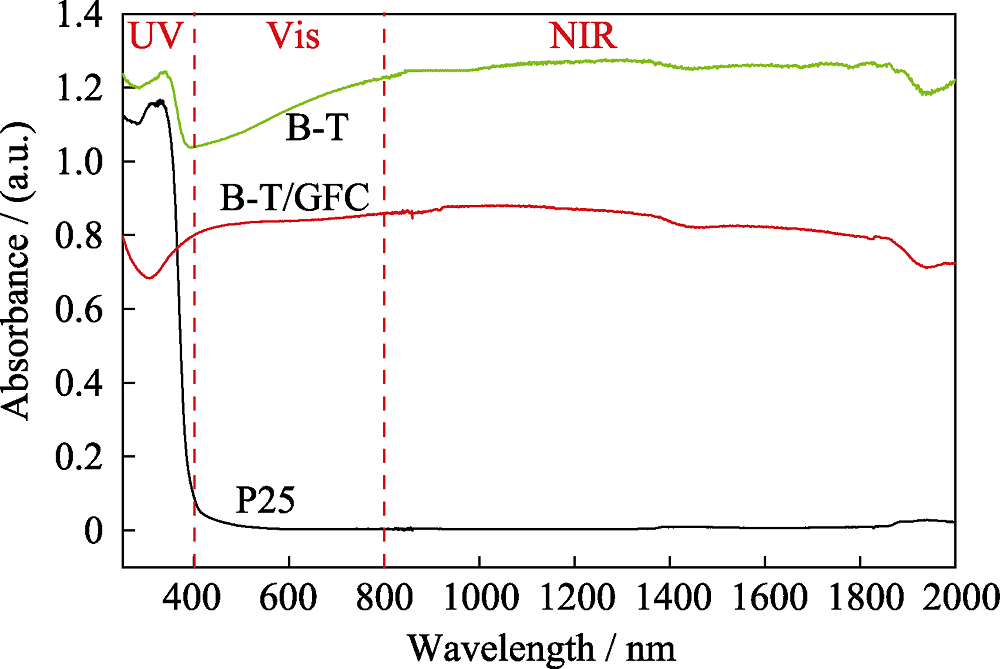

Fig. 4 UV-Vis-NIR absorption spectra of P25, B-T/GFC and B-T

Fig. 5 Contact angles of (a) original glass fiber cloth and (b) B-T/GFC with water

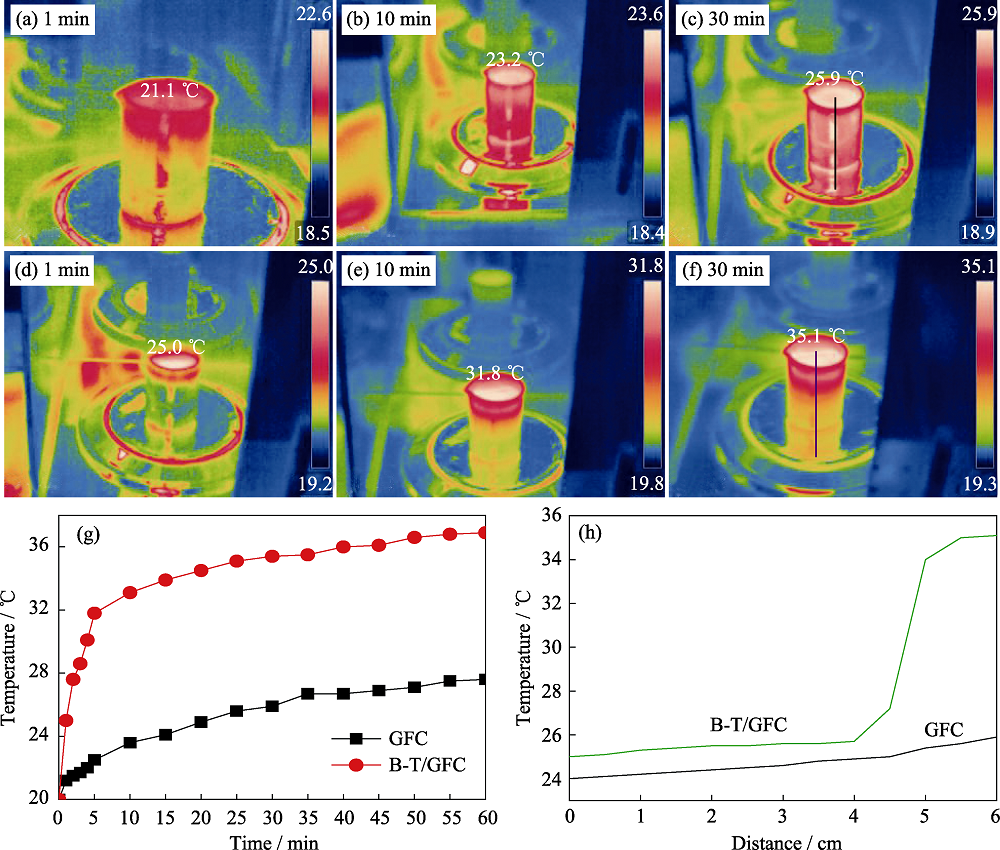

Fig. 6 IR thermal images of GFC sample (a~c) and B-T/GFC sample (d-f) with light irradiation on for different time, (g) the surface temperature of the water of GFC and B-T/GFC samples after 60 min irradiation (g), and temperature profiles of the marked lines in the Fig. (c) and (f) (h)

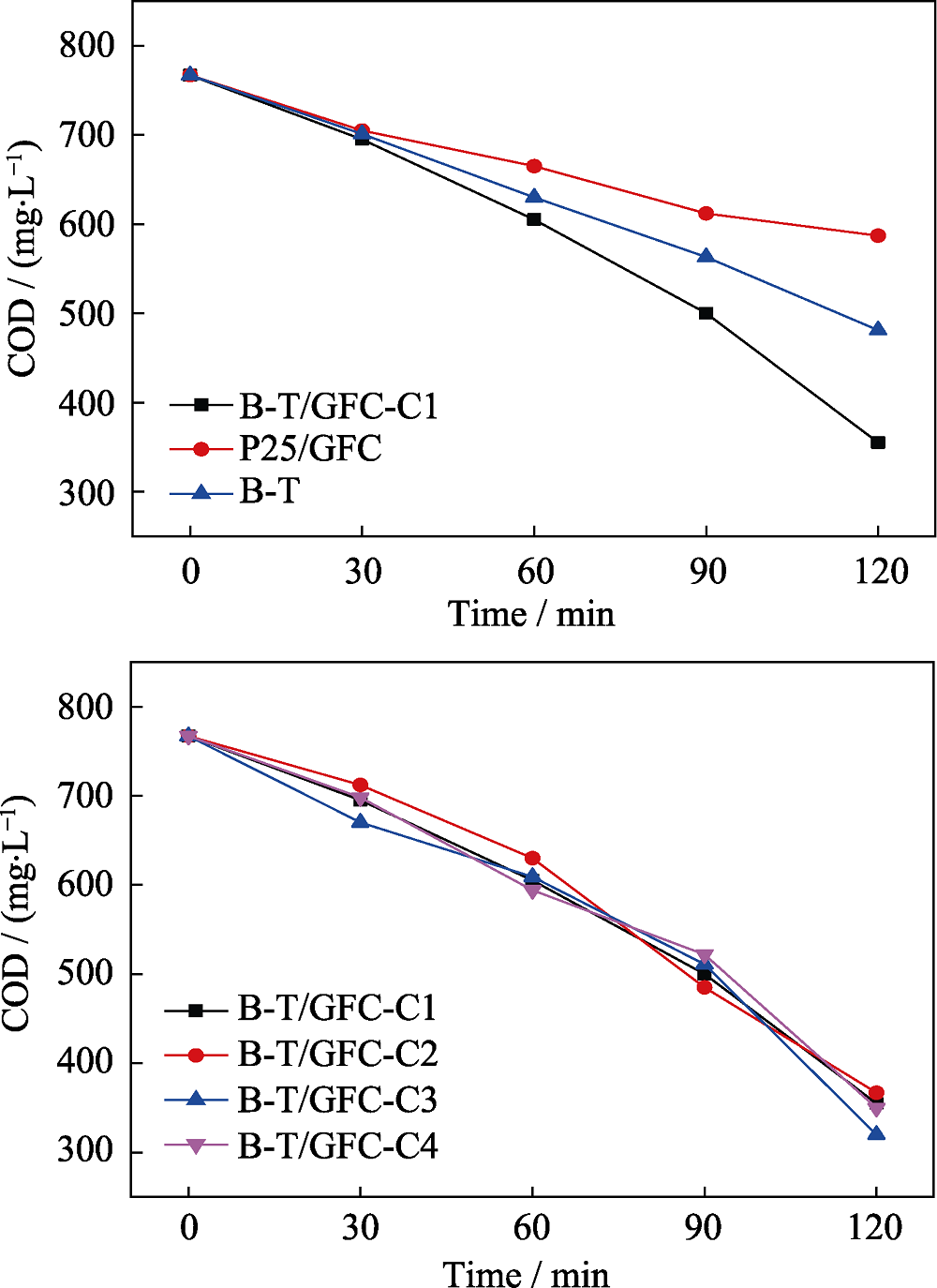

Fig. 7 (a) Photocatalytic decomposition of COD under solar light irradiation catalyzed by P25/GFC, B-T/GFC and B-T powder, and (b) cycling runs for the photocatalytic decomposition of COD catalyzed by B-T/GFC

References 38

[1]	ANSARI SAJID ALI, ANSARI MOHAMMAD OMAISH, CHO MOO HWAN . Facile and scale up synthesis of red phosphorus- graphitic carbon nitride heterostructures for energy and environment applications. Scientific Reports, 2016,6:27713.
[2]	ZHANG TENG, LIN WENBIN . Metal-organic frameworks for artificial photosynthesis and photocatalysis. Chemical Society Reviews, 2014,43(16):5982-5993.
[3]	NGUYEN PHUONG T N, SALIM CHRIS, KURNIAWAN WINARTO ,et al. A non-hydrolytic Sol-Gel synthesis of reduced graphene oxide/TiO₂ microsphere photocatalysts. Catalysis Today, 2014,230:166-173.
[4]	LE CUNFF JÉRÔME, TOMAŠIĆ VESNA, WITTINE OZREN . Photocatalytic degradation of the herbicide terbuthylazine: preparation, characterization and photoactivity of the immobilized thin layer of TiO₂/chitosan. Journal of Photochemistry and Photobiology A: Chemistry, 2015,309:22-29.
[5]	SCHULTZ DANIELLE M, YOON TEHSHIK P . Solar synthesis: prospects in visible light photocatalysis. Science, 2014,343(6174):1239176.
[6]	DAGHRIR RIMEH, DROGUI PATRICK, ROBERT DIDIER . Modified TiO₂ for environmental photocatalytic applications: a review. Industrial & Engineering Chemistry Research, 2013,52(10):3581-3599.
[7]	PAKDEL ESFANDIAR, DAOUD WALID A, WANG XUNGAI . Assimilating the photo-induced functions of TiO₂-based compounds in textiles: emphasis on the Sol-Gel process. Textile Research Journal, 2015,85(13):1404-1428.
[8]	GAO MINMIN, ZHU LIANGLIANG, ONG WEI LI ,et al. Structural design of TiO₂-based photocatalyst for H₂ production and degradation applications. Catalysis Science & Technology, 2015,5(10):4703-4726.
[9]	SUN PENG, XUE RUIYANG, ZHANG WANG ,et al. Photocatalyst of organic pollutants decomposition: TiO₂/glass fiber cloth composites. Catalysis Today, 2016,274:2-7.
[10]	DONG HAORAN, ZENG GUANGMING, TANG LIN ,et al. An overview on limitations of TiO₂-based particles for photocatalytic degradation of organic pollutants and the corresponding countermeasures. Water Research, 2015,79:128-146.
[11]	TONG ZHENWEI, YANG DONG, XIAO TIANXIONG ,et al. Biomimetic fabrication of g-C₃N₄/TiO₂ nanosheets with enhanced photocatalytic activity toward organic pollutant degradation. Chemical Engineering Journal, 2015,260:117-125.
[12]	VAIANO V, SACCO O, SANNINO D ,et al. Nanostructured N-doped TiO₂ coated on glass spheres for the photocatalytic removal of organic dyes under UV or visible light irradiation. Applied Catalysis B: Environmental, 2015,170:153-161.
[13]	WANG MENGYE, IOCCOZIA JAMES, SUN LAN ,et al. Inorganic- modified semiconductor TiO₂ nanotube arrays for photocatalysis. Energy & Environmental Science, 2014,7(7):2182-2202.
[14]	ZHANG XING, LIU YANG, LEE SHUIT-TONG ,et al. Coupling surface plasmon resonance of gold nanoparticles with slow-photon- effect of TiO₂ photonic crystals for synergistically enhanced photoelectrochemical water splitting. Energy & Environmental Science, 2014,7(4):1409-1419.
[15]	GE MINGZHENG, LI QINGSONG, CAO CHUNYAN ,et al. One-dimensional TiO₂ nanotube photocatalysts for solar water splitting. Advanced Science, 2017,4(1):1600152.
[16]	ELTERMANN MARKO, UTT KATHRIIN, LANGE SVEN ,et al. Sm³⁺ doped TiO₂ as optical oxygen sensor material. Optical Materials, 2016,51:24-30.
[17]	ZHU ZHEN, CHANG JIA-LUN, WU REN-JANG . Fast ozone detection by using a core-shell Au@TiO₂ sensor at room temperature. Sensors and Actuators B: Chemical, 2015,214:56-62.
[18]	REDDY KAKARLA RAGHAVA, HASSAN MAHBUB, GOMES VINCENT G . Hybrid nanostructures based on titanium dioxide for enhanced photocatalysis. Applied Catalysis A: General, 2015,489:1-16.
[19]	SCHNEIDER JENNY, MATSUOKA MASAYA, TAKEUCHI MASATO ,et al. Understanding TiO₂ photocatalysis: mechanisms and materials. Chemical Reviews, 2014,114(19):9919-9986.
[20]	KUMAR S GIRISH, DEVI L GOMATHI . Review on modified TiO₂ photocatalysis under UV/visible light: selected results and related mechanisms on interfacial charge carrier transfer dynamics. The Journal of Physical Chemistry A, 2011,115(46):13211-13241.
[21]	ZADA IMRAN, ZHANG WANG, ZHENG WANGSHU ,et al. The highly efficient photocatalytic and light harvesting property of Ag-TiO₂ with negative nano-holes structure inspired from cicada wings. Scientific Reports, 2017,7(1):17277.
[22]	CHEN XIAOBO, BURDA CLEMENS . The electronic origin of the visible-light absorption properties of C-, N- and S-doped TiO₂ nanomaterials. Journal of the American Chemical Society, 2008,130(15):5018-5019.
[23]	LEVINSON RONNEN, BERDAHL PAUL, AKBARI HASHEM . Solar spectral optical properties of pigments—Part I: Model for deriving scattering and absorption coefficients from transmittance and reflectance measurements. Solar Energy Materials and Solar Cells, 2005,89(4):319-349.
[24]	WANG ZHONG-SHENG, HUANG CHUN-HUI, HUANG YAN-YI ,et al. A highly efficient solar cell made from a dye-modified ZnO-covered TiO₂ nanoporous electrode. Chemistry of Materials, 2001,13(2):678-682.
[25]	CUSHING SCOTT K, LI JIANGTIAN, BRIGHT JOESEPH ,et al. Controlling plasmon-induced resonance energy transfer and hot electron injection processes in Metal@TiO₂ core-shell nanoparticles. The Journal of Physical Chemistry C, 2015,119(28):16239-16244.
[26]	MOON SONG YI, NAIK BRUNDABANA, PARK JEONG YOUNG . Photocatalytic activity of metal-decorated SiO₂@TiO₂ hybrid photocatalysts under water splitting. Korean Journal of Chemical Engineering, 2016,33(8):2325-2329.
[27]	RAWAL SHER BAHADUR, BERA SANDIPAN, LEE DAEKI ,et al. Design of visible-light photocatalysts by coupling of narrow bandgap semiconductors and TiO₂: effect of their relative energy band positions on the photocatalytic efficiency. Catalysis Science & Technology, 2013,3(7):1822-1830.
[28]	TAN TZE HAO, SCOTT JASON, NG YUN HAU ,et al. Understanding plasmon and band gap photoexcitation effects on the thermal-catalytic oxidation of ethanol by TiO₂-supported gold. ACS Catalysis, 2016,6(3):1870-1879.
[29]	FEI JINBO, LI JUNBAI . Controlled preparation of porous TiO₂- Ag nanostructures through supramolecular assembly for plasmon- enhanced photocatalysis. Advanced Materials, 2015,27(2):314-319.
[30]	LI JINXING, LIU WENJUAN, WANG JIYUAN , et al. Nanoconfined atomic layer deposition of TiO₂/Pt nanotubes: toward ultrasmall highly efficient catalytic nanorockets. Advanced Functional Materials, 2017, 27(24): 1700598-1-8.
[31]	CHEN XIAOBO, LIU LEI, HUANG FUQIANG . Black titanium dioxide (TiO₂) nanomaterials. Chemical Society Reviews, 2015,44(7):1861-1885.
[32]	CHEN XIAOBO, LIU LEI, YU PETER Y ,et al. Increasing solar absorption for photocatalysis with black hydrogenated titanium dioxide nanocrystals. Science, 2011: 1200448.
[33]	HU YUN HANG . A highly efficient photocatalyst—hydrogenated black TiO₂ for the photocatalytic splitting of water. Angewandte Chemie International Edition, 2012,51(50):12410-12412.
[34]	GRABSTANOWICZ LAUREN R, GAO SHANMIN, LI TAO ,et al. Facile oxidative conversion of TiH₂ to high-concentration Ti³⁺-self-doped rutile TiO₂ with visible-light photoactivity. Inorganic Chemistry, 2013,52(7):3884-3890.
[35]	AYATI ALI, AHMADPOUR ALI, BAMOHARRAM FATEMEH F ,et al. A review on catalytic applications of Au/TiO₂ nanoparticles in the removal of water pollutant. Chemosphere, 2014,107:163-174.
[36]	WANG ZHOU, YANG CHONGYIN, LIN TIANQUAN ,et al. H-doped black titania with very high solar absorption and excellent photocatalysis enhanced by localized surface plasmon resonance. Advanced Functional Materials, 2013,23(43):5444-5450.
[37]	ZHANG LIANBIN, TANG BO, WU JINBO ,et al. Hydrophobic light-to-heat conversion membranes with self-healing ability for interfacial solar heating. Advanced Materials, 2015,27(33):4889-4894.
[38]	GAN ZHIXING, WU XINGLONG, MENG MING ,et al. Photothermal contribution to enhanced photocatalytic performance of graphene-based nanocomposites. ACS Nano, 2014,8(9):9304-9310.
