Sodium Magnesium Fluoride Particles of Different Morphologies: Prepared by EDTA-assisted Hydrothermal Method

doi:10.15541/jim20180530

Abstract

Abstract:

Different morphologies of sodium magnesium fluoride particles were prepared by EDTA-assisted hydrothermal method using sodium fluoride, magnesium chloride hexahydrate as main materials and EDTA (ethylenediaminetetraacetic acid disodium salt) as auxiliary agent. Influence of solution pH, reaction temperature, time and complexing agent on the morphology and phase of the products was investigated, and the formation mechanism was discussed. Samples were characterized by scanning electron microscopy (SEM), X-ray diffraction (XRD) and Fourier transform infrared spectroscopy (FT-IR). The results show that the EDTA not only provides sodium ions as raw material, but also forms complex with magnesium ions as a complexing agent in the reaction system. Reaction temperature, pH and complexing agent have great influences on the morphologies and phase of the products. The obtained products have microcube crystals with a smooth surface and micron-sized hollow spheres polymerized with nanoparticles. And the products have high crystallinity with crystal dimension ranging from 1 μm to 3 μm.

Key words: hydrothermal method, sodium magnesium fluoride, complexing agent, reaction mechanism

CLC Number:

O614

XU Yun-Qing,WANG Hai-Zeng. Sodium Magnesium Fluoride Particles of Different Morphologies: Prepared by EDTA-assisted Hydrothermal Method[J]. Journal of Inorganic Materials, 2019, 34(9): 933-937.

Figures/Tables 9

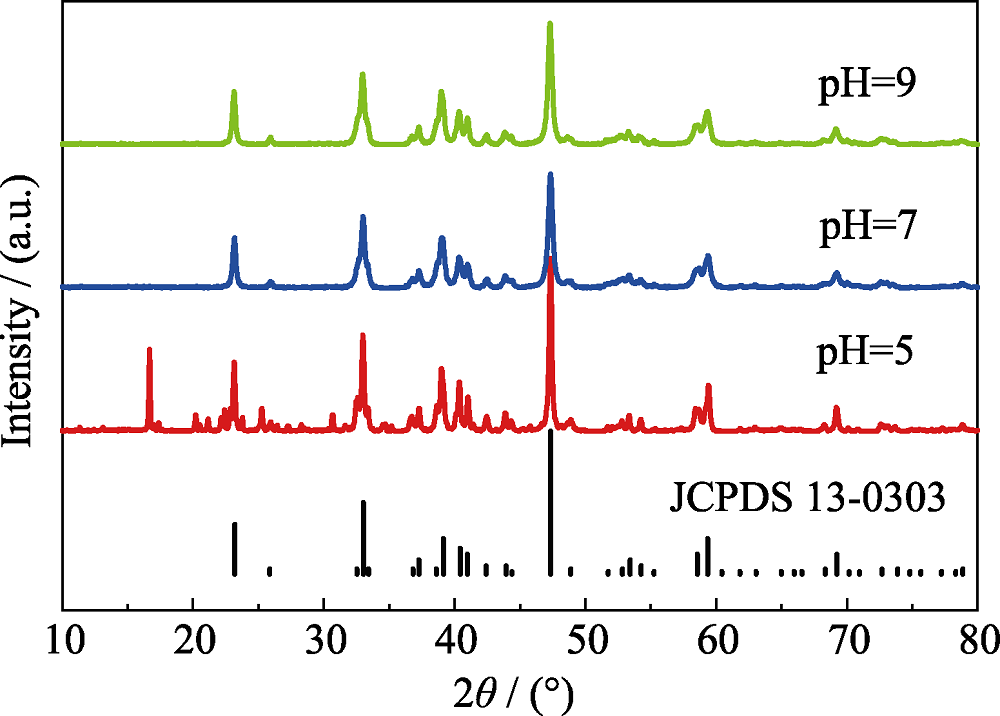

Fig. 1 XRD patterns of products prepared at different pH (120 ℃, 24 h)

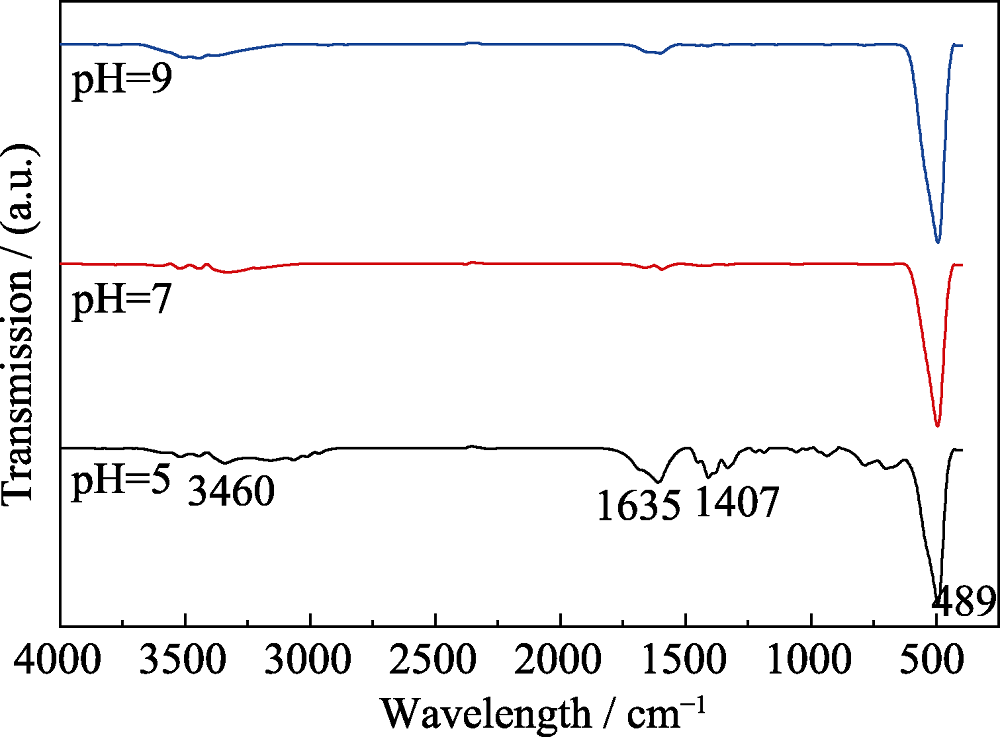

Fig. 2 FT-IR spectra of products prepared at different pH (120 ℃, 24 h)

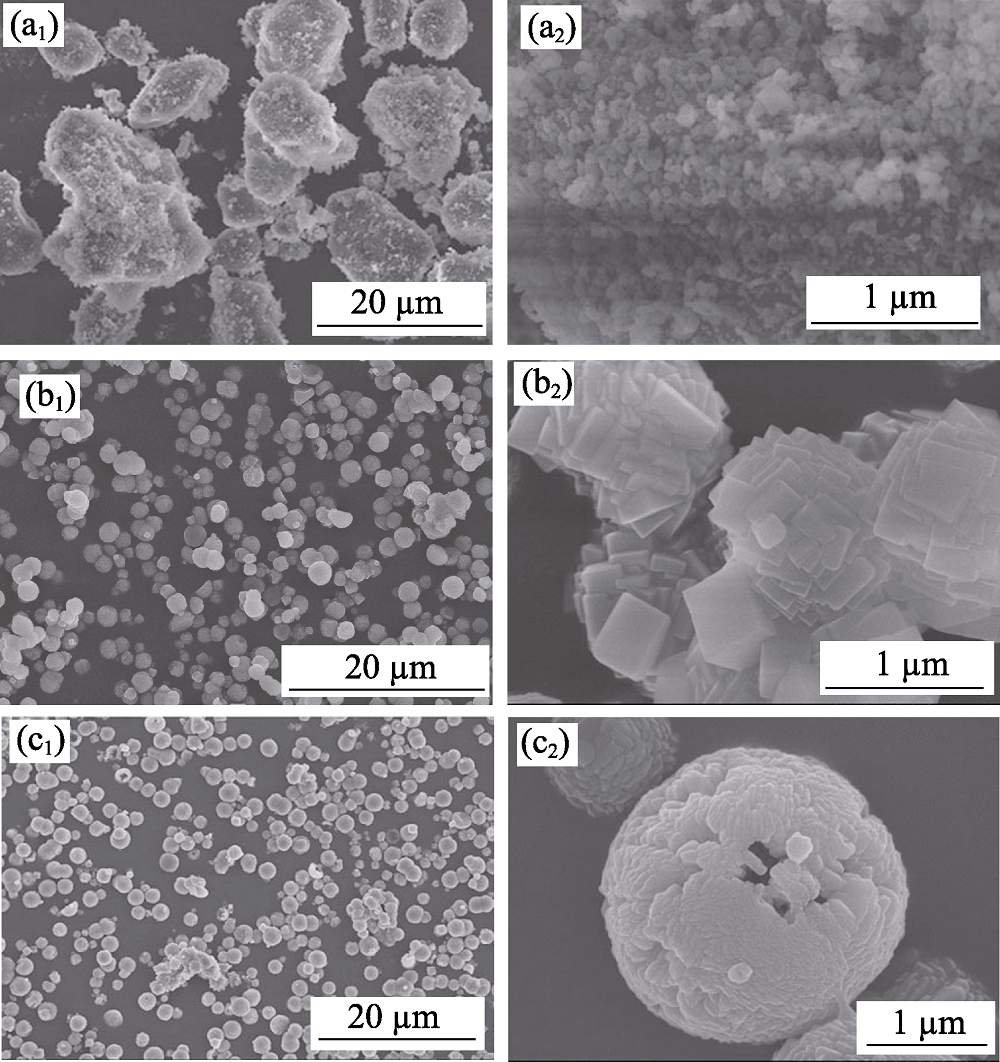

Fig. 3 SEM images of products prepared at different pH (120 ℃, 24 h) (a1, a2) pH=5; (b1, b2) pH=7; (c1, c2) pH=9

Table 1 lgKMgY, lgαY(H), lgK'MgY of Mg-EDTA complex at different pH

pH	lgK_MgY	lgα_Y(H)	lgK'_MgY
5		6.45	2.19
7	8.64	3.32	5.32
9		1.28	7.36

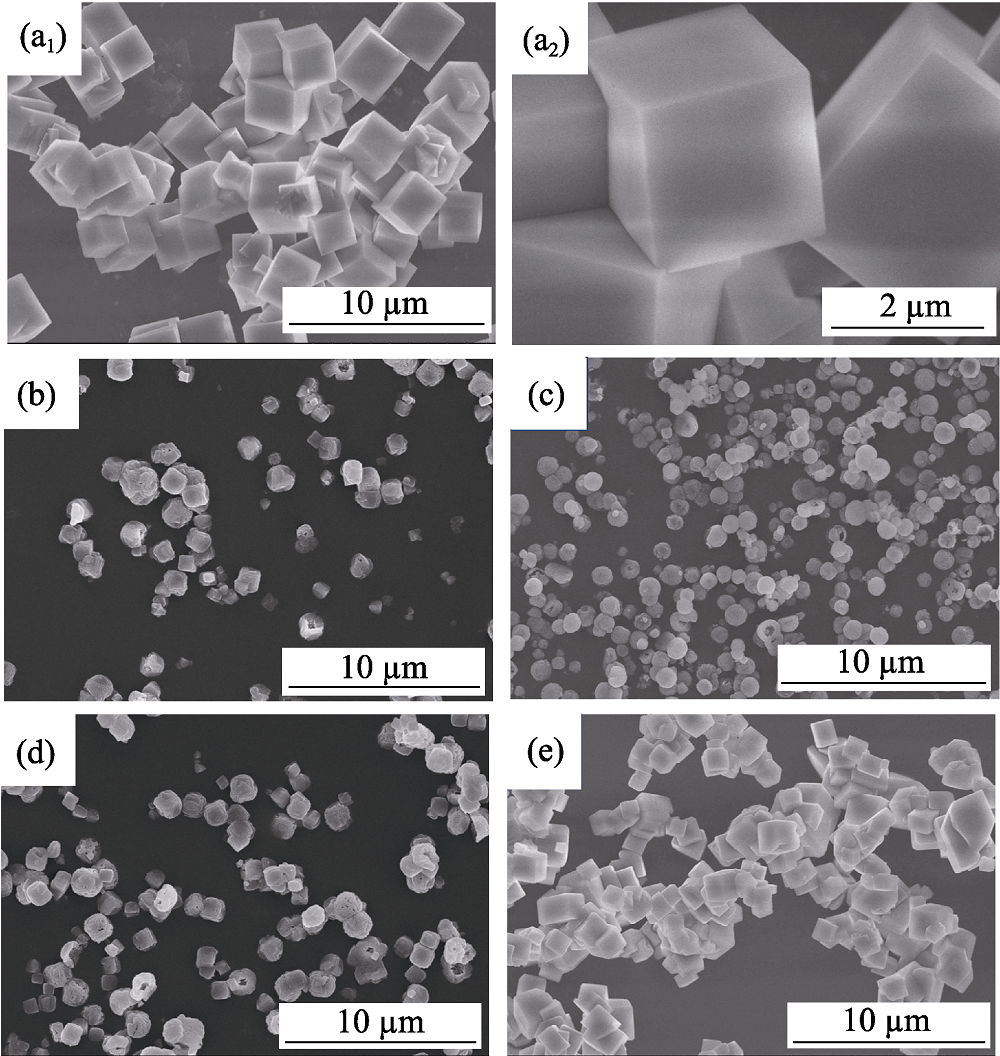

Fig. 4 SEM images of products prepared at different temperature (pH=9, 24 h) (a1, a2) 80 ℃; (b) 100 ℃; (c) 120 ℃; (d) 140 ℃; (e) 160 ℃

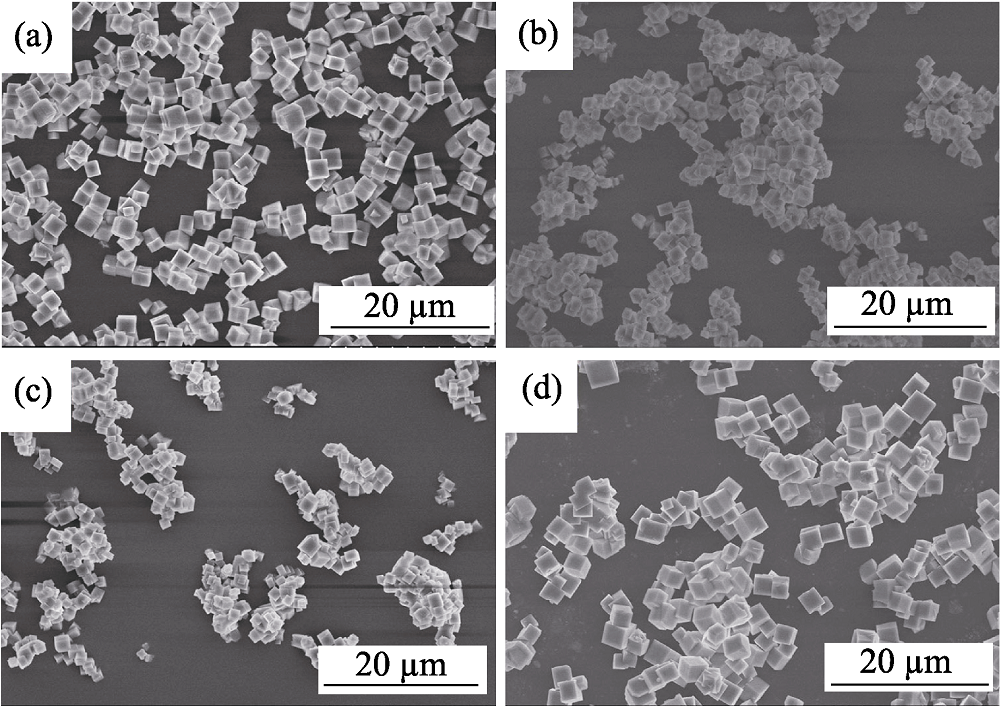

Fig. 5 SEM images of products prepared for different time (pH=9, 80 ℃) (a) 2 h; (b) 8 h; (c) 12 h; (d) 24 h

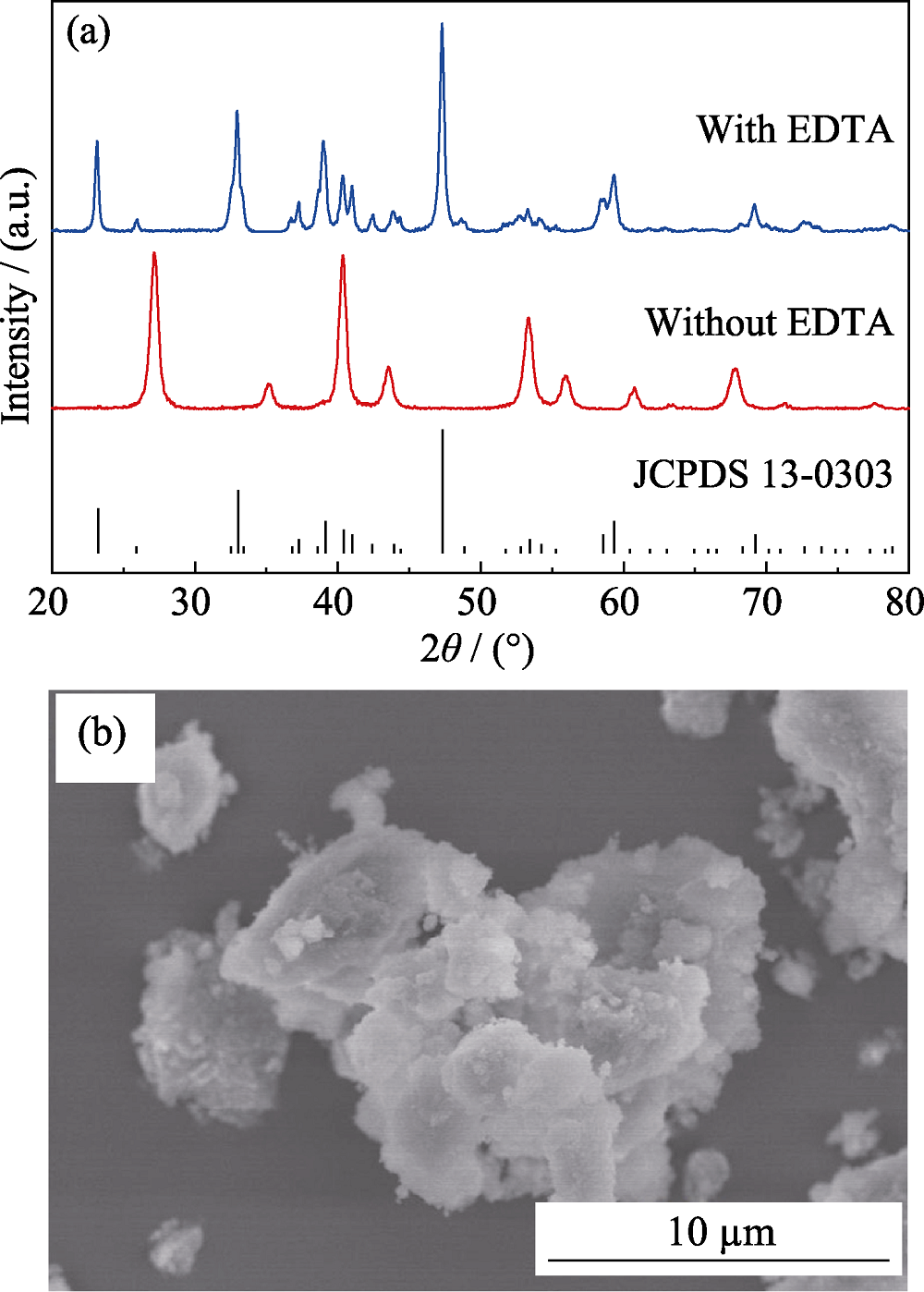

Fig. 6 (a) XRD patterns of samples prepared with or without EDTA (pH=9, 120 ℃, 24 h) (b) and SEM images without EDTA

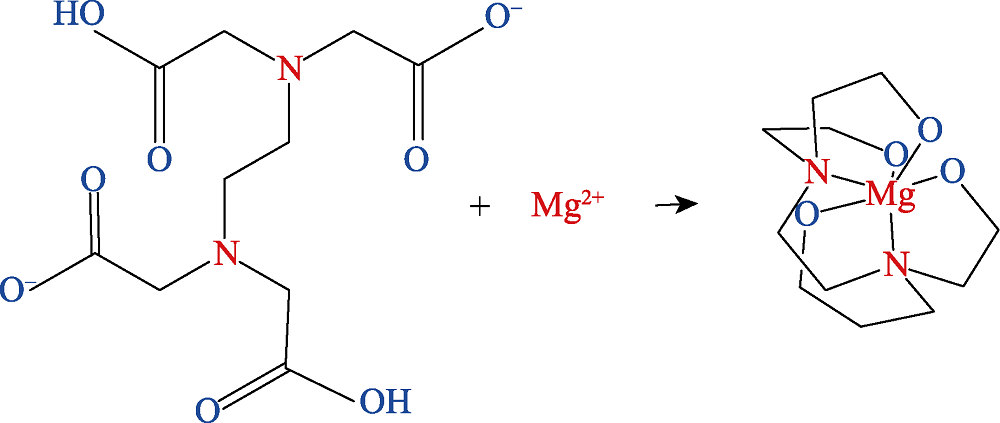

Fig. 7 Schematic of EDTA and Mg2+ complexation structure

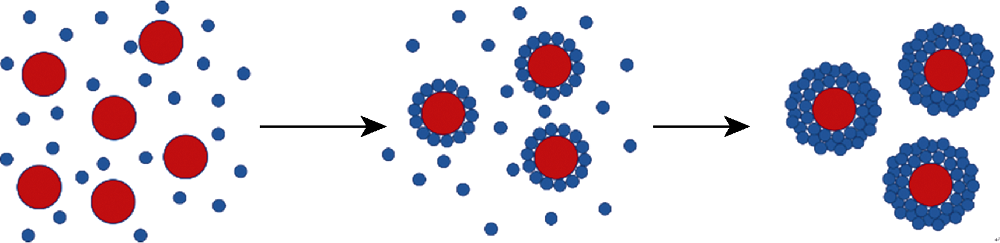

Fig. 8 Schematic diagram of the formation mechanism for hollow spherical sodium magnesium fluoride
