Preparation and Fischer-Tropsch Synthesis Performance of Hierarchical Co/Al-SiO2 Catalyst

doi:10.15541/jim20190500

Abstract

Abstract:

Hierarchically porous silica-aluminum is an important support material for metal-catalysts, because of its excellent properties. Herein, an efficient hydrothermal approach for the production of hierarchical aluminum- doped silica (Al-SiO₂) architectures was reported by employing aluminum nitrate as an aluminium source and TEOS as silicon source. Effects of the structure-oriented agent on the structure of Al-SiO₂ were investigated. Structural features of Al-SiO₂ were characterized by XRD, SEM and N₂-physisorption. The results showed that hierarchical Al-SiO₂ with "worm-like" porous of 30-40 nm can be synthesized by using TPAOH as the structure-oriented agent and hydrothermal treatment at 80 ℃. The cobalt catalysts were prepared by the wetness impregnation method. Compared with commercial SiO₂ supported cobalt catalysts, the Fischer-Tropsch synthesis performance of the catalyst Co/Al-SiO₂ is significantly enhanced, i.e., CO conversion nearly doubled, CH₄ selectivity reduced by 19.3wt%, C₂-C₄ selectivity reduced by 13.3wt%, and the selectivity of gasoline products (C₅-C₁₂) reached 53.3wt%.

Key words: hydrothermal method, hierarchical porous materials, Al-SiO₂, Cobalt catalyst, Fischer-Tropsch synthesis

CLC Number:

O643

WANG Juhan,WEN Xiong,LIU Chengchao,ZHANG Yuhua,ZHAO Yanxi,LI Jinlin. Preparation and Fischer-Tropsch Synthesis Performance of Hierarchical Co/Al-SiO₂ Catalyst[J]. Journal of Inorganic Materials, 2020, 35(9): 999-1004.

Figures/Tables 7

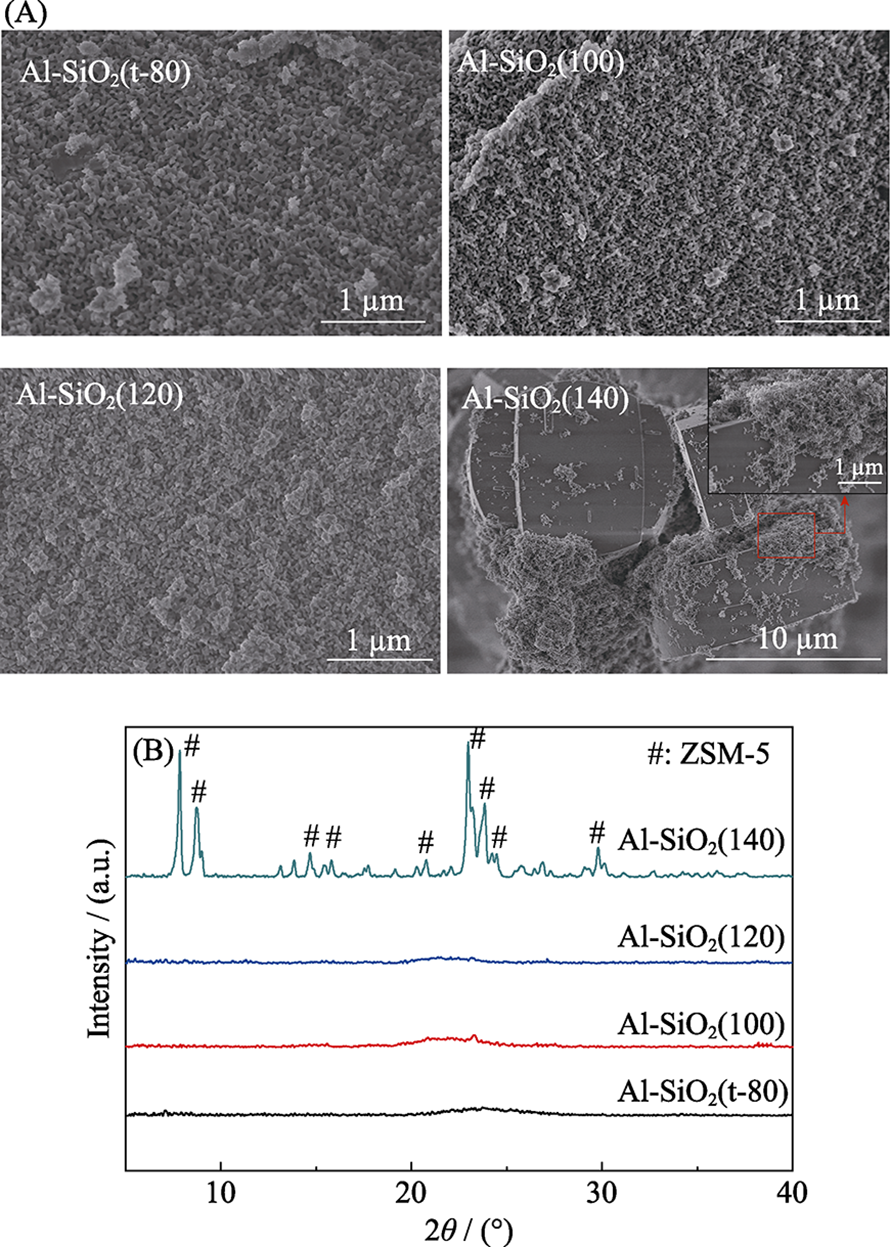

Fig. 1 SEM images (A) and XRD patterns(B) of Al-SiO2

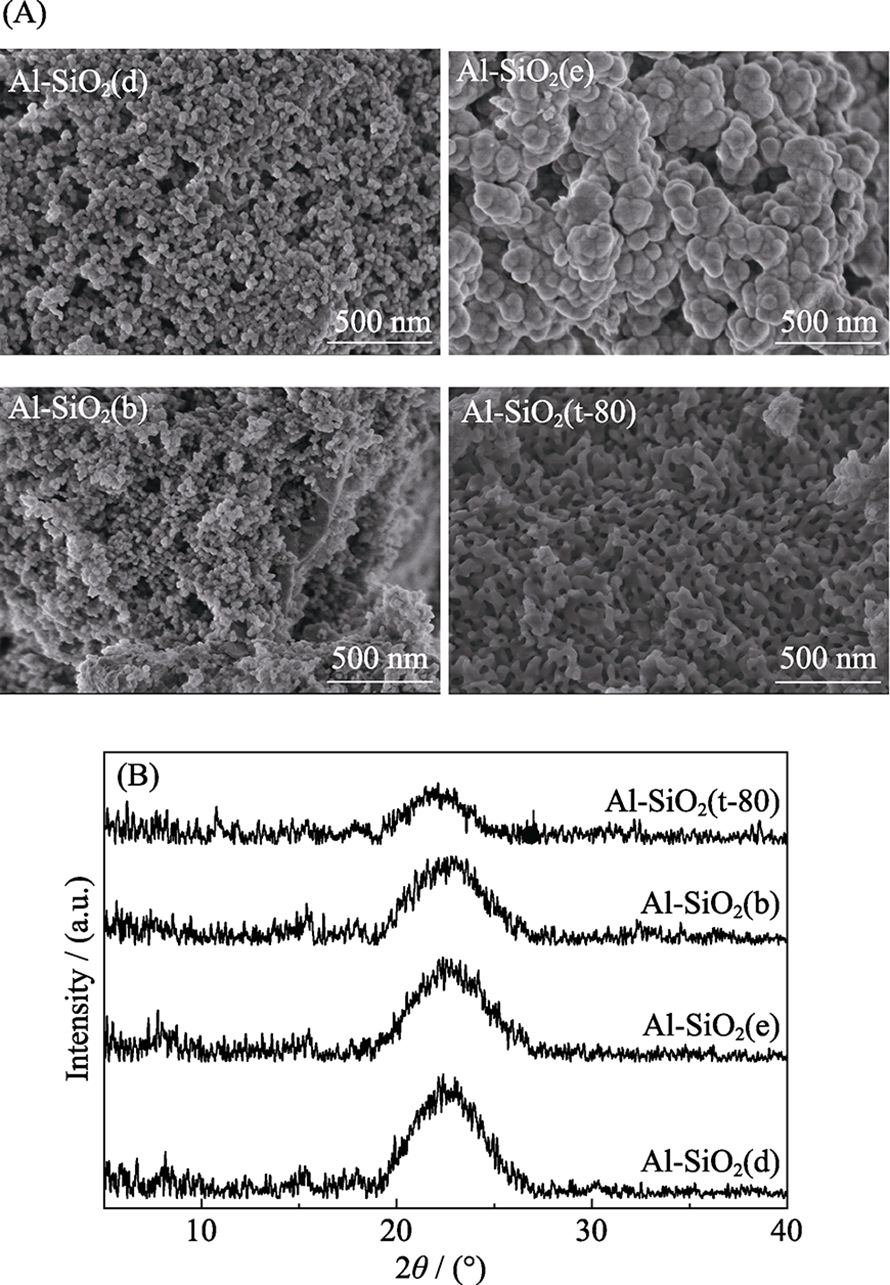

Fig. 2 SEM images (A) and XRD patterns (B) of Al-SiO2 samples

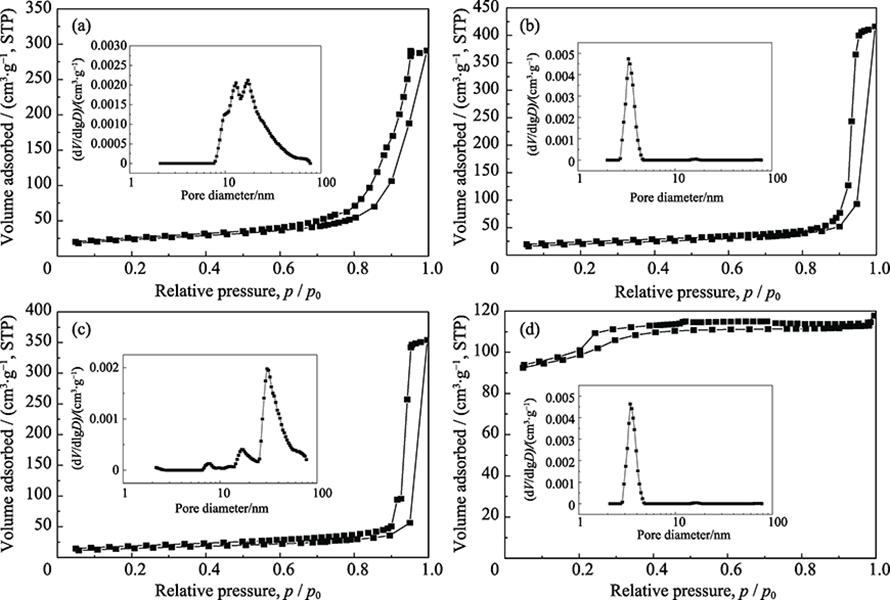

Fig. 3 N2 adsorption-desorption curves and pore size distributions of Si-Al samples (a) Al-SiO2(t-80); (b) Al-SiO2(100); (c) Al-SiO2(120); (d) Al-SiO2(140)

Table 1 Pore structure parameters of samples

Sample	S_BET/(m²·g^-1)	V_pore/(cm³·g^-1)	D*/nm
Al-SiO₂(t-80)	79.1	0.45	22.8
Al-SiO₂(100)	67.1	0.65	38.5
Al-SiO₂(120)	49.1	0.55	44.5
Al-SiO₂(140)	304.7	0.18	2.4

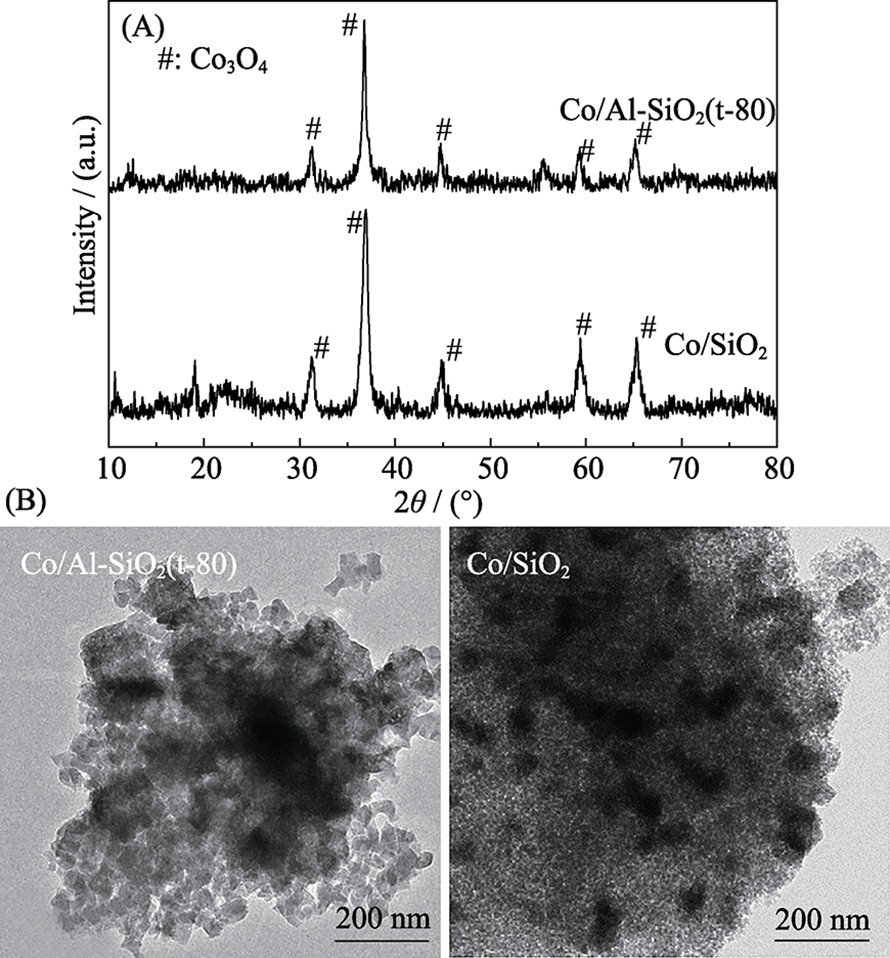

Fig. 4 XRD patterns (A) and TEM images (B) of different catalysts

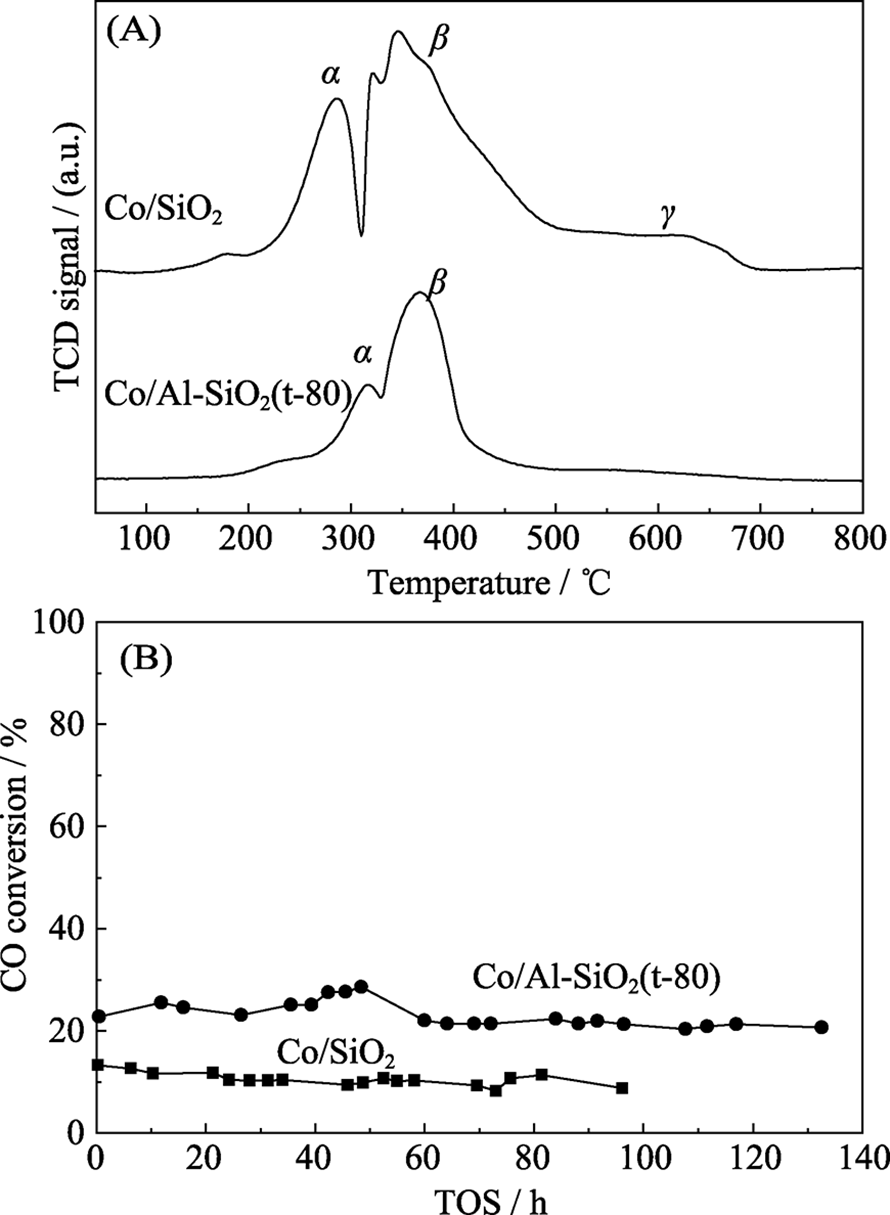

Fig. 5 H2-TPR(A) and TOS(B) profiles of different catalyst

Table 2 Activity and selectivity data of catalysts for Fischer-Tropsch synthesis

Catalyst	Load/%^a	CO con./%	Sel/wt%
Catalyst	Load/%^a	CO con./%	CH₄	C₂-C₄	C₅-C₁₂	C₁₂₊
Co/SiO₂	14.1	10.1	15.0	16.5	49.5	19.0
Co/Al-SiO₂(t-80)	14.6	21.4	12.1	14.3	53.3	17.3

References 21

[1]	ADDIN EN REFLIST, XIONG H, ZHANG Y, et al. Fischer- Tropsch synthesis: the effect of Al₂O₃ porosity on the performance of Co/Al₂O₃ catalyst. Catalysis Communications, 2005,6(8):512-516. DOI URL
[2]	RAHMATI M, HUANG B, MORTENSEN M K, et al. Effect of different alumina supports on performance of cobalt Fischer- Tropsch catalysts. Journal of Catalysis, 2018,359:92-100.
[3]	LIU C, LI J, ZHANG Y, et al. Fischer-Tropsch synthesis over cobalt catalysts supported on nanostructured alumina with various morphologies. Journal of Molecular Catalysis A: Chemical, 2012, 363-364:335-342.
[4]	LI J, LI Q, ZHANG Y. Carbon-titania-composite supported cobalt catalyst for application in Fischer-Tropsch synthesis. Journal of South-Central University for Nationalities(Nat. Sci. Edition), 2013,32(4):1-6.
[5]	KOO H M, THANH T P, YI G R, et al. Effect of the ordered meso-macroporous structure of Co/SiO₂ on the enhanced activity of hydrogenation of CO to hydrocarbons. Catalysis Science & Technology, 2016,6(12):4221-4231.
[6]	XIONG H, ZHANG Y, LIEW K, et al. Fischer-Tropsch synthesis: the role of pore size for Co/SBA-15 catalysts. Journal of Molecular Catalysis A: Chemical, 2008,295(1/2):68-76
[7]	GEORGEW HUBER, STEVEN J M BUTALA, LEE M L, et al. Gd promotion of Co/SiO₂ Fischer-Tropsch synthesis catalysts. Catalysis Letters, 2001,74(1/2):45-48.
[8]	DEN OTTER J H, NIJVELD S R, DE JONG K P. Synergistic promotion of Co/SiO₂ Fischer-Tropsch catalysts by niobia and platinum. ACS Catalysis, 2016,6(3):1616-1623.
[9]	WEI L, ZHAO Y, ZHANG Y, et al. Fischer-Tropsch synthesis over a 3D foamed MCF silica support: toward a more open porous network of cobalt catalysts. Journal of Catalysis, 2016,340:205-218.
[10]	LI H, HOU B, WANG J, et al. Effect of hierarchical meso- macroporous structures on the catalytic performance of silica supported cobalt catalysts for Fischer-Tropsch synthesis. Catalysis Science & Technology, 2017,7(17):3812-3822.
[11]	SONG D, LI J. Effect of catalyst pore size on the catalytic performance of silica supported cobalt Fischer-Tropsch catalysts. Journal of Molecular Catalysis A: Chemical, 2006,247(1/2):206-212.
[12]	XIONG H, ZHANG Y, WANG S, et al. Preparation and catalytic activity for Fischer-Tropsch synthesis of Ru nanoparticles confined in the channels of mesoporous SBA-15. The Journal of Physical Chemistry C, 2008,112(26):9706-9709.
[13]	CHEN M Q, WANG Y, YANG D Y, et al. Pt supported hierarchical ZSM-5 zeolite as adsorbent/catalytic combustion catalyst for o-xylene elimination. Journal of Inorganic Materials, 2019,34(2):173-178.
[14]	SCHMIDT F, HOFFMANN C, GIORDANINO F, et al. Coke location in microporous and hierarchical ZSM-5 and the impact on the MTH reaction. Journal of Catalysis, 2013,307:238-245.
[15]	YUE Y, KANG Y, BAI Y, et al. Seed-assisted, template-free synthesis of ZSM-5 zeolite from natural aluminosilicate minerals. Applied Clay Science, 2018,158:177-185.
[16]	THOMMES M, SMARSLY B, GROENEWOLT M, et al. Adsorption hysteresis of nitrogen and argon in pore networks and characterization of novel micro- and mesoporous silicas. Langmuir, 2006,22:756-764. URL PMID
[17]	ZHAO Y, ZHANG Y, WEI L, et al. Effect of water on Fischer- Tropsch synthesis over SBA-15 supported cobalt catalysts. SCIENTIA SINICA Chimica, 2014,44(10):1627-1632. DOI URL
[18]	GAO S, HONG J, XIAO G, et al. Evolution of cobalt species in glow discharge plasma prepared CoRu/SiO₂ catalysts with enhanced Fischer-Tropsch synthesis performance. Journal of Catalysis, 2019,374:246-256.
[19]	ARNOLDY P, MOULIJN J A. Temperature-programmed reduction of CoOAI₂O₃ catalysts. Journal of Catalysis, 1985,93(1):38-54. DOI URL
[20]	STEEN E V, SEWELL G S, MAKHOTHE R A, et al. TPR study on the preparation of impregnated Co/SiO₂ catalysts. Journal of Catalysis, 1996,162:220-229. DOI URL
[21]	LUALDI M, DI CARLO G, L GDBERG S, et al. Effect of Ti Effect of Ti and Al addition via direct synthesis to SBA-15 as support for cobalt based Fischer-Tropsch catalysts. Applied Catalysis A: General, 2012,443-444:76-86.
