Synthesis, Electronic Structure and Visible Light Photocatalytic Performance of Quaternary BiMnVO5

doi:10.15541/jim20210263

Abstract

Abstract:

Removal of organic pollutants from water bodies by photocatalysis has broad application prospects in the field of sewage purification. In this study, the quaternary BiMnVO₅ was synthesized by hydrothermal method and solid-state reaction, respectively. The morphology, structure and optical properties of the catalysts were characterized, and the electronic structure was calculated. Results showed that the hydrothermal method can rapidly synthesize pure BiMnVO₅ with high crystallinity. BiMnVO₅ is a semiconductor with a direct band gap of 1.8 eV, which is consistent with the results of first-principles calculations. Analysis of the density of states further reveals that the optical absorption band are attributed to the transitions from Mn3d/O2p to V3d. The photocatalytic results show that the BiMnVO₅ synthesized by hydrothermal method exhibits the highest catalytic activity. About 98% Methylene Blue (MB) is degraded when exposed to visible light for 4 h. The hydroxyl radicals and photo-generated holes are proved to be the main active substances in the photocatalytic process. After 5 cycles, it still maintains capacity of degrading 85% MB in 4 h under visible light irradiation, while its morphology and structure remain unchanged, which indicates BiMnVO₅ a good photocatalyst with reliable stability.

Key words: BiMnVO₅ semiconductor, hydrothermal method, electronic structure, photocatalysis

CLC Number:

TQ174

ZHANG Xian, ZHANG Ce, JIANG Wenjun, FENG Deqiang, YAO Wei. Synthesis, Electronic Structure and Visible Light Photocatalytic Performance of Quaternary BiMnVO₅[J]. Journal of Inorganic Materials, 2022, 37(1): 58-64.

Figures/Tables 9

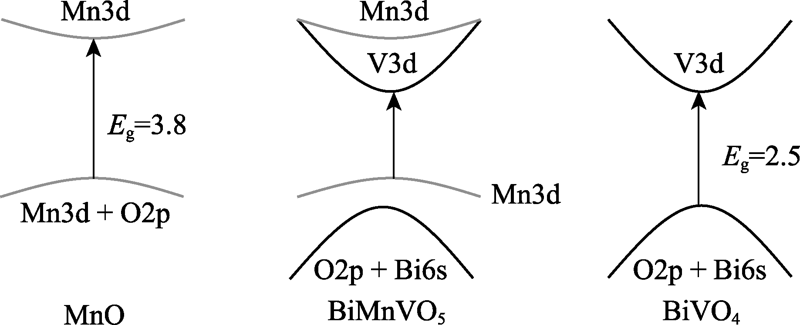

Fig. 1 Schematic band structure of MnO, BiVO4 and BiMnVO5

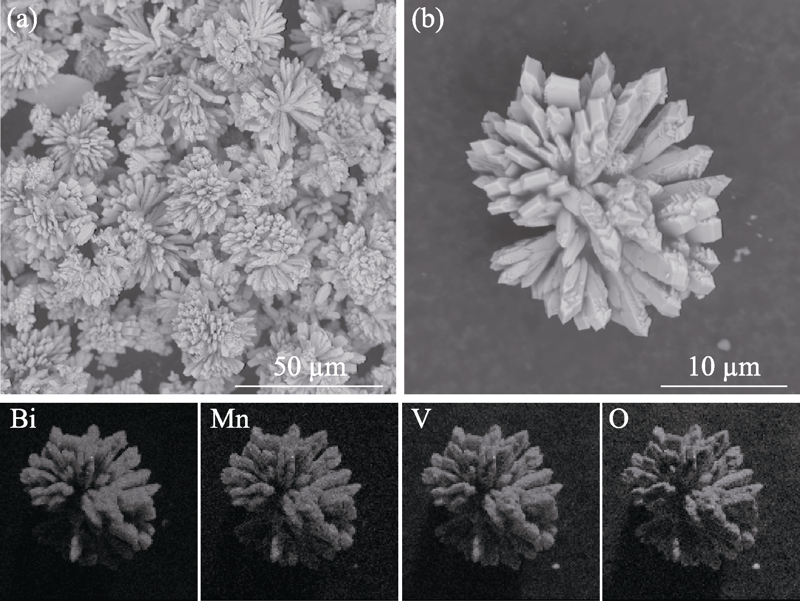

Fig. 2 SEM images and EDX elemental mappings of the hydrothermal synthesized BiMnVO5 powder

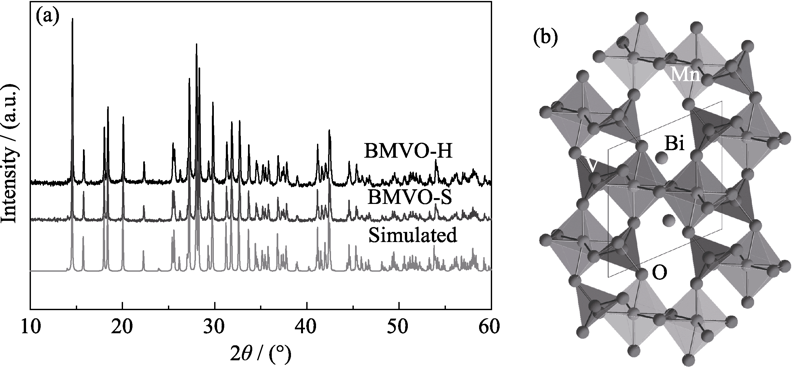

Fig. 3 (a) XRD patterns of the as-synthesized BiMnVO5 powders, and (b) crystal structure of BiMnVO5

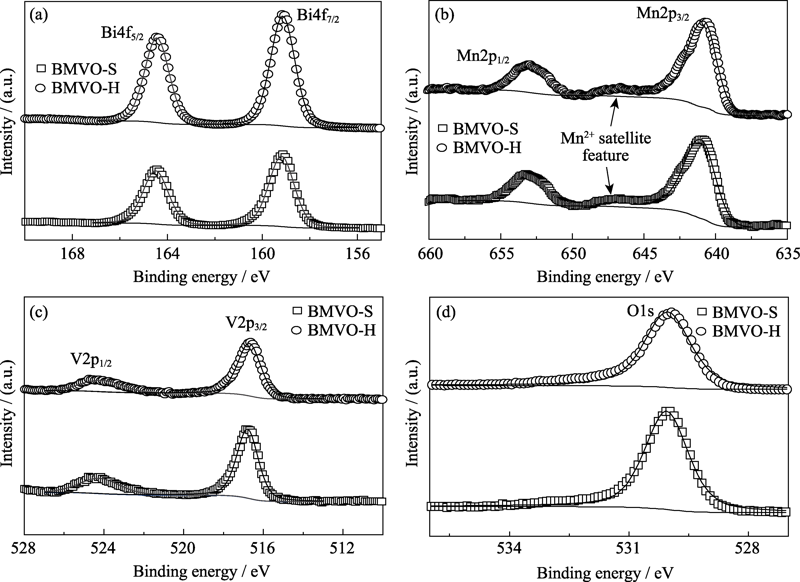

Fig. 4 (a) Bi4f, (b) Mn2p, (c) V2p, and (d) O1s XPS spectra of the as-synthesized BiMnVO5 powders

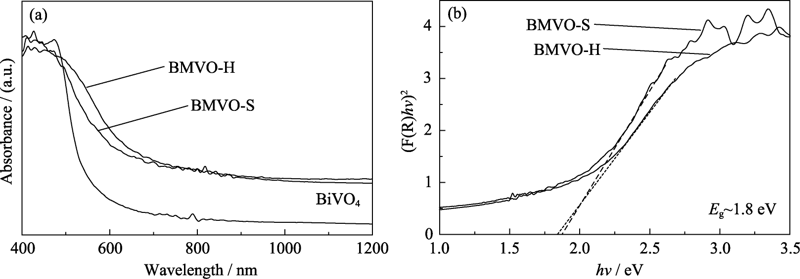

Fig. 5 (a) UV-Vis diffuse reflection spectra and (b) [F(R)hn]2 vs hν curves of BMVO-S and BMVO-H photocatalysts

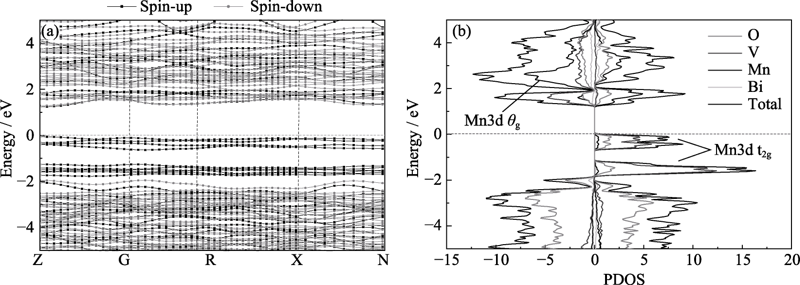

Fig. 6 (a) Band structure and (b) density of states of BiMnVO5

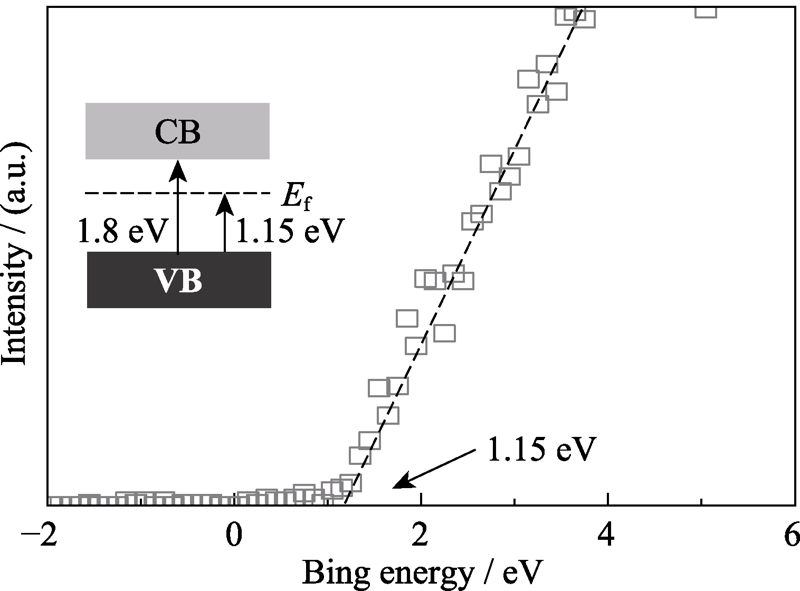

Fig. 7 XPS valance band of BMVO-H sample with inset showing the relative positions of VB, CB and Ef

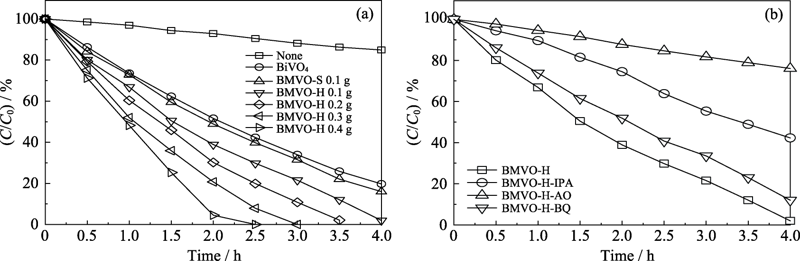

Fig. 8 (a) Curves of MB concentration vs time under different catalytic conditions, and (b) curves of MB concentration vs time with different scavengers

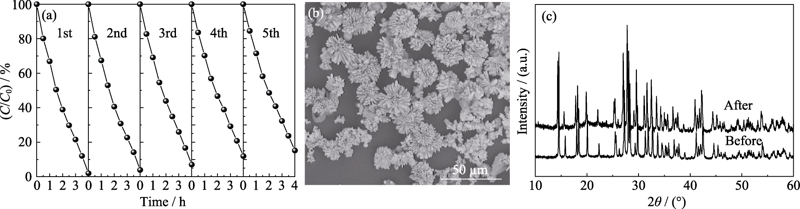

Fig. 9 (a) Repeated test for visible light degradation of MB for BMVO-H sample, (b) SEM image of BMVO-H sample after 5 cycles, and (c) XRD patterns of BMVO-H sample before and after 5 cycles

References 38

[1]	ZHAO C, CHEN Z, SHI R, et al. Recent advances in conjugated polymers for visible-light-driven water splitting. Advanced Materials, 2020, 32(28):1907296. DOI URL
[2]	KIM T W, CHOI K S. Nanoporous BiVO₄ photoanodes with dual- layer oxygen evolution catalysts for solar water splitting. Science, 2014, 343(6174):990-994. DOI URL
[3]	YUAN D, SUN M, TANG S, et al. All-solid-state BiVO₄/ZnIn₂S₄ Z-scheme composite with efficient charge separations for improved visible light photocatalytic organics degradation. Chinese Chemical Letters, 2020, 31(2):547-550. DOI URL
[4]	CHEN Q, CHENG X, LONG H, et al. A short review on recent progress of Bi/semiconductor photocatalysts: the role of Bi metal. Chinese Chemical Letters, 2020, 31(10):2583-2590. DOI URL
[5]	TOKUNAGA S, KATO H, KUDO A. Selective preparation of monoclinic and tetragonal BiVO₄ with scheelite structure and their photocatalytic properties. Chemistry of Materials, 2001, 13(12):4624-4628. DOI URL
[6]	ZHOU B, ZHAO X, LIU H, et al. Visible-light sensitive cobalt- doped BiVO₄ (Co-BiVO₄) photocatalytic composites for the degradation of methylene blue dye in dilute aqueous solutions. Applied Catalysis B: Environmental, 2010, 99(1):214-221. DOI URL
[7]	HE B, LI Z, ZHAO D, et al. Fabrication of porous Cu-doped BiVO₄ nanotubes as efficient oxygen-evolving photocatalysts. ACS Applied Nano Materials, 2018, 1(6):2589-2599. DOI URL
[8]	REGMI C, KSHETRI Y.K, KIM T H. et al. Visible-light-induced Fe-doped BiVO₄ photocatalyst for contaminated water treatment. Molecular Catalysis, 2017, 432:220-231. DOI URL
[9]	REGMI C, KSHETRI Y K, KIM T H, et al. Fabrication of Ni-doped BiVO₄ semiconductors with enhanced visible-light photocatalytic performances for wastewater treatment. Applied Surface Science, 2017, 413:253-265. DOI URL
[10]	LUO W, LI Z, YU T, et al. Effects of surface electrochemical pretreatment on the photoelectrochemical performance of Mo- doped BiVO₄. The Journal of Physical Chemistry C, 2012, 116(8):5076-5081. DOI URL
[11]	LUO W, YANG Z, LI Z, et al. Solar hydrogen generation from seawater with a modified BiVO₄ photoanode. Energy & Environmental Science, 2011, 4(10):4046-4051.
[12]	ZHONG D K, CHOI S, GAMELIN D R. Near-complete suppression of surface recombination in solar photoelectrolysis by “Co-Pi” catalyst-modified W:BiVO₄. Journal of the American Chemical Society, 2011, 133(45):18370-18377. DOI URL
[13]	ZHONG X, HE H, YANG M, et al. In³⁺-doped BiVO₄ photoanodes with passivated surface states for photoelectrochemical water oxidation. Journal of Materials Chemistry A, 2018, 6(22):10456-10465. DOI URL
[14]	USAI S, OBREGÓN S, BECERRO A I, et al. Monoclinic-tetragonal heterostructured BiVO₄ by yttrium doping with improved photocatalytic activity. The Journal of Physical Chemistry C, 2013, 117(46):24479-24484. DOI URL
[15]	GOVINDARAJU G V, MORBEC J M, GALLI G A, et al. Experimental and computational investigation of lanthanide ion doping on BiVO₄ photoanodes for solar water splitting. The Journal of Physical Chemistry C, 2018, 122(34):19416-19424. DOI URL
[16]	LUO Y, TAN G, DONG G, et al. Structural transformation of Sm³⁺ doped BiVO₄ with high photocatalytic activity under simulated sun-light. Applied Surface Science, 2015, 324:505-511. DOI URL
[17]	BAEK J H, GILL T M, ABROSHAN H, et al. Selective and efficient Gd-Doped BiVO₄ photoanode for two-electron water oxidation to H₂O₂. ACS Energy Letters, 2019, 4(3):720-728. DOI URL
[18]	RADOSAVLJEVIC I, HOWARD J A K, SLEIGHT A W. Synthesis and structure of two new bismuth cadmium vanadates, BiCdVO₅ and BiCd₂VO₆, and structures of BiCa₂AsO₆ and BiMg₂PO₆. International Journal of Inorganic Materials, 2000, 2(6):543-550. DOI URL
[19]	XUN X, YOKOCHI A, SLEIGHT A W. Synthesis and structure of BiMnVO₅ and BiMnAsO₅. Journal of Solid State Chemistry, 2002, 168(1):224-228. DOI URL
[20]	ELIZIARIO NUNES S, WANG C H, SO K, et al. Bismuth zinc vanadate, BiZn₂VO₆: new crystal structure type and electronic structure. Journal of Solid State Chemistry, 2015, 222:12-17. DOI URL
[21]	RADOSAVLJEVIC I, EVANS J S O, SLEIGHT A W. Synthesis and structure of bismuth copper vanadate, BiCu₂VO₆. Journal of Solid State Chemistry, 1998, 141(1):149-154. DOI URL
[22]	HUANG J, SLEIGHT A W. Synthesis, crystal structure, and optical properties of a new bismuth magnesium vanadate: BiMg₂VO₆. Journal of Solid State Chemistry, 1992, 100(1):170-178. DOI URL
[23]	RADOSAVLJEVIC I, EVANS J S O, SLEIGHT A W. Synthesis and structure of BiCa₂VO₆. Journal of Solid State Chemistry, 1998, 137(1):143-147. DOI URL
[24]	BHIM A, SASMAL S, GOPALAKRISHNAN J, et al. Visible- light-activated C-C bond cleavage and aerobic oxidation of benzyl alcohols employing BiMXO₅ (M=Mg, Cd, Ni, Co, Pb, Ca and X=V, P). Chemistry - An Asian Journal, 2020, 15(19):3104-3115. DOI URL
[25]	LIU H, NAKAMURA R, NAKATO Y. Bismuth-copper vanadate BiCu₂VO₆ as a novel photocatalyst for efficient visible-light-driven oxygen evolution. ChemPhysChem, 2005, 6(12):2499-2502. DOI URL
[26]	VAN ELP J, POTZE R H, ESKES H, et al. Electronic structure of MnO. Physical Review B, 1991, 44(4):1530-1537. DOI URL
[27]	MASSIDDA S, CONTINENZA A, POSTERNAK M, et al. Band- structure picture for MnO reexplored: a model GW calculation. Physical Review Letters, 1995, 74(12):2323-2326. DOI URL
[28]	COOPER J K, GUL S, TOMA F M, et al. Electronic structure of monoclinic BiVO₄. Chemistry of Materials, 2014, 26(18):5365-5373. DOI URL
[29]	BLAHA P, SCHWARZ K, MADSEN G K H, et al. WIEN2k, an augmented plane wave+ local orbitals program for calculating crystal properties. 2001.
[30]	PERDEW J P, BURKE K, ERNZERHOF M. Generalized gradient approximation made simple. Physical Review Letters, 1996, 77(18):3865-3868. DOI URL
[31]	BLÖCHL P E. Projector augmented-wave method. Physical Review B, 1994, 50(24):17953-17979. DOI URL
[32]	KRESSE G, JOUBERT D. From ultrasoft pseudopotentials to the projector augmented-wave method. Physical Review B, 1999, 59(3):1758-1775. DOI URL
[33]	JIANG Z, LIU Y, JING T, et al. Enhancing the photocatalytic activity of BiVO₄ for oxygen evolution by Ce doping: Ce³⁺ ions as hole traps. The Journal of Physical Chemistry C, 2016, 120(4):2058-2063. DOI URL
[34]	PALANISELVAM T, SHI L, METTELA G, et al. Vastly enhanced BiVO₄ photocatalytic OER performance by NiCoO₂ as cocatalyst. Advanced Materials Interfaces, 2017, 4(19):1700540. DOI URL
[35]	YAO X, ZHAO X, HU J, et al. The self-passivation mechanism in degradation of BiVO₄ photoanode. iScience, 2019, 19:976-985. DOI URL
[36]	BIESINGER M C, PAYNE B P, GROSVENOR A P, et al. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Cr, Mn, Fe, Co and Ni. Applied Surface Science, 2011, 257(7):2717-2730. DOI URL
[37]	LI M, LEI W, YU Y, et al. High-performance asymmetric supercapacitors based on monodisperse MnO nanocrystals with high energy densities. Nanoscale, 2018, 10(34):15926-15931. DOI URL
[38]	KORTÜM G, BRAUN W, HERZOG G. Principles and techniques of diffuse-reflectance spectroscopy. Angewandte Chemie International Edition, 1963, 2(7):333-341.

Synthesis, Electronic Structure and Visible Light Photocatalytic Performance of Quaternary BiMnVO₅

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 9

References 38

Related Articles 15

Recommended Articles

Metrics

Comments

[1]	WU Lin, HU Minglei, WANG Liping, HUANG Shaomeng, ZHOU Xiangyuan. Preparation of TiHAP@g-C₃N₄ Heterojunction and Photocatalytic Degradation of Methyl Orange [J]. Journal of Inorganic Materials, 2023, 38(5): 503-510.
[2]	MA Xinquan, LI Xibao, CHEN Zhi, FENG Zhijun, HUANG Juntong. BiOBr/ZnMoO₄ Step-scheme Heterojunction: Construction and Photocatalytic Degradation Properties [J]. Journal of Inorganic Materials, 2023, 38(1): 62-70.
[3]	YAO Yishuai, GUO Ruihua, AN Shengli, ZHANG Jieyu, CHOU Kuochih, ZHANG Guofang, HUANG Yarong, PAN Gaofei. In-situ Loaded Pt-Co High Index Facets Catalysts: Preparation and Electrocatalytic Performance [J]. Journal of Inorganic Materials, 2023, 38(1): 71-78.
[4]	CHEN Hanxiang, ZHOU Min, MO Zhao, YI Jianjian, LI Huaming, XU Hui. 0D/2D CoN/g-C₃N₄ Composites: Structure and Photocatalytic Performance for Hydrogen Production [J]. Journal of Inorganic Materials, 2022, 37(9): 1001-1008.
[5]	XUE Hongyun, WANG Congyu, MAHMOOD Asad, YU Jiajun, WANG Yan, XIE Xiaofeng, SUN Jing. Two-dimensional g-C₃N₄ Compositing with Ag-TiO₂ as Deactivation Resistant Photocatalyst for Degradation of Gaseous Acetaldehyde [J]. Journal of Inorganic Materials, 2022, 37(8): 865-872.
[6]	WEN Zhiqin, HUANG Binrong, LU Taoyi, ZOU Zhengguang. Pressure on the Structure and Thermal Properties of PbTiO₃: First-principle Study [J]. Journal of Inorganic Materials, 2022, 37(7): 787-794.
[7]	CHI Congcong, QU Panpan, REN Chaonan, XU Xin, BAI Feifei, ZHANG Danjie. Preparation of SiO₂@Ag@SiO₂@TiO₂ Core-shell Structure and Its Photocatalytic Degradation Property [J]. Journal of Inorganic Materials, 2022, 37(7): 750-756.
[8]	WANG Xiaojun, XU Wen, LIU Runlu, PAN Hui, ZHU Shenmin. Preparation and Properties of Ag@C₃N₄ Photocatalyst Supported by Hydrogel [J]. Journal of Inorganic Materials, 2022, 37(7): 731-740.
[9]	LIU Xuechen, ZENG Di, ZHOU Yuanyi, WANG Haipeng, ZHANG Ling, WANG Wenzhong. Selective Oxidation of Biomass over Modified Carbon Nitride Photocatalysts [J]. Journal of Inorganic Materials, 2022, 37(1): 38-44.
[10]	LIU Peng, WU Shimiao, WU Yunfeng, ZHANG Ning. Synthesis of Zn_0.4(CuGa)_0.3Ga₂S₄/CdS Photocatalyst for CO₂ Reduction [J]. Journal of Inorganic Materials, 2022, 37(1): 15-21.
[11]	WANG Luping, LU Zhanhui, WEI Xin, FANG Ming, WANG Xiangke. Application of Improved Grey Model in Photocatalytic Data Prediction [J]. Journal of Inorganic Materials, 2021, 36(8): 871-876.
[12]	AN Weijia, LI Jing, WANG Shuyao, HU Jinshan, LIN Zaiyuan, CUI Wenquan, LIU Li, XIE Jun, LIANG Yinghua. Fe(III)/rGO/Bi₂MoO₆ Composite Photocatalyst Preparation and Phenol Degradation by Photocatalytic Fenton Synergy [J]. Journal of Inorganic Materials, 2021, 36(6): 615-622.
[13]	XIAO Xiang, GUO Shaoke, DING Cheng, ZHANG Zhijie, HUANG Hairui, XU Jiayue. CsPbBr₃@TiO₂ Core-shell Structure Nanocomposite as Water Stable and Efficient Visible-light-driven Photocatalyst [J]. Journal of Inorganic Materials, 2021, 36(5): 507-512.
[14]	XIANG Hui, QUAN Hui, HU Yiyuan, ZHAO Weiqian, XU Bo, YIN Jiang. Piezoelectricity of Graphene-like Monolayer ZnO and GaN [J]. Journal of Inorganic Materials, 2021, 36(5): 492-496.
[15]	XIONG Jinyan, LUO Qiang, ZHAO Kai, ZHANG Mengmeng, HAN Chao, CHENG Gang. Facilely Anchoring Cu nanoparticles on WO₃ Nanocubes for Enhanced Photocatalysis through Efficient Interface Charge Transfer [J]. Journal of Inorganic Materials, 2021, 36(3): 325-331.
