Low Temperature Catalytic Synthesis of β-SiC Powders via Microwave Heating

doi:10.15541/jim20160541

Abstract

Abstract:

β-SiC powders were synthesized by a microwave heating method at 1150℃ for 30 min under Ar atomosphere using silicon powders and phenolic resin as raw materials, and nickel nitrate as catalyst precursor. The effects of temperature, catalyst content and holding time on the formation of SiC were investigated. XRD, SEM and TEM were used to characterize the phase and microstructure of the prepared samples. It indicated that β-SiC can be synthesized at 1150℃ for 0.5 h by using 1.0wt% Ni as catalysts. In contrast, for the sample prepared without Ni catalysts, corresponding preparation temperature of β-SiC was as high as 1250℃. Both β-SiC whiskers and particles were formed in the samples prepared with or without catalysts, and the length of formed β-SiC whiskers in the samples prepared with Ni catalysts were larger than those without catalyst. Density functional theory (DFT) calculation shows that the formation of Ni-Si alloy can elongate the length of Si-Si chemical bond, weaken its bond strength, and finally accelerate the carbonization reaction of Si powder at a relative low temperature.

Key words: β-SiC, microwave heating, catalytic-reaction, density functional theory

CLC Number:

TB35

WANG Jun-Kai, ZHANG Yuan-Zhuo, LI Jun-Yi, ZHANG Hai-Jun, LI Fa-Liang, HAN Lei, SONG Shu-Peng. Low Temperature Catalytic Synthesis of β-SiC Powders via Microwave Heating[J]. Journal of Inorganic Materials, 2017, 32(7): 725-730.

Figures/Tables 8

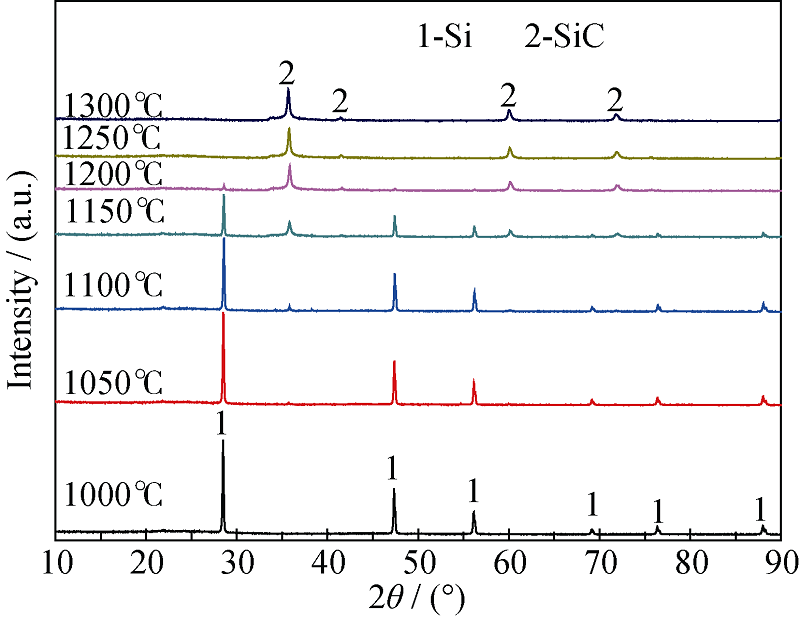

Fig. 1 XRD patterns of samples reacted at various temperatures for 0.5 h without any catalysts(Si: JCPDS 01-077-2109; SiC: JCPDS 01-073-1708)

Fig. 2 XRD patterns of samples reacted at various temperatures for 0.5 h with 2 wt% Ni catalysts(Si: JCPDS 01-077-2109; SiC: JCPDS 01-073-1708)

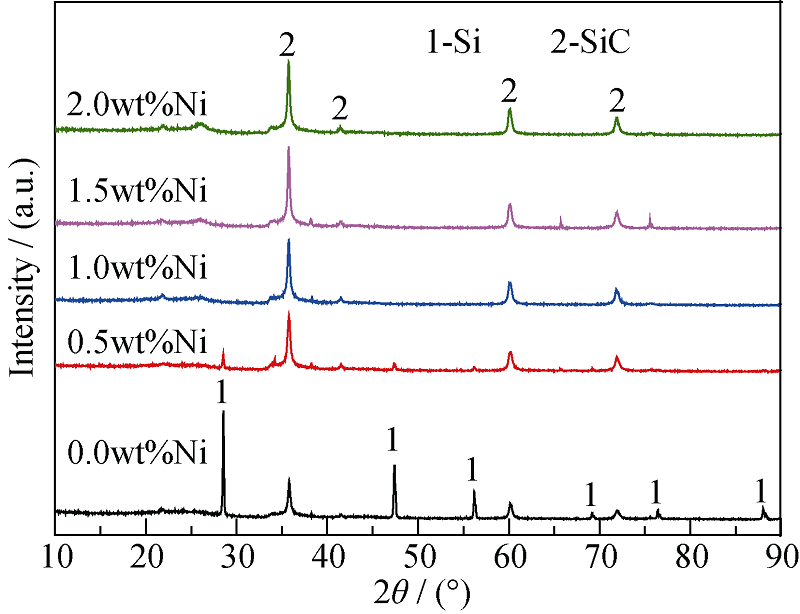

Fig. 3 XRD patterns of samples reacted at 1150℃ for 0.5 h with various contents of Ni catalysts(Si: JCPDS 01-077-2109; SiC: JCPDS 01-073-1708)

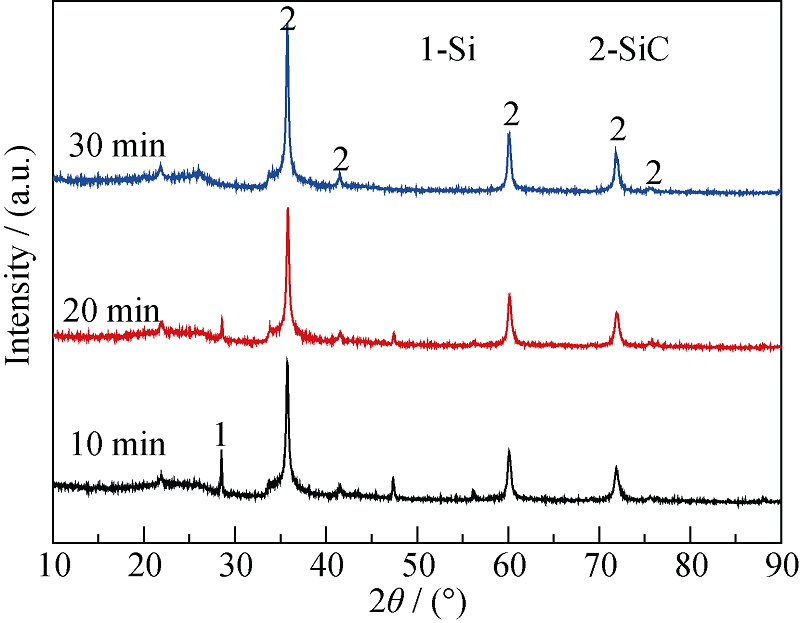

Fig. 4 XRD patterns of samples reacted at 1150℃ for various holding time with 1.0wt% Ni catalysts(Si: JCPDS 01-077-2109; SiC: JCPDS 01-073-1708)

Fig. 5 SEM images of the as-prepared β-SiC(a) 1250℃/0.5 h, without catalyst; (b) 1150℃/0.5 h, with 1.0wt% Ni as catalyst

Fig. 6 TEM ((a) low-and (b) high-magnification), SAED (c) and HR-TEM (d) images of as-prepared β-SiC whiskers

Table1 Total energies and cohesive energies of Si55, Si43Ni12 and Si37Ni18 clusters

Clusters composition	Single Si atom	Single Ni atom	Si₅₅	Si₄₃Ni₁₂	Si₃₇Ni₁₈
Total energy/(a.u.)	-290.133	-1390.136	-15957.557	-30668.916	-38024.613
Cohesive energy/(kJ·mol^-1)	—	—	582.458	940.142	1165.307

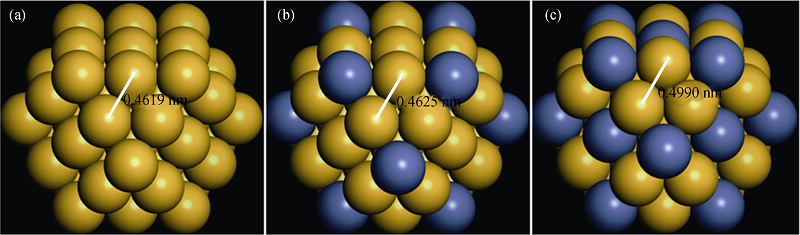

Fig. 7 The DFT calculations of bond length of Si atoms at edge sites0 on (111) face of Si55 (a), Si43Ni12 (b) and Si37Ni18 (c) clusters

References 22

[1]	SHI L, ZHAO H, YAN Y, et al.Synthesis and characterization of submicron silicon carbide powders with silicon and phenolic resin.Powder Technology, 2006, 169(2): 71-76.
[2]	CAO Y, ZHANG H, LI F, et al.Preparation and characterization of ultrafine ZrB2-SiC composite powders by a combined Sol-Gel and microwave boro/carbothermal reduction method.Ceramics International, 2015, 41(6): 7823-7829.
[3]	HUANG SHAN, WANG JI-GANG, LIU SONG, et al.Structural characterization and photoluminescence properties of SiC nanowires prepared by microwave method.New Carbon Materials, 2015, 30(3): 230-235.
[4]	ZHANG H, LI F.Preparation and microstructure evolution of diboride ultrafine powder by Sol-Gel and microwave carbothermal reduction method.Journal of Sol-Gel Science and Technology, 2008, 45(2): 205-211.
[5]	ZHANG H, LI F, JIA Q, et al.Preparation of titanium carbide powders by sol-gel and microwave carbothermal reduction methods at low temperature.Journal of Sol-Gel Science and Technology, 2008, 46(2): 217-222.
[6]	ZHANG H, LI F, JIA Q.Preparation of titanium nitride ultrafine powders by Sol-Gel and microwave carbothermal reduction nitridation methods.Ceramics International, 2009, 35(3): 1071-1075.
[7]	DENG X, DU S, ZHANG H, et al.Preparation and characterization of ZrB2-SiC composite powders from zircon via microwave-assisted boro/carbothermal reduction.Ceramics International, 2015, 41(10): 14419-14426.
[8]	LI F, FU F, LU L, et al.Preparation and artificial neural networks analysis of ultrafine β-Sialon powders by microwave-assisted carbothermal reduction nitridation of Sol-Gel derived powder precursors.Advanced Powder Technology, 2015, 26(5): 1417-1422.
[9]	HUANG Z, DENG X, LIU J, et al.Preparation of CaZrO3 powders by a microwave-assisted molten salt method.Journal of the Ceramic Society of Japan, 2016, 124(5): 593-596.
[10]	PENG HU, LI JUN.Advance in microwave high-temperature heating technology.Materials Review, 2005, 19(10): 100-103.
[11]	LU BIN, LIU JI-XUAN, ZHU HUA-WEI, et al.SiC nanowires synthesized by microwave heating.Journal of Inorganic Materials, 2007, 22(6): 1135-1138.
[12]	FU FANG, JIA XIAO-LIN, ZHANG HAI-JUN.Synthesis of SiC ultrafine powder by Sol-Gel and microwave carbothermal reduction method.Rare Metal Materials and Engineering, 2008, 37(S1): 153-155.
[13]	HAO BIN.Study on preparation of SiC powder by microwave sintering.Bulletin of The Chinese Ceramic Society, 2015, 34(3): 864-867.
[14]	YAN XIAO-YAN, WANG YING-YONG, JIN GUO-QIANG.Preparation and characterization of SiC nanowires with Zr as catalyst.Silicone Material, 2011, 25(5): 297-299.
[15]	WANG D, XU D, WANG Q, et al.Periodically twinned SiC nanowires.Nanotechnology, 2008, 19(21): 2386-2390.
[16]	XU WU-JUN, XU YAO, SUN XIAN-YONG, et al.Fabracation of tower like β-SiC by Sol-Gel and carbothermal reduction processing.New Carbon Materials, 2006, 21(2): 167-170.
[17]	ZHAO H, SHI L, LI Z, et al.Silicon carbide nanowires synthesized with phenolic resin and silicon powders.Physica E: Low-dimensional Systems and Nanostructures, 2009, 41(4): 753-756.
[18]	LI Q, WANG C A, SHENGNIAN T.Synthesis of bamboo-like SiC whiskers from waste silica fume.Crystal Research & Technology, 2014, 49(5): 290-297.
[19]	LU M, LI A, WANG T, et al.Synthesis of bamboo-like 3C-SiC nanowires by microwave assisted carbothermal reduction.Journal of Nanoscience & Nanotechnology, 2010, 10(3): 2135-2138.
[20]	ZHANG J, LIU X, JIA Q, et al.Novel synthesis of ultra-long single crystalline β-SiC nanofibers with strong blue/green luminescent properties.Ceramics International, 2016, 42(3): 4600-4606.
[21]	XIA ZHONG-FENG, WANG ZHOU-FU, WANG XI-TANG, et al.In-situ formation of silicon carbide whisker by Ni-catalyzed silicon-modified pitch and its mechanism.Refractories, 2014, 48(4): 254-256.
[22]	ZHANG H, LU L, KAWASHIMA K, et al.Synthesis and catalytic activity of crown jewel-structured (IrPd)/Au trimetallic nanoclusters.Advanced Materials, 2015, 27(8): 1383-1388.
