掺杂改性NaYTiO₄增强固体氧化物燃料电池阳极抗硫中毒性能

渠吉发(), 王旭, 张维轩, 张康喆, 熊永恒, 谭文轶()

南京工程学院环境工程学院, 南京 211167

收稿日期:2024-11-04 修回日期:2025-01-14 出版日期:2025-01-24 网络出版日期:2025-01-24
通讯作者: 谭文轶, 教授. E-mail: twy@njit.edu.cn
作者简介:渠吉发(1990-), 男, 博士. E-mail: qujifa@njit.edu.cn
基金资助:
国家自然科学基金(51678291);江苏省高等学校基础科学(自然科学)研究项目(21KJB530012);江苏省高等学校基础科学(自然科学)研究项目(23KJA610003)

Enhanced Sulfur-resistance for Solid Oxide Fuel Cells Anode via Doping Modification of NaYTiO₄

QU Jifa(), WANG Xu, ZHANG Weixuan, ZHANG Kangzhe, XIONG Yongheng, TAN Wenyi()

School of Environmental Engineering, Nanjing Institute of Technology, Nanjing 211167, China

Received:2024-11-04 Revised:2025-01-14 Published:2025-01-24 Online:2025-01-24
Contact: TAN Wenyi, professor. E-mail: twy@njit.edu.cn
About author:QU Jifa (1990-), male, PhD. E-mail: qujifa@njit.edu.cn
Supported by:
National Natural Science Foundation of China(51678291);Basic Science (Natural Science) Research in Higher Education in Jiangsu Province(21KJB530012);Basic Science (Natural Science) Research in Higher Education in Jiangsu Province(23KJA610003)

摘要/Abstract

摘要：

固体氧化物燃料电池(SOFCs)是一种高效的能源转换装置, 但是传统镍基阳极面临严重的硫中毒问题。本研究采用固相法制备了层状钙钛矿氧化物NaYTiO₄, 并通过异价离子掺杂进行改性。Ni成功进入钙钛矿层后形成NaYTi_0.95Ni_0.05O₄, 掺杂的Ni不仅可以调控晶体的生长特性, 还可以在还原条件下原位析出。层状钙钛矿中二维分布的碱金属和极性结构带来了优异的化学吸水能力和良好的抗硫中毒能力, 材料的吸附氧比例可以借助Ni掺杂提升至64.5%, 表现出更加卓越的性能。所得材料作为SOFC阳极表现出良好的电催化活性, 以H₂为燃料的SOFC在800 ℃的最大功率密度为183.8 mW·cm^-2, H₂燃料中添加0.1% H₂S不仅没有出现明显的毒化现象, 最大功率密度还提升了25.2%, 并且SOFC能够在更易毒化的700 ℃稳定工作40 h, 说明掺杂改性层状钙钛矿氧化物可以显著提升阳极的抗硫中毒性能。

关键词: 层状钙钛矿氧化物, 掺杂, 固体氧化物燃料电池, 阳极, 抗硫中毒

Abstract:

Solid oxide fuel cells (SOFCs) are highly efficient energy conversion devices. However, the sulfur poison, which deteriorates traditional Ni-based anodes, restricts commercialization of the technology. Here, layered perovskite oxide NaYTiO₄ was prepared using solid-state method and modified by partial substitution with different valence ions. Properties of NaYTiO₄ before and after doping were systematically studied. Ni was doped into the perovskite layer and contributed to forming NaYTi_0.95Ni_0.05O₄, which regulated growth characteristics of the crystal and in-situ exsoluted in reduction conditions. Two-dimensional distribution of alkali metals and polar structures in the material provides advantages, including excellent chemical water absorption capacity and good sulfur-resistance. With an increased chemisorbed oxygen species of 64.5%, Ni-doped material becomes more outstanding. SOFC with NaYTi_0.95Ni_0.05O₄ as composite anode showed superior electrocatalytic activity. The peak power density reached 183.8 mW·cm^-2 at 800 ℃ with H₂ as fuel. Furthermore, the power density increased by 25.2% with an addition of 0.1% H₂S in H₂. The modified cell could work stably even at 700 ℃, a more toxic condition, for 40 h without significant poisoning effect. These results indicate that the modified layered perovskite oxides are excellent sulfur-resistance anodes.

Key words: layered perovskite oxide, doping, solid oxide fuel cell, anode, sulfur-resistance

中图分类号:

TB331
TM911

渠吉发, 王旭, 张维轩, 张康喆, 熊永恒, 谭文轶. 掺杂改性NaYTiO₄增强固体氧化物燃料电池阳极抗硫中毒性能[J]. 无机材料学报, 2025, 40(5): 489-496.

QU Jifa, WANG Xu, ZHANG Weixuan, ZHANG Kangzhe, XIONG Yongheng, TAN Wenyi. Enhanced Sulfur-resistance for Solid Oxide Fuel Cells Anode via Doping Modification of NaYTiO₄[J]. Journal of Inorganic Materials, 2025, 40(5): 489-496.

图/表 13

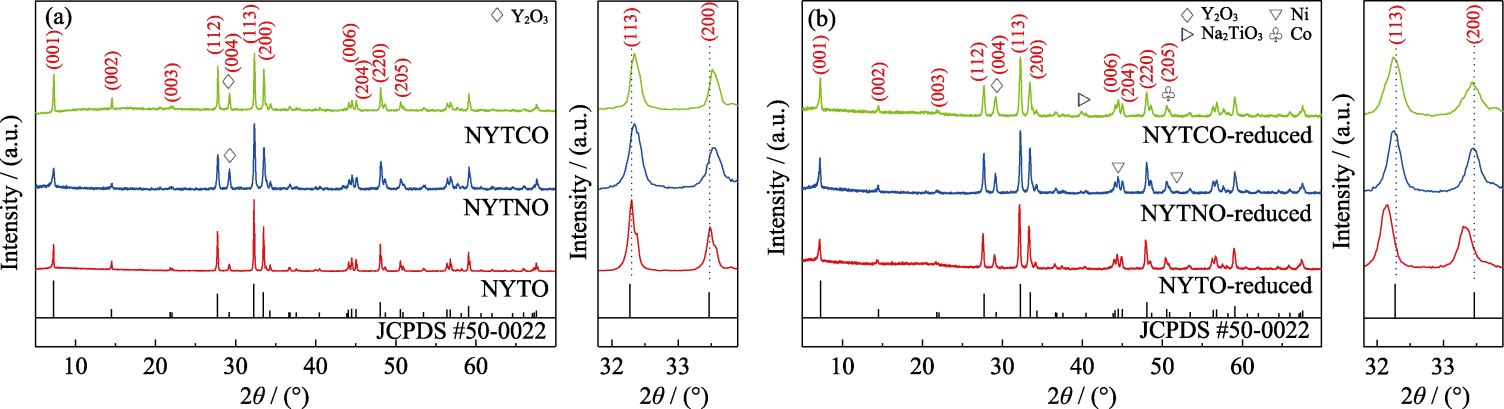

图1 NYTO、NYTNO和NYTCO (a)还原前和(b) 800 ℃ H2还原30 min后的XRD图谱

Fig. 1 XRD patterns of NYTO, NYTNO and NYTCO (a) before and (b) after reduction in H2 at 800 ℃ for 30 min

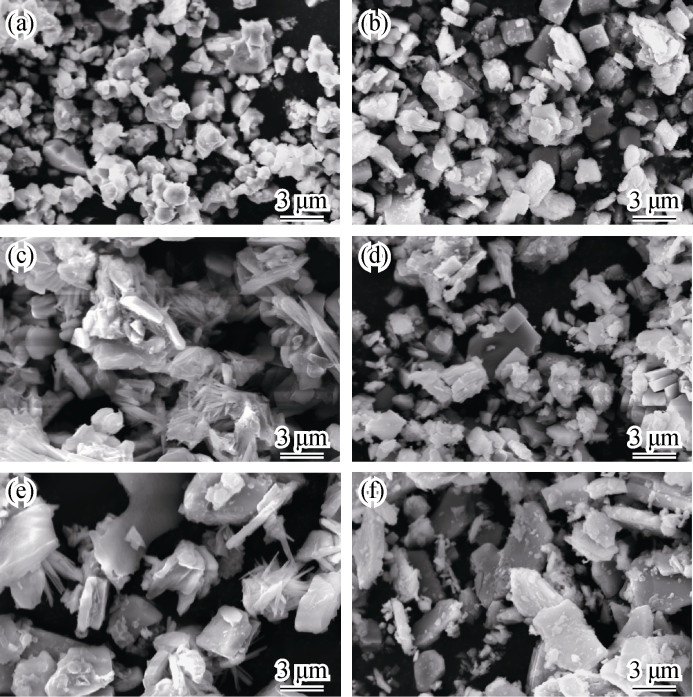

图2 (a, b) NYTO、(c, d) NYTNO和(e, f) NYTCO (a, c, e)还原前和(b, d, f)还原后的SEM照片

Fig. 2 SEM images of (a, b) NYTO, (c, d) NYTNO and (e, f) NYTCO (a, c, e) before and (b, d, f) after reduction

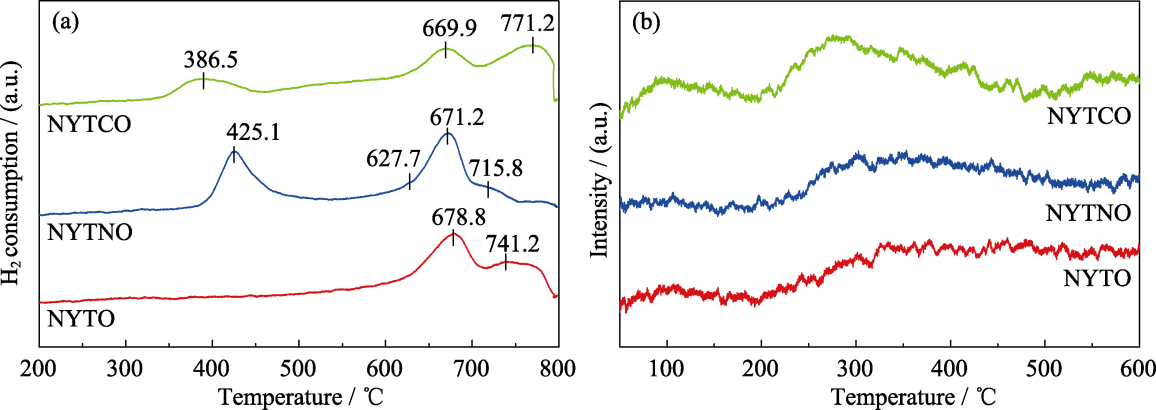

图3 NYTO、NYTNO和NYTCO的(a) H2-TPR和(b) H2O-TPD曲线

Fig. 3 (a) H2-TPR and (b) H2O-TPD curves of NYTO, NYTNO and NYTCO

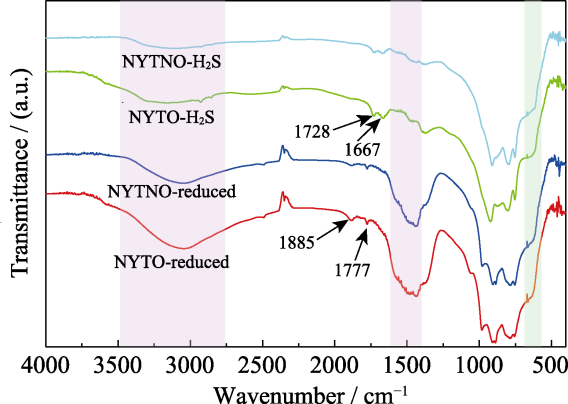

图4 NYTO和NYTNO还原和H2S处理后的FT-IR谱图

Fig. 4 FT-IR spectra of NYTO and NYTNO after reduction and H2S treatment

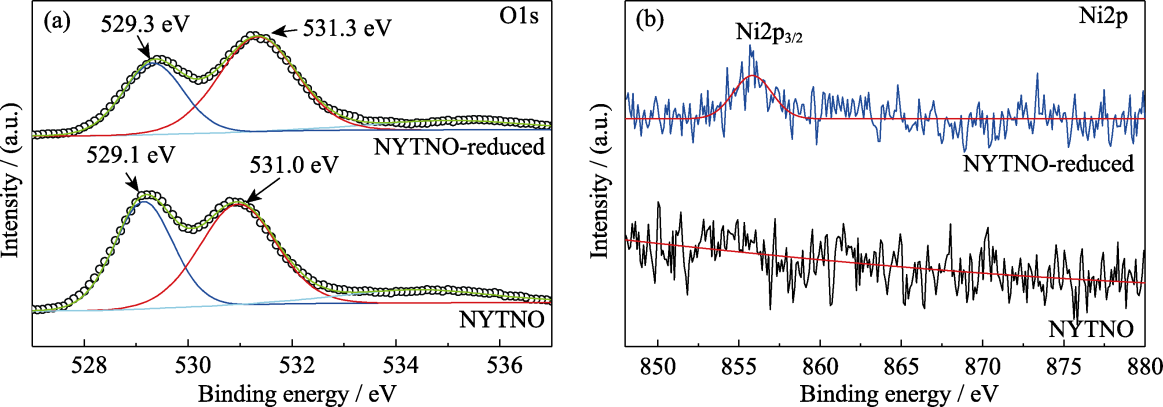

图5 NYTNO还原前后的XPS谱图

Fig. 5 XPS spectra of NYTNO before and after reduction (a) O1s; (b) Ni2p

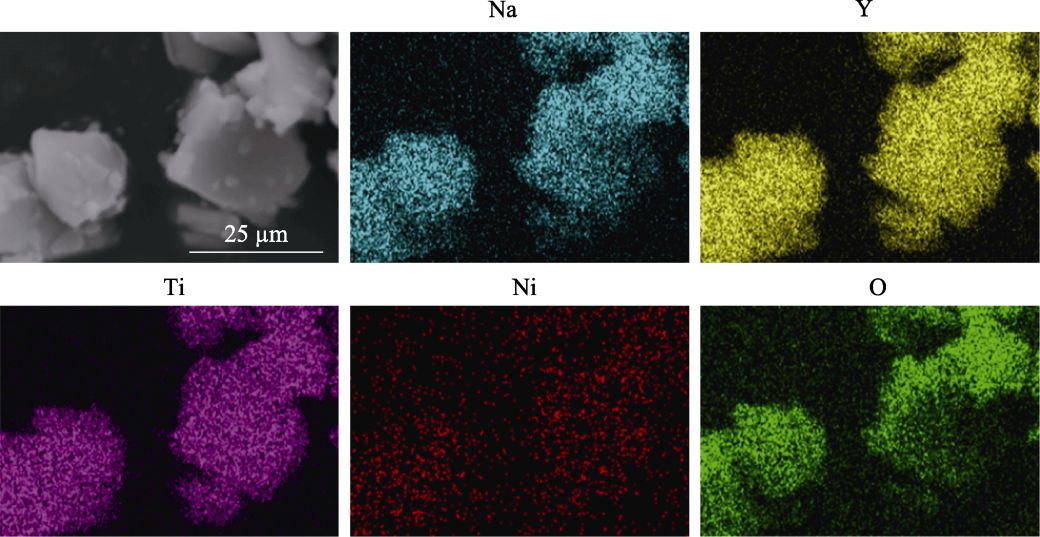

图6 NYTNO还原后的EDS元素分布图

Fig. 6 EDS elemental mappings of NYTNO after reduction

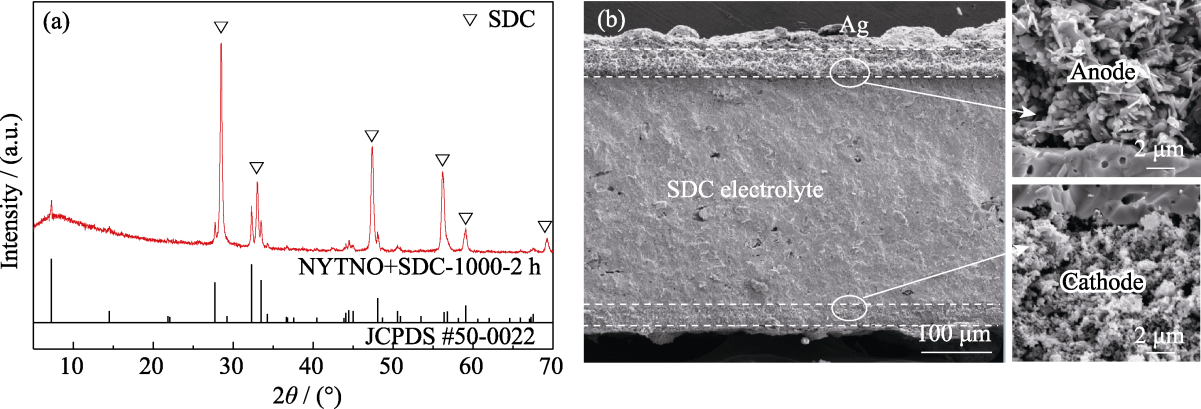

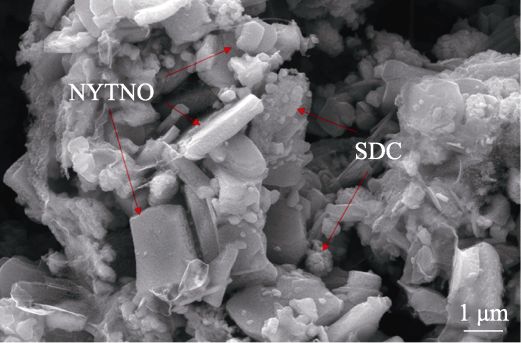

图7 (a) NYTNO和SDC混合物经1000 ℃焙烧2 h后的XRD图谱; (b)全电池截面的SEM照片

Fig. 7 (a) XRD pattern of NYTNO and SDC mixture sintered at 1000 ℃ for 2 h; (b) Cross-sectional SEM images of fuel cell

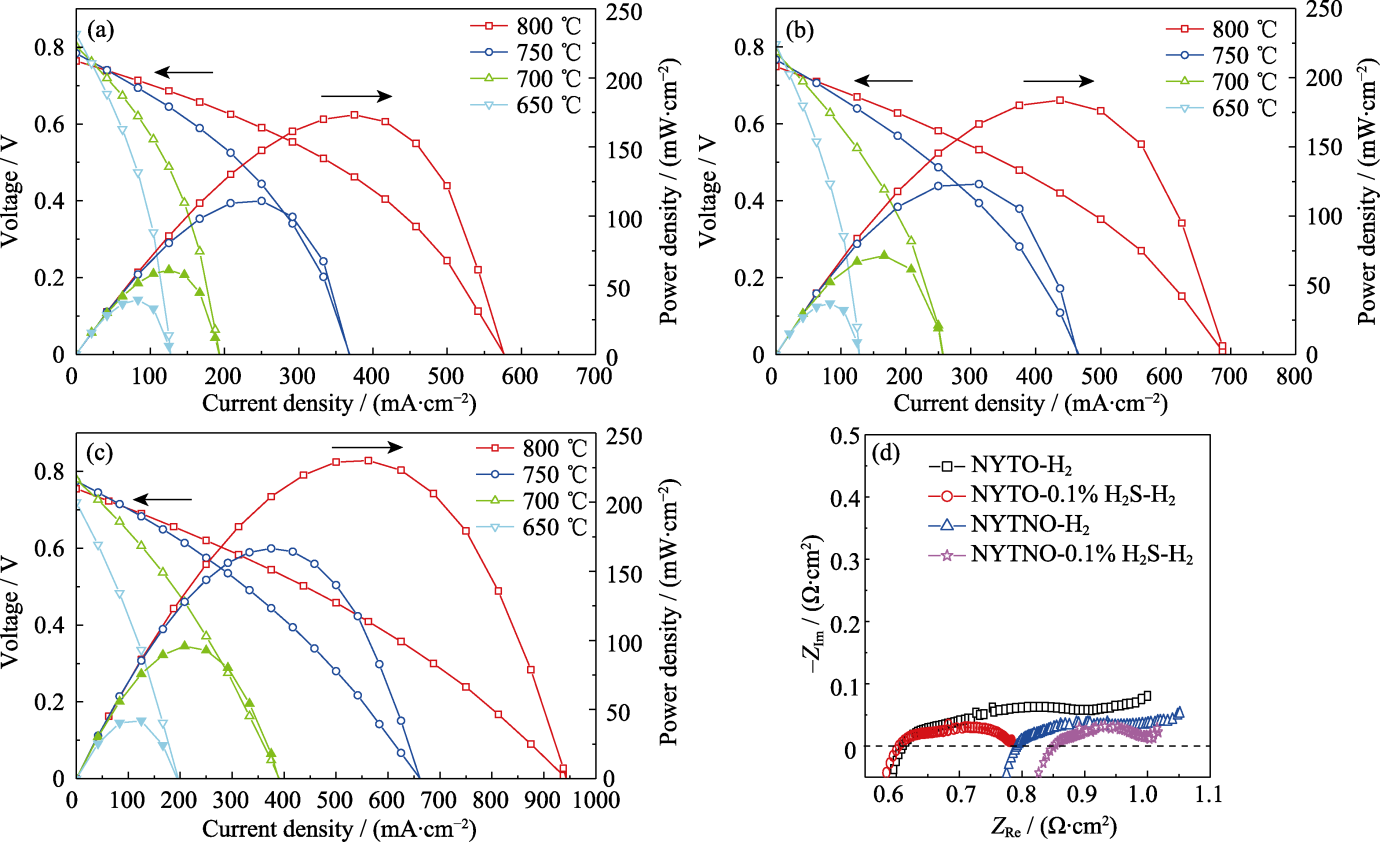

图8 (a~c)电池的I-V-P曲线; (d)两种电池在800 ℃分别以H2和0.1% H2S-H2为燃料的EIS图谱

Fig. 8 (a-c) I-V-P curves of the cells; (d) EIS spectra of the cells with H2 and 0.1% H2S-H2 as fuel at 800 ℃ (a) NYTO anode and H2 fuel; (b) NYTNO anode and H2 fuel; (c) NYTNO anode and 0.1% H2S-H2 fuel

图9 (a) NYTO和NYTNO复合阳极SOFCs在0.1% H2S-H2中的稳定性测试; (b) NYTNO稳定性测试前后的EIS图谱

Fig. 9 (a) Durability test of SOFCs with NYTO and NYTNO as anodes in 0.1% H2S-H2; (b) EIS spectra of NYTNO before and after stability test

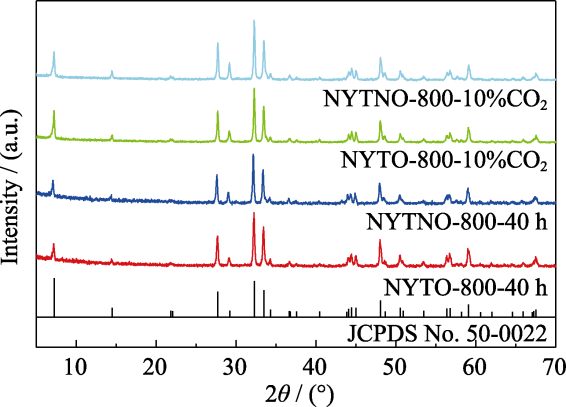

图S1 NYTO和NYTNO在800 ℃静态空气焙烧40 h和10% CO2中处理30 min后的XRD图谱

Fig. 11 S1 XRD patterns of NYTO and NYTNO after calcination at 800 ℃ with static air for 40 h and 10% CO2 for 30 min

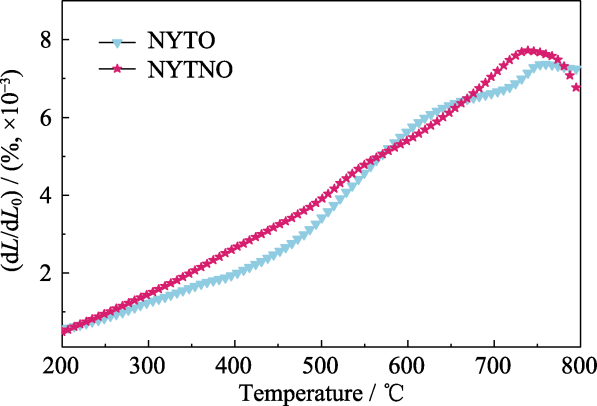

图S2 NYTO和NYTNO的热膨胀曲线

Fig. 12 S1 Thermal-expansion curves of NYTO and NYTNO

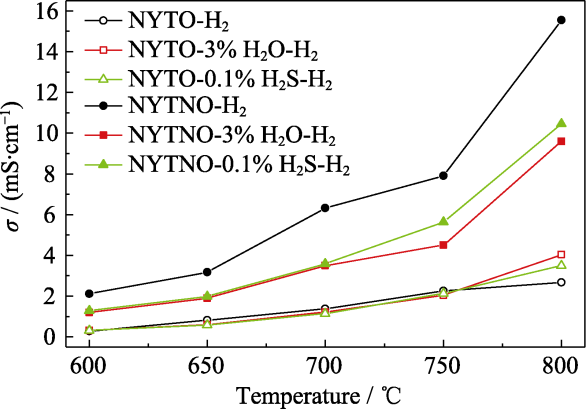

图S3 NYTO和NYTNO在H2、3% H2O-H2和0.1% H2S-H2中的电导率

Fig. 13 S3 Conductivities of NYTO and NYTNO in H2, 3% H2O-H2 and 0.1% H2S-H2

图S4 NYTNO/SDC复合阳极稳定性测试后的SEM照片

Fig. 14 S4 SEM image of NYTNO/SDC anode after stability test
