燃料还原法原位制备高稳定性/催化活性SOFC钴基钙钛矿阳极

doi:10.15541/jim20240025

摘要/Abstract

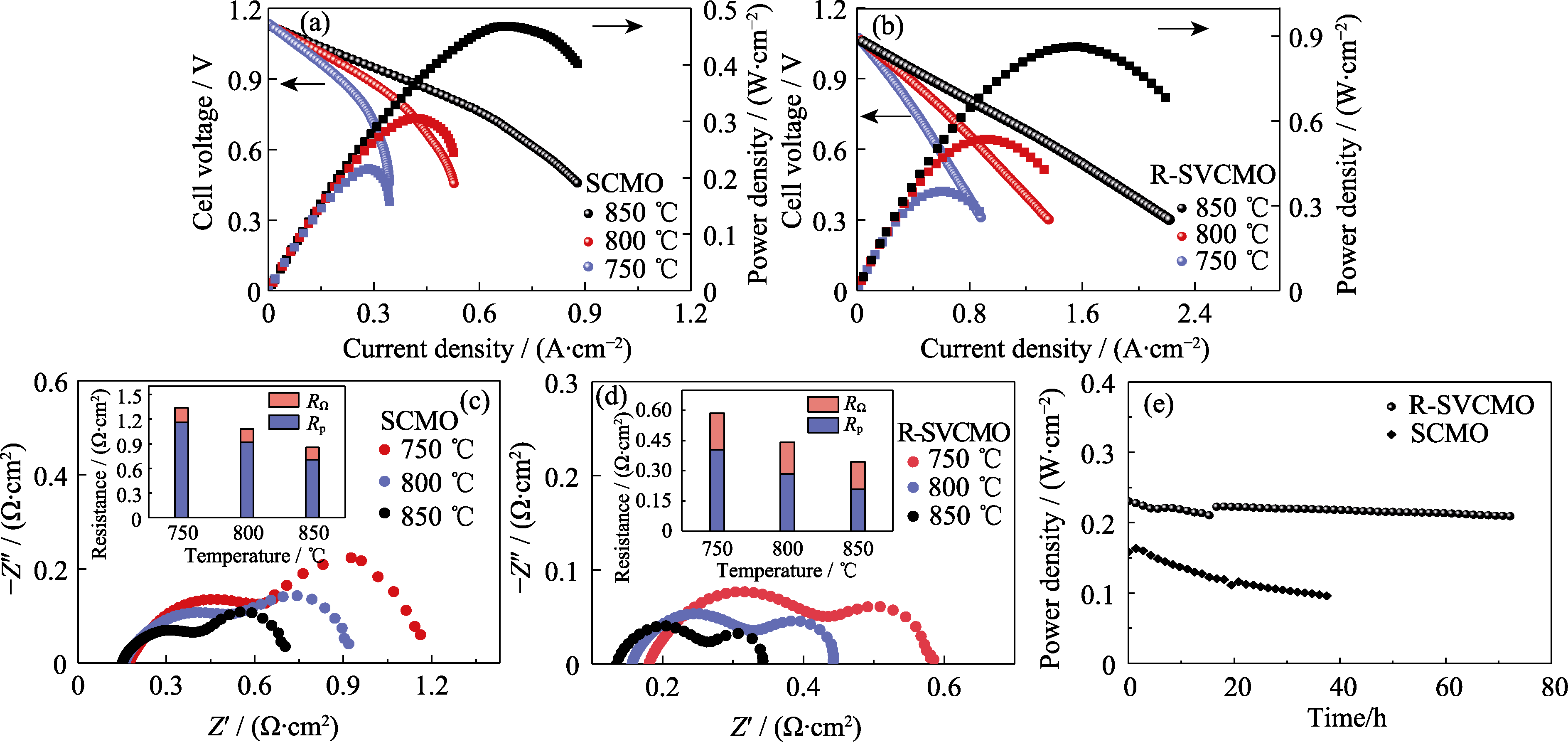

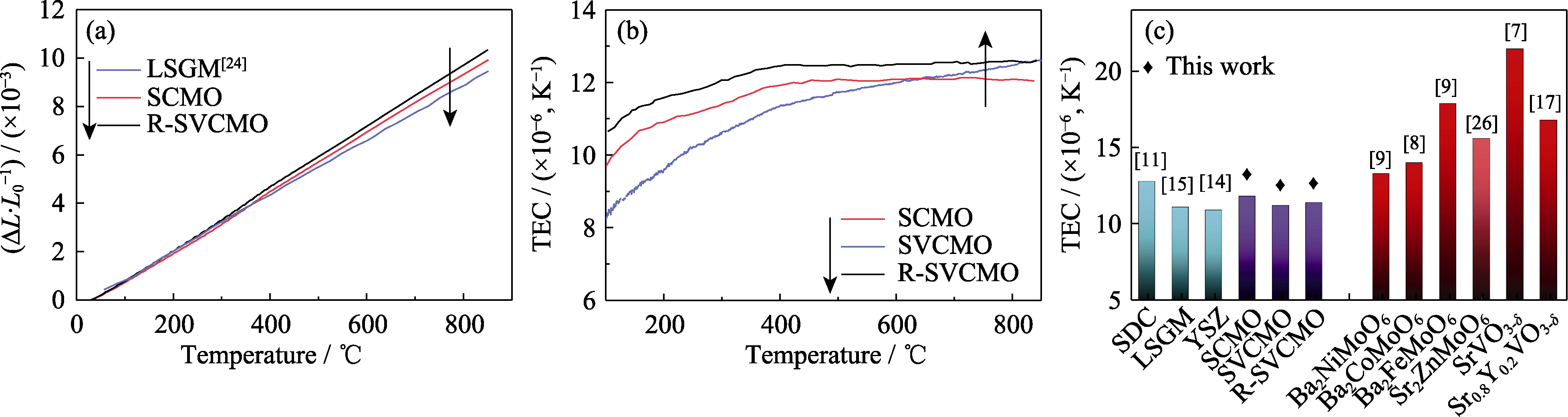

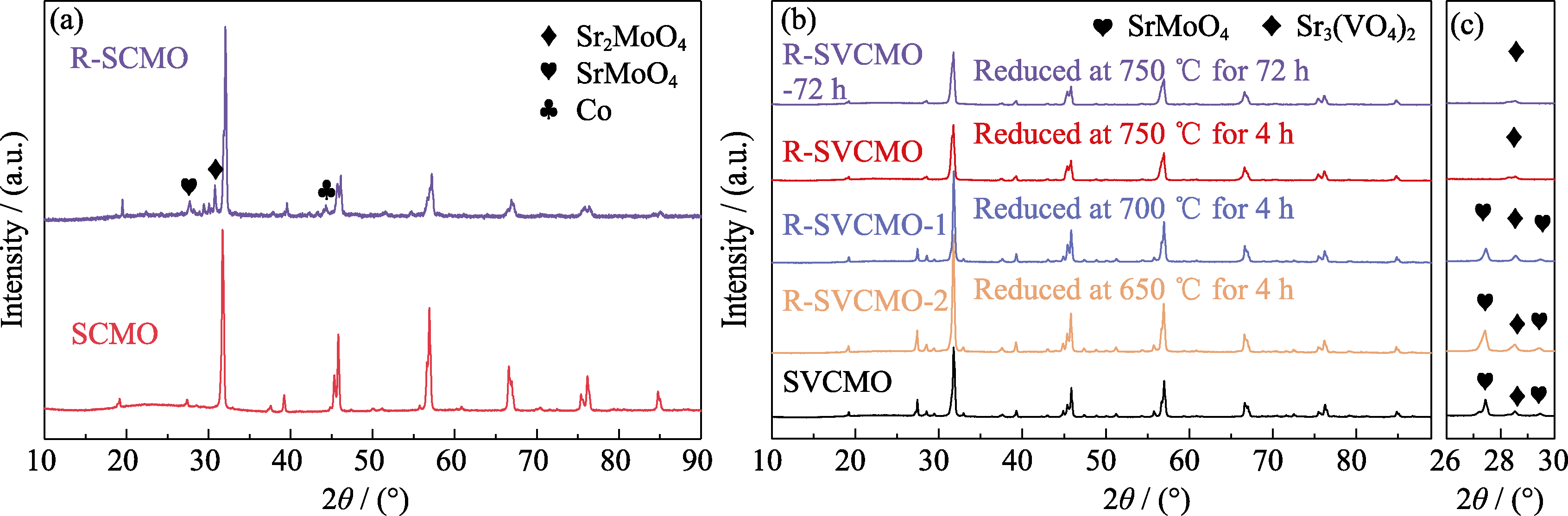

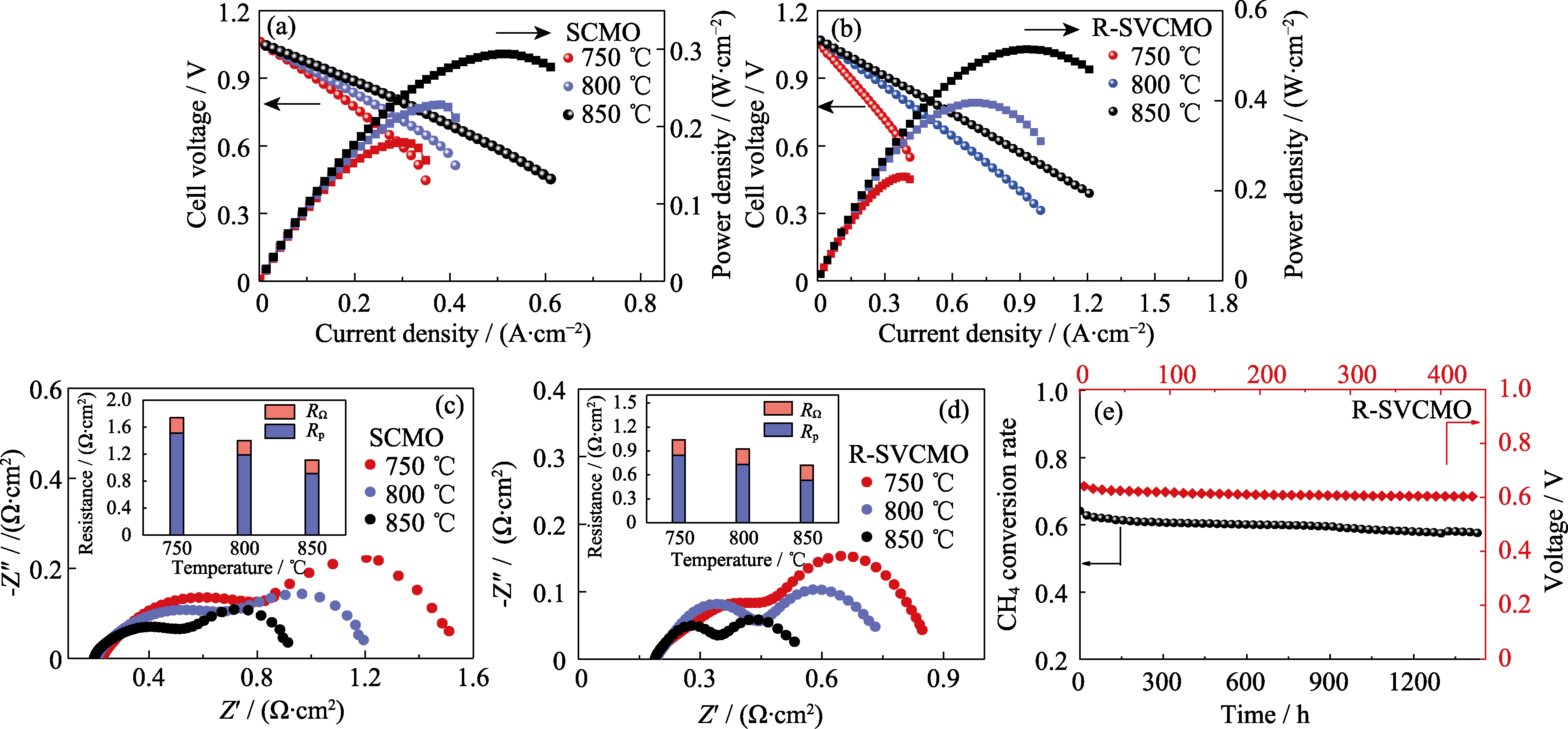

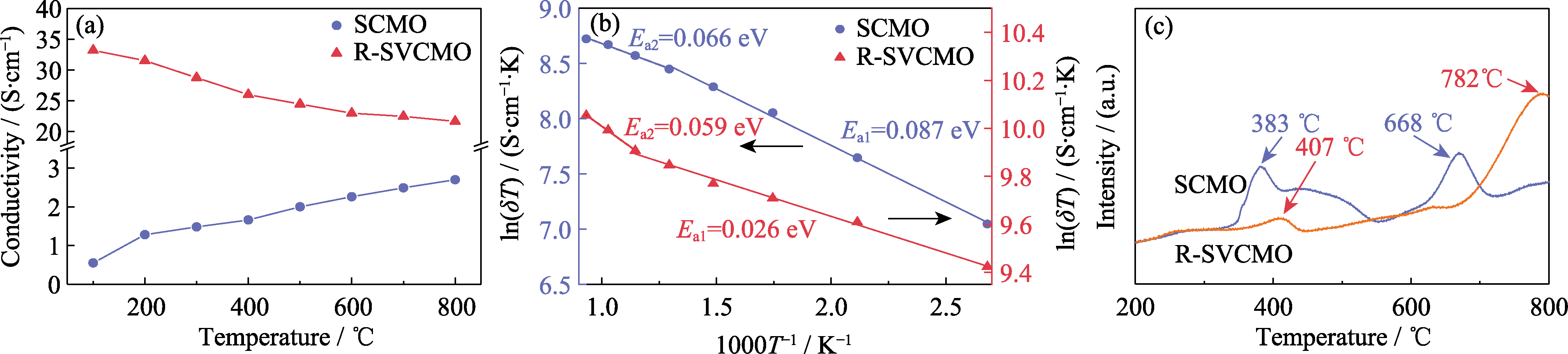

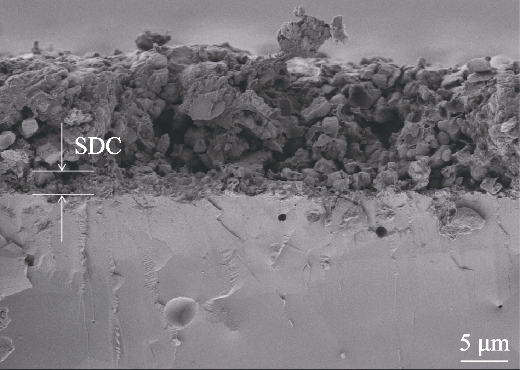

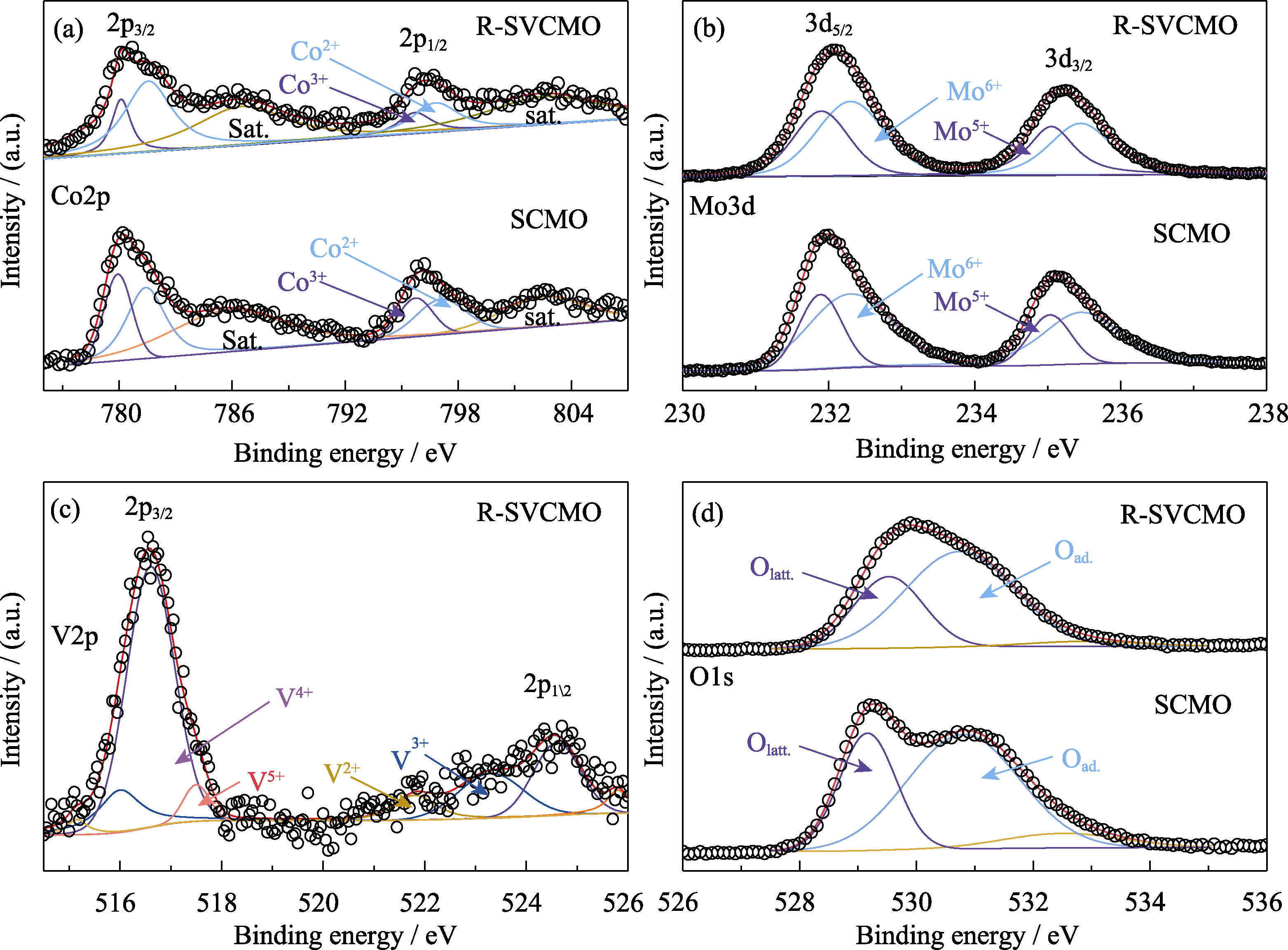

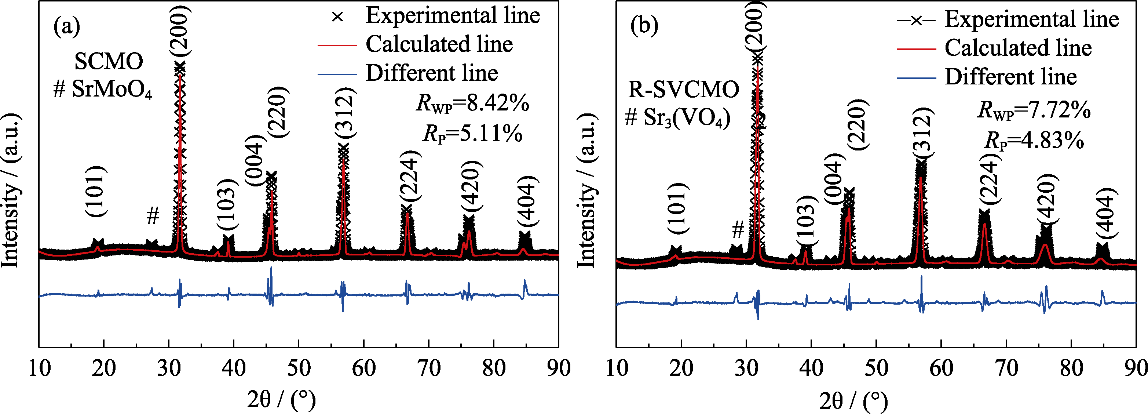

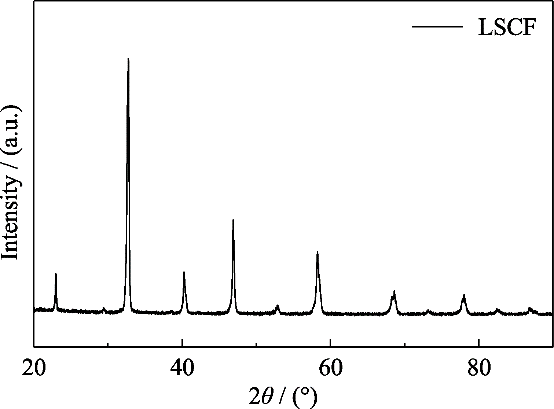

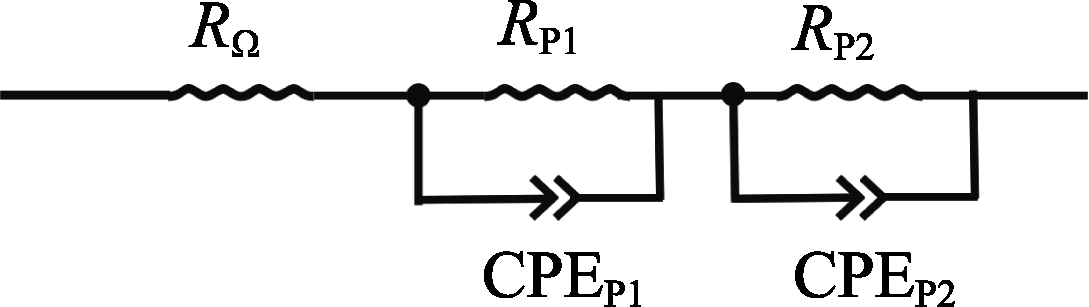

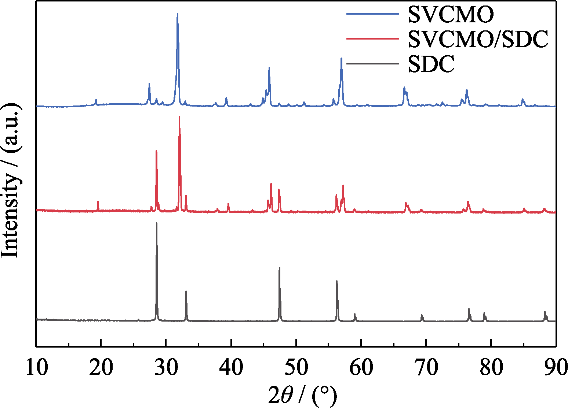

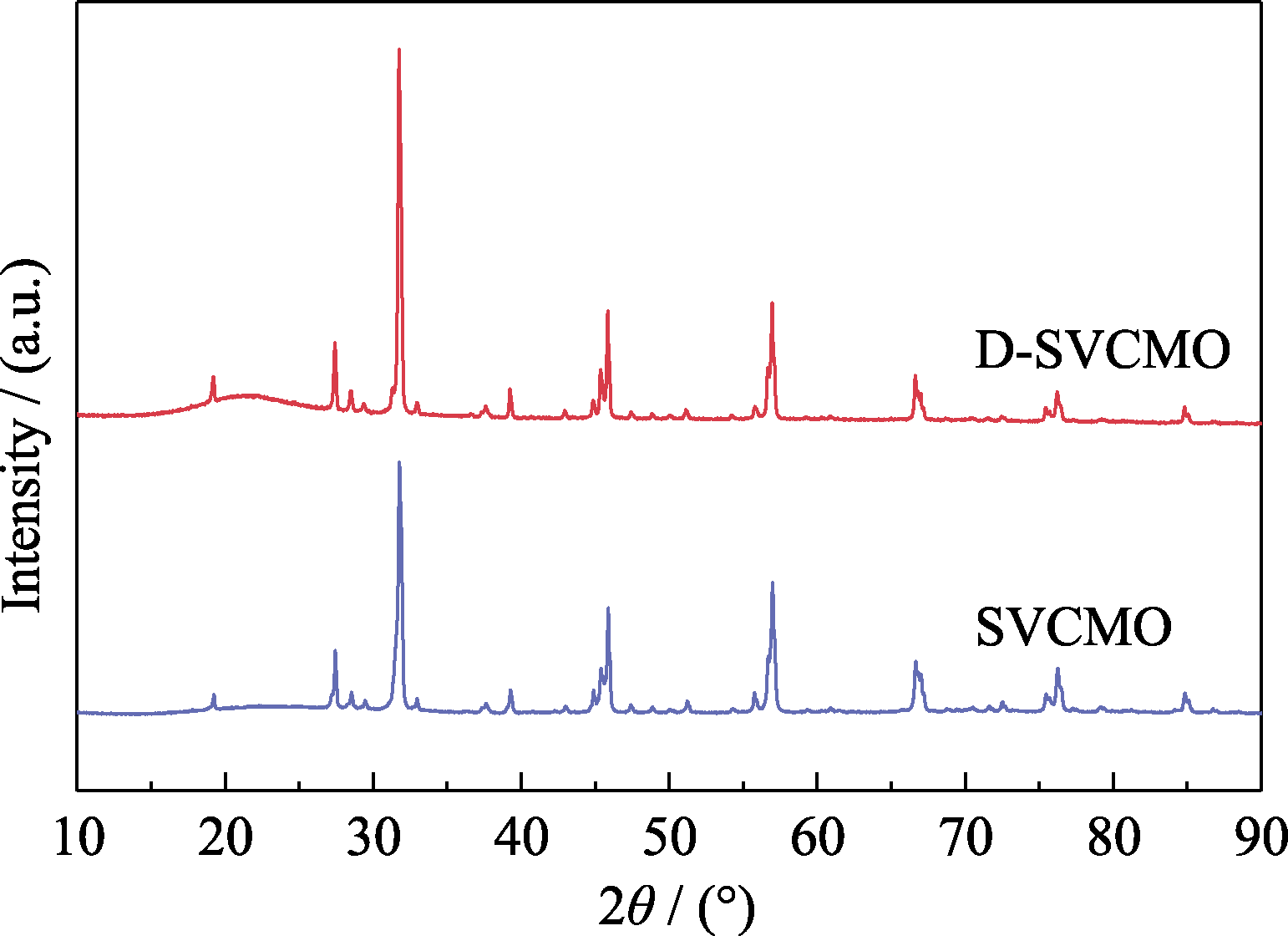

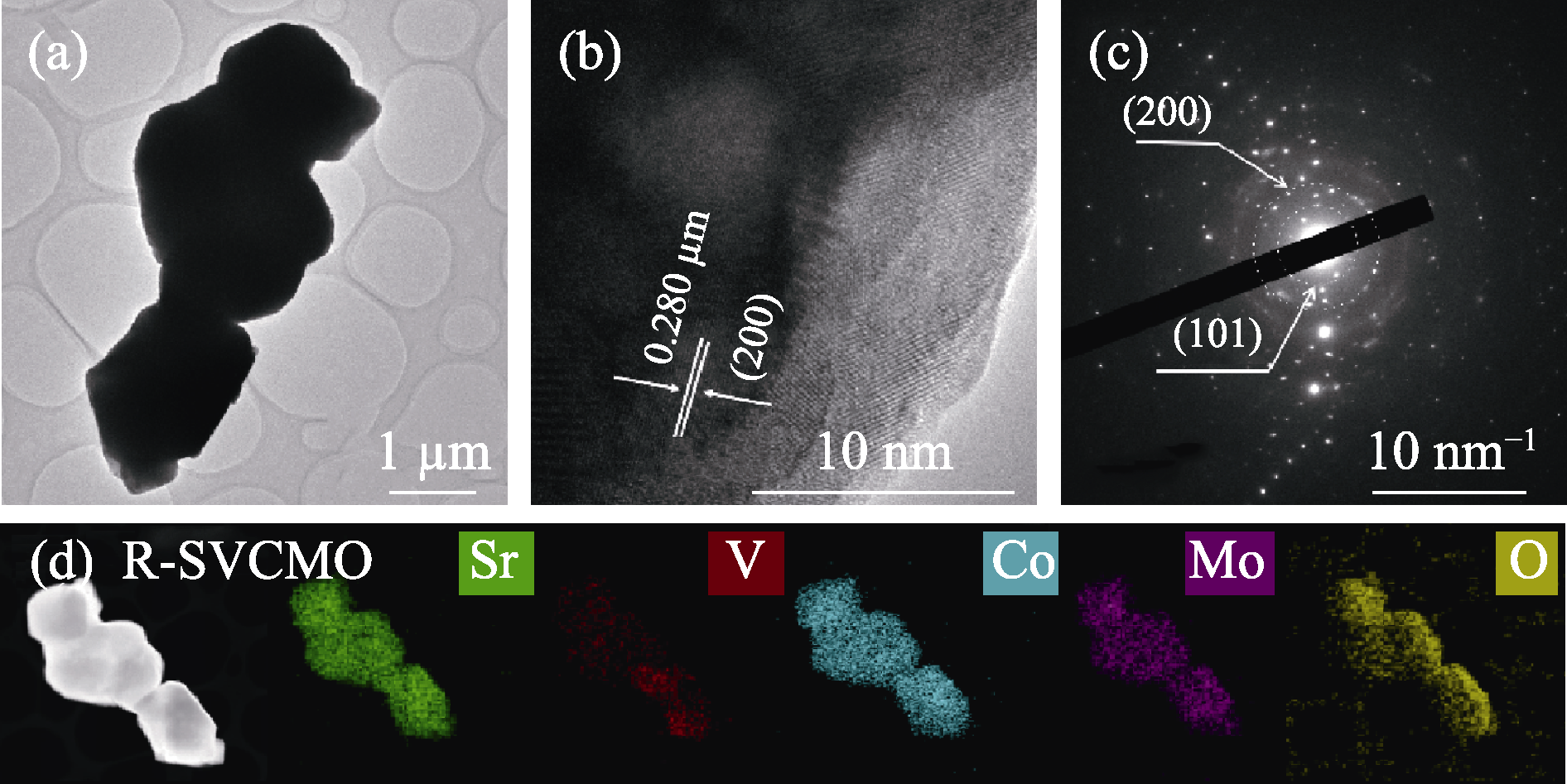

摘要： 受固体氧化物燃料电池(SOFCs)原位还原脱溶纳米金属阳极技术的启发,本工作提出煅烧后的Sr₂V_0.1Co_0.9MoO₆前驱体(包含其他相的钙钛矿)在空气气氛下与电解质共烧制备出单电池,避免了为防止阳极氧化而需在还原/惰性气氛下制备电池的苛刻条件。制备电解质片上的阳极前驱体仅需在燃料侧原位还原4 h,便可形成纯相Sr₂V_0.1Co_0.9MoO₆ (R-SVCMO)阳极。结果表明,R-SVCMO在活化能显著降低的同时电导率由2.7提高至21.6 S•cm^-1。当R-SVCMO为阳极的单电池分别以H₂和湿CH₄为燃料气时,在850 ℃ 的最大功率密度(P_max)分别达到862和514 mW•cm^-2,显示出优秀的催化性能。还原前后阳极在100~850 ℃的平均热膨胀系数(TEC)分别为1.15×10^-5和1.23×10^-5 K^-1,均与传统SOFC电解质相近。因此,还原过程不会导致阳极层产生体积变化,可以显著提高电池结构稳定性(退化率仅为0.13%)。加之R-SVCMO是在燃料气氛下合成的,作为阳极表现出极高的长期稳定性和催化活性。R-SVCMO对湿CH₄的催化效率达到60%,并稳定运行1450 h,相应的单电池可在0.7 V稳定运行450 h。综上所述,本研究采用原位燃料还原法制备了具有优异电化学性能和结构稳定性的单体电池。

关键词: 固体氧化物燃料电池, 燃料还原制备技术, 高稳定性阳极, 甲烷燃料

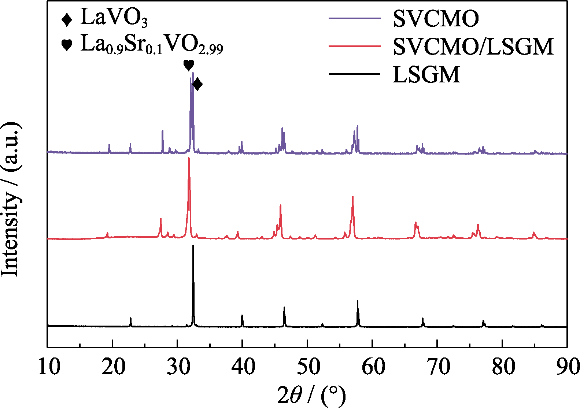

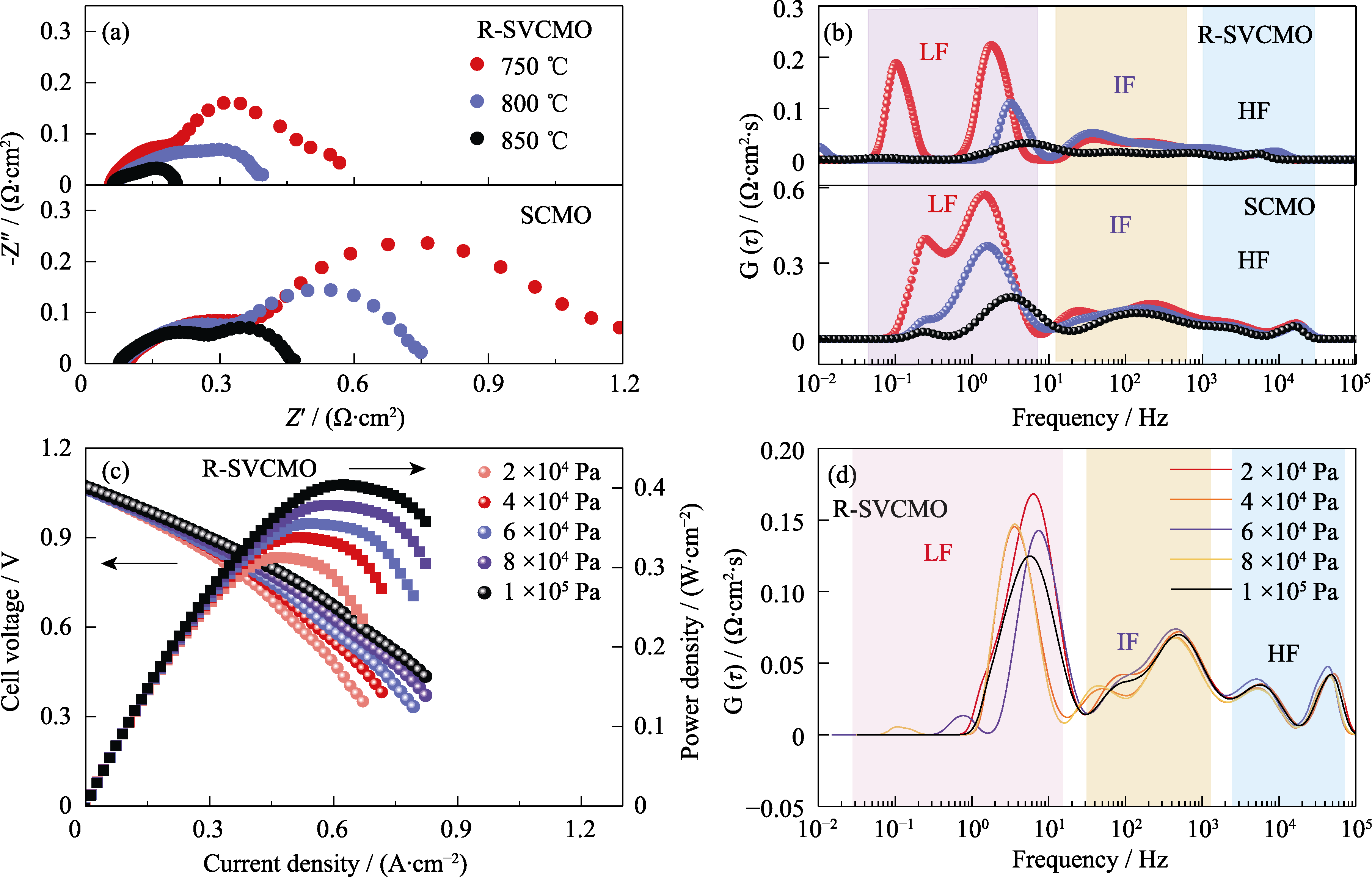

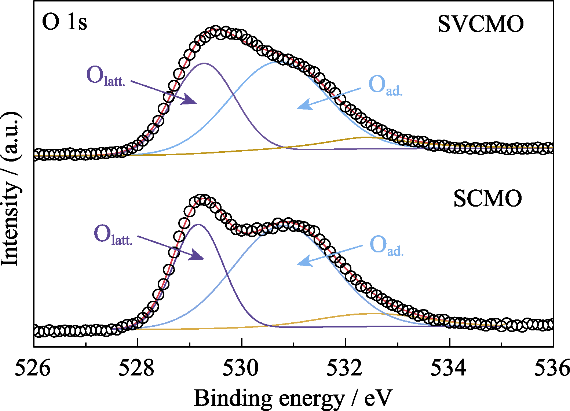

Abstract: Taking inspiration from the in-situ reduction technique employed for exsolved nano-metal as anodes in solid oxide fuel cells (SOFCs), this study utilized Sr₂V_0.1Co_0.9MoO₆, which was synthesized in an ambient air environment and contains perovskites of other phases, to co-fire with the electrolyte under atmospheric conditions for direct fabrication of a single cell. By adopting this approach, the need for subjecting the cell to harsh preparative conditions in a reducing/inert atmosphere to prevent anodic oxidation can be circumvented. Following the preparation of the anode precursor on the electrolyte sheet, a simple process of in-situ reduction at 750 ℃ for 4 h on the fuel side is required to achieve formation of a pure phase Sr₂V_0.1Co_0.9MoO₆ (R-SVCMO) anode. The results demonstrates a significant reduction in the activation energy of R-SVCMO, accompanied by an increase in conductivity from 2.7 S•cm^-1 to 21.6 S•cm^-1. Moreover, when employing R-SVCMO as the anode in a single cell with H₂ and wet CH₄ as fuel gases, the maximum power density (P_max) can reach up to 862 mW·cm^-2 and 514 mW·cm^-2 at 850 ℃, showcasing exceptional catalytic performance. Moreover, the anodes before and after reduction exhibit average thermal expansion coefficient (TEC) of 1.15×10^-5 and 1.2×10^-5 K^-1 within the temperature range of 100-850 ℃, comparable to those observed in conventional SOFC electrolytes. Therefore, the reduction process does not induce any volumetric changes in the anode layer, significantly enhancing the structural stability of the cell. Additionally, a minimal degradation rate of only 0.13% is achieved. Moreover, the synthesis of R-SVCMO under a fuel atmosphere results in remarkable long-term stability and catalytic activity as an anode material. Notably, R-SVCMO exhibited a 60% catalytic efficiency for wet CH₄, demonstrating stable operation for 1450 h, while the corresponding single cell also maintained stability for 450 h at 0.7 V. In summary, this study employed an in-situ fuel reduction method to prepare a single cell with exceptional electrochemical performance and structural stability.

Key words: solid oxide fuel cell, fuel reducing method, high stable anode, methane fuel

中图分类号:

TM911

潘建隆, 马官军, 宋乐美, 郇宇, 魏涛. 燃料还原法原位制备高稳定性/催化活性SOFC钴基钙钛矿阳极[J]. 无机材料学报, DOI: 10.15541/jim20240025.

PAN Jianlong, MA Guanjun, SONG Lemei, HUAN Yu, WEI Tao. Fuel Reducing Method for in-situ Preparation of High Stability/Catalytic Activity Co-based Perovskite as SOFC Anode[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20240025.

参考文献

[1] DWIVEDI S.Solid oxide fuel cell: materials for anode, cathode and electrolyte.International Journal of Hydrogen Energy, 2020, 45(44): 23988.
[2] PAN K, HUSSAIN A M, HUANG Y L, et al. High performance SrFe_0.2Co_0.4Mo_0.4O₃-_δ ceramic anode supported low-temperature SOFCs. Journal of The Electrochemical Society, 2021, 168(11): 114503.
[3] BILAL HANIF M, MOTOLA M, QAYYUM S, et al. Recent advancements, doping strategies and the future perspective of perovskite-based solid oxide fuel cells for energy conversion. Chemical Engineering Journal, 2022, 428: 132603.
[4] ZHOU S M, MIAO X B, ZHAO X, et al. Engineering electrocatalytic activity in nanosized perovskite cobaltite through surface spin-state transition. Nature Communications, 2016, 7(1):11510.
[5] NIU B, JIN F, FU R, et al. Pd-impregnated Sr_1.9VMoO₆-_δ double perovskite as an efficient and stable anode for solid-oxide fuel cells operating on sulfur-containing syngas. Electrochimica Acta, 2018, 274: 91.
[6] ZHENG K, ŚWIERCZEK K.Physicochemical properties of rock salt-type ordered Sr₂MMoO₆ (M=Mg, Mn, Fe, Co, Ni) double perovskites.Journal of the European Ceramic Society, 2014, 34(16): 4273.
[7] ZHANG Q, WEI T, HUANG Y H.Electrochemical performance of double-perovskite Ba₂MMoO₆ (M=Fe, Co, Mn, Ni) anode materials for solid oxide fuel cells.Journal of Power Sources, 2012, 198: 59.
[8] SUBOTIĆ V, BALDINELLI A, BARELLI L, et al. Applicability of the SOFC technology for coupling with biomass-gasifier systems: short- and long-term experimental study on SOFC performance and degradation behaviour. Applied Energy, 2019, 256: 113904
[9] SHIRATORI Y.YSZ-MgO composite electrolyte with adjusted thermal expansion coefficient to other SOFC components.Solid State Ionics, 2003, 164(1/2): 27.
[10] SUN K, ZHANG J, JIANG T, et al. Flash-sintering and characterization of La_0.8Sr_0.2Ga_0.8Mg_0.2O₃-_δ electrolytes for solid oxide fuel cells. Electrochimica Acta, 2016, 196: 487.
[11] ZHANG J, PAYDAR S, AKBAR N, et al. Electrical properties of Ni-doped Sm₂O₃ electrolyte. International Journal of Hydrogen Energy, 2021, 46(15): 9758.
[12] HOU N, YAO T, LI P, et al. A-site ordered double perovskite with in situ exsolved core-shell nanoparticles as anode for solid oxide fuel cells. ACS Applied Materials & Interfaces, 2019, 11(7): 6995.
[13] XU K, ZHANG H, DENG W, et al. Self-hydrating of a ceria-based catalyst enables efficient operation of solid oxide fuel cells on liquid fuels. Science Bulletin, 2023, 68(21): 2574.
[14] SONG L, CHEN D, PAN J, et al. B-site super-excess design Sr₂V_0.4Fe_0.9Mo_0.7O₆-_δ-Ni_0.4 as a highly active and redox-stable solid oxide fuel cell anode. ACS Applied Materials & Interfaces, 2023, 15(41): 48296.
[15] YAREMCHENKO A A, BRINKMANN B, JANSSEN R, et al. Electrical conductivity, thermal expansion and stability of Y- and Al-substituted SrVO₃ as prospective SOFC anode material. Solid State Ionics, 2013, 247: 86.
[16] WANG F Y, ZHONG G B, LUO S, et al. Porous Sr₂MgMo₁-_xV_xO₆-_δ ceramics as anode materials for SOFCs using biogas fuel. Catalysis Communications, 2015, 67: 108.
[17] DOS SANTOS-GÓMEZ L, LEÓN-REINA L, PORRAS-VÁZQUEZ J M, et al. Chemical stability and compatibility of double perovskite anode materials for SOFCs. Solid State Ionics, 2013, 239: 1.
[18] MA G J, CHEN D Z, JI S J, et al. Medium-entropy SrV_1/3Fe_1/3Mo_1/3O₃ with high conductivity and strong stability as SOFCs high-performance anode. Materials, 2022, 15(6): 2298.
[19] DEWA M, YU W, DALE N, et al. Recent progress in integration of reforming catalyst on metal-supported SOFC for hydrocarbon and logistic fuels. International Journal of Hydrogen Energy, 2021, 46(67): 33523.
[20] FARES A, BARAMA A, BARAMA S, et al. Synthesis and characterization of Ba_0.5Sr_0.5Ni_xCo_0.8-_xFe0.2O₃-_δ (x=0 and 0.2) perovskites as electro‐catalysts for methanol oxidation in alkaline media. Electroanalysis, 2017, 29(10): 2323.
[21] XIA W W, LI Q, SUN L P, et al. Electrochemical performance of Sn-doped Bi_0.5Sr_0.5FeO₃-_δ perovskite as cathode electrocatalyst for solid oxide fuel cells. Journal of Alloys and Compounds, 2020, 835: 155406.
[22] LI K, LI X, LI J, et al. Structural stability of Ni-Fe supported solid oxide fuel cells based on stress analysis. Journal of Inorganic Materials, 2019, 34(6): 611.
[23] MORI M,SAMMES N M J S S I. Sintering and thermal expansion characterization of Al-doped and Co-doped lanthanum strontium chromites synthesized by the Pechini method. 2002, 146(3/4): 301.
[24] LI Y, YIN B, FAN Y, et al. Achieving high mechanical-strength CH₄-based SOFCs by low-temperature sintering (1100 ℃). International Journal of Hydrogen Energy, 2020, 45(4): 3086.
[25] FLORES-LASLUISA J X, HUERTA F, CAZORLA-AMORÓS D, et al. Structural and morphological alterations induced by cobalt substitution in LaMnO perovskites. Journal of Colloid and Interface Science, 2019, 556: 658.
[26] QIN M X, XIAO Y, YANG H Y, et al. Ru/Nb co-doped perovskite anode: achieving good coking resistance in hydrocarbon fuels via core-shell nanocatalysts exsolution. Applied Catalysis B-Environmental, 2021, 299: 120613.
[27] LING Y H, LI X W, CHUANG T C, et al. Double perovskite Sr₂CoFeO₅+_δ: preparation and its performance as cathode material for intermediate-temperature solid oxide fuel cells. Journal of Inorganic Materials, 2023, 39(3): 337.
[28] XU C M, SUN W, REN R Z, et al. A highly active and carbon-tolerant anode decorated with grown cobalt nano-catalyst for intermediate-temperature solid oxide fuel cells. Applied Catalysis B-Environmental, 2021, 282: 119553.
[29] ZHAO H L, XU N S, CHENG Y F, et al. Investigation of mixed conductor BaCo_0.7Fe_0.3-_xY_xO₃-_δ with high oxygen permeability. J. Phys. Chem. C, 2010, 114: 17975.
[30] HUAN Y, LI Y, YIN B, et al. High conductive and long-term phase stable anode materials for SOFCs: A₂FeMoO₆(A = Ca, Sr, Ba). Journal of Power Sources, 2017, 359: 384.
[31] SEREDA V V, TSVETKOV D S, SEDNEV A L, et al. Thermodynamics of Sr₂NiMoO₆ and Sr₂CoMoO₆ and their stability under reducing conditions. Physical Chemistry Chemical Physics, 2018, 20(30): 20108.
[32] ALVAREZ M, LÓPEZ T, ODRIOZOLA J A, et al. 2, 4-Dichlorophenoxyacetic acid (2,4-D) photodegradation using an Mn+/ZrO₂ photocatalyst: XPS, UV-Vis, XRD characterization. Applied Catalysis B: Environmental, 2007, 73(1/2): 34.
[33] LUO L H, HU J X, CHENG L, XU X, et al. Performance of the composite cathode Ba_0.5Sr_0.5Co_0.8Fe_0.2O₃_-δ-Ce_0.9Gd_0.1O₂_-δ for medium-low temperature solid oxide fuel cell. Journal of Inorganic Materials, 2018, 33(4): 441.
[34] XIA J, WANG C, WANG X F, et al. A perspective on DRT applications for the analysis of solid oxide cell electrodes. Electrochimica Acta, 2020, 349: 136328.
[35] SHI N, SU F, HUAN D, et al. Performance and DRT analysis of P-SOFCs fabricated using new phase inversion combined tape casting technology. Journal of Materials Chemistry A, 2017, 5(37): 19664.
