摘要:
钙钛矿发光二极管(PeLEDs)具有优异的光电特性, 在显示应用中表现出巨大的发展潜力。红、绿和蓝单色PeLEDs的研究已经取得了突破性的进展, 但是三色钙钛矿共同电致发光的研究始终迟滞不前。本研究在不同钙钛矿之间引入具有空穴/电子产生和传输能力的中间连接层(ICL), 实现了蓝绿双色和红绿蓝三色发光中心共同电致发光。一方面, ICL可以抑制不同钙钛矿之间的离子交换和能量转移; 另一方面, ICL具有电荷产生和输运功能, 能够确保不同发光中心获得足够的载流子实现独立发光。进一步改变空穴传输层(NPB)的厚度可以调控蓝绿双色发光中心之间的能量均衡分布, 当NPB厚度为40 nm时,器件表现出最大外量子效率(External Quantum Efficiency, EQE)为0.33%。红绿蓝钙钛矿共同电致发光器件的最大EQE达到0.5%。本工作首次报道了红绿蓝三色钙钛矿共同电致发光, 并为钙钛矿多色发光中心共同电致发光提供了具有参考性的策略, 推动了钙钛矿在显示应用中的发展进程。
中图分类号:
王润, 相恒阳, 曾海波. 钙钛矿多色级联发光二极管中多中心载流子均衡分布调控研究[J]. 无机材料学报, 2023, 38(9): 1062-1068.
WANG Run, XIANG Hengyang, ZENG Haibo. Carrier Balanced Distribution Regulation of Multi-emissive Centers in Tandem PeLEDs[J]. Journal of Inorganic Materials, 2023, 38(9): 1062-1068.

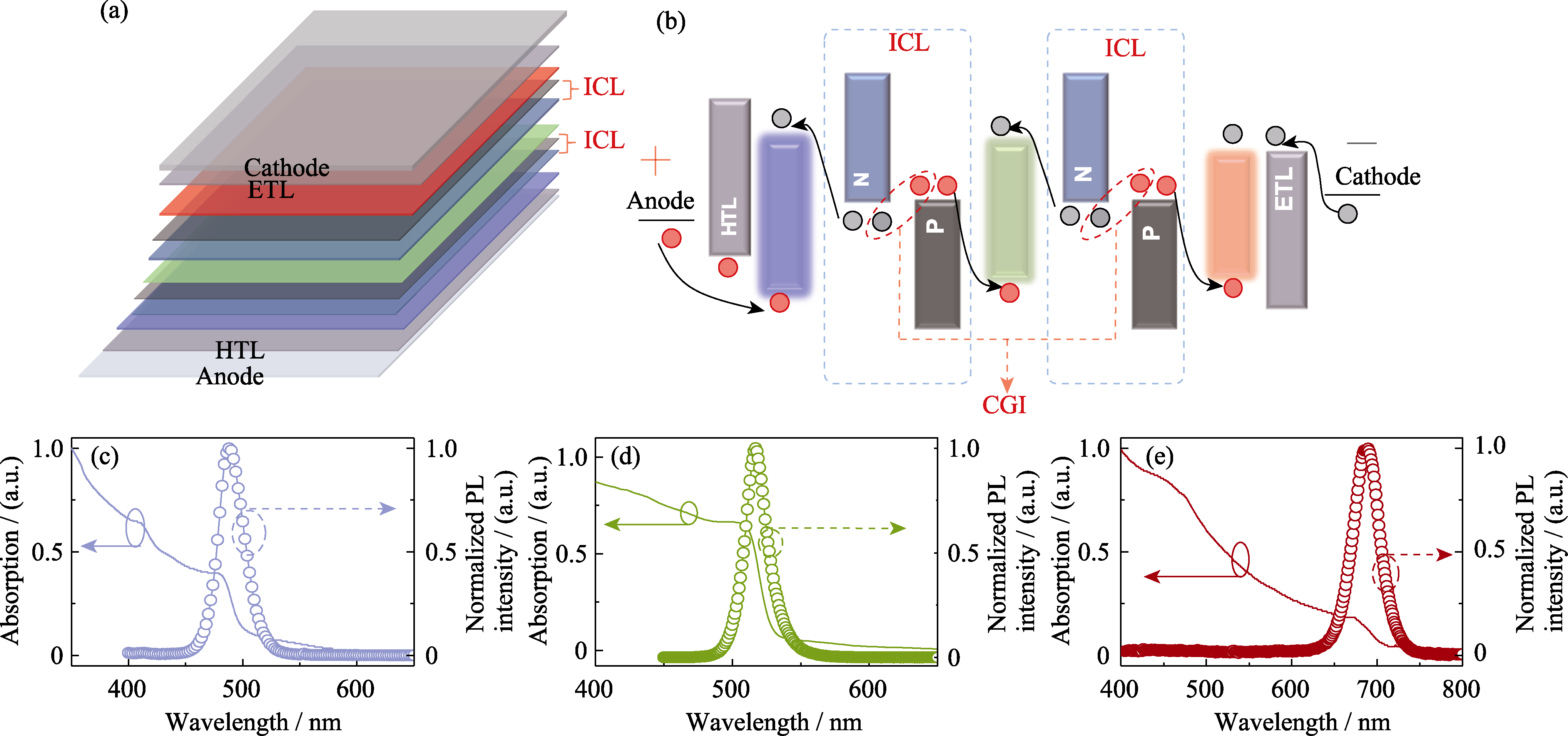

图1 (a)钙钛矿级联器件结构示意图; (b)级联结构中载流子输运过程和发光原理示意图; (c~e)红、绿和蓝三色钙钛矿发光体紫外-可见光吸收和光致发光光谱
Fig. 1 (a) Device structure diagram of tandem PeLED; (b) Diagram of carrier transport and luminescence principle in tandem PeLEDs; (c-e) UV-visible absorption and photoluminescence characterization of tri-color perovskites: (c) Quasi-2D blue perovskite films; (d) Green perovskite QDs; (e) Red perovskite QDs Colorful figures are available on website
图2 蓝绿双色级联PeLEDs能级和载流子输运过程示意图
Fig. 2 Schematic diagram of energy levels of blue/green tandem PeLED and carrier transport process Colorful figures are available on website
图3 在不同驱动电压下, 基于NPB厚度调控的蓝绿级联PeLEDs的(a, d, g)电致发光光谱、(b, e, h)光谱强度分布及(c, f, i)蓝绿光发光强度对比
Fig. 3 (a, d, g) Electroluminescence spectra, (b, e, h) intensity mappings, and (c, f, i) comparison of blue/green tandem PeLEDs with different NPB thicknesses under different driving voltages (a-c) 30 nm; (d-f) 40 nm; (g-i) 50 nm; B: Blue; G: Green Colorful figures are available on website
图5 红绿蓝三色级联PeLEDs的电致发光性能
Fig. 5 Electroluminescence spectra of red/green/blue tandem PeLEDs (a) Electroluminescence spectra under different voltages; (b) J-V-L curves; (c) EQE-V-CE curves Colorful figures are available on website

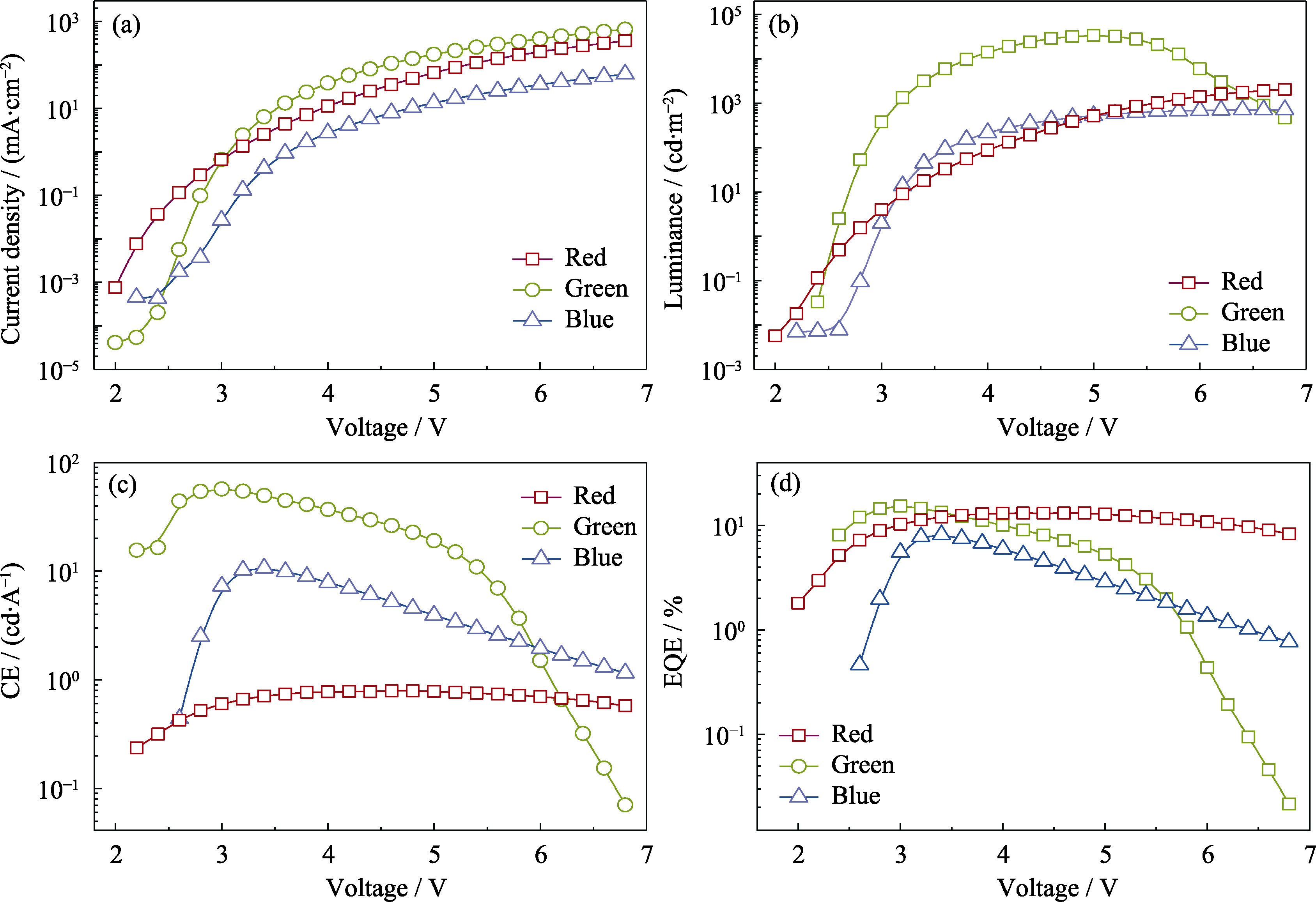

图S1 红、绿和蓝单色PeLEDs的电致发光性能
Fig. S1 EL performance of red, green, and blue monochrome PeLEDs (a) J-V curves; (b) L-V curves; (c) CE-V curves; (d) EQE-V curves
