TiO2/Ti3C2Tx复合材料的制备及其杂化电容脱盐特性的研究

doi:10.15541/jim20200243

摘要/Abstract

摘要：

人口的快速增长和工业经济迅猛发展导致全球淡水资源短缺, 对海水和苦咸水进行淡化是解决淡水资源短缺的有效方法。本工作通过直接煅烧Ti₃C₂T_x制备了TiO₂/Ti₃C₂T_x复合材料, 并研究了基于TiO₂/Ti₃C₂T_x复合电极的杂化电容脱盐特性(Hybrid capacitive deionization, HCDI)。研究表明, 煅烧温度对TiO₂/Ti₃C₂T_x的形貌、结构、电化学和脱盐特性有重要影响。以优化后的TiO₂/Ti₃C₂T_x作为负极, 酸化活性炭(Active carbon, AC)为正极, 构筑了HCDI装置。在恒压模式下, 当工作电压为1.2 V时, TiO₂/Ti₃C₂T_x‖AC在初始电导率为3000 μS·cm ^-1的NaCl溶液中的脱盐容量达到23.8 mg·g ^-1。经过20个循环后容量保持率为78%。此外, 通过研究TiO₂/Ti₃C₂T_x复合电极脱盐前后的形貌和晶相发现在脱盐过程中钠离子嵌入到Ti₃C₂T_x的层间。

关键词: TiO₂/Ti₃C₂T_x, 锐钛矿型TiO₂, 电容去离子, 吸附, 脱盐

Abstract:

The shortage of fresh water resources resultes from the rapid growth of population and industrial development. Desalination of seawater and brackish water is an effective way to alleviate the freshwater crisis. In this work, the TiO₂/Ti₃C₂T_x composites were prepared by directly calcinating Ti₃C₂T_x for hybrid capacitive deionization (HCDI). The results show that the calcination temperature has a significant impact on morphology, structure, electrochemical and desalination behavior of the TiO₂/Ti₃C₂T_x composites. To constitute the full HCDI device, the optimized TiO₂/Ti₃C₂T_x and acid treated activated carbon (AC) was employed as cathode and anode, respectively. In the constant voltage mode, the salt removal capacity of TiO₂/Ti₃C₂T_x‖AC reached 23.8 mg·g ^-1 under the cell voltage of 1.2 V in NaCl solution with an initial conductivity of 3000 μS·cm ^-1. After 20 cycles, the capacity retention rate remains at 78%. Besides, through exploring the morphology and crystal texture evolution of TiO₂/Ti₃C₂T_x electrodes before and after desalination, it is found that the desalination of TiO₂/Ti₃C₂T_x electrodes may be achieved due to the intercalation of sodium ions into the Ti₃C₂T_x interlayer.

Key words: TiO₂/Ti₃C₂T_x, anatase TiO₂, capacitive deionization, adsorption, desalination

中图分类号:

O647

席文, 李海波. TiO₂/Ti₃C₂T_x复合材料的制备及其杂化电容脱盐特性的研究[J]. 无机材料学报, 2021, 36(3): 283-291.

XI Wen, LI Haibo. Preparation of TiO₂/Ti₃C₂T_x Composite for Hybrid Capacitive Deionization[J]. Journal of Inorganic Materials, 2021, 36(3): 283-291.

图/表 10

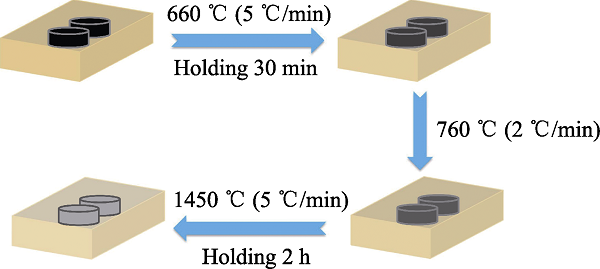

图1 Ti3AlC2的煅烧过程

Fig. 1 Calcination process of Ti3AlC2

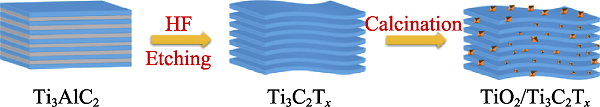

图2 TiO2/Ti3C2Tx复合材料制备流程图

Fig. 2 Synthesis flowchart of TiO2/Ti3C2Tx composites

图3 Ti3AlC2(A), Ti3C2Tx(B, C), TiO2/Ti3C2Tx-350(D), TiO2/Ti3C2Tx-450(E)和TiO2/Ti3C2Tx-550(F)的SEM照片, TiO2/Ti3C2Tx-450的HRTEM照片(G)和元素分布图像(H, I)

Fig. 3 SEM images of Ti3AlC2(A), Ti3C2Tx(B, C), TiO2/Ti3C2Tx-350(D), TiO2/Ti3C2Tx-450(E) and TiO2/Ti3C2Tx-550(F), HRTEM (G) and elemental mapping(H, I) of TiO2/Ti3C2Tx-450

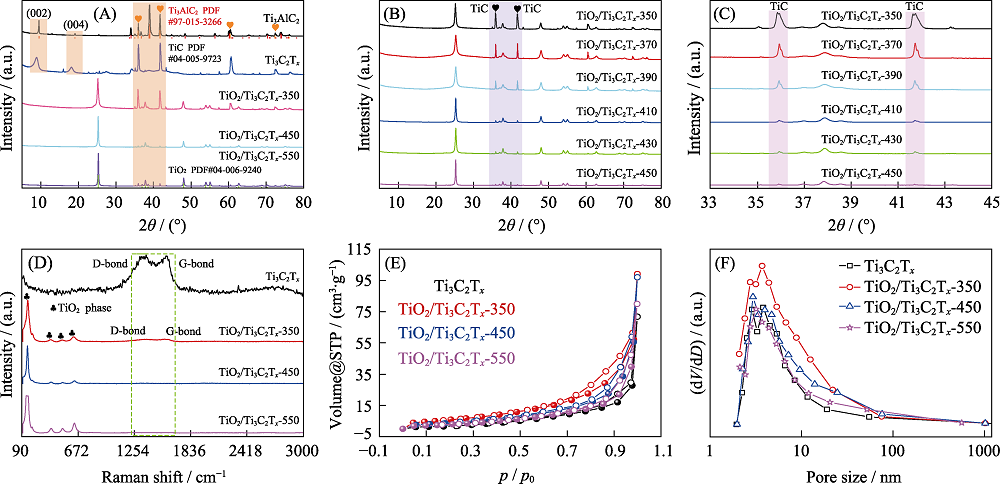

图4 各样品的XRD图谱(A), 不同温度煅烧样品的XRD(B, C)、拉曼光谱(D)、N2吸脱附等温曲线(E)和孔径分布图(F)

Fig. 4 XRD patterns (A) of various samples, XRD patterns (B, C) of TiO2/Ti3C2Tx calcined at different temperatures, Raman spectra (D), N2 adsorption-desorption isotherms (E) and pore size distributions (F) of various samples (A)Ti3AlC2, Ti3C2Tx, TiO2/Ti3C2Tx-350, TiO2/Ti3C2Tx-450 and TiO2/Ti3C2Tx-550; (B-D) Ti3C2Tx and TiO2/Ti3C2Tx-350, TiO2/Ti3C2Tx-450 and TiO2/Ti3C2Tx-550

表1 Ti3C2Tx、TiO2/Ti3C2Tx-350、TiO2/Ti3C2Tx-450和TiO2/Ti3C2Tx-550的比表面积、平均孔径和孔体积比较

Table 1 Comparison of specific surface areas, pore sizes and pore volumes of Ti3C2Tx, TiO2/Ti3C2Tx-350, TiO2/Ti3C2Tx-450 and TiO2/Ti3C2Tx-550

Sample	Specific surface area/(m²·g^-1)	Pore size /nm	Pore volume /(cm³·g^-1)
Ti₃C₂T_x	8.542	51.979	0.111
TiO₂-Ti₃C₂T_x-350	23.227	26.394	0.153
TiO₂-Ti₃C₂T_x-450	14.630	41.005	0.150
TiO₂-Ti₃C₂T_x-550	12.324	40.134	0.124

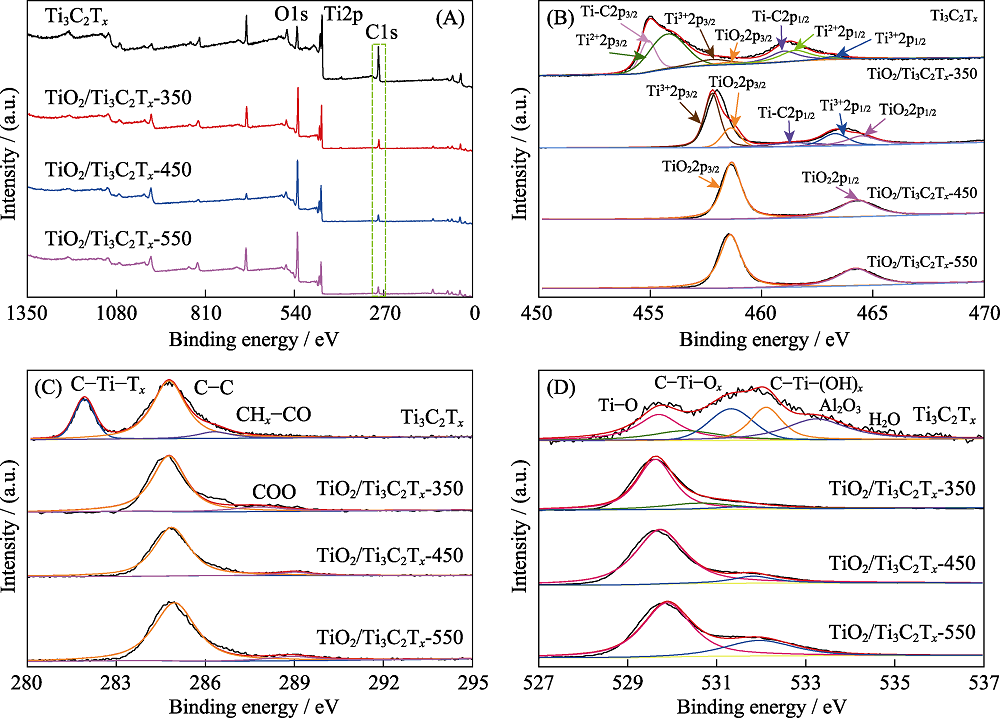

图5 Ti3C2Tx, TiO2/Ti3C2Tx-350, TiO2/Ti3C2Tx-450和TiO2/Ti3C2Tx-550的XPS图谱

Fig. 5 XPS spectra of Ti3C2Tx, TiO2/Ti3C2Tx-350, TiO2/Ti3C2Tx-450 and TiO2/Ti3C2Tx-550 (A) XPS survey spectra; (B) Ti2p; (C) C1s; (D) O1s

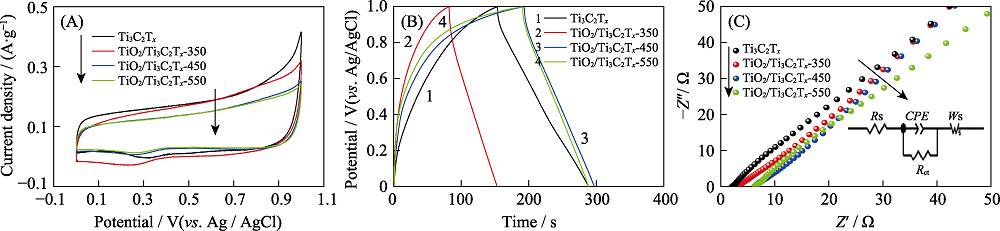

图6 Ti3C2Tx, TiO2/Ti3C2Tx-350, TiO2/Ti3C2Tx-450和TiO2/Ti3C2Tx-550的CV(A)、GCD(B)和EIS(C)曲线(内插图为等效电路图)

Fig. 6 CV curves(A), GCD(B) and EIS(C) of Ti3C2Tx, TiO2/Ti3C2Tx-350, TiO2/Ti3C2Tx-450 and TiO2/Ti3C2Tx-550 with inset in (C) representing the equivalent circuit

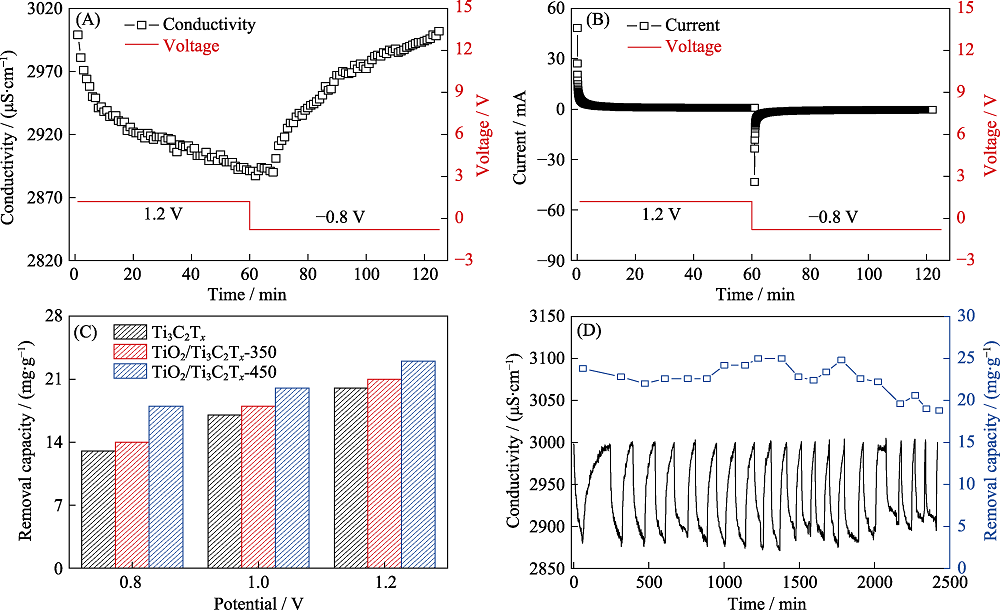

图7 TiO2/Ti3C2Tx-450‖AC HCDI装置的脱盐性能

Fig. 7 Desalination performance of TiO2/Ti3C2Tx-450‖AC device (A, B) Conductivity and current transient of TiO2/Ti3C2Tx-450‖AC device in NaCl solution with an initial conductivity of 3000 μS·cm-1 at 1.2 V; (C) Salt removal capacity of Ti3C2Tx, TiO2/Ti3C2Tx-350 and TiO2/Ti3C2Tx-450 at various voltages; (D) Regeneration curves of TiO2/Ti3C2Tx-450‖AC device

表2 各种CDI电极材料的脱盐性能比较

Table 2 Comparison of salt removal capacity among various CDI electrodes

Sample	Specific surface area/(m²·g^-1)	Initial conductivity /(mg·L^-1)	Voltage/V	Desalination capacity/(mg·g^-1)	Ref.
Pre-conditioned Ti₃C₂T_x MXene	-	585.0	-1.2 (discharge potential)	9.19	[42]
Ti₃C₂ MXene	6.0	292.5	1.2	13.00	[39]
Ar plasma modified Ti₃C₂T_x	-	500.0	1.4	26.80	[43]
LiH/HCl-etched Ti₃C₂T_x MXene	2.1	585.0	1.2	67.70	[44]
Porous Ti₃C₂T_x MXene	293.0	10000.0	1.2	45.00	[40]
Porous nitrogen-doped MXene sheets (N-Ti₃C₂T_x)	368.8	5000.0	1.2	43.50±1.70	[45]
TiO₂/Ti₃C₂T_x-450	14.6	1500.0	1.2	22.00	This work

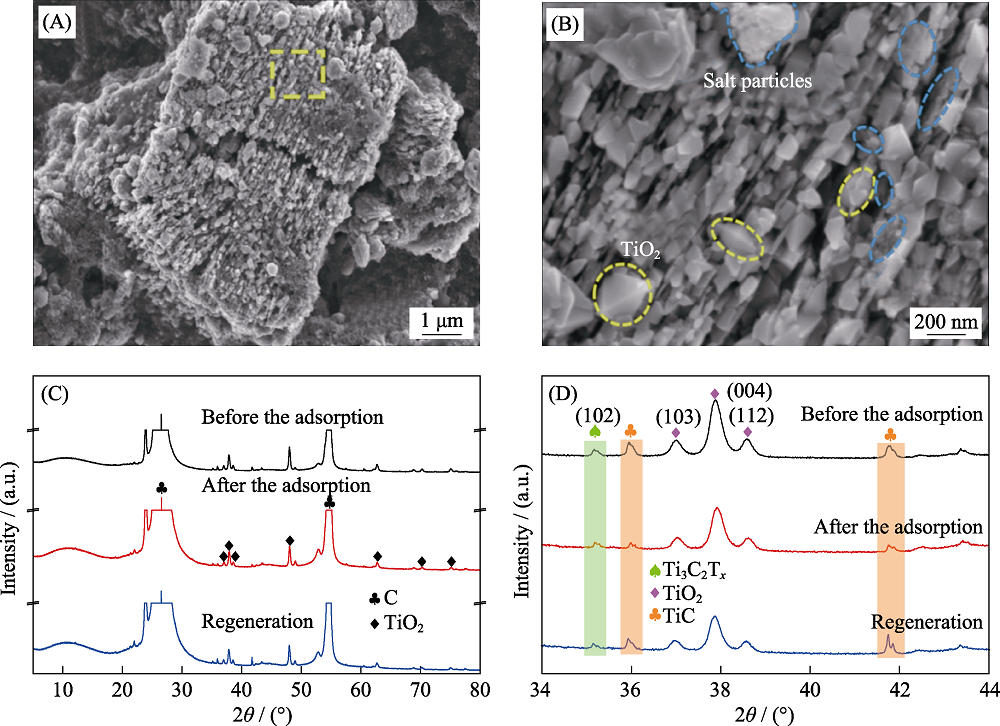

图8 TiO2/Ti3C2Tx-450循环20圈后的SEM照片(A, B), 原始TiO2/Ti3C2Tx-450、脱盐后TiO2/Ti3C2Tx-450和再生后TiO2/Ti3C2Tx- 450的XRD图谱(C, D)

Fig. 8 SEM (A) and the enlarged (B) images of TiO2/Ti3C2Tx-450 after 20 cycling, XRD patterns(C, D) of TiO2/Ti3C2Tx-450 before and after desalting and regeneration (B) Enlarged image of (A); (D) Enlarged image of (C) within 2θ = 34°-44°

参考文献 46

[1]	XU X, TAN H, WANG Z, et al. Extraordinary capacitive deionization performance of highly-ordered mesoporous carbon nano- polyhedra for brackish water desalination. Environmental Science: Nano, 2019,6(3):981-989. DOI URL
[2]	SHANNON M A, BOHN P W, ELIMELECH M, et al. Science and technology for water purification in the coming decades. Nature, 2008,452(7185):301-310. DOI URL PMID
[3]	LI L, ZHAO J, SUN Y, et al. Ionically cross-linked sodium alginate/ ĸ-carrageenan double-network gel beads with low-swelling, enhanced mechanical properties, and excellent adsorption performance. Chemical Engineering Journal, 2019,372:1091-1103.
[4]	XU X, ALLAH A E, WANG C, et al. Capacitive deionization using nitrogen-doped mesostructured carbons for highly efficient brackish water desalination. Chemical Engineering Journal, 2019,362:887-896.
[5]	CUI T, YANG T, XU C Y, et al. Assessment of the impact of climate change on flow regime at multiple temporal scales and potential ecological implications in an alpine river. Stochastic Environmental Research and Risk Assessment, 2018,32(6):1849-1866.
[6]	ZHAO F, YUAN Z. H, ZHONG L B, et al. Review on electrode materials and Capacitive Deionization (CDI) technology for desalination. Technology of Water Treatment, 2016,42(5):38-44.
[7]	PEÑATE B, GARCÍA-RODRÍGUEZ L. Current trends and future prospects in the design of seawater reverse osmosis desalination technology. Desalination, 2012,284:1-8.
[8]	ZHAO D, LEE L Y, ONG S L, et al. Electrodialysis reversal for industrial reverse osmosis brine treatment. Separation and Purification Technology, 2019,213:339-347.
[9]	LEE K P, ARNOT T C, MATTIA D. A review of reverse osmosis membrane materials for desalination-development to date and future potential. Journal of Membrane Science, 2011,370(1/2):1-22.
[10]	GAO C J, ZHOU Y, LIU L F. Recent development and prospect of seawater reverse osmosis desalination technology. Journal of Ocean Technology, 2016,35(1):1-12.
[11]	ZHOU Y, YU S C, GAO C J. Reverse osmosis composite membrane (Ⅰ) chemical structure and performance. Journal of Chemical Industry and Engineering, 2006,57(6):1370-1373.
[12]	CHEN Y, YUE M, HUANG Z H, et al. Electrospun carbon nanofiber networks from phenolic resin for capacitive deionization. Chemical Engineering Journal, 2014,252:30-37.
[13]	TIAN X L, WANG L, CHI B, et al. Formation of a tubular assembly by ultrathin Ti_0.8Co_0.2N nanosheets as efficient oxygen reduction electrocatalysts for hydrogen-/metal-air fuel cells. ACS Catalysis, 2018,8(10):8970-8975.
[14]	GALAMA A H, SAAKES M, BRUNING H, et al. Seawater predesalination with electrodialysis. Desalination, 2014,342:61-69. DOI URL
[15]	DENG D, AOUAD W, BRAFF W A, et al. Water purification by shock electrodialysis: deionization, filtration, separation, and disinfection. Desalination, 2015,357:77-83.
[16]	YAN H Y, WANG Y M, JIANG C X, et al. Ion exchange membrane electrodialysis for high salinity wastewater “zero liquid discharge”: applications, opportunities and challenges. Chemical Industry and Engineering Progress, 2019,38(328):672-681.
[17]	AN X, LIU Z, HU Y. Amphiphobic surface modification of electrospun nanofibrous membranes for anti-wetting performance in membrane distillation. Desalination, 2018,432:23-31.
[18]	LIU L F, ZHOU Y S, XUE J, et al. Enhanced antipressure ability through graphene oxide membrane by intercalating g-C₃N₄ nanosheets for water purification. AICHE Journal, 2019, 65(10): e16699- 1-13.
[19]	HOU Q Q, WU Y, ZHOU SH, et al. Ultra-tuning of the aperture size in stiffened ZIF-8_Cm frameworks with mixd-linker strategy for enhanced CO₂/CH₄ separation. Angewandte Chemie- International Edition, 2019,58(1):327-331. DOI URL PMID
[20]	AL-MUTAZ I S, WAZEER I. Comparative performance evaluation of conventional multi-effect evaporation desalination processes. Applied Thermal Engineering, 2014,73(1):1194-1203.
[21]	PORADA S, ZHAO R, VAN DER WAL A, et al. Review on the science and technology of water desalination by capacitive deionization. Progress in Materials Science, 2013,58(8):1388-1442.
[22]	YAN J J, SHAO S F, WANG J H, et al. Improvement of a multi- stage flash seawater desalination system for cogeneration power plants. Desalination, 2007,217(1/2/3):191-202.
[23]	AVLONITIS S A, KOUROUMBAS K, VLACHAKIS N. Energy consumption and membrane replacement cost for seawater RO desalination plants. Desalination, 2003,157(1):151-158.
[24]	WU Y C, YING D W, WANG Y L, et al. Capacitive desalination technology and its application in wastewater treatment. Technology of Water Treatment, 2019,45(8):1-15.
[25]	LEE J, KIM S, KIM C, et al. Hybrid capacitive deionization to enhance the desalination performance of capacitive techniques. Energy & Environmental Science, 2014,7:3683-3689.
[26]	WANG S Y, WANG G, CHE X P, et al. Enhancing the capacitive deionization performance of NaMnO₂ by interface engineering and redox-reaction. Environmental Science: Nano, 2019,6:2379-2388.
[27]	NAGUIB M, KURTOGLU M, PRESSER V, et al. Two-dimensional nanocrystals produced by exfoliation of Ti₃AlC₂. Advanced Materials, 2011,23(37):4248-4253. DOI URL PMID
[28]	ANASORI B, LUKATSKAYA M R, GOGOTSI Y. 2D metal carbides and nitrides (MXenes) for energy storage. Nature Reviews Materials, 2017,2:16098.
[29]	NAGUIB M, MOCHALIN V N, BARSOUM M W, et al. Two- dimensional materials: 25th anniversary article: MXenes: a new family of two-dimensional materials. Advanced Materials, 2014,26(7):982-982.
[30]	ALHABEB M, MALESKI K, ANASORI B, et al. Guidelines for synthesis and processing of two-dimensional titanium carbide (Ti₃C₂T_x MXene). Chemistry of Materials, 2017,29(18):7633-7644.
[31]	DING L, LI L B, LIU Y C, et al. Effective ion sieving with Ti₃C₂T_x MXene membranes for production of drinking water from seawater. Nature Sustainability, 2020,3(4):296.
[32]	DING L, XIAO D, LU Z, et al. Oppositely charged Ti₃C₂T_x MXene membranes with 2D nanofluidic channels for osmotic energy harvesting. Angewandte Chemie-International Edition, 2020,59(22):8720-8726. DOI URL PMID
[33]	GUO J, PENG Q, FU H, et al. Heavy-metal adsorption behavior of two-dimensional alkalization-intercalated MXene by first-principles calculations. The Journal of Physical Chemistry C, 2015,119(36):20923-20930.
[34]	REN C E, HATZELL K B, ALHABEB M, et al. Charge-and size- selective ion sieving through Ti₃C₂T_x MXene membranes. The Journal of Physical Chemistry Letters, 2015,6(20):4026-4031. URL PMID
[35]	TANG Q, ZHOU Z, SHEN P. Are MXenes promising anode materials for Li ion batteries? computational studies on electronic properties and Li storage capability of Ti₃C₂ and Ti₃C₂X₂ (X=F, OH) monolayer. Journal of the American Chemical Society, 2012,134(40):16909-16916. DOI URL PMID
[36]	GUO X, ZHANG X, ZHAO S, et al. High adsorption capacity of heavy metals on two-dimensional MXenes: an ab initio study with molecular dynamics simulation. Physical Chemistry Chemical Physics, 2016,18(1):228-233. URL PMID
[37]	ANASORI B, XIE Y, BEIDAGHI M, et al. Two-dimensional, ordered, double transition metals carbides (MXenes). ACS Nano, 2015,9(10):9507-9516. DOI URL PMID
[38]	LU ZONG, WEI Y Y, DENG J J, et al. Self-crosslinked MXene (Ti₃C₂T_x) membranes with good antiswelling property for monovalent metal ion exclusion. ACS Nano, 2019,3:10535-10544.
[39]	SRIMUK P, KAASIK F, KRÜNER B, et al. MXene as a novel intercalation-type pseudocapacitive cathode and anode for capacitive deionization. Journal of Materials Chemistry, 2016,4(47):18265-18271.
[40]	BAO W, TANG X, GUO X, et al. Porous cryo-dried MXene for efficient capacitive deionization. Joule, 2018,2(4):778-787.
[41]	LOW J X, ZHANG L Y, TONG T, et al. TiO₂/MXene Ti₃C₂ composite with excellent photocatalytic CO₂ reduction activity. Journal of Catalysis, 2018,361:255-266.
[42]	AGARTAN L, HANTANASIRISAKUL K, BUCZEK S, et al. Influence of operating conditions on the desalination performance of a symmetric pre-conditioned Ti₃C₂T_x-MXene membrane capacitive deionization system. Desalination, 2020,477:114267.
[43]	GUO L, WANG X, LEONG Z Y, et al. Ar plasma modification of 2D MXene Ti₃C₂T_x nanosheets for efficient capacitive desalination. Flat. Chem., 2018,8:17-24.
[44]	MA J, CHENG Y, WANG L, et al. Free-standing Ti₃C₂T_x MXene film as binder-free electrode in capacitive deionization with an ultrahigh desalination capacity. Chemical Engineering Journal, 2020,384:123329.
[45]	AMIRI A, CHEN Y, TENG C B, et al. Porous nitrogen-doped MXene-based electrodes for capacitive deionization. Energy Storage Mater., 2020,25:731-739.
[46]	XI W, LI H B. Pseudo-capacitive deionization behavior of CuAl- mixed metal. Environmental Science: Water Research & Technology, 2020,6(2):296-302.
