ZnO·2.56Al2O3透明陶瓷凝胶注模成型与烧结制备

doi:10.15541/jim20180588

摘要/Abstract

摘要：

锌铝尖晶石透明陶瓷是典型的结构功能一体化材料, 具有优异的光学、热学以及介电性能。本研究以ZnAl₂O₄和Al₂O₃为原料, 通过凝胶注模成型制备ZnAl₂O₄-Al₂O₃复相陶瓷初坯。实验探究了分散剂含量、pH以及固相量对ZnAl₂O₄-Al₂O₃混合料浆流变学特性的影响, 制得固相量为50vol%的低黏度稳定料浆。浇注成型后的坯体通过无压烧结和热等静压反应烧结制备透明陶瓷。最终获得的ZnO·2.56Al₂O₃透明陶瓷样品在厚度为1.8 mm下可见光波段透过率达到70%, 红外波段透过率达到80%以上, 维氏硬度为(11.34±0.17) GPa, 杨氏模量为285 GPa。

关键词: ZnO·2.56Al₂O₃, 透明陶瓷, 凝胶注模成型, 热等静压烧结

Abstract:

Zinc-aluminum spinel transparent ceramics are typical multi-functional materials with excellent optical, thermal and dielectric properties. ZnAl₂O₄-Al₂O₃ ceramics green body were fabricated through aqueous gelcasting forming technique starting from the raw materials of ZnAl₂O₄and Al₂O₃. The stable slurries of ZnAl₂O₄-Al₂O₃ with 50vol% solids loading were prepared. Furthermore, the effects of the dispersant, pH value and solid loading on the rheological properties were systematically investigated. Then, gel-casted green compacts were pressureless sintered and hot isostatic pressed to obtain transparent ceramics. Finally, transparent ZnO·2.56Al₂O₃ ceramics (1.8 mm in thickness) with in-line transmittance value of 70% in visible region and higher than 80% in infrared region were obtained. The samples exhibited Vickers hardness of (11.34±0.17) GPa, Young's modulus of 285 GPa.

Key words: ZnO·2.56Al₂O₃, transparent ceramics, gel-casting, hot isostatic pressing

中图分类号:

TQ174

张金诚, 王皓, 徐鹏宇, 涂兵田, 王为民, 傅正义. ZnO·2.56Al₂O₃透明陶瓷凝胶注模成型与烧结制备[J]. 无机材料学报, 2019, 34(10): 1072-1076.

ZHANG Jin-Cheng, WANG Hao, XU Peng-Yu, TU Bing-Tian, WANG Wei-Min, FU Zheng-Yi. Preparation of ZnO·2.56Al₂O₃ Transparent Ceramics by Aqueous Gelcasting and Hot Isostatic Pressing[J]. Journal of Inorganic Materials, 2019, 34(10): 1072-1076.

图/表 9

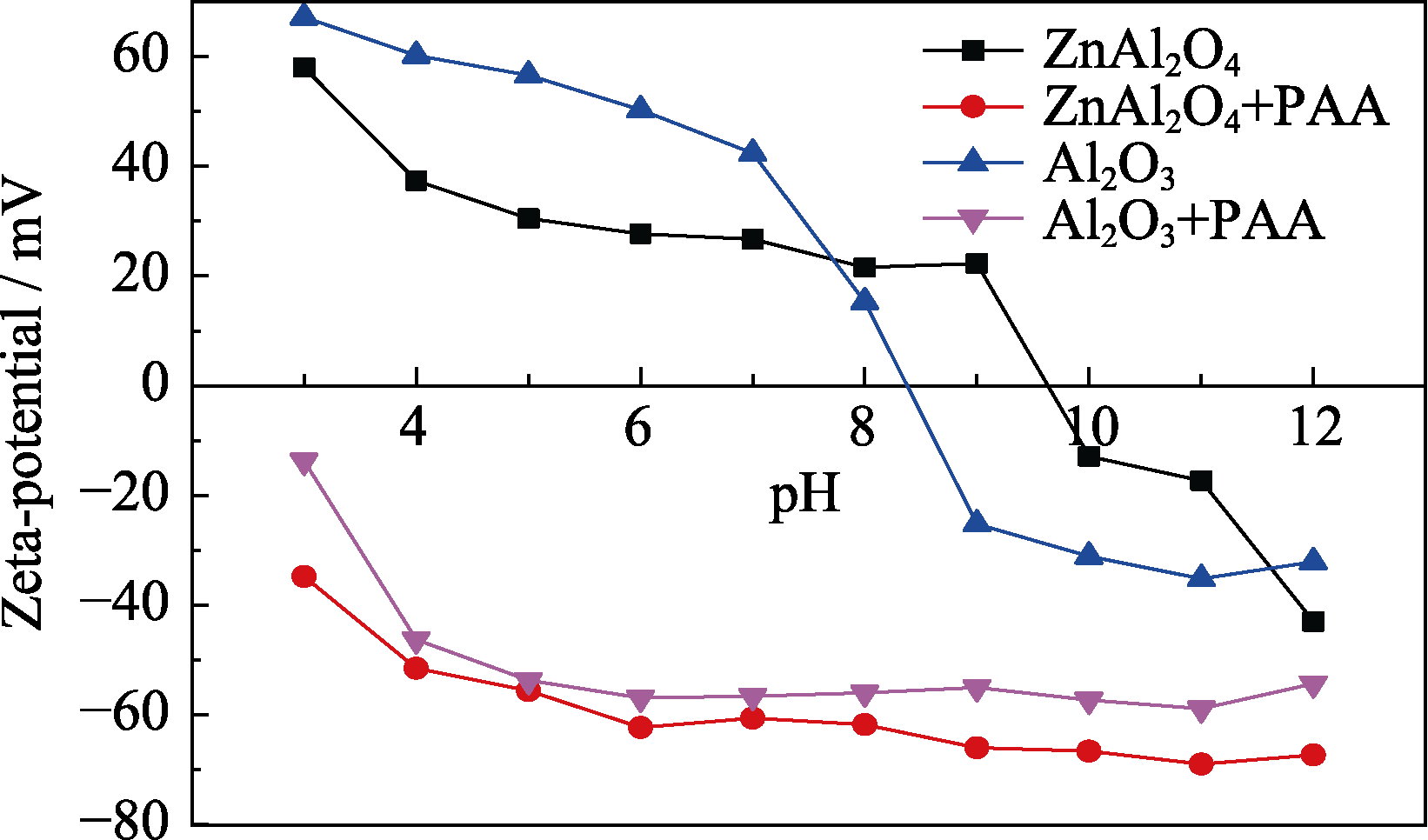

图1 ZnAl2O4和Al2O3粉体的Zeta电位

Fig. 1 Zeta-potential of ZnAl2O4 and Al2O3

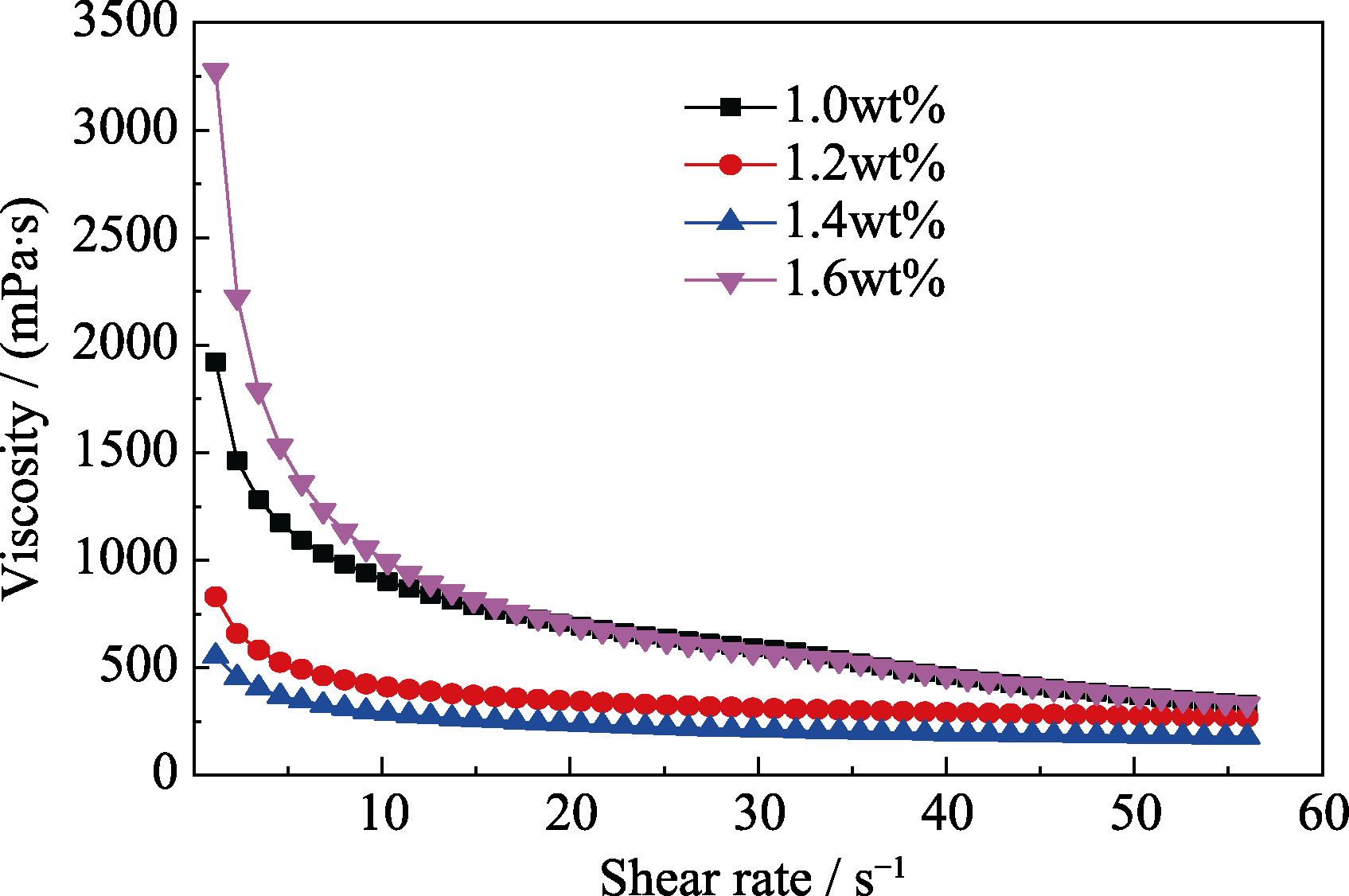

图2 ZnAl2O4-Al2O3料浆的黏度与分散剂含量的关系曲线

Fig. 2 Relation of viscosity of slurry vs contents of PAA

图3 ZnAl2O4-Al2O3料浆的黏度与pH值的关系曲线

Fig. 3 Relation of viscosity of slurry vs pH value

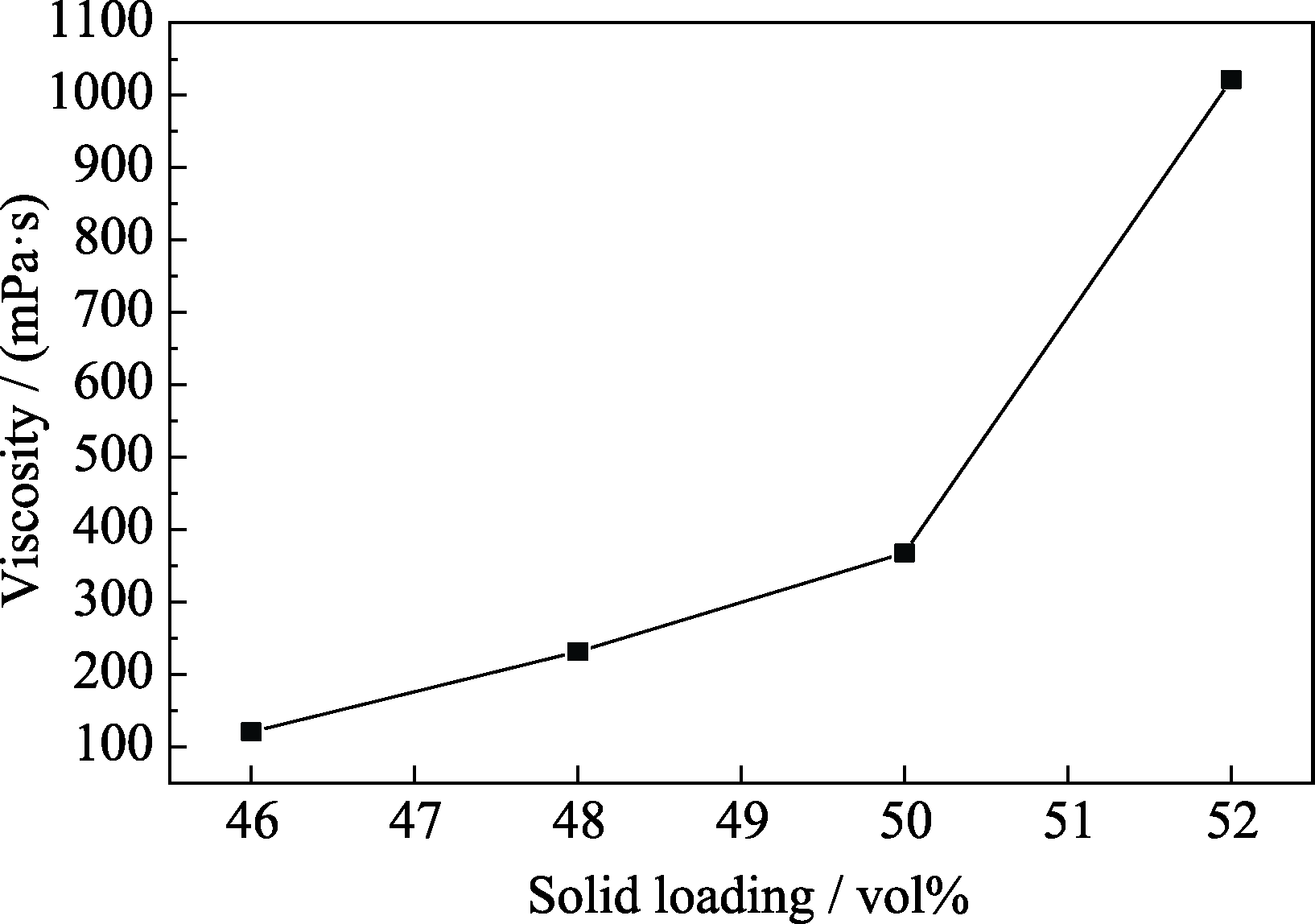

图4 ZnAl2O4-Al2O3料浆的黏度与固含量的关系

Fig. 4 Relation of viscosity of slurry vs solid loading

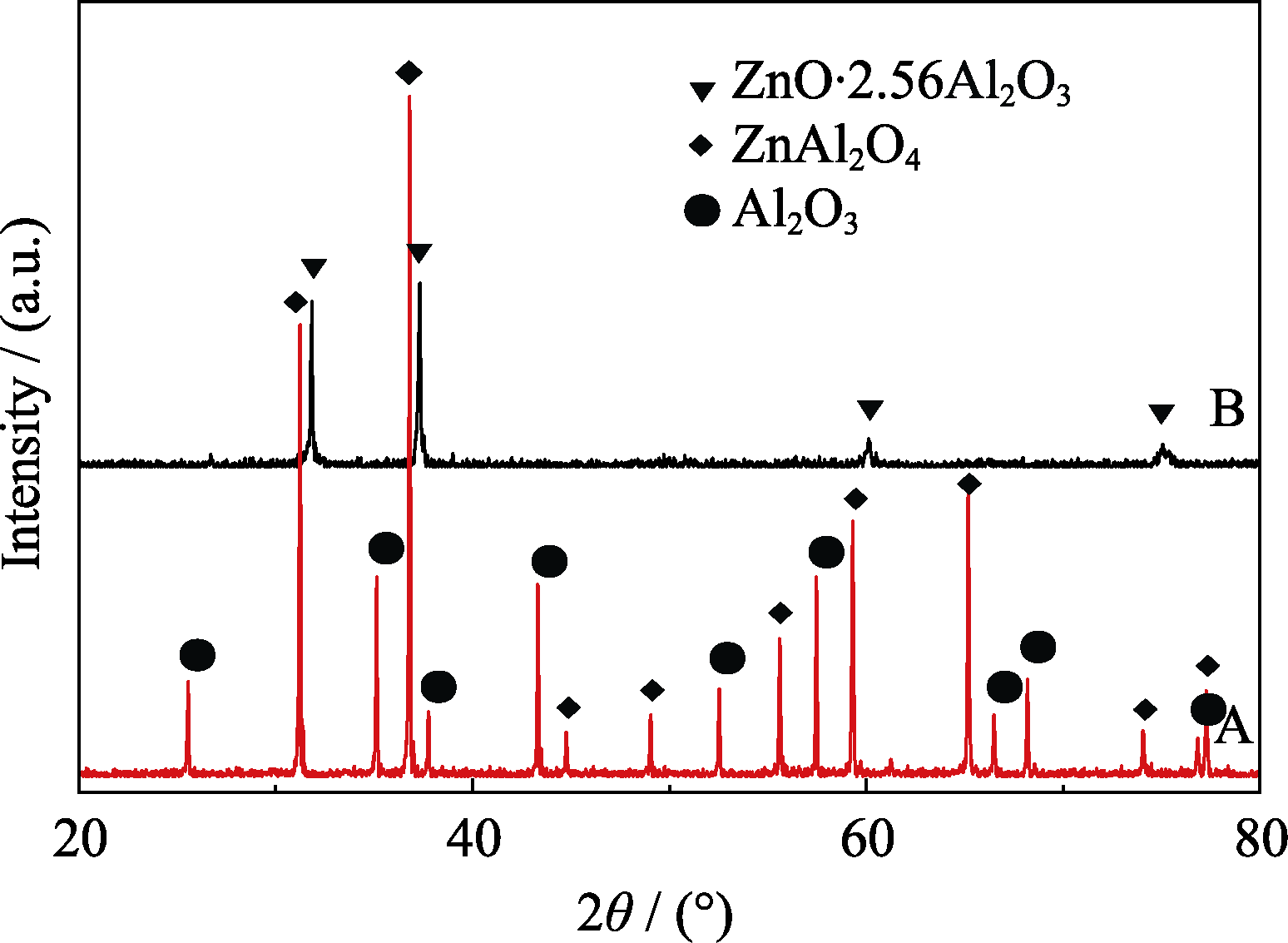

图5 热等静压烧结前后样品的XRD图谱

Fig. 5 XRD patterns of the sample before and after Hot Isostatic Pressing (HIP) A: After pressureless sintering; B: After HIP

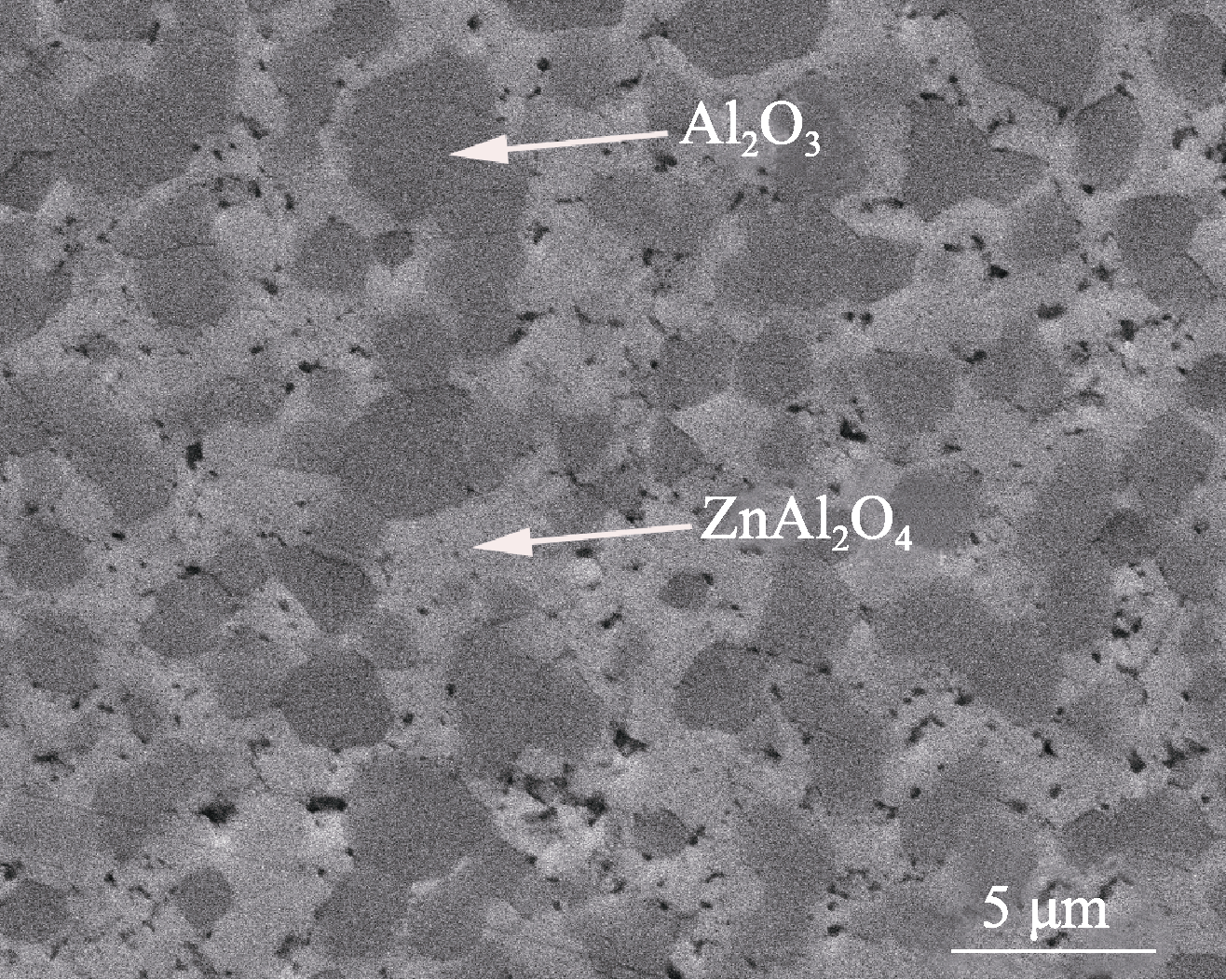

图6 无压预烧后的ZnAl2O4-Al2O3复相陶瓷表面刻蚀SEM照片

Fig. 6 Microstructure of acid-etched surface of ZnAl2O4-Al2O3 ceramic after pressureless sintering (Gray: Al2O3 phase; White: ZnAl2O4 phase)

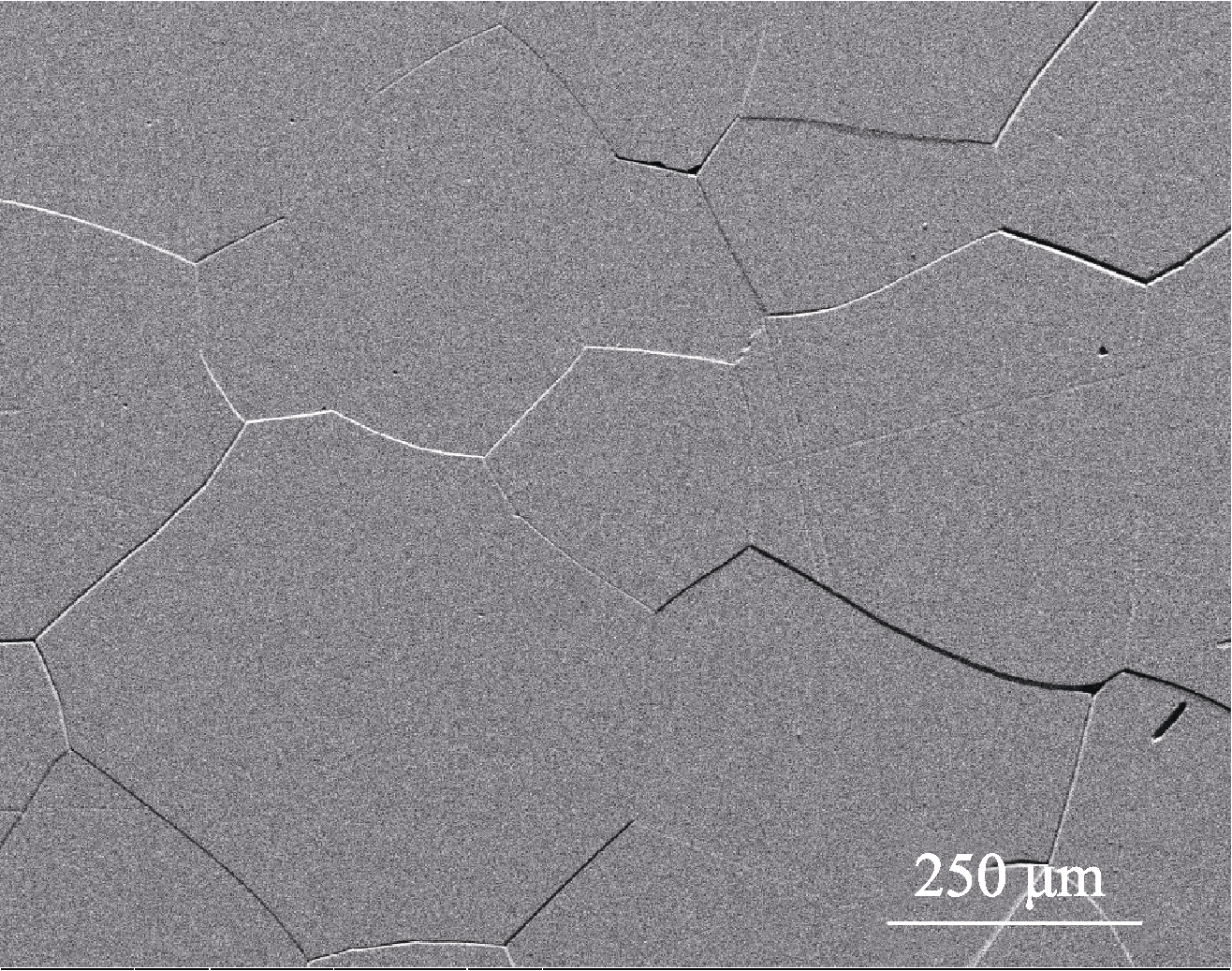

图7 热等静压(HIP)烧结后ZnO·2.56Al2O3表面刻蚀SEM照片

Fig. 7 Microstructure of acid-etched surface of ZnO·2.56Al2O3 transparent ceramic after Hot Isostatic Pressing (HIP)

图8 ZnO·2.56Al2O3透明陶瓷样品的直线透过率图谱; 插图为样品表观照片

Fig. 8 In-line transmittance of ZnO·2.56Al2O3 transparent ceramic. The inset image shows a photograph of transparent ZnO·2.56Al2O3 ceramic

表1 ZnO·2.56Al2O3透明陶瓷块体的性能列表

Table 1 Propertice of ZnO·2.56Al2O3 transparent ceramic

Sample	Vickers hardness/GPa	Young’s modulus/GPa	Thermal conductivity/ (20 ℃, (W·m^-1·K^-1))	Dielectric constant/ (20 ℃, 1 MHz)	Dielectric loss/ (20 ℃, 1 MHz)
ZnO·2.56Al₂O₃	11.34±0.17	285	9.8	9.17	-1.39×10^-3
ZnAl₂O₄	10.5^[5]	282^[17]	-	-	-
