量子点敏化太阳能电池对电极材料的研究进展

doi:10.15541/jim20170307

无机材料学报 ›› 2018, Vol. 33 ›› Issue (5): 483-493.DOI: 10.15541/jim20170307 CSTR: 32189.14.10.15541/jim20170307

所属专题：光伏材料；乘风破浪的新能源材料

量子点敏化太阳能电池对电极材料的研究进展

孟祥东¹, 尹默¹, 舒婷², 胡悦¹, 孙萌¹, 于兆亮^1,3, 李海波^1,3

1.吉林师范大学功能材料物理与化学教育部重点实验室, 长春130015;
2. 湖北科技学院, 咸宁 437100;
3. 吉林大学无机合成与制备化学国家重点实验室, 长春 130023

收稿日期:2017-06-21 修回日期:2017-09-27 出版日期:2018-05-20 网络出版日期:2018-04-26
作者简介:孟祥东(1975-), 男, 教授. E-mail: xdmeng@jlnu.edu.cn
基金资助:
国家自然科学基金(61275047, 21301055);教育部科学技术研究项目(213009A);湖北省自然科学基金(2018CFB740)

Research Progress on Counter Electrodes of Quantum Dot-sensitized Solar Cells

MENG Xiang-Dong¹, YIN Mo¹, SHU Ting², HU Yue¹, SUN Meng¹, YU Zhao-Liang^1,3, LI Hai-Bo^1,3

1. Key Laboratory of Functional Materials Physics and Chemistry of the Ministry of Education, Jilin Normal University, Changchun 130015, China;
2. Hubei University of Science and Technology, Xianning 437100, China;
3. State Key Laboratory of Inorganic Synthesis and Preparative Chemistry, Jilin University, Changchun 130023, China

Received:2017-06-21 Revised:2017-09-27 Published:2018-05-20 Online:2018-04-26
About author:MENG Xiang-Dong. E-mail: xdmeng@jlnu.edu.cn
Supported by:
National Natural Science Foundation of China(61275047, 21301055);The Project of Ministry of Education of China (213009A);Hubei Provincial Natural Science Foundation of China (2018CFB740)

摘要/Abstract

摘要：

量子点敏化太阳能电池(Quantum Dot-Sensitized Solar cells, QDSCs)制备工艺简单, 制造成本低廉, 是一种有希望的新型太阳能电池。QDSCs利用量子点具有光谱吸收强、尺寸可调和多激子效应等优点, 能够提高其光电转换效率; 同时, 利用无机量子点替代染料作为敏化剂, 能够解决染料敏化太阳能电池(DSCs)的稳定性问题。但是, QDSCs光电转换效率较低是制约其应用的主要问题。近年来, 通过改变和调控对电极的材料和电子特性提高QDSCs的光电效率的方法受到了广泛关注。本文综述了QDSCs对电极材料的制备方法、微观形貌和晶体结构; 重点分析了金属化合物、复合材料、杂化材料、多元金属硫族化合物、导电聚合物和碳材料对电极对量子点敏化太阳能电池的电荷转移阻抗、光电性能等参数的影响; 并分析影响其电催化活性和电子传输性能的主要因素。最后, 提出通过表面修饰、复合和杂化等方法构筑新型对电极材料, 进而改善和提高QDSCs转换效率和稳定性, 是今后的研究重点和研究方向。

关键词: 量子点, 敏化太阳能电池, 对电极, 电荷转移阻抗, 综述

Abstract:

Quantum dots sensitized solar cells (QDSCs) play a key role in the new generation photovoltaic devices due to their low cost and easy fabrication process. The absorption spectrum of quantum dots can be tailored by controlling grain size, and multi-exaction generation. QDSCs using inorganic compound QDs replaces the dye as a sensitizer, which is able to solve the stability of the dye sensitized solar cells. However, further improvement of the conversion efficiency of QDSCs is still a major issue for their application. Recently, tailoring electronic properties of the counter electrode(CE) in QDSCs using different materials has been considered as a promising way to improve photovoltaic performance of QDSCs. This article reviewed the quite recent progress of CE in QDSCs based on synthesis method, surface microtopography and crystal structure. This review gave a panorama of metal chalcogenides, composite materials, hybrid materials, muti-component metal chalcogenides, conductive polymers, and carbon CE materials for QDSCs, while the influence of CE materials on the charge transfer impedance, the electron transport process, catalytic properties, and I-V characteristics was stressed in detail. Finally, an outlook on the future challenges and prospects of novel materials as the CE for QDSCs were also briefly put forward.

Key words: quantum dots, sensitized solar cells, counter electrode, charge transfer resistance, review

中图分类号:

O611

孟祥东, 尹默, 舒婷, 胡悦, 孙萌, 于兆亮, 李海波. 量子点敏化太阳能电池对电极材料的研究进展[J]. 无机材料学报, 2018, 33(5): 483-493.

MENG Xiang-Dong, YIN Mo, SHU Ting, HU Yue, SUN Meng, YU Zhao-Liang, LI Hai-Bo. Research Progress on Counter Electrodes of Quantum Dot-sensitized Solar Cells[J]. Journal of Inorganic Materials, 2018, 33(5): 483-493.

图/表 11

参考文献 79

[1]	BAKER D R, KAMAT P V.Photosensitization of TiO2 nanostructures with CdS quantum dots: particulate versus tubular supportarchitectures.Advanced Functional Materials, 2009, 19(5): 805-811.
[2]	LEE H, LEVENTIS H C, MOON S J, et al. PbS and CdS quantum dot sensitized solid state solar sells: “old concepts, new results”.Advanced Functional Materials, 2009, 19(17): 2735-2742.
[3]	LEE W, MIN S, DHAS V,et al. Chemical bath deposition of CdS quantum dots on vertically aligned ZnO nanorods for quantum dots-sensitized solar cells. Electrochemistry Communications, 2009, 11(1): 103-106.
[4]	SHALOM M, DOR S, RÜHLE S,et al. Core/CdS quantum dot/shell mesoporous solar cells with improved stability and efficiency using an amorphous TiO2 coating. The Journal of Physical Chemistry C, 2009, 113(9): 3895-3898.
[5]	LEE Y L, CHANG C H.Efficient polysulfide electrolyte for CdS quantum dot-sensitized solar cells.Journal of Power Sources, 2008, 185(1): 584-588.
[6]	ROBEL I, SUBRAMANIAN V, KUNO M,et al. Quantum dot solar cells. harvesting light energy with CdSe nanocrystals molecularly linked to mesoscopic TiO2 films. Journal of The American Chemical Society, 2006, 128(7): 2385-2393.
[7]	DIGUNA L J, SHEN Q, KOBAYASHI J, et al. High efficiency of CdSe quantum-dot-sensitized TiO2 inverse opal solar cells. Applied Physics Letters, 2007, 91(2): 023116-1-3.
[8]	GIMÉNEZ S, MORA I, MACOR L, et al. Improving the performance of colloidal quantum-dot-sensitized solar cells. Nanotechnology, 2009, 20(29): 295204-1-6.
[9]	CHONG L W, CHIEN H T, LEE Y L.Assembly of CdSe onto mesoporous TiO2 films induced by a self-assembled monolayer for quantum dot-sensitized solar cell applications.Journal of Power Sources, 2010, 195(15): 5109-5113.
[10]	PLASS R, PELET S, KRUEGER J,et al. Quantum dot sensitization of organic-inorganic hybrid solar cells. The Journal of Physical Chemistry B, 2002, 106(31): 7578-7580.
[11]	SCHALLER R, KLIMOV V. High efficiency carrier multiplication in PbSe nanocrystals: implications for solar energy conversion. Physical Review Letters, 2004, 92(18): 186601-1-4.
[12]	ZABAN A, MICIC O I, GREGG B A,et al. Photosensitization of nanoporous TiO2 electrodes with InP quantum dots. Langmuir, 1998, 14(12): 3153-3156.
[13]	LAN G Y, LIN Y W, HUANG Y F,et al. Photo-assisted synthesis of highly fluorescent ZnSe (S) quantum dots in aqueous solution. Journal of Chemistry Materials, 2007, 17(25): 2661-2666.
[14]	SHEN C, SUN L D, KOH Z Y,et al. Cuprous sulfide counter electrodes prepared by ion exchange for high-efficiency quantum dot- sensitized solar cells. Journal of Materials Chemistry A, 2014, 2(48): 2807-2813.
[15]	KAMAT P V.Quantum dot solar cells. semiconductor nanocrystals as light harvesters.The Journal of Physical Chemistry C, 2008, 112(48): 18737-18753.
[16]	IVAN M S, JUAN B.Breakthroughs in the development of semiconductor-sensitized solar cells.Physical Chemistry Letters, 2010, 1(20): 3046-3052.
[17]	ASKHAT N J.Lead sulfide quantum dot-based nanostructured solar cells. München Ludwig Maximilians Universität: Ph.D. dissertation 2014: 81-110.
[18]	KAMAT P V.Quantum dot solar cells. the next big thing in photovoltaics.Physical Chemistry Letters, 2013, 4(6): 908-918.
[19]	FAN S Q, FANG B Z, JUNG H K,et al. Ordered multimodal porous carbon as highly efficient counter electrodes in dye-sensitized and quantum-dot solar cells. Langumuir, 2010, 26(16): 13644-13649.
[20]	YANG Z, CHEN C Y, LIU C W,et al. Electrocatalytic sulfur electrodes for CdS/CdSe quantum dot-sensitized solar cells. Chemical Communications, 2010, 46(30): 5485-5487.
[21]	MENG K, CHEN G, THAMPI K R,et al. Metal chalcogenides as counter electrode materials in quantum dot sensitized solar cells: a perspective. Journal of Materials Chemistry A, 2015, 3: 23074-23089.
[22]	IVÁN M S, SIXTO G, FRANCISCO F S,et al. Recombination in quantum dot sensitized solar cells. Accounts of Chemical Research, 2009, 42(11): 1848-1857.
[23]	ZHAO K, YU H J, ZHANG H,et al. Electroplating cuprous sulfide counter electrode for high efficiency long-term stability quantum dot sensitized solar cells . The Journal of Physical Chemistry C, 2014, 118(11): 5683-5690.
[24]	YANG Y Y, ZHANG Q X,WANG T Z,et al. Novel tandem structure employing mesh-structured Cu2S counter electrode for enhanced performance of quantum dot-sensitized solar cells. Electrochimica Acta, 2013, 88(2): 44-50.
[25]	CHAITANYA K K, RAMI R D, YASHA D,et al. Synthesis of novel Cu2S nanohusks as high performance counter electrode for CdS/CdSe sensitized solar cell. Journal of Power Sources, 2016, 315: 277-283.
[26]	QUY V H, KIM J H, KANG S H,et al. Enhanced electrocatalytic activity of F-doped SnO2/Cu2S electrodes for quantum dot-sensitized solar cells. Journal of Power Sources, 2016, 316: 53-59.
[27]	JIANG Y, ZHANG X, GE Q Q,et al. ITO@Cu2S tunnel junction nanowire arrays as efficient counter electrode for quantum-dot- sensitized solar cells. Nano Letters, 2014, 14(1): 365-372.
[28]	ZHAO K, PAN Z X, IVAN M S,et al. Boosting power conversion efficiencies of quantum-dot-sensitized solar cells beyond 8% by recombination control. Journal of the American Chemical Society, 2015, 137(16): 5602-5609.
[29]	HODES G, MANASSEN J, CAHEN D.Electrocatalytic electrodes for the polysulfide redox system.The Electrochemical Society, 1980, 11(29): 544-549.
[30]	VICTORIA G P, XU X Q, JAUN B.Modeling high-efficiency quantum dot sensitized solar cells.ACS Nano, 2010, 4(10): 5783-5790.
[31]	YANG Z, CHEN C Y, LIU C W,et al. Quantum dot-sensitized solar cells featuring CuS/CoS electrodes provide 4.1% efficiency. Advanced Energy Materials, 2011, 1(2): 259-264.
[32]	KIM H J, KO B H, CHANDU V V M G, et al. Facile synthesis of morphology dependent CuS nanoparticle thin film as a highly efficient counter electrode for quantum dot-sensitized solar cells. Journal of Electroanalytical Chemistry, 2017, 791: 95-102.
[33]	KUNDU M. HASEGAWA T, TERABE K. Effect of sulfurization conditions on structural and electrical properties of copper sulfide films. Journal of Applied Physics, 2008, 103: 073523-1-7.
[34]	KALANUR S S, CHAE S Y, JOO O S.Transparent Cu1.8S and CuS thin films on FTO as efficient counter electrode for quantum dot solar cells.Electrochimica Acta, 2013, 103(8): 91-95.
[35]	SAVARIRAJ A D, VISWANATHAN K K, PRABAKAR K.Influence of Cu vacancy on knit coir mat structured CuS as counter electrode for quantum dot sensitized solar cells.ACS Applied Materials & Interfaces, 2014, 6(22): 19702-19709.
[36]	WANG F F, DONG H, PAN J L,et al. One-step electrochemical deposition of hierarchical CuS nanostructures on conductive substrates as robust, high-performance counter electrodes for quantum dot sensitized solar cells. The Journal of Physical Chemistry C, 2014, 118(34): 19589-19598.
[37]	SAVARIRAJ A D, VISWANATHAN K K, PRABAKAR K.CuS nano flakes and nano platelets as counter electrode for quantum dots sensitized solar cells.Electrochimica Acta, 2014, 149: 364-369.
[38]	KIM H J, KIM J H, KUMAR C P,et al. Facile chemical bath deposition of CuS nano peas like structure as a high efficient counter electrode for quantum-dot sensitized solar cells. Journal of Electroanalytical Chemistry, 2015, 739: 20-27.
[39]	LIN Y B, LIN Y, WU J H, et al. Facile synthesis of porous CuS film as a high efficient counter electrode for quantum-dot-sensitized solar cells. Applied Physics A, 2016, 122: 609-1-6.
[40]	WANG Y Q, ZHANG Q H, LI Y G,et al. CuxS counter electrodes in-situ prepared via the sulfidation of magnetron sputtering Cu film for quantum dot sensitized solar cells. Journal of Power Sources, 2016, 318: 128-135.
[41]	CHEN X Q, LI Z, YANG B,et al. Room temperature synthesis of Cu2-xE (E= S, Se) nanotubes with hierarchical architecture as a counter electrodes of quantum dot sensitized solar cells. Chemistry - A European Journal, 2015, 21(3): 1055-1063.
[42]	ESKANDARI M, AHMADI V.Copper selenide as a new counter electrode for zinc oxide nanorod based quantum dot solar cells.Materials Letters, 2015, 142: 308-311.
[43]	LIN C Y, TENG C Y, LI T L,et al. Photoactive p-type PbS as a counter electrode for quantum dot-sensitized solar cells. Journal of Materials Chemistry A, 2013, 1(4): 1155-1162.
[44]	TACHAN Z, SHALOM M, HOD I,et al. PbS as a highly catalytic counter electrode for polysulfide-based quantum dot solar cells. The Journal of Physical Chemistry C, 2011, 115(13): 6162-6166.
[45]	FABER M S, DZIEDZIC R, LUKOWSKI M A,et al. High- performance electrocatalysis using metallic cobalt pyrite (CoS2) micro-and nanostructures. Journal of the American Chemical Society, 2014, 136(28): 10053-10061.
[46]	FABER M S, PARK K, CABAN A M,et al. Earth-abundant cobalt pyrite (CoS2) thin film on glass as a robust, high-performance counter electrode for quantum dot-sensitized solar cells. The Journal of Physics Chemical Letters, 2013, 4(11): 1843-1849.
[47]	MA C Q, TANG Q W, ZHAO Z Y,et al. Bifacial quantum dot-sensitized solar cells with transparent cobalt selenide counter electrodes. Journal of Power Sources, 2015, 278: 183-189.
[48]	YANG J Q, GUO W, LI D,et al. Synthesis and electrochemical performances of novel hierarchical flower-like nickel sulfide with tunable number of composed nanoplates. Journal of Power Sources, 2014, 268: 113-120.
[49]	KIM H J, KIM D J, RAO S S,et al. Highly efficient solution processed nanorice structured NiS counter electrode for quantum dot sensitized solar cells. Electrochimica Acta, 2014, 127: 427-432.
[50]	CHEN H N, ZHU L Q, LIU H C,et al. Efficient iron sulfide counter electrode for quantum dots-sensitized solar cells . Journal of Power Sources, 2014, 245(1): 406-410.
[51]	SHANE T F, JANET E M. Petaled molybdenum disulfide surfaces: facile synthesis of a superior cathode for QDSSCs. Advanced Energy Materials, 2014, 4: 1400495-1-6.
[52]	YU H J, BAO H L, ZHAO K,et al. Topotactically grown bismuth sulfide network film on substrate as low-cost counter electrodes for quantum dot-sensitized solar cells . The Journal of Physical Chemistry C, 2014, 118(30): 16602-16610.
[53]	RADICH J G, DWYER R, KAMAT P V,et al. Cu2S reduced graphene oxide composite for high-efficiency quantum dot solar cells. overcoming the redox limitations of S2-/Sn2- at the counter electrode. The Journal of Physical Chemistry Letters, 2011, 2(19): 2453-2460.
[54]	ZHU Y Y, CUI H J, JIA S P,et al. 3D graphene frameworks with uniformly dispersed CuS as an efficient catalytic electrode for quantum dot-sensitized solar cells. Electrochimica Acta, 2016, 208: 288-295.
[55]	MAHMOUD S, SHAGHAYEGH A.Graphene/CuS/PbS nanocomposite as an effective counter electrode for quantum dot sensitized solar cells.Journal of Alloys and Compounds. 2017, 696: 369-375.
[56]	ZHANG X L, HUANG X M, YANG Y Y,et al. Investigation on new CuInS2/carbon composite counter electrodes for CdS/CdSe cosensitized solar cells. ACS Applied Materials & Interfaces, 2013, 5(13): 5954-5960.
[57]	LI L L, ZHU P N, PENG S J,et al. Controlled growth of CuS on electrospun carbon nanofibers as an efficient counter electrode for quantum dot-sensitized solar cells. The Journal of Physical Chemistry C, 2014, 118(30): 16526-16535.
[58]	KIM H J, SUH S M, S. RAO S,et al. Investigation on novel CuS/NiS composite counter electrode for hindering charge recombination in quantum dot sensitized solar cells. Journal of Electroanalytical Chemistry, 2016, 777: 123-132.
[59]	PUNNOOSE D, KUMAR C P, RAO S S,et al. In situ synthesis of CuS nano platelets on nano wall networks of Ni foam and its application as an efficient counter electrode for quantum dot sensitized solar cells. Organic Electronics, 2017, 42: 115-122.
[60]	KIM H J, KIM S W, CHANDU V V M,et al. Improved performance of quantum dot-sensitized solar cells adopting a highly efficient cobalt sulfide/nickel sulfide composite thin film counter electrode. Journal of Power Sources, 2014, 268: 163-170.
[61]	YANG Y Y, ZHU L F, SUN H C,et al. Composite counter electrode based on nanoparticulate PbS and carbon black: towards quantum dot-sensitized solar cells with both high efficiency and stability. ACS Applied Materials & Interfaces, 2012, 4(11): 6162-6168.
[62]	SONG X H, WANG M Q, DENG J P,et al. ZnO/PbS core/shell nanorod arrays as efficient counter electrode for quantum dot- sensitized solar cells. Journal of Power Sources, 2014, 269: 661-670.
[63]	YOUN D H, SEOL M, KIM J Y,et al. TiN nanoparticles on CNT- graphene hybrid support as noble-metal-free counter electrode for quantum-dot-sensitized solar cells. ChemSusChem, 2013, 6: 261-267.
[64]	RAJ C J, PRABAKAR K, SAVARIRAJ A D,et al. Surface reinforced platinum counter electrode for quantum dots sensitized solar cells. Electrochimica Acta, 2013, 103: 231-236.
[65]	DAO V D, CHOI Y, YONG K,et al. Graphene-based nanohybrid materials as the counter electrode for highly efficient quantum- dot-sensitized solar cells. Carbon, 2015, 84: 383-389.
[66]	JUN X U, XIA Y, YANG Q D,et al. Cu2ZnSnS4 hierarchical microspheres as an effective counter electrode material for quantum dot sensitized solar cells. The Journal of Physical Chemistry C, 2012, 116(37): 19718-19723.
[67]	CAO Y B, XIAO Y J, JUNG J Y,et al. Highly electrocatalytic Cu2ZnSn(S1-xSex)4 counter electrodes for quantum-dot-sensitized solar cells. ACS & Interfaces Applied Materials, 2013, 5(3): 479-484.
[68]	LUO Q, GU Y C, LI J B,et al. Efficient ternary cobalt spinel counter electrodes for quantum-dot sensitized solar cells. Journal of Power Sources, 2016, 312: 93-100.
[69]	HUANG Z, LIU X Z, LI K X,et al. Application of carbon materials as counter electrodes of dye-sensitized solar cells. Electrochemistry Communications, 2007, 9(4): 596-598.
[70]	ZHAO Q, JAMAL, ZHANG LI,et al. The structure and properties of PEDOT synthesized by template-free solution method. Nanoscale Research Letters, 2014, 9: 557-1-9.
[71]	YEH M H, LEE C P, CHOU C Y,et al. Conducting polymer-based counter electrode for a quantum-dot-sensitized solar cell (QDSSC) with a polysulfide electrolyte. Electrochimica Acta, 2011, 57: 277-284.
[72]	ZHANG Q X, ZHANG Y D, HUANG S Q,et al. Application of carbon counterelectrode on CdS quantum dot-sensitized solar cells (QDSSCs). Electrochemistry Communications, 2010, 12(2): 327-330.
[73]	FAN S Q, FANG B Z, JUNG H K, et al.Hierarchical nanostructured spherical carbon with hollow core/mesoporous shell as a highly efficient counter electrode in CdSe quantum-dot-sensitized solar cells. Applied Physics Letters, 2010, 96(6): 063501-1-3.
[74]	GOURI S P, JUNG H K, KIM M S,et al. Different hierarchical nanostructured carbons as counter electrodes for CdS quantum dot solar Cells, ACS Applied Materials & Interfaces, 2012, 4(1): 375-381.
[75]	SUDHAGAR P, RAMASAM E Y, CHO W H,et al. Robust mesocellular carbon foam counter electrode for quantum-dot sensitized solar cells. Electrochemistry Communications, 2011, 13(1): 34-37.
[76]	DONG J H, JIA S P, CHEN J Z,et al. Nitrogen-doped hollow carbon nanoparticles as efficient counter electrodes in quantum dot sensitized solar cells. Journal of Materials Chemistry, 2012, 22(19): 9745-9750.
[77]	HAO F, DONG P, ZHANG J,et al. High electrocatalytic activity of vertically aligned single-walled carbon nanotubes towards sulfide redox shuttles. Scientific Reports, 2012, 2(368): 1-6.
[78]	SEOL M, YOUN D H, KIM J Y, et al. Mo-compound/CNT- graphene composites as efficient catalytic electrodes for quantum- dot-sensitized solar cells. Advanced Energy Materials, 2014, 4(4): 1300775-1-7.
[79]	JIAO S, DU J, DU Z L,et al. Nitrogen-doped mesoporous carbons as counter electrodes in quantum dot sensitized solar cells with a conversion efficiency exceeding 12%. The Journal of Physical Chemistry Letters, 2017, 8(3): 559-564.

CE	QDs	Synthesis method	Electrolyte	R_ct/(?·cm²)	V_oc/mV	J_sc/(mA·cm^-2)	FF/%	ŋ/%
Cu₂S^[24]	CdSe	Dipping immersion	Polysulfide	2.72	590	16.04	56	5.21
PbS^[43]	CdS/ZnS	SILAR	Polysulfide	30.00	580	18.30	45	4.70
CuS^[35]	CdS	CBD	Polysulfide	1.04	570	14.58	55	4.53
CuS^[26]	CdS/CdSe	Heat-sealed method	Polysulfide	47.20	550	16.05	49	4.32
CoS₂^[46]	CdS/CdSe	Thermal sulfidation	Polysulfide	40.60	510	14.44	56	4.16
CuS^[37]	CdS/CdSe	CBD	Polysulfide	2.70	600	12.51	53	4.02
CuS^[38]	CdS, CdSe, ZnS	CBD	Polysulfide	4.40	550	13.87	51	4.01
Cu₂S^[25]	CdS&CdSe	Dipping immersion	Polysulfide	0.65	450	13.45	60	3.65
PbS^[44]	CdSe	Dipping immersion	Polysulfide	130.00	550	9.28	59	3.01
NiS^[49]	CdS, CdSe, ZnS	CBD	Polysulfide	3.16	510	10.38	55	2.97
Co_xSe^[47]	CdS	Hydrothermal	Polysulfide	2.68	650	9.29	35	2.11
FeS^[50]	CdS	Dipping immersion	Polysulfide	13.60	430	9.60	43	1.76
Mo₂S^[51]	CdS、ZnS	Hydrothermal	Polysulfide	/	480	6.22	41	1.21

CE	QDs	Synthesis method	Electrolyte	R_ct/(?·cm²)	V_oc/mV	J_sc/(mA·cm^-2)	FF/%	ŋ/%
Cu₂S^[24]	CdSe	Dipping immersion	Polysulfide	2.72	590	16.04	56	5.21
PbS^[43]	CdS/ZnS	SILAR	Polysulfide	30.00	580	18.30	45	4.70
CuS^[35]	CdS	CBD	Polysulfide	1.04	570	14.58	55	4.53
CuS^[26]	CdS/CdSe	Heat-sealed method	Polysulfide	47.20	550	16.05	49	4.32
CoS₂^[46]	CdS/CdSe	Thermal sulfidation	Polysulfide	40.60	510	14.44	56	4.16
CuS^[37]	CdS/CdSe	CBD	Polysulfide	2.70	600	12.51	53	4.02
CuS^[38]	CdS, CdSe, ZnS	CBD	Polysulfide	4.40	550	13.87	51	4.01
Cu₂S^[25]	CdS&CdSe	Dipping immersion	Polysulfide	0.65	450	13.45	60	3.65
PbS^[44]	CdSe	Dipping immersion	Polysulfide	130.00	550	9.28	59	3.01
NiS^[49]	CdS, CdSe, ZnS	CBD	Polysulfide	3.16	510	10.38	55	2.97
Co_xSe^[47]	CdS	Hydrothermal	Polysulfide	2.68	650	9.29	35	2.11
FeS^[50]	CdS	Dipping immersion	Polysulfide	13.60	430	9.60	43	1.76
Mo₂S^[51]	CdS、ZnS	Hydrothermal	Polysulfide	/	480	6.22	41	1.21

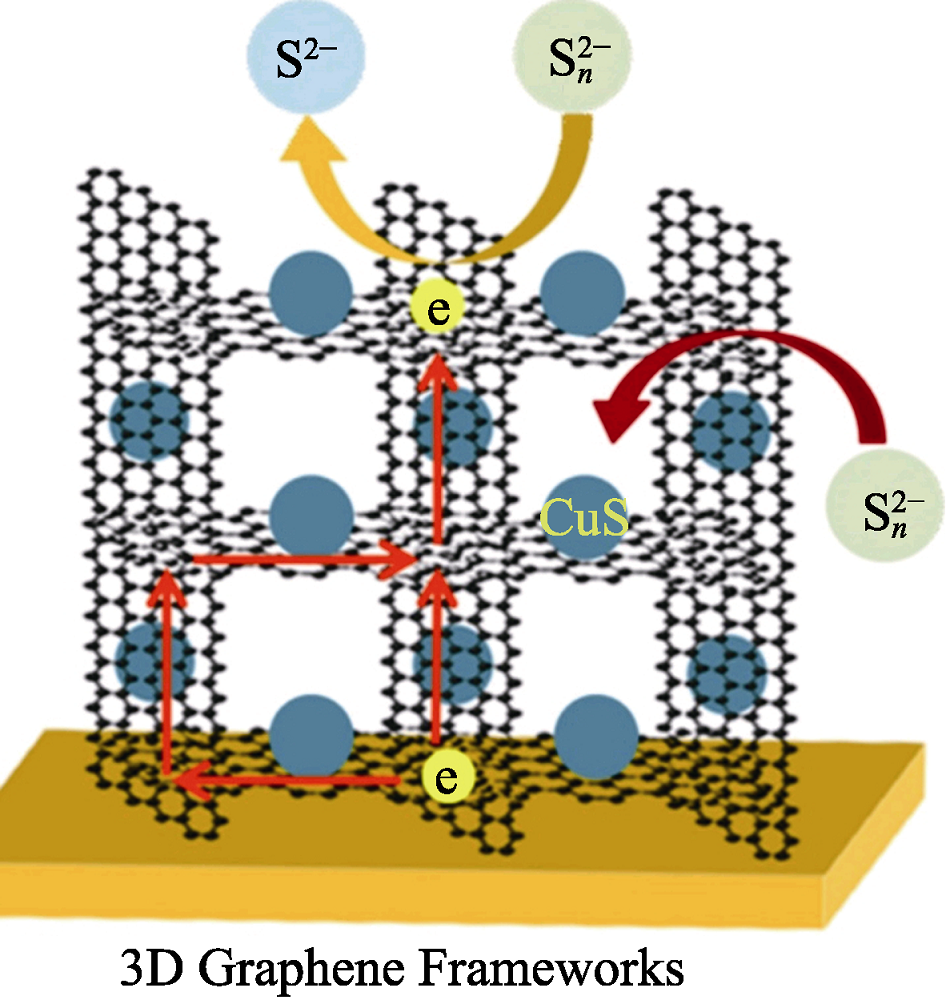

CE	QDs	Synthetic method	Electrolyte	R_ct/(?·cm²)	J_sc/mV	V_oc/(mA·cm^-2)	FF/%	ŋ/%
RGO/Cu₂S^[53]	CdSe	Spin-coating	Polysulfide	1.61	18.40	520.00	46	4.40
CuInS₂/C^[56]	CdS/CdSe	Dotor-blading	Polysulfide	18.79	14.16	512.00	60	4.32
PbS/CB^[61]	CdS/CdSe	Dotor-blading	Polysulfide	10.28	13.32	509.58	58	3.91
CuS/EC^[57]	CdS	Hydrothermal	Polysulfide	/	14.60	521.00	51	3.86
CoS/NiS^[60]	CdS/CdSe	CBD	Polysulfide	1.97	11.15	579.00	53	3.40

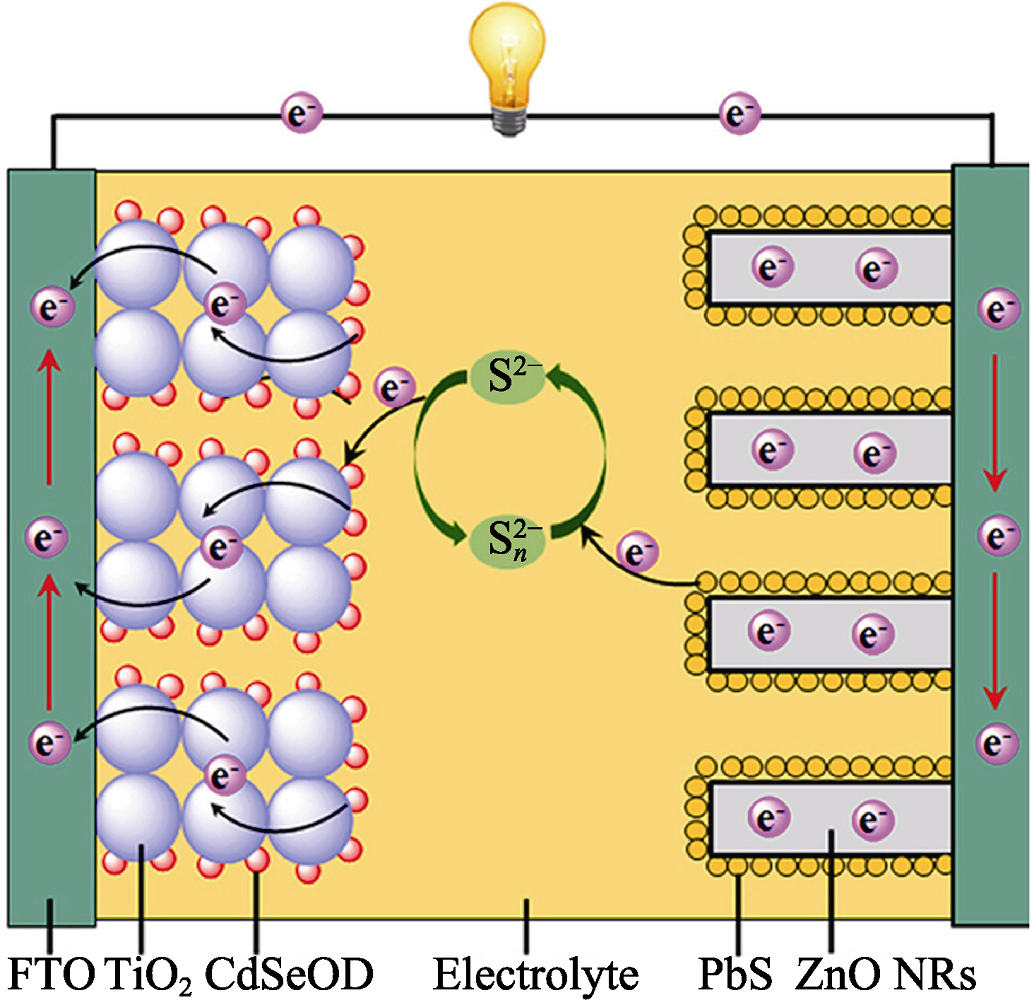

ZnO/PbS^[62]	CdSe	SILAR	Polysulfide	5.20	11.17	520.00	53	3.06

CE	QDs	Synthetic method	Electrolyte	R_ct/(?·cm²)	J_sc/mV	V_oc/(mA·cm^-2)	FF/%	ŋ/%
RGO/Cu₂S^[53]	CdSe	Spin-coating	Polysulfide	1.61	18.40	520.00	46	4.40
CuInS₂/C^[56]	CdS/CdSe	Dotor-blading	Polysulfide	18.79	14.16	512.00	60	4.32
PbS/CB^[61]	CdS/CdSe	Dotor-blading	Polysulfide	10.28	13.32	509.58	58	3.91
CuS/EC^[57]	CdS	Hydrothermal	Polysulfide	/	14.60	521.00	51	3.86
CoS/NiS^[60]	CdS/CdSe	CBD	Polysulfide	1.97	11.15	579.00	53	3.40
ZnO/PbS^[62]	CdSe	SILAR	Polysulfide	5.20	11.17	520.00	53	3.06

CE	QDs	Synthetic method	R_ct/(?·cm²)	V_oc/mV	J_sc/(mA·cm^-2)	FF/%	ŋ/%
AuPtNP/RGO	CdSe	Co-reduction	34.25	720	15.2	41	4.50

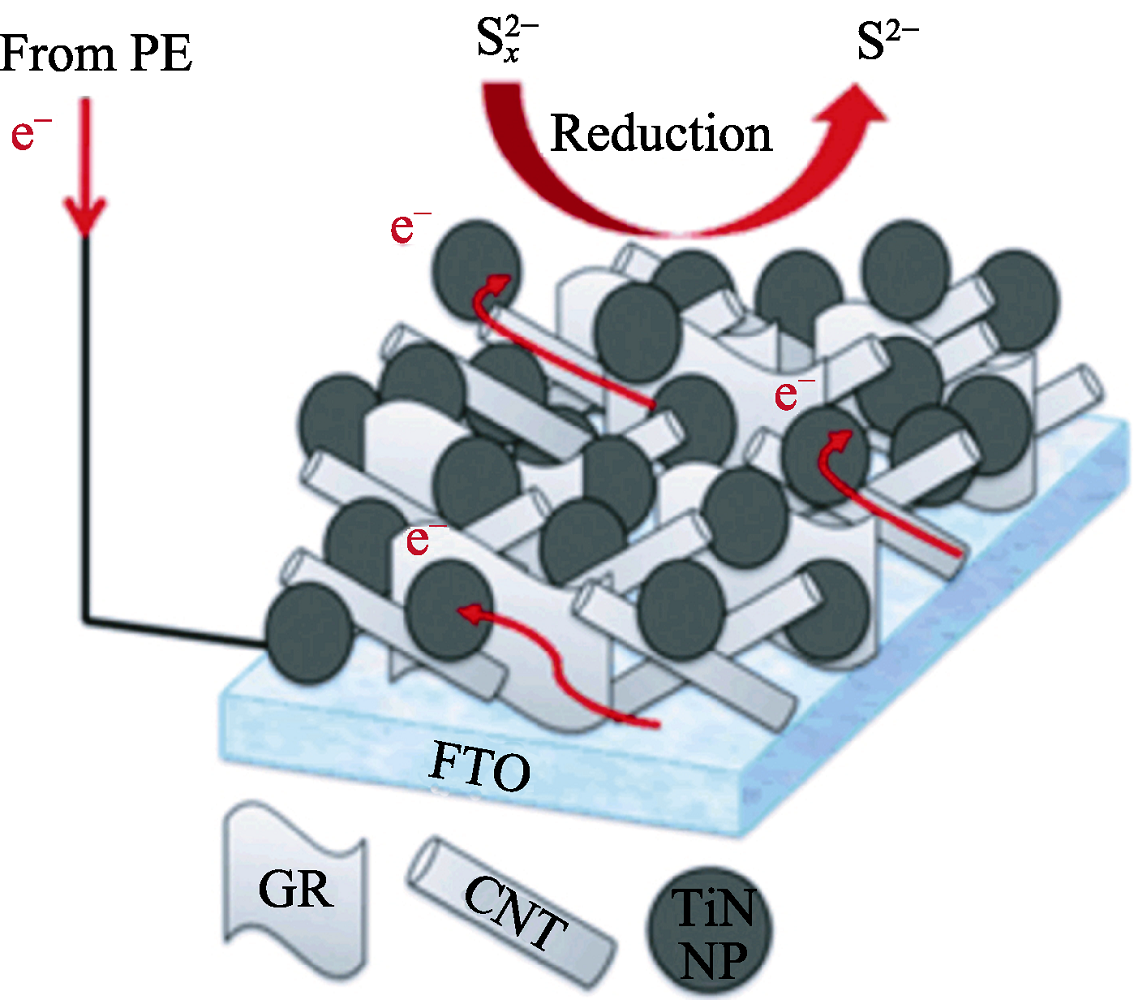

TiN/CNT-GR	CdSe/CdS	SILAR	14.40	642	14.0	46	4.13
TiN/CNT	CdSe/CdS		23.60	645	13.7	44	3.89
TiN-GR	CdSe/CdS		36.60	636	12.7	43	3.47
TiN	CdSe/CdS		123.00	609	6.6	20	0.80
CuS/Pt	CdS	Coated reaction method	424.00	567	8.0	50	2.27

量子点敏化太阳能电池对电极材料的研究进展

Research Progress on Counter Electrodes of Quantum Dot-sensitized Solar Cells

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 11

参考文献 79

相关文章 15

编辑推荐

Metrics

本文评价

[1]	魏相霞, 张晓飞, 徐凯龙, 陈张伟. 增材制造柔性压电材料的现状与展望[J]. 无机材料学报, 2024, 39(9): 965-978.
[2]	杨鑫, 韩春秋, 曹玥晗, 贺桢, 周莹. 金属氧化物电催化硝酸盐还原合成氨研究进展[J]. 无机材料学报, 2024, 39(9): 979-991.
[3]	刘鹏东, 王桢, 刘永锋, 温广武. 硅泥在锂离子电池中的应用研究进展[J]. 无机材料学报, 2024, 39(9): 992-1004.
[4]	黄洁, 汪刘应, 王滨, 刘顾, 王伟超, 葛超群. 基于微纳结构设计的电磁性能调控研究进展[J]. 无机材料学报, 2024, 39(8): 853-870.
[5]	陈乾, 苏海军, 姜浩, 申仲琳, 余明辉, 张卓. 超高温氧化物陶瓷激光增材制造及组织性能调控研究进展[J]. 无机材料学报, 2024, 39(7): 741-753.
[6]	王伟明, 王为得, 粟毅, 马青松, 姚冬旭, 曾宇平. 以非氧化物为烧结助剂制备高导热氮化硅陶瓷的研究进展[J]. 无机材料学报, 2024, 39(6): 634-646.
[7]	蔡飞燕, 倪德伟, 董绍明. 高熵碳化物超高温陶瓷的研究进展[J]. 无机材料学报, 2024, 39(6): 591-608.
[8]	吴晓晨, 郑瑞晓, 李露, 马浩林, 赵培航, 马朝利. SiC_f/SiC陶瓷基复合材料高温环境损伤原位监测研究进展[J]. 无机材料学报, 2024, 39(6): 609-622.
[9]	赵日达, 汤素芳. 多孔碳陶瓷化改进反应熔渗法制备陶瓷基复合材料研究进展[J]. 无机材料学报, 2024, 39(6): 623-633.
[10]	方光武, 谢浩元, 张华军, 高希光, 宋迎东. CMC-EBC损伤耦合机理及一体化设计研究进展[J]. 无机材料学报, 2024, 39(6): 647-661.
[11]	张幸红, 王义铭, 程源, 董顺, 胡平. 超高温陶瓷复合材料研究进展[J]. 无机材料学报, 2024, 39(6): 571-590.
[12]	张慧, 许志鹏, 朱从潭, 郭学益, 杨英. 大面积有机-无机杂化钙钛矿薄膜及其光伏应用研究进展[J]. 无机材料学报, 2024, 39(5): 457-466.
[13]	李宗晓, 胡令祥, 王敬蕊, 诸葛飞. 氧化物神经元器件及其神经网络应用[J]. 无机材料学报, 2024, 39(4): 345-358.
[14]	岳仔豪, 杨小兔, 张正亮, 邓瑞翔, 张涛, 宋力昕. Pb²⁺对掺杂硼硅酸盐玻璃中CsPbBr₃钙钛矿量子点发光性能的影响[J]. 无机材料学报, 2024, 39(4): 449-456.
[15]	鲍可, 李西军. 化学气相沉积法制备智能窗用热致变色VO₂薄膜的研究进展[J]. 无机材料学报, 2024, 39(3): 233-258.
