一类新型碱激发胶凝材料催化剂的研究进展

doi:10.15541/jim20150412

摘要/Abstract

摘要：

碱激发固体铝硅酸盐胶凝材料是先进无机非金属材料的前瞻性研究领域之一, 本文对碱激发铝硅酸盐胶凝材料的分类、制备工艺、形成机理以及潜在的应用前景进行了综述; 详尽地论述了碱激发胶凝材料基新型催化剂的最新研究进展, 综合分析了碱激发胶凝材料作为结构材料研究的局限性, 展望了该材料作为新型催化材料的发展动态。

关键词: 碱激发胶凝材料, 固体铝硅酸盐, 制备工艺, 碱催化机理, 胶凝材料催化剂, 综述

Abstract:

Alkali-activated solid aluminosilicate-based cementitious material is one of prospective research fields of advanced inorganic non-metallic materials. Its classification, preparation process, formation mechanism, and potential applications are reviewed in this paper. It is considered that its microstructure and chemical characteristics intensively depend on the raw materials and synthesis conditions. Geopolymers derive from alkali-activated metakaolin or fly ash with low calcium content, while the amorphous calcium silicate hydrate (C-S-H) gels root in the chemical-activated solid wastes of granular blast furnace slag, steel slag and other solid aluminosilicate wastes with high calcium contents. Even though durability of alkali-activated cementitious materials as the building structure materials has been widely studied in the past decades, the intrinsic brittleness still restricts their applications in the field of civil and building engineering. Therefore, exploration of a new applied approach is by far the best option. In recent years, many researches report that the alkali-activated cementitious materials are used as novel precursors and catalysts for some kinds of heterogeneous reactions. The latest research progresses on alkali-activated cementitious material-based catalysts are discussed.

Key words: alkali-activated cementitious material, solid aluminosilicate, preparation technics, alkali-catalytic mechanism, cementitious material catalyst, review

中图分类号:

TQ172

张耀君, 杨梦阳, 康乐, 张力, 张科. 一类新型碱激发胶凝材料催化剂的研究进展[J]. 无机材料学报, 2016, 31(3): 225-233.

ZHANG Yao-Jun, YANG Meng-Yang, KANG Le, ZHANG Li, ZHANG Ke. Research Progresses of New Type Alkali-activated Cementitious Material Catalyst[J]. Journal of Inorganic Materials, 2016, 31(3): 225-233.

图/表 3

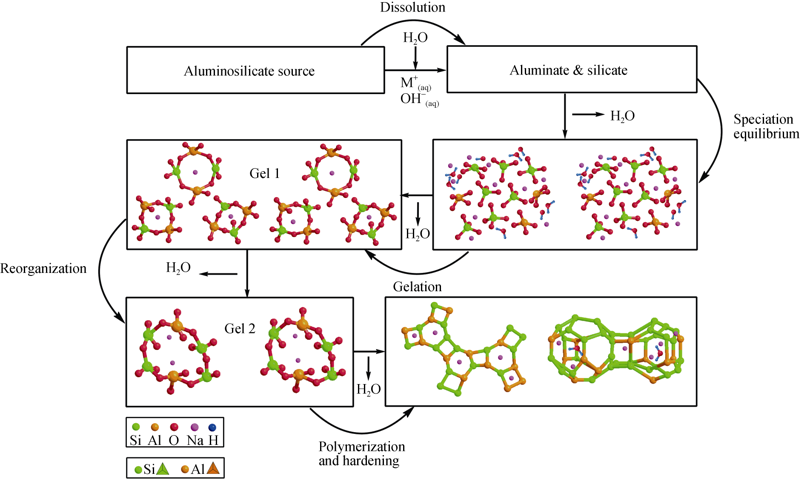

图1 碱激发固体铝硅酸盐地质聚合物的形成机理[7]

Fig. 1 Formation mechanism of alkali-activated solid aluminosilicate-based geopolymer[7]

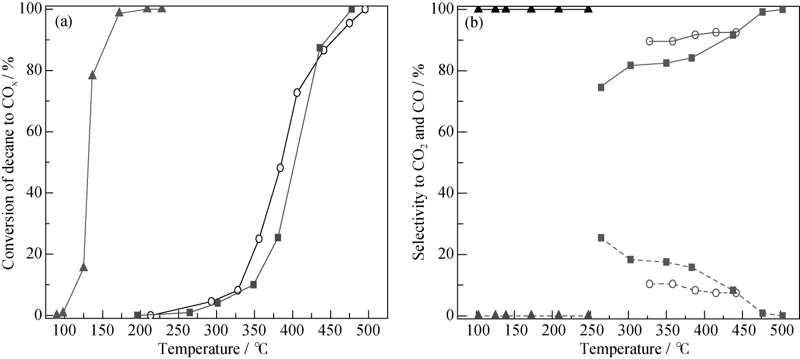

图2 癸烷在PtNH4-Geo-2 (▲)、FeKCa-Geo-2 (○) 和 CoNH4-Geo-2 (■)催化剂上的转化率(a)以及CO2(实线)和CO(点线) 的选择性(b)[51]

Fig. 2 Conversion of decane (a) and selectivity for CO2 (solid line) and CO (dot line) (b) over PtNH4-Geo-2 (▲), FeKCa-Geo-2 (○) and CoNH4-Geo-2 (■)[51]

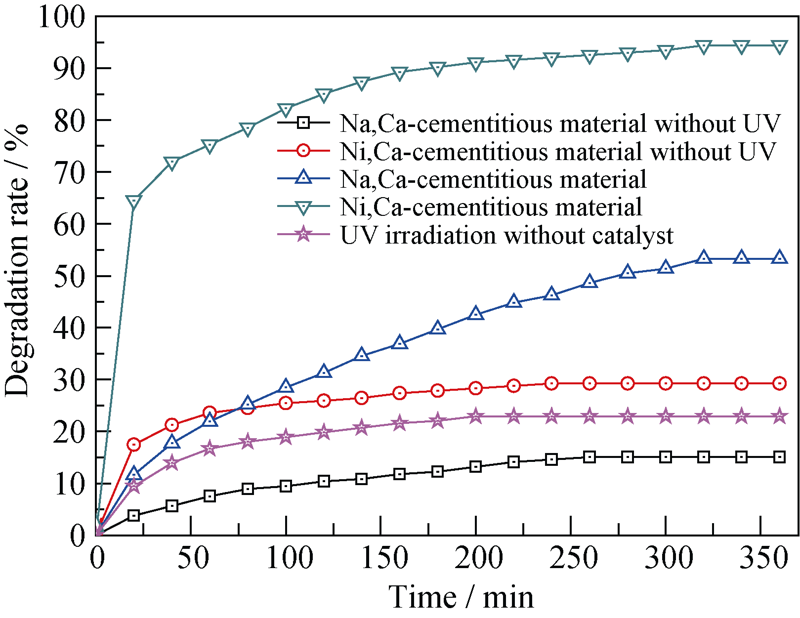

图3 碱激发钢渣基胶凝材料催化剂对亚甲基蓝染料光催化降解率[56]

Fig. 3 Photocatalytic degradation rate of methylene blue dye over alkali-activated steel slag-based gel catalysts[56]

参考文献 71

[1]	SALAHUDDIN M B M, NORKHAIRUNNISA M, MUSTAPHA F. A review on thermophysical evaluation of alkali-activated geopolymers.Ceram. Int., 2015, 41: 4273-4281.
[2]	RASHAD A M.Alkali-activated metakaolin: a short guide for civil engineer - an overview.Constr. Build. Mater., 2013, 41: 751-765.
[3]	KHALE D, CHAUDHARY R.Mechanism of geopolymerization and factors influencing its development: a review.J. Mater. Sci., 2007, 42: 729-746.
[4]	PACHECO-TORGAL F, CASTRO-GOMES J, JALALI S.Alkali- activated binders: a review part 1. Historical background, terminology, reaction mechanisms and hydration products.Constr. Build. Mater., 2008, 22: 1305-1314.
[5]	KOMNITSAS K, ZAHARAKI D.Geopolymerisation: a review and prospects for the minerals industry.Miner. Eng., 2007, 20: 1261-1277.
[6]	ROY D M.Alkali activated cement opportunities and challenges.Cem. Concr. Res., 1999, 29: 249-254.
[7]	DUXSON P, FERNANDEZ-JIMENEZ A, PROVIS J L, et al. Geopolymer technology: the current state of the art. J. Mater. Sci., 2007, 42: 2917-2933.
[8]	DAVIDOVITS J.Geopolymers and geopolymeric new materials.J. Therm. Anal., 1989, 35: 429-441.
[9]	DAVIDOVITS J.Geopolymers: inorganic polymer new materials.J. Therm. Anal., 1991, 37: 1633-1656.
[10]	HEITSMANN R F, FITZGERALD M, SAWYER J L.Patent, No.4643137. 1987.
[11]	MALLICOAT S, SARIN P, KRIVEN W M.Novel alkali-bonded ceramic filtration membranes.Ceram. Eng. Sci. Proc., 2008, 26(8): 37-44.
[12]	RAHIER H, VAN MELE B, BIESEMANS M, et al. Low-temperature synthesized aluminosilicate glasses. J. Mater. Sci., 1996, 31: 71-79.
[13]	PURDON A O.The action of alkalis on blast-furnace slag.J. Soc. Chem. Ind., 1940, 59: 191-202.
[14]	XU H, VAN DEVENTER J S J. The effect of alkali metals on the formation of geopolymeric gels from alkali-feldspar.Colloids Surf. A, 2003, 216(1/2/3): 27-44.
[15]	XU H, VAN DEVENTER J S J. Geopolymerisation of multiple minerals.Miner. Eng., 2002, 15: 1131-1139.
[16]	FERNANDEZ-JIMENEZ A, PALOMO A, CRIADO M.Microstructure development of alkali-activated fly ash cement: a descriptive model.Cem. Concr. Res., 2005, 35: 1204-1209.
[17]	FERNANDEZ-JIMENEZ A, PALOMO A, SOBRADOS I, et al. The role played by the reactive alumina content in the alkaline activation of fly ashes. Microporous Mesoporous Mater., 2006, 91: 111-119.
[18]	BELLMANN F, STARK J.Activation of blast furnace slag by a new method.Cem. Concr. Res., 2009, 39: 644-650.
[19]	CHENG T W, CHIU J P.Fire-resistant geopolymer produced by granulated blast furnace slag.Miner. Eng., 2003, 16: 205-210.
[20]	SONG S, SOHN D, JENNINGS H M, et al. Hydration of alkali- activated ground granulated balst furnace slag. J. Mater. Sci., 2000, 35: 249-257.
[21]	ZHANG Y J, ZHAO Y L, LI H H, et al. Structure characterization of hydration products generated by alkaline activation of granulated blast furnace slag. J. Mater. Sci., 2008(43): 7141-7147.
[22]	XU H, VAN DEVENTER J S J. The geopolymerisation of aluminosilicate minerals.Int. J. Miner. Process., 2000, 59(3): 247-266.
[23]	YIP C K, VAN DEVENTER J S J. Microanalysis of calcium silicate hydrate gel formed within a geopolymeric binder.J. Mater. Sci., 2003, 38: 3851-3860.
[24]	YIP C K, LUKEY G C, VAN DEVENTER J S J. Effect of blast furnace slag addition on microstructure and properties of metakaolinite geopolymeric materials.Ceram. Trans., 2004, 153: 187-209.
[25]	ZHANG Y J, WANG Y C, XU D L, et al. Mechanical performance and hydration mechanism of geopolymer composite reinforced by resin. Mater. Sci. Eng. A, 527: 2010, 6574-6580.
[26]	ZHANG Y J, LI S, WANG Y C, et al. Microstructural and strength evolutions of geopolymer composite reinforced by resin exposed to elevated temperature. J. Non-Crystal. Solids, 2012, 358: 620-624.
[27]	ZHANG Y J, LI S, XU D L, et al. A novel method for preparation of organic resins reinforced geopolymer composites. J. Mater. Sci., 2010, 45: 1189-1192.
[28]	YIP C K, LUKEY G C, VAN DEVENTER J S J. The coexistence of geopolymeric gel and calcium silicate hydrate at the early stage of alkaline activation.Cem. Concr. Res., 2005, 35: 1688-1697.
[29]	GORETTA K C, CHEN N, GUTIERREZ-MORA F, et al. Solid-particle erosion of a geopolymer containing fly ash and blast-furnace slag. Wear, 2004, 256: 714-719.
[30]	OH J E, MONTEIRO P J M, JUN S S, et al. The evolution of strength and crystalline phases for alkali-activated ground blast furnace slag and fly ash-based geopolymers. Cem. Concr. Res., 2010, 40: 189-196.
[31]	KOMNITSAS K, ZAHARAKI D, PERDIKATSIS V.Effect of synthesis parameters on the compressive strength of low-calcium ferronickel slag inorganic polymers.J. Hazard. Mater., 2009, 161: 760-768.
[32]	PAN Z, LI D, YU J, et al. Properties and microstructure of the hardened alkali-activated red mud-slag cementitious material. Cem. Concr. Res., 2003, 33: 1437-1441.
[33]	ACHECO-TORGAL F, CASTRO-GOMES J, JALALI S.Properties of tungsten mine waste geopolymeric binder.Constr. Build. Mater., 2008, 22: 1201-1211.
[34]	RODRIGUEZ E D, BERNAL S A, PROVIS J L, et al. Geopolymers based on spent catalyst residue from a fluid catalytic cracking (FCC) process. Fuel, 2013, 109: 493-502.
[35]	SINGH P S, BASTOW T, TRIGG M.Structural studies of geopolymers by 29Si and 27Al MAS-NMR.J. Mater. Sci., 2005, 40: 3951-3961.
[36]	DUXSON P, LUKEY G C, VAN DEVENTER J S J. Thermal conductivity of metakaolin geopolymers used as a first approximation for determining gel interconnectivity.Ind. Eng. Chem. Res., 2006, 45(23): 7781-7788.
[37]	WANG H, LI H, YAN F.Reduction in wear of metakaolinite-based geopolymer composite through filling of PTFE.Wear, 2005, 258(10): 1562-1566.
[38]	NAIR B G, ZHAO Q, COOPER R F.Geopolymer matrices with improved hydrothermal corrosion resistance for high-temperature applications.J. Mater. Sci., 2007, 42: 3083-3091.
[39]	BELL J L, GORDON M, KRIVEN W M.Use of geopolymeric cements as a refractory adhesive for metal and ceramic joins.Ceram. Eng. Sci. Proc., 2005, 26(3): 407-413.
[40]	GARCIA-LODEIRO I, PALOMO A, FERNANDEZ-JIMENEZ A.Alkali-aggregate reaction in activated fly ash systems.Cem. Concr. Res., 2007, 37(2): 175-183.
[41]	BAKHAREV T, SANJAYAN J, CHENG Y B.Resistance of alkali- activated slag concrete to acid attack.Cem. Concr. Res., 2003, 33: 1607-1611.
[42]	SHI C, STEGEMANN J.Acid corrosion resistance of different cementing materials.Cem. Concr. Res., 2000, 30: 803-808.
[43]	BAKHAREV T, SANJAYAN J G, CHENG Y B.Sulfate attack on alkali-activated slag concrete.Cem. Concr. Res., 2002, 32: 211-216.
[44]	PALOMO A, BLANCO-VARELA M T, GRANIZO M L, et al. Chemical stability of cementitious materials based on metakaolin. Cem. Concr. Res., 1999, 29(7): 997-1004.
[45]	ROY D M, JIANG W, SILSBEE M.Chloride diffusion in ordinary, blended, and alkali-activated cement pastes and its relation to other properties.Cem. Concr. Res., 2000, 30: 1879-1884.
[46]	PUERTAS F, AMAT T, FERNANDEZ-JIMENEZ A, et al. Mechanical and durable behaviour of alkaline cement mortars reinforced with polypropylene fibres. Cem. Concr. Res., 2003, 33: 2031-2036.
[47]	GLASSER FP.Progress in the immobilization of radioactive wastes in cement, Cem. Concr. Res., 1992, 22: 201-216.
[48]	VAN JAARSVELD J G S, VAN DEVENTER J S J, SCHWARTZMAN A. The potential use of geopolymeric materials to immobilize toxic metals: part II. Material and leaching characteristics.Miner. Eng., 1999, 12(1): 75-91.
[49]	QIAN G, SUN D D, TAY J H.Immobilization of mercury and zinc in an alkali-activated slag matrix.J. Hazard. Mater., 2003, 101(1): 65-77.
[50]	JAN D.Immobilization of Cr6+, Cd2+, Zn2+ and Pb2+ in alkali- activated slag binders.Cem. Concr. Res., 2002, 32(12): 1971-1979.
[51]	SAZAMA P, BORTNOVSKY O, DEDECEK J, et al. Geopolymer based catalysts-new group of catalytic materials. Catal. Today, 2011, 164: 92-99.
[52]	CASCA-TIRADO J R, MANZANO-RAMIREZ A, VILLASENOR- MORA C, et al. Incorporation of photoactive TiO2 in an aluminosilicate inorganic polymer by ion exchange. Microporous Mesoporous Mater., 2012, 153: 282-287.
[53]	CASCA-TIRADO J R, MANZANO-RAMIREZ A, VAZQUEZ- LANDAVERDE P A, et al. Ion-exchanged geopolymer for photocatalytic degradation of a volatile organic compound. Mater. Lett., 2014, 134: 222-224.
[54]	CANDAMANO S, FRONTERA P, MACARIO A, et al. Preparation and characterization of active Ni-supported catalyst for syngas production. Chem. Eng. Res. Des., 2015, 96: 78-86.
[55]	SHARMA S, MEDPELLI D, CHEN S, et al. Calcium-modified hierarchically porous aluminosilicate geopolymer as a highly efficient regenerable catalyst for biodiesel production. RSC Adv., 2015, 5: 65454-65461.
[56]	ZHANG Y J, LIU L C, XU Y, et al. A new alkali-activated steel slag-based cementitious material for photocatalytic degradation of organic pollutant from waste water. J. Hazard. Mater., 2012, 209-210: 146-150.
[57]	KANG L, ZHANG Y J, WANG L L, et al. Alkali-activated steel slag-based mesoporous material as a new photocatalyst for degradation of dye from wastewater. Integr. Ferroelectr., 2015, 162: 8-17.
[58]	AHMARUZZAMAN M.A review on the utilization of fly ash.Prog. Energy Combust. Sci., 2010, 36(3): 327-363.
[59]	LI L, WANG S, ZHU Z.Geopolymeric adsorbents from fly ash for dye removal from aqueous solution.J. Colloid Interface Sci., 2006, 300(1): 52-59.
[60]	AL-ZBOONA K, AL-HARAHSHEH M S, HANI F B. Fly ash-based geopolymer for Pb removal from aqueous solution.J. Hazard. Mater., 2011, 188: 414-421.
[61]	WANG S, LI L, ZHU Z H.Solid-state conversion of fly ash to effective adsorbents for Cu removal from wastewater.J. Hazard. Mater., 2007, 139(2): 254-259.
[62]	HUANG Y, HAN M.The influence of α-Al2O3 addition on microstructure, mechanical and formaldehyde adsorption properties of fly ash-based geopolymer products.J. Hazard. Mater., 2011, 193: 90-94.
[63]	CHENG T W, LEE M L, KO M S, et al. The heavy metal adsorption characteristics on metakaolin-based geopolymer. Appl. Clay Sci., 2012, 56: 90-96.
[64]	ZHANG Y J, LIU L C.Fly ash-based geopolymer as a novel photocatalyst for degradation of dye from wastewater.Particuology, 2013, 11: 353-358.
[65]	ZHANG Y J, LIU L C, NI, L L, et al. A facile and low-cost synthesis of granulated blast furnace slag-based cementitious material coupled with Fe2O3 catalyst for treatment of dye wastewater. Appl. Catal. B, 2013, 138-139: 9-16.
[66]	ZHANG Y J, CHAI Q.Alkali-activated blast furnace slag-based nanomaterial as a novel catalyst for synthesis of hydrogen fuel.Fuel, 2014, 115: 84-87.
[67]	ZHANG Y J, KANG L, LIU L C, et al. Synthesis of a novel alkali-activated magnesium slag-based nanostructural composite and its photocatalytic performance. Appl. Surf. Sci., 2015, 331: 399-406.
[68]	ZHANG Y J, KANG L, SI H X, et al. A novel alkali-activated magnesium slag based nanocomposite for photocatalytic production of hydrogen. Integr. Ferroelectr., 2014, 154: 120-127.
[69]	BUTLER M A, GINLEY D S.Prediction of flatband potentials at semiconductorelectrolyte interfaces from atomic electronegativities, J. Electrochem. Soc., 1978, 125: 228-232.
[70]	XU Y, SCHOONEN M A A. The absolute energy positions of conduction and valence bands of selected semiconducting minerals.Am. Mineral., 2000, 85: 543-556.
[71]	ZHANG Y J, KANG L, LIU L C. Alkali-activated Cements for Photocatalytic Degradation of Organic Dyes. in: PACHECO- TORGAL F, LABRINCHA J A, Leonelli LEONELLI C, et al. Handbook of Alkali-activated Cements, Mortars and Concretes, UK: Woodhead Publishing, 2015: 729-777.
