洋葱碳的制备与应用研究进展

doi:10.15541/jim20140646

摘要/Abstract

摘要：

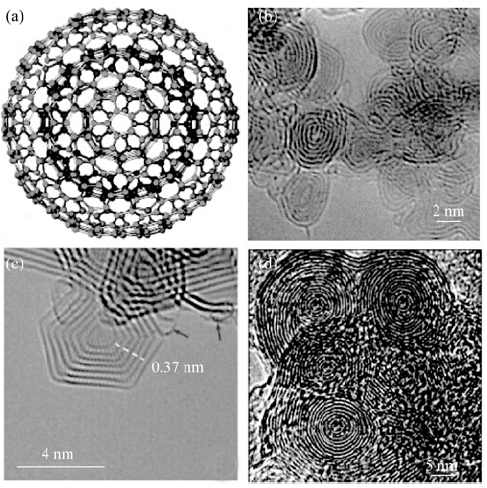

洋葱碳独特的结构, 使其具有优异的物理化学性能。本文首先介绍了洋葱碳的分类和结构, 对几种传统的制备方法(包括电弧放电法、等离子体、电子束辐射、化学气相沉积、纳米金刚石真空退火、热解法)的优缺点进行归纳、总结。其次, 介绍了近年来发展起来的制备方法。随后,对近年来洋葱碳在锂离子二次电池负极、染料敏化太阳能电池对电极、电化学储氢电极、超级电容器电极、摩擦和磨损、催化领域的应用做一概述。最后, 指出了目前洋葱碳在制备和应用方面的不足, 对今后的研究做了展望。

关键词: 洋葱碳, 制备方法, 应用, 研究进展

Abstract:

Due to unique structure, onion-like carbon has excellent physical and chemical properties that brodens the application in carbon and carbon-based composite materials. The classification and the structure of onion-like carbon were firstly introduced. Its advantages and disadvantages of traditional preparation methods, including arc discharge, plasma, electron-beam radiation, chemical vapor deposition, nanodiamond annealing in vacuum, thermolysis, were summarized. Then, some new synthetic methods developed in recent years were also presented. Subsequently, the application of onion-like carbon on anode materials of lithium ion secondary battery, counter electrode materials of dye-sensitized solar cell, electrodes materials of electrochemical hydrogen storage and super capacitor, friction and wear, and catalyst fields was summarized. Finally, deficiencies of preparation and application on onion-like carbon were pointed out and future research were put forward.

Key words: onion-like carbon, preparation methods, application, research progress

中图分类号:

TQ127

郑艳彬, 姜志刚, 朱品文. 洋葱碳的制备与应用研究进展[J]. 无机材料学报, 2015, 30(8): 793-801.

ZHENG Yan-Bin, JIANG Zhi-Gang, ZHU Pin-Wen. Development on the Preparation and Application of Onion-like Carbon[J]. Journal of Inorganic Materials, 2015, 30(8): 793-801.

图/表 8

参考文献 79

[1]	UGARTE D.Curling and closure of graphitic networks under electron-beam irradiation.Nature, 1992, 359: 707-709.
[2]	ABDULLAEVA Z, OMURZAK E, IWAMOTO C, et al.Onion- like carbon-encapsulated Co, Ni, and Fe magnetic nanoparticles with low cytotoxicity synthesized by a pulsed plasma in a liquid.Carbon, 2012, 50: 1776-1785.
[3]	LIU X G, OR S W, JIN C G, et al.NiO/C nanocapsules with onion- like carbon shell as anode material for lithium ion batteries.Carbon, 2013, 60: 215-220.
[4]	LIU X G, BI N N, FENG C, et al.Onion-like carbon coated CuO nanocapsules: a highly reversible anode material for lithium ion batteries. Journal of Alloys and Compounds, 2014, 587: 1-5.
[5]	LIU X G, OR S W, JIN C G, et al.Co3O4/C nanocapsules with onion- like carbon shells as anode material for lithium ion batteries.Electrochimica Acta, 2013, 100: 140-146.
[6]	QIAO Z J, LI J J, ZHAO N Q, et al.Graphitization and microstructure transformation of nanodiamond to onion-like carbon. Scripta Materialia, 2006, 54: 225-229.
[7]	XU B S.Prospects and research progress in nano onion-like fullerenes.New carbon materials, 2008, 23(4): 289-301.

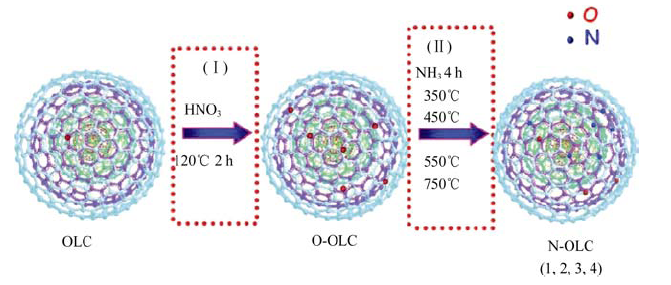

[8]	LIN Y M, PAN X L, QI W, et al.Nitrogen-doped onion-like carbon: a novel and efficient metal-free catalyst for epoxidation reaction. J. Mater. Chem. A, 2014, 2: 12475-12483.
[9]	BOGDANOV K, FEDOROV A, OSIPOV V, et al.Annealing- induced structural changes of carbon onions: high-resolution transmission electron microscopy and Raman studies.Carbon, 2014, 73: 78-86.
[10]	XU B S, TANAKA S I.Multiple-nuclei Onion Like Fullerenes Cultivated by Electron Beam Irradiation. Proc. Int. Conf. ICSE,Cambridge, 1997: 355-360.
[11]	WANG Q, SUN X L, HE D Y, et al.Preparation and study of carbon nano-onion for lithium storage. Materials Chemistry and Physics, 2013, 139: 333-337.
[12]	WANG Y, HAN Z J, YU S F, et al.Core-leaf onion-like carbon/ MnO2 hybrid nano-urchins for rechargeable lithium-ion batteries.Carbon, 2013, 64: 230-236.
[13]	WU G, NELSON M, MA S G, et al.Synthesis of nitrogen-doped onion-like carbon and its use in carbon-based CoFe binary non-precious-metal catalysts for oxygen-reduction.Carbon, 2011, 49: 3972-3982.
[14]	MATSUMOTO N, JOLY-POTTUZ L, KINOSHITA H, et al.Application of onion-like carbon to micro and nanotribology.Diamond & Related Materials, 2007, 16: 1227-1230.
[15]	JOLY-POTTUZ L, MATSUMOTO N, KINOSHITA H, et al.Diamond-derived carbon onions as lubricant additives.Tribology International, 2008, 41: 69-78.
[16]	MATSUMOTO N, MISTRY K K, KIM J H, et al.Friction reducing properties of onion-like carbon based lubricant under high contact pressure.Tribology, 2012, 6(3): 116-120.
[17]	WANG Y, XING G Z, HAN Z J, et al.Pre-lithiation of onion-like carbon/MoS2 nano-urchin anodes for high-performance rechargeable lithium ion batteries.Nanoscale, 2014, 6: 8884-8890.
[18]	WANG Y, YAN F, LIU S W, et al.Onion-like carbon matrix supported Co3O4 nanocomposites: a highly reversible anode material for lithium ion batteries with excellent cycling stability.J. Mater. Chem. A, 2013, 1(17): 5212-5216.

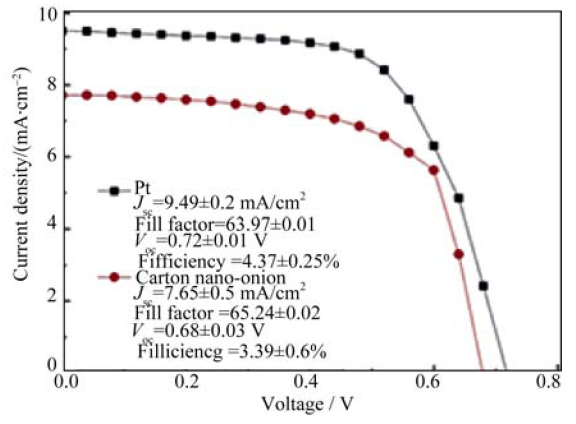

[19]	BU I Y Y. Synthesis of graphitic carbon nano-onions for dye sensitized solar cells.Solar Energy, 2014, 105: 236-242.
[20]	ZHANG C G, LI J J, LIU E Z, et al.Synthesis of hollow carbon nano-onions and their use for electrochemical hydrogen storage.Carbon, 2012, 50: 3513-3521.

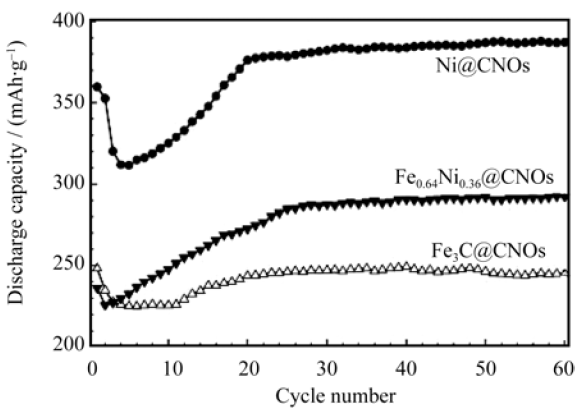

[21]	ZHANG C G, LI J J, SHI C S, et al.Effect of Ni, Fe and Fe-Ni alloy catalysts on the synthesis of metal contained carbon nano-onions and studies of their electrochemical hydrogen storage properties.Journal of Energy Chemistry, 2014, 23: 324-330.
[22]	MCDONOUGH J K, FROLOV A I, PRESSER V, et al.Influence of the structure of carbon onions on their electrochemical performance in supercapacitor electrodes.Carbon, 2012, 50: 3298-3309.
[23]	PECH D, BRUNET M, DUROU H, et al.Ultrahigh-power micrometre-sized supercapacitors based on onion-like carbon.Nature Nanotechnology, 2010, 5: 651-654.
[24]	BUSHUEVA E G, GALKIN P S, BULUSHEVA L G, et al.Double layer supercapacitor properties of onion-like carbon materials.Phys. Stat. Sol.(b), 2008, 245(10): 2296-2299.
[25]	SHENDEROVA O, GRISHKO V, CUNNINGHAM G, et al.Onion- like carbon for terahertz electromagnetic shielding.Diamond & Related Materials, 2008, 17: 462-466.
[26]	SANO N, WANG H, ALEXANDROU I, et al.Properties of carbon onions produced by an arc discharge in water.Journal of Applied Physics, 2002, 92(5): 2783-2788.
[27]	BORGOHAIN R, YANG J, SELEGUE J P, et al.Controlled synthesis, efficient purification, and electrochemical characterization of arc-discharge carbon nano-onions.Carbon, 2014, 66: 272-284.
[28]	XING G, JIA X L, SHI Z Q.The production of carbon nano-materials by arc discharge under water or liquid nitrogen .New Carbon Materials, 2007, 22(4): 337-341.
[29]	SANO N, WANG H, CHHOWALLA M, et al.Nanotechnology: synthesis of carbon 'onions' in water.Nature, 2001, 414: 506-507.
[30]	ZHOU J F, SHEN Z Y, HOU S M, et al.Adsorption and manipulation of carbon onions on highly oriented pyrolytic graphite studied with atomic force microscopy.Applied Surface Science, 2007, 253: 3237-3241.
[31]	LIU W, MIAO Y, MENG Q S.Synthesis of Onion-Like Fullerenes by Arc Discharge in Non-Toxic Organic Liquid. Integrated Ferroelectrics, 2012, 138: 77-82.
[32]	CHEN X H, DENG F M, WANG J X, et al.New method of carbon onion growth by radio-frequency plasma-enhanced chemical vapor deposition.Chemical Physics Letters, 2001, 336: 201-204.
[33]	SZERENCSI M, RADNOCZI G.The mechanism of growth and decay of carbon nano-onions formed by ordering of amorphous particles.Vacuum, 2010, 84: 197-201.
[34]	HE C N, TIAN F, LIU S J, et al.Characterization and magnetic property of carbon coated metal nanoparticles and hollow carbon onions fabricated by CVD of methane. Materials Letters, 2008, 62: 3697-3699.
[35]	HE C N, ZHAO N Q, DU X W, et al.Low-temperature synthesis of carbon onions by chemical vapor deposition using a nickel catalyst supported on aluminum.Scripta Materialia, 2006, 54: 689-693.
[36]	WANG X M, XU B S, LIU X G, et al.Synthesis of Fe-included onion-like fullerenes by chemical vapor deposition.Diamond & Related Materials, 2006, 15: 147-150.
[37]	ZHANG C G, LI J J, SHI C S, et al.The efficient synthesis of carbon nano-onions using chemical vapor deposition on an unsupported Ni-Fe alloy catalyst.Carbon, 2011, 49: 1151-1158.
[38]	MYKHAYLYK O O, SOLONIN Y M, BATCHELDER D N, et al. Transformation of nanodiamond into carbon onions: a comparative study by high-resolution transmission electron microscopy, electron energy-lossspectroscopy, X-ray diffraction, small-angle X-ray scattering,ultraviolet Raman spectroscopy. Journal of applied Physics, 2005, 97: 074302-1-6.
[39]	BUTENKO Y V, KRISHNAMURTHY S, CHAKRABORTY A K, et al. Photoemission study of onionlike carbons produced by annealing nanodiamonds. Physical Review B, 2005, 71: 075420-1-10.
[40]	CEBIK J, MCDONOUGH J K, PEERALLY F, et al. Raman spectroscopy study of the nanodiamond-to-carbon onion transformation. Nanotechnology, 2013, 24: 205703-1-10.
[41]	BYSTRZEJEWSKI M, RUMMELI M H, GEMMING T, et al.Catalyst-free synthesis of onion-like carbon nanoparticles.New Carbon Materials, 2010, 25(1): 1-8.
[42]	GORELIK T, URBAN S, FALK F, et al.Carbon onions produced by laser irradiation of amorphous silicon carbide.Chemical Physics Letters, 2003, 373: 642-645.
[43]	HU S L, BAI P K, TIAN F, et al.Hydrophilic carbon onions synthesized by millisecond pulsed laser irradiation.Carbon, 2009, 47: 876-883.
[44]	DOROBANTU D, BOTA P M, BOERASU I, et al.Pulse laser ablation system for carbon nano-onions fabrication.Surface Engineering and Applied Electrochemistry, 2014, 50(5): 390-394.
[45]	ZHANG H M, LIANG C H, LIU J, et al.The formation of onion-like carbon-encapsulated cobalt carbide core/shell nanoparticles by the laser ablation of metallic cobalt in acetone.Carbon, 2013, 55: 108-115.
[46]	GAO Y, ZHOU Y S, PARK J B, et al. Resonant excitation of precursor molecules in improving the particle crystallinity, growth> rate and optical limiting performance of carbon nano- onions. Nanotechnology, 2011, 22(16): 165604-1-6.
[47]	XIAO J, OUYANG G, LIU P, et al.Reversible nanodiamond- carbon onion phase transformations.Nano letters, 2014, 14: 3645-3652.
[48]	CABIOC’H T, JAOUEN M, THUNE E, et al. Carbon onions formation by high-dose carbon ion implantation into copper and silver. Surface and Coatings Technology, 2000, 128-129: 43-50.
[49]	HUANG J Y, YASUDA H AND MORI H. Highly curved carbon nanostructures produced by ball-milling.Chemical Physics Letters, 1999, 303: 130-134.
[50]	HAN F D, YAO B AND BAI Y J. Preparation of carbon nano-onions and their application as anode materials for rechargeable lithium-ion batteries. J. Phys. Chem. C, 2011, 115: 8923-8927.
[51]	GHOSH M, SONKAR S K, SAXENA M, et al.Carbon nano-onions for imaging the life cycle of drosophila melanogaster.Small, 2011, 7(22): 3170-3177.
[52]	CHOUCAIR M, STRIDE J A.The gram-scale synthesis of carbon onions.Carbon, 2012, 50: 1109-1115.
[53]	HE C N, WU S, ZHAO N Q, et al.Carbon-encapsulated Fe3O4 nanoparticles as a high-rate lithium ion battery anode material.ACS Nano, 2013, 7(5): 4459-4469.
[54]	HAN Q Y, ZAI J T, XIAO Y L, et al.Direct growth of SnO2 nanorods on graphene as high capacity anode materials for lithium ion batteries.RSC Adv., 2013, 3: 20573-20578.
[55]	FENG J K, XIONG S L, QIAN Y T, et al.Synthesis of nanosized cadmium oxide (CdO) as a novel high capacity anode material for Lithium-ion batteries: influence of carbon nanotubes decoration and binder choice.Electrochimica Acta, 2014, 129: 107-112.
[56]	GUO B K, CHI M F, SUN X G, et al.Mesoporous carbon-Cr2O3 composite as an anode material for lithium ion batteries.Journal of Power Sources, 2012, 205: 495-499.
[57]	CHEN A, LI C X, TANG R, et al.MoO2-ordered mesoporous carbon hybrids as anode materials with highly improved rate capability and reversible capacity for lithium-ion battery.Phys. Chem. Chem. Phys., 2013, 15: 13601-13610.
[58]	LIU B, HU X L, XU H H, et al.Encapsulation of MnO nanocrystals in electrospun carbon nanofibers as high-performance anode materials for lithium-ion batteries.Scientific Reports, 2014, 4: 4229.
[59]	ZANG J, CHEN J J, ZHANG C L, et al.The synthesis of a core-shell MnO2/3D-ordered hollow carbon sphere composite and its superior electrochemical capability for lithium ion batteries. J. Mater. Chem. A, 2014, 2(18): 6343-6347.
[60]	LEPPLE M, ADAM R, CUPID D M, et al.Thermodynamic investigations of copper oxides used as conversion type electrodes in lithium ion batteries.J. Mater. Sci., 2013, 48: 5818-5826.
[61]	WANG J, ZHAO H L, ZENG Z P, et al.Nano-sized Fe3O4 /carbon as anode material for lithium ion battery.Materials Chemistry and Physics, 2014, 148: 699-704.
[62]	QIN D, YAN P, LI G Z, et al. Synthesis of hierarchical CoO nano/microstructures as anode materials for lithium-ion batteries. Journal of Nanomaterials, 2014, 2014: 489862-1-5.
[63]	ZHANG H J, SONG H H, ZHOU J S, et al.Preparation and electrochemical properties of SnO2/onion-like hollow carbon nanoparticle composites as anode materials for lithium-ion batteries.Acta Phys.-Chim. Sin., 2010, 26(5): 1259-1263.
[64]	STROBEL R, GARCHE J, MOSELEY P T, et al.Hydrogen storage by carbon materials.Journal of Power Sources, 2006, 159: 781-801.
[65]	PORTET C, YUSHIN G, GOGOTSI Y.Electrochemical performance of carbon onions, nanodiamonds, carbon black and multiwalled nanotubes in electrical double layer capacitors.Carbon, 2007, 45: 2511-2518.
[66]	GAO Y, ZHOU Y S, QIAN M, et al.Chemical activation of carbon nano-onions for high-rate supercapacitor electrodes.Carbon, 2013, 51: 52-58.
[67]	ANJOS D M, MCDONOUGH J K, PERRE E, et al.Pseudocapacitance and performance stability of quinone-coated carbon onions.Nano energy, 2013, 2: 702-712.
[68]	PLONSKA-BRZEZINSKA M E, ECHEGOYEN L. Carbon nano-onions for supercapacitor electrodes: recent developments and applications.Journal of Materials Chemistry A, 2013, 1: 13703-13714.
[69]	BORGOHAIN R, LI J C, SELEGUE J P, et al.Electrochemical study of functionalized carbon nano-onions for high-performance supercapacitor electrodes.J. Phys. Chem. C, 2012, 116: 15068-15075.
[70]	PLONSKA-BRZEZINSKA M E, BRUS D M, MOLINA- ONTORIA A, et al. Synthesis of carbon nano-onion and nickel hydroxide/oxide composites as supercapacitor electrodes. RSC Adv., 2013, 3: 25891-25901.
[71]	WANG Y, YU S F, SUN C Y, et al.MnO2/onion-like carbon nanocomposites for pseudocapacitors. J. Mater. Chem., 2012, 22: 17584-17588.
[72]	BRECZKO J, WINKLER K, PLONSKA-BRZEZINSKA M E, et al. Electrochemical properties of composites containing small carbon nano-onions and solid polyelectrolytes.J. Mater. Chem., 2010, 20: 7761-7768.
[73]	PLONSKA-BRZEZINSKA D M E, BRECZKO J, PALYS D B, et al. The electrochemical properties of nanocomposite films obtained by chemical in situ polymerization of aniline and carbon nanostructures.ChemPhysChem, 2013, 14(1): 116-124.
[74]	HIRATA A, IGARASHI M, KAITO T.Study on solid lubricant properties of carbon onions produced by heat treatment of diamond clusters or particles.Tribology International, 2004, 37: 899-905.
[75]	BUCHOLZ E W, PHILLPOT S R, SINNOTT S B.Molecular dynamics investigation of the lubrication mechanism of carbon nano-onions. Computational Materials Science, 2012, 54: 91-96.
[76]	HAN C, BO X J, ZHANG Y F, et al.One-pot synthesis of nitrogen and sulfur co-doped onion-like mesoporous carbon vesicle as an efficient metal-free catalyst for oxygen reduction reaction in alkaline solution.Journal of Power Sources, 2014, 272: 267-276.
[77]	HUANG Q, YU D L, XU B, et al.Nanotwinned diamond with unprecedented hardness and stability.Nature, 2014, 510: 250-253.
[78]	龚文. 碳纳米葱无添加剂高温高压烧结聚晶金刚石的研究. 秦皇岛: 燕山大学硕士学位论文, 2012.
[79]	余强华. 微米金刚石对碳纳米葱烧结PCD组织及性能的影响. 秦皇岛: 燕山大学硕士学位论文, 2013.

Preparation methods	Advantages	Disadvantages
Arc discharge	High crystallization,low defect density carbon onions prepared in bulk quantities using an arc in water	Containing a large amount of carbonaceous impurities such as amorphous carbon, CNTs, CNT-like structures, graphitic debris, and metallic impurities
Plasma	Low cost and prepared in bulk quantities	Containing amorphous carbon and metallic impurities
Electron-beam radiation	In-situ observations achieved helpful to study the growth mechanism of OLC	High cost and low yield
Chemical vapor deposition	Simple, cheap, easy to implement and to realize mass production	Purification to remove amorphous carbon, CNTs, graphite, catalyst support, etc
Nanodiamond annealing in vacuum	Narrow-sized distribution and produced in massive amount	Requiring nanodiamond precursor and high-temperature vacuum oven
Thermolysis	Massive amount of carbon onions produced at low cost by using simple device	Larger size CNOs and/or purification requirement

Preparation methods	Advantages	Disadvantages
Arc discharge	High crystallization,low defect density carbon onions prepared in bulk quantities using an arc in water	Containing a large amount of carbonaceous impurities such as amorphous carbon, CNTs, CNT-like structures, graphitic debris, and metallic impurities
Plasma	Low cost and prepared in bulk quantities	Containing amorphous carbon and metallic impurities
Electron-beam radiation	In-situ observations achieved helpful to study the growth mechanism of OLC	High cost and low yield
Chemical vapor deposition	Simple, cheap, easy to implement and to realize mass production	Purification to remove amorphous carbon, CNTs, graphite, catalyst support, etc
Nanodiamond annealing in vacuum	Narrow-sized distribution and produced in massive amount	Requiring nanodiamond precursor and high-temperature vacuum oven
Thermolysis	Massive amount of carbon onions produced at low cost by using simple device	Larger size CNOs and/or purification requirement

Metal oxides	Theoretical capacity/(mAh·g^-1)	Ref
SnO₂	782	[54]
CuO	674	[4]
CdO	1046	[55]
Cr₂O₃	1058	[56]
MoO₂	838	[57]
NiO	718	[3]
MnO	755	[58]
MnO₂	1233	[59]
Mn₂O₃	1019	[60]
Fe₂O₃	1007	[60]
Fe₃O₄	926	[61]
CoO	715	[62]
Co₃O₄	890	[5]

Metal oxides	Theoretical capacity/(mAh·g^-1)	Ref
SnO₂	782	[54]
CuO	674	[4]
CdO	1046	[55]
Cr₂O₃	1058	[56]
MoO₂	838	[57]
NiO	718	[3]
MnO	755	[58]
MnO₂	1233	[59]
Mn₂O₃	1019	[60]
Fe₂O₃	1007	[60]
Fe₃O₄	926	[61]
CoO	715	[62]
Co₃O₄	890	[5]

Anode materials	OLC encapsulation	Initial discharge ability of nanoparticles electrode at different rates	Cycle performance	Ref
NiO	No	NiO, 2C, 558.8 mAh/g	0.5C, 1150 mAh/g (initial discharge) and 383.5 mAh/g (after 50 cycles)	[3]
NiO	Yes	NiO/C, 2C, 1105.6 mAh/g	0.5C, 1689.4 mAh/g (initial discharge) and 1157.7 mAh/g (after 50 cycles)	[3]
CuO	No	CuO, 1.2C, 178.9 mAh/g	100 mA/g , 270.2 mAh/g (after 50 cycles)	[4]
CuO	Yes	CuO/C, 1.2C, 535.6 mAh/g	100 mA/g, 628.7 mAh/g (after 50 cycles) with a high Coulombic efficiency of 98.6%	[4]
Co₃O₄	No	Co₃O₄, 2C, 459 mAh/g	1248.8 mAh/g (initial discharge) and 471.5 mAh/g (after 50 cycles)	[5]
Co₃O₄	Yes	Co₃O₄/C, 2C, 925 mAh/g	0.5C, 1467.6 mAh/g (initial discharge) and 1026.9 mAh/g (after 50 cycles)	[5]
SnO₂	No	/	0.2 mA/cm², 849 mAh/g (initial discharge) to 123 mAh/g (after 50 cycles)	[63]
SnO₂	Yes	/	0.2 mA/cm², 755 mAh/g(initial discharge) and 446 mAh/g (after 50 cycles)	[63]
