Heterogeneous Fenton Reaction for Degradation of Ofloxacin with Magnetic CeO2/Fe3O4

doi:10.15541/jim20150542

Abstract

Abstract:

CeO₂/Fe₃O₄ magnetic nanoparticles were prepared for promoting the catalytic activity of Fe₃O₄, which is applied as the catalyst of heterogeneous Fenton reaction system for the degradation of ofloxacin. Several factors that affected the degradation efficiency of the system such as CeO₂ content, H₂O₂concentration and pH were investigated. The mechanism of catalytic degradation was also explored via the measurement of iron ion and kinetics fitting. The results show that the catalytic activity of CeO₂/Fe₃O₄ is better than that of Fe₃O₄. The degradation efficiency of ofloxacin increases with the addition of CeO₂ content, H₂O₂concentration or solution acidity increase. The degradation effect of ofloxacin is the best for CeO₂/Fe₃O₄(molar roction=0.780)-H₂O₂ catalytic system when H₂O₂concentration is 100 mmol/L and pH is 3, which accords first order kinetics model. The catalytic ability of CeO₂/Fe₃O₄is strengthened through surface catalytic reaction and electronic transfer of oxygen vacancies of CeO₂during catalytic reaction.

Key words: ferriferrous oxide, cerium oxide, degradation, ofloxacin

CLC Number:

HU Xiao-Dan, ZHOU Zhi-Wei, ZHANG Wei, ZHANG Xiao-Hong, ZHANG Hai-Qian. Heterogeneous Fenton Reaction for Degradation of Ofloxacin with Magnetic CeO₂/Fe₃O₄[J]. Journal of Inorganic Materials, 2016, 31(6): 613-620.

Figures/Tables 14

Table 1 Element weight percent of CeO2/Fe3O4 samples

	FC1	FC2	FC3	FC4
Fe(wt%)	80.52	57.73	50.53	43.16
Ce(wt%)	4.44	7.81	27.29	28.10
CeO₂: Fe₃O₄ (mol:mol)	0.066	0.162	0.647	0.780

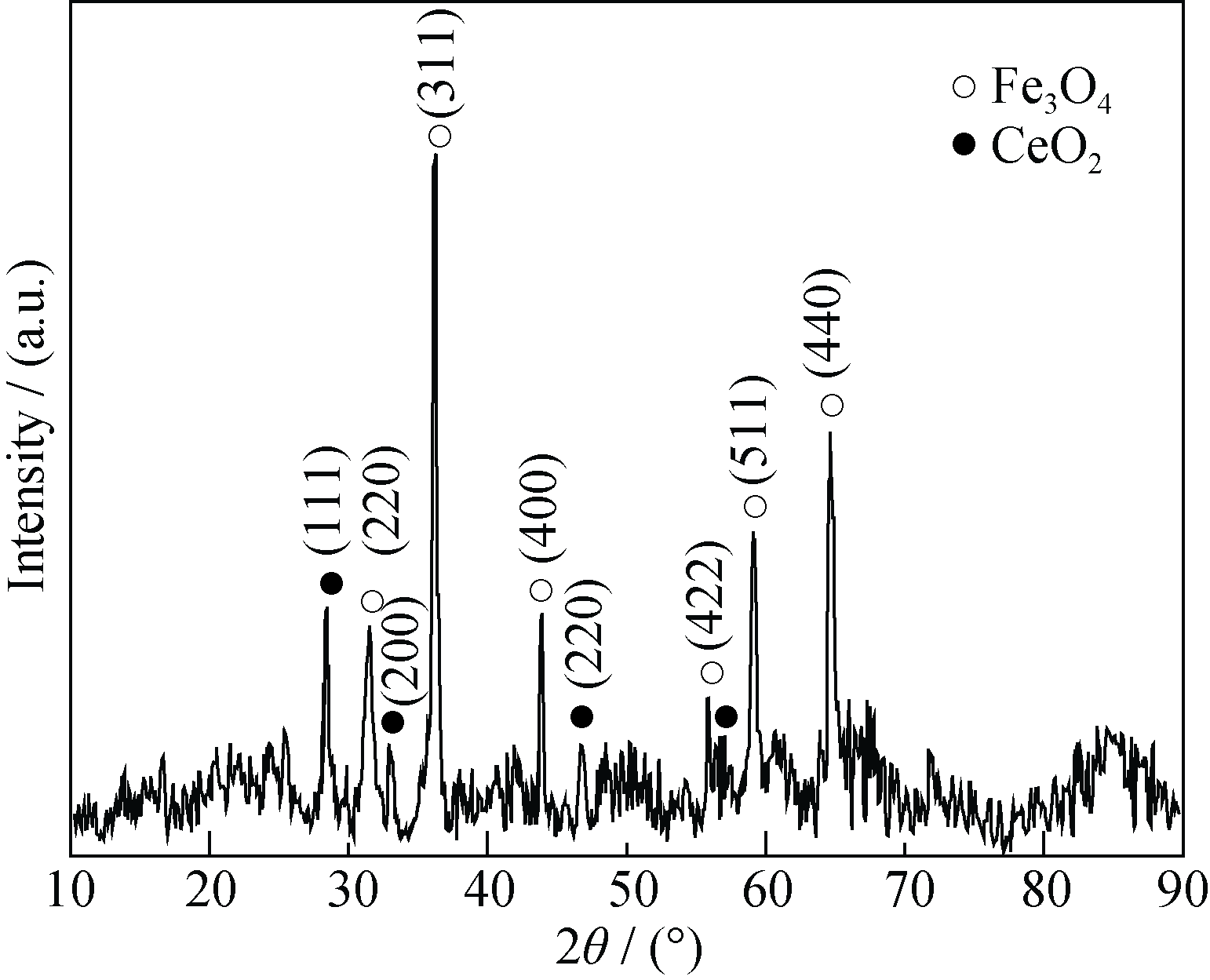

Fig. 1 XRD pattern of CeO2/Fe3O4 sample

Fig. 2 TEM (HRTEM) and SAED images of CeO2/Fe3O4 sample

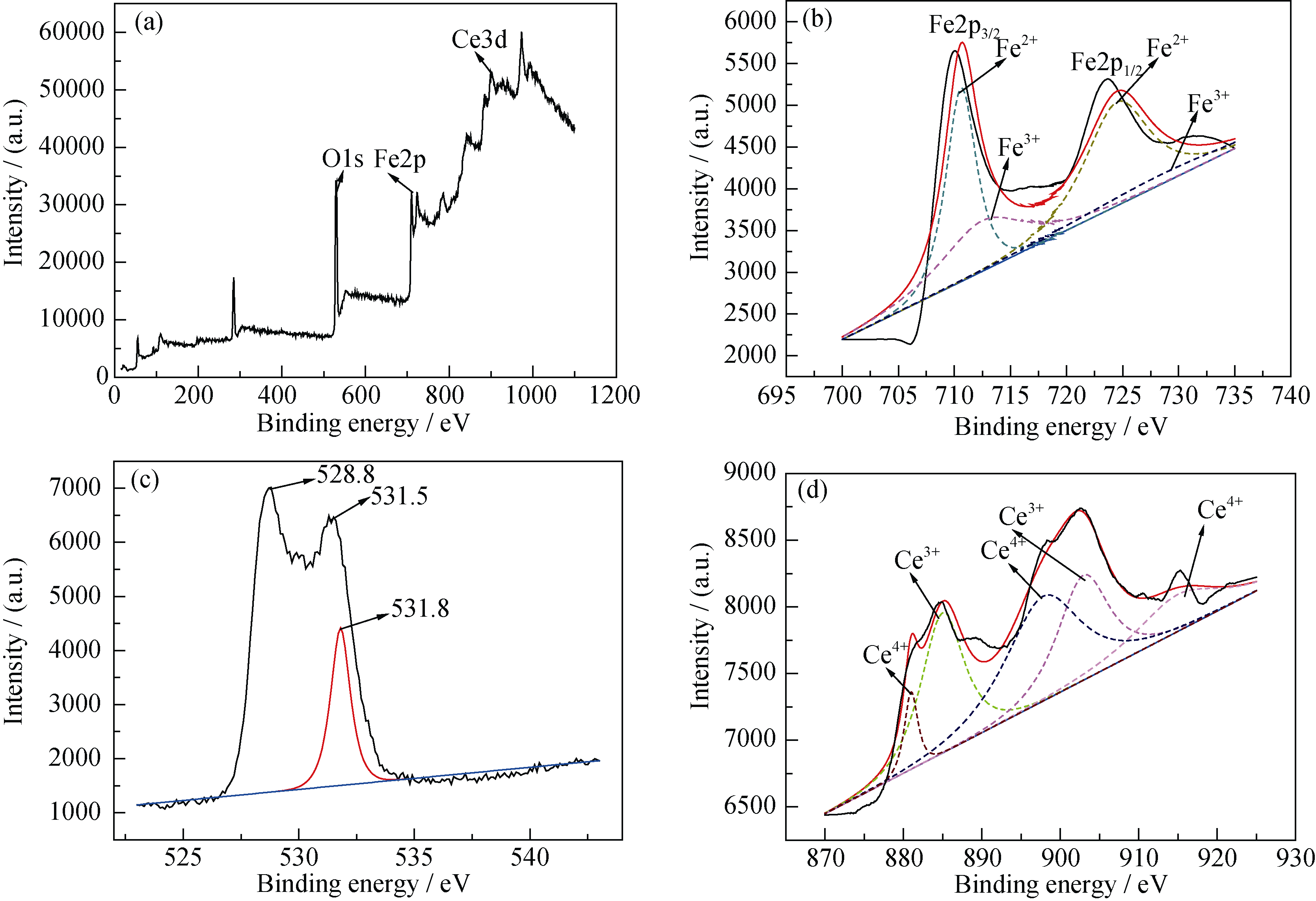

Fig. 3 XPS spectra of CeO2/Fe3O4 sample. (a) wide-scan, (b) Fe2p, (c) O1s, and (d) Ce3d

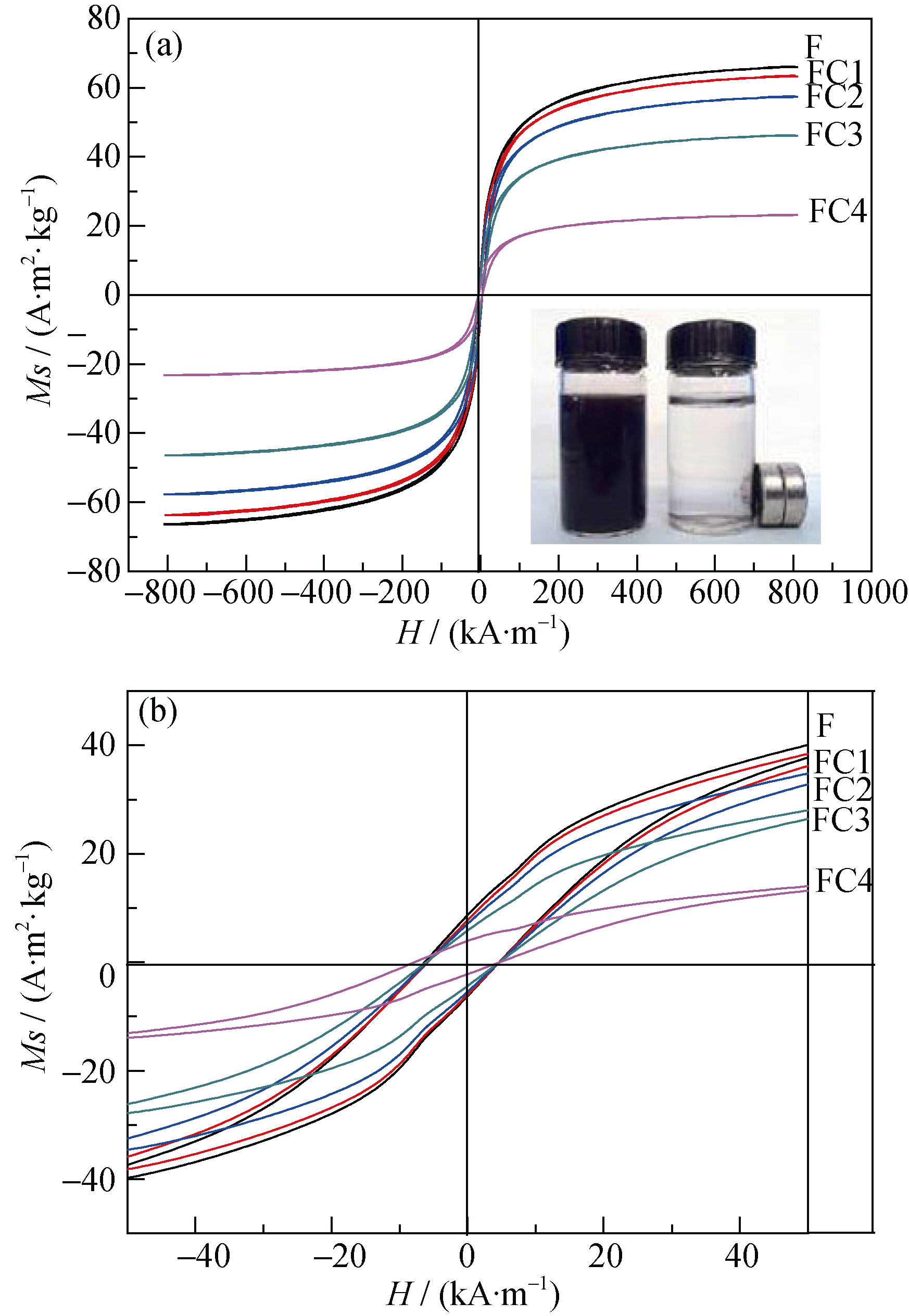

Fig. 4 Magnetic hystersis loop (a) and partial enlarged drawing of Fe3O4 and CeO2/Fe3O4 samples (b)

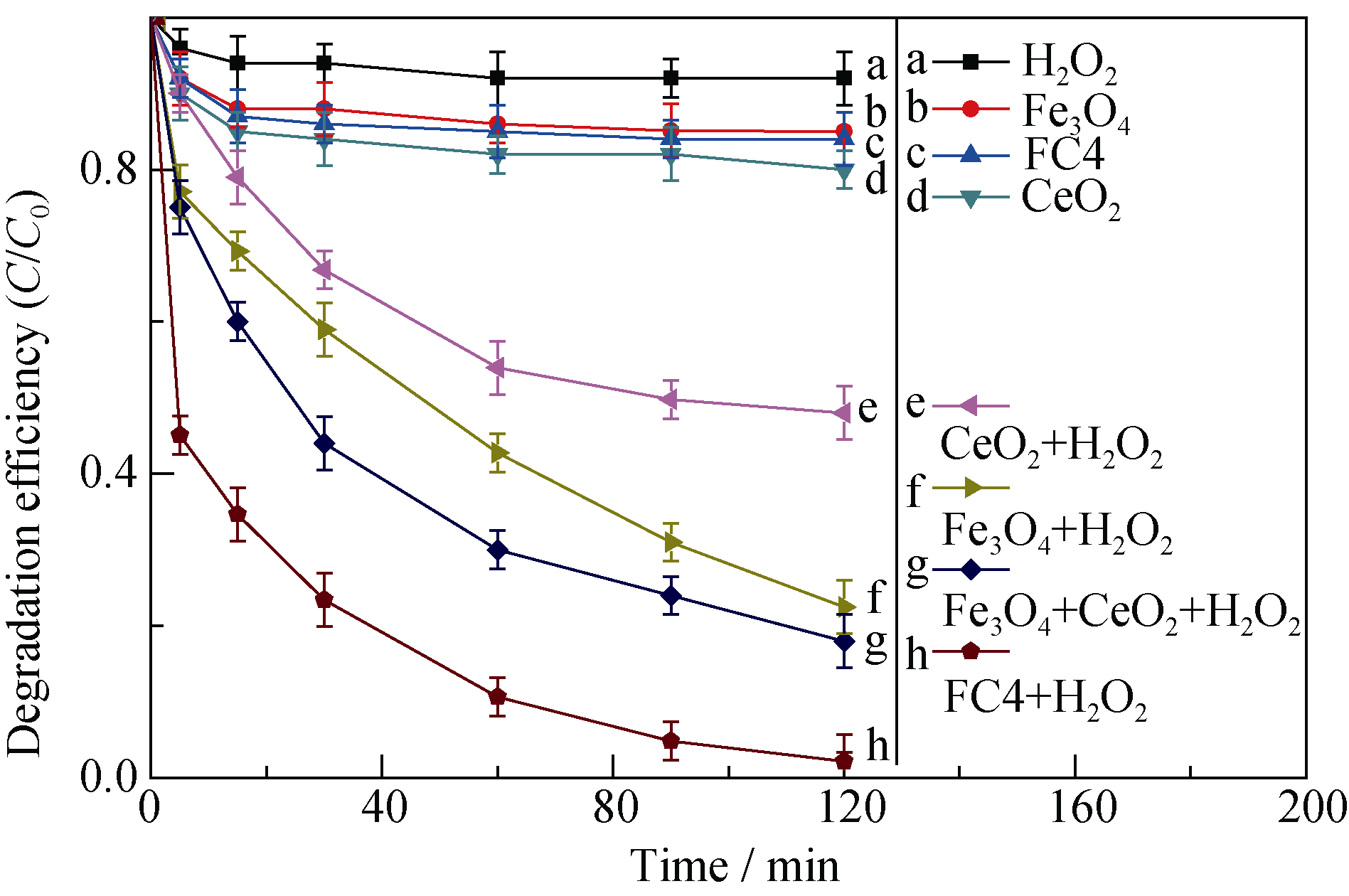

Fig. 5 Catalytic effects of different samples

Fig. 6 Effect of the amount of CeO2 on the degradation of ofloxacin

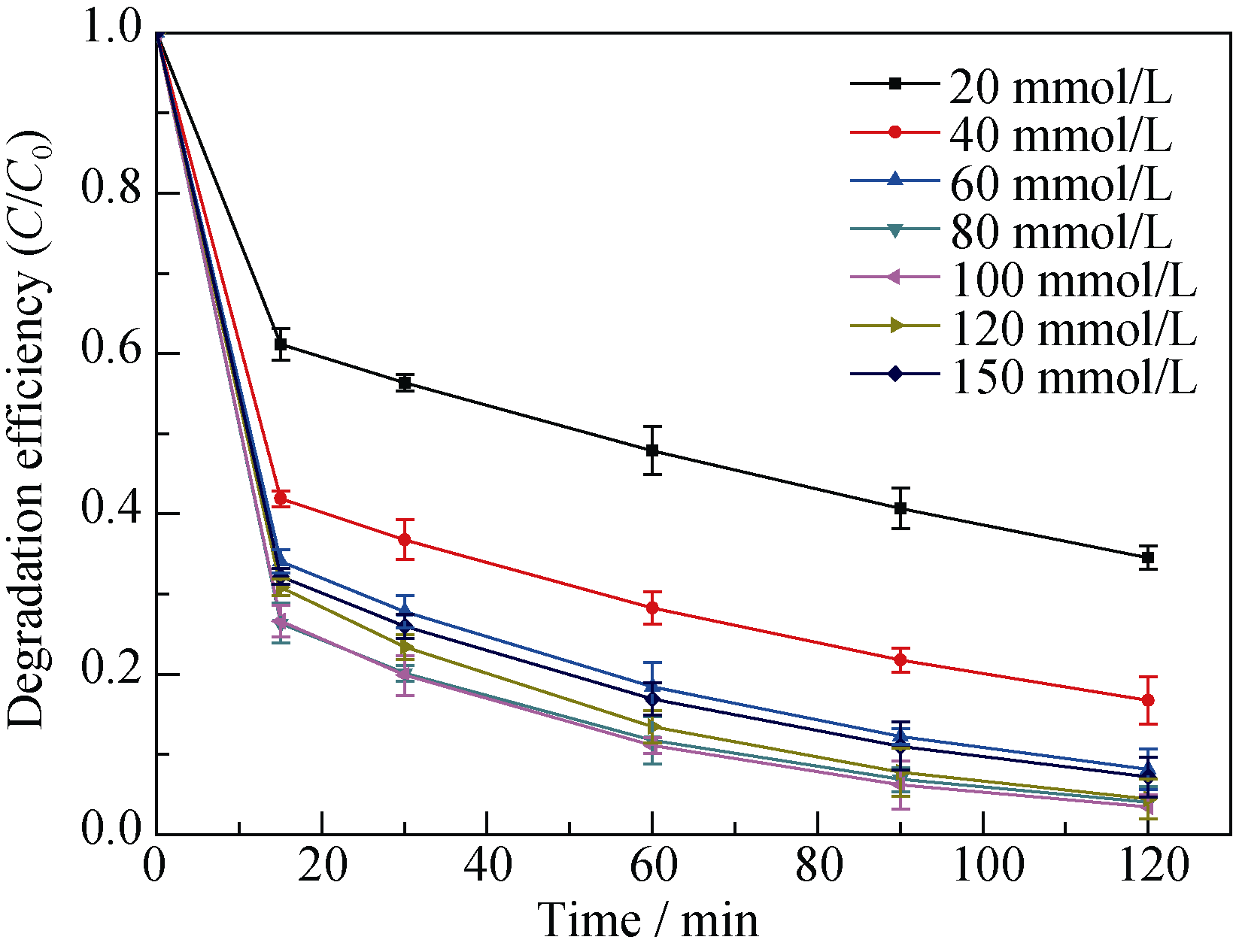

Fig. 7 Effect of H2O2 dosage on the degradation of ofloxacin

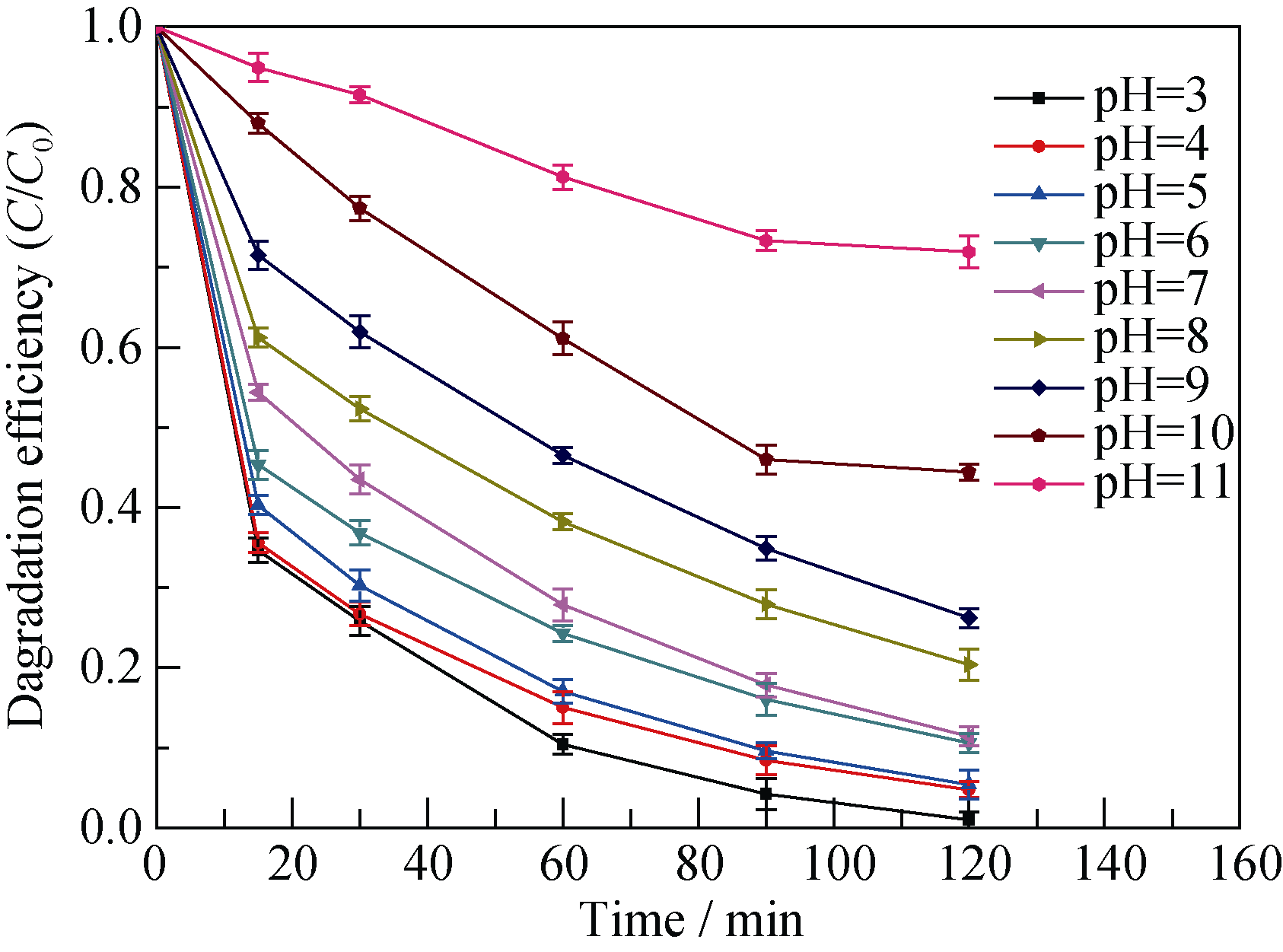

Fig. 8 Effect of pH on the degradation of ofloxacin

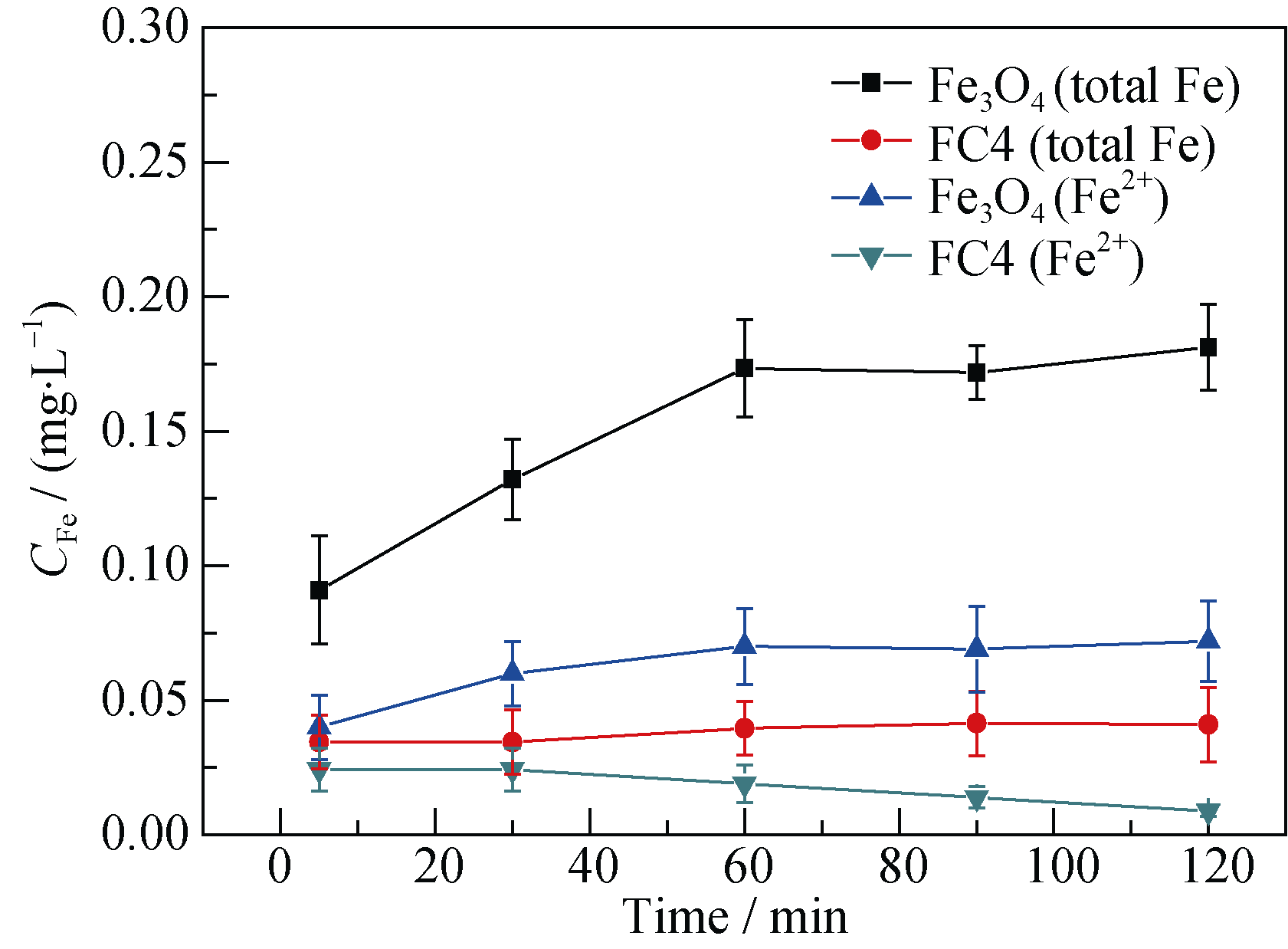

Fig. 9 Changes of iron concentration in the solution

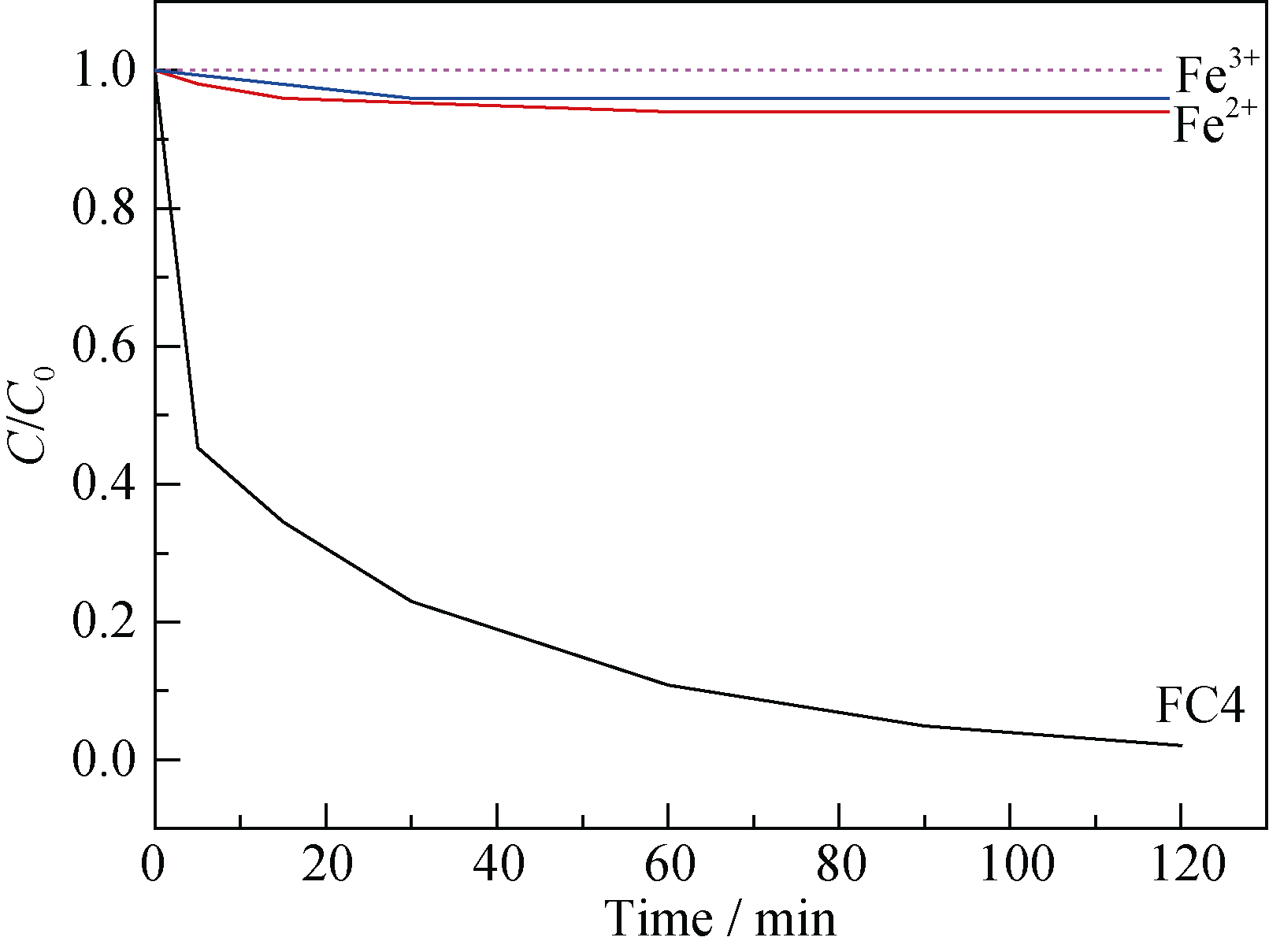

Fig. 10 Effect of iron ion on the degradation of ofloxacin

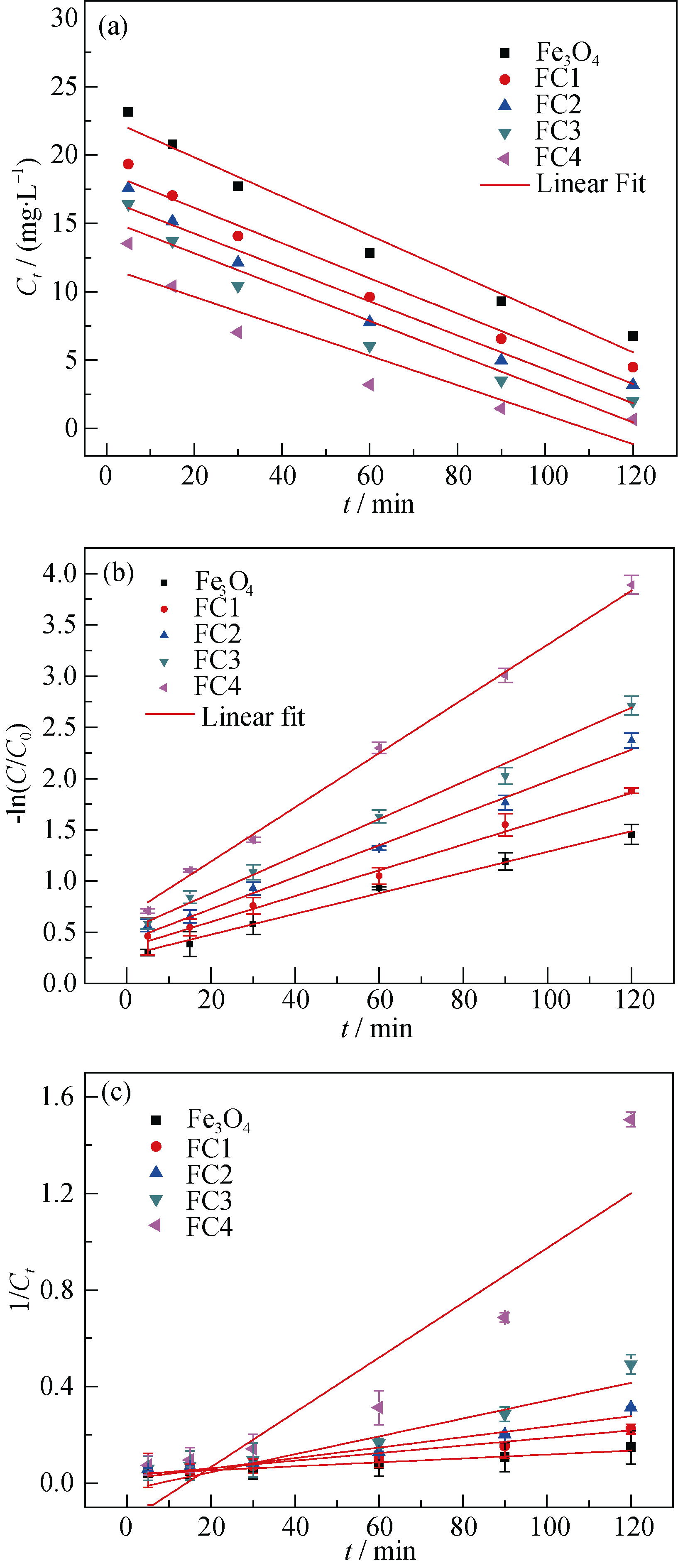

Fig. 11 Kinetic fitting of zero- (a), first- (b) and second- (c) order reaction

Table 2 Correlation coefficent of zero, first and second-order kinetic fitting

R²	Fe₃O₄	FC1	FC2	FC3	FC4
Zero	0.938825	0.916653	0.890551	0.845094	0.727916
First	0.982795	0.958715	0.977587	0.992056	0.991458
Second	0.927562	0.96293	0.873888	0.739858	0.616759

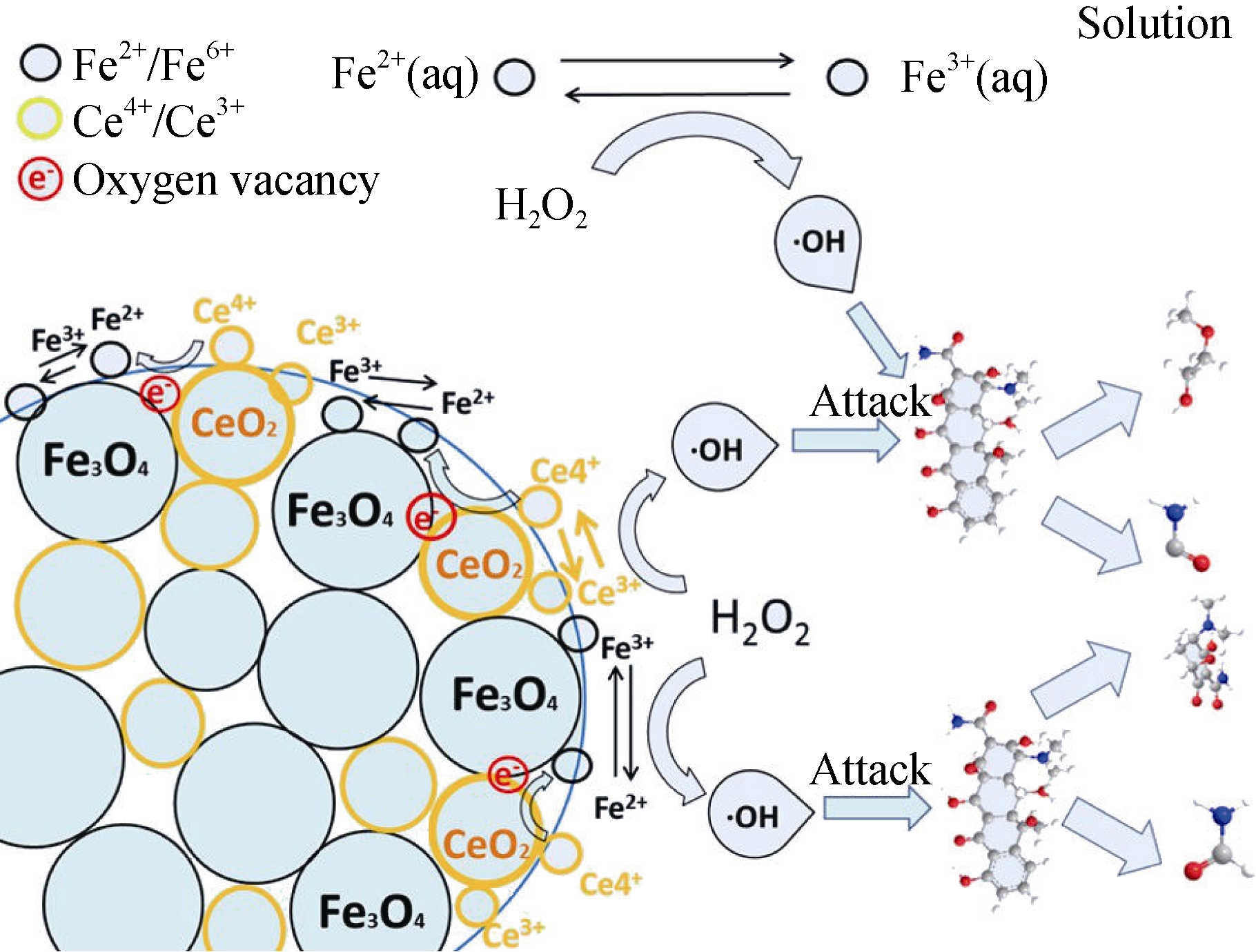

Fig. 12 Mechanism of heterogeneous Fenton reaction

References 19

[1]	HE XIUTING, WANG ZHAOHUI, NIE XIANGPING, et al.Residues of fluoroquinolones in marine aquaculture environment of the Pearl River Delta, South China.Environmental Geochemistry and Health, 2012, 34(3): 323-335.
[2]	KIM SANG D., CHO JAEWEON, KIM IN S, et al.Occurrence and removal of pharmaceuticals and endocrine disruptors in South Korean surface, drinking, and waste waters.Water Research, 2007, 41(5): 1013-1021.
[3]	PI YUNQING, FENG JINGLAN, SONG MENGKE, et al.Degradation potential of ofloxacin and its resulting transformation products during Fenton oxidation process. Chinese Science Bulletin, 2014, 59(21): 2618-2624.
[4]	OLIVEIRA LUIZ C, RIOS RACHEL V R A, FABRIS JOSE´ D, et al. Clay-iron oxide magnetic composites for the adsorption of contaminants in water.Applied Clay Science, 2003, 22(4): 169-177.
[5]	ANDREOZZI ROBERTO, CANTERINO MARISA, CAPRIO VINCENZO, et al.Use of an amorphous iron oxide hydrated as catalyst for hydrogen peroxide oxidation of ferulic acid in water.Journal of Hazardous Materials, 2008, 152(2): 870-875.
[6]	YEH C KUEI-JYUM, HSU CHI-YU, CHIU C H, et al. Reaction efficiencies and rate constants for the goethite-catalyzed Fenton- like reaction of NAPL-form aromatic hydrocarbons and chloroethylenes.Journal of Hazardous Materials, 2008, 151(2/3): 562-569.
[7]	WANG YANBIN, ZHAO HONGYING, ZHAO GUOHUA, et al.Iron compound-based heterogeneous Fenton catalytic oxidation technology.Progress in Chemistry, 2013, 25(8): 1246-1259.
[8]	LIOU MING-JER, LU MING-CHUN.Catalytic degradation of explosives with goethite and hydrogen peroxide.Journal of Hazardous Materials, 2008, 151(2/3): 540-546.
[9]	CHI YONGZHI, XI YULAN, LI X, et al.Preparation of a supported Fe/Ce/zeolite Fenton-like catalyst and its performance.Chinese Journal of Environmental Engineering, 2012, 6(9): 3068-3072.
[10]	GE LIN, ZANG CHENGJIE, CHEN FENG.The enhanced Fenton- like catalytic performance of PdO/CeO2 for the degradation of acid orange 7 and salicylic acid.Chinese Journal of Catalysis, 2015, 36(3): 314-321.
[11]	MI EUN IM, DE PHAM-CONG, JI YOON KIM, et al.Enhanced electrochemical performance of template-free carbon-coated iron(II, III) oxide hollow nanofibers as anode material for lithium- ion batteries.Journal of Power Sources, 2015, 284: 392-399.
[12]	WANG YOU-FA, WU ZHOU-LI, LI WEN-RUN, et al.Spectroscopic properties of cerium doped YVO4 crystals and analysis on valence state of cerium ion.Acta Phys. Sin., 2012, 61(22): 228105.
[13]	ANDREOLI S, DEORSOLA F A, PIRONE R.MnOx-CeO2 catalysts synthesized by solution combustion synthesis for the low temperature NH3-SCR.Catalysis Today, 2015, 253: 199-206.
[14]	HE JIE, YANG XIAO-FANG, ZHANG WEI-JUN, et al.Catalyzed oxidation of catechol by the heterogeneous Fenton-like reaction of nano-Fe3O4-H2O2 system.Environmental Science, 2013, 34(5): 1773-1781.
[15]	BOKARE ALOK D, CHOI WONYONG.Review of iron-free Fenton-like systems for activating H2O2 in advanced oxidation processes.Journal of Hazardous Materials, 2014, 275: 121-135.
[16]	SHAO XIAOMEI, CHEN LING, LIU DEQI, et al.Research on influencing factors of the availably utilized ratios of H2O2 in Fenton reaction at room temperature.Environmental Science and Management, 2009, 34(3): 51-55.
[17]	WU QINGQIONG, DING CHUYUN, QIU MUQING.A Comparative Study of Decolorization of the Azo Dye by Fenton and Fenton-like reaction. Conference on Environmental Pollution and Public Health(CEPPH2011), China, 2011, 984-987.
[18]	LI WEIGUANG, WANG YONG, IRINI ANGELIDAKI.Effect of pH and H2O2 dosage on catechol oxidation in nano-Fe3O4 catalyzing UV-Fenton and identification of reactive oxygen species.Chemical Engineering Journal, 2014, 244: 1-8.
[19]	LAMBA RANDEEP, UMAR AHMAD, MEHTA SURINDER KUMAR, et al.CeO2-ZnO hexagonal nanodisks: efficient material for the degradation of direct blue 15 dye and its simulated dye bath effluent under solar light.Journal of Alloys and Compounds, 2015, 620: 67-73.
