Synergistic Mechanism of Gd3+ and Yb3+ on Crystallization Behavior of CMAS Corrosion Products

doi:10.15541/jim20250073

Abstract

Abstract:

As the operating temperature of aero-engine rises, degradation of thermal barrier coatings (TBCs) and environmental barrier coatings (EBCs) on hot-section components affected mainly by infiltration of calcium-magnesium-alumina-silicate (CaO-MgO-AlO_1.5-SiO₂, CMAS) has garnered increasing attention. Rare earth constituents play an essential role in forming corrosion products and subsequent melt penetration when conventional TBCs and EBCs are attacked by CMAS deposits. This study focused on preparation of a series of gadolinium-ytterbium oxides ((Gd_xYb_1-_x)₂O₃, x=0, 0.05, 0.10, 0.20, 0.30, 0.50 and 1.00), with particular emphasis on the roles of ytterbium and gadolinium. Their reaction with CMAS deposits was systematically investigated at 1300 ℃ to explore the synergistic mechanism associated with these two rare earth elements. The results indicate that gadolinium cations can efficiently induce the crystallization of products with apatite structure which have a low melt consumption. Conversely, ytterbium cations can induce the formation of products with garnet and silicocarnotite structure which have sluggish kinetics. Furthermore, partitioning of gadolinium and ytterbium ions within corrosion products, along with variation of residual CMAS melt composition, was further analyzed. It is proposed that these two rare earth ions exhibit a synergistic effect within a certain composition range (5%-20% (in mole) of gadolinium content). The optimized ratio of gadolinium and ytterbium within coatings is anticipated to promote apatite crystallization, prevent melt penetration, and modify the sluggish crystallization kinetics of garnet and silicocarnotite, thereby significantly improving the melt consumption. This investigation on synergistic effect of gadolinium and ytterbium cations provides a theoretical support for the anti-CMAS-corrosion composition modification of TBCs/EBCs.

Key words: gadolinium-ytterbium oxide, CMAS corrosion, reactive crystallization product, synergistic effect

CLC Number:

TQ174

ZHANG Guangheng, SHI Jinyu, SHEN Hongyu, ZHANG Jie, WANG Jingyang. Synergistic Mechanism of Gd³⁺ and Yb³⁺ on Crystallization Behavior of CMAS Corrosion Products[J]. Journal of Inorganic Materials, 2026, 41(1): 27-36.

Figures/Tables 13

References 36

[1]	WEI Z, MENG G, CHEN L, et al. Progress in ceramic materials and structure design toward advanced thermal barrier coatings. Journal of Advanced Ceramics, 2022, 11(7): 985. DOI
[2]	TEJERO M D, BENNETT C, HUSSAIN T. A review on environmental barrier coatings: history, current state of the art and future developments. Journal of the European Ceramic Society, 2021, 41(3): 1747. DOI URL
[3]	POERSCHKE D L, JACKSON R W, LEVI C G. Silicate deposit degradation of engineered coatings in gas turbines: progress toward models and materials solutions. Annual Review of Materials Research, 2017, 47(1): 297. DOI URL
[4]	NIETO A, AGRAWAL R, BRAVO L, et al. Calcia-magnesia- alumina-silicate (CMAS) attack mechanisms and roadmap towards Sandphobic thermal and environmental barrier coatings. International Materials Reviews, 2020, 66(7): 451. DOI URL
[5]	MERCER C, FAULHABER S, EVANS A G, et al. A delamination mechanism for thermal barrier coatings subject to calcium-magnesium-alumino-silicate (CMAS) infiltration. Acta Materialia, 2005, 53(4): 1029. DOI URL
[6]	POERSCHKE D L, SHAW J H, VERMA N, et al. Interaction of yttrium disilicate environmental barrier coatings with calcium- magnesium-iron alumino-silicate melts. Acta Materialia, 2018, 145: 451. DOI URL
[7]	SUMMERS W D, POERSCHKE D L, TAYLOR A A, et al. Reactions of molten silicate deposits with yttrium monosilicate. Journal of the American Ceramic Society, 2020, 103(4): 2919. DOI URL
[8]	MOTOC A M, VALSAN S, SLOBOZEANU A E, et al. Design, fabrication, and characterization of new materials based on zirconia doped with mixed rare earth oxides: review and first experimental results. Metals, 2020, 10(6): 746. DOI URL
[9]	ZHANG Z, PENG F, HUANG Y, et al. CMAS corrosion resistance of rare-earth cerates at higher temperature. Ceramics International, 2025, 51(6): 7906. DOI URL
[10]	MOURET T, MAILLÉ L, DANET J, et al. Thermochemical interaction of pure rare earth silicates (Y and Yb) with CMAS: role and stability of the corrosion products. Corrosion Science, 2025, 250: 112864. DOI URL
[11]	TIAN Z, ZHANG J, ZHENG L, et al. General trend on the phase stability and corrosion resistance of rare earth monosilicates to molten calcium-magnesium-aluminosilicate at 1300 ℃. Corrosion Science, 2019, 148: 281. DOI URL
[12]	POERSCHKE D L, LEVI C G. Effects of cation substitution and temperature on the interaction between thermal barrier oxides and molten CMAS. Journal of the European Ceramic Society, 2015, 35(2): 681. DOI URL
[13]	KRÄMER S, YANG J, LEVI C G. Infiltration-Inhibiting reaction of gadolinium zirconate thermal barrier coatings with CMAS melts. Journal of the American Ceramic Society, 2008, 91(2): 576. DOI URL
[14]	ZHONG X, WANG Y, NIU Y, et al. Corrosion behaviors and mechanisms of ytterbium silicate environmental barrier coatings by molten calcium-magnesium-alumino-silicate melts. Corrosion Science, 2021, 191: 109718. DOI URL
[15]	POERSCHKE D L, BARTH T L, LEVI C G. Equilibrium relationships between thermal barrier oxides and silicate melts. Acta Materialia, 2016, 120: 302. DOI URL
[16]	KIM S H, NAGASHIMA N, MATSUSHITA Y, et al. Interaction of Gd₂Si₂O₇ with CMAS melts for environmental barrier coatings. Journal of the European Ceramic Society, 2023, 43(2): 593. DOI URL
[17]	WU N, WANG Y, TONG Y, et al. Interaction of ytterbium monosilicate environmental barrier coating material with molten calcium-magnesium-aluminosilicate (CMAS). Corrosion Science, 2023, 211: 110864. DOI URL
[18]	LIU P, ZHONG X, NIU Y, et al. Reaction behaviors and mechanisms of tri-layer Yb₂SiO₅/Yb₂Si₂O₇/Si environmental barrier coatings with molten calcium-magnesium-alumino-silicate. Corrosion Science, 2022, 197: 110069. DOI URL
[19]	TURCER L R, PADTURE N P. Towards multifunctional thermal environmental barrier coatings (TEBCs) based on rare-earth pyrosilicate solid-solution ceramics. Scripta Materialia, 2018, 154: 111. DOI URL
[20]	STEINBERG L, MIKULLA C, NARAPARAJU R, et al. Erosion behavior of CMAS/VA infiltrated EB-PVD Gd₂Zr₂O₇ TBCs: special emphasis on the effect of mechanical properties of the reaction products. Wear, 2022, 506/507: 204450. DOI URL
[21]	QIAN B, WANG Y, ZU J, et al. A review on multicomponent rare earth silicate environmental barrier coatings. Journal of Materials Research and Technology, 2024, 29: 1231. DOI URL
[22]	VAKILIFARD H, SHAHBAZI H, LIBERATI A C, et al. High entropy oxides as promising materials for thermal barrier topcoats: a review. Journal of Thermal Spray Technology, 2024, 33(2/3): 447. DOI
[23]	DENG S, HE G, YANG Z, et al. Calcium-magnesium-alumina-silicate (CMAS) resistant high entropy ceramic (Y_0.2Gd_0.2Er_0.2Yb_0.2Lu_0.2)₂Zr₂O₇ for thermal barrier coatings. Journal of Materials Science & Technology, 2022, 107: 259.
[24]	LUO Z, JIANG J, DONG S, et al. (Gd_0.2Ho_0.2Er_0.2Yb_0.2Lu_0.2)₂Si₂O₇ and (Sc_0.2Ho_0.2Er_0.2Yb_0.2Lu_0.2)₂Si₂O₇ high-entropy rare-earth disilicates as promising materials for environmental barrier coatings. Ceramics International, 2024, 50(13): 23342. DOI URL
[25]	SUN L, LUO Y, TIAN Z, et al. High temperature corrosion of (Er_0.25Tm_0.25Yb_0.25Lu_0.25)₂Si₂O₇ environmental barrier coating material subjected to water vapor and molten calcium-magnesium- aluminosilicate (CMAS). Corrosion Science, 2020, 175: 108881. DOI URL
[26]	WANG X, MENG M, XU F, et al. (Lu_1/7Yb_1/7Sc_1/7Er_1/7Y_1/7Ho_1/7Dy_1/7)₂Si₂O₇ high entropy rare-earth disilicate with low thermal conductivity and excellent resistance to CMAS corrosion. Journal of Advanced Ceramics, 2024, 13(5): 549. DOI URL
[27]	POERSCHKE D L. Developments in thermodynamic models of deposit-induced corrosion of high-temperature coatings. The Journal of the Minerals, Metals & Materials Society, 2021, 74(1): 260.
[28]	POERSCHKE D L, BARTH T L, FABRICHNAYA O, et al. Phase equilibria and crystal chemistry in the calcia-silica-yttria system. Journal of the European Ceramic Society, 2016, 36(7): 1743. DOI URL
[29]	YAMANE H, NAGASAWA T, SHIMADA M, et al. Ca₃Y₂(SiO₄)₃. Acta Crystallographica Section C: Crystal Structure Communications, 1997, 53: 1367. DOI URL
[30]	GODBOLE E, VON DER HANDT A, POERSCHKE D. Apatite and garnet stability in the Al-Ca-Mg-Si-(Gd/Y/Yb)-O systems and implications for T/EBC: CMAS reactions. Journal of the American Ceramic Society, 2021, 105(2): 1596. DOI URL
[31]	PICCINELLI F, LAUSI A, SPEGHINI A, et al. Crystal structure study of new lanthanide silicates with silico-carnotite structure. Journal of Solid State Chemistry, 2012, 194: 233. DOI URL
[32]	ZHANG G, ZHANG J, WANG J. Synthesis and characterization of ytterbium oxide: a novel CMAS-resistant environmental barrier coating material. Journal of the American Ceramic Society, 2022, 106(1): 621. DOI URL
[33]	GODBOLE E, KARTHIKEYAN N, POERSCHKE D. Garnet stability in the Al-Ca-Mg-Si-Y-O system with implications for reactions between TBCs, EBCs, and silicate deposits. Journal of the American Ceramic Society, 2020, 103(9): 5270. DOI URL
[34]	SHANNON R D. Revised effective ionic radii and systematic studies of interatomie distances. Acta Crystallographica Section A: Foundations of Crystallography, 1976, 25: 751.
[35]	ZHANG G, SHI J, ZHANG J, et al. Investigation on crystallization behavior between (Sc_xYb_1-_x)O_1.5 and CMAS: a new insight in the effect of Sc substitution. Journal of Advanced Ceramics, 2024, 13(6): 789. DOI URL
[36]	ZHENG X, ZHANG L, LI Q, et al. Corrosion behavior and mechanism of aluminum-rich CMAS on rare-earth silicate environmental barrier coatings. Journal of Inorganic Materials, 2023, 38(5): 544. DOI URL

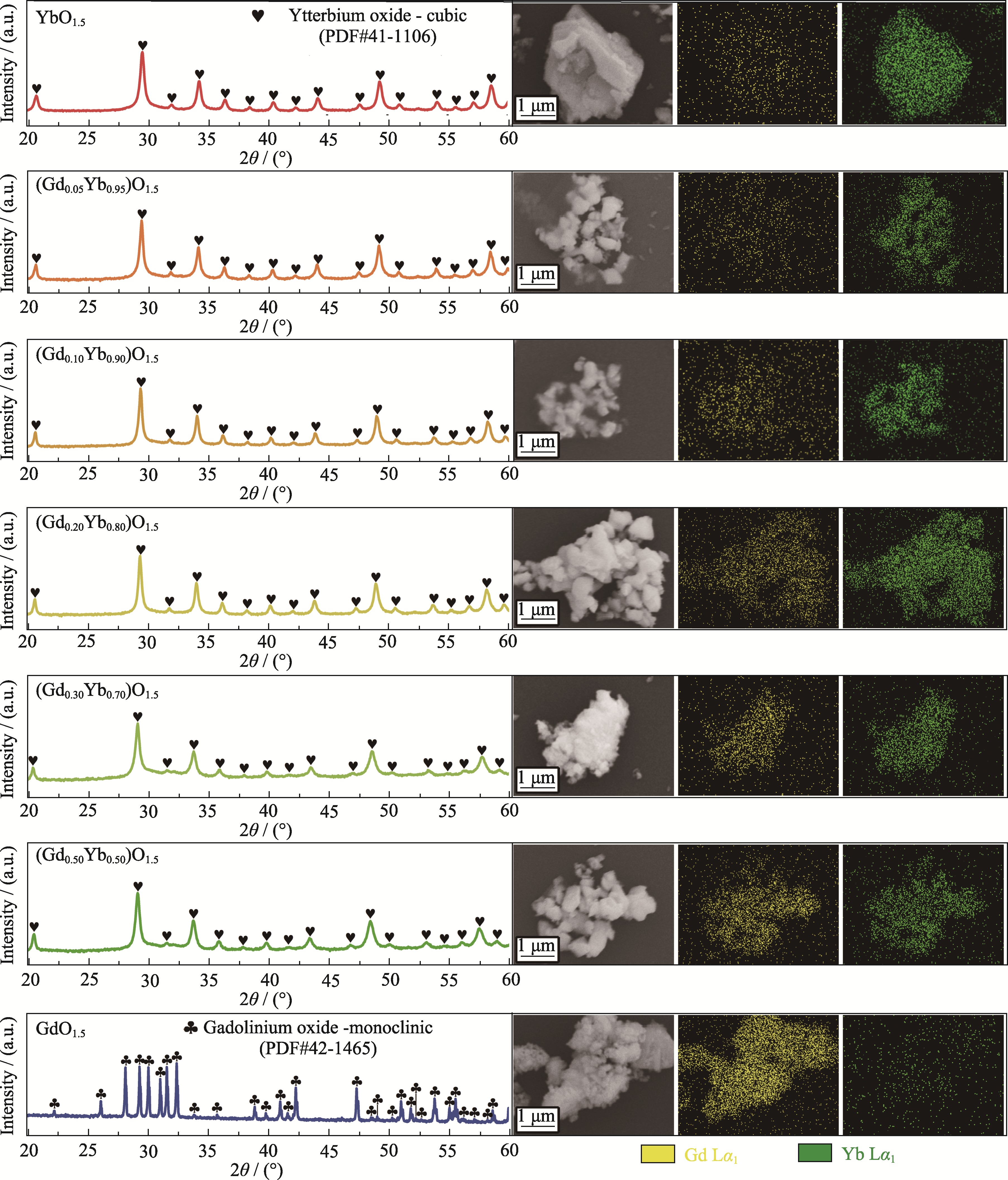

药品名称	纯度	厂家	产地
氧化钆(GdO_1.5)	99.99%	定南大华新材料资源有限公司	江西赣州
氧化镱(YbO_1.5)	99.99%	定南大华新材料资源有限公司	江西赣州
氧化钙(CaO)	分析纯AR	国药集团化学试剂有限公司	上海
氧化镁(MgO)	分析纯AR	国药集团化学试剂有限公司	上海
氧化铝(AlO_1.5)	分析纯AR	国药集团化学试剂有限公司	上海
氧化硅(SiO₂)	分析纯AR	国药集团化学试剂有限公司	上海

药品名称	纯度	厂家	产地
氧化钆(GdO_1.5)	99.99%	定南大华新材料资源有限公司	江西赣州
氧化镱(YbO_1.5)	99.99%	定南大华新材料资源有限公司	江西赣州
氧化钙(CaO)	分析纯AR	国药集团化学试剂有限公司	上海
氧化镁(MgO)	分析纯AR	国药集团化学试剂有限公司	上海
氧化铝(AlO_1.5)	分析纯AR	国药集团化学试剂有限公司	上海
氧化硅(SiO₂)	分析纯AR	国药集团化学试剂有限公司	上海

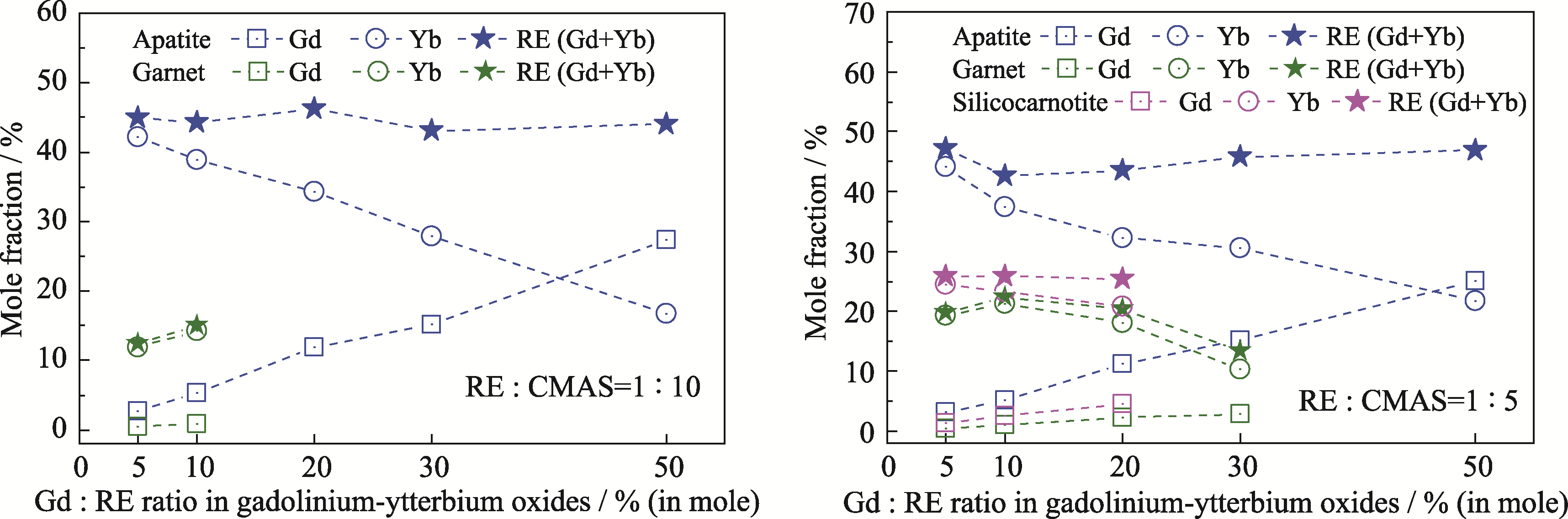

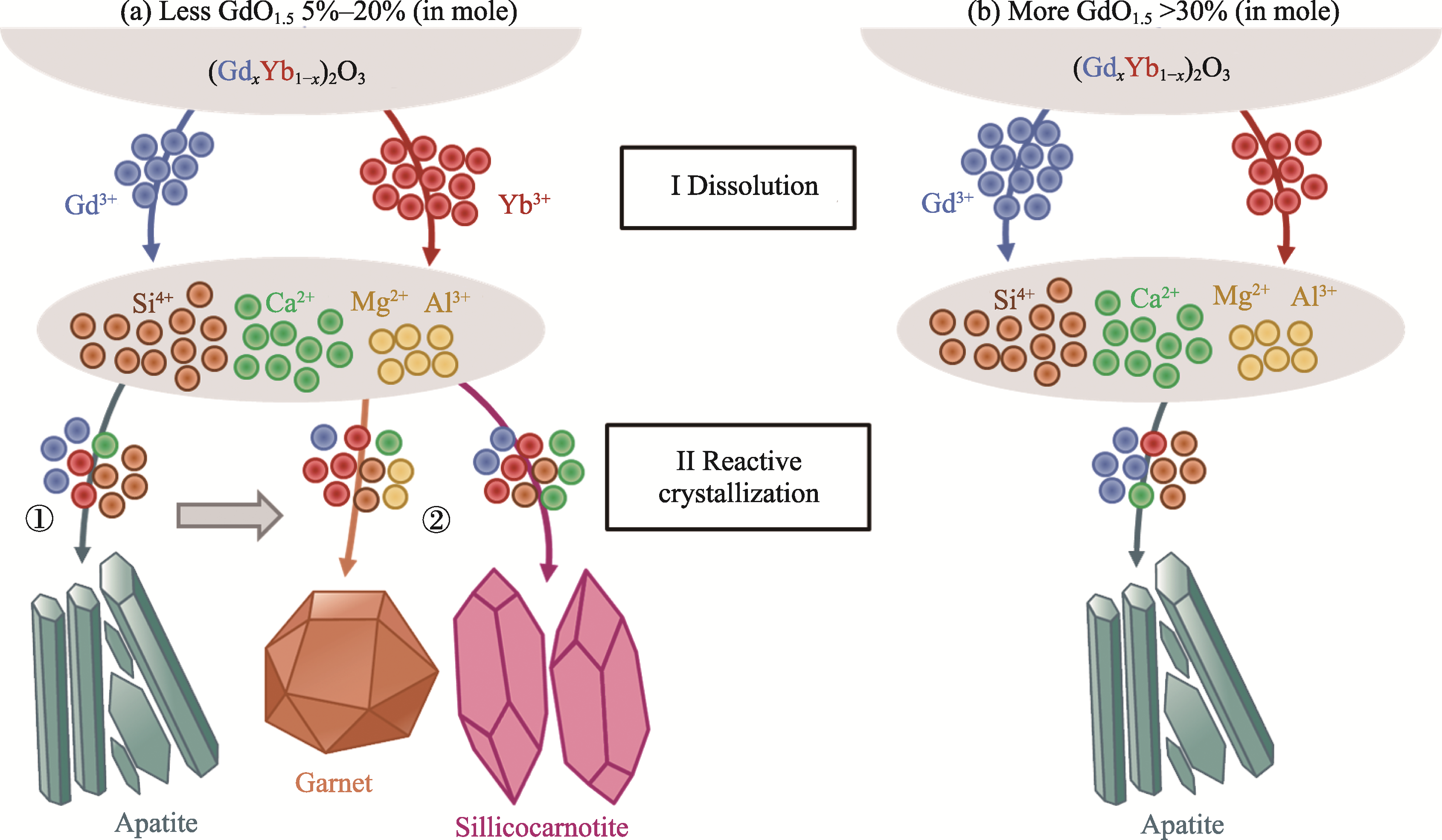

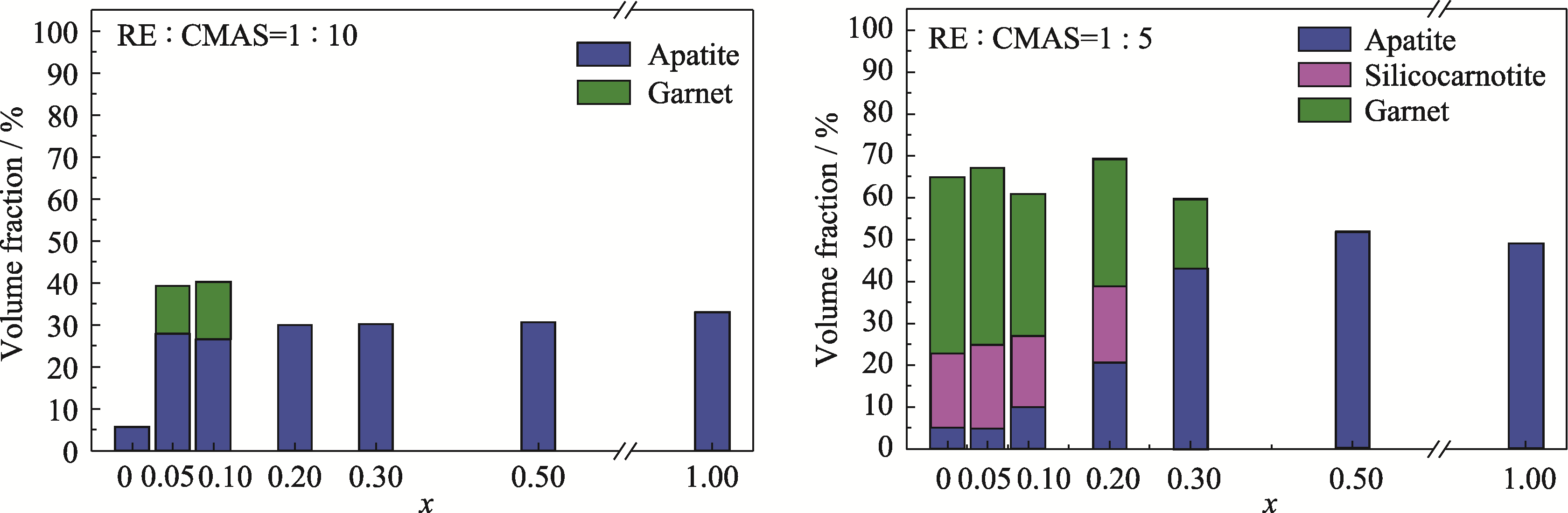

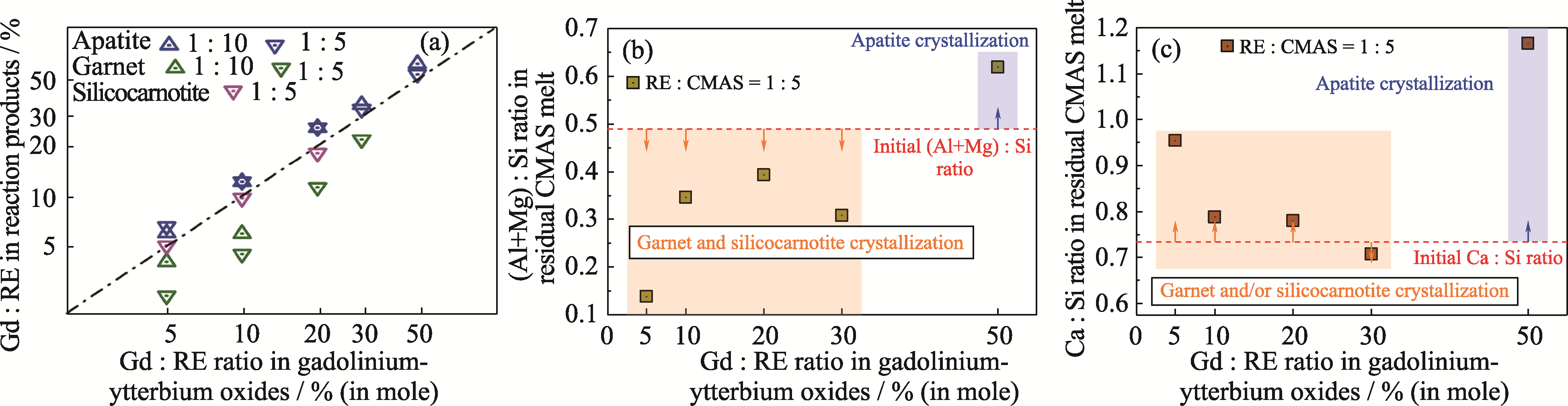

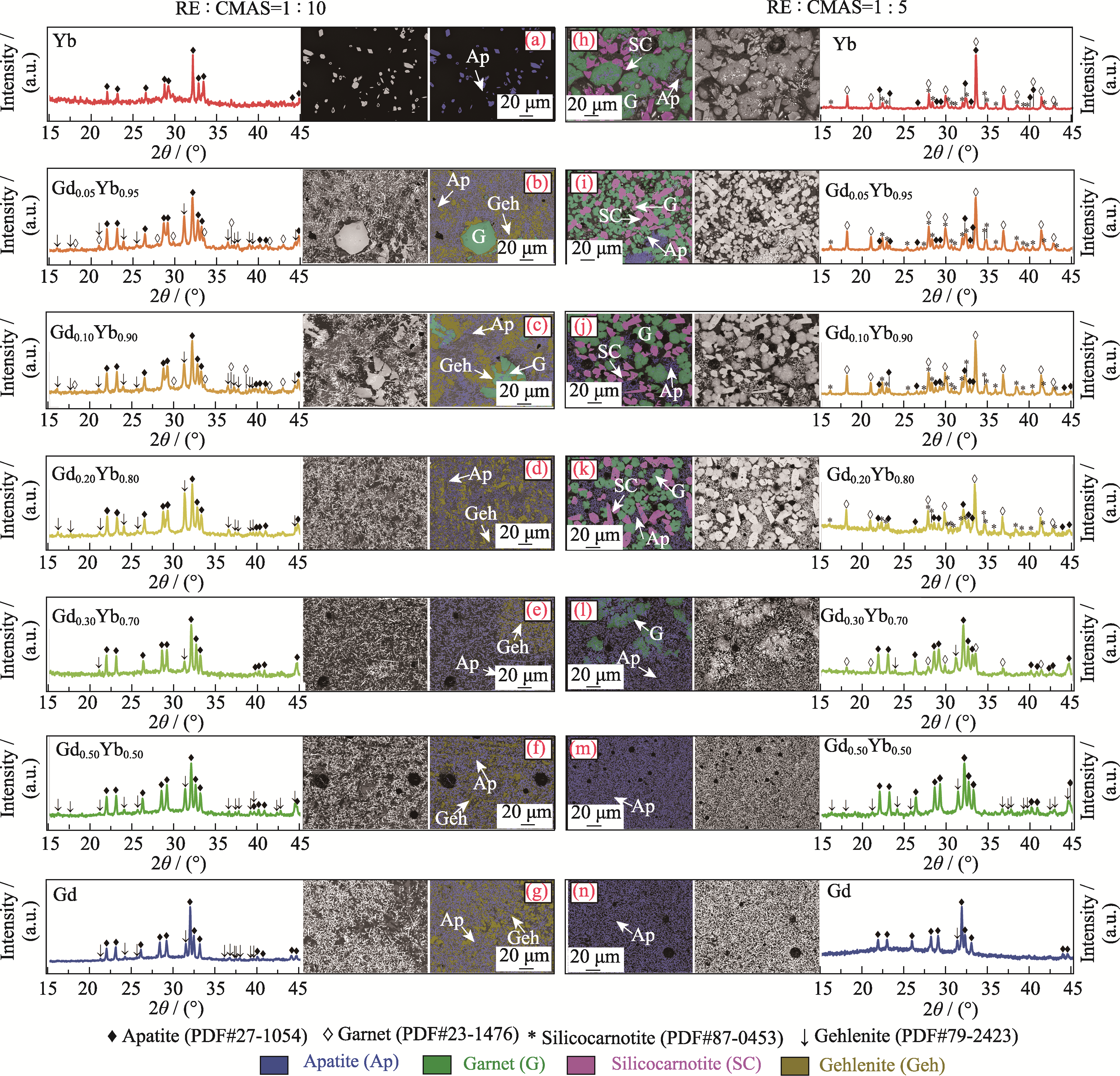

System	Phase	Chemical composition/% (in mole)
System	Phase	CaO	MgO	AlO_1.5	SiO₂	GdO_1.5	YbO_1.5
Yb : CMAS = 1 : 10	Apatite	15.5 ± 0.4	—	—	37.2 ± 0.2	—	47.3 ± 0.2
	Melt	31.7 ± 0.2	8.7 ± 0.3	12.2 ± 0.5	42.0 ± 0.5	—	5.5 ± 0.4
Yb : CMAS = 1 : 5	Apatite	15.9 ± 0.7	—	—	38.0 ± 0.6	—	46.1 ± 0.8
	Garnet	15.4 ± 0.7	15.5 ± 1.4	16.4 ± 1.7	30.4 ± 2.0	—	22.4 ± 2.3
	Silicocarnotite	35.1 ± 0.1	—	—	39.4 ± 0.2	—	25.5 ± 0.2
	Melt	43.6 ± 0.2	2.6 ± 0.2	3.9 ± 0.1	46.0 ± 0.3	—	3.9 ± 0.2
Gd_0.05Yb_0.95: CMAS = 1 : 10	Apatite	15.6 ± 0.2	—	—	39.4 ± 0.8	2.7 ± 0.2	42.2 ± 0.4
	Garnet	24.8 ± 1.6	13.1 ± 1.2	12.4 ± 1.2	37.3 ± 0.6	0.5 ± 0.1	11.9 ± 1.5
	Gehlenite	41.1 ± 0.5	13.9 ± 0.2	7.3 ± 0.3	37.7 ± 0.5	—	—
	Melt	28.4 ± 0.6	5.1 ± 1.0	15.5 ± 0.2	45.6 ± 1.1	0.2 ± 0.1	5.2 ± 0.6
Gd_0.05Yb_0.95: CMAS = 1 : 5	Apatite	13.9 ± 0.3	—	—	38.9 ± 0.5	3.1 ± 0.5	44.1 ± 0.3
	Garnet	19.2 ± 1.4	14.1 ± 0.5	13.8 ± 1.3	33.0 ± 0.8	0.5 ± 0.1	19.3 ± 1.2
	Silicocarnotite	36.4 ± 0.2	—	—	37.7 ± 0.2	1.3 ± 0.2	24.5 ± 0.4
	Melt	44.1 ± 1.6	2.3 ± 0.4	4.1 ± 1.6	46.2 ± 0.5	0.2 ± 0.1	3.2 ± 0.5
Gd_0.10Yb_0.90 : CMAS = 1 : 10	Apatite	15.3 ± 0.2	—	—	40.5 ± 0.1	5.4 ± 0.2	38.9 ± 0.4
	Garnet	22.4 ± 0.6	14.7 ± 0.6	10.5 ± 0.6	37.2 ± 0.6	0.9 ± 0.1	14.2 ± 0.9
	Gehlenite	42.2 ± 0.2	13.2 ± 0.3	8.4 ± 0.1	36.1 ± 0.5	—	—
	Melt	27.9 ± 1.4	5.2 ± 0.2	16.9 ± 1.3	44.6 ± 0.5	0.3 ± 0.1	5.1 ± 0.5
Gd_0.10Yb_0.90 : CMAS = 1 : 5	Apatite	16.8 ± 0.6	—	—	40.5 ± 0.9	5.2 ± 0.1	37.4 ± 0.4
	Garnet	17.0 ± 1.5	14.1 ± 0.1	15.5 ± 1.2	31.0 ± 0.4	1.0 ± 0.2	21.3 ± 0.9
	Silicocarnotite	35.9 ± 0.2	—	—	38.3 ± 0.2	2.5 ± 0.2	23.3 ± 0.2
	Melt	35.9 ± 0.9	2.2 ± 0.4	13.6 ± 0.5	45.5 ± 0.3	0.5 ± 0.1	2.3 ± 0.2
Gd_0.20Yb_0.80 : CMAS = 1 : 10	Apatite	14.0 ± 0.4	—	—	39.8 ± 0.8	11.9 ± 0.6	34.3 ± 1.2
	Gehlenite	41.1 ± 0.2	13.0 ± 0.2	8.3 ± 0.2	37.5 ± 0.6	—	—
	Melt	27.7 ± 0.5	5.5 ± 0.3	16.9 ± 0.5	44.5 ± 0.3	0.8 ± 0.1	4.6 ± 0.5
Gd_0.20Yb_0.80 : CMAS = 1 : 5	Apatite	15.4 ± 0.6	—	—	41.0 ± 0.7	11.2 ± 0.7	32.3 ± 0.9
	Garnet	18.4 ± 0.6	14.2 ± 0.3	13.7 ± 1.1	33.2 ± 1.6	2.3 ± 0.3	18.1 ± 1.4
	Silicocarnotite	36.7 ± 0.3	—	—	37.8 ± 0.3	4.6 ± 0.4	20.8 ± 0.7
	Melt	34.8 ± 0.8	3.1 ± 1.2	14.4 ± 1.4	44.6 ± 0.9	1.1 ± 0.1	1.9 ± 0.3
Gd_0.30Yb_0.70 : CMAS = 1 : 10	Apatite	17.0 ± 0.9	—	—	39.8 ± 0.5	15.2 ± 0.8	27.9 ± 1.0
	Gehlenite	39.8 ± 0.9	11.3 ± 0.3	11.3 ± 0.6	37.6 ± 0.7	—	—
	Melt	31.6 ± 0.5	9.4 ± 0.3	13.1 ± 0.3	41.6 ± 0.5	1.0 ± 0.1	3.4 ± 0.2
Gd_0.30Yb_0.70 : CMAS = 1 : 5	Apatite	15.7 ± 0.1	—	—	38.5 ± 0.4	15.2 ± 0.4	30.6 ± 0.8
	Garnet	22.8 ± 0.7	13.3 ± 0.5	13.5 ± 0.9	37.0 ± 0.6	2.9 ± 0.2	10.4 ± 0.4
	Melt	33.8 ± 0.2	2.1 ± 0.1	12.6 ± 0.5	47.8 ± 0.7	1.2 ± 0.1	2.5 ± 0.1
Gd_0.50Yb_0.50 : CMAS = 1 : 10	Apatite	18.4 ± 0.2	—	—	37.6 ± 1.3	27.3 ± 1.1	16.7 ± 0.8
	Gehlenite	40.3 ± 0.4	11.8 ± 0.1	9.5 ± 0.4	38.4 ± 0.1	—	—
	Melt	27.0 ± 0.2	5.3 ± 0.1	18.2 ± 0.1	45.1 ± 0.2	1.5 ± 0.2	2.8 ± 0.2
Gd_0.50Yb_0.50 : CMAS = 1 : 5	Apatite	15.1 ± 0.3	—	—	38.0 ± 0.6	25.1 ± 0.7	21.7 ± 0.9
	Melt	39.9 ± 0.6	11.3 ± 0.2	9.9 ± 0.2	34.3 ± 0.3	2.5 ± 0.6	2.1 ± 0.4
Gd : CMAS = 1 : 10	Apatite	20.7 ± 1.0	—	—	38.6 ± 0.1	40.7 ± 1.0	—
	Gehlenite	39.9 ± 0.9	13.7 ± 0.8	9.2 ± 0.4	37.2 ± 1.3	—	—
	Melt	25.7 ± 0.1	5.4 ± 0.5	20.6 ± 0.7	45.6 ± 0.7	2.7 ± 0.1	—
Gd : CMAS = 1 : 5	Apatite	19.9 ± 0.7	—	—	39.9 ± 0.8	40.2 ± 1.5	—
	Melt	39.7 ± 0.7	12.8 ± 0.4	9.9 ± 0.6	34.9 ± 0.7	2.7 ± 1.6	—

System	Phase	Chemical composition/% (in mole)
System	Phase	CaO	MgO	AlO_1.5	SiO₂	GdO_1.5	YbO_1.5
Yb : CMAS = 1 : 10	Apatite	15.5 ± 0.4	—	—	37.2 ± 0.2	—	47.3 ± 0.2
	Melt	31.7 ± 0.2	8.7 ± 0.3	12.2 ± 0.5	42.0 ± 0.5	—	5.5 ± 0.4
Yb : CMAS = 1 : 5	Apatite	15.9 ± 0.7	—	—	38.0 ± 0.6	—	46.1 ± 0.8
	Garnet	15.4 ± 0.7	15.5 ± 1.4	16.4 ± 1.7	30.4 ± 2.0	—	22.4 ± 2.3
	Silicocarnotite	35.1 ± 0.1	—	—	39.4 ± 0.2	—	25.5 ± 0.2
	Melt	43.6 ± 0.2	2.6 ± 0.2	3.9 ± 0.1	46.0 ± 0.3	—	3.9 ± 0.2
Gd_0.05Yb_0.95: CMAS = 1 : 10	Apatite	15.6 ± 0.2	—	—	39.4 ± 0.8	2.7 ± 0.2	42.2 ± 0.4
	Garnet	24.8 ± 1.6	13.1 ± 1.2	12.4 ± 1.2	37.3 ± 0.6	0.5 ± 0.1	11.9 ± 1.5
	Gehlenite	41.1 ± 0.5	13.9 ± 0.2	7.3 ± 0.3	37.7 ± 0.5	—	—
	Melt	28.4 ± 0.6	5.1 ± 1.0	15.5 ± 0.2	45.6 ± 1.1	0.2 ± 0.1	5.2 ± 0.6
Gd_0.05Yb_0.95: CMAS = 1 : 5	Apatite	13.9 ± 0.3	—	—	38.9 ± 0.5	3.1 ± 0.5	44.1 ± 0.3
	Garnet	19.2 ± 1.4	14.1 ± 0.5	13.8 ± 1.3	33.0 ± 0.8	0.5 ± 0.1	19.3 ± 1.2
	Silicocarnotite	36.4 ± 0.2	—	—	37.7 ± 0.2	1.3 ± 0.2	24.5 ± 0.4
	Melt	44.1 ± 1.6	2.3 ± 0.4	4.1 ± 1.6	46.2 ± 0.5	0.2 ± 0.1	3.2 ± 0.5
Gd_0.10Yb_0.90 : CMAS = 1 : 10	Apatite	15.3 ± 0.2	—	—	40.5 ± 0.1	5.4 ± 0.2	38.9 ± 0.4
	Garnet	22.4 ± 0.6	14.7 ± 0.6	10.5 ± 0.6	37.2 ± 0.6	0.9 ± 0.1	14.2 ± 0.9
	Gehlenite	42.2 ± 0.2	13.2 ± 0.3	8.4 ± 0.1	36.1 ± 0.5	—	—
	Melt	27.9 ± 1.4	5.2 ± 0.2	16.9 ± 1.3	44.6 ± 0.5	0.3 ± 0.1	5.1 ± 0.5
Gd_0.10Yb_0.90 : CMAS = 1 : 5	Apatite	16.8 ± 0.6	—	—	40.5 ± 0.9	5.2 ± 0.1	37.4 ± 0.4
	Garnet	17.0 ± 1.5	14.1 ± 0.1	15.5 ± 1.2	31.0 ± 0.4	1.0 ± 0.2	21.3 ± 0.9
	Silicocarnotite	35.9 ± 0.2	—	—	38.3 ± 0.2	2.5 ± 0.2	23.3 ± 0.2
	Melt	35.9 ± 0.9	2.2 ± 0.4	13.6 ± 0.5	45.5 ± 0.3	0.5 ± 0.1	2.3 ± 0.2
Gd_0.20Yb_0.80 : CMAS = 1 : 10	Apatite	14.0 ± 0.4	—	—	39.8 ± 0.8	11.9 ± 0.6	34.3 ± 1.2
	Gehlenite	41.1 ± 0.2	13.0 ± 0.2	8.3 ± 0.2	37.5 ± 0.6	—	—
	Melt	27.7 ± 0.5	5.5 ± 0.3	16.9 ± 0.5	44.5 ± 0.3	0.8 ± 0.1	4.6 ± 0.5
Gd_0.20Yb_0.80 : CMAS = 1 : 5	Apatite	15.4 ± 0.6	—	—	41.0 ± 0.7	11.2 ± 0.7	32.3 ± 0.9
	Garnet	18.4 ± 0.6	14.2 ± 0.3	13.7 ± 1.1	33.2 ± 1.6	2.3 ± 0.3	18.1 ± 1.4
	Silicocarnotite	36.7 ± 0.3	—	—	37.8 ± 0.3	4.6 ± 0.4	20.8 ± 0.7
	Melt	34.8 ± 0.8	3.1 ± 1.2	14.4 ± 1.4	44.6 ± 0.9	1.1 ± 0.1	1.9 ± 0.3
Gd_0.30Yb_0.70 : CMAS = 1 : 10	Apatite	17.0 ± 0.9	—	—	39.8 ± 0.5	15.2 ± 0.8	27.9 ± 1.0
	Gehlenite	39.8 ± 0.9	11.3 ± 0.3	11.3 ± 0.6	37.6 ± 0.7	—	—
	Melt	31.6 ± 0.5	9.4 ± 0.3	13.1 ± 0.3	41.6 ± 0.5	1.0 ± 0.1	3.4 ± 0.2
Gd_0.30Yb_0.70 : CMAS = 1 : 5	Apatite	15.7 ± 0.1	—	—	38.5 ± 0.4	15.2 ± 0.4	30.6 ± 0.8
	Garnet	22.8 ± 0.7	13.3 ± 0.5	13.5 ± 0.9	37.0 ± 0.6	2.9 ± 0.2	10.4 ± 0.4
	Melt	33.8 ± 0.2	2.1 ± 0.1	12.6 ± 0.5	47.8 ± 0.7	1.2 ± 0.1	2.5 ± 0.1
Gd_0.50Yb_0.50 : CMAS = 1 : 10	Apatite	18.4 ± 0.2	—	—	37.6 ± 1.3	27.3 ± 1.1	16.7 ± 0.8
	Gehlenite	40.3 ± 0.4	11.8 ± 0.1	9.5 ± 0.4	38.4 ± 0.1	—	—
	Melt	27.0 ± 0.2	5.3 ± 0.1	18.2 ± 0.1	45.1 ± 0.2	1.5 ± 0.2	2.8 ± 0.2
Gd_0.50Yb_0.50 : CMAS = 1 : 5	Apatite	15.1 ± 0.3	—	—	38.0 ± 0.6	25.1 ± 0.7	21.7 ± 0.9
	Melt	39.9 ± 0.6	11.3 ± 0.2	9.9 ± 0.2	34.3 ± 0.3	2.5 ± 0.6	2.1 ± 0.4
Gd : CMAS = 1 : 10	Apatite	20.7 ± 1.0	—	—	38.6 ± 0.1	40.7 ± 1.0	—
	Gehlenite	39.9 ± 0.9	13.7 ± 0.8	9.2 ± 0.4	37.2 ± 1.3	—	—
	Melt	25.7 ± 0.1	5.4 ± 0.5	20.6 ± 0.7	45.6 ± 0.7	2.7 ± 0.1	—
Gd : CMAS = 1 : 5	Apatite	19.9 ± 0.7	—	—	39.9 ± 0.8	40.2 ± 1.5	—
	Melt	39.7 ± 0.7	12.8 ± 0.4	9.9 ± 0.6	34.9 ± 0.7	2.7 ± 1.6	—

System	Phase	Chemical composition/% (in mole)
System	Phase	CaO	MgO	AlO_1.5	SiO₂	GdO_1.5

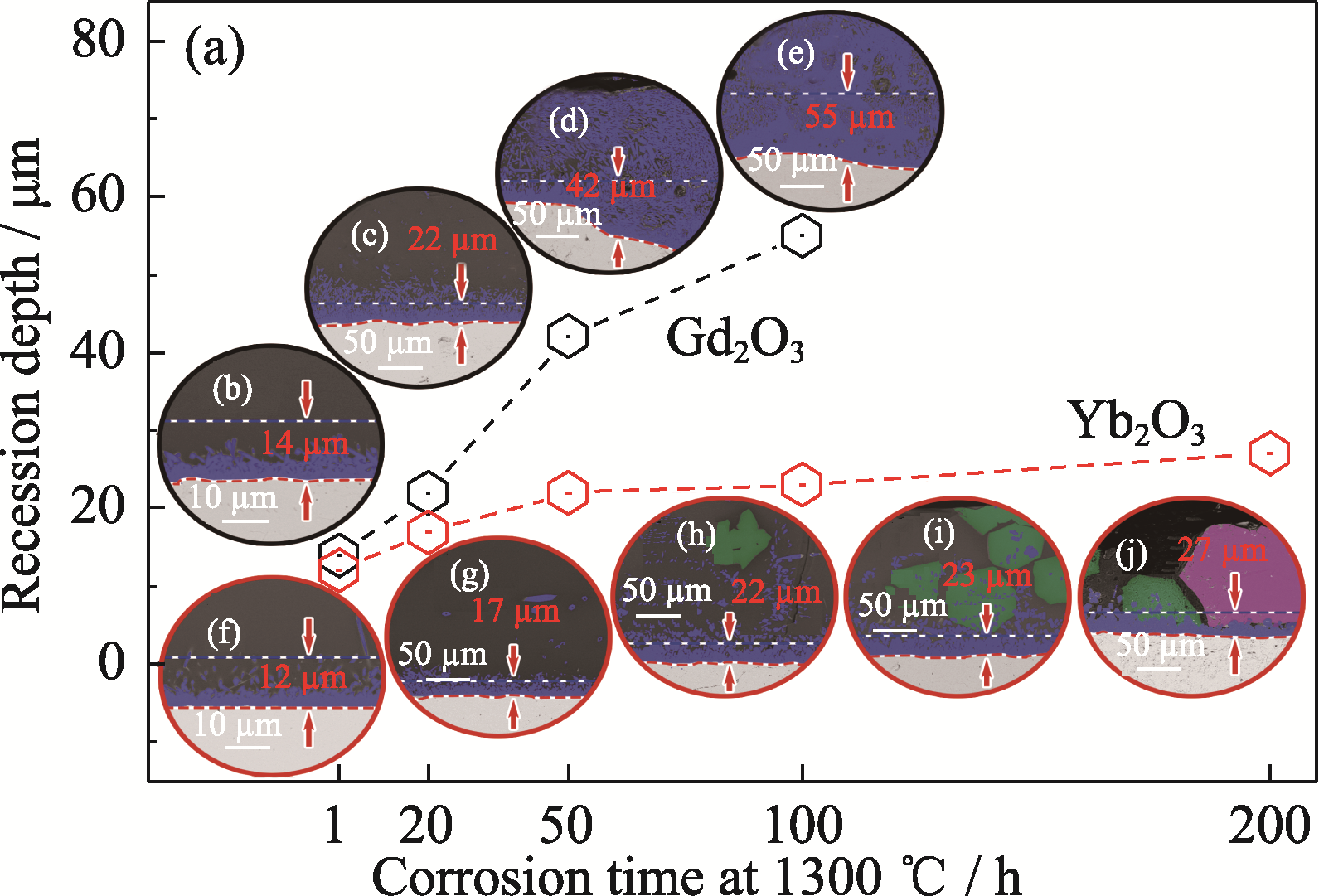

1300 ℃, 1 h	Apatite	14.1 ± 0.5	—	—	36.5 ± 0.5	49.4 ± 1.0
1300 ℃, 20 h	Apatite	13.7 ± 0.7	—	—	35.9 ± 0.5	50.3 ± 0.9
1300 ℃, 50 h	Apatite	13.6 ± 0.1	—	—	35.4 ± 0.4	51.0 ± 0.4
1300 ℃,100 h	Apatite	14.1 ± 0.2	—	—	35.8 ± 0.6	50.0 ± 0.7

Synergistic Mechanism of Gd³⁺ and Yb³⁺ on Crystallization Behavior of CMAS Corrosion Products

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 13

References 36

Related Articles 11

Recommended Articles

Metrics

Comments

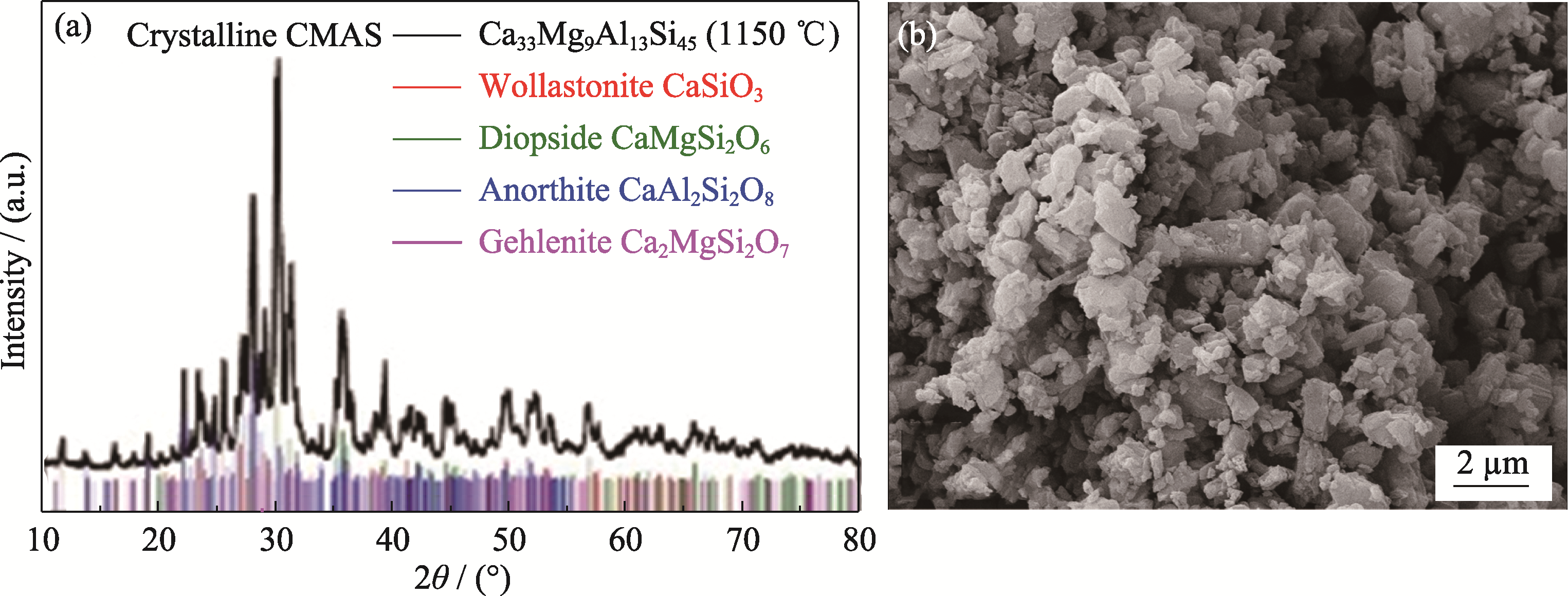

CMAS	Chemical composition/% (in mole)
CMAS	CaO	MgO	AlO_1.5	SiO₂
Theoretical value	33	9	13	45
Measured value	32.2±2.3	9.4±1.0	13.2±1.4	45.2±0.9

[1]	CHEN Libo, SHENG Ying, WU Ming, SONG Jiling, JIAN Jian, SONG Erhong. Na and O Co-doped Carbon Nitride for Efficient Photocatalytic Hydrogen Evolution [J]. Journal of Inorganic Materials, 2025, 40(5): 552-562.
[2]	FAN Wenkai, YANG Xiao, LI Honghua, LI Yong, LI Jiangtao. Pressureless Sintering of (Y_0.2Gd_0.2Er_0.2Yb_0.2Lu_0.2)₂Zr₂O₇ High-entropy Ceramic and Its High Temperature CMAS Corrosion Resistance [J]. Journal of Inorganic Materials, 2025, 40(2): 159-167.
[3]	LI Liuyuan, HUANG Kaiming, ZHAO Xiuyi, LIU Huichao, WANG Chao. Influence of RE-Si-Al-O Glass Phase on Microstructure and CMAS Corrosion Resistance of High Entropy Rare Earth Disilicates [J]. Journal of Inorganic Materials, 2024, 39(7): 793-802.
[4]	LI Jie, LUO Zhixin, CUI Yang, ZHANG Guangheng, SUN Luchao, WANG Jingyang. CMAS Corrosion Resistance of Y₃Al₅O₁₂/Al₂O₃ Ceramic Coating Deposited by Atmospheric Plasma Spraying [J]. Journal of Inorganic Materials, 2024, 39(6): 671-680.
[5]	ZHANG Wenyu, GUO Ruihua, YUE Quanxin, HUANG Yarong, ZHANG Guofang, GUAN Lili. High-entropy Phosphide Bifunctional Catalyst: Preparation and Performance of Efficient Water Splitting [J]. Journal of Inorganic Materials, 2024, 39(11): 1265-1274.
[6]	SUN Qiangqiang, CHEN Zixuan, YANG Ziyue, WANG Yimeng, CAO Baoyue. Amorphous Vanadium Oxide Loaded by Metallic Nickel-copper towards High-efficiency Electrocatalyzing Hydrogen Production [J]. Journal of Inorganic Materials, 2023, 38(6): 647-655.
[7]	FAN Dong, ZHONG Xin, WANG Yawen, ZHANG Zhenzhong, NIU Yaran, LI Qilian, ZHANG Le, ZHENG Xuebin. Corrosion Behavior and Mechanism of Aluminum-rich CMAS on Rare-earth Silicate Environmental Barrier Coatings: [J]. Journal of Inorganic Materials, 2023, 38(5): 544-552.
[8]	WANG Ping,LI Xinyu,SHI Zhanling,LI Haitao. Synergistic Effect of Ag and Ag₂O on Photocatalytic H₂-evolution Performance of TiO₂ [J]. Journal of Inorganic Materials, 2020, 35(7): 781-788.
[9]	FAN Jia-Feng,ZHANG Xiao-Feng,ZHOU Ke-Song,LIU Min,DENG Chang-Guang,DENG Chun-Ming,NIU Shao-Peng,DENG Zi-Qian. Influence of Al-modification on CMAS Corrosion Resistance of PS-PVD 7YSZ Thermal Barrier Coatings [J]. Journal of Inorganic Materials, 2019, 34(9): 938-946.
[10]	ZHANG Xiao-Feng, ZHOU Ke-Song, SONG Jin-Bing, DENG Chun-Ming, NIU Shao-Peng, DENG Zi-Qian. Deposition and CMAS Corrosion Mechanism of 7YSZ Thermal Barrier Coatings Prepared by Plasma Spray-Physical Vapor Deposition [J]. Journal of Inorganic Materials, 2015, 30(3): 287-293.
[11]	ZHAO Cai-Xia,ZHANG Wei-De. Preparation and Antibacterial Properties of Titanium (Ⅳ) and Zinc (Ⅱ) Co-doped Nanohydroxyapatite [J]. Journal of Inorganic Materials, 2009, 24(6): 1243-1248.
