Boosting the Thermoelectric Performance of Full-Heusler Fe2VAl Alloy Via Substituting Al Site with V

doi:10.15541/jim20250041

Abstract

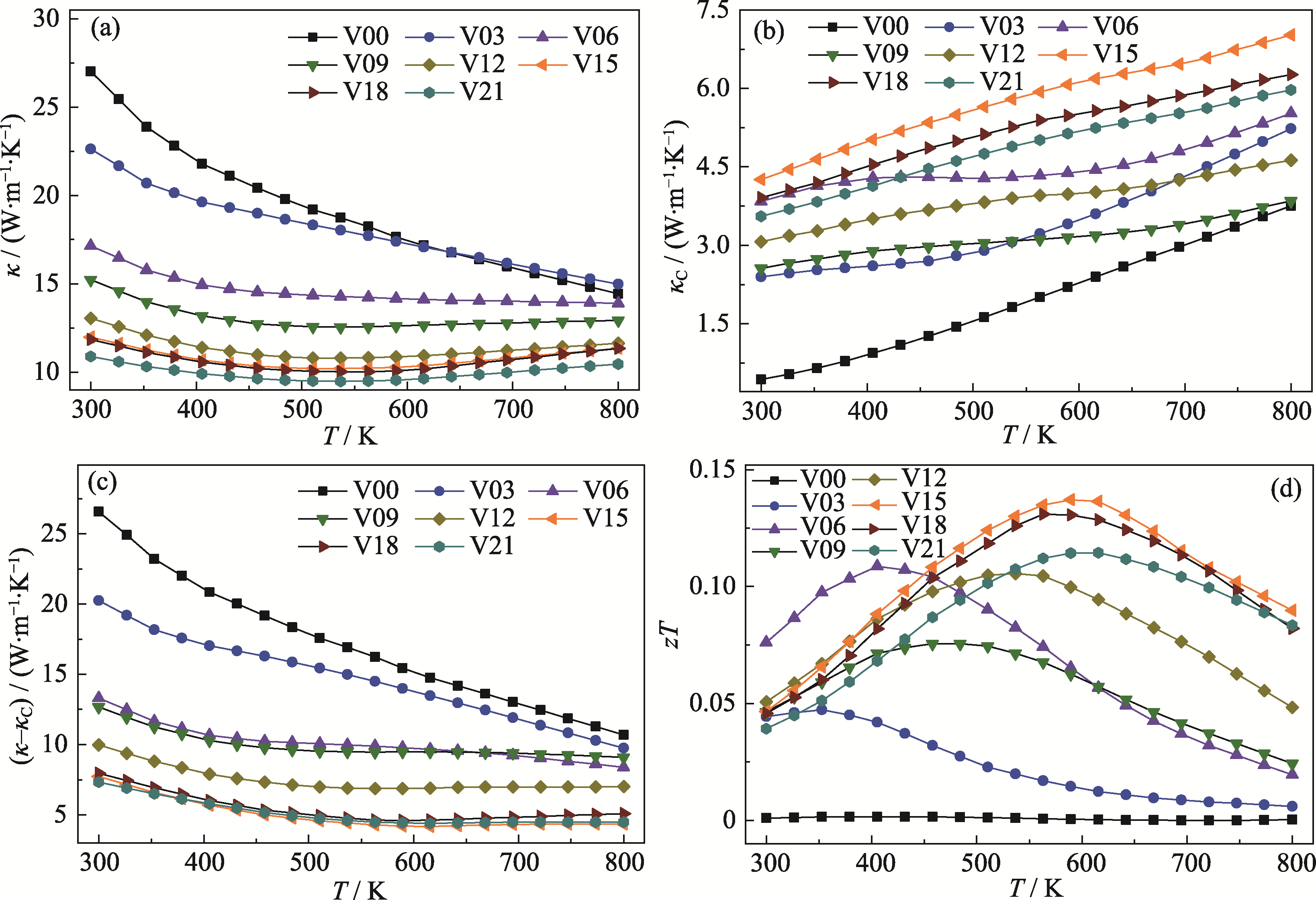

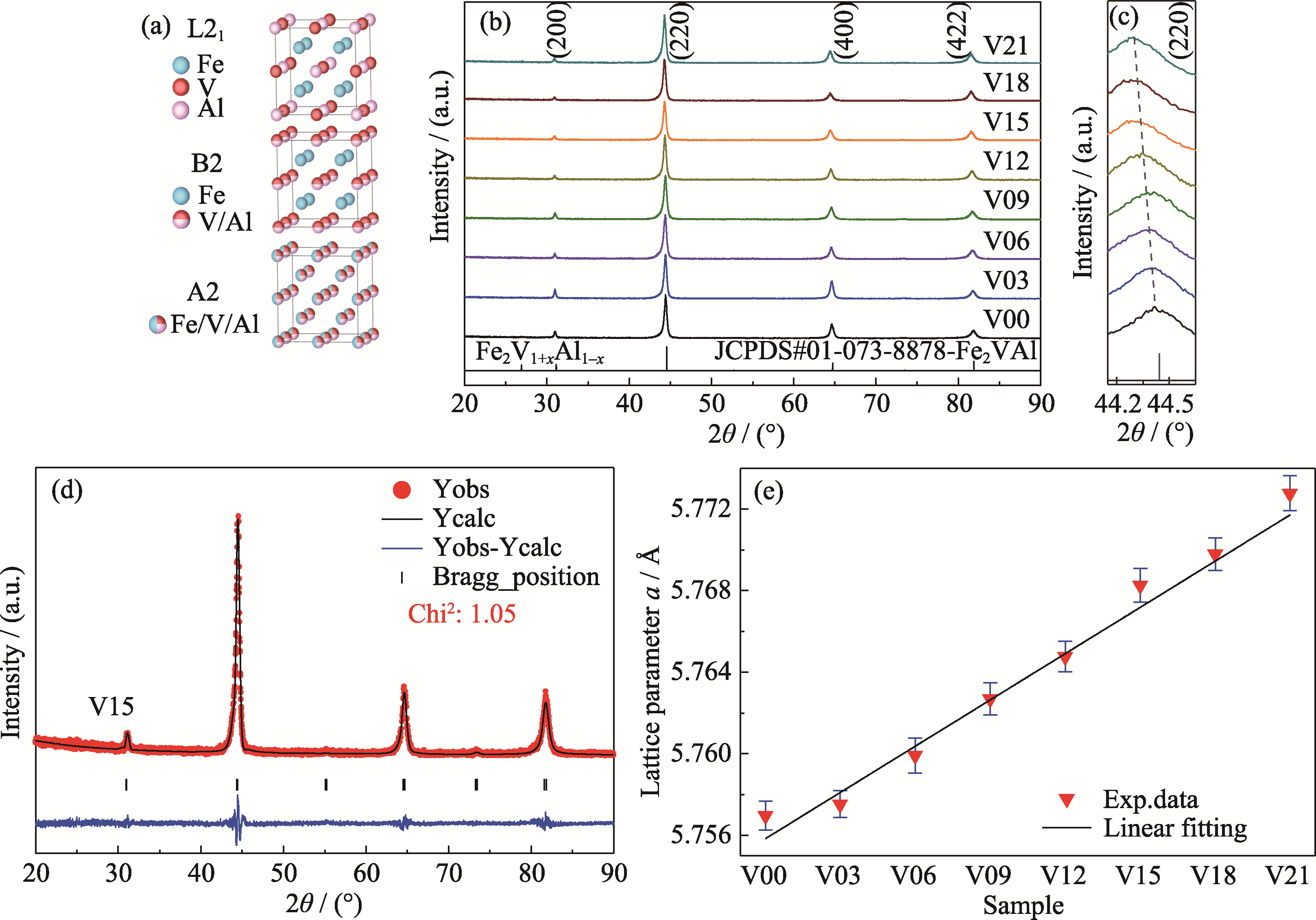

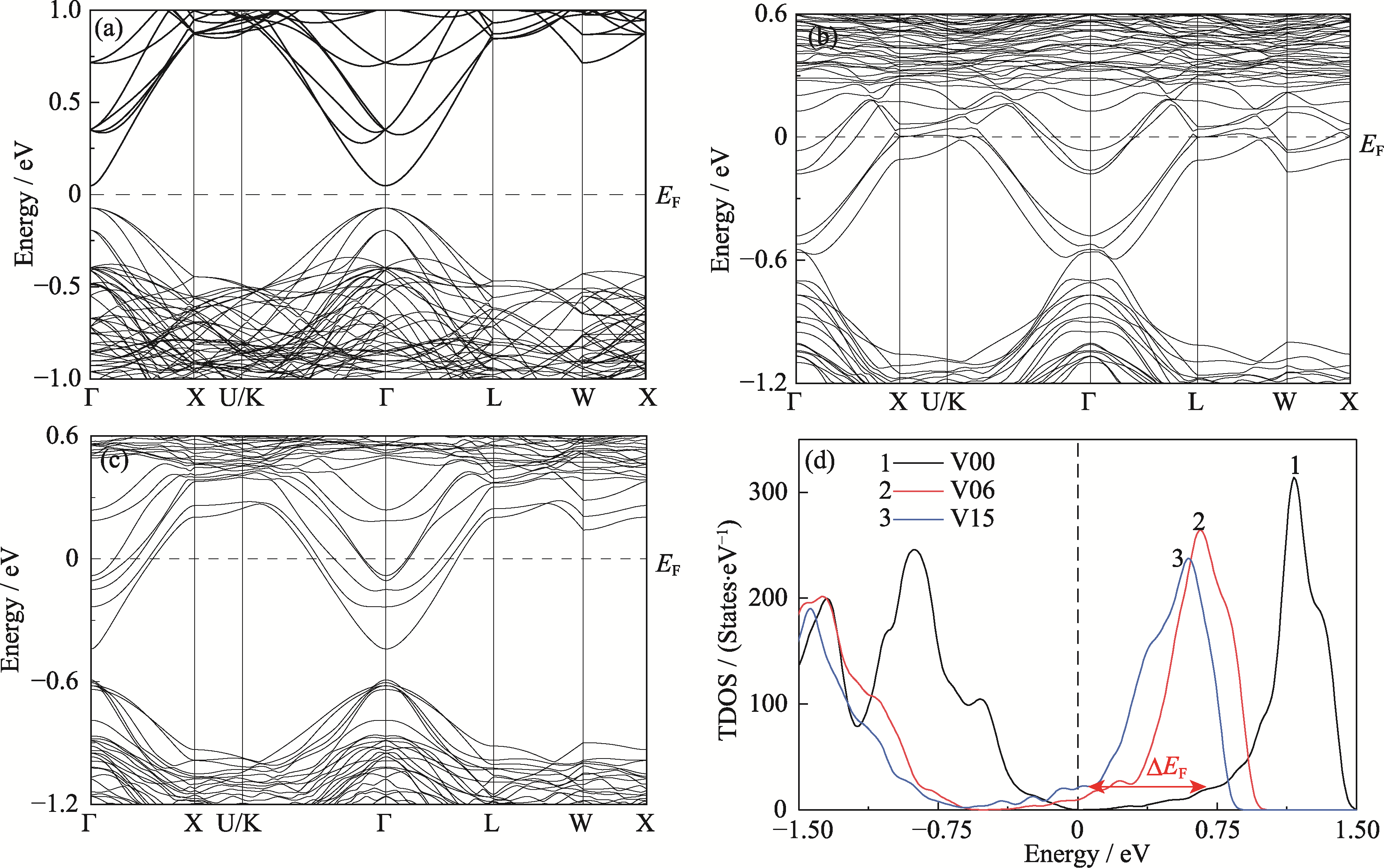

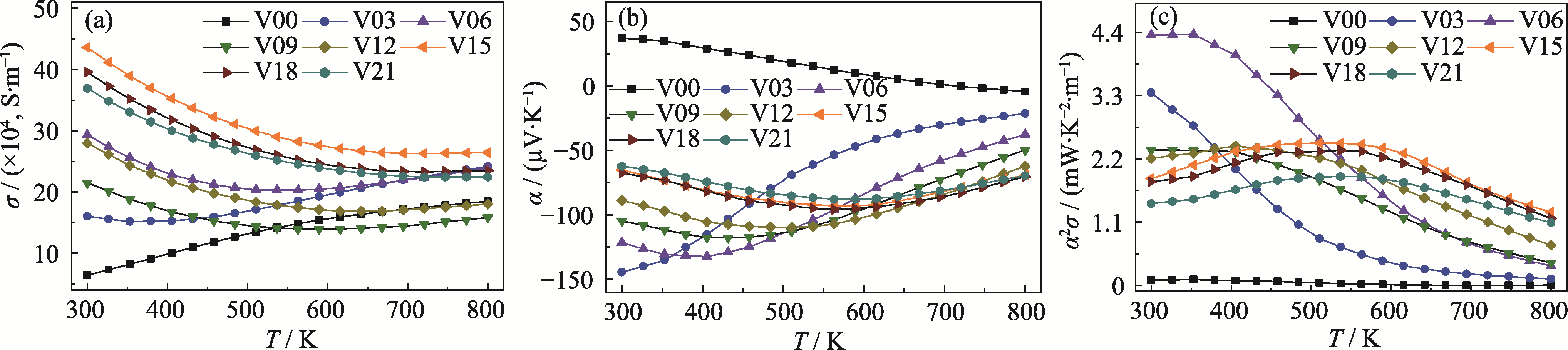

Abstract: Full-Heusler Fe₂VAl alloy has received significant attention for thermoelectric applications due to its high mechanical strength, favorable electrical transport behavior, and earth-abundant constituent elements. However, its intrinsically high lattice thermal conductivity hinders the enhancement of the figure of merit (zT). In this study, a series of bulk materials with the nominal composition of Fe₂V₁₊_xAl_1-_x (x=0-0.21) were prepared by the arc-melting method. The effects of substituting Al site with V on the phase composition, microstructure, band structure, and thermoelectric transport properties were systematically investigated. All materials exhibit a single phase with a partially disordered B2 structure. V-doping shifts the Fermi level into the conduction band, significantly enhancing the carrier concentration, and resulting in a high power factor of 4.5 mW·K^-2·m^-1. Additionally, the lattice thermal conductivity is substantially reduced due to enhanced phonon scattering induced by the mass and stress fluctuations. Ultimately, maximum zT of 0.14 is achieved for the material with x = 0.15, which is nearly 280 times larger than that of undoped Fe₂VAl. This work demonstrates that substituting Al site with V can effectively improve the thermoelectric performance of Fe₂VAl alloy.

Key words: Fe₂VAl-based full-Heusler alloy, antisite defect, microstructure, thermoelectric performance

CLC Number:

TB34

ZHENG Yuanshun, YU Jian, YE Xianfeng, LIANG Dong, ZHU Wanting, NIE Xiaolei, WEI Ping, ZHAO Wenyu, ZHANG Qingjie. Boosting the Thermoelectric Performance of Full-Heusler Fe₂VAl Alloy Via Substituting Al Site with V[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20250041.

References

[1] YANG G S, SANG L A, ZHANG C, et al.The role of spin in thermoelectricity. Nature Reviews Physics, 2023, 5(8): 466.
[2] KIM H S, LIU W S, REN Z F.The bridge between the materials and devices of thermoelectric power generators. Energy & Environmental Science, 2017, 10(1): 69.
[3] PEI Y, SHI X, LALONDE A, et al.Convergence of electronic bands for high performance bulk thermoelectrics. Nature, 2011, 473(7345): 66.
[4] HEREMANS J P, JOVOVIC V, TOBERER E S, et al.Enhancement of thermoelectric efficiency in PbTe by distortion of the electronic density of states. Science, 2008, 321(5888): 554.
[5] LABORATORY M, LIMITED D I, MIYUKIGAOKA. Improvement of the efficiency of thermoelectric energy conversion by utilizing potential barriers. Japanese Journal of Applied Physics, 1997, 36(1): 170.
[6] ZHAO L D, LO S H, ZHANG Y, et al.Ultralow thermal conductivity and high thermoelectric figure of merit in SnSe crystals. Nature, 2014, 508(7496): 373.
[7] LAN Y C, MINNICH A J, CHEN G, et al.Enhancement of thermoelectric figure-of-merit by a bulk nanostructuring approach. Advanced Functional Materials, 2010, 20(3): 357.
[8] G D MAHAN, SOFO J O. The best thermoelectric. Proceedings of the National Academy of Sciences of the United States of America, 1996, 93(15): 7436.
[9] TAVARES S S, YANG K S, MEYERS M A.Heusler alloys: Past, properties, new alloys, and prospects. Progress in Materials Science, 2023, 137: 101017.
[10] GRAF T, FELSER C, PARKIN S S P. Simple rules for the understanding of Heusler compounds. Progress in Solid State Chemistry, 2011, 39(1): 1-50.
[11] VAN DER REST C, DUPONT V, ERAUW J P, et al. On the reactive sintering of Heusler Fe₂VAl-based thermoelectric compounds. Intermetallics, 2020, 125: 106890.
[12] HARI S R, SRINIVAS V, LI C R, et al.Thermoelectric properties of rare-earth doped Fe₂VAl Heusler alloys. Journal of Physics-Condensed Matter, 2020, 32(35): 355706.
[13] KAWAHARADA Y, KUROSAKI K.Thermophysical properties of Fe₂VAl. Journal of Alloys and Compounds, 2003, 352(1/2): 48.
[14] SHAMIM S K, DEVI P, SINGH S, et al.Thermoelectric properties of Fe₂VAl in the temperature range 300-800 K: A combined experimental and theoretical study. Physica B-Condensed Matter, 2024, 673: 415496.
[15] HINTERLEITNER B, KNAPP I, PONEDER M, et al.Thermoelectric performance of a metastable thin-film Heusler alloy. Nature, 2019, 576(7785): 85.
[16] GARMROUDI F, PARZER M, RISS A, et al.Solubility limit and annealing effects on the microstructure & thermoelectric properties of Fe₂V_1-xTa_xAl_1-ySi_y Heusler compounds. Acta Materialia, 2021, 212: 116867.
[17] FUKUTA K, TSUCHIYA K, MIYAZAKI H, et al.Improving thermoelectric performance of Fe₂VAl-based Heusler compounds via high-pressure torsion. Applied Physics A: Materials Science & Processing, 2022, 128(3): 184.
[18] ALLENO E.Review of the thermoelectric properties in nanostructured Fe₂VAl. Metals, 2018, 8(11): 864.
[19] ALLENO E, DIACK-RASSELIO A, NOUTACK M S T. Optimization of the thermoelectric properties in self-substituted Fe₂VAl. Physical Review Materials, 2023, 7(7): 075403.
[20] MIYAZAKI H, TANAKA S, IDE N, et al.Thermoelectric properties of Heusler-type off-stoichiometric Fe₂V_1+xAl_1-x alloys. Materials Research Express, 2014, 1(1): 015901.
[21] DIACK-RASSELIO A, ROULEAU O, COULOMB L, et al.Influence of self-substitution on the thermoelectric Fe₂VAl Heusler alloy. Journal of Alloys and Compounds, 2022, 920: 166037.
[22] GARMROUDI F, PARZER M, RISS A, et al.Anderson transition in stoichiometric Fe₂VAl: high thermoelectric performance from impurity bands. Nature Communications, 2022, 13(1): 3599.
[23] CUI X, FENG Z, JIN Y.AutoFP: a GUI for highly automated Rietveld refinement using an expert system algorithm based on FullProf. Journal of Applied Crystallography, 2015, 48(5): 1581.
[24] PERDEW J P, RUZSINSZKY A, CSONKA G I, et al.Exchange and correlation in open systems of fluctuating electron number. Physical Review A, 2007, 76(4): 040501.
[25] SHAM L J, KOHN W.One-particle properties of an inhomogeneous interacting electron gas. Physical Review B, 1966, 145(2): 561.
[26] MAIER S, DENIS S, ADAM S, et al.Order-disorder transitions in the Fe₂VAl Heusler alloy. Acta Materialia, 2016, 121: 126.
[27] HINTERLEITNER B, GARMROUDI F, REUMANN N, et al.The electronic pseudo band gap states and electronic transport of the full-Heusler compound Fe₂VAl. Journal of Materials Chemistry C, 2021, 9(6): 2073.
[28] OKAMURA H, KAWAHARA J, NANBA T, et al.Pseudogap formation in the intermetallic compounds (Fe_1-xV_x)₃Al. Physical Review Letters, 2000, 84(16): 3674.
[29] NISHINO Y, KATO M, ASANO S, et al.Semiconductor-like behavior of electrical resistivity in Heusler-type Fe₂VAl compound. Physical Review Letters, 1997, 79(10): 1909-1912.
[30] KNAPP I, BUDINSKA B, MILOSAVLJEVIC D, et al.Impurity band effects on transport and thermoelectric properties of Fe_2-xNi_xVAl. Physical Review B, 2017, 96(4): 045204.
[31] GARMROUDI F, RUSS A, PARZER M, et al.Boosting the thermoelectric performance of Fe₂VAl-type Heusler compounds by band engineering. Physical Review B, 2021, 103(8): 085202.
[32] SHIN W H, ROH J W, RYU B, et al.Enhancing thermoelectric performances of bismuth antimony telluride via synergistic combination of multiscale structuring and band alignment by FeTe₂ Incorporation. ACS Applied Materials & Interfaces, 2018, 10(4): 3689.
[33] KIM H S, GIBBS Z M, TANG Y L.Characterization of Lorenz number with Seebeck coefficient measurement. APL Materials, 2015, 3(4): 041506.
[34] YE X F, YU J, KE S Q, et al.Excellent thermoelectric performance of Fe₂NbAl alloy induced by strong crystal anharmonicity and high band degeneracy. npj Quantum Materials, 2024, 9(1): 60.
