Effect of Solid Loading on the Property of Al2O3 Ceramics in Stereolithographic Additive Manufacturing

doi:10.15541/jim20210636

Abstract

Abstract:

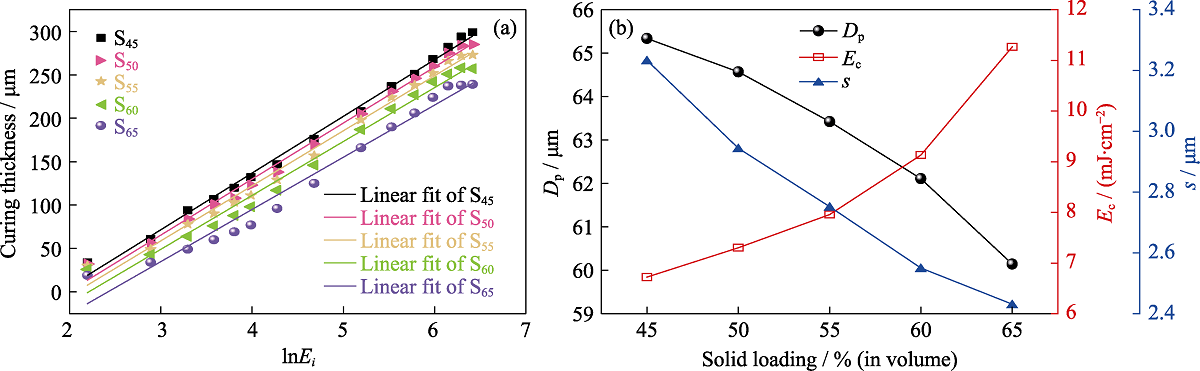

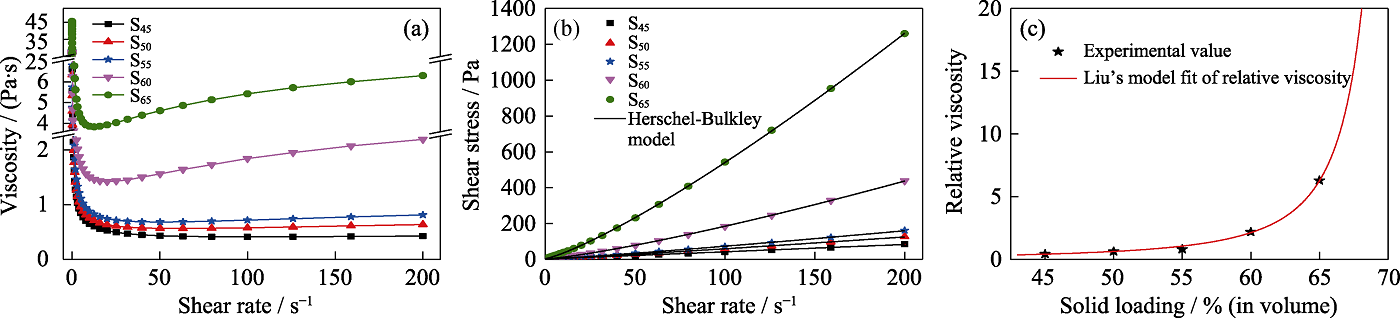

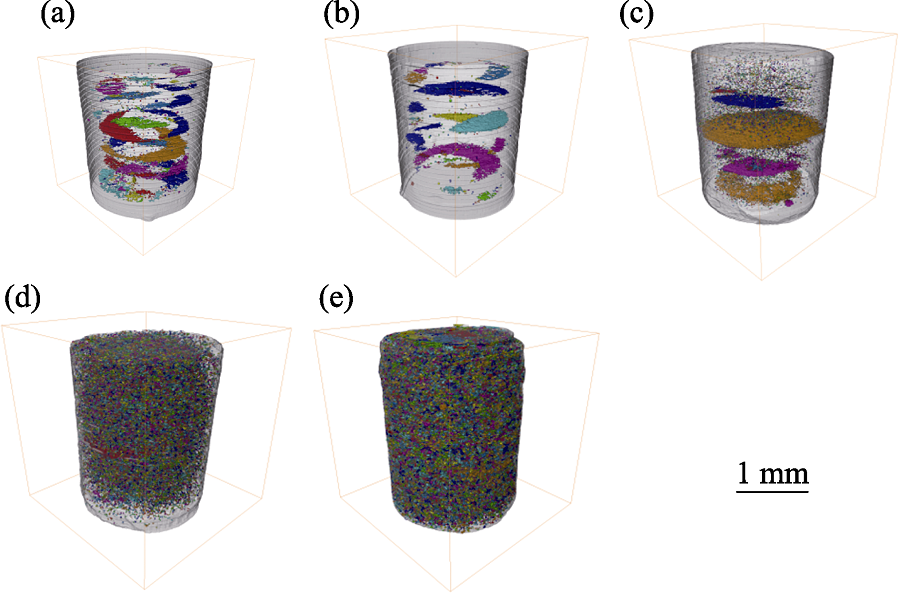

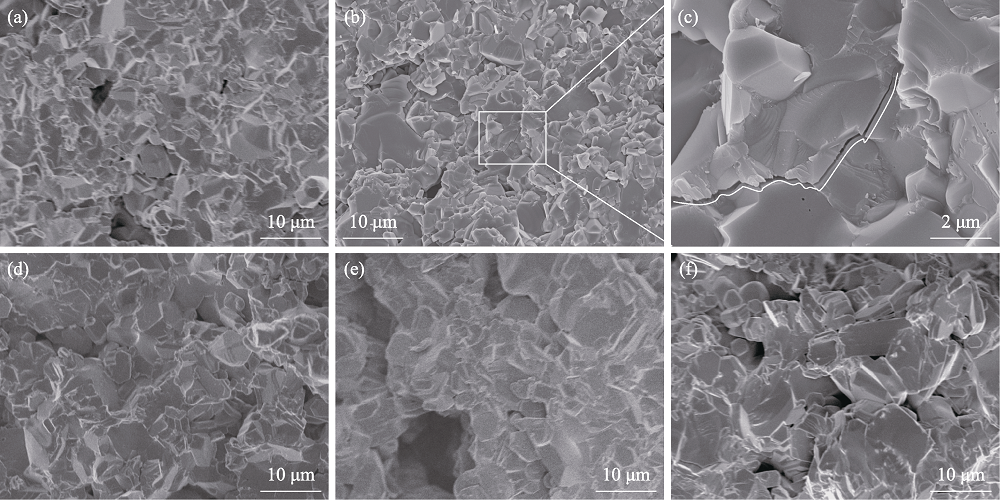

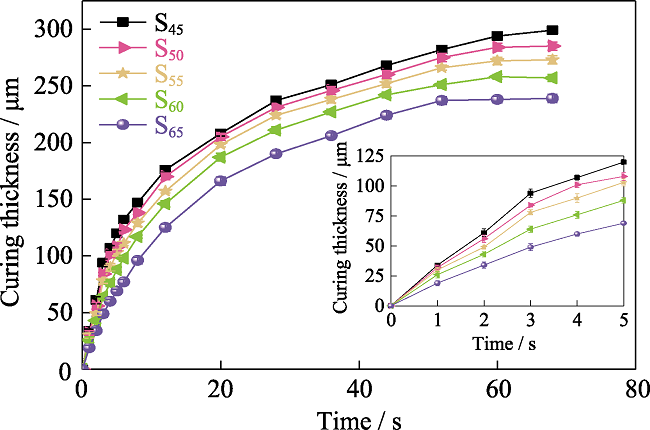

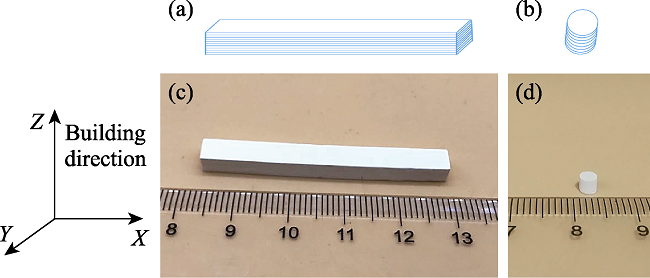

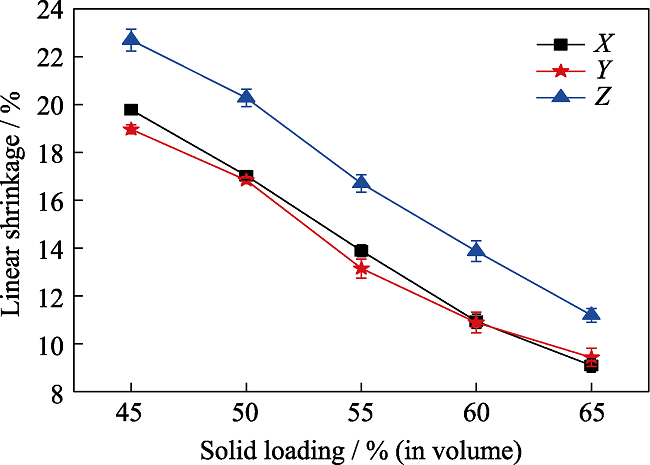

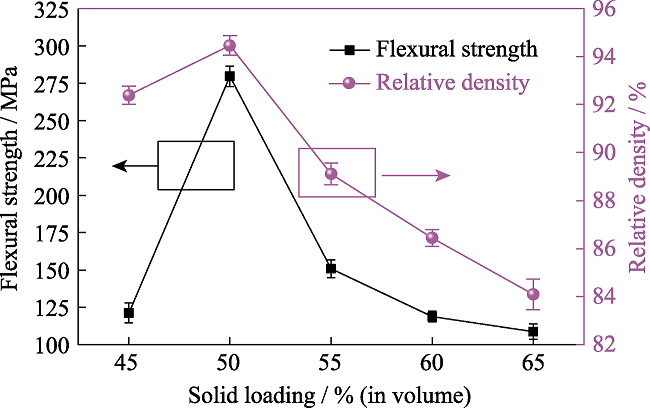

For ceramic stereolithographic (SL) additive manufacturing, the solid loading of ceramic photosensitive slurry plays an important role during the SL process. In this study, Al₂O₃ ceramics were fabricated by SL additive manufacturing from photosensitive Al₂O₃ slurries with various solid loadings, and the solid loading-property relationships of Al₂O₃ ceramic were performed. The effects of solid loading on not only the rheological behavior and curing property of the photosensitive Al₂O₃ slurry but also the microstructure and mechanical properties of the Al₂O₃ ceramic were investigated. The results showed that both the viscosity and shear stress increased with the increase of the solid loading. High viscosity was greater than the critical value for self-leveling during the SL process. The curing properties of photosensitive Al₂O₃ slurries were highly depended on the sold loading. Moreover, clear effects on the defect characteristics of Al₂O₃ ceramics manufactured from various photosensitive slurries were observed. These manufactured defects are critical for the mechanical behavior of Al₂O₃ ceramic. In addition, the relationship between rheological behavior and curing property of photosensitive Al₂O₃ slurry. Meanwhile, the resulting microstructure and mechanical properties of the Al₂O₃ ceramic were also illustrated. Inhomogeneous structure caused by high viscosity can lead to a sintered ceramic with poor strength. These findings provide fundamental understanding for SL additive manufacturing of ceramics.

Key words: Al₂O₃, solid loading, stereolithography, additive manufacturing

CLC Number:

TQ174

LIU Guoqian, YAN Changhai, ZHANG Keqiang, JIN Hua, HE Rujie. Effect of Solid Loading on the Property of Al₂O₃ Ceramics in Stereolithographic Additive Manufacturing[J]. Journal of Inorganic Materials, 2022, 37(3): 353-360.

Figures/Tables 9

References 28

[1]	LAKHDAR Y, TUCK C, BINNER J, et al. Additive manufacturing of advanced ceramic materials. Progress in Materials Science, 2021, 116: 100736. DOI URL
[2]	LI X B, ZHONG H, ZHANG J X, et al. Powder characteristics on the rheological performance of resin-based zirconia suspension for stereolithography. Journal of Inorganic Materials, 2020, 35(2): 231-235.
[3]	HE C, MA C, LI X L, et al. Continuous fast 3D printing of SiOC ceramic components. Additive Manufacturing, 2021, 46: 102111. DOI URL
[4]	YANG L L, ZENG X J, DITTA A, et al. Preliminary 3D printing of large inclined-shaped alumina ceramic parts by direct ink writing. Journal of Advanced Ceramics, 2020, 9: 312-319. DOI URL
[5]	HU X A, ZHAO G L, LIU F C, et al. Microstructure and mechanical behavior of Inconel 625 alloy processed by selective laser melting at high temperature up to 1000 ℃. Rare Metal, 2020, 39: 1181-1189. DOI URL
[6]	CHEN F, ZHU H, WU J M, et al. Preparation and biological evaluation of ZrO₂ all-ceramic teeth by DLP technology. Ceramics International, 2020, 46(8): 11268-11274. DOI URL
[7]	ZHANG K Q, XIE C, WANG G, et al. High solid loading, low viscosity photosensitive Al₂O₃ slurry for stereolithography based additive manufacturing. Ceramics International, 2019, 45(1): 203-208. DOI URL
[8]	CHEN Z W, LI Z Y, LI J J, et al. 3D printing of ceramics: a review. Journal of the European Ceramic Society, 2019, 39(4): 661-687. DOI URL
[9]	HE R J, ZHOU, N P, ZHANG K Q, et al. Progress and challenges towards additive manufacturing of SiC ceramic. Journal of Advanced Ceramics, 2021, 10(4): 637-674. DOI URL
[10]	SU B, DHARA S, WANG L. Green ceramic machining: a top- down approach for the rapid fabrication of complex-shaped ceramics. Journal of the European Ceramic Society, 2008, 28(11): 2109-2115. DOI URL
[11]	LI H, LIU Y S, LIU Y S, et al. Microstructure and mechanical properties of 3D printed ceramics with different vinyl acetate contents. Rare Metals, 2021, 40: 3241-3250. DOI URL
[12]	DING G J, HE R J, ZHANG K Q, et al. Dispersion and stability of SiC ceramic slurry for stereolithography. Ceramics International, 2020, 46(4): 4720-4729. DOI URL
[13]	LI K H, ZHAO Z. The effect of the surfactants on the formulation of UV-curable SLA alumina suspension. Ceramics International, 2017, 43(6): 4761-4767. DOI URL
[14]	NIE J B, LI M S, LIU W W, et al. The role of plasticizer in optimizing the rheological behavior of ceramic pastes intended for stereolithography-based additive manufacturing. Journal of the European Ceramic Society, 2021, 41(1): 646-654. DOI URL
[15]	AZARMI F, ALI A. Microstructural evolution during fabrication of alumina via laser stereolithography technique. Ceramics International, 2019, 45(1): 271-278. DOI URL
[16]	NDINISA S S, WHITEFIELD D J, SIGALAS I. Fabrication of complex shaped alumina parts by gelcasting on 3D printed moulds. Ceramics International, 2020, 46(3): 3177-3182. DOI URL
[17]	WEI J J, LI J L, SONG X X, et al. Effects of solid loading on the rheological behaviors and mechanical properties of injection- molded alumina ceramics. Journal of Alloys and Compounds, 2018, 768: 503-509. DOI URL
[18]	ZHANG K Q, HE R J, DING G J, et al. Digital light processing of 3Y-TZP strengthened ZrO₂ ceramics. Material Science Engineering A, 2020, 774: 138768. DOI URL
[19]	ISO 14704-2000. Fine Ceramics-Test Method for Flexural Strength of Monolithic Ceramics at Room Temperature.
[20]	HERSCHEL W H, BULKLEY R. Konsistenzmessungen von gummi-benzollosungen. Kolloid Zeitschrift, 1926, 39: 291-300. DOI URL
[21]	LEWIS J A. Colloidal processing of ceramics. Journal of the American Ceramic Society, 2000, 83: 2341-2359. DOI URL
[22]	LIU D M. Particle packing and rheological property of highly- concentrated ceramic suspensions: φ_m determination and viscosity prediction. Journal of Materials Science, 2000, 35(21): 5503-5507. DOI URL
[23]	CHARITIER T, CHAPUT C, DOREAU F, et al. Stereolithography of structural complex ceramic parts. Journal of Materials Science, 2002, 37: 3141-3147. DOI URL
[24]	ABOULIATIM Y, CHARTIER T, ABELARD P, et al. Optical characterization of stereolithography alumina suspensions using the Kubelka-Munk model. Journal of the European Ceramic Society, 2009, 29(5): 919-924. DOI URL
[25]	GRIFFITH M L, HALLORAN J W. Freeform fabrication of ceramics via stereolithography. Journal of the American Ceramic Society, 1996, 79: 2601-2608. DOI URL
[26]	DIENER S, FRANCHIN G, ACHILLES N, et al. X-ray microtomography investigations on the residual pore structure in silicon nitride bars manufactured by Direct Ink Writing using different printing patterns. Open Ceramic, 2021, 5: 100042.
[27]	ZHANG K Q, MENG Q Y, CAI N J, et al. Effects of solid loading on stereolithographic additive manufactured ZrO₂ ceramic: a quantitative defect study by X-ray computed tomography. Ceramics International, 2021, 47(17): 24353-24359. DOI URL
[28]	ZHANG K Q, HE R J, DING G J, et al. Effects of fine grains and sintering additives on stereolithography additive manufactured Al₂O₃ ceramic. Ceramics International, 2021, 47(1): 2303-2310. DOI URL

Solid loading /% (in volume)	τ₀/Pa	K	n	R²
45	1.24243	0.41855	0.99596	0.99825
50	1.43614	0.37397	1.09476	0.99871
55	1.77148	0.37481	1.14081	0.99883
60	2.26134	0.57750	1.25022	0.99975
65	3.97074	1.87845	1.22798	0.99992

Solid loading /% (in volume)	τ₀/Pa	K	n	R²
45	1.24243	0.41855	0.99596	0.99825
50	1.43614	0.37397	1.09476	0.99871
55	1.77148	0.37481	1.14081	0.99883
60	2.26134	0.57750	1.25022	0.99975
65	3.97074	1.87845	1.22798	0.99992
