Fabrication and Optical Property of Nd:Lu2O3 Transparent Ceramics for Solid-state Laser Applications

doi:10.15541/jim20200143

Abstract

Abstract:

Nd ³⁺ doped Lu₂O₃ crystal has been suggested to be potential gain medium for high-power solid-state lasers due to the high thermal conductivity, low phonon energy and excellent optical properties. Because of the extremely high melting point of above 2400 ℃, great attention has been paid to the Lu₂O₃-based transparent ceramics considering the comparable optical properties and laser performance with single crystal. In this work, we aimed at fabricating highly transparent Nd:Lu₂O₃ ceramics and investigating the optical properties and laser performance. 1.0at%Nd:Lu₂O₃ ceramics were fabricated by two-step sintering, namely vacuum sintering along with hot isostatic pressing (HIP) method, from coprecipitated nano-powders. The microstructures of the as-prepared powder, green body and ceramics were studied. The average grain size of the HIPed ceramics is 724.2 nm. The final ceramic sample has the in-line transmittance of 82.4% at 1100 nm (1.0 mm thickness). The absorption cross-section of 1.0at%Nd:Lu₂O₃ ceramics at 806 nm is 1.50′10^-20 cm² and the calculated emission cross-section from fluorescence spectrum at 1080 nm is about 6.5′10^-20 cm². The mean fluorescence lifetime, 169 ms, of the⁴F_3/2·⁴I_11/2 was measured at the two excitation wavelengths of 878.8 and 895.6 nm, respectively. Laser performance of the annealed ceramic sample was investigated in quasi-continuous wave (QCW) condition. A maximum laser output power of 0.47 W with a slope efficiency of 8.7% is obtained by using an output coupler with a transmission of T_OC=2.0%. Briefly, laser level Nd:Lu₂O₃ transparent ceramics with high optical transparency and uniform microstructure have been fabricated, which are promising gain media for solid-state lasers.

Key words: Nd:Lu₂O₃ transparent ceramics, co-precipitation, two-step sintering, optical property, laser performance

CLC Number:

TQ174

LIU Ziyu, TOCI Guido, PIRRI Angela, PATRIZI Barbara, FENG Yagang, CHEN Xiaopu, HU Dianjun, TIAN Feng, WU Lexiang, VANNINI Matteo, LI Jiang. Fabrication and Optical Property of Nd:Lu₂O₃ Transparent Ceramics for Solid-state Laser Applications[J]. Journal of Inorganic Materials, 2021, 36(2): 210-216.

Figures/Tables 10

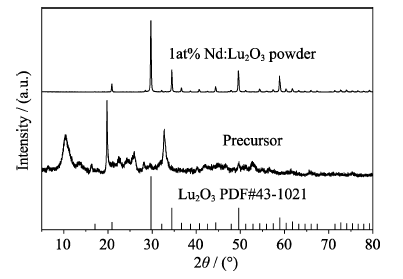

Fig. 1 XRD patterns of the as-synthesized precursor and 1.0at%Nd:Lu2O3 powder calcined at 1100 ℃ for 4 h

Fig. 2 FESEM micrographs of (a) precursor, (b) 1.0at%Nd:Lu2O3 powder and (c) green body formed from the nano-powder

Fig. 3 FESEM micrographs of the thermally etched (1300 ℃ for 3 h) surfaces of 1.0at%Nd:Lu2O3 ceramics

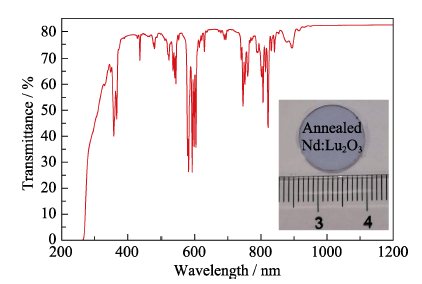

Fig. 4 In-line transmittance and the photograph of the double-side polished 1.0at%Nd:Lu2O3 transparent ceramics

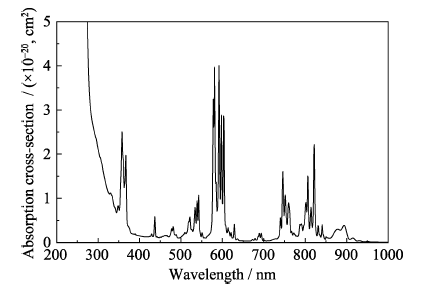

Fig. 5 Room-temperature absorption cross-section spectrum of the 1.0at%Nd:Lu2O3 ceramics annealed at 900 ℃ for 30 h

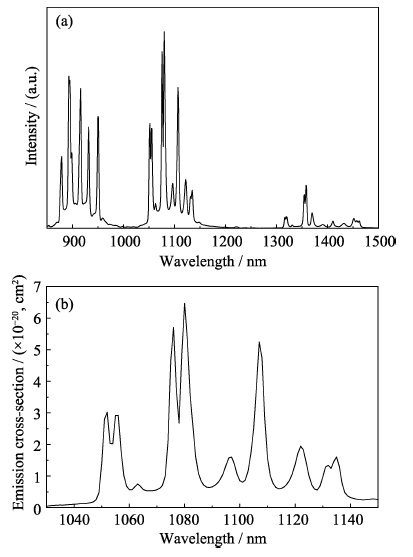

Fig. 6 (a) Room-temperature fluorescence spectrum and (b) emission cross-section of the 1.0at%Nd:Lu2O3 ceramics annealed at 900 ℃ for 30 h

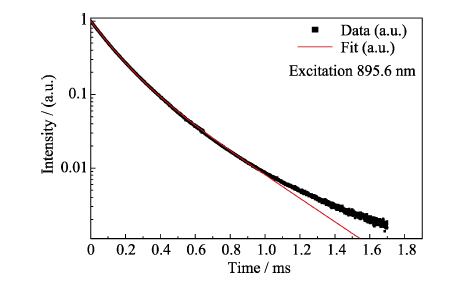

Fig. 7 Fluorescence decay of the 1.0at%Nd:Lu2O3 ceramics excited at two different wavelengths

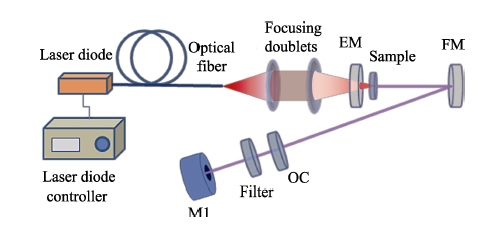

Fig. 8 Schematic of the laser cavity layout employed for the laser tests

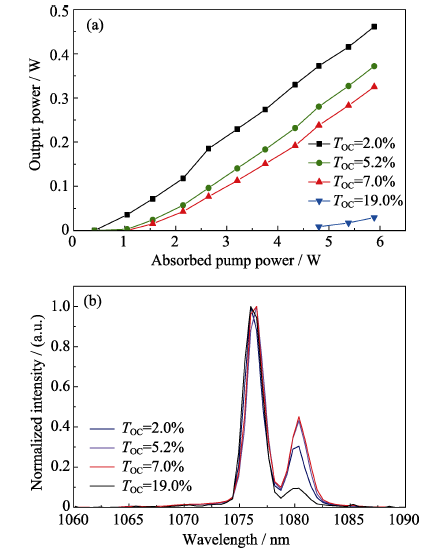

Fig. 9 Laser output power vs incident pump power (a) and emission spectra for different transmission values of the OC (b)

Output coupler transmission/ %	Maximum power/ W	Slope efficiency/ %	Optical efficiency*/ %	Laser threshold/ W
2.0	0.460	8.7	7.8	0.57
5.2	0.372	8.9	6.3	0.81
7.0	0.325	8.3	5.7	1.20
19.0	0.029	1.9	0.5	4.42

References 39

[1]	IKESUE A, AUNG Y L. Ceramic laser materials. Nature Photonics, 2018,2(12):721-727. DOI URL
[2]	KAMINSKII A A. Laser crystals and ceramics: recent advances. Laser & Photonics Reviews, 2007,1(2):93-177.
[3]	TAIRA T. RE³+-ion-doped YAG ceramic lasers. IEEE Journal of Selected Topics in Quantum Electronics, 2007,13(3):798-809.
[4]	TAO X T, WANG S P, WANG L, et al. Research in crystal materials: from bulk crystals to micro-nano crystals. Journal of Synthetic Crystals, 2019,48:765-785.
[5]	LI N, LIU B, SHI J J, et al. Research progress of rare-earth doped laser crystals in visible region. Journal of Inorganic Materials, 2019,34:573-589.
[6]	GRUBER J B, SARDAR D K, YOW R M, et al. Energy-level structure and spectral analysis of Nd³⁺ (4f³) in polycrystalline ceramic garnet Y₃Al₅O₁₂. Journal of Applied Physics, 2004,96(6):3050-3056.
[7]	LI J H, LIU X H, WU J B, et al. High-power diode-pumped Nd:Lu₂O₃ crystal continuouswave thin-disk laser at 1359 nm. Laser Physics Letters, 2012,9(3):195-198.
[8]	JU M, XIAO Y, ZHONG M M, et al. New theoretical insights into the crystal-field splitting and transition mechanism for Nd³+-doped Y₃Al₅O₁₂. ACS Applied Materials & Interfaces, 2019,11(11):10745-10750.
[9]	BRUNN P V, HEUER A M, FORNASIERO L, et al. Efficient laser operation of Nd³+:Lu₂O₃ at various wavelengths between 917 nm and 1463 nm. Laser Physics, 2016,26(8):084003.
[10]	HAO L Z, WU K, CONG H J, et al. Spectroscopy and laser performance of Nd:Lu₂O₃ crystal. Optics Express, 2011,19(18):17774-17779.
[11]	XUE X G, ZHANG F, ZHAO H Q. Influence of the Nd:YAG laser-induced color center absorption on 1064 nm laser output power. Journal of Synthetic Crystals, 2018,47(5):1083-1088.
[12]	PAVEL N. Simultaneous dual-wavelength emission at 0.90 and 1.06 µm in Nd-doped laser crystals. Laser Physics, 2010,20(1):215-221.
[13]	HUANG B, YI Q, YANG L L, et al. Dual-wavelength nanosecond Nd:YVO₄ laser with switchable inhomogeneous polarization output. IEEE Journal of Selected Topics in Quantum Electronics, 2018,24(5):1-5.
[14]	PANG S Y, QIAN X B, WU Q H, et al. Structure and spectral property of Sc doped Nd:CaF₂ laser crystals. Journal of Inorganic Materials, 2018,33(8):873-876.
[15]	DANAILOV M B, MILEV I Y. Simultaneous multiwavelength operation of Nd:YAG laser. Applied Physics Letters, 1992,61(7):746-748.
[16]	WANG Q Q, SHI Y, FENG Y G, et al. Li J. Spectral characteristics and laser parameters of solar pumped Cr,Nd:YAG transparent ceramics. Chinese Journal of Luminescence, 2019,40(11):1365-1372.
[17]	SANGHERA J, KIM W, VILLALOBOS G, et al. Ceramic laser materials: past and present. Optical Materials, 2013,35:693-699.
[18]	SPRINGER R M, THOMAS M E. Analysis and comparison of single crystal and polycrystalline Nd:YAG, absorption. IEEE Journal of Quantum Electronics, 2013,49(8):667-676.
[19]	WANG H M, HUANG Z Y, QI J Q, et al. A new methodology to obtain the fracture toughness of YAG transparent ceramics. Journal of Advanced Ceramics, 2019,8:418-426. DOI URL
[20]	LAPUCCI A, VANNINI M, CIOFINI M, et al. Design and Characterization of Yb and Nd Doped Transparent Ceramics for High Power Laser Applications: Recent Advancements. XXI International Symposium on High Power Laser Systems and Applications,Gmunden,Austria, 2016,10254:102540E.
[21]	GARREC B L, CARDINALI V, BOURDET G. Thermo-optical Measurements of Ytterbium Doped Ceramics (Sc₂O₃, Y₂O₃, Lu₂O₃, YAG) and Crystals (YAG, CaF₂) at Cryogenic Temperatures. High-power, High-energy, and High-intensity Laser Technology; and Research Using Extreme Light: Entering New Frontiers with Petawatt-Class Lasers, 2013,8780:87800E.
[22]	LIU Q, LI J B, DAI J W, et al. Fabrication, microstructure and spectroscopic properties of Yb:Lu₂O₃ transparent ceramics from co-precipitated nanopowders. Ceramics International, 2018,44(10):11635-11643.
[23]	DAI Z F, LIU Q, TOCI G, et al. Fabrication and laser oscillation of Yb:Sc₂O₃ transparent ceramics from co-precipitated nano-powders. Journal of the European Ceramic Society, 2018,38(4):1632-1638.
[24]	BALLATO J, MCMILLEN C, KOKUOZ B, et al. The Synthesis and Properties of Rare Earth Doped Yttria and Scandia for Eye-safe Single Crystal and Ceramic Lasers. Solid State Lasers XVII: Technology and Devices, California, United States, 2008,6871:68711G.
[25]	WALSH B M, MCMAHON J M, EDWARDS W C, et al. Spectroscopic characterization of Nd:Y₂O₃: application toward a differential absorption lidar system for remote sensing of ozone. JOSA B, 2002,19(12):2893-2903.
[26]	MCMILLEN C D, SANJEEWA L D, MOORE C A, Crystal growth and phase stability of Ln:Lu₂O₃(Ln=Ce, Pr, Nd, Sm, Eu, Tb, Dy, Ho, Er, Tm, Yb) in a higher-temperature hydrothermal regime. Journal of Crystal Growth, 2016,452:146-150.
[27]	SINGH S, SMITH R G, VAN UITERT L G. Stimulated-emission cross section and fluorescent quantum efficiency of Nd³+ in yttrium aluminum garnet at room temperature. Physical Review B, 1974,10(6):2566.
[28]	WANG B L, YU H H, ZHANG H, et al. Topological insulator simultaneously Q-switched dual-wavelength Nd:Lu₂O₃ laser. IEEE Photonics Journal, 2014,6(3):1-7.
[29]	LI J, PAN Y B, ZENG Y P, et al. The history, development, and future prospects for laser ceramics: a review. International Journal of Refractory Metals and Hard Materials, 2013,39:44-52.
[30]	BOULESTEIX R, EPHERRE R, NOYAU S, et al. Highly transparent Nd:Lu₂O₃ ceramics obtained by coupling slip-casting and spark plasma sintering. Scripta Materialia, 2014,75:54-57.
[31]	LU J, TAKAICHI K, UEMATSU T, Promising ceramic laser material: Highly transparent Nd³+:Lu₂O₃ ceramic. Applied Physics Letters, 2002,81:4324-4326.
[32]	XU C W, YANG C D, ZHANG H, et al. Efficient laser operation based on transparent Nd:Lu₂O₃ ceramic fabricated by spark plasma sintering. Optics Express, 2016,24:20571-20579.
[33]	ALOMBERT-GOGET G, GUYOT Y, GUZIK M, et al. Nd³+-doped Lu₂O₃ transparent sesquioxide ceramics elaborated by the Spark Plasma Sintering (SPS) method. Part 1: Structural, thermal conductivity and spectroscopic characterization. Optical Materials, 2015,41:3-11.
[34]	TOCI G, VANNINI M, CIOFINI M, et al. Nd³+-doped Lu₂O₃ transparent sesquioxide ceramics elaborated by the Spark Plasma Sintering (SPS) method. Part 2: First laser output results and comparison with Nd³+-doped Lu₂O₃ and Nd³+-Y₂O₃ ceramics elaborated by a conventional method. Optical Materials, 2015,41:12-16.
[35]	LEE S H, KUPP E R, STEVENSON A J, et al. Hot isostatic pressing of transparent Nd:YAG ceramics. Journal of the American Ceramic Society, 2009,92:1456-1463.
[36]	LIU Z Y, TOCI G, PIRRI A, et al. Fabrication and laser operation of Yb:Lu₂O₃ transparent ceramics from co-precipitated nano-powders. Journal of the American Ceramic Society, 2019,102(12):7491-7499.
[37]	PATTERSON A L. The Scherrer formula for X-ray particle size determination. Physical Review, 1939,56(10):978.
[38]	KAMINSKII A A, AKCHURIN M S, BECKER P, et al. Mechanical and optical properties of Lu₂O₃ host-ceramics for Ln³+ lasants. Laser Physics Letters, 2007,5(4):300-303.
[39]	FENG Y G, TOCI G, PIRRI A, et al. Fabrication, microstructure, and optical properties of Yb:Y₃ScAl₄O₁₂ transparent ceramics with different doping levels. Journal of the American Ceramic Society, 2020,103(1):224-234.
