In-situ Synthesis of Perovskite SrTiO3 Nanostructures with Modified Morphology and Tunable Optical Absorption Property

doi:10.15541/jim20180255

Abstract

Abstract:

As a perovskite family member, SrTiO₃ shows significant applications in the fields of solar cells, photocatalysis, fuel cells and superconducting as a dependence of its crystallinity, morphology, crystal facet and optical properties. In this work, we reported an in-situ synthetic approach of SrTiO₃ nanostructures with modified morphology and tunable optical absorption properties based on conventional plasma electrolytic oxidation (PEO) associated with hydrothermal method. The morphology of SrTiO₃ nanostructures can be selectively modified from microcubes with smooth facets to ultrathin nanosheets by controlling the concentration of Sr source during PEO process. It is found that both SrTiO₃ microcubes and Sr_1-_δTiO₃ nanosheets are well-crystallized single crystals. UV-Vis diffuse reactance spectrum (DRS) measurement reveals that Sr_1-_δTiO₃ nanosheets with thin thickness show obvious blue-shift of absorption edge in comparison with SrTiO₃ microcubes due to the size effect. Finally, the morphology evolution and nucleation mechanism of SrTiO₃ nanostructures in-situ grown on PEO film is discussed.

Key words: SrTiO₃, in-situ growth, plasma electrolytic oxidation, morphology tuning, optical property

CLC Number:

TQ174

LIU Xiao-Yuan, LIU Bao-Dan, JIANG Ya-Nan, WANG Ke, ZHOU Yang, YANG Bing, ZHANG Xing-Lai, JIANG Xin. In-situ Synthesis of Perovskite SrTiO₃ Nanostructures with Modified Morphology and Tunable Optical Absorption Property[J]. Journal of Inorganic Materials, 2019, 34(1): 65-71.

Figures/Tables 19

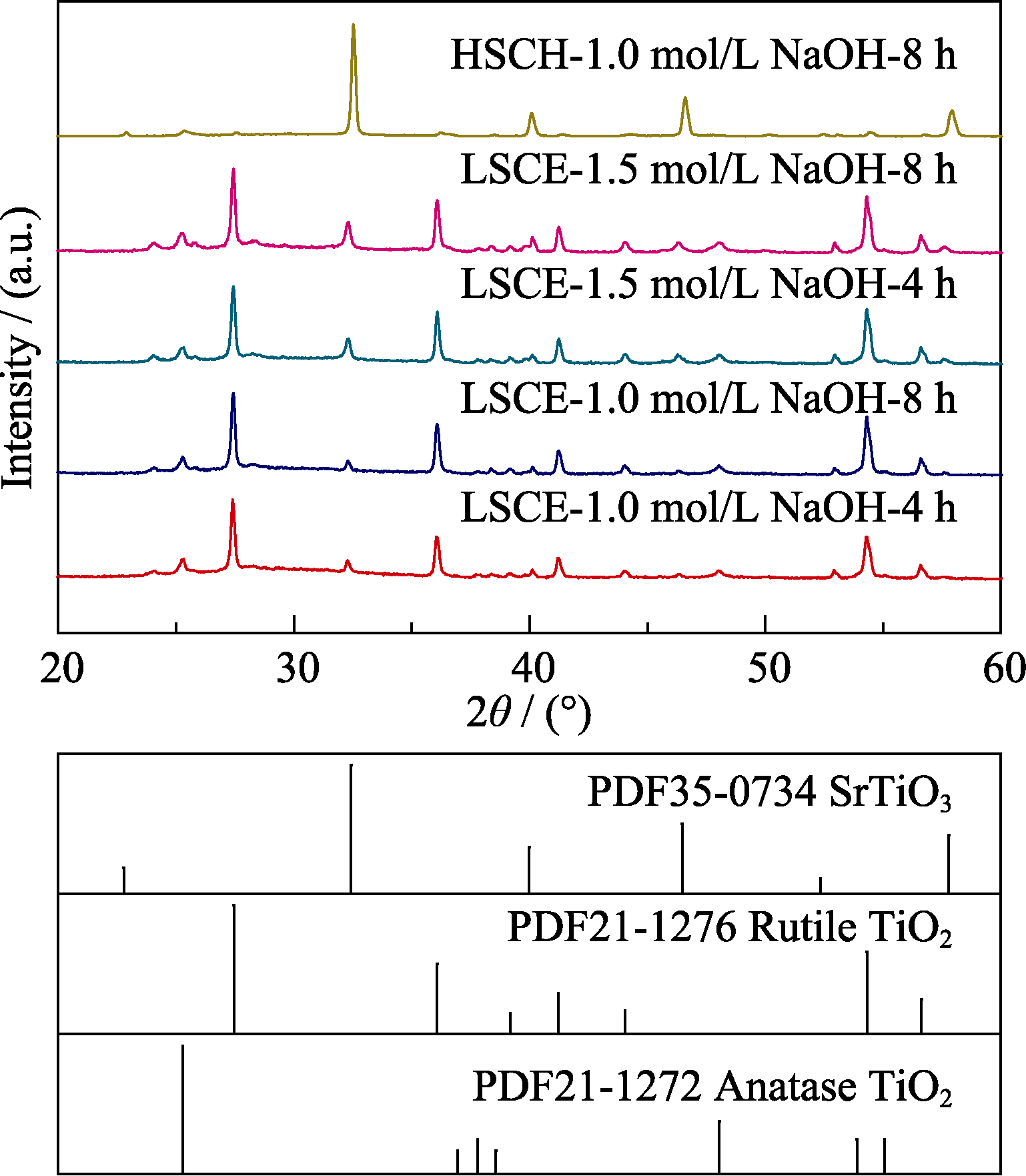

Fig. 1 XRD patterns of SrTiO3 samples prepared under different hydrothermal conditions

Fig. 2 (a,c) SEM image and TEM bright field image of SrTiO3 microcubes; (b) Crystallographic model of cube-like SrTiO3 nanostructure; (d,e) HRTEM image and FFT pattern of SrTiO3 microcubes

Fig. 3 (a,c) SEM image and TEM bright field image of Sr1-δTiO3 nanosheets; (b) Crystallographic model of sheet-like Sr1-δTiO3; (d,e) HRTEM image and FFT pattern of Sr1-δTiO3 nanosheets

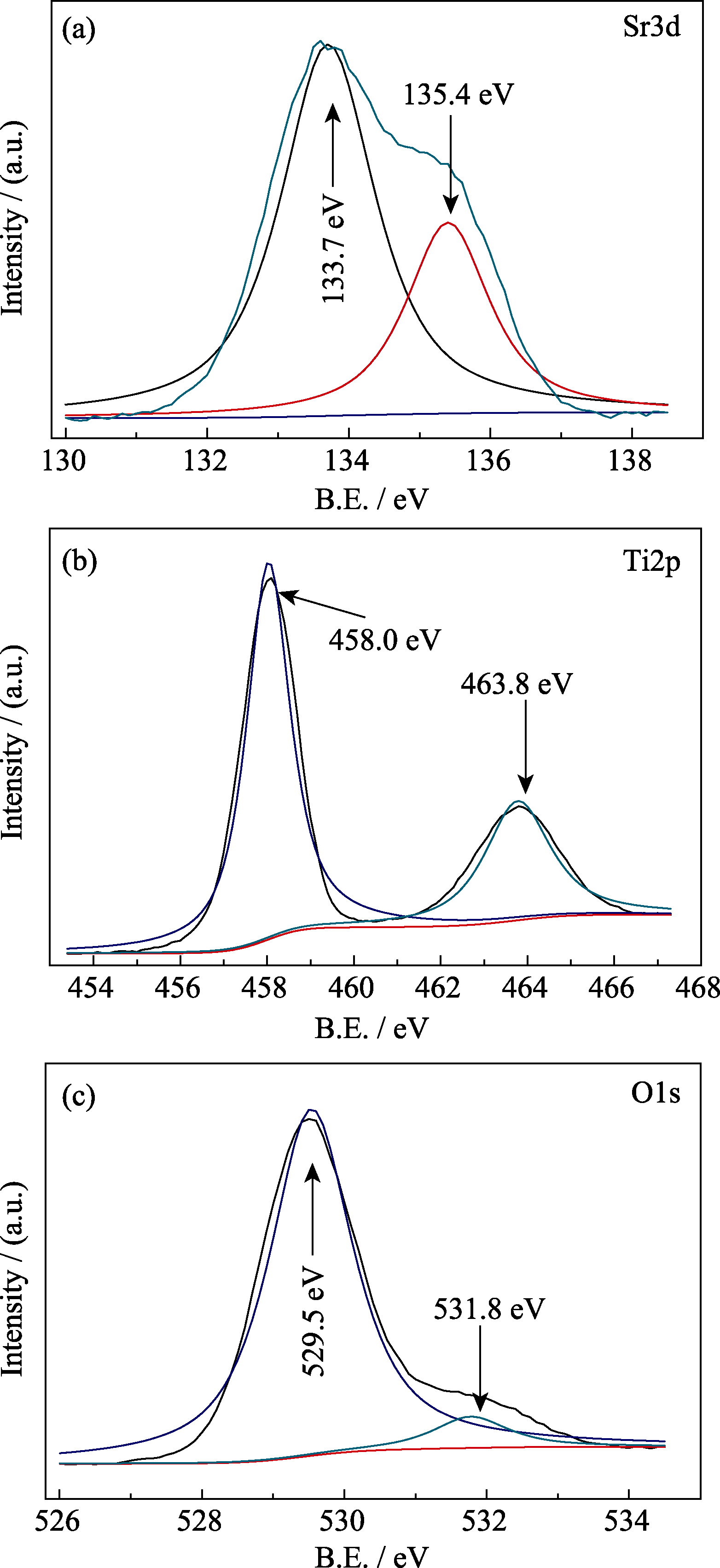

Fig. 4 XPS spectra of (a) Sr3d, (b) Ti2p and (c) O1s of Sr1-δTiO3 nanosheets prepared under 1.0 mol/L NaOH solution for 8 h

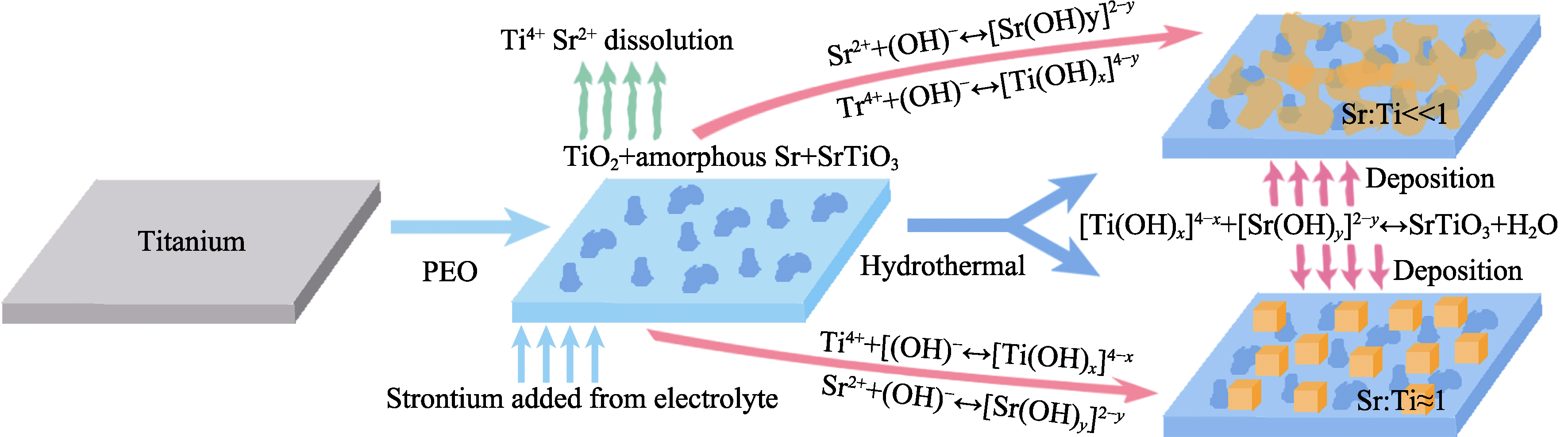

Fig. 5 Schematic diagram describing the formation process of SrTiO3 microcubes and Sr1-δTiO3 nanosheets

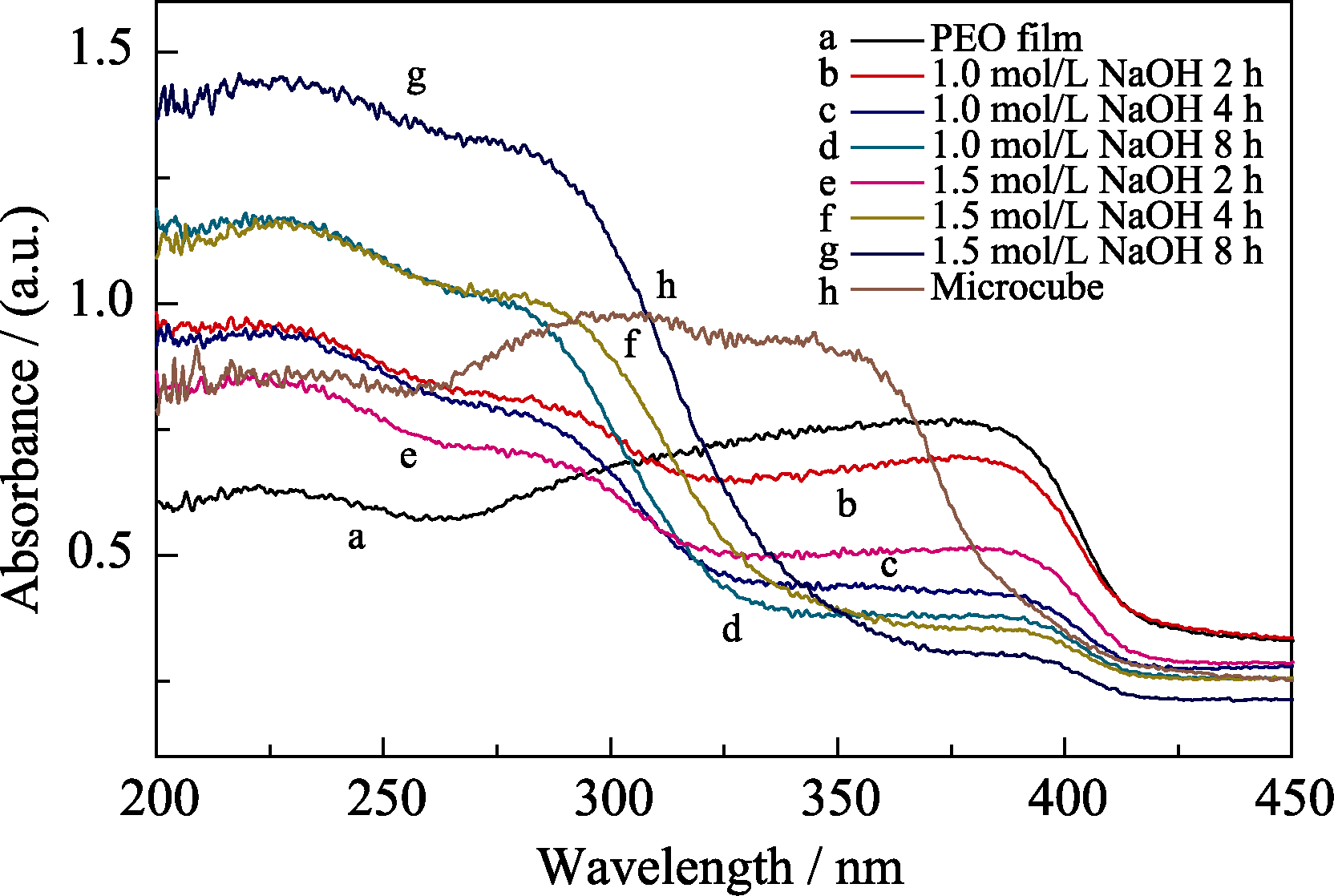

Fig. 6 UV-Vis spectra of PEO film, SrTiO3 microcubes and Sr1-δTiO3 nanosheets under different hydrothermal conditions

Fig. s1 SEM images of PEO film

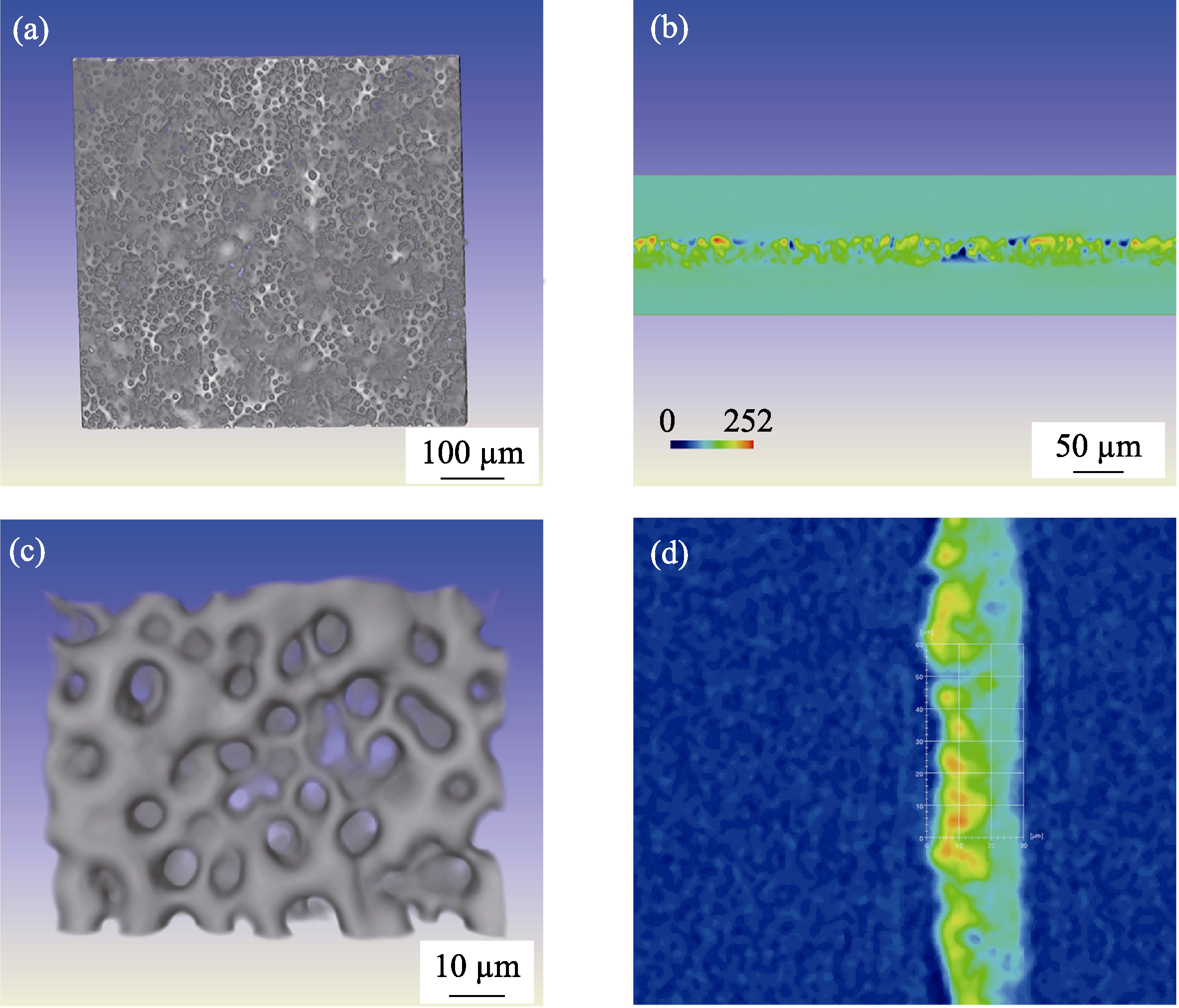

Fig. s2 (a, c) X-ray diffraction topography (XRT) images of PEO film surface morphology and (b, d) cross section images Table S1 EDS results of PEO film prepared in high Sr concentration electrolyte (HSCE) and low Sr concentration electrolyte (LSCE)

Table s1 EDS results of PEO film prepared in high Sr concentration electrolyte (HSCE) and low Sr concentration electrolyte (LSCE)

Sample	O/at%	Ti/at%	Sr/at%	n(Sr) : n(Ti)
HSCE	79.35	11.51	9.14	0.79
LSCE	53.93	37.32	8.75	0.23

Table s2 EDS results of SrTiO3 microcubes and Sr1-δTiO3 nanosheets

Sample	O/at%	Ti/at%	Sr/at%	n(Sr) : n(Ti)
Microcube	55.06	24.16	20.77	0.86
Nanosheet	61.65	31.65	6.7	0.21

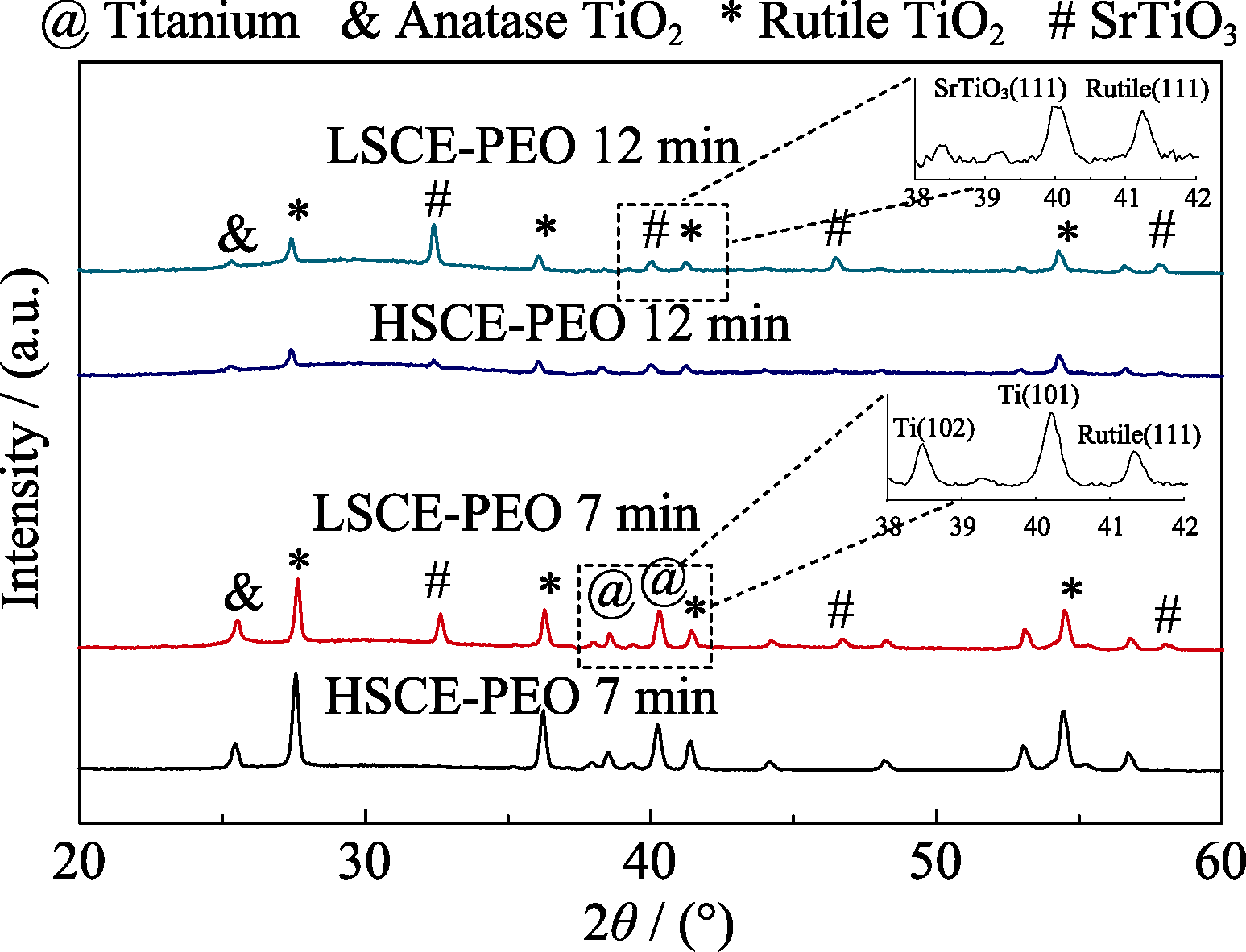

Fig. s3 XRD patterns of PEO films prepared under different conditions LSCE, 7 min PEO treating time; LSCE, 12 min PEO treating time, HSCE, 7 min PEO treating time and HSCE, 12 min PEO treating time

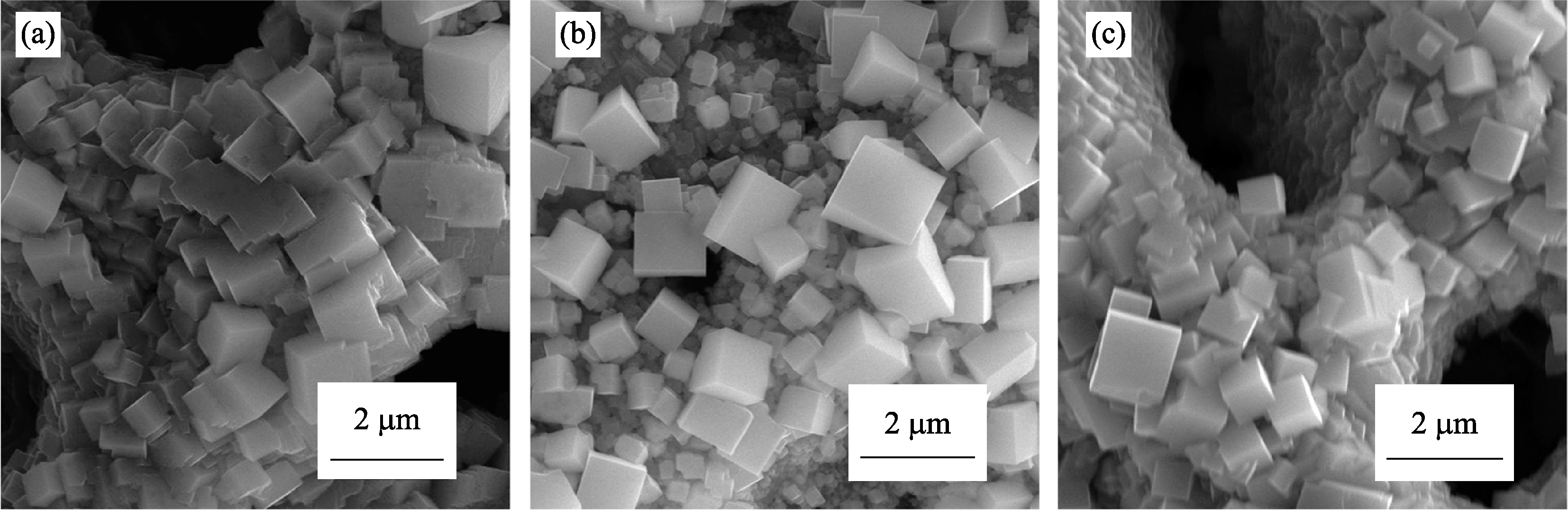

Fig. s4 SEM images of SrTiO3 microcubes obtained on PEO film under HSCE and in 0.5 mol/L NaOH with different durations (a) 180℃, 1 h; (b) 180℃, 4 h; (c) 180℃, 6 h; (d) 180℃, 8 h

Fig. s5 Surface morphology of PEO film after hydrothermal treating (without NaOH, 180℃, 8 h)

Table s3 XPS element analysis of Sr1-δTiO3 nanosheets

Sample	O/at%	B/at%	Ti/at%	Sr/at%	n(Sr) : n(Ti)
Nanosheet	69.95	0.70	22.39	6.96	0.31

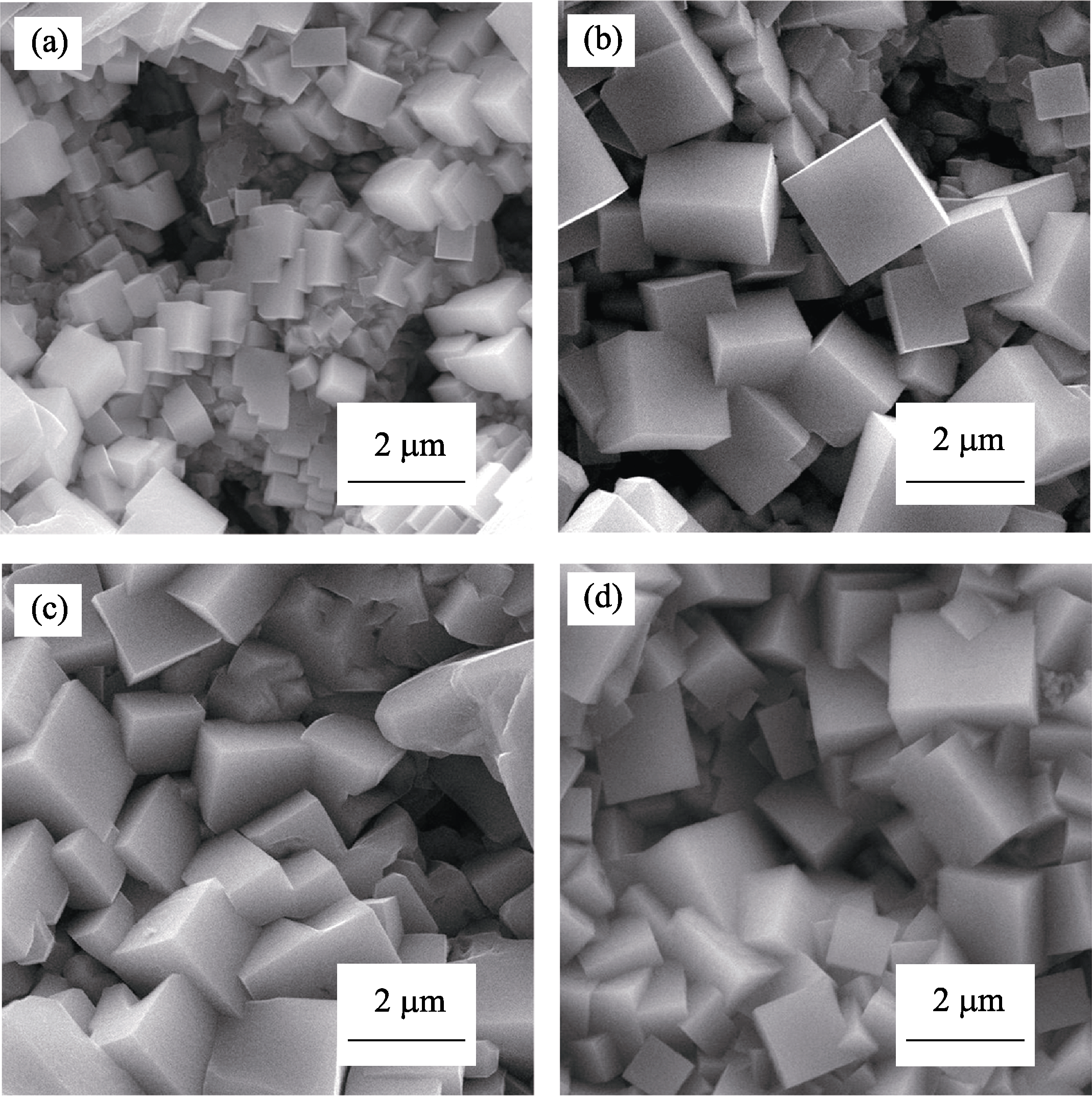

Fig. S6 SEM images of SrTiO3 microcubes obtained on PEO film under HSCE and in 1.0 mol/L NaOH with different durations (a) 180℃, 0.5 h; (b) 180℃, 1 h; (c) 180℃, 2 h; (d) 180℃, 8 h

Fig. S7 SEM images of SrTiO3 microcubes obtained on PEO film under HSCE and in 1.5 mol/L NaOH with different durations (a) 180℃, 4 h; (b) 180℃, 6 h; (c) 180℃, 8 h

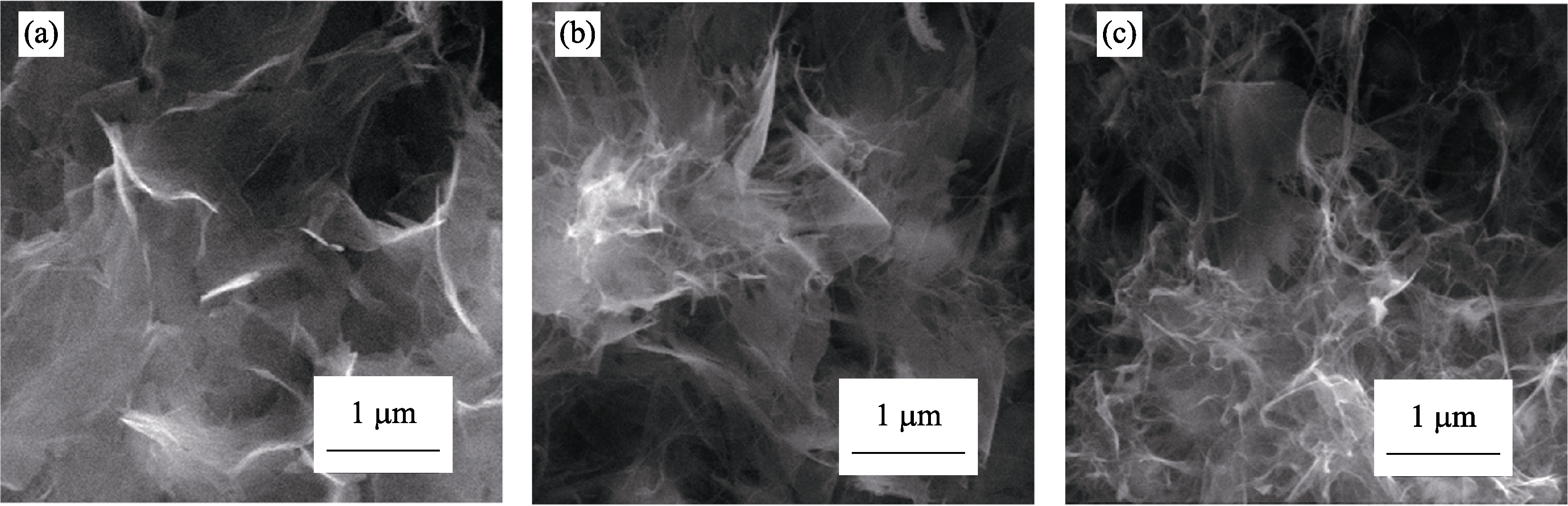

Fig. S8 SEM images of Sr1-δTiO3 nanosheets obtained on PEO film under LSCE and in 1.0 mol/L NaOH with different durations (a) 180℃, 0.5 h; (b) 180℃, 1 h; (c) 180℃, 2 h; (d) 180℃, 4 h; (e) 180℃, 8 h

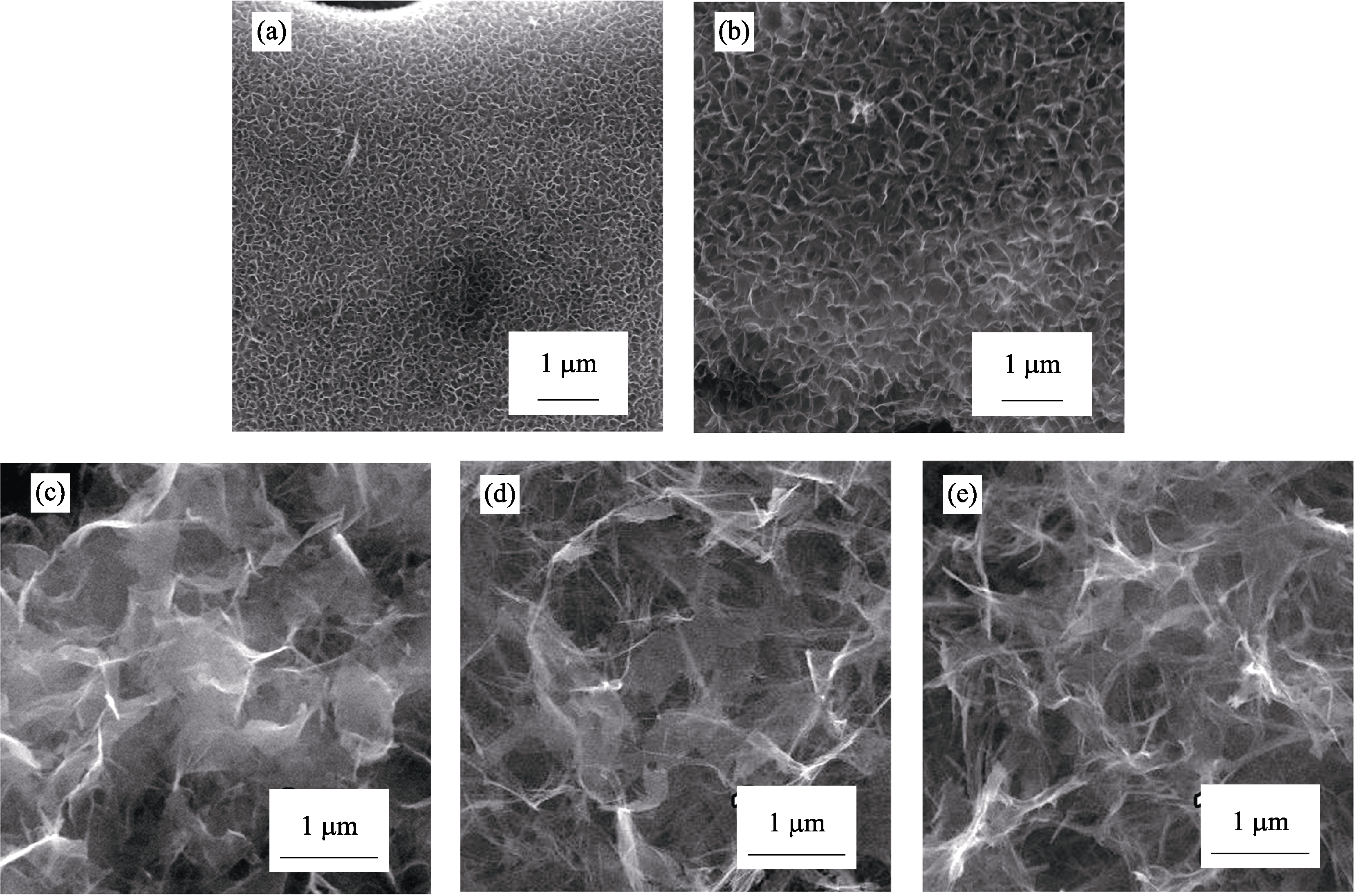

Fig. S9 SEM images of Sr1-δTiO3 nanosheets obtained on PEO film under LSCE and in 0.5 mol/L NaOH with different durations (a) 180℃, 2 h; (b) 180℃, 4 h; (c) 180℃, 8 h

Fig. S10 SEM images of Sr1-δTiO3 nanosheets obtained on PEO film under LSCE and in 1.5 mol/L NaOH with different durations (a) 180℃, 2 h; (b) 180℃, 4 h; (c) 180℃, 8 h
