Amorphous Pd-P/Polypyrrole/Foam Ni Electrode: Electrocatalytic Hydrodechlorination of Pentachlorophenol

doi:10.15541/jim20190582

Abstract

Abstract:

Electrocatalytic hydrodechlorination technology possesses great potential in the field of chlorinated organic compound treatment due to the high efficiency, environmental friendliness, etc. The amorphous Pd-P/polypyrrole(PPy)/foam Ni electrode was prepared by electrochemical deposition for electrochemical hydrodechlorination of the pentachlorophenol (PCP). Morphology and chemical structure of Pd-P on the PPy/foam Ni electrode was investigated by the Scanning Electron Microscope (SEM), Transmission Electron Microscope (TEM), X-ray diffraction analysis (XRD), and X-ray photoelectron spectroscope (XPS). The result indicated that the Pd-P catalyst was evenly dispersed on the PPy/foam Ni electrode with small particles and changed from crystalline state to amorphous state. The electrocatalytic reduction of PCP certificated that the doping of P significantly increased the catalytic activity of the electrode. The degradation efficiency of PCP reached 90.8% after electrocatalytic reduction for 180 min under the condition of n(Pd)/n(P)=1 : 3, Pd loading=0.15 mg/cm ², C_H2SO4=0.20 mol/L and V_cathode=-1.2 V. In addition, the Pd-P/PPy/foam Ni electrode exhibited high electrocatalytic stability after reused for 8 times without any notable deactivation.

Key words: Pd-P/PPy/foam Ni electrode, amorphous, electrocatalytic reduction

CLC Number:

TQ174

WANG Jing, CUI Chunyue, TIAN Xia, ZHANG Xue, WANG Ying, XIN Yanjun. Amorphous Pd-P/Polypyrrole/Foam Ni Electrode: Electrocatalytic Hydrodechlorination of Pentachlorophenol[J]. Journal of Inorganic Materials, 2020, 35(10): 1157-1162.

Figures/Tables 9

Fig. 1 SEM and TEM (insets) images of Pd/PPy/foam Ni (a) and Pd-P/PPy/foam Ni (b) Pd loading: 0.15 mg/cm2, n(Pd) : n(P) = 1 : 3

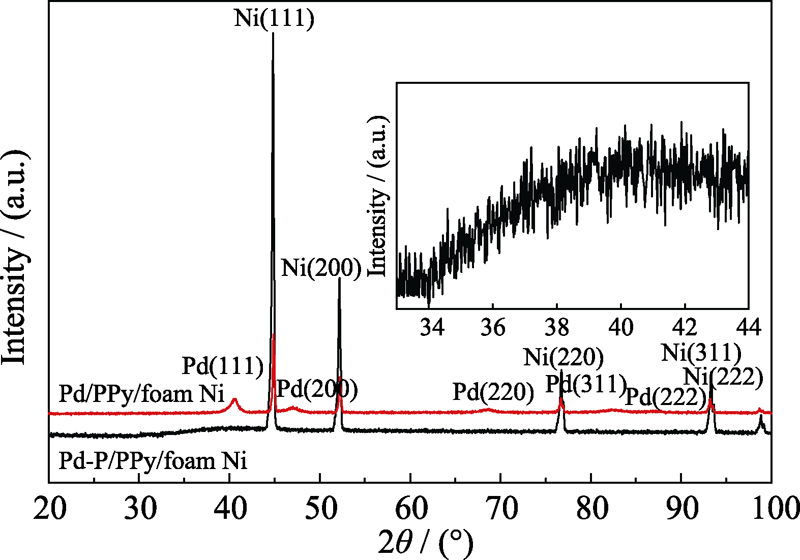

Fig. 2 XRD patterns of Pd/PPy/foam Ni and Pd-P/PPy/foam Ni

Fig. 3 HR-TEM images and correponding SAED patterns of Pd/PPy/foam Ni (a) and Pd-P/PPy/foam Ni (b)

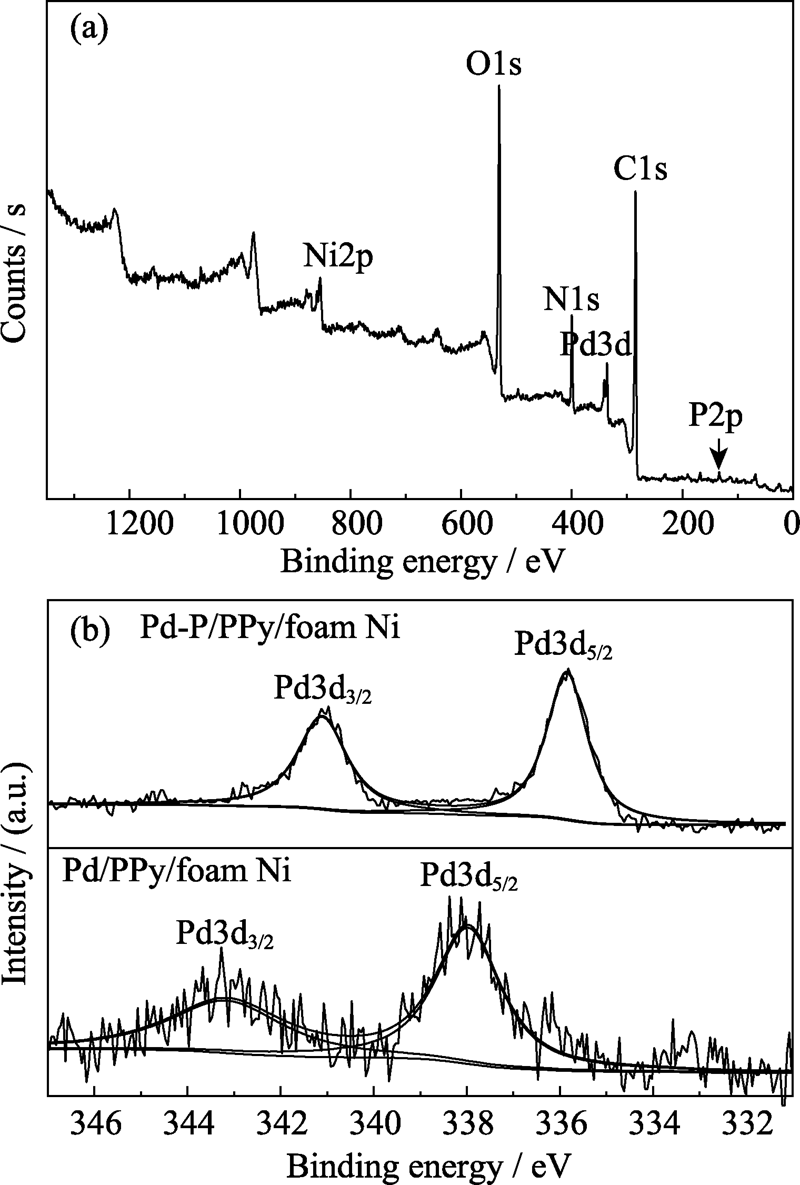

Fig. 4 XPS spectra of Pd-P/PPy/foam Ni (a); Pd3d survey scan spectra of Pd/PPy/foam Ni and Pd-P/PPy/foam Ni (b)

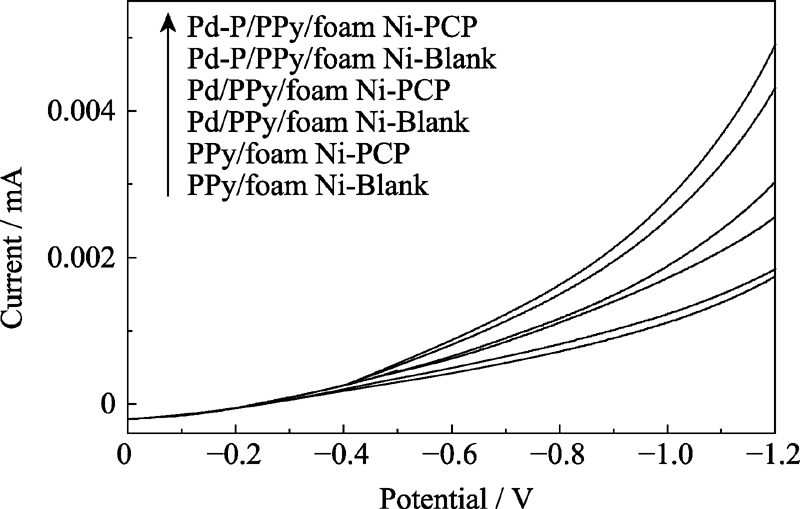

Fig. 5 Linear voltammetry curves of PPy/foam Ni, Pd/PPy/ foam Ni and Pd-P/PPy/foam Ni

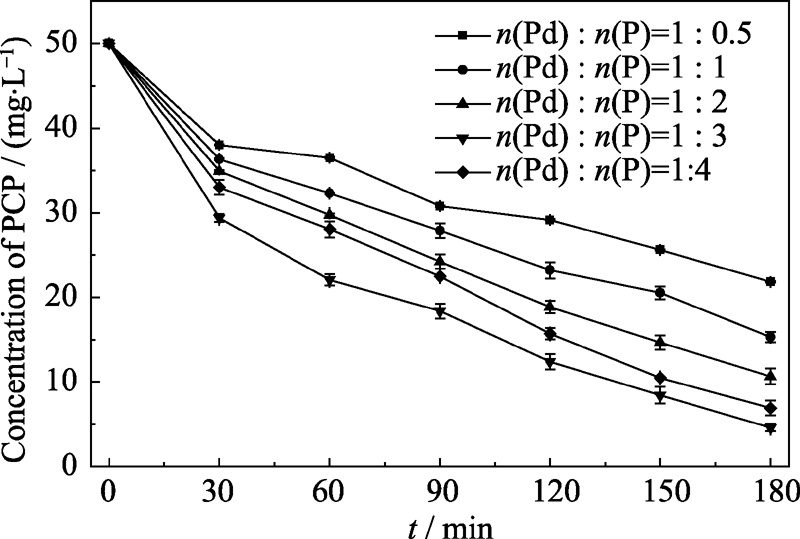

Fig. 6 Effect of molar ratio between Pd and P on the dechlorination of PCP in water

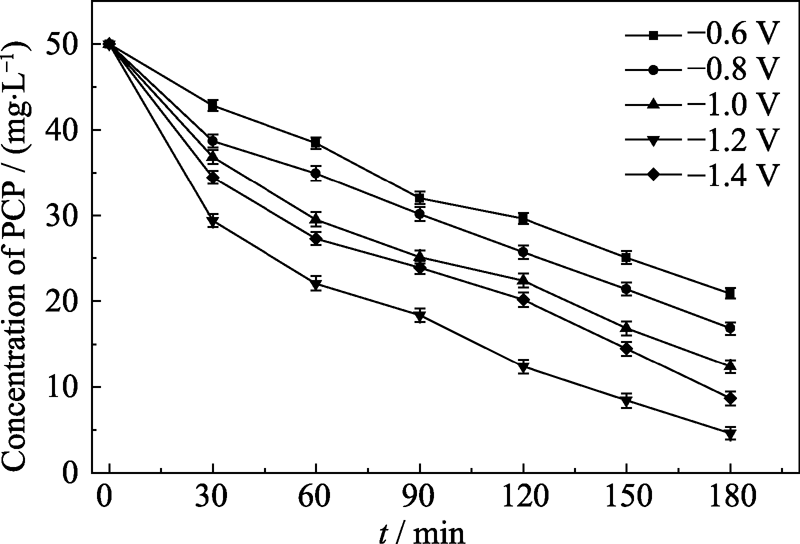

Fig. 7 Effects of cathode potential on degradation of PCP (n(Pd) : n(P)=1 : 3, anolyte: 0.2 mol/L H2SO4, Na2SO4 concentration: 0.10 mol/L)

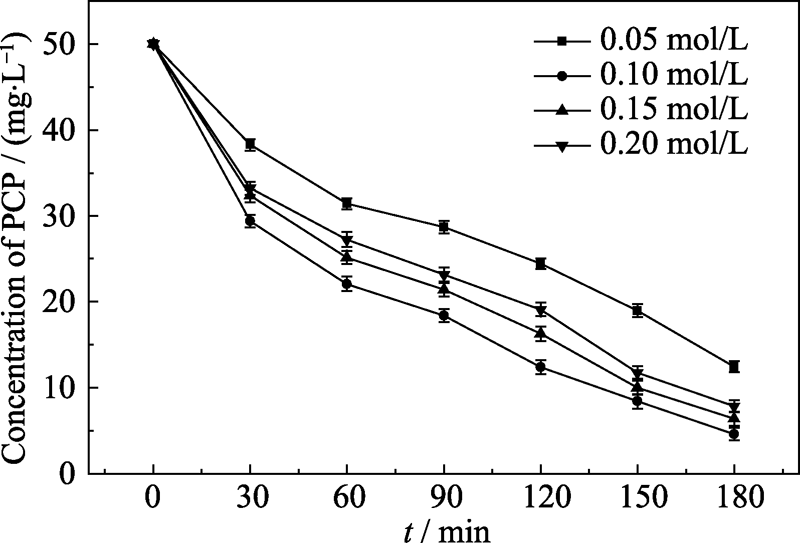

Fig. 8 Effect of Na2SO4 concentration on degradation of PCP (n(Pd) : n(P)=1 : 3, cathode potential -1.2 V, H2SO4 concentration: 0.20 mol/L)

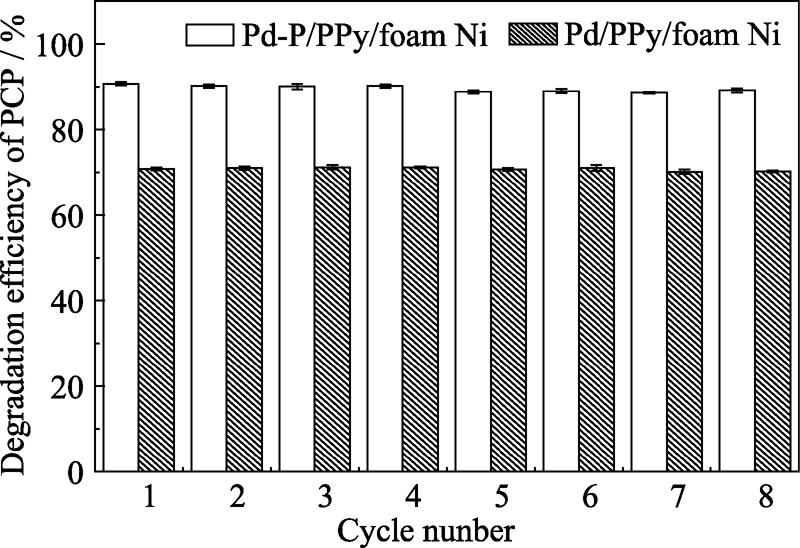

Fig. 9 Relationship between the degradation efficiency of PCP and cycling number (n(Pd) : n(P)=1 : 3, H2SO4 concentration: 0.20 mol/L, Cathode potential: -1.2 V)

References 25

[1]	LIAN X B, LI L, MAO S L , et al. Progress on extracting techniques of pentachlorophenol in leather and textiles. China Leather , 2010,39(15):37-41.
[2]	ZHOU L X, CHEN X H, JIN M C . Research progress on toxicity and prevention of pentachlorophenol to human body. Journal of Hygiene Research, 2014,43(2):338-342.
[3]	MUNOZ M, PEDRO Z M D, CASAS J A, et al. Assessment of the generation of chlorinated byproducts upon Fenton-like oxidation of chlorophenols at different conditions. Journal of Hazardous Materials , 2011,190(1/2/3):993-1000.
[4]	SUN M Y, CUI C Y, WU J , et al. Synthesis and characterization of structure controllable of magnetic Co_xCu₍₁-_x)Fe₂O₄ for adsorption of pentachlorophenol. Environmental Science & Technology, 2017,40(6):43-48.
[5]	ZHU L, LIN H Z, QI J Q , et al. Effect of H₂ on reductive transformation of p-ClNB in a combined ZVI-anaerobic sludge system. Water Research, 2012,46(19):6291-6299. DOI URL PMID
[6]	YE M, CHEN Z, WANG W , et al. Hydrothermal synthesis of TiO₂ hollow microspheres for the photocatalytic degradation of 4- chloronitrobenzene. Journal of Hazardous Materials, 2010,184(1/2/3):612-619.
[7]	ALFAYA E, IGLESIAS O, PAZOS M , et al. Environmental application of an industrial waste as catalyst for the electro-Fenton-like treatment of organic pollutants. RSC Advances, 2015,5(19):14416-14424.
[8]	SUN C Z, WEI X, ZHANG H , et al. Dechlorination of pentachlorophenol (PCP) in aqueous solution on novel Pd-loaded electrode modified with PPy-SDBS composite film. Environmental Science and Pollution Research International , 2015,22(5):3828-3837. DOI URL PMID
[9]	WEI P D, XUE F G, MIN M O , et al. Progress of the study on the synthesis and catalytic property of noncrystalline alloy nanotubes. Chinese Journal of Catalysis , 2010,31(8):887-894.
[10]	NIE W D, YANG Q F, LU Z H . Mesoporous silicon-supported ultrafine Pd nanoparticles for dehydrogenation of formic acid. Journal of Jiangxi Normal University (Natural Science), 2019,4:416-424.
[11]	WU Y D, ZHANG Y H, WANG L , et al. Role of H₂O in low concentration CO oxidation on Pd catalysts with different states. Chinese Journal of Rare Metals, 2018,42(10):1068-1076.
[12]	YE J B, PERNG D C, HSU K C . Amorphous RuW film as a diffusion barrier for advanced Cu metallization. Journal of the Electrochemical Society, 2010,157(8):396-400.
[13]	JIANG R, TRAN D T, MC C J P, et al. A class of (Pd-Ni-P) electro catalysts for the ethanol oxidation reaction in alkaline media. ACS Catalysis , 2014,4(8):2577-2586. DOI URL
[14]	DA SILVA F S, DE SOUZA T M . Novel materials for solid oxide fuel cell technologies: a literature review. International Journal of Hydrogen Energy, 2017,42(41):26020-26036. DOI URL
[15]	CHEN L, LU L, ZHU H , et al. Improved ethanol electrooxidation performance by shortening Pd-Ni active site distance in Pd-Ni-P nanocatalysts. Nature Communications, 2017(8):1-9.
[16]	LI J S, HU Y P, ZHAO X D , et al. Study on preparation and electrochemical properties of Co₃O₄ supercapacitor electrode materials. Journal of Science of Teachers′ College and University, 2019(8):48-53.
[17]	HE S T, GAO H, WU Y Z . Influences of rGO content on properties of SnO₂-Fe₂O₃/rGO anode for lithium ion batteries. Journal of Tianjing Polytechnic University, 2018,37(2):67-71.
[18]	WANG J, CUI C Y, XIN Y J , et al. High-performance electrocatalytic hydrodechlorination of pentachlorophenol by amorphous Ru-loaded polypyrrole/foam nickel electrode. Electrochimica Acta, 2019, 296:874-881.
[19]	SUN Z, MA X, HU X . Electrocatalytic dechlorination of 2, 3, 5- trichlorophenol on palladium/carbon nanotubes-nafion film/titanium mesh electrode. Environmental Science and Pollution Research, 2017,24(16):14355-14364. DOI URL PMID
[20]	NIE R, SHI J, DU W , et al. Ni₂O₃-around-Pd hybrid on graphene oxide: an efficient catalyst for ligand-free Suzuki-Miyaura coupling reaction. Applied Catalysis A General, 2014,473(5):1-6.
[21]	YANG G, CHEN Y, ZHOU Y , et al. Preparation of carbon supported Pd-P catalyst with high content of element phosphorus and its electrocatalytic performance for formic acid oxidation. Electrochemistry Communications , 2010,2(3):492-495.
[22]	ELAVARASAN S, BASKAR B, SENTHIL C , et al. An efficient mesoporous carbon nitride (g-C₃N₄) functionalized Pd catalyst for carbon-carbon bond formation reactions. RSC Advances, 2016,6(55):49376-49386.
[23]	LIN H, YANG J, LIU J , et al. Properties of Pd nanoparticles- embedded polyaniline multilayer film and its electrocatalytic activity for hydrazine oxidation. Electrochimica Acta, 2013,90:382-392.
[24]	VANNI M, SERRANO-RUIZ M, TELESIO F , et al. Black phosphorus/palladium nanohybrid: unraveling the nature of P-Pd interaction and application in selective hydrogenation. Chemistry of Materials , 2019,31(14):5075-5080. DOI URL PMID
[25]	CUI C, QUAN X, YU H , et al. Electrocatalytic hydrodehalogenation of pentachlorophenol at palladized multiwalled carbon nanotubes electrode. Applied Catalysis B Environmental , 2008,80(1):122-128.
