Solvothermal Synthesis and Morphological Control of TiO2 Nanorods Modified with Oleic Acid

doi:10.15541/jim20160588

Abstract

Abstract:

TiO₂ nanorods were prepared by solvothermal method in two reaction systems. The structure, morphology and surface modification state of the as-obtained nanorods were characterized by X-ray diffractometer (XRD), transmission electron microscopy (TEM), Fourier transform infrared spectroscopy (FT-IR), and thermalgravimetric method (TG). The results indicate that the surface modification and crystallization process are the main factors that affect the morphology of TiO₂ nanorods. In the nonaqueous reaction system, the aspect ratio of as-prepared TiO₂ nanorods increase to 11.5 with the mole ratio of tetrabutyl titanate to oleic acid at 1: 10, which is 2.3 times of that obtained in the hydrolyzation system under the same ratio of reactants. The reason for this phenomenon is that the selective adsorption of oleic acid on the surface of TiO₂ limits the one-dimensional orientation growth of crystals. The aspect ratio of TiO₂ nanorods can be enhanced by increasing the amount of oleic acid. Furthermore, nonaqueous reaction facilitates the adequate growth of crystals and the oriented attachment of nanorods due to its lower reaction velocity, leading to the significant increase of aspect ratio of nanorods. The as-obtained nanorods with the optimum aspect ratio exhibit good modification effect on the positive impulse breakdown strength of transformer oil.

Key words: TiO₂ nanorods, surface modification, crystallization process, morphological control, oriented attachment

CLC Number:

TQ174

LV Yu-Zhen, SUN Qian, LI Chao, SHAN Bing-Liang, QI Bo, LI Cheng-Rong. Solvothermal Synthesis and Morphological Control of TiO₂ Nanorods Modified with Oleic Acid[J]. Journal of Inorganic Materials, 2017, 32(7): 719-724.

Figures/Tables 7

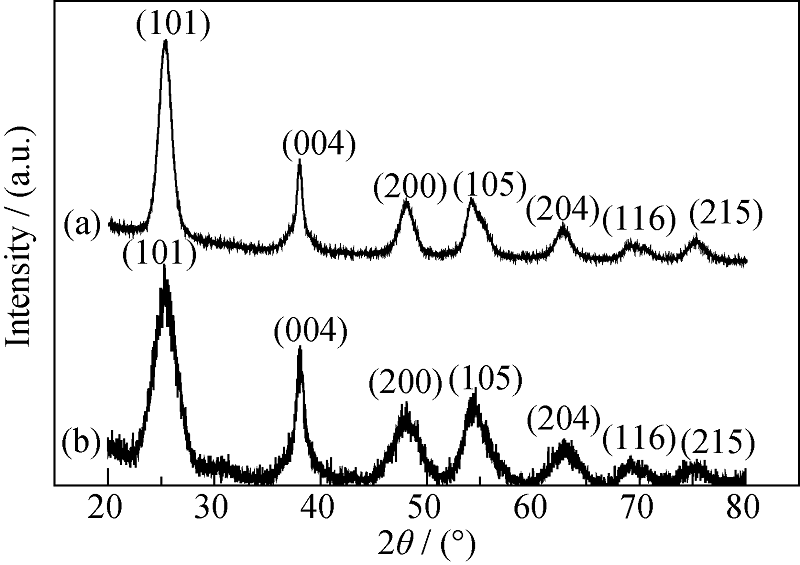

Fig. 1 XRD patterns of products prepared from two reaction systems (TB︰OA=1︰10)(a) Hydrolyzation system; (b) Nonaqueous system

Fig. 2 TEM images of TiO2 nanorods prepared from two reaction systems with different ratios of TB to OA(a-d) Hydrolyzation system 1︰4, 1︰8, 1︰10, 1︰16; (e-h) Nonaqueous system 1︰4, 1︰8, 1︰10, 1︰16

Table 1 Aspect ratio of TiO2 nanorods obtained from two reaction systems

Molar ratio of TB︰OA	Aspect ratio
Molar ratio of TB︰OA	Hydrolyzation system	Nonaqueous system
1︰4	3.1	4.9
1︰8	4.0	7.7
1︰10	5.1	11.5
1︰16	5.3	10.6

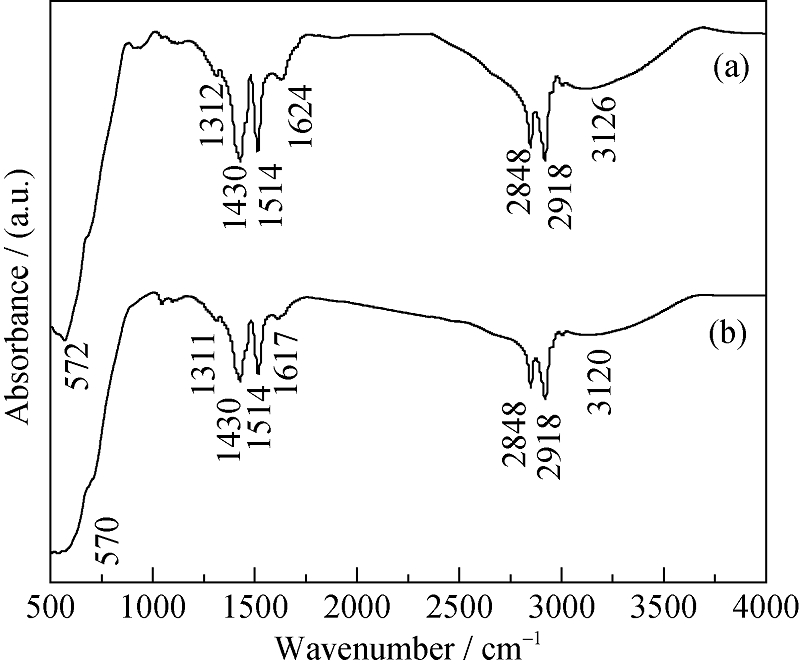

Fig. 3 FTIR patterns of TiO2 nanorods prepared from two reaction systems (TB︰OA=1︰10)(a) Hydrolyzation system; (b) Nonaqueous system

Fig. 4 TG curves of TiO2 nanorods prepared in two reaction systems (TB︰OA=1︰10)(a) Hydrolyzation system; (b) Nonaqueous system

Fig. 5 HRTEM images of TiO2 nanorods prepared in two reaction systems (TB︰OA=1︰10)(a) Nonaqueous system; (b) Hydrolyzation system

Fig. 6 Test results for positive lightning breakdown strength of pure oil and nanofluid

References 20

[1]	DEY A, DE S, DE A, et al.Characterization and dielectric properties of polyaniline-TiO2 nanocomposite. Nanotechnology, 2004, 15(9): 1277-1283.
[2]	HAQUE S A, PARK J S, SRINIVASARAO M, et al.Molecular-level insulation: an approach to controlling interfacial charge transfer.Advanced Materials, 2004, 16(14): 1177-1181.
[3]	TANAKA T.Dielectric nanocomposites with insulating properties. IEEE Transactions on Dielectrics & Electrical Insulation, 2005, 12(5): 914-928.
[4]	FLEMING R J, PAWLOWSKI T, AMMALA A, et al.Electrical conductivity and space charge in LDPE containing TiO2 nanoparticles.IEEE Transactions on Dielectrics & Electrical Insulation, 2005, 12(4): 745-753.
[5]	DU Y, LV Y, LI C, et al.Effect of semiconductive nanoparticles on insulating performances of transformer oil.IEEE Transactions on Dielectrics & Electrical Insulation, 2012, 19(3): 770-776.
[6]	BHOWMIK B, FECHT H J, BHATTACHARYYA P.Vertical mode gas sensing performance of TiO2 nanotube array by tuning of surface area and carrier transport length.IEEE Sensors Journal, 2015, 15(10): 5919-5926.
[7]	LAN ZHANG, WU JI-HUAI, LIN JIAN-MING, et al.Preparation of rutile TiO2 nanorods and its application in dye-sensitized solar cells. Journal of Inorganic Materials, 2011, 26(2): 119-122.
[8]	ZHANG YU-FANG, ZHANG ZHENG-GUO, FANG XIAO-MING.Synthesis of TiO2 one-dimensional nanomaterials and nanostructures. Progress in Chemistry, 2007, 19(4): 494-501.
[9]	LI X, PENG Q, YI J, et al.Near monodisperse TiO2 nanoparticles and nanorods.Chemistry European J., 2006, 12(8): 2383-2391.
[10]	KIM E Y, CHOI H, WHANG C M.Controlled growth of TiO2 nanorods capped with carboxylate groups by the solvothermal process.Journal of Materials Science, 2010, 45(14): 3895-3900.
[11]	ISABEL GONZALO-JUAN, MCBRIDE J R, DICKERSON J H.Ligand-mediated shape control in the solvothermal synthesis of titanium dioxide nanospheres, nanorods and nanowires.Nanoscale, 2011, 3(9): 3799-3804.
[12]	WU B, GUO C, ZHENG N, et al.Nonaqueous Production of nanostructured anatase with high-energy facets.Journal of the American Chemical Society, 2008, 130(51): 17563-17567.
[13]	WANG X, WANG Z D.Particle Effect on Breakdown Voltage of Mineral and Ester Based Transformer Oils. Electrical Insulation and Dielectric Phenomena, Quebec City, Canada, 2008: 598-602.
[14]	LV YU-ZHEN, ZHANG SHENG-NAN, DU YUE-FAN, et al.Effect of oleic acid modification on dispersibility of nano-titanium dioxide in transformer oil.Journal of Inorganic Materials, 2013, 28(6): 594-598.
[15]	COZZOLI P D, KORNOWSKI A, WELLER H.Low-temperature synthesis of soluble and processable organic-capped anatase TiO2 nanorods.Journal of the American Chemical Society, 2003, 125(47): 14539-14548.
[16]	DINH C T, NGUYEN T D, KLEITZ F.Shape-controlled synthesis of highly crystalline titania nanocrystals.ACS Nano, 2009, 3(11): 3737-3743.
[17]	ZOU LING, WU XUE-DONG, CHEN HAI-GANG, et al.Characterization and formation mechanism of surface modified silica nanoparticles.Journal of Physical Chemistry, 2001, 17(4): 305-309.
[18]	JUN Y W, CASULA M F, SIM J H, et al.Surfactant-assisted elimination of a high energy facet as a means of controlling the shapes of TiO2 nanocrystals. Journal of the American Chemical Society, 2003, 125(51): 15981-15985.
[19]	CHEN CHAO, WANG ZHI-YU.Preparation of titanium dioxide nanorods and analysis of the crystal growth mechanism. Journal of Inorganic Materials, 2012, 27(1): 45-48.
[20]	HWANG J G, ZAHN M, OSULLIVAN F M, et al. Effects of nanoparticle charging on streamer development in transformer oil-based nanofluids. Journal of Applied Physics, 2010, 107(1): 014310-1-17.
