Journal of Inorganic Materials ›› 2016, Vol. 31 ›› Issue (10): 1068-1072.DOI: 10.15541/jim20160221
• Orginal Article • Previous Articles Next Articles
WANG Mei-Ling, XU Jia-Yue, ZHANG Yan, CHU Yao-Qing, YANG Bo-Bo, SHEN Hui, TIAN Tian
Received:
2016-04-01
Revised:
2016-05-17
Published:
2016-10-20
Online:
2016-09-23
About author:
WANG Mei-Ling. E-mail: wmllvme@qq.com
Supported by:
CLC Number:
WANG Mei-Ling, XU Jia-Yue, ZHANG Yan, CHU Yao-Qing, YANG Bo-Bo, SHEN Hui, TIAN Tian. Growth and Thermo-luminescence Properties of Dy: Bi4Si3O12 Crystals[J]. Journal of Inorganic Materials, 2016, 31(10): 1068-1072.
Sample/peak | FWHM | Tm/K | C1 | C2 | E1/eV | E2/eV | s1/s-1 | s2/s-1 | τ1/s | τ2/s | |
---|---|---|---|---|---|---|---|---|---|---|---|
Pure BSO | Peak 1 | 39.5061 | 380.13 | 2.52 | 3.54 | 0.73 | 8.81 | 4.84E+9 | 5.71E+116 | 9.49 | 0.78 |
Peak 2 | 53.7592 | 462.83 | 2.52 | 3.54 | 0.79 | 13.08 | 2.74E+8 | 2.11E+142 | 13.06 | 0.78 | |
Peak 3 | 56.0264 | 523.71 | 2.52 | 3.54 | 0.97 | 16.76 | 1.70E+9 | 1.40E+161 | 13.50 | 0.78 | |
Peak 4 | 33.8480 | 622.54 | 2.52 | 3.54 | 2.38 | 23.70 | 2.33E+18 | 5.01E+191 | 7.80 | 0.78 | |
0.1mol% doped | Peak 1 | 64.6495 | 378.83 | 2.52 | 3.54 | 0.42 | 8.75 | 2.12E+4 | 2.26E+116 | 16.49 | 0.78 |
Peak 2 | 90.8081 | 469.26 | 2.52 | 3.54 | 0.45 | 13.44 | 2589.01 | 2.06E+144 | 23..65 | 0.78 | |
Peak 3 | 169.3242 | 572.53 | 2.52 | 3.54 | 0.32 | 20.04 | 13.92 | 1.73E+176 | 48.78 | 0.78 | |
Peak 4 | 54.7902 | 620.69 | 2.52 | 3.54 | 1.42 | 23.56 | 2.61E+10 | 1.34 E+191 | 13.00 | 0.78 | |
2mol% doped | Peak 1 | 69.3833 | 386.71 | 2.52 | 3.54 | 0.40 | 9.12 | 9.55 E+3 | 6.16E+118 | 17.84 | 0.78 |
Peak 2 | 36.0224 | 428.42 | 2.52 | 3.54 | 1.03 | 11..20 | 1.65E+11 | 4.85E+131 | 8.51 | 0.78 | |
Peak 3 | 146.3480 | 539.56 | 2.52 | 3.54 | 0.34 | 17.79 | 35.67 | 1.11E+166 | 41.11 | 0.78 | |
Peak 4 | 78.8523 | 642.55 | 2.52 | 3.54 | 1.03 | 25.25 | 5.82 E+6 | 7.73 E+197 | 19.26 | 0.78 | |
4mol% doped | Peak 1 | 39.5061 | 370.96 | 2.52 | 3.54 | 0.69 | 8.39 | 2.69E+8 | 8.32E+113 | 9.51 | 0.78 |
Peak 2 | 53.7591 | 427.32 | 2.52 | 3.54 | 0.66 | 11.14 | 5.14E+6 | 2.22E+131 | 13.17 | 0.78 | |
Peak 3 | 56.0264 | 521.32 | 2.52 | 3.54 | 0.96 | 16.60 | 1.53E+8 | 2.56E+160 | 13.50 | 0.78 | |
Peak 4 | 33.8480 | 636.97 | 2.52 | 3.54 | 2.50 | 24.81 | 6.84E+18 | 1.45E+196 | 7.79 | 0.78 |

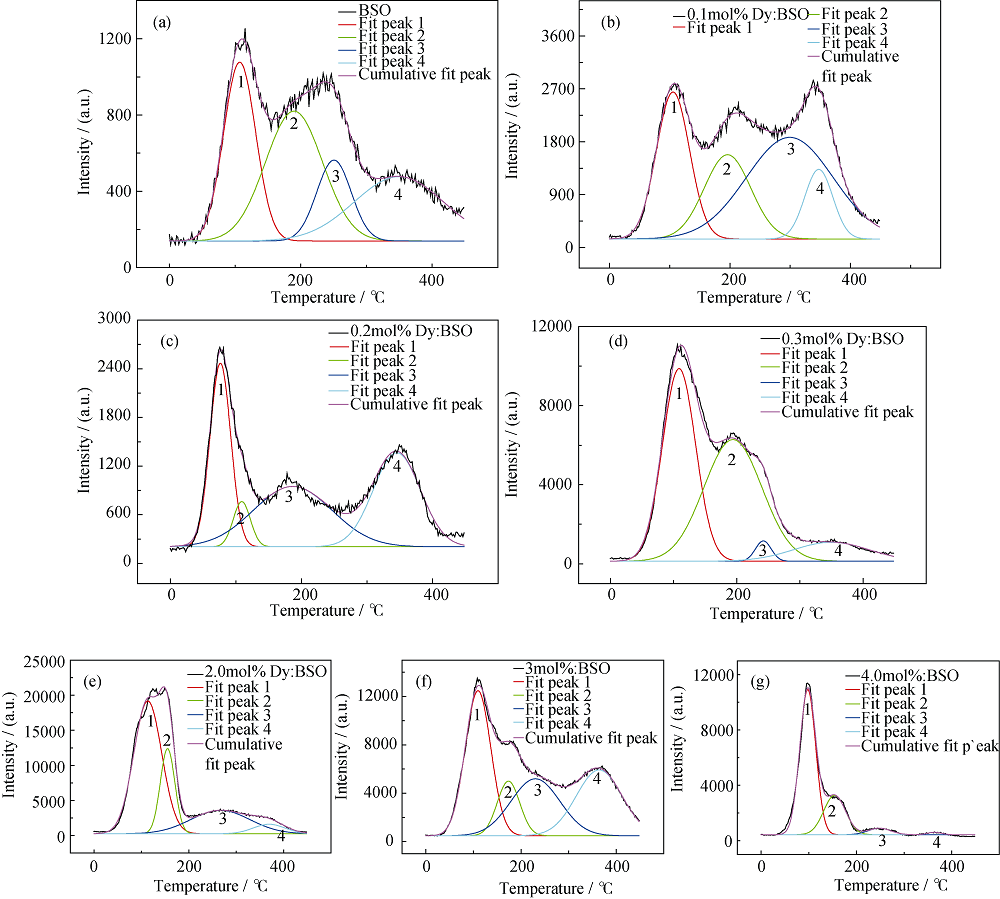

Table 1 Gauss fitting parameters of Dy doped BSO TL glow curves
Sample/peak | FWHM | Tm/K | C1 | C2 | E1/eV | E2/eV | s1/s-1 | s2/s-1 | τ1/s | τ2/s | |
---|---|---|---|---|---|---|---|---|---|---|---|
Pure BSO | Peak 1 | 39.5061 | 380.13 | 2.52 | 3.54 | 0.73 | 8.81 | 4.84E+9 | 5.71E+116 | 9.49 | 0.78 |
Peak 2 | 53.7592 | 462.83 | 2.52 | 3.54 | 0.79 | 13.08 | 2.74E+8 | 2.11E+142 | 13.06 | 0.78 | |
Peak 3 | 56.0264 | 523.71 | 2.52 | 3.54 | 0.97 | 16.76 | 1.70E+9 | 1.40E+161 | 13.50 | 0.78 | |
Peak 4 | 33.8480 | 622.54 | 2.52 | 3.54 | 2.38 | 23.70 | 2.33E+18 | 5.01E+191 | 7.80 | 0.78 | |
0.1mol% doped | Peak 1 | 64.6495 | 378.83 | 2.52 | 3.54 | 0.42 | 8.75 | 2.12E+4 | 2.26E+116 | 16.49 | 0.78 |
Peak 2 | 90.8081 | 469.26 | 2.52 | 3.54 | 0.45 | 13.44 | 2589.01 | 2.06E+144 | 23..65 | 0.78 | |
Peak 3 | 169.3242 | 572.53 | 2.52 | 3.54 | 0.32 | 20.04 | 13.92 | 1.73E+176 | 48.78 | 0.78 | |
Peak 4 | 54.7902 | 620.69 | 2.52 | 3.54 | 1.42 | 23.56 | 2.61E+10 | 1.34 E+191 | 13.00 | 0.78 | |
2mol% doped | Peak 1 | 69.3833 | 386.71 | 2.52 | 3.54 | 0.40 | 9.12 | 9.55 E+3 | 6.16E+118 | 17.84 | 0.78 |
Peak 2 | 36.0224 | 428.42 | 2.52 | 3.54 | 1.03 | 11..20 | 1.65E+11 | 4.85E+131 | 8.51 | 0.78 | |
Peak 3 | 146.3480 | 539.56 | 2.52 | 3.54 | 0.34 | 17.79 | 35.67 | 1.11E+166 | 41.11 | 0.78 | |
Peak 4 | 78.8523 | 642.55 | 2.52 | 3.54 | 1.03 | 25.25 | 5.82 E+6 | 7.73 E+197 | 19.26 | 0.78 | |
4mol% doped | Peak 1 | 39.5061 | 370.96 | 2.52 | 3.54 | 0.69 | 8.39 | 2.69E+8 | 8.32E+113 | 9.51 | 0.78 |
Peak 2 | 53.7591 | 427.32 | 2.52 | 3.54 | 0.66 | 11.14 | 5.14E+6 | 2.22E+131 | 13.17 | 0.78 | |
Peak 3 | 56.0264 | 521.32 | 2.52 | 3.54 | 0.96 | 16.60 | 1.53E+8 | 2.56E+160 | 13.50 | 0.78 | |
Peak 4 | 33.8480 | 636.97 | 2.52 | 3.54 | 2.50 | 24.81 | 6.84E+18 | 1.45E+196 | 7.79 | 0.78 |
Sample | Relative light yield |
---|---|
CsI(Tl) | 100.00% |
BSO | 4.96% |
BSO: 0.1mol% Dy2O3 | 7.21% |
BSO: 0.2mol% Dy2O3 | 6.87% |
BSO: 0.3mol% Dy2O3 | 6.76% |
BSO: 2mol% Dy2O3 | 3.75% |
BSO: 3mol% Dy2O3 | 2.87% |
BSO: 4mol% Dy2O3 | 2.21% |
Table 2 Relative light yields of BSO: Dy3+ samples
Sample | Relative light yield |
---|---|
CsI(Tl) | 100.00% |
BSO | 4.96% |
BSO: 0.1mol% Dy2O3 | 7.21% |
BSO: 0.2mol% Dy2O3 | 6.87% |
BSO: 0.3mol% Dy2O3 | 6.76% |
BSO: 2mol% Dy2O3 | 3.75% |
BSO: 3mol% Dy2O3 | 2.87% |
BSO: 4mol% Dy2O3 | 2.21% |
[1] | AKCHURIN N, BEDESCHI F, CARDINI A, et al.A comparison of BGO and BSO crystals used in the dual-readout mode.Nuclear Instruments and Methods in Physics Research A. 2011, 640(1): 91-98. |
[2] | XIAO XUEFENG, XU JIAYUE, XIANG WEIDONG.Progress on scintillation crystal for dual-readout calorimeter.Journal of Inorganic Materials, 2013, 28(4): 347-357. |
[3] | FEI YITING, FAN SHIJI, SUN RENYING, et al.Study on phase diagram of Bi2O3-SiO2 system for Bridgman growth of Bi4Si3O12 single crystal.Progress in Crystal Growth and Characterization of Materials, 2000, 40(2000): 183-188. |
[4] | LIAO JINGYING, YE CHONGZHI, YANG PEIZHI.Review on the research of Bi4Ge3O12 scintillation crystals.Chemical Research, 2004, 15(4): 52-59. |
[5] | XU JIAYUE, YANG BOBO, ZHANG YAN.Development of doped Bi4Si3O12 crystals for scintillation, laser and LED applications.Materials Focus, 2015, 4(1): 20-27. |
[6] | FEI YITING, FAN SHIJI, SUN RENYING, et al.Bridgman growth of Bi4Si3O12 scintillation crystals and doped effects on radiation resistance.Progress in Crystal Growth and Characterization of Materials, 2000, 40(2000): 189-194. |
[7] | FEI Y T, SUN R Y, FAN S J.Scintillation properties of Fe and Cr doped Bi4Si3O12 crystals. Journal of Inorganic Materials, 1999, 14(3): 357-362. |
[8] | XU JIAYUE, WANG HONG, HE QINGBO, et al.Bridgman growth of Bi4Si3O12 scintillation crystals.Journal of the Chinese Ceramic Society, 2009, 37(2009): 295-298. |
[9] | ISHII M, HARADA K, HIROSE Y, et al.Development of BSO (Bi4Si3O12) crystal for radiation detector.Optical Materials, 2002, 19(2002): 201-212. |
[10] | XIONG ZHENGYE, XU JIAYUE, ZHANG YAN, et al.Emission spectra and thermoluminescence of rare-earth-doped bismuth silicate crystals grown by modified Bridgman method.Journal of Crystal Growth, 2014, 401(2014): 305-307. |
[11] | MU ZHONGFEI, WANG YINHAI, HU YIHUA, et al.The afterglow and thermoluminescence properties of Y3Al5O12: Ce3+.Acta Physica Sinica, 2011, 101(1): 182-187. |
[12] | LUO DALING, TANG QIANG, ZHANG CHUNXIANG.Exploring the defect model in thermoluminescence.Nuclear Techniques, 2011, 34(2): 87-90. |
[13] | CHEN R.Glow curves with general order kinetics. Journal of the Electrochemical Society, 1969, 116(9): 1254-1257. |
[14] | LIU BO, SHI CHAOSHU, ZHANG QINGLI, et al.Thermoluminescence of GdVO4: Eu3+.Chinese Journal of Luminescence, 2002. 23(4): 396-398. |
[15] | YANG BOBO, XU JIAYUE, ZHANG YAN, et al.Improvement and luminescent mechanism of Bi4Si3O12 scintillation crystals by Dy3+ doping.Nuclear Inst. and Methods in Physics Research A, 2016, 807(2016): 1-4. |
