Wetting Properties and Interface Reaction Mechanism of Ag-Cu Brazes on Dual-phase Membrane Ceramic

doi:10.15541/jim20150551

Abstract

Abstract:

A reactive air brazing Ag-CuO alloy was evaluated for brazing dual phase oxygen membrane Ce_0.8Gd_0.2O_2-_δ- NdBaCo₂O₅₊_δ (CGO-NBCO). Contact angle tests were observed between Ag-Cu brazes and CGO-NBCO in air and the interfacial microstructures of the used samples were evaluated by SEM. The results indicate that the wetting angle decreases from 35° to 20° with the content of Cu increased from 6.6mol% to 15.8mol%. It is found that there are copper oxide-enriched zones formed in the junction of the alloy and substrate. The wettability between Ag-CuO alloy and oxygen membrane CGO-NBCO is improved due to the interfacial reaction between Cu oxides in braze and the surface layers of CGO-NBCO substrates to form compounds of Ba-Cu-O, Co-Cu-O and Nd-Ce-Cu-O oxides. The new formed interface reaction layers promote the wettability of the rest braze.

Key words: Ag-Cu alloy brazing filler, dual-phase membranes ceramic, wettability, interface reaction

CLC Number:

TQ174

ZHANG Li-Li, LI Ke,YU Chen-Chen, ZHANG Yu-Wen, WU Cheng-Zhang, DING Wei-Zhong. Wetting Properties and Interface Reaction Mechanism of Ag-Cu Brazes on Dual-phase Membrane Ceramic[J]. Journal of Inorganic Materials, 2016, 31(6): 607-612.

Figures/Tables 6

Table 1 Composition of Ag-Cu brazes/mol%

Braze	Cu	Ag
Ag	0	100
Ag -6.6Cu	6.6	93.4
Ag -11.0Cu	11.0	89.0
Ag -15.8Cu	15.8	84.2

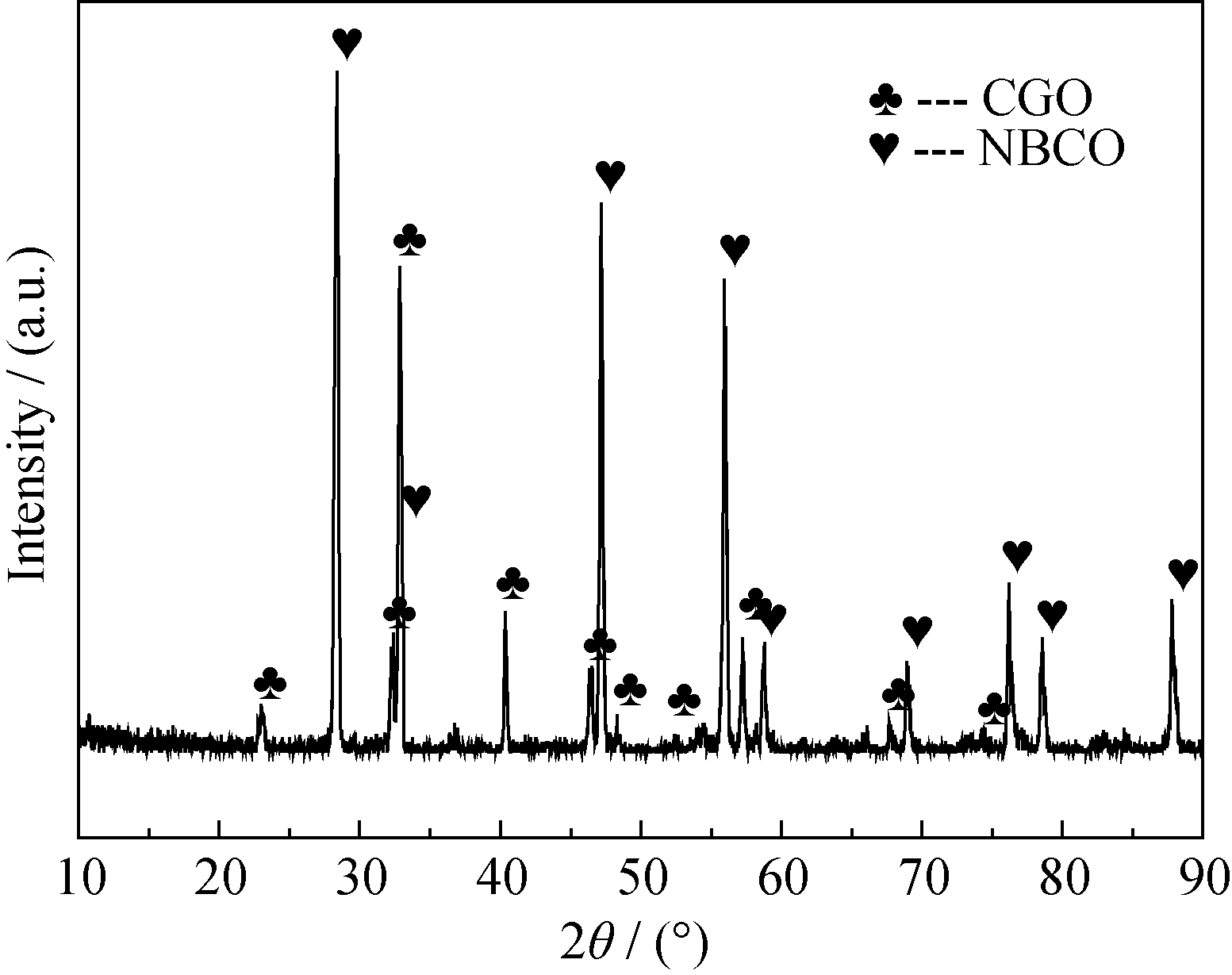

Fig. 1 XRD pattern of CGO-NBCO

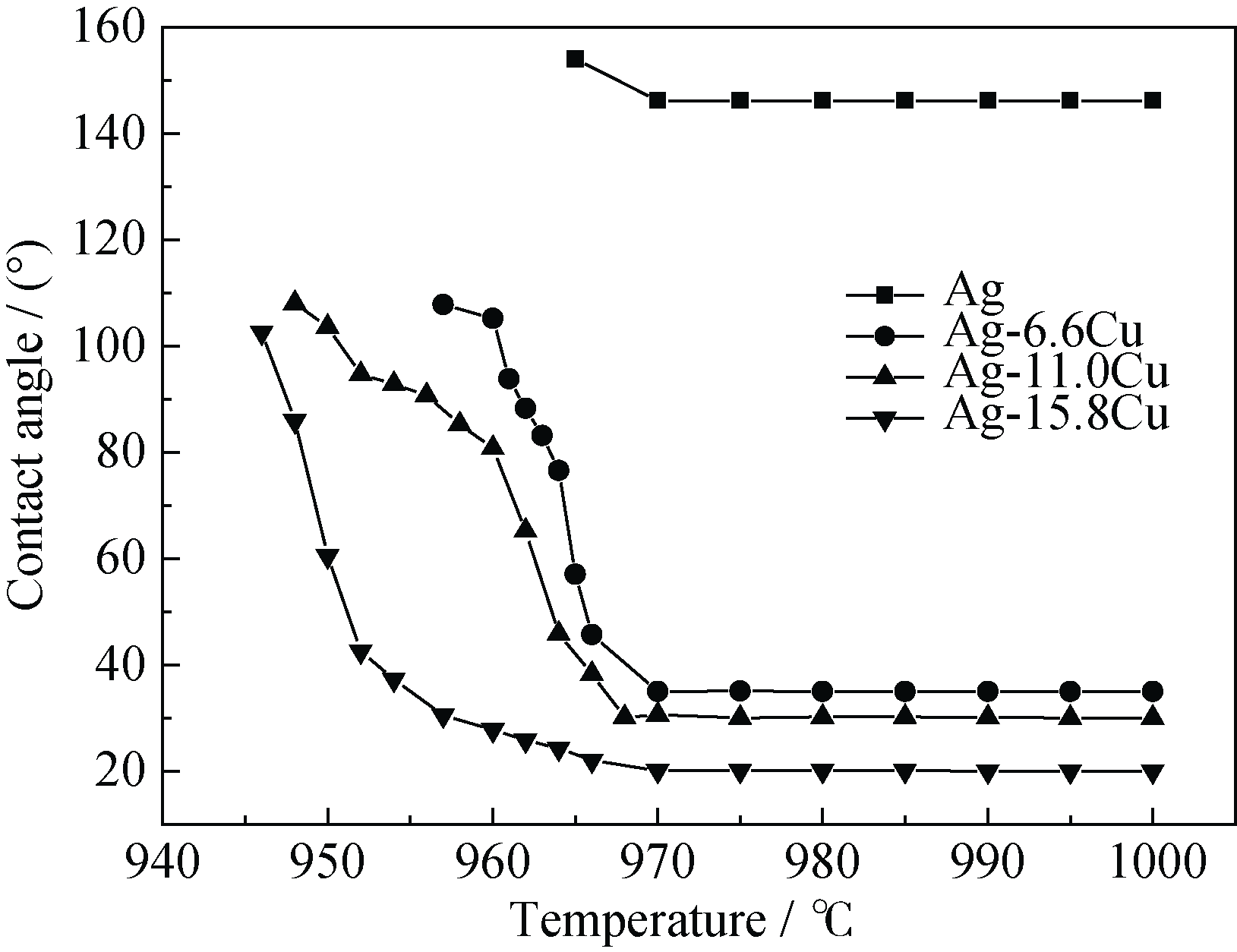

Fig. 2 Contact angles between Ag-Cu and CGO-NBCO as a function of temperature

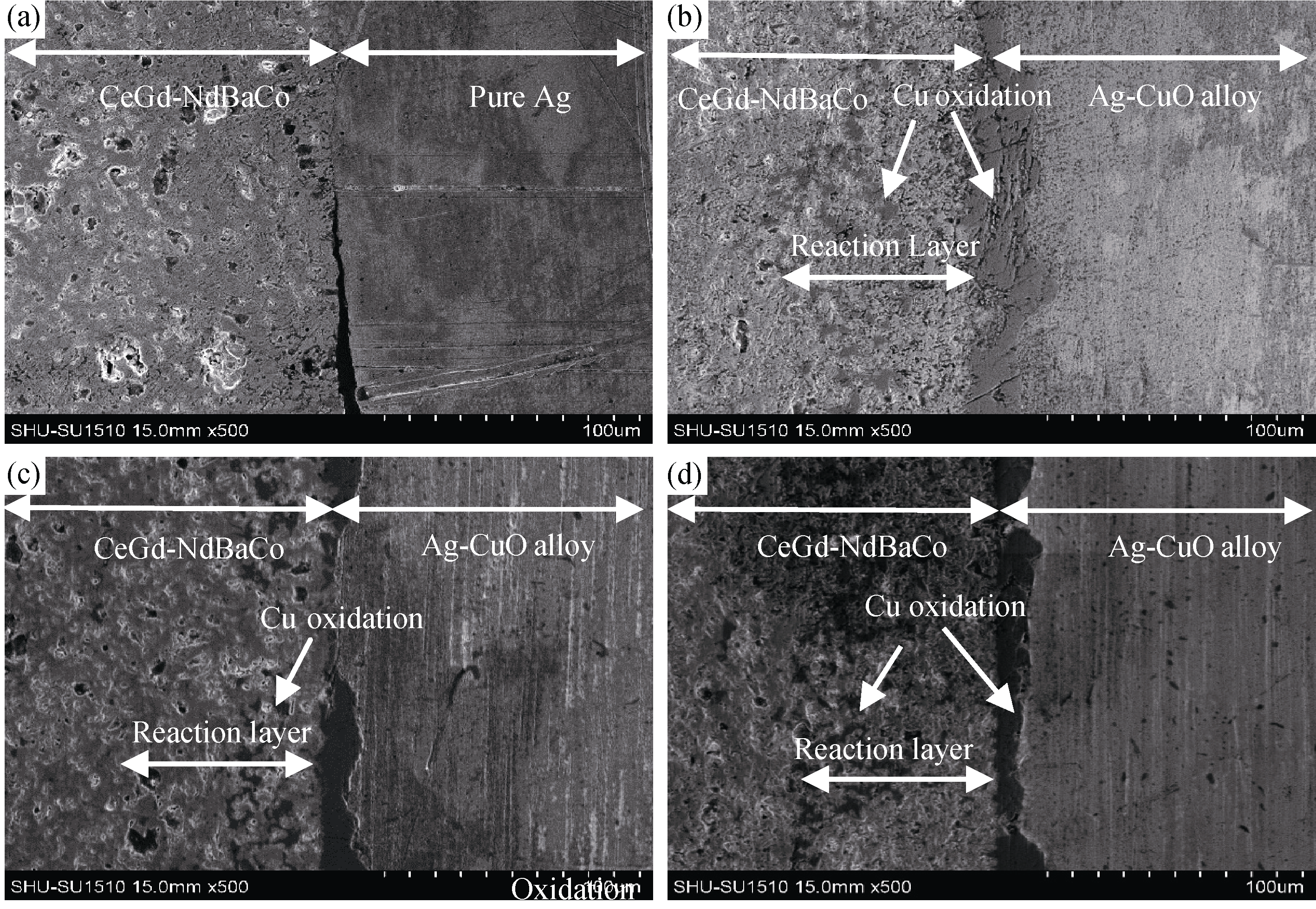

Fig. 3 Morphologies of the interfaces between Ag-Cu brazes and CGO-NBCO membrane after wetting experiments. (a) Ag; (b) Ag-6.6Cu; (c) Ag-11Cu; (d) Ag-15.8Cu

Fig. 4 EDS analyses of the interface between Ag-Cu brazes and CGO-NBCO membrane

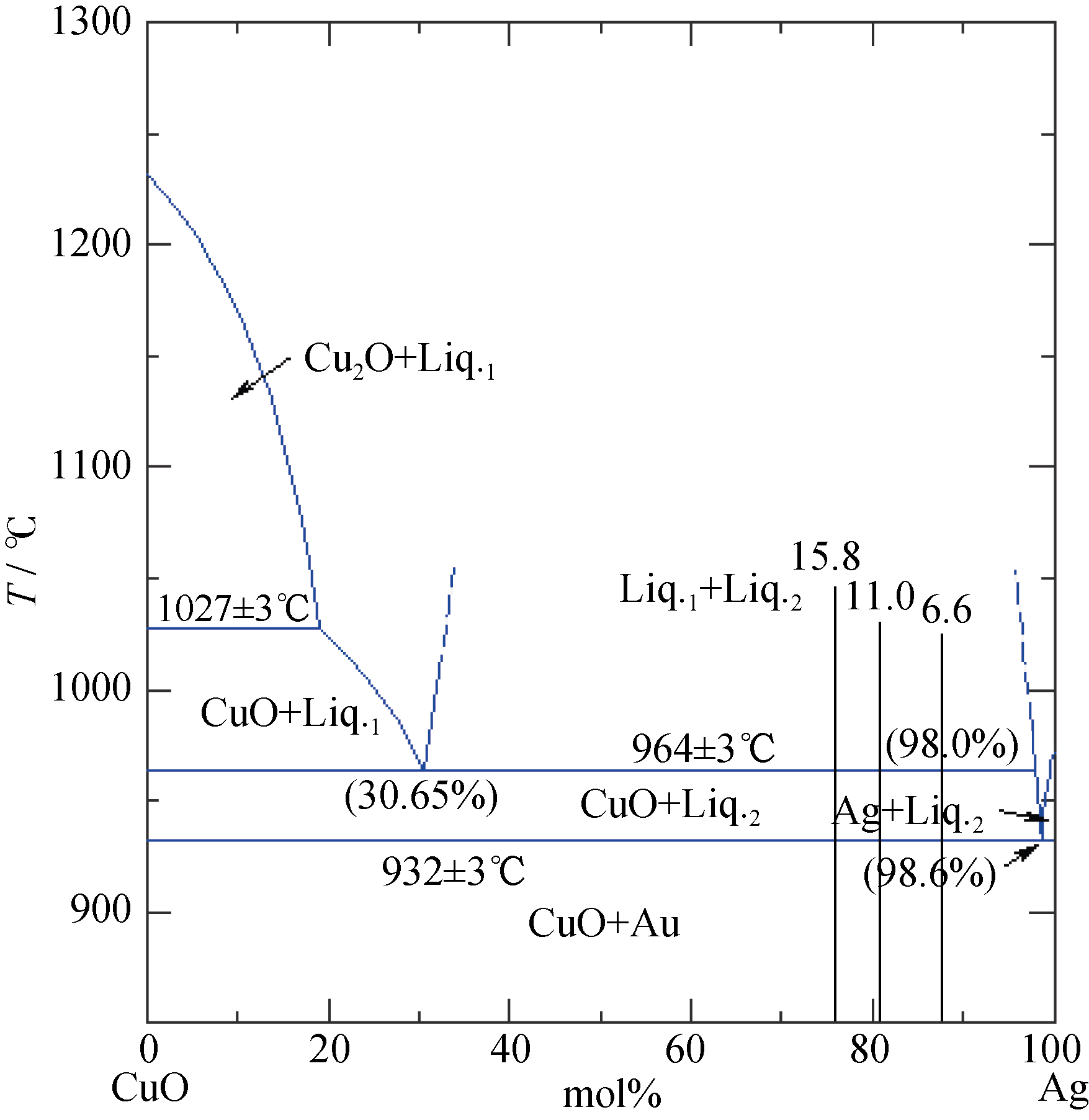

Fig. 5 Pseudobinary Ag-CuO phase diagram[14]

References 14

[1]	WEIL K S, HARDY J S, RICE J P, et al.Brazing as a means of sealing ceramic membranes for use in advanced coal gasiﬁcation processes.Fuel, 2006, 85(2): 156-162.
[2]	SHAO ZONG-PING, XIONG GUO-XING.Mixed conducting oxygen permeative membranes and their application in partial oxidation of methane to syngas process.Process in Chemical, 1999, 11(1): 30-40.
[3]	TONG JIAN-HUA, YANG WEI-SHEN.Methods for selection perovskite-type oxides used as mixed-conducting membranes for oxygen separation.Membrane Science and Technology, 2003, 23(1): 33-42.
[4]	CHUANGANG FAN, WEI LIU, ZENGQIANG DENG, et al.Mechanical stability and transport properties of the Sn-promoted SrCo0.8Fe0.2O3-δ ceramic membrane.Journal of Membrane Science, 2007, 290(1/2): 73-77.
[5]	HARDY J S, KIM J Y, WEIL K S.Joining mixed conducting oxides using an air-fired electrically conductive braze.Journal of the Electrochemical Society, 2004, 151(8): 43-49.
[6]	WEIL K S, KIMJ Y, HARDY J S.Interfacial analysis of (La0.6Sr0.4)(Co0.2Fe0.8)O3-δ substrates wetted by Ag-CuO.Journal of Material Science, 2005(40): 2341-2348.
[7]	DABBARH S, PFAFF A, ZIOMBRA A, et al.Brazing of mice ceramics to high temperature metals.Ceramic Transactions, 2010 (215): 213-223.
[8]	WANG FANG, ZHANG YU-WEN, DING WEI-ZHONG, et al.Pure Cu braze for sealing oxygen-permeable membrane ceramics and stainless steel support.Journal of Functional Materials, 2010, 41(9): 1540-1542.
[9]	WANG FANG, LIU YONG, LU XION-GANG, et al.Effect of Cu content on interface microstructures of oxygen-permeable membrane brazed with Ag-Cu brazing filler.Rare Meterials and Engineering, 2011, 40(10): 1832-1835.
[10]	LIU JIAO, ZHANG YU-WEN, LIU XU, et al.The effect of temperature on the interface reaction and connectivity between Ag-Cu alloy braze and ceramic oxygen-permeable membrane.Journal of Functional Materials, 2011, 42(2): 313-317.
[11]	ZHANG QI-FEI, GENG ZHEN, ZHANG YU-WEN, et al.The wetting and interface reaction mechanism of Ag-Cu-O brazes on BaCo0.7Fe0.2Nb0.1O3-δ oxygen-permeable membrane ceramic.Journal of Functional Materials, 2012, 43(1): 77-80.
[12]	刘蛟. Ag-Cu钎料与透氧膜陶瓷的润湿及界面反应研究. 上海: 上海大学硕士学位论文, 2013.
[13]	NEVRIVA M, KRAUS H, SEDMIDUBSKY D.Phase equilibria study in the partially open Cu-(O) and Me-Cu-, 1995(282/283): 205-224.
[14]	SHAO Z B, LIU K R, LIU Q L, et al.Eauilibrium phase diagrams in the systems PbO-Ag and CuO-Ag.Journal of the American Ceramic Society, 1993, 76(10): 2663-2664.
