Effect of ZnO-doping on Sinterability and Microwave Dielectric Property of Ca0.25(Li0.43Sm0.57)0.75TiO3 Ceramics

doi:10.15541/jim20140359

Abstract

Abstract:

The Ca_0.25(Li_0.43Sm_0.57)_0.75TiO₃(CLST) ceramic nano-powder was prepared by Sol-Gel method. The influences of ZnO doping content and sintering temperature on sintering behavior and microwave dielectric properties of CLST ceramics were investigated. A phase transition from orthorhombic to pseudo cubic symmetry was identified by XRD analysis, and a impure phase was found in the x≥1.5 samples. The densification sintering temperature of the CLST+xmol% ZnO ceramics decrease with increasing ZnO doping content, and it reduces from 1300℃ to 1100℃ when the amount of ZnO doping increase from x=0 to x=1.0. The results also reveal that both the dielectric constant ε_r and the quality factor Qf possess a peak value with increasing ZnO doping content or sintering temperature, whereas the frequency temperature coefficient τ_f decrease monotonously. The x=1.0 sample sintered at 1100℃ for 2 h has optimal microwave dielectric properties: ρ = 4.85 g/cm³, ε_r= 102.8, Qf = 5424 GHz, τ_f =-8.2×10^-6/℃, respectively, which indicates that the CLST ceramic doped with 1.0mol% ZnO is a promising microwave dielectric ceramic.

Key words: Sol-Gel, CLST, microwave dielectric ceramic, densification sintering temperature

CLC Number:

TQ174

LI Hai-Tao, LI Qian, YAN Yan-Fu, XU Rong-Hui. Effect of ZnO-doping on Sinterability and Microwave Dielectric Property of Ca_0.25(Li_0.43Sm_0.57)_0.75TiO₃ Ceramics[J]. Journal of Inorganic Materials, 2015, 30(4): 369-373.

Figures/Tables 6

Fig. 1 TEM micrographs of CLST ceramic powders calcinated at 950 ℃ for 4 h before (a) and after (b) being dispersed

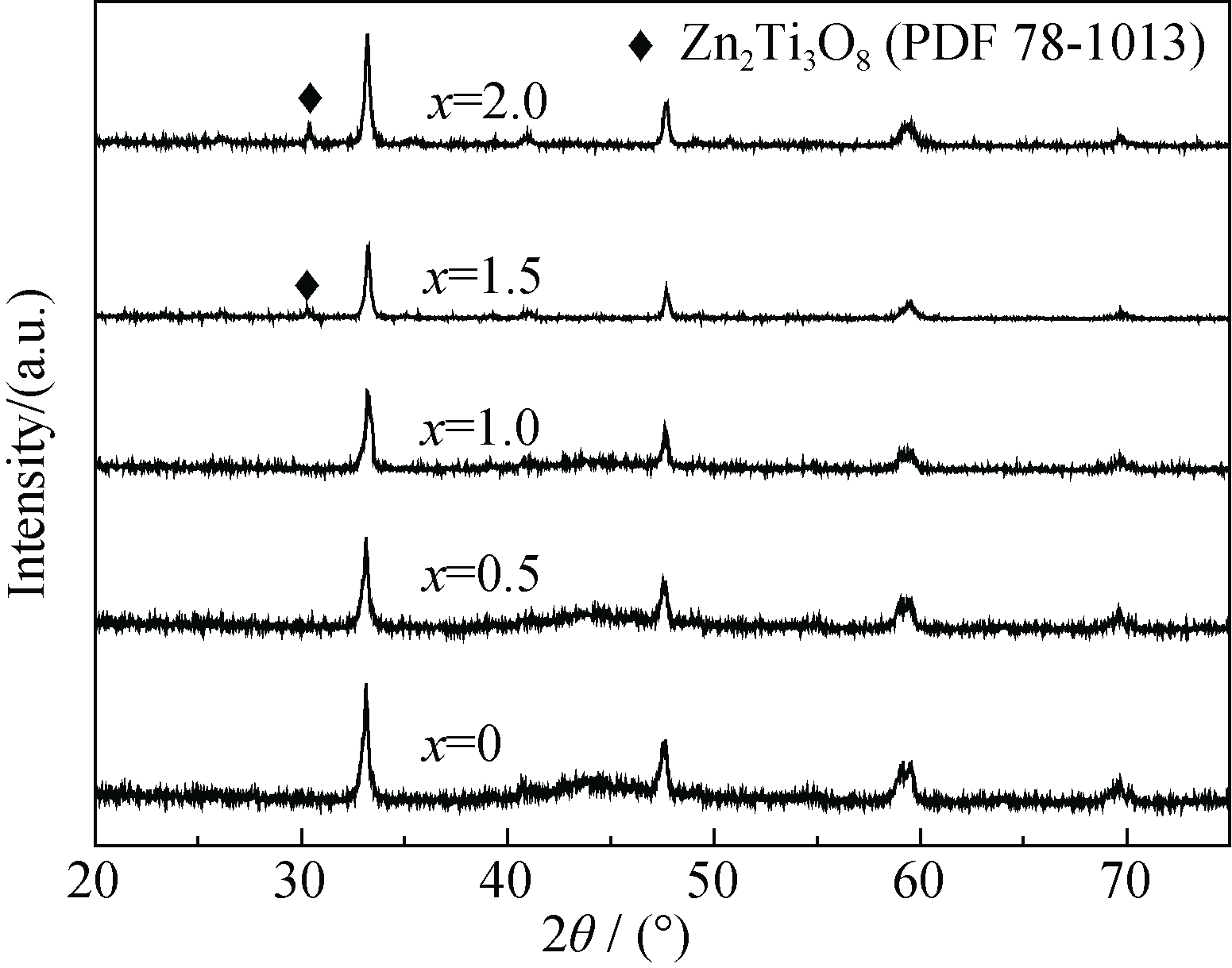

Fig. 2 XRD patterns of the CLST+xmol% ZnO ceramics

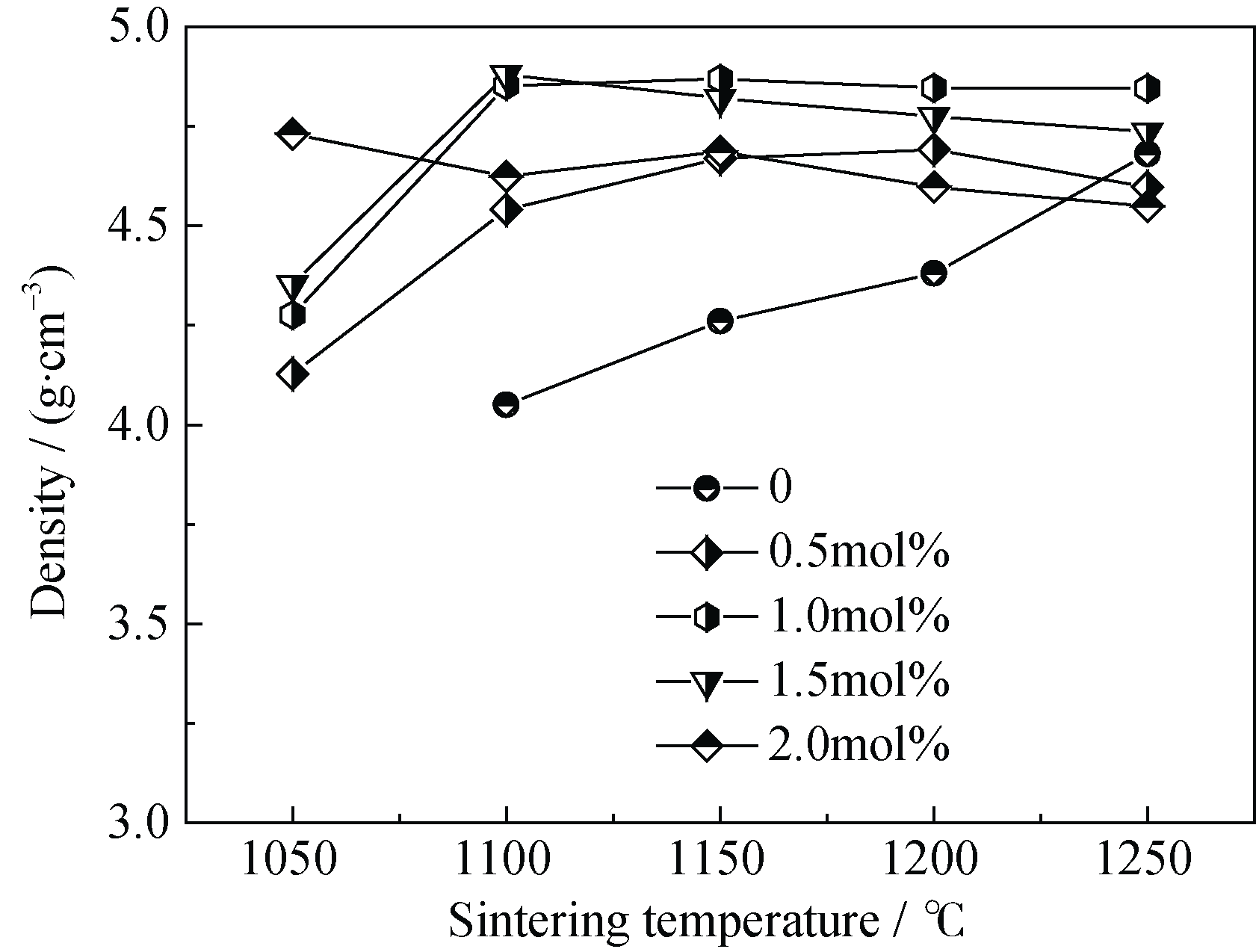

Fig. 3 Bulk density vs sintering temperature of CLST+xmol% ZnO ceramics

Fig. 4 SEM photographs of CLST+1.0mol% ZnO ceramics sintered at different temperatures (a) 1050℃; (b) 1110℃; (c) 1150℃; (d) 1200℃

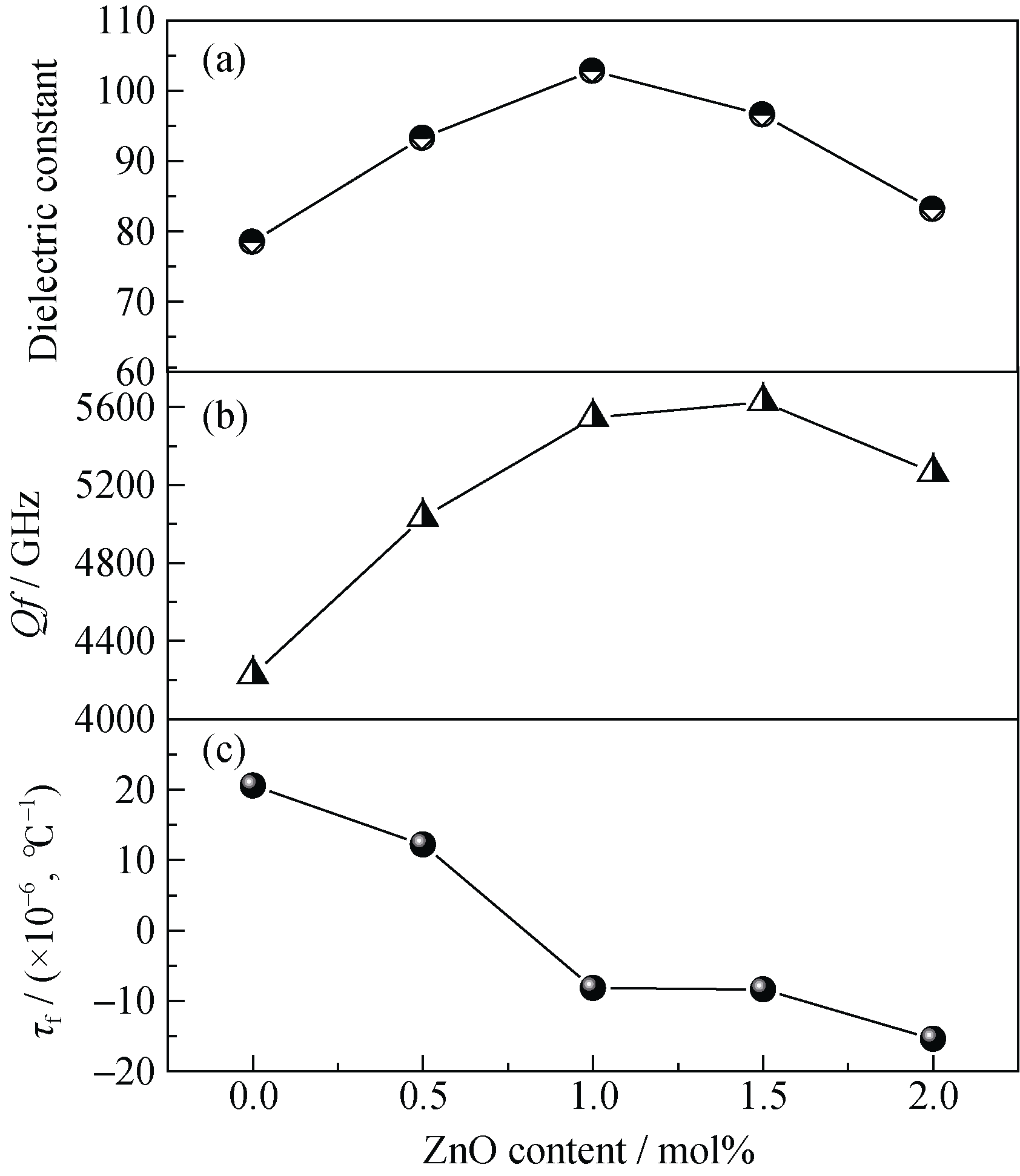

Fig. 5 Dielectric constant (εr) (a), quality factor (Qf ) (b) and frequency temperature coefficient (τf) (c) of CLST+xmol% ZnO ceramics

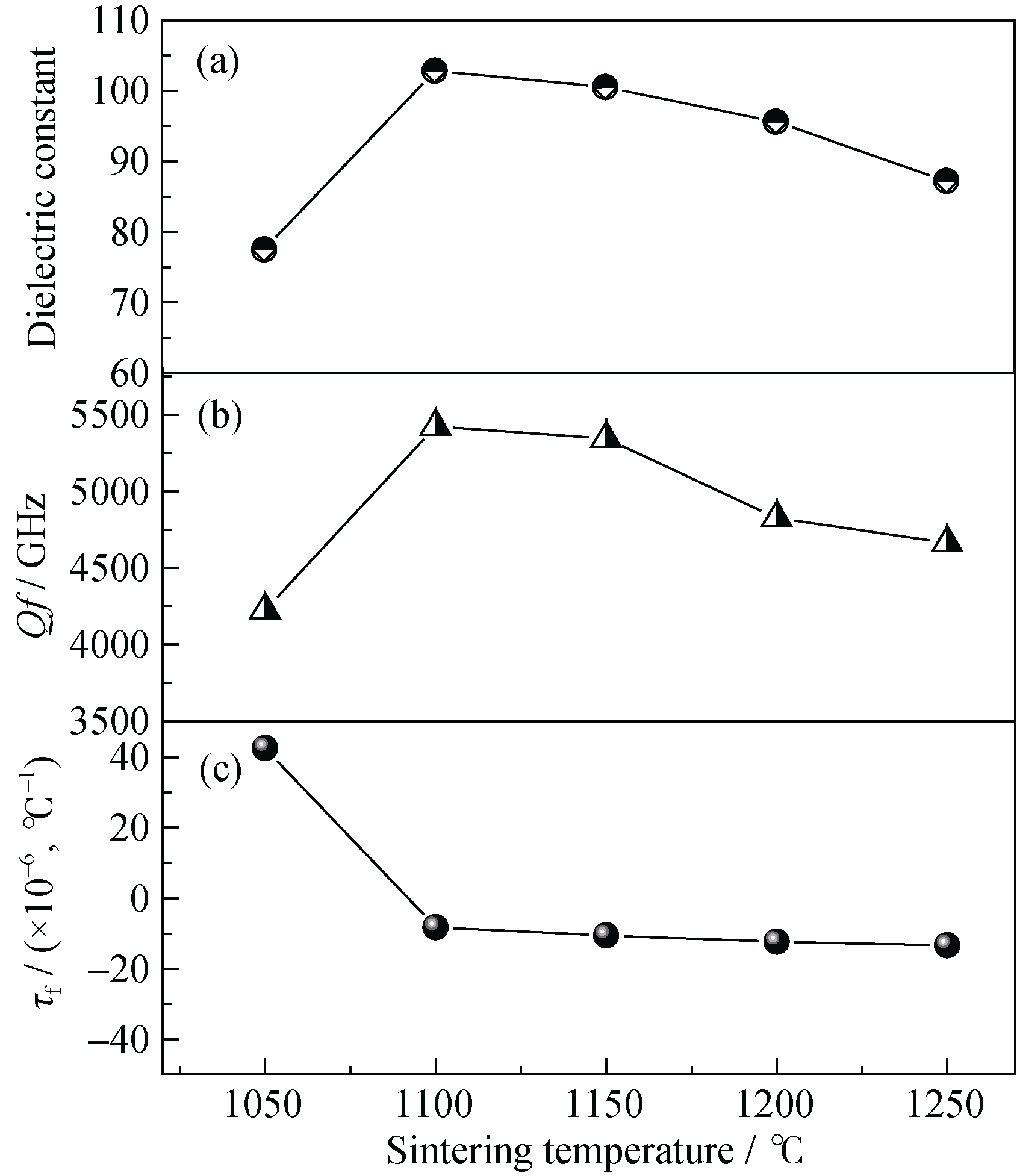

Fig. 6 Dielectric constant (εr) (a), quality factor (Qf ) (b) and frequency temperature coefficient (τf) (c) of CLST+1.0mol% ZnO ceramics sintered at different temperatures

References 17

[1]	DONG JIN-WEN, XU JIAN-MEI, ZHANG DE, et al.The low-temperture sintering and microwave dielectric properties of Mg3(VO4)2-BiNbO4 composite ceramics.J. Chin. Ceram. Soc., 2010, 38(3): 381-386.
[2]	LU YIN, LI HAI-TAO, LI QIAN, et al.Microstructure and microwave dielectric properties of ZnO-B2O3 added (Ca0.254Li0.19 Sm0.14)TiO3 ceramics.Rare Metals, 2010, 29(3): 243-247.
[3]	LIN XU-PING, MA JING-TAO, ZHANG BAO-QING, et al.Microwave dielectric properties of low-temperture fired Zn3Nb2O8 ceramics with CuO-V2O5-Bi2O3.J. Chin. Ceram. Soc., 2010, 38(8): 1388-1391.
[4]	MI YUE-AN, LI EN-ZHU, YU SHAO-YANG, et al.Effect of Li2O-B2O3-SiO2 glass on low temperature sintering and microwave dielectric properties of M-phase Li1.0Nb0.6Ti0.5O3 ceramics.Electronic Components and Materials, 2014, 33(2): 68-71.
[5]	YOU H W, KOO S M, HA J G, et al.Microstructure and dielectric properties of Li2CO3 doped 0.7(Ba,Sr)TiO3-0.3MgO ceramics.Current Applied Physics, 2009, 9: 875-879.
[6]	LI YUE-MING, JIN YUN-HAI, SHEN ZONG-YANG, et al.Effects of composite sintering additives on properties of CSLST microwave dielectric ceramics.Journal of Synthetic Crystals, 2012, 41(5): 1221-1226.
[7]	GU YONG-JUN, HUANG JIN-LIANG, WANG YING, et al.Low temperature firing of CaO-Li2O-Sm2O3-TiO2 ceramics with BaCu(B2O5) addition.Solid State Communications, 2009, 149(13-14) : 555-558.
[8]	CHO J Y, YOON K H, KIM E S, et al.Microwave dielectric properties of layered Mg0.93Ca0.07TiO3-(Ca0.3Li0.14Sm0.42)TiO3 ceramics.Materials Chemistry and Physics, 2003, 79: 239-242.
[9]	EZAKI K, BABA Y, TAKHASHI H, et al.Microwave dielectric properties of CaO-Li2O-Ln2O3-TiO2 Ceramics.Jpn. J. Appl. Phys., 1993, 32: 4319-4322.
[10]	HUANG C L, TSAI J T, LI J L.Microwave dielectric properties of (1-x)CaO-xBaO-Li2O-(1-y)Sm2O3-yNd2O3-TiO2 ceramics system.Journal of Material Science, 2000, 35: 4901-4905.
[11]	YOON K H, PARK M S, CHO J Y, et al.Effect of B2O3-Li2O on microwave dielectric properties of (Ca0.275Sm0.4Li0.25 )TiO3ceramics.J. Eur. Ceram. Soc., 2003, 23(14): 2423-2427.
[12]	WANG K, LI J F. Analysis of crystallographic evolution in (Na, K)NbO3-based lead-free piezoceramics by X-ray diffraction. Appl. Phys. Lett., 2007, 91: 262902-1-3.
[13]	PARK H Y, CHO K H, NAHM S, et al.Microstructure and piezoelectric properties of the (1-x)(Na0.5K0.5)-NbO3-xCaTiO3 lead-free ceramics.J. Appl. Phys., 2007, 102: 124101.
[14]	SEO I T, CHO K H, PARK H Y, et al.Effect of CuO on the sintering and piezoelectric properties of 0.95(Na0.5K0.5)NbO3 -0.05SrTiO3 lead-free piezoelectric ceramics.J. Am. Ceram. Soc., 2008, 91(12): 3955-3960.
[15]	LI HAI-TAO, ZHANG BO-PING, CUI MIN, et al.Microstructure, crystalline phase, and electrical properties of ZnO-added Li0.06(Na0.535K0.4 8)0.94 NbO3 ceramics.Current Applied Physics, 2011, 11: 184-188.
[16]	XU HONG-YU, LI QIAN, HUANG JIN-LIANG.Effect of ZnO addition on sintering and dielectric properties of CLST microwave dielectric ceramics.Journal of Functional Materials and Devices, 2008, 14(4): 835-838.
[17]	LI YUE-MING, ZHANG BIN, ZHANG HUA, et al.Research on low -temperature sintering of Ca0.2(Li1/2Sm1/2)0.8 TiO3 microwave dielectric ceramics.Journal of Ceramics, 2010, 31(2): 208-212.
