熔融法制备Nd:YLF原料及其晶体生长和性能研究

doi:10.15541/jim20240456

无机材料学报 ›› 2025, Vol. 40 ›› Issue (5): 529-535.DOI: 10.15541/jim20240456

熔融法制备Nd:YLF原料及其晶体生长和性能研究

赵凯旋¹^,²(), 刘文鹏²(), 丁守军³, 窦仁勤², 罗建乔², 高进云², 孙贵花², 任浩⁴, 张庆礼²

1.安徽大学物质科学与信息技术研究院, 合肥 230601
2.中国科学院合肥物质科学研究院, 安徽光学精密机械研究所, 安徽省光子器件与材料省级实验室, 合肥 230031
3.安徽工业大学微电子与数据科学学院, 马鞍山 243032
4.南京大学材料科学与工程系, 固体微结构国家实验室, 南京 210093

收稿日期:2024-11-01 修回日期:2024-12-24 出版日期:2025-05-20 网络出版日期:2025-01-24
通讯作者: 刘文鹏, 副研究员. E-mail: wpliu@aiofm.ac.cn
作者简介:赵凯旋(1999-), 男, 硕士研究生. E-mail: 1953805838@qq.com
基金资助:
安徽省科技重大专项(202203a05020002);国家自然科学基金(52272011);国家重点研究发展计划(2022YFB3605703);国家重点研究发展计划(2023YFB3507403);中国科学院青年创新促进会(2023463)

Nd:YLF Crystal Growth: Raw Materials Preparation by Melting Method and Property

ZHAO Kaixuan¹^,²(), LIU Wenpeng²(), DING Shoujun³, DOU Renqin², LUO Jianqiao², GAO Jinyun², SUN Guihua², REN Hao⁴, ZHANG Qingli²

1. Institutes of Physical Science and Information Technology, Anhui University, Hefei 230601, China
2. Anhui Provincial Key Laboratory of Photonic Devices and Materials, Anhui Institute of Optics and Fine Mechanics, Hefei Institutes of Physical Science, Chinese Academy of Sciences, Hefei 230031, China
3. School of Microelectronics and Data Science, Anhui University of Technology, Maanshan 243032, China
4. National Laboratory of Solid State Microstructure, Department of Materials Science and Engineering, Nanjing University, Nanjing 210093, China

Received:2024-11-01 Revised:2024-12-24 Published:2025-05-20 Online:2025-01-24
Contact: LIU Wenpeng, associate professor. E-mail: wpliu@aiofm.ac.cn
About author:ZHAO Kaixuan (1999-), male, Master candidate. E-mail: 1953805838@qq.com
Supported by:
Anhui Province Science and Technology Major Project(202203a05020002);National Natural Science Foundation of China(52272011);National Key R&D Program of China(2022YFB3605703);National Key R&D Program of China(2023YFB3507403);Youth Innovation Promotion Association(2023463)

摘要/Abstract

摘要：

Nd³⁺离子掺杂LiYF₄(Nd:YLF)晶体是一种性能优异的激光晶体, 在科研、工业、医疗领域具有广泛应用。目前, 采用二元氟化物混合作为晶体生长原料存在形成氟氧化物的问题, 利用HF气体氟化制备原料又相对复杂, 因此制备高纯度氟化物原料是实现高质量氟化物晶体生长的重要因素之一。另外, 晶体生长气氛中通常含有CF₄或HF, 其对生长系统有较强腐蚀性, 提高了晶体生长成本。本研究设计了一种近密闭式熔料装置, 并结合在高于晶体熔点温度下的熔料工艺和漂浮物打捞工艺, 以获得高纯度YLF晶相多晶生长原料。在高纯Ar气氛中进行Nd:YLF晶体生长, 获得了完整晶体。测试了多晶原料、制得晶体的X射线衍射(XRD)谱图, 并采用Rietveld方法进行精修, 获得了晶体的晶格参数、原子坐标、原子占有率和温度因子等参数。晶体的(100)晶面的X射线摇摆曲线(XRC)半高宽(FWHM)为0.007°。通过测量晶体中的各元素含量, 得到Nd³⁺在YLF中的分凝系数为0.3。晶体a、c晶向的最强吸收峰在797.4和792.3 nm, 吸收截面分别为3.37×10^-20和5.49×10^-20 cm²。最强发射峰位于1047 nm, 发射截面为1.598×10^-19 cm², 荧光寿命为483 μs。本研究采用熔融法制备的Nd:YLF多晶生长原料相纯度高, 结合提拉法晶体生长过程中抽真空和升温工艺, 能够大幅减少晶体生长过程中氟氧化物的形成, 实现在Ar气氛下生长晶体。

关键词: Nd:YLF, 激光晶体, 晶体结构, 光谱分析

Abstract:

Nd³⁺-doped LiYF₄ (Nd:YLF) crystal is a laser crystal with excellent performance, which is widely used in scientific research, industrial and medical fields. But its existing crystal growth method using binary fluoride mixtures is problematic due to fluoride oxides being formed in fluoride raw materials, and process of preparing raw materials by using HF gas fluorination is relatively complicated. Therefore, preparation of high-purity fluoride raw materials is one of the important factors to realize the growth of high-quality fluoride crystals. Meanwhile, crystal growth atmosphere usually contains CF₄ or HF, which is highly corrosive to growth system and increases cost of crystal growth. In this work, to obtain high-quality Nd:YLF crystal, the polycrystalline growth raw material with high-purity YLF crystalline phase was first prepared using a nearly closed melting material device, which was a novel design facilitating the melting process and floating salvage process at the temperature above the crystal melting point. Intact Nd:YLF crystal was obtained after growth under a high-purity Ar atmosphere. X-ray diffraction (XRD) patterns of polycrystalline raw materials and growing crystals were tested, while lattice parameters, atomic coordinates, atomic occupancy and temperature factor were obtained by Rietveld refinement. By measuring X-ray rocking curve (XRC) of (100) crystallographic plane of the as-obtained Nd:YLF crystal, the full width at half maximum (FWHM) of diffraction peak is 0.007°. The segregation coefficient of Nd³⁺ in YLF calculated by measuring the content of each element is 0.3. The strongest absorption peaks of Nd:YLF crystal locate at 797.4 nm (a direction) and 792.3 nm (c direction) with absorption cross sections of 3.37×10^-20 and 5.49×10^-20 cm², respectively. The strongest emission peak of Nd:YLF crystal locates at 1047 nm with stimulated emission cross section of 1.598×10^-19 cm² and fluorescence lifetime of 483 μs. Based on above data, Nd:YLF polycrystalline raw materials prepared by melting method achieve high phase purity. Combined with Czochralski method of crystal growth with vacuum extraction and heating process, the present growth method can greatly reduce the formation of fluoride oxide during the growth process, which proves a successful growth under Ar atmosphere.

Key words: Nd:YLF, laser crystal, crystal structure, spectral analysis

中图分类号:

O734
O657

赵凯旋, 刘文鹏, 丁守军, 窦仁勤, 罗建乔, 高进云, 孙贵花, 任浩, 张庆礼. 熔融法制备Nd:YLF原料及其晶体生长和性能研究[J]. 无机材料学报, 2025, 40(5): 529-535.

ZHAO Kaixuan, LIU Wenpeng, DING Shoujun, DOU Renqin, LUO Jianqiao, GAO Jinyun, SUN Guihua, REN Hao, ZHANG Qingli. Nd:YLF Crystal Growth: Raw Materials Preparation by Melting Method and Property[J]. Journal of Inorganic Materials, 2025, 40(5): 529-535.

图/表 12

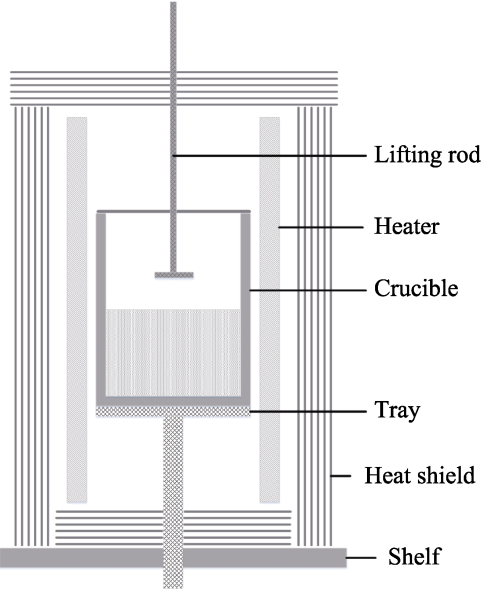

图1 熔料装置示意图

Fig. 1 Schematic diagram of raw material melting device

图2 熔融法制备的多晶原料

Fig. 2 Polycrystalline material prepared by melting method

图3 提拉法生长的Nd:YLF晶体

Fig. 3 Nd:YLF crystals grown by Czochralski method (a) Crystal grown with polycrystalline material prepared by melting method; (b) Crystal grown with mixed component raw materials

图4 熔融法制备多晶原料的XRD图谱

Fig. 4 XRD pattern of polycrystalline material prepared by melting method

图5 组分混合原料生长晶体的白色物质的XRD图谱

Fig. 5 XRD pattern of whiteness among crystal grown with mixed component raw materials

图6 Nd:YLF晶体的XRC

Fig. 6 XRC of Nd:YLF crystal

图7 Nd:YLF晶体的XRD全谱Rietveld拟合图

Fig. 7 Rietveld fitting XRD patterns of Nd:YLF crystal

表1 Rietveld精修得到的Nd:YLF晶体结构参数

Table 1 Structural parameters of Nd:YLF crystal obtained by Rietveld refinement method

Element	X	Y	Z	Occupancy	Uiso
Li	0	0.25000	0.12500	0.25000	0.20666
Y	0.50000	0.75000	0.12500	0.24750	0
Nd	0.50000	0.75000	0.12500	0.00250	0
F	0.27376	0.09431	0.04622	1.00000	0
Lattice parameter		a=b=0.51696 nm, c=1.07412 nm, α=β=γ=90°
R factor		R_p=6.39%, R_wp=8.31%

表2 LA-ICP-MS测试得到的Nd:YLF晶体中元素含量

Table 2 Element contents of Nd:YLF crystal tested by LA-ICP-MS method

Sample	Mass fraction/%
Sample	Nd	Y	Li
Sample 1	1.7659	88.8208	7.3685
Sample 2	1.7726	89.8067	7.5738
Sample 3	1.7939	88.4968	7.9348
Average	1.7775	89.0414	7.6257

图8 Nd:YLF晶体在室温下的透过光谱图

Fig. 8 Transmission spectra of Nd:YLF crystal at room temperature

图9 Nd:YLF晶体在808 nm激发下的发射光谱图

Fig. 9 Emission spectrum of Nd:YLF crystal excited by 808 nm

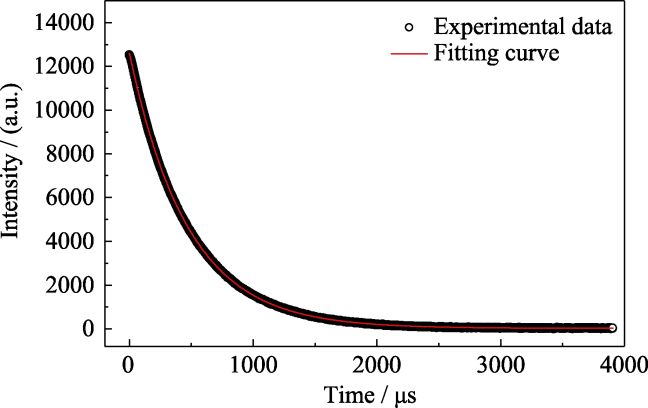

图10 Nd:YLF晶体1047 nm输出光的荧光衰减曲线

Fig. 10 Fluorescent decay curve of Nd:YLF crystal at 1047 nm

参考文献 27

[1]	HARMER A L, LINZ A, GABBE D R. Fluorescence of Nd³⁺ in lithium yttrium fluoride. Journal of Physics & Chemistry of Solids, 1969, 30(6): 1483.
[2]	CLARKSON W A, HARDMAN P J, HANNA D C. High-power diode-bar end-pumped Nd:YLF laser at 1.053 μm. Optics letters, 1998, 23(17): 1363.
[3]	WANG C, WEI H, WANG J F, et al. 1 J, 1 Hz lamp-pumped high-gain Nd:phosphate glass laser amplifier. Chinese Optics Letters, 2017, 15(1): 84.
[4]	OKADA F, TOGAWA S, OHTA K, et al. Solid-state ultraviolet tunable laser: a Ce³⁺ doped LiYF₄ crystal. Journal of Applied Physics, 1994, 75(1): 49.
[5]	LUO S Y, YAN X G, CUI Q, et al. Power scaling of blue-diode-pumped Pr:YLF lasers at 523.0, 604.1, 606.9, 639.4, 697.8 and 720.9 nm. Optics Communications, 2016, 380: 357.
[6]	PUSHKIN A V, SLOVINSKY I A, SHAKIROV A A, et al. Diode-side-pumped watt-level high-energy Q-switched mid-IR Er:YLF laser. Optics letters, 2021, 46(21): 5465.
[7]	TANG L, XIA H P, WANG P Y, et al. Dy³⁺-doped LiYF₄ crystals for UV-excited white light-emitting diodes. Chinese Optics Letters, 2013, 11(6): 1603.
[8]	JIN W Z, LIU L N, XU J L, et al. Ho(Tm):LiYF₄ laser crystal growth. The 17th National Academic Conference on Crystal Growth and Materials, Harbin, 2015: 88.
[9]	WANG P Y, XIA H P, PENG J T, et al. Study on spectra properties of Nd³⁺:LiYF₄ single crystal grown by Bridgman method. Journal of Synthetic Crystals, 2013, 42(9): 1729.
[10]	STARECKI F, BOLANOS W, BRASSE G, et al. Rare earth doped LiYF₄ single crystalline films grown by liquid phase epitaxy for the fabrication of planar waveguide lasers. Journal of Crystal Growth, 2014, 401: 537.
[11]	JIN M, MA Y P, WEI T R, et al. Growth and characterization of large-size InSe crystal from non-stoichiometric solution via a Zone melting method. Journal of Inorganic Materials, 2024, 39(5): 554.
[12]	HAN J F, YANG G L, YANG Y, et al. Growth and bonding technology of YLF laser crystals. Journal of Synthetic Crystals, 2018, 47(12): 2452.
[13]	WANG G Q, LIN Y P, FENG Y N, et al. Environmentally friendly growth of fluoride crystal LiYF₄:Pr³⁺ with broadband near-infrared emission from ¹D₂ manifolds. Journal of Crystal Growth, 2019, 520: 27.
[14]	DOBRETSOVA E A, PANT A, XIA X J, et al. Safe and scalable polyethylene glycol-assisted hydrothermal synthesis and laser cooling of 10% Yb³⁺:LiLuF₄ crystals. Applied Sciences, 2022, 12(2): 774.
[15]	DAI B S, ZHAO S W. Purification of the YLF crystal growth atmosphere. Journal of Synthetic Crystals, 1988(Z1): 415.
[16]	ZHANG S X, LIU R H, XIE Y Y, et al. The growth of LiYF₄ single crystals by Bridgman method. Journal of Synthetic Crystals, 1985(Z1): 55.
[17]	符立. Tb³⁺/Yb³⁺, Tm³⁺, Yb³⁺/Sm³⁺掺杂LiYF₄晶体的光学特性研究宁波: 宁波大学硕士学位论文, 2015.
[18]	SATO H, BENSALAH A, MACHIDA H, et al. Growth and characterization of 3-in size Tm, Ho-codoped LiYF₄ and LiLuF₄ single crystals by the Czochralski method. Journal of Crystal Growth, 2003, 253(1-4): 221.
[19]	ZHENG D Y, FANG X G, CUI Y J, et al. Synthesis of Nd:LiYF₄ polycrystalline materials and crystal growth. Journal of the Chinese Ceramic Society, 2014, 42(6): 756.
[20]	KUCZELINIS F, PETERSEN J H, WEIS P, et al. Calibration of LA-ICP-MS via standard addition using dried picoliter droplets. Journal of Analytical Atomic Spectrometry, 2020, 35(9): 1922.
[21]	郭勇文. 大尺寸Nd, Ce:YAG和中红外Er:YAG激光晶体的生长及性能研究. 广州: 广东工业大学博士学位论文, 2022.
[22]	XU J R, ZHANG Q L, PENG F, et al. Growth, spectral properties and LD pumped laser performances of Cr,Nd:GSAG crystal. Journal of Synthetic Crystals, 2017, 46(9): 1653.
[23]	LIU W, DONG W L, ZHAO S Y, et al. Growth and fluorescence properties of Tm,Yb:NaGd(WO₄)₂ laser crystal. Journal of Changchun University of Science and Technology (Natural Science Edition), 2016, 39(3): 88.
[24]	YANG Z Y, LUO L, CHEN W. The 1.23 and 1.47 μm emissions from Tm³⁺ in chalcogenide glasses. Journal of Applied Physics, 2006, 99(7): 6107.
[25]	ZHANG X R. Luminescence properties of Nd³⁺ in different matrix crystals. Journal of Inorganic Materials, 1989, 4(1): 17.
[26]	DOU R Q, LIU Y, LUO J Q, et al. Spectral analysis and thermal properties of Nd:GdYAG laser crystal. Journal of Synthetic Crystals, 2024, 53(9): 1504.
[27]	SONG Y J, ZONG N, CHEN Z Z, et al. Temperature-dependent thermal, spectroscopic properties, and laser performance of Nd:YVO₄ crystal. Applied Physics B, 2023, 129(5): 72.
