无机材料学报

• •

多孔片层钴钒氢氧化物/镍铜复合催化剂的构筑及其高效产氢性能

孙强强, 姜美娜,魏宇航,王丹,周子雯,李春,曹宝月

  1. 商洛学院 化学工程与现代材料学院,陕西省尾矿资源综合利用重点实验室/商洛市石墨烯技术与应用研究中心,商洛 726000
  • 收稿日期:2026-01-19 修回日期:2026-03-09
  • 通讯作者: 曹宝月, 教授. E-mail: 231052@slxy.edu.cn
  • 作者简介:孙强强(1985-), 男, 博士, 副教授. E-mail:sqq3c118@slxy.edu.cn.
  • 基金资助:
    陕西省青年创新团队科学研究计划 (23JP039);商洛市科技发展计划 (2023-G-0007);大学生创新创业训练计划 (S202311396002、S202511396011);陕西省秦岭矿产资源综合开发利用概念验证中心(2025CG-GNYZ2-08);教育科技人才体制机制一体改革试点项目(2025KJ-JKRC-34)。

Construction and High-Efficiency Hydrogen Evolution Performance of a Porous Layered Cobalt-Vanadium Hydroxide/Nickel-Copper Composite Catalyst

SUN Qiangqiang, JIANG Meina, WEI Yuhang, WANG Dan, ZHOU Ziwen, LI Chun, CAO Baoyue

  1. Shaanxi Key Laboratory of Comprehensive Utilization of Tailings Resources, Research Centre of Grapheme Technology and Application, School of Chemical Engineering and Modern Materials, Shangluo University, Shangluo 726000, China
  • Received:2026-01-19 Revised:2026-03-09
  • Contact: CAO Baoyue, associate professor. E-mail: 231052@slxy.edu.cn
  • About author:SUN Qiangqiang (1985–), male, PhD, associate professor. E-mail: sqq3c118@slxy.edu.cn
  • Supported by:
    Shaanxi Provincial Youth Innovation Team Scientific Research Program (23JP039); Shangluo City Science and Technology Development Plan Project (2023-G-0007); College Student Innovation and Entrepreneurship Training Program (S202311396002, S202511396011); Shaanxi Provincial Qinling Mineral Resources Comprehensive Development and Utilization Concept Verification Center (2025CG-GNYZ2-08); Pilot Project for the Integrated Reform of Education, Science and Technology Talent Systems and Mechanisms (2025KJ-JKRC-34)

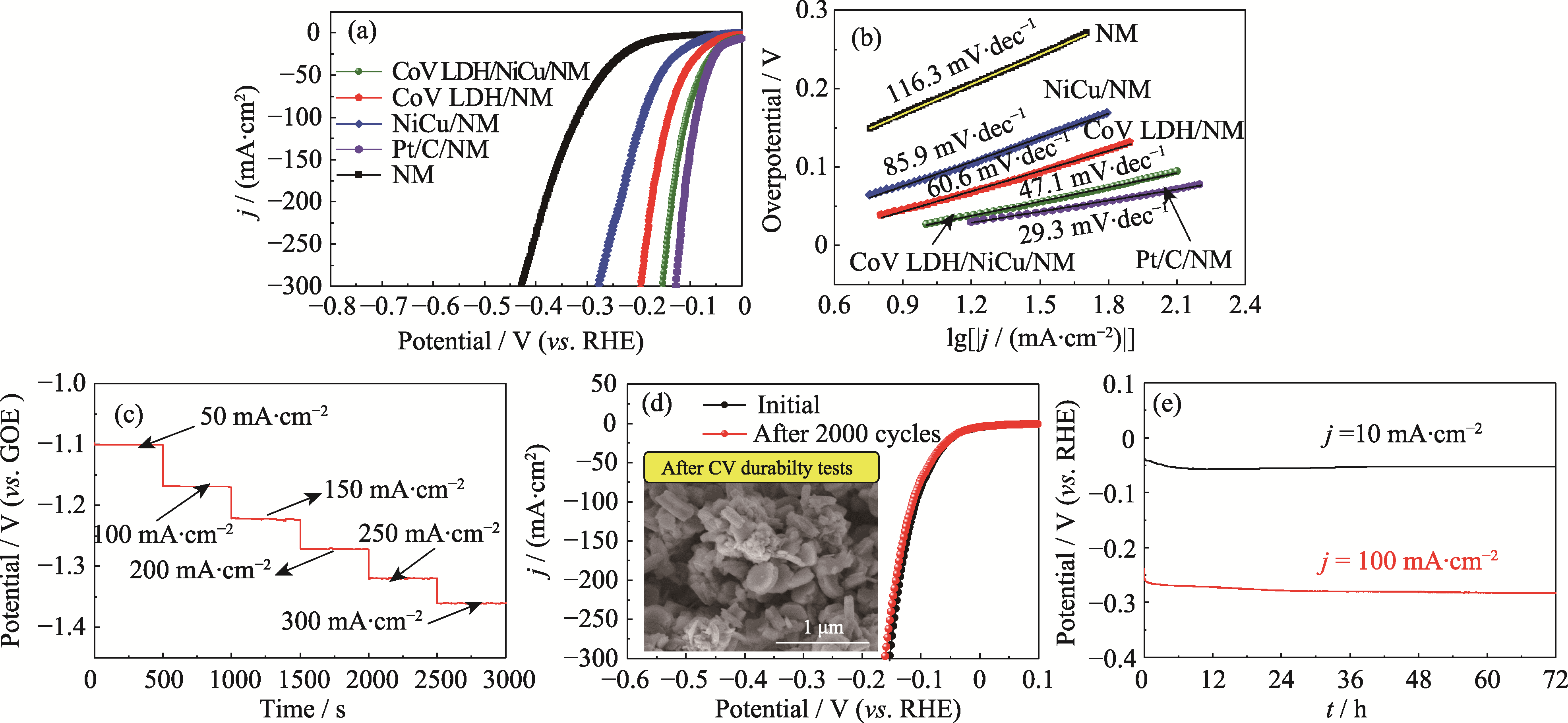

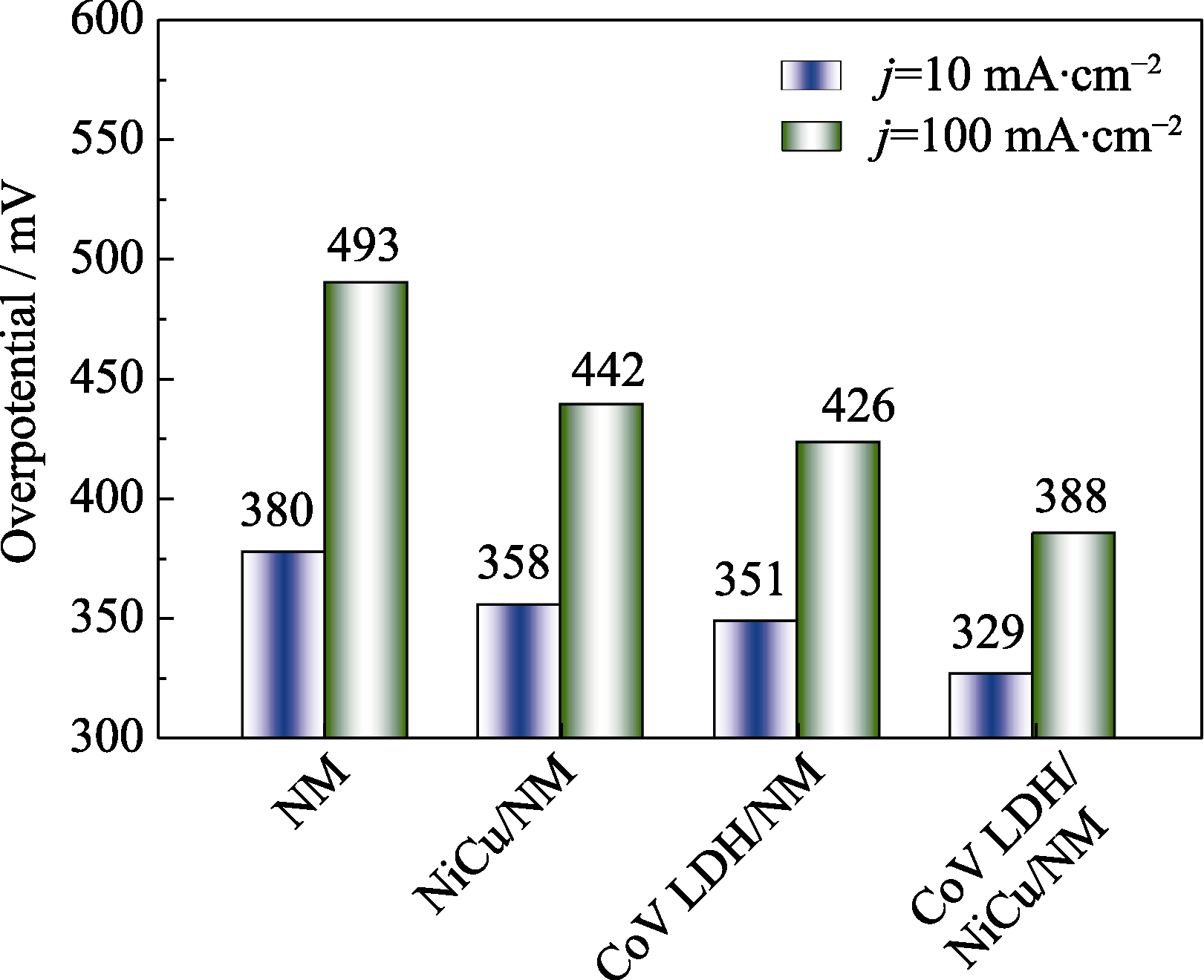

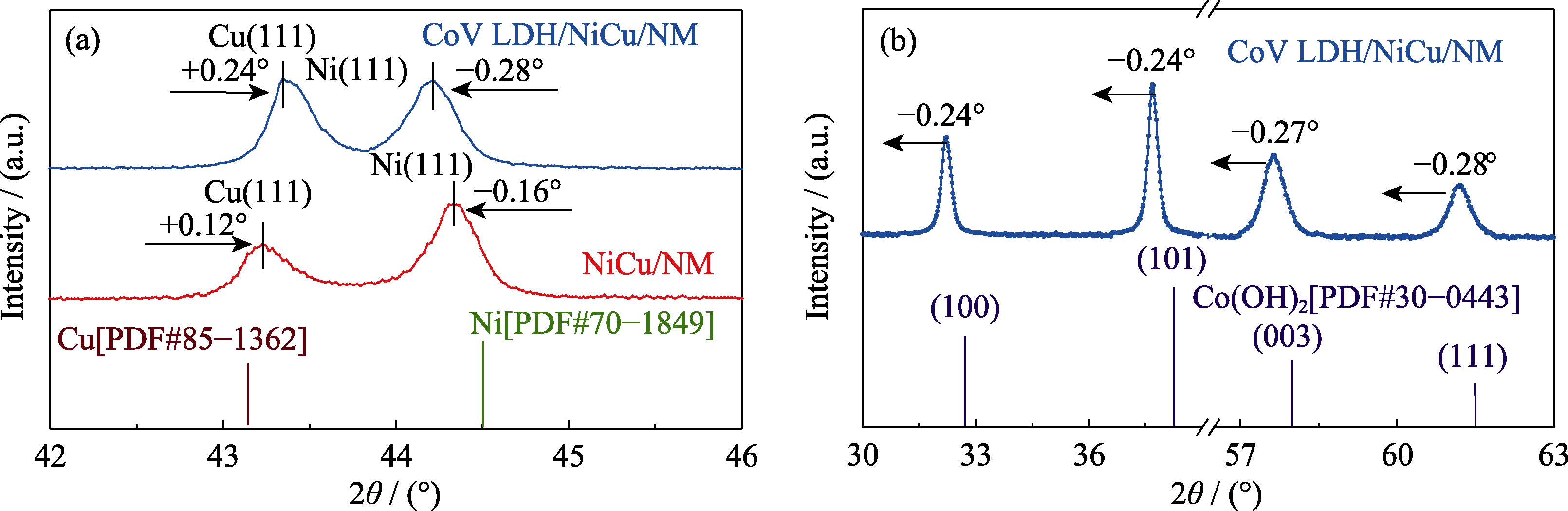

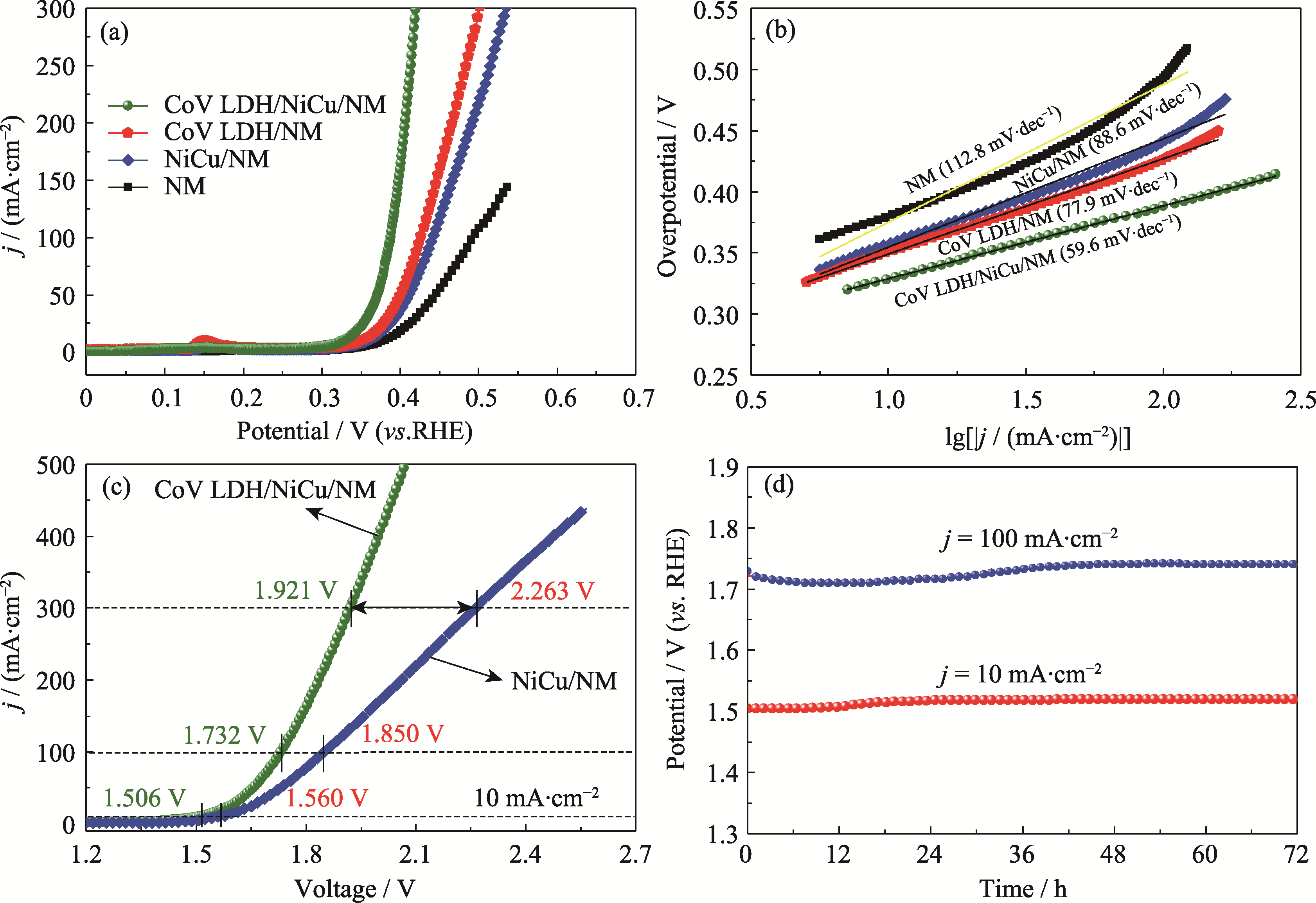

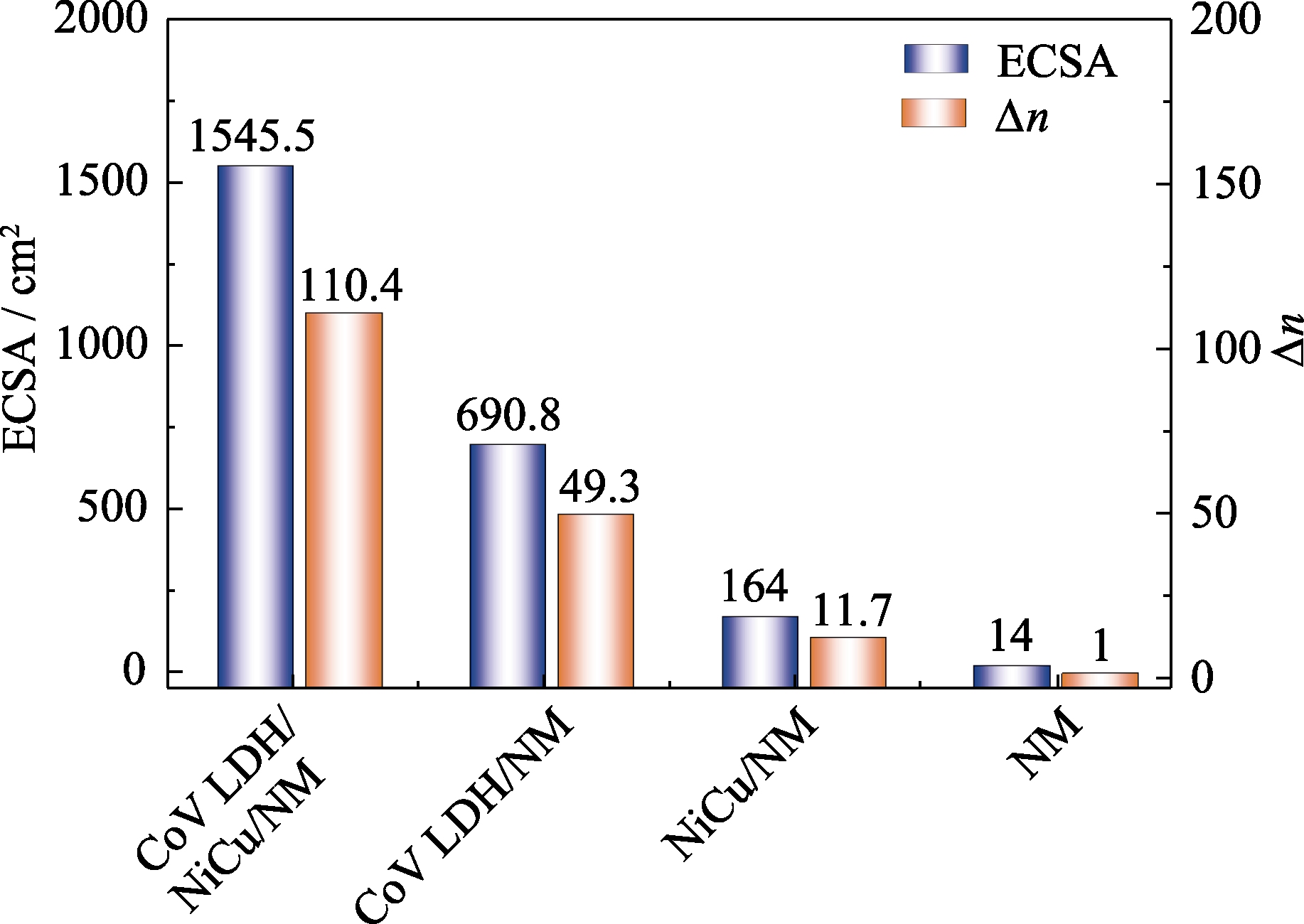

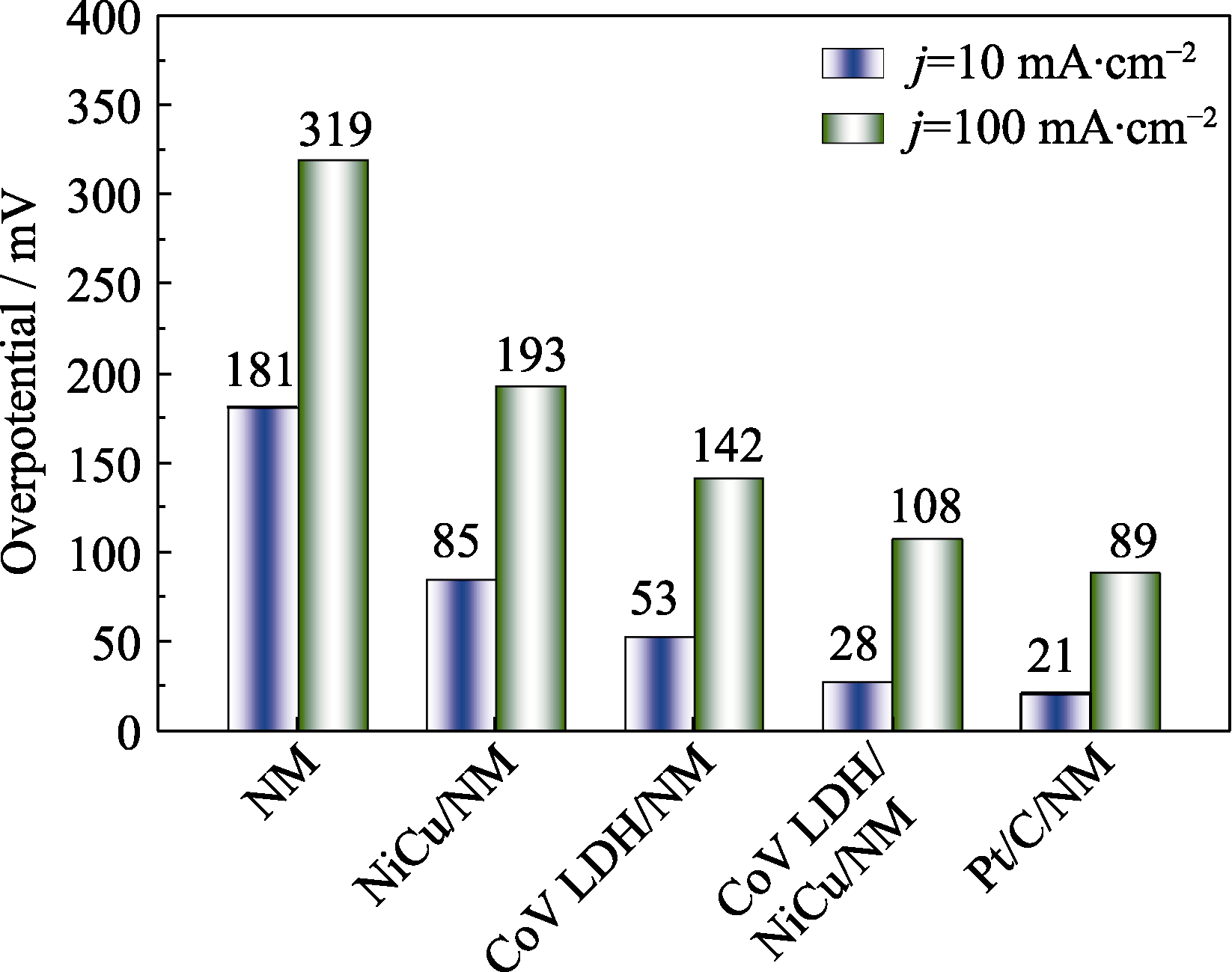

摘要: 鉴于目前非贵金属电催化剂在产氢领域的迫切需求,开发高效、稳定且廉价的析氢电极材料是实现可持续电解水制氢的关键挑战。本研究以镍网(NM)为基底,结合氢气泡模板法与循环伏安电沉积技术,制备了具有多孔圆形纳米片层结构的钴钒氢氧化物/镍铜复合催化剂(CoV LDH/NiCu/NM)。该催化剂由镍铜合金和钴钒氢氧化物主晶相构成,形成纳米枝晶与圆形纳米片交织堆叠的三维开放多孔结构,使电化学活性面积提升至基底的110倍,极大增加了活性位点并促进了传质过程。多种组分与结构的协同效应使CoV LDH/NiCu/NM在1 mol·L-1 KOH电解液中表现出类铂的析氢性能,在电流密度为10和100 mA·cm-2时,析氢过电位分别仅为28和108 mV;塔菲尔(Tafel)斜率为47.1 mV·dec-1,显示出良好的反应动力学特征。在析氧反应及全水分解中也表现出良好活性(10 mA·cm–2时过电位及分解槽压分别为329 mV和1.506 V),展现出潜在的双功能应用价值。此外,该催化剂还表现出卓越的长效稳定性与耐久性,在100 mA·cm-2下连续电解72 h后活性无明显衰减。结构-性能分析表明,其优异催化活性主要源于独特的多孔纳米片层结构,为设计高效、稳定的非贵金属析氢电极提供了新思路。

关键词: 镍铜合金, 镍钒氢氧化物, 析氢反应, 本征活性, 协同效应

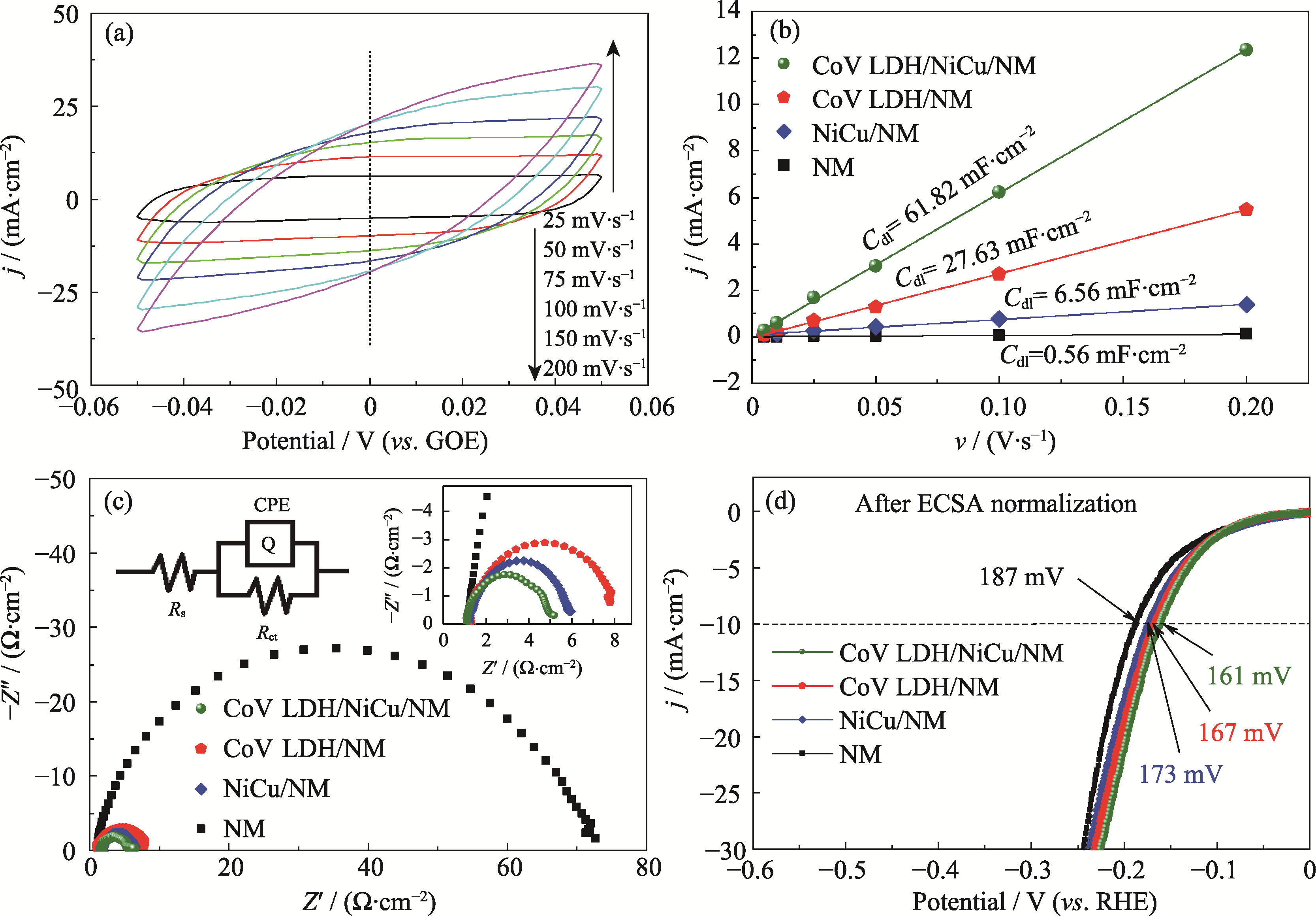

Abstract: Given the urgent demand for non-precious metal electrocatalysts in the hydrogen production field, developing efficient, stable, and low-cost hydrogen evolution electrode materials is a key challenge for achieving sustainable water electrolysis for hydrogen generation. Using nickel mesh (NM) as the substrate, a three-dimensional porous composite catalyst comprising cobalt–vanadium layered hydroxide and a nickel-copper alloy (CoV LDH/NiCu/NM) was fabricated via a combined approach of hydrogen bubble dynamic template electrodeposition and cyclic voltammetry. The resulting material features an open porous architecture constructed from intertwined nanodendrites and stacked circular nanosheets, with nickel–copper alloy and cobalt-vanadium hydroxide as the primary crystalline phases. This unique structure significantly enhances the specific surface area, yielding an electrochemical active surface area (ECSA) approximately 110 times higher than that of the bare NM substrate, thereby providing abundant catalytic sites and efficient mass transfer pathways for water electrolysis. Benefiting from synergistic multi-component and structural effects, the CoV LDH/NiCu/NM electrode exhibits exceptional hydrogen evolution reaction (HER) performance in 1 mol·L-1 KOH electrolyte. Specifically, it delivers low overpotentials of 28 and 108 mV at current densities of 10 and 100 mA·cm-2, respectively, along with a Tafel slope of 47.1 mV·dec-1, indicating favorable reaction kinetics. The catalyst also exhibits good oxygen evolution reaction (OER) activity and enables overall water splitting (OWS) with the overpotential of 329 mV and cell voltage of 1.506 V at 10 mA·cm-2, respectively, demonstrating its potential as a bifunctional electrode. Moreover, the catalyst demonstrates outstanding long-term durability, with negligible degradation in overpotential after 72 h of continuous operation at 100 mA•cm-2. Structural and electrochemical analyses reveal that the superior catalytic activity is primarily attributable to the well-defined porous nanosheet architecture. This work presents a promising strategy for the design of high-performance, noble-metal-free electrocatalysts for hydrogen evolution.

Key words: nickel-copper alloy, cobalt-vanadium hydroxide, hydrogen evolution reaction, intrinsic activity, synergistic effect
