铂修饰二氧化钛纳米片的制备及其光电催化析氢反应研究

doi:10.15541/jim20190009

无机材料学报 ›› 2019, Vol. 34 ›› Issue (11): 1200-1204.DOI: 10.15541/jim20190009 CSTR: 32189.14.10.15541/jim20190009

铂修饰二氧化钛纳米片的制备及其光电催化析氢反应研究

苏琨^1,^2,³,张亚茹³,陆飞³,张君¹(),王熙³()

^1. 内蒙古大学化学化工学院, 呼和浩特010021
^2. 包头医学院药学院, 包头 014040
^3. 北京交通大学理学院,北京100044

收稿日期:2019-01-04 出版日期:2019-11-20 网络出版日期:2019-05-13

Platinum Decorated Titanium Dioxide Nanosheets for Efficient Photoelectrocatalytic Hydrogeu Evolution Reaction

SU Kun^1,^2,³,ZHANG Ya-Ru³,LU Fei³,ZHANG Jun¹(),WANG Xi³()

^1. School of Chemistry and Chemical Engineering, Inner Mongolia University, Hohhot 010021, China
^2. School of Pharmacy, Baotou Medical College, Baotou 014040, China
^3. School of Science, Beijing Jiaotong University, Beijing 100044, China

Received:2019-01-04 Published:2019-11-20 Online:2019-05-13
Supported by:
National Natural Science Foundation of China(21665019);National Natural Science Foundation of China(21165011);Natural Science Foundation of the Inner Mongolia Autonomous Region(2015MS0215);The Fundamental Research Funds for the Central Universities(2018JBZ107);The Fundamental Research Funds for the Central Universities(2018RC022);The Fundamental Research Funds for the Central Universities(2017JBM068);The Fundamental Research Funds for the Central Universities(S18I00010);The Fundamental Research Funds for the Central Universities(S17I00010);The Fundamental Research Funds for the Central Universities(S16C00010);The “1000 Youth Talents plan” Project;The “Excellent One Hundred” Project of Beijing Jiaotong University

摘要/Abstract

摘要：

利用静电吸附作用在二氧化钛纳米片上负载铂原子制备了两种不同形态的铂催化剂。SEM、XRD、TEM测试结果表明, 改变铂负载量可以调控铂的形貌结构。在低Pt负载(0.2wt%)下, 铂原子主要是半径约2 nm的纳米簇, 当Pt负载量增加到1wt%时, 铂原子在二氧化钛纳米片上堆积成纳米颗粒。调控Pt负载量和纳米结构, 可以显著提高二氧化钛纳米片催化析氢反应的活性。在AM1.5太阳光照射下, 两种催化剂的塔菲尔斜率都小于100 mV/dec, 分别为56和90 mV/dec。与TiO₂-Pt1%催化剂相比, TiO₂-Pt0.2%具有更理想的金属-半导体界面, 有利于光生电子迁移至铂纳米簇表面, 因而具有更高的催化活性。本实验为研究更加高效的铂催化剂和其他光电催化剂提供了新的途径。

关键词: 析氢反应, 铂纳米簇, 二氧化钛, 光电催化

Abstract:

Two kinds of platinum catalysts with different morphologies were prepared by loading platinum atoms on titanium dioxide nanosheets via electrostatic adsorption. Scanning electron microscope (SEM), X-ray powder diffraction (XRD) and transmission electron microscope (TEM) characterization show that the morphology and structure of platinum could be controlled by changing the platinum loading. With low Pt loading (0.2wt%), the platinum atoms were mainly nanoclusters with a radius of about 2 nm. When the Pt loading increased to 1wt%, the platinum atoms stack into nanoparticles on the titanium dioxide nanosheets. The catalytic hydrogen evolution activity of titanium dioxide nanosheets can be improved obviously by regulating the platinum loading and nanostructure. Under AM1.5 solar light, the Tafel slope of both catalysts were less than 100 mV/dec, i.e. 56 and 90 mV/dec, respectively. Compared with TiO₂-Pt1% catalyst, TiO₂-Pt0.2% has a more ideal metal-semiconductor interface, which is favorable for photogenic electrons to migrate to the surface of platinum nanoclusters, and thus perform a higher catalytic activity. This experiment provides a new way for preparing platinum catalysts with high efficiency.

Key words: hydrogen evolution reaction (HER), platinum clusters, titanium dioxide, photoelectrocatalysis

中图分类号:

O643

苏琨, 张亚茹, 陆飞, 张君, 王熙. 铂修饰二氧化钛纳米片的制备及其光电催化析氢反应研究[J]. 无机材料学报, 2019, 34(11): 1200-1204.

SU Kun, ZHANG Ya-Ru, LU Fei, ZHANG Jun, WANG Xi. Platinum Decorated Titanium Dioxide Nanosheets for Efficient Photoelectrocatalytic Hydrogeu Evolution Reaction[J]. Journal of Inorganic Materials, 2019, 34(11): 1200-1204.

图/表 5

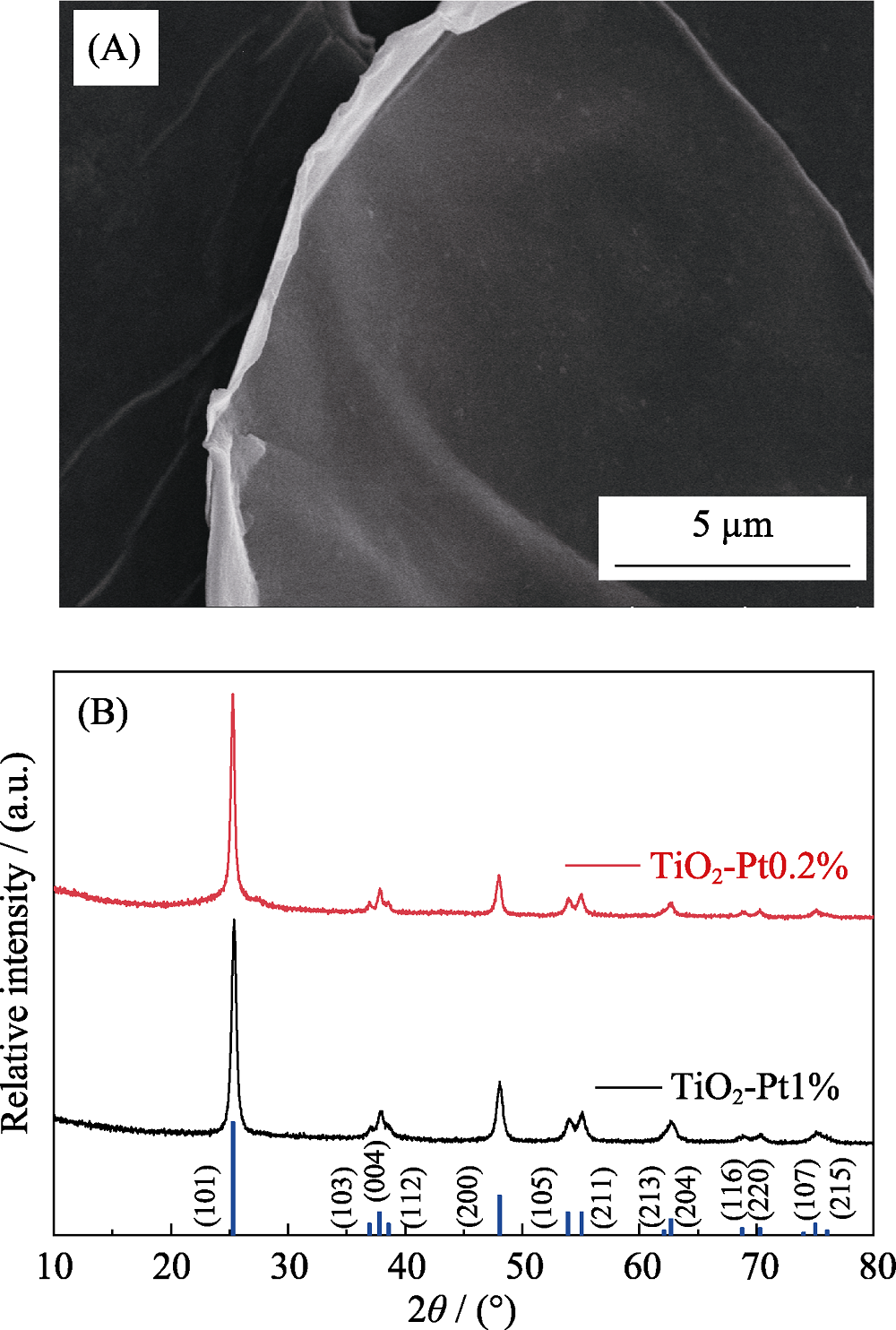

Fig. 1 (A) SEM image and (B) XRD patterns of Pt modified TiO2

Fig. 2 HAADF image of (A) TiO2-Pt0.2%, (B) TEM image of TiO2-Pt1%, and the corresponding high-resolution regions (C, D) in (A) and (B), respectively

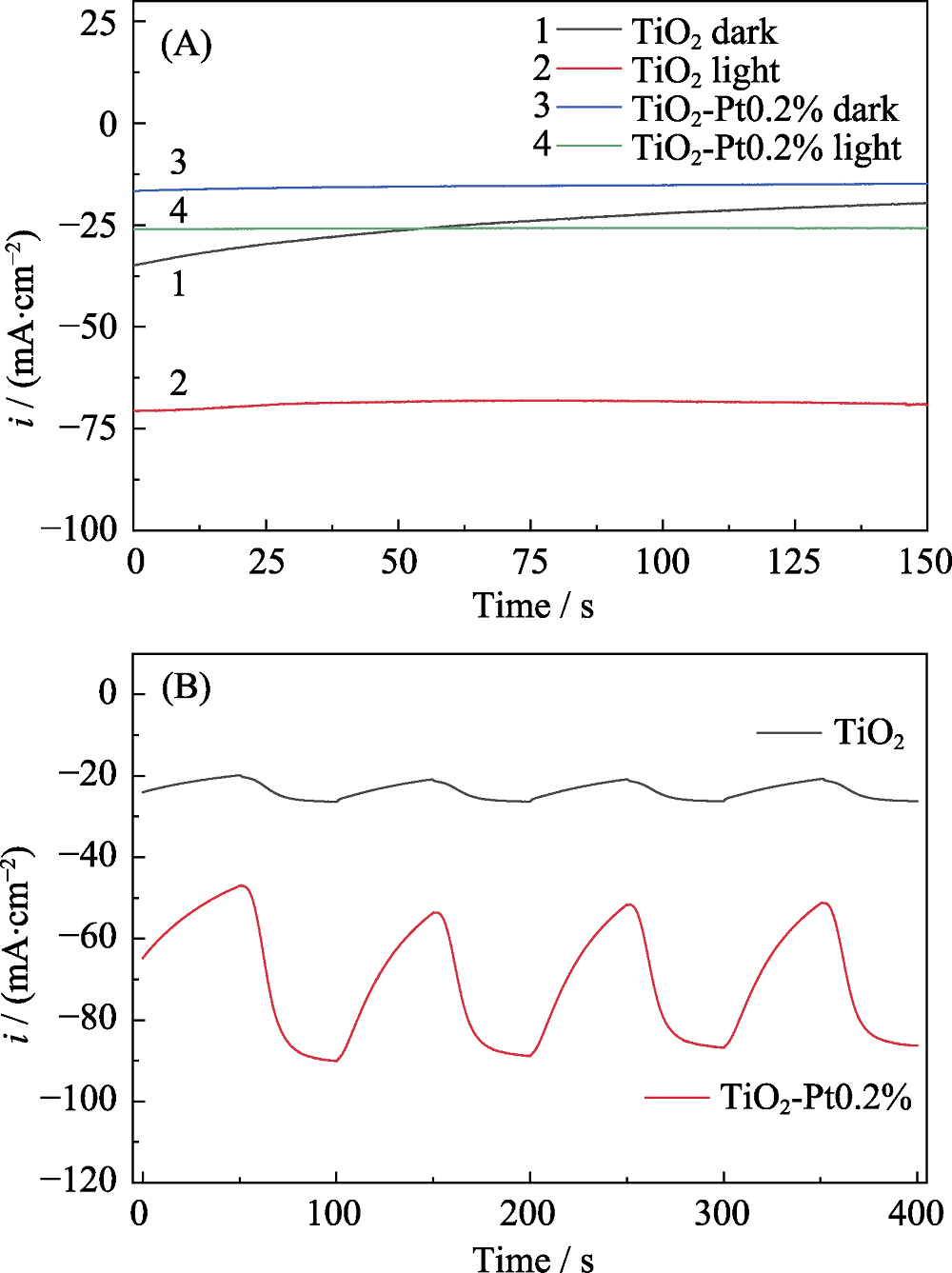

Fig. 3 (A)i-t curves of pure TNS and TiO2-Pt0.2% under continuous light irradiation or in darkness at -0.2 V external bias; (B) Periodic light irradiation induced i-t curves of pure TNS and TiO2-Pt0.2%

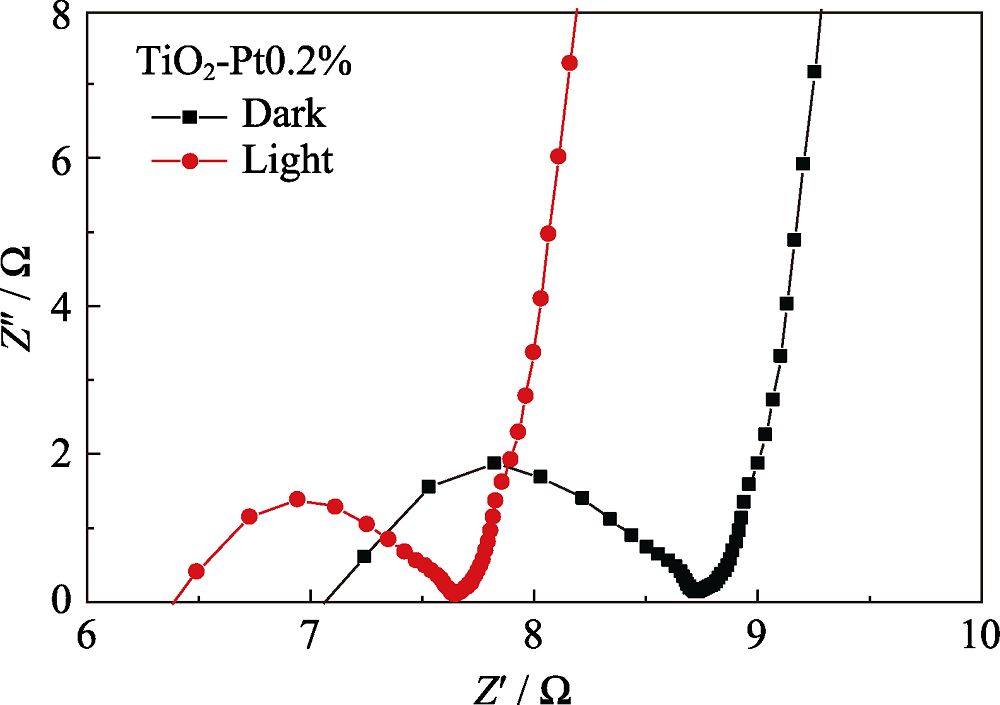

Fig. 4 Nyquist plots of glassy carbon electrode modified with TiO2-Pt0.2% under light irradiation (red curve) and darkness (black curve), mass loading of 0.2 mg/cm in 0.5 mol/L H2SO4

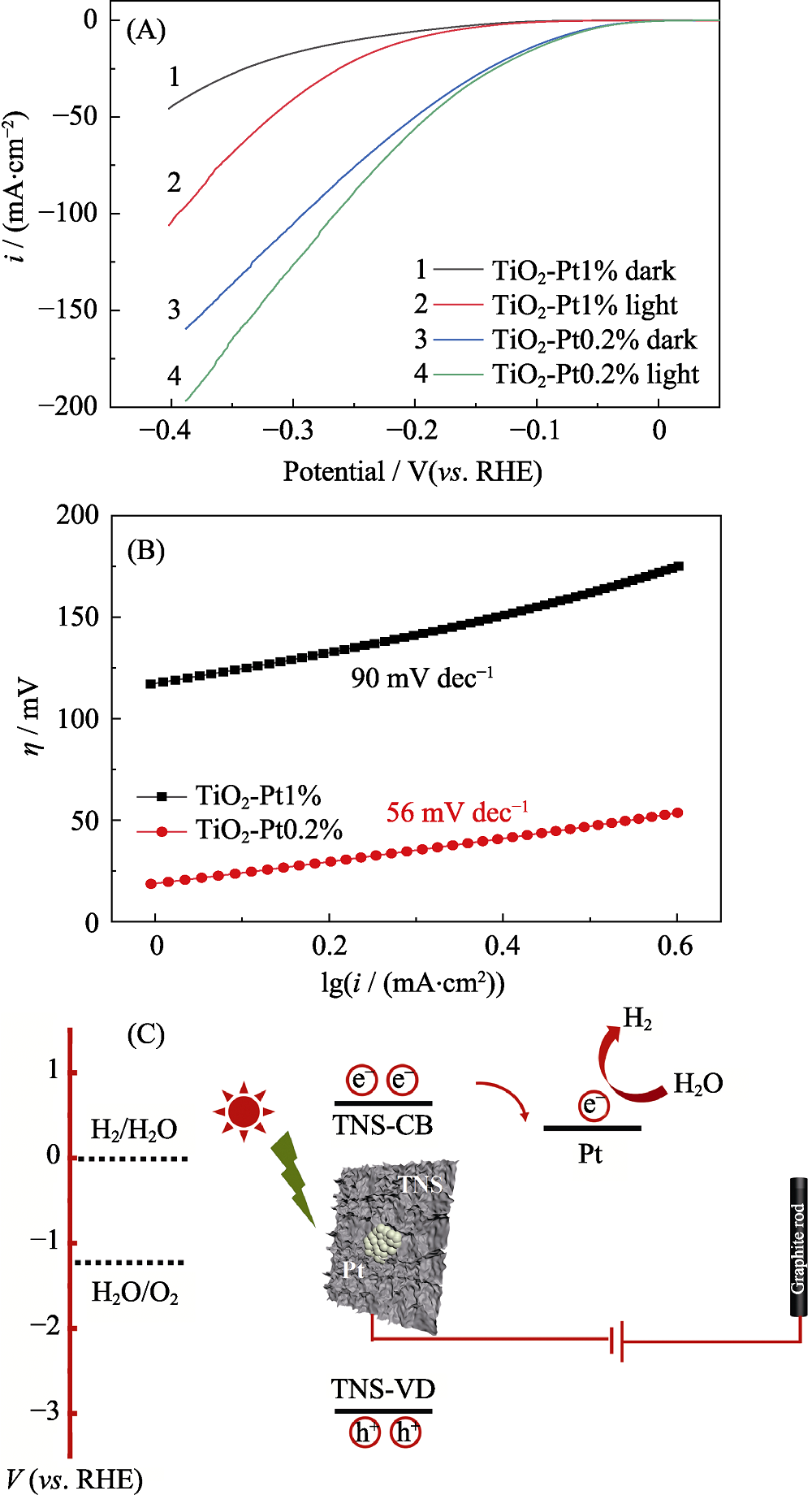

Fig. 5 (A) Linear sweep voltammetry (LSV) curves of glassy carbon electrode modified with pure TiO2-Pt0.2% or TiO2-Pt1% (mass loading of 0.2 mg/cm in 0.5 mol/L H2SO4); (B) corresponding Tafel plots; (C) Proposed schematic route of the photocatalytic process with Pt cluster decorated TiO2 nanosheets as the cathode and graphite rod as the anode

参考文献 21

[1]	KHAN M, NGO H H, GUO W S , et al. Biohydrogen production from anaerobic digestion and its potential as renewable energy. Renewable Energy, 2018,129:754-768.
[2]	GHOSH T, GHOSH P, MAAYAN G . A copper-peptoid as a highly stable, efficient, and reusable homogeneous water oxidation electrocatalyst. ACS Catalysis, 2018,8(11):10631-10640.
[3]	WENG G M, LI C Y V, CHAN K Y . Hydrogen battery using neutralization energy. Nano Energy, 2018,53:240-244.
[4]	KUMAR G, CHO S K, SIVAGURUNATHAN P , et al. Insights into evolutionary trends in molecular biology tools in microbial screening for biohydrogen production through dark fermentation. Int. J. Hydrog. Energy, 2018,43(43):19885-198901.
[5]	DING C, SHI J, WANG Z , et al. Photoelectrocatalytic water splitting: significance of cocatalysts. electrolyte, and Interfaces. ACS Catalysis, 2017,7(1):675-688.
[6]	YANAGIDA S . Nano/microsized TiO₂ composite photocatalysts for environmental purification. Journal of the Ceramic Society of Japan, 2018,126(8):625-631.
[7]	TAN T L, LAI C W HONG S L , et al. New insights into the photocatalytic endocrine disruptors dimethyl phathalate esters degradation by UV/MWCNTs-TiO₂ nanocomposites. Journal of Photochemistry and Photobiology A-Chemistry, 2018,364:177-189.
[8]	YI S S, ZHANG X B, WULAN B R , et al. Non-noble metals applied to solar water splitting. Energy & Environmental Science, 2018,11(11):3128-3156.
[9]	TAYEL A, RAMADAN A R, El SEOUD O A . Titanium dioxide/ graphene and titanium dioxide/graphene oxide nanocomposites: synthesis, characterization and photocatalytic applications for water decontamination. Catalysts, 2018, 8(11): 491-1-45.
[10]	EFTEKHARI A . Electrocatalysts for hydrogen evolution reaction. Int. J. Hydrog. Energy, 2017,42(16):11053-11077.
[11]	TAN H L, DU A, AMAL R , et al. Decorating platinum on nitrogen- doped graphene sheets: control of the platinum particle size distribution for improved photocatalytic H₂ generation. Chemical Engineering Science, 2019,194:85-93.
[12]	WANG C, SHI H, LIU H , et al. Quasi-atomic-scale platinum anchored on porous titanium nitride nanorod arrays for highly efficient hydrogen evolution. Electrochimica Acta, 2018,292:727-735.
[13]	HAN X, KUANG Q, JIN M , et al. Synthesis of titania nanosheets with a high percentage of exposed (001) facets and related photocatalytic properties. Journal of the American Chemical Society, 2009,131(9):3152-3153.
[14]	JIA L, SHU D J, WANG M . Tuning the area percentage of reactive surface of TiO₂ by strain engineering. Physical Review Letters, 2012,109(15):156104
[15]	MINGYAEV M E, KORCHAGINA SYA, TAVTORKIN A N , et al. Crystal structures of mono- and binuclear neodymium diarylphosphate complexes and their catalytic activity in 1,3-diene polymerization. Structural Chemistry, 2018,29(5):1475-1487.
[16]	NOGUEIRA L S, NEVES P, GOMES A C , et al. Molybdenum(0) tricarbonyl and tetracarbonyl complexes with a cationic pyrazolylpyridine ligand: synthesis, crystal structures and catalytic performance in olefin epoxidation. RSC Advances, 2018,8(29):16294-16302.
[17]	RAMADAN A E M M, IBRAHIM M M E L, MEHASSEBY I M . New mononuclear copper(I) and copper(II) complexes containing N-4 donors: crystal structure and catechol oxidase biomimetic catalytic activity. Journal of Coordination Chemistry, 2012,65(13):2256-2279.
[18]	DI J, YAN C, HANDOKO A D, SEH Z W , et al. Ultrathin two-dimensional materials for photo- and electrocatalytic hydrogen evolution. Materials Today, 2018,21(7):749-770.
[19]	MOMENI M M, GHAYEB Y, GHONCHEGI Z . Fabrication and characterization of copper doped TiO₂ nanotube arrays by in situ electrochemical method as efficient visible-light photocatalyst. Ceramics International, 2015,41(7):8735-8741.
[20]	GUO R, XU X, XIA Y , et al. Insights into electrocatalytic hydrogen evolution reaction in acidic medium at in-situ dispersed Pt atoms on nanoporous gold films. Journal of Catalysis, 2018,368:379-388.
[21]	LIU L L, DU C J, WANG S L , et al. Three new bifunctional additive for safer nickel-cobalt-aluminum based lithium ion batteries. Chinese Chemical Letters, 2018,29:1781-1784.
