摘要:

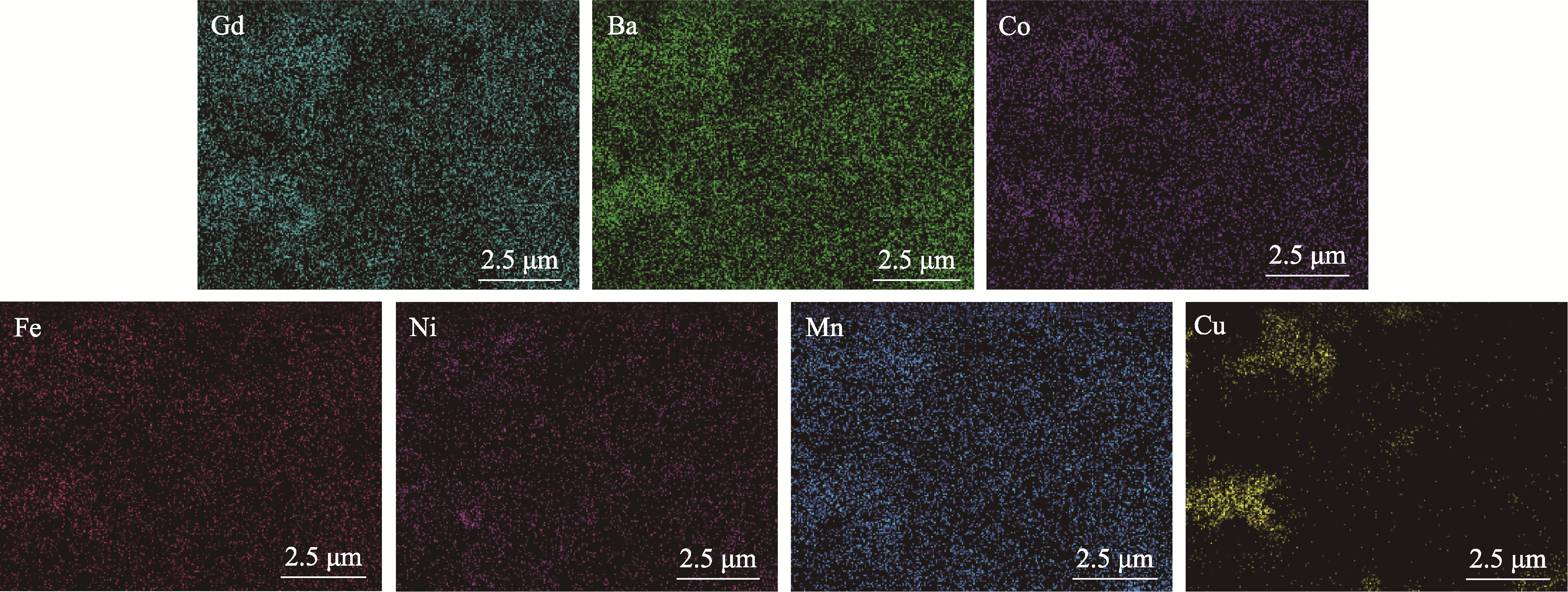

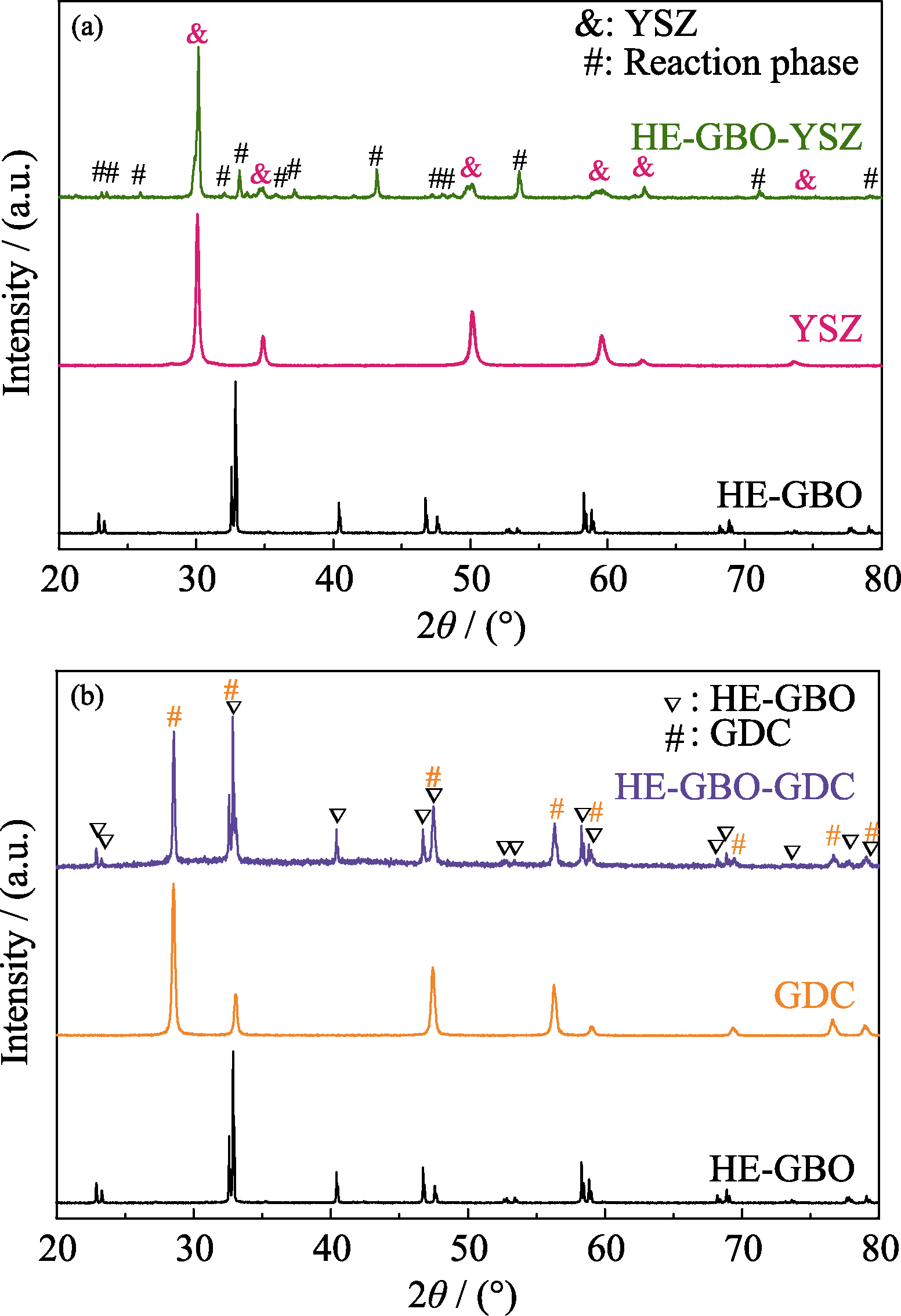

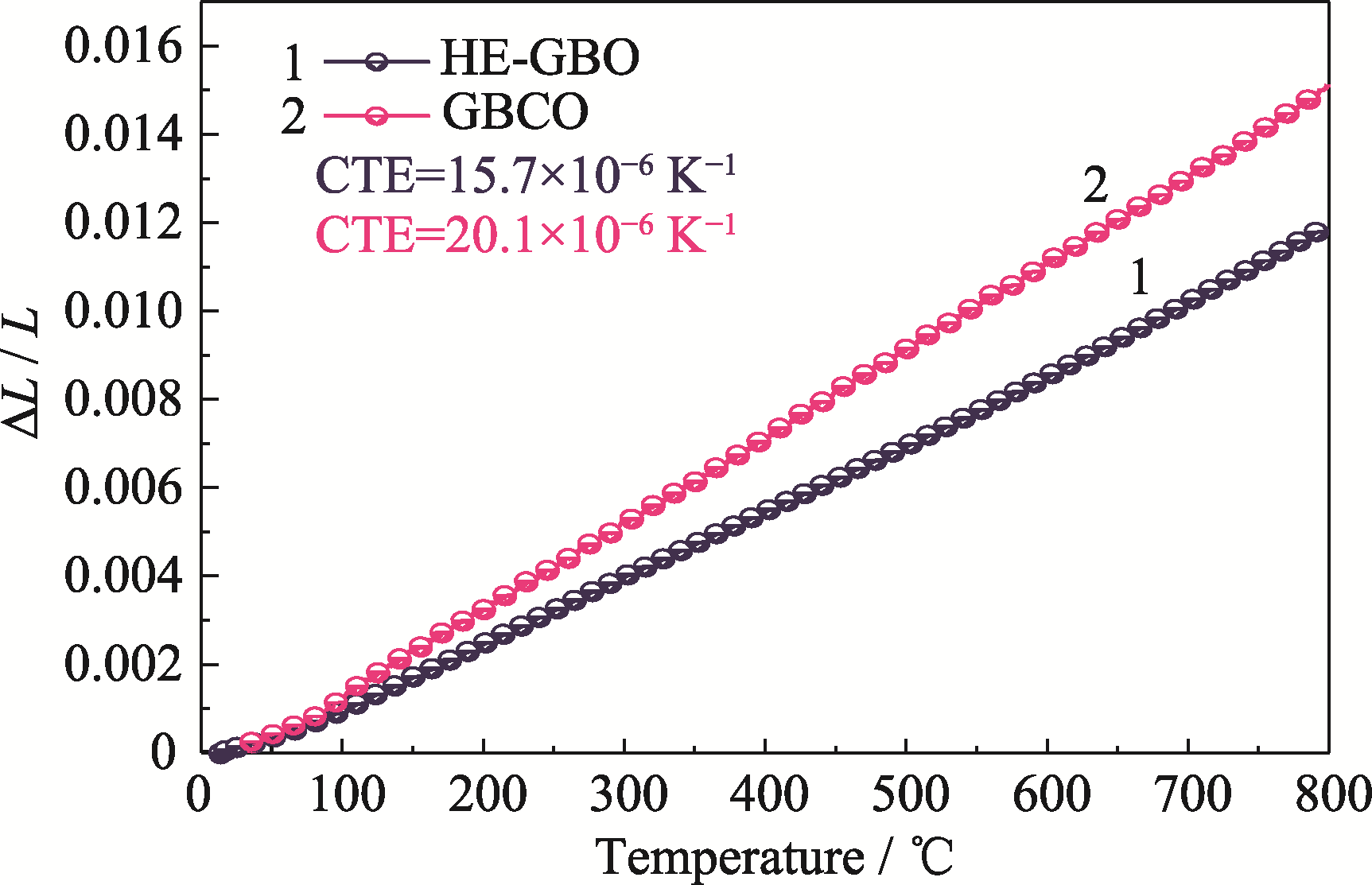

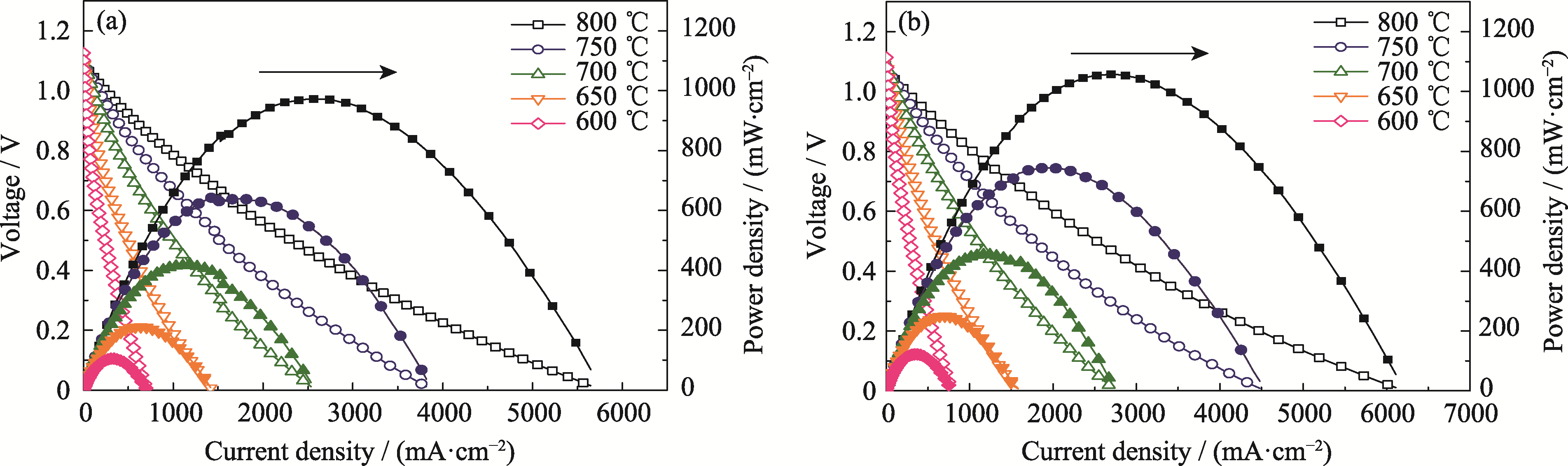

中温固体氧化物燃料电池(IT-SOFC)有助于国家的碳中和战略, 但其阴极材料难以兼顾热兼容性和催化活性。为此, 基于多元素耦合的高熵策略, 本研究合成了高熵阴极材料GdBa(Fe0.2Mn0.2Co0.2Ni0.2Cu0.2)2O5+δ(HE-GBO), 具有双过氧化物结构, 与Gd0.1Ce0.9O2-δ(GDC)有良好的化学兼容性, 协调了与催化活性之间的平衡性。采用HE-GBO阴极的对称电池在800 ℃下的极化电阻(Rp)为1.68 Ω·cm2, 而HE-GBO-GDC(质量比7 : 3)复合阴极的Rp因引入GDC而显著降低(800 ℃下Rp为0.23 Ω·cm2)。采用HE-GBO和HE-GBO-GDC阴极组装树枝状微通道阳极支撑单电池,在800 ℃的最大功率密度分别达到972.12和1057.06 mW/cm2, 使用高熵阴极可以进一步提高电池性能。这些结果表明多尺度优化有助于开发高性能的IT-SOFC阴极材料。
中图分类号:
郭天民, 董江波, 陈正鹏, 饶睦敏, 李明飞, 李田, 凌意瀚. 中温固体氧化物燃料电池的高熵双钙钛矿阴极材料: 兼容性与活性研究[J]. 无机材料学报, 2023, 38(6): 693-700.
GUO Tianmin, DONG Jiangbo, CHEN Zhengpeng, RAO Mumin, LI Mingfei, LI Tian, LING Yihan. Enhanced Compatibility and Activity of High-entropy Double Perovskite Cathode Material for IT-SOFC[J]. Journal of Inorganic Materials, 2023, 38(6): 693-700.

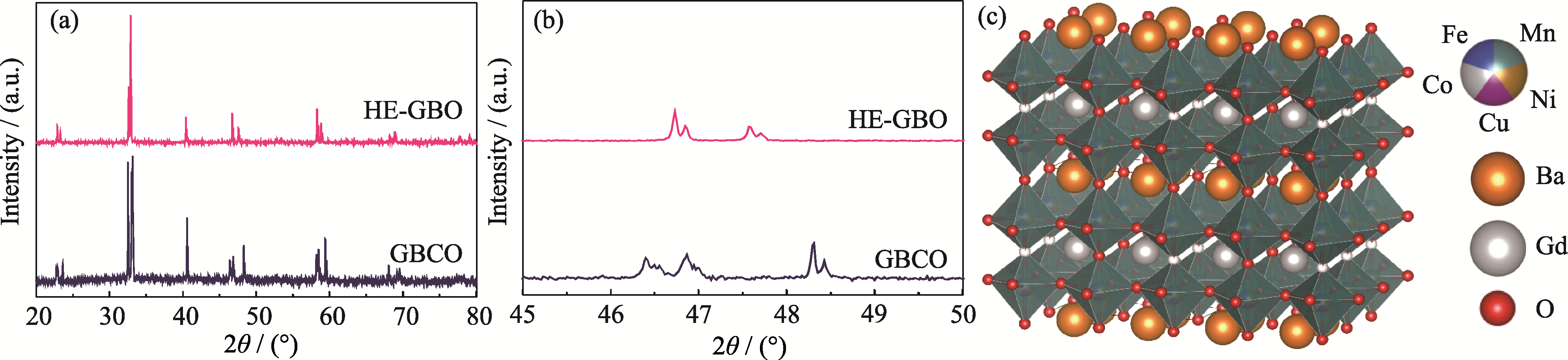

Fig. 1 (a) XRD patterns and (b) corresponding magnified area of 2θ=45°-50° of GBCO and HE-GBO powders calcined at 1150 ℃ for 3 h, and (c) schematic diagram of the HE-GBO double perovskite structure

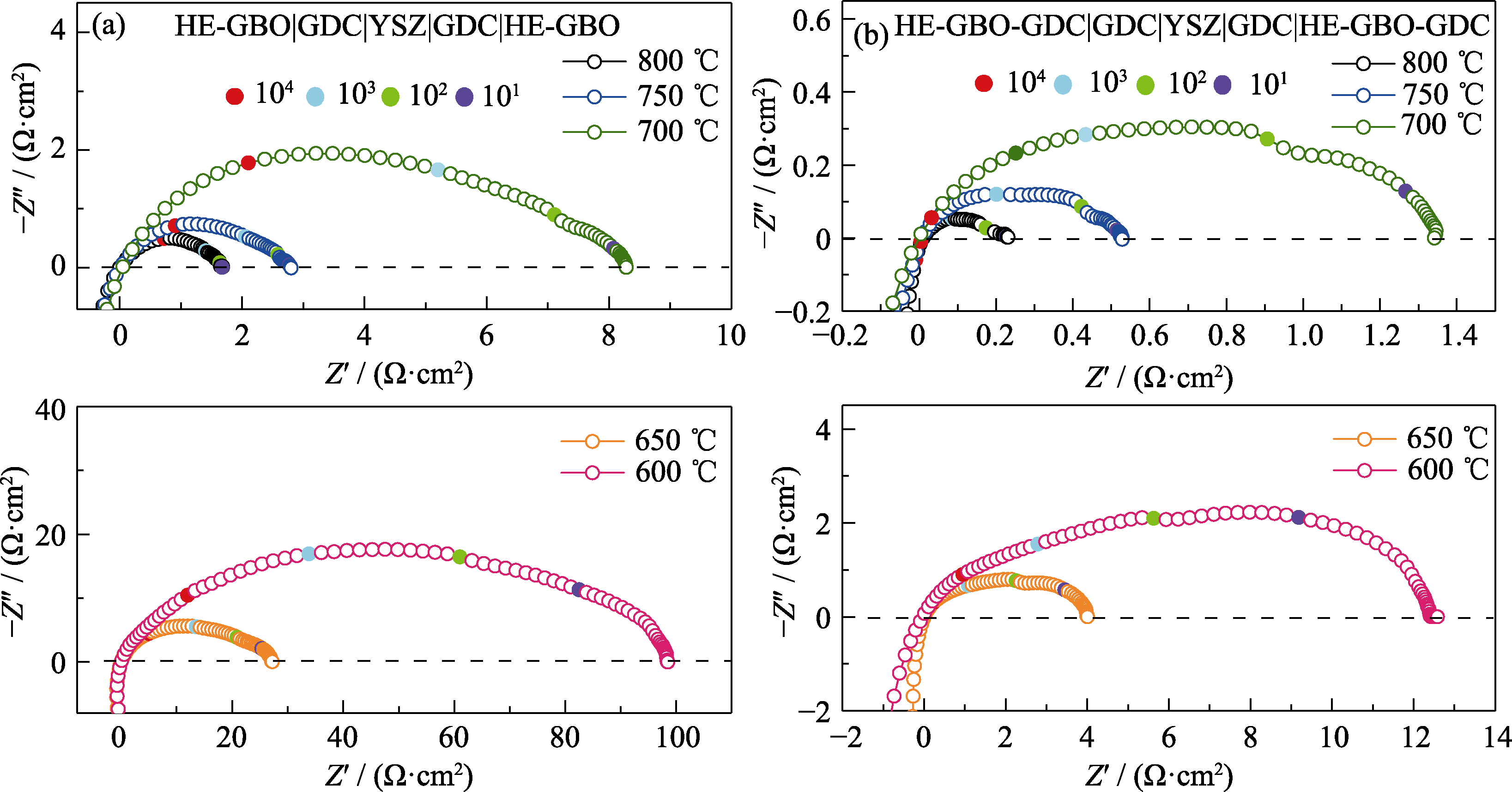

Fig. 4 EIS plots of symmetrical single cells with (a) HE-GBO and (b) HE-GBO-GDC cathodes measured from 800 to 600 ℃ in air Colorful figures are available on website

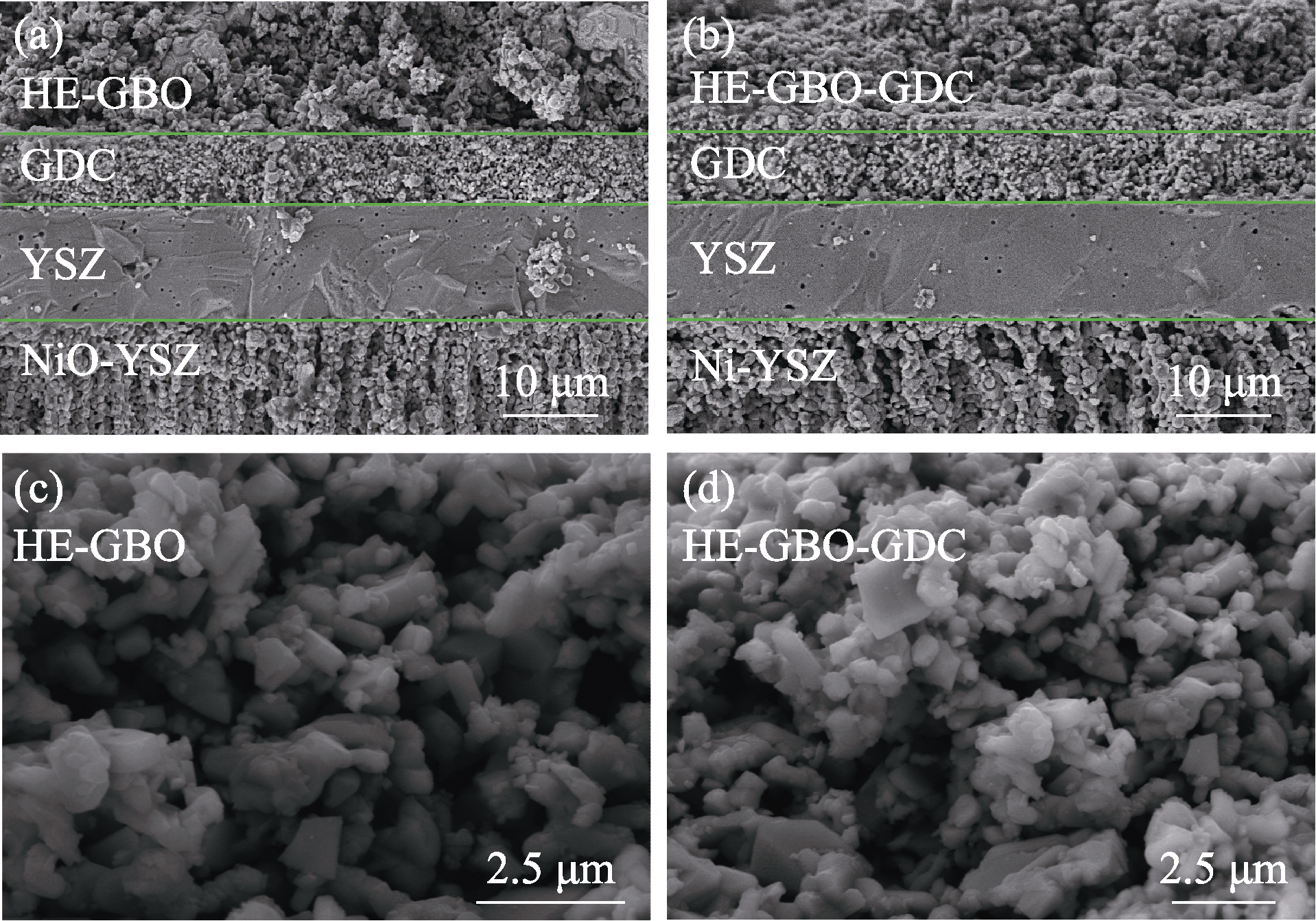

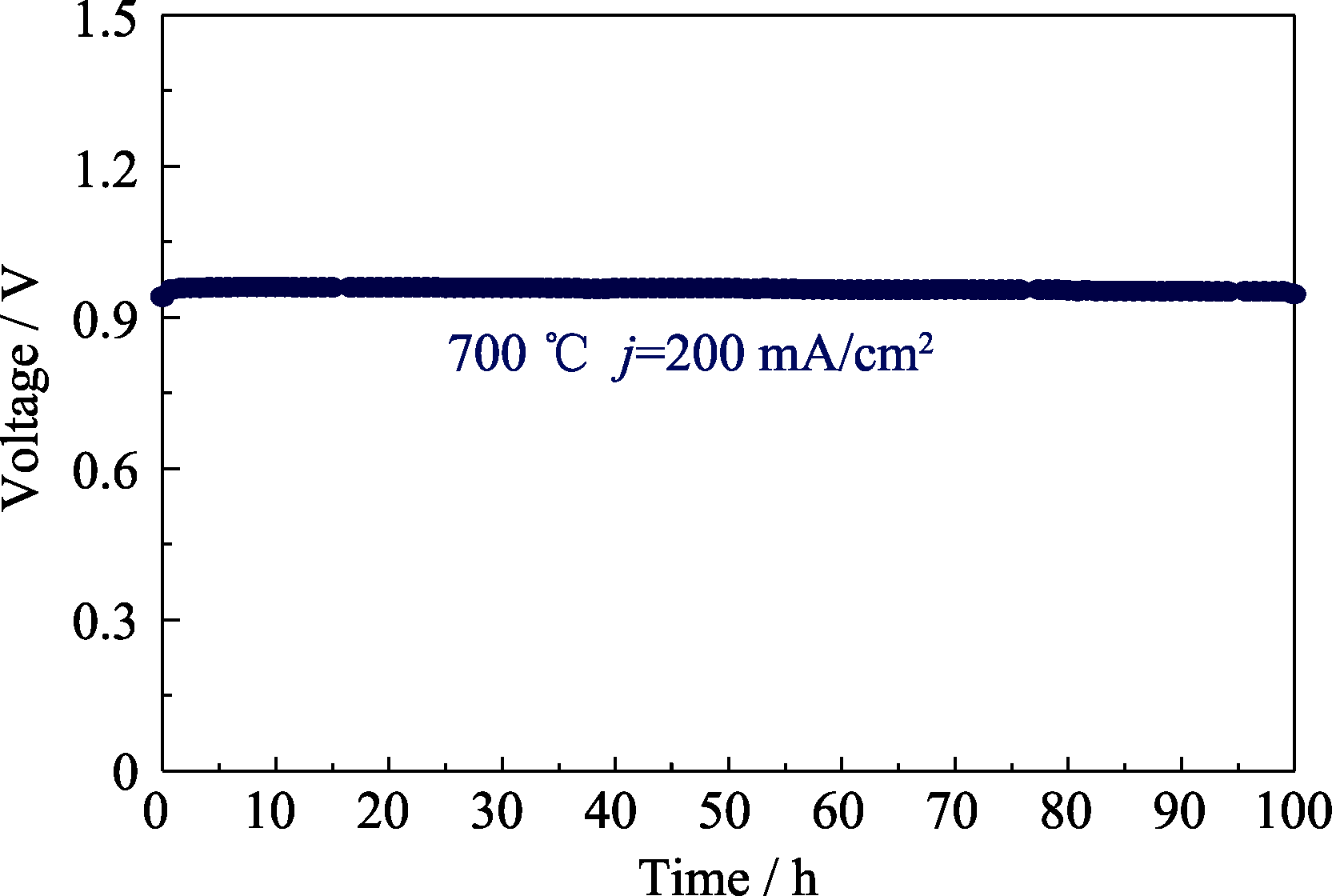

Fig. 5 Cross-section morphologies of single cell with (a) HE-GBO and (b) HE-GBO-GDC after 100 h long-term test, and (c, d) their magnified morphologies, respectively

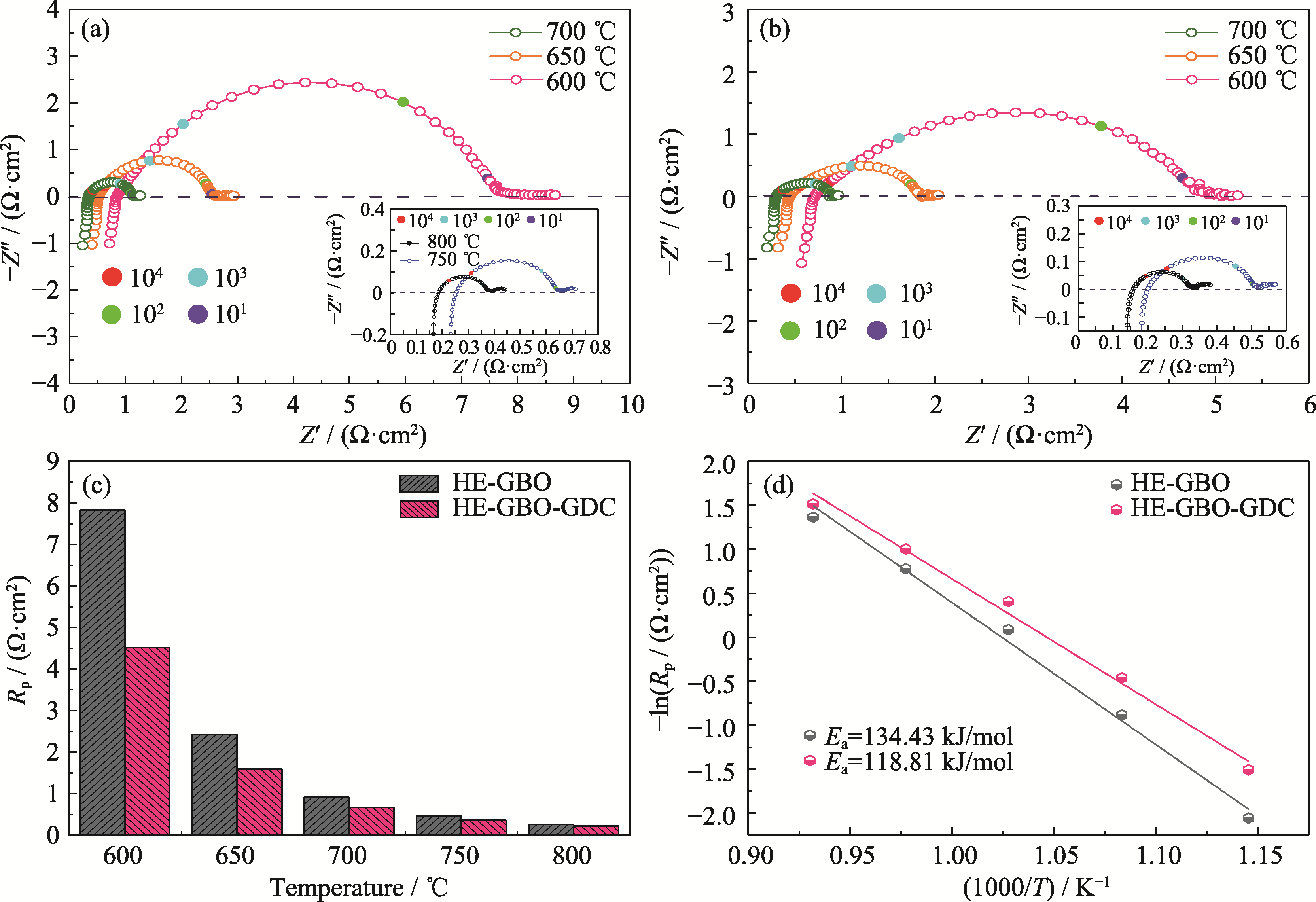

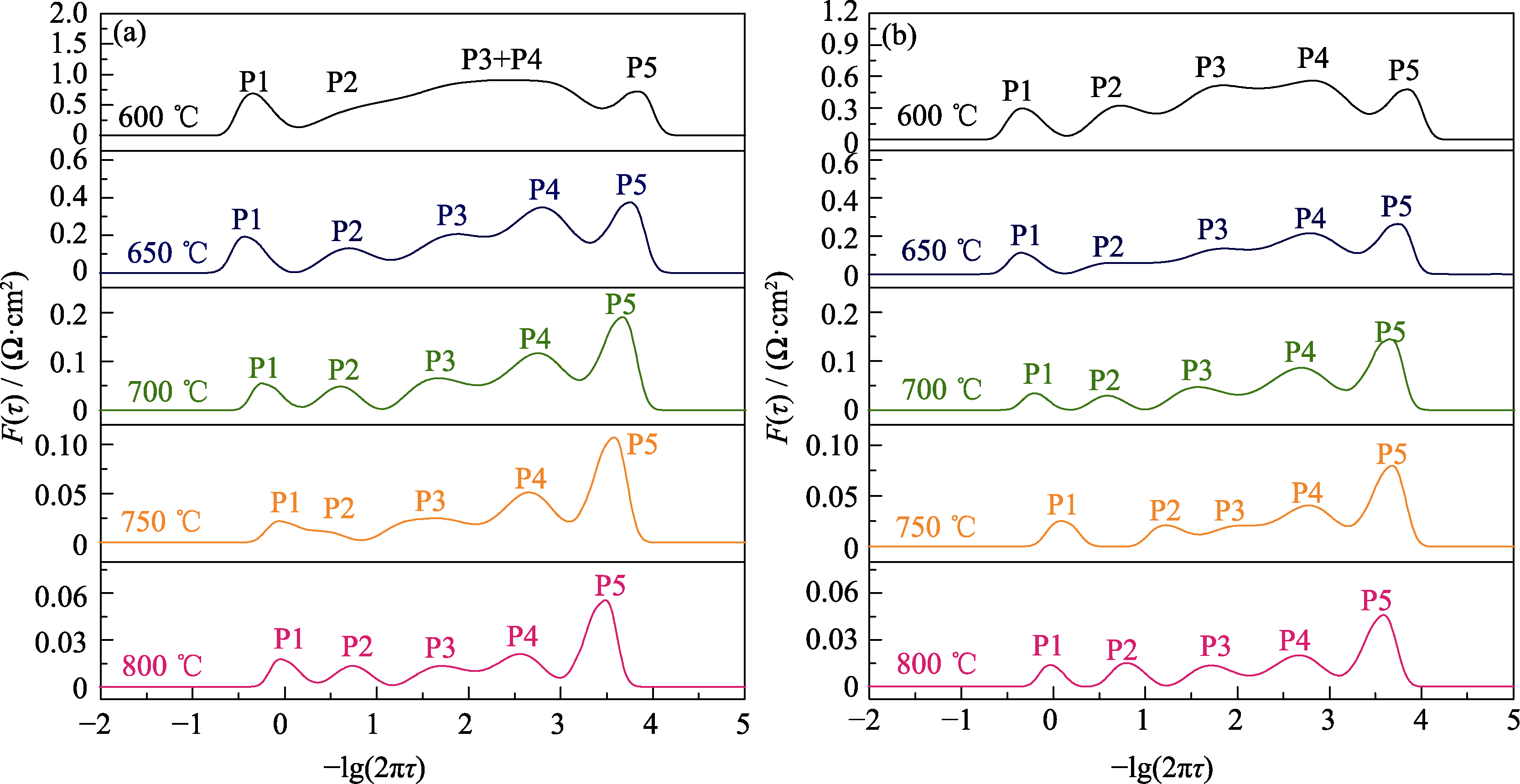

Fig. 8 EIS plots of single cells with (a) HE-GBO and (b) HE-GBO-GDC cathodes measured from 800 ℃ to 600 ℃ in wet H2 (~3% H2O), (c) simulated polarization resistance, and (d) Arrhenius plots of single cells with HE-GBO and HE-GBO-GDC cathodes Colorful figures are available on website
