Ce、Pr共掺LSO多晶薄膜的溶胶-凝胶法制备及其发光性能

doi:10.15541/jim20150500

无机材料学报 ›› 2016, Vol. 31 ›› Issue (6): 647-651.DOI: 10.15541/jim20150500

Ce、Pr共掺LSO多晶薄膜的溶胶-凝胶法制备及其发光性能

张晓欣¹, 谢建军¹, 范灵聪¹, 林德宝¹, 陈旭², 施鹰¹

(上海大学1. 材料科学与工程学院; 2. 生命科学学院, 上海 200444)

收稿日期:2015-10-14 修回日期:2015-12-04 出版日期:2016-06-20 网络出版日期:2016-05-19
作者简介:张晓欣(1987–), 男, 硕士研究生. E-mail: zhangxx0914@163.com
基金资助:
上海市科委科技基金(14520500300);国家自然科学基金(51172139)

Fabrication and Luminescence Properties of Polycrystalline Ce, Pr Co-doped LSO Thin Films by Sol-Gel Method

ZHANG Xiao-Xin¹, XIE Jian-Jun¹, FANG Ling-Cong¹, LIN De-Bao¹, CHEN Xu², SHI Ying¹

(1. School of Materials Science and Engineering, Shanghai University, Shanghai 200444, China; 2. School of Life Sciences, Shanghai University, Shanghai 200444, China)

Received:2015-10-14 Revised:2015-12-04 Published:2016-06-20 Online:2016-05-19
About author:ZHANG Xiao-Xin. E-mail: zhangxx0914@163.com
Supported by:
Shanghai Committee of Science and Technology, China (14520500300);National Natural Science Foundation of China (51172139)

摘要/Abstract

摘要：

采用溶胶-凝胶法结合旋涂工艺在单晶硅(111)上制备了Ce³⁺、Pr³⁺共掺杂的硅酸镥(Lu₂SiO₅)薄膜, 采用X射线衍射(XRD)、扫描电镜(SEM)和荧光光谱(PL)对(Ce,Pr):Lu₂SiO₅薄膜的物相、表面形貌及发光性质进行了研究和表征。结果表明: 薄膜样品在1000℃下形成了A-Lu₂SiO₅纯相; 在1100℃下形成了B-Lu₂SiO₅纯相。经1100℃煅烧后, 通过SEM可以观察到薄膜表面均匀、平整、无裂纹, 晶粒大小为200~300 nm, 旋涂10层的薄膜厚度约为320 nm。从PL谱中可以发现: 在共掺杂体系里, Pr³⁺在跃迁过程中, 有一部分能量传递给Ce³⁺离子, 使Ce³⁺产生特征能级跃迁, 并且使Ce³⁺发射强度比单掺杂Ce³⁺时的发射强度更强。

关键词: 溶胶-凝胶法, LSO薄膜, 发光, 旋涂法, Ce3+, Pr3+共掺杂

Abstract:

Lutetium oxyorthosilicate (Lu₂SiO₅, LSO) films co-doped with Ce³⁺ and Pr³⁺ was synthesized on cleaned silicon (111) substrates by Sol-Gel route with a spin-coating technique. XRD patterns indicated that the films were crystallized into A-type Lu₂SiO₅ phase at 1000℃, followed by a phase transition to B-type Lu₂SiO₅ at 1100℃. SEM observations revealed that the surface of the films was smooth, homogeneous and crack-free when the samples were calcined under 1100℃. The average grain size of the crystal particles was 200-300 nm and the thickness of the thin film was about 320 nm when the coating layer number up to 10. The energy transference from Pr³⁺ to Ce³⁺ in Lu₂SiO₅ host was observed and discussed. The luminescence intensity of Ce³⁺ can be improved after Pr³⁺ co-doping.

Key words: Sol-Gel, Lu2SiO5 films, luminescence, spin-coating method, Ce3+, Pr3+ co-doping

中图分类号:

TQ174

张晓欣, 谢建军, 范灵聪, 林德宝, 陈旭, 施鹰. Ce、Pr共掺LSO多晶薄膜的溶胶-凝胶法制备及其发光性能[J]. 无机材料学报, 2016, 31(6): 647-651.

ZHANG Xiao-Xin, XIE Jian-Jun, FANG Ling-Cong, LIN De-Bao, CHEN Xu, SHI Ying. Fabrication and Luminescence Properties of Polycrystalline Ce, Pr Co-doped LSO Thin Films by Sol-Gel Method[J]. Journal of Inorganic Materials, 2016, 31(6): 647-651.

图/表 8

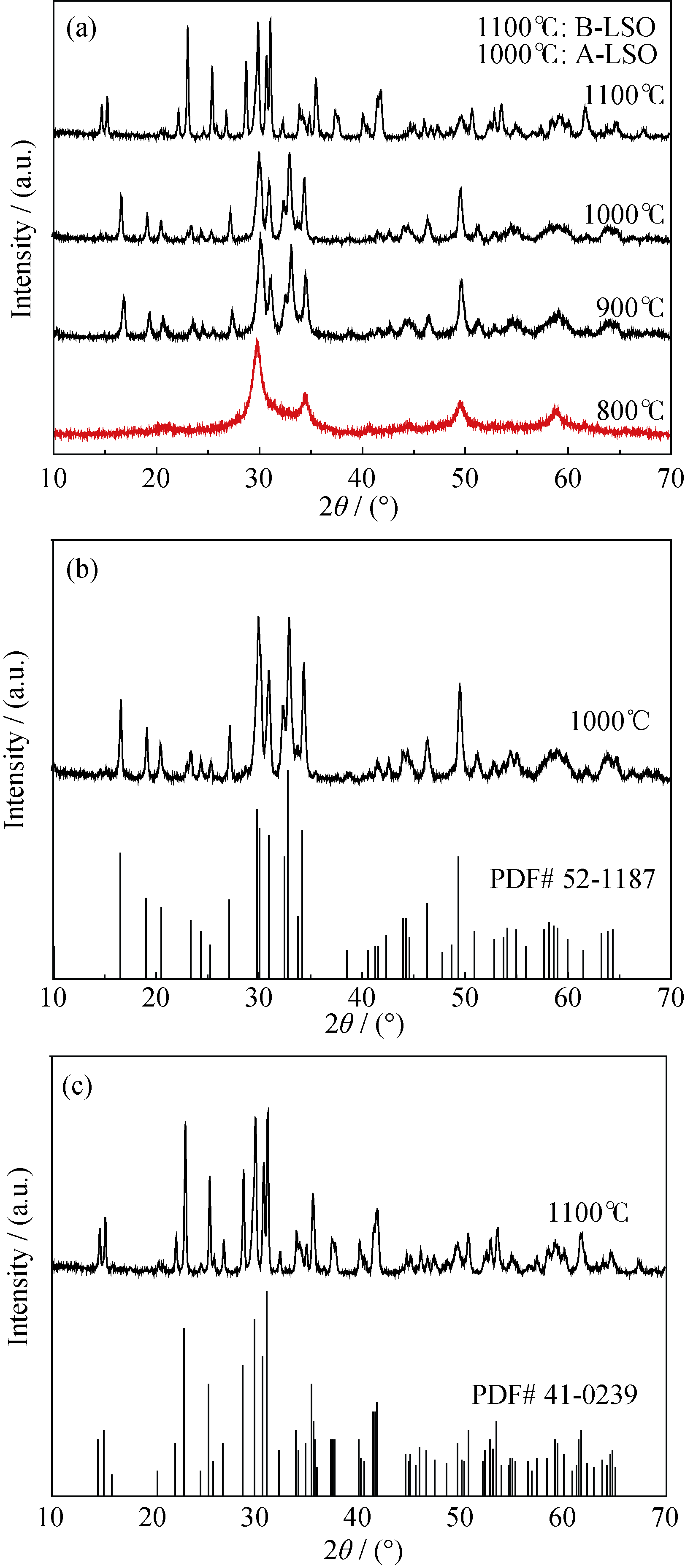

图1 共掺杂LSO薄膜在不同温度下煅烧2 h的XRD图谱

Fig. 1 XRD patterns of the LSO films calcined of different temperatures for 2 h

图2 共掺杂LSO薄膜的断面(a)和表面(b)SEM照片

Fig. 2 SEM images of cross-section (a) and surface (b) morphology of the film

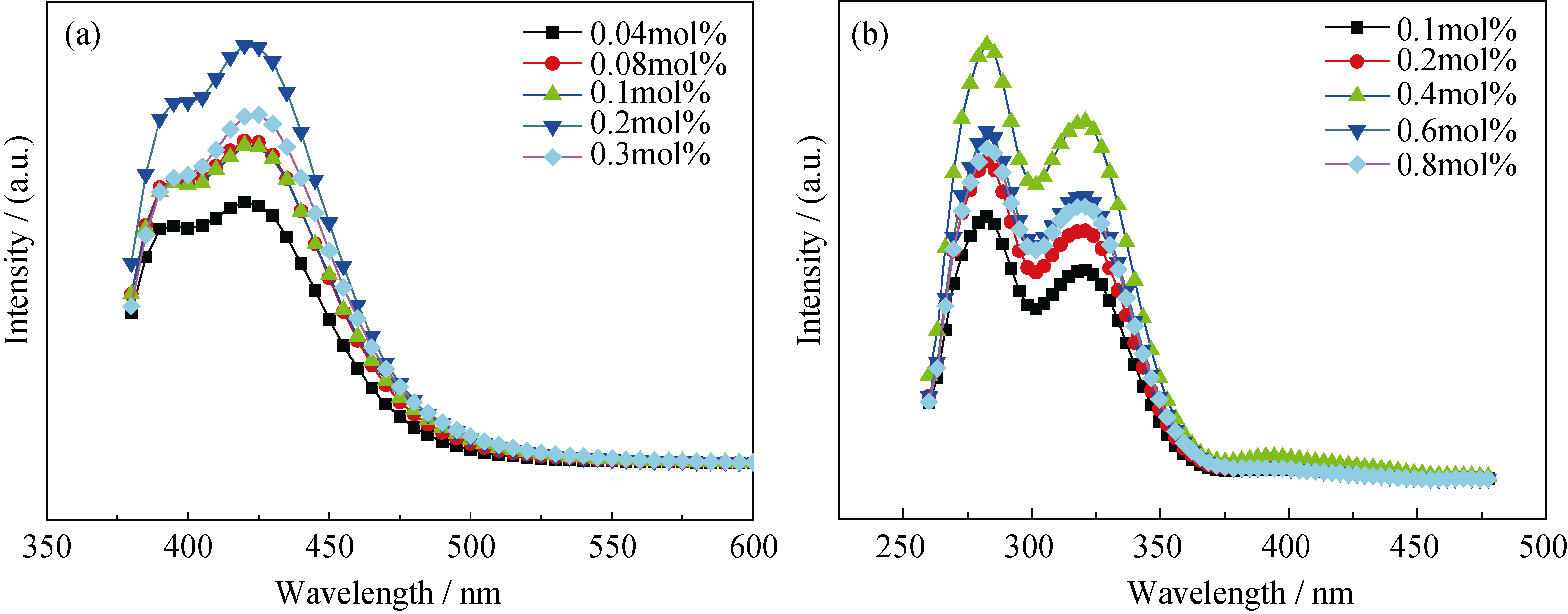

图3 掺杂稀土离子的淬灭浓度

Fig. 3 Quenching concentration of rare earth ions. (a) Ce3+, λex=358 nm; (b) Pr3+, λex=250 nm

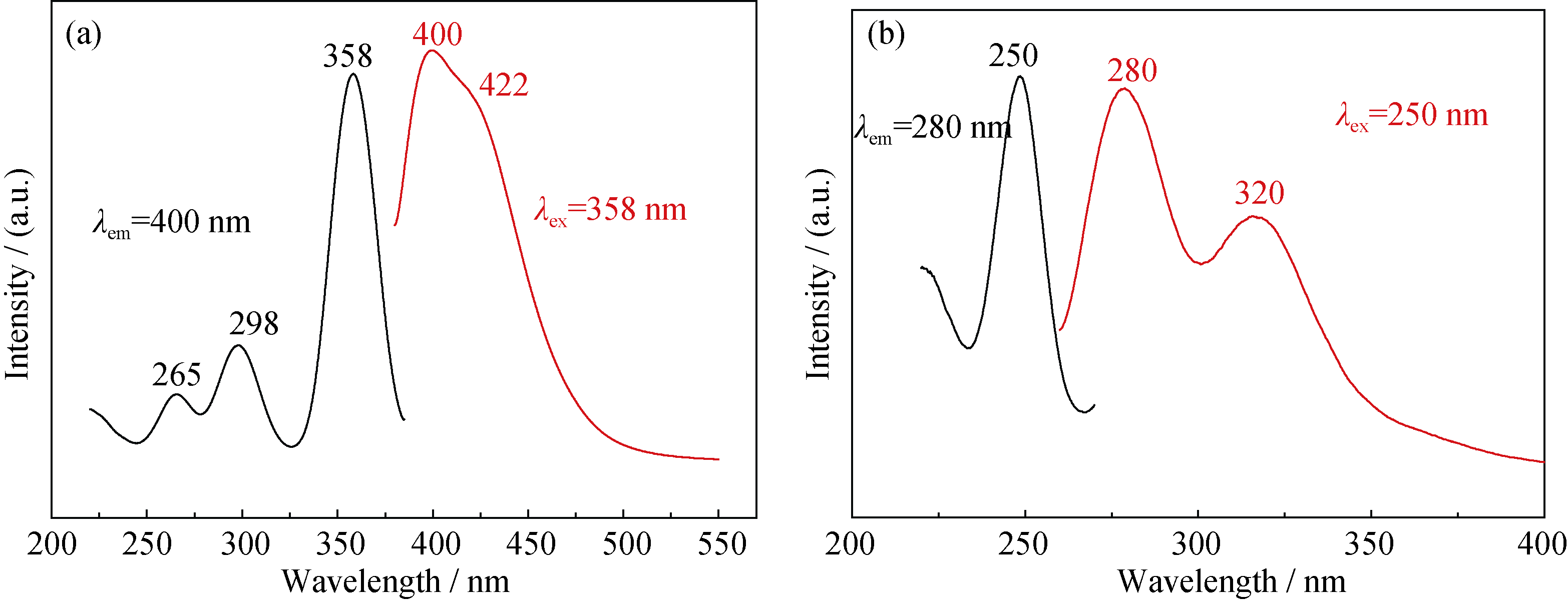

图4 单一稀土离子掺杂LSO薄膜的激发和发射光谱图

Fig. 4 Photoluminescence spectra of the LSO films with single rare earth ions. (a) Ce:LSO film; (b) Pr:LSO film

表1 单掺杂Ce3+离子、Pr3+离子的LSO薄膜的激发和发射波长

Table 1 Excitation and emission wavelengths of LSO film with single rare earth ions doped with Ce3+ or Pr3+

	Ex-wavelength/nm			Em-wavelength/nm
Ce³⁺ doping	265	298	358	400	422
Pr³⁺ doping	250			280	320

图5 Ce3+(0.2mol%)、Pr3+(0.4mol%)共掺杂时LSO薄膜的发射光谱图

Fig. 5 Emission spectra of LSO films co-doped with Ce3+ (0.2mol%) and Pr3+ (0.4mol%)

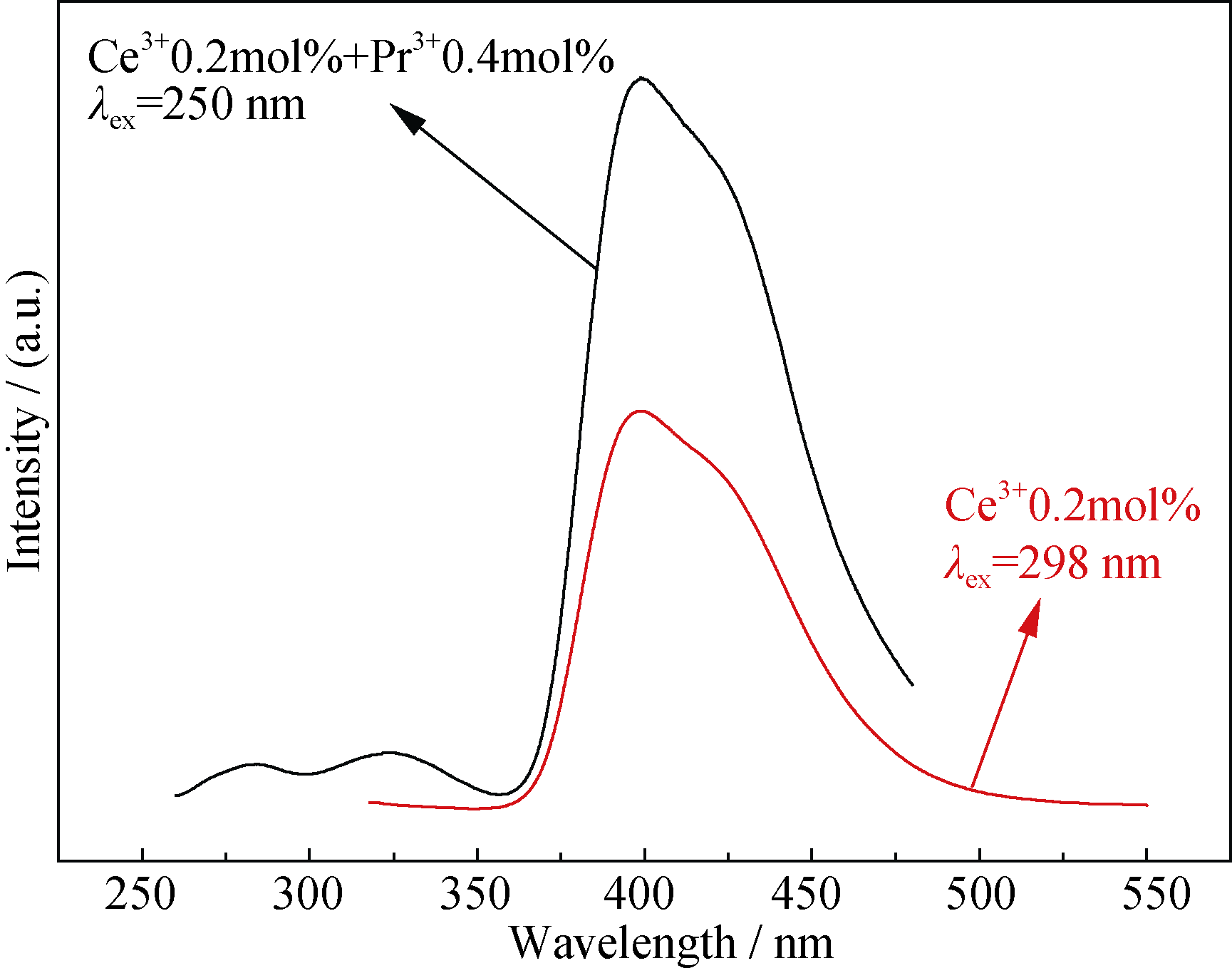

图6 单掺杂与共掺杂时Ce3+发射强度对比图

Fig. 6 Comparison chart of Ce3+ emission intensities when Ce3+ single doped and co-doped with Pr3+

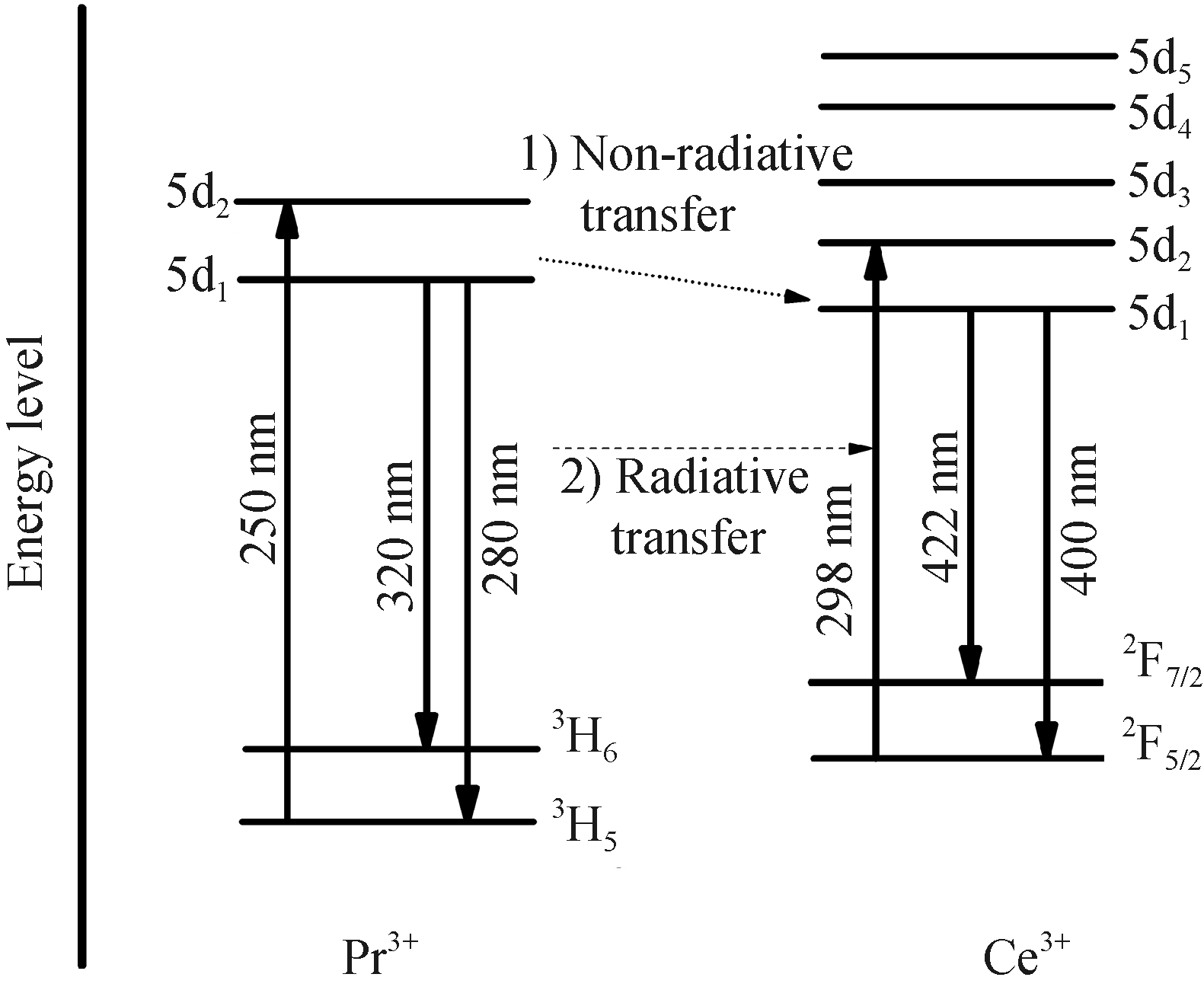

图7 Ce3+、Pr3+共掺杂时能量转换示意图及可能的两种能量传递方式

Fig. 7 Schematic diagram of the energy transmission co-doped with Ce3+ and Pr3+ in LSO thin films and two possible energy transfer ways from Pr3+ to Ce3+

参考文献 14

[1]	DING YU-CHONG, ZHAO GUANG-JUN, XU XIAO-DONG.Crystal growth and spectroscopic properties of erbium doped Lu2SiO5.J. Cryst. Growth, 2010, 312(14): 2103-2106.
[2]	VAN DER KOLK E, DORENBOS P, VAN EIJK C, et al. 5d electron delocalization of Ce3+ and Pr3+ in Y2SiO5 and Lu2SiO5. Phys. Rev. B, 2005, 71(16): 165120-1-6.
[3]	HUANG HONGHUA, YAN BING.Luminescence of nanophoshors Lu2SiO5 doped with different concentration of Tb3+ by in situ composition of hybrid precursors.Mater. Sci. Eng. B, 2005, 117(3): 261-264.
[4]	MANSUY C, LEROUX F, MAHIOU R, et al.Preferential site substitution in Sol-Gel derived Eu3+ doped Lu2SiO5: a combined study by X-ray absorption and luminescence spectroscopies.J. Mater. Chem., 2005, 15(38): 4129.
[5]	KOBAYASHI MASAAKI, AOGAKI SOUICHIRO, TAKEUTCHI FUJIO, et al.Performance of thin long scintillator strips of GSO:Ce, LGSO:Ce and LuAG:Pr for low energy γ-rays.Nucl. Instrum. Methods Phys. Res., Sect. A, 2012, 693: 226-235.
[6]	SECU M, SECU C E.Up-conversion luminescence of Er3+/Yb3+ co-doped LiYF4 nanocrystals in Sol-Gel derived oxyfluoride glass-ceramics. J. Non-Cryst. Solids, 2015, 426: 78-82.
[7]	JEON YONG IL, BHARAT L KRISHNA, YU JAE SU.Eu3+ ions co-doped CLPO: Dy3+ single phase white-light emitting phosphors for near UV-based white LEDs. J. Alloys Compd., 2015, 649: 531-536.
[8]	ZHANG PAN-PAN, PU YONG-PING, ZHU XIAO-JUAN, et al.Luminescence properties of Dy3+ doped and Dy3+/Ce3+co-doped CaO-Al2O3-SiO2-B2O3 glass for LED applications. Ceram. Int., 2015, 41: S729-S733.
[9]	RAMOS-GUERRA A I, GUZM N-MENDOZA J, GARC A-HIP LITO M, et al. Multicolored photoluminescence and structural properties of zirconium oxide films co-doped with Tb3+ and Eu3+ ions.Ceram. Int., 2015, 41(9): 11279-11286.
[10]	GU MU, JIA LINGCHUN, LIU XIAOLIN, et al.Luminescent properties of Na-codoped Lu2SiO5:Ce phosphor.J. Alloys Compd., 2010, 502(1): 190-194.
[11]	JOYE I J, DAVIDOV-PARDO G, LUDESCHER R D, et al.Fluorescence quenching study of resveratrol binding to zein and gliadin: Towards a more rational approach to resveratrol encapsulation using water-insoluble proteins.Food Chem., 2015, 185: 261-267.
[12]	WU YUNTAO, NIKL MARTIN, JARY VITEZSLAV, et al.Thermally induced ionization of 5d1 state of Ce3+ ion in Gd3Ga3Al2O12 host. Chem. Phys.Lett., 2013, 574: 56-60.
[13]	NIKL M, OGINO H, YOSHIKAWA A, et al.Fast 5d→4f luminescence of Pr3+ in Lu2SiO5 single crystal host.Chem. Phys. Lett., 2005, 410(4/5/6): 218-221.
[14]	WANG LEI, ZHANG XIA, HAO ZHENDONG, et al.Interionic energy transfer in Y3Al5O12:Ce3+, Pr3+ phosphor.J. Appl. Phys., 2010, 108(9): 093515.
