摘要:
发光材料在机密信息保护与防伪领域中发挥着重要作用。钙钛矿纳米晶作为一类高效低成本发光材料可通过两步法原位转换获得, 使其在信息加密、解密领域极具应用前景。本研究探索了“不可见”铅有机框架和发光MAPbBr3钙钛矿纳米晶间的可逆转换, 以及它们在荧光打印信息存储中的应用。通过铅离子与2-甲基咪唑配位构建新型金属有机框架, 实现铅离子限域分布, 在此基础上通过与甲胺溴原位反应生成钙钛矿纳米晶。利用金属有机框架在可见/紫外光下无光响应的特性, 通过墨水打印对信息进行加密存储。加密信息经甲胺溴喷雾处理, 引发原位反应生成钙钛矿纳米晶, 在紫外光下表现出强光致发光特性, 实现信息解密。利用甲胺溴和水作为解密和加密试剂可实现荧光的多次循环显示与消除。
中图分类号:
张国庆, 秦鹏, 黄富强. 空间限域铅离子与钙钛矿纳米晶间的可逆转换与信息存储应用[J]. 无机材料学报, 2022, 37(4): 445-451.
ZHANG Guoqing, QIN Peng, HUANG Fuqiang. Reversible Conversion between Space-confined Lead Ions and Perovskite Nanocrystals for Confidential Information Storage[J]. Journal of Inorganic Materials, 2022, 37(4): 445-451.

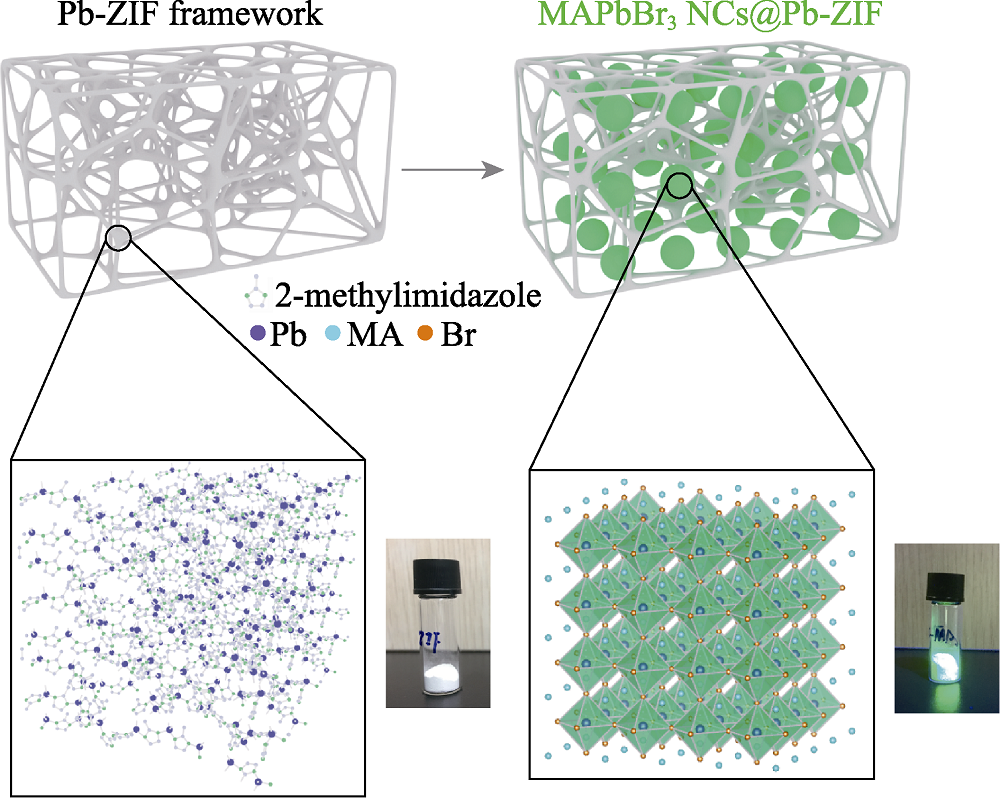

Fig. 1 Schematic diagram of in-situ growth of MAPbBr3 NCs from Pb-ZIF framework and optical images of Pb-ZIF (left under ambient light), and MAPbBr3 NCs@Pb-ZIF (right under UV light)

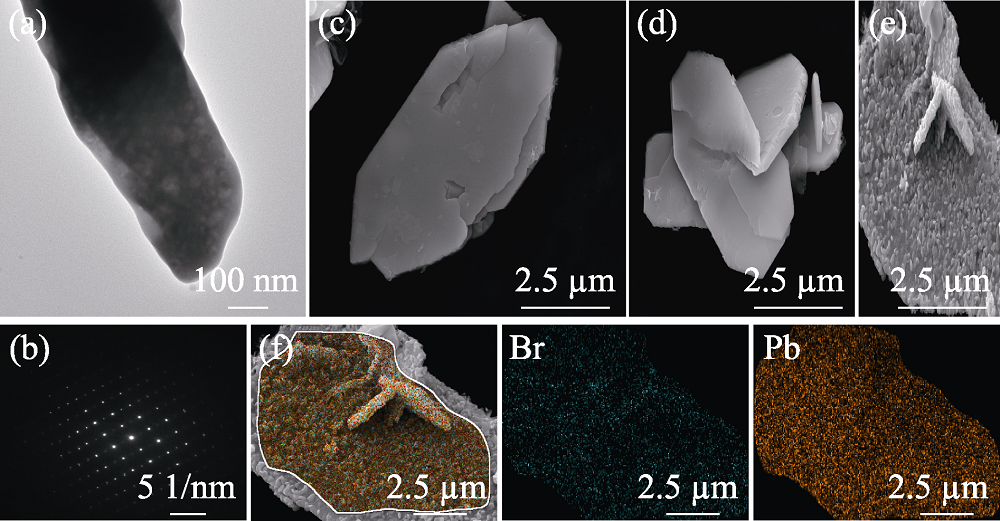

Fig. 2 (a) TEM image and (b) SAED pattern of Pb-ZIF powders SEM images of (c, d) Pb-ZIF and (e) MAPbBr3 NCs@Pb-ZIF powders, and (f) Elemental mappings of MAPbBr3 NCs@Pb-ZIF powder

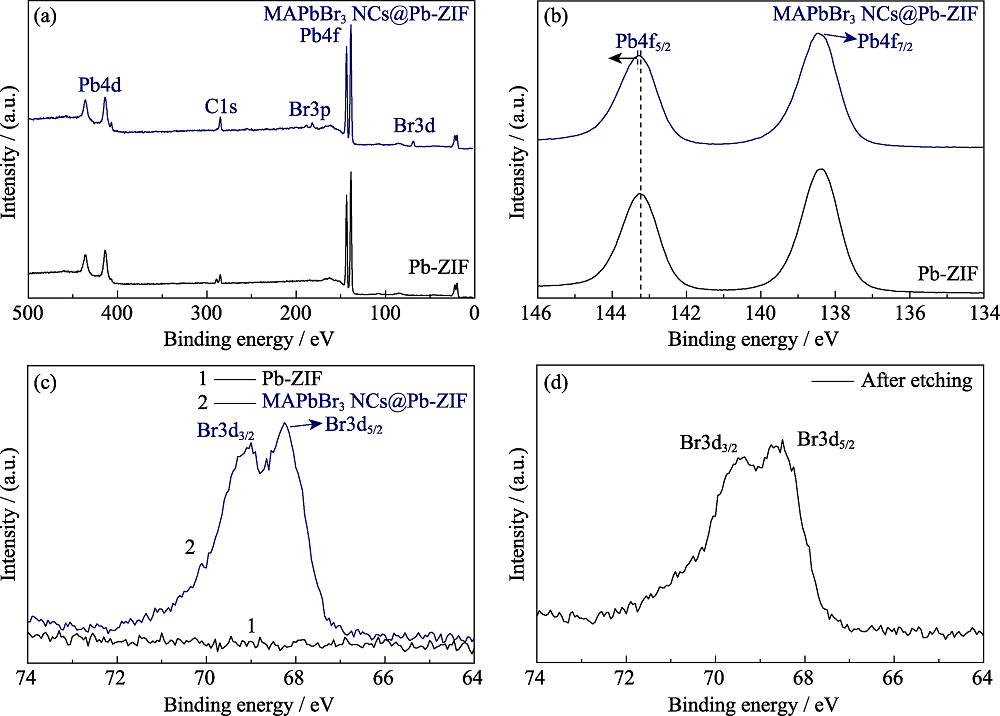

Fig. 3 XPS spectra of Pb-ZIF and MAPbBr3 NCs@Pb-ZIF samples (a) Survey XPS spectra; (b) Pb4f XPS spectra (The offset of Pb 4f peaks marked by an arrow); (c) Br3d XPS spectra of Pb-ZIF and MAPbBr3 NCs@Pb-ZIF samples; (d) Br3d XPS spectrum of MAPbBr3 NCs@Pb-ZIF sample after etching

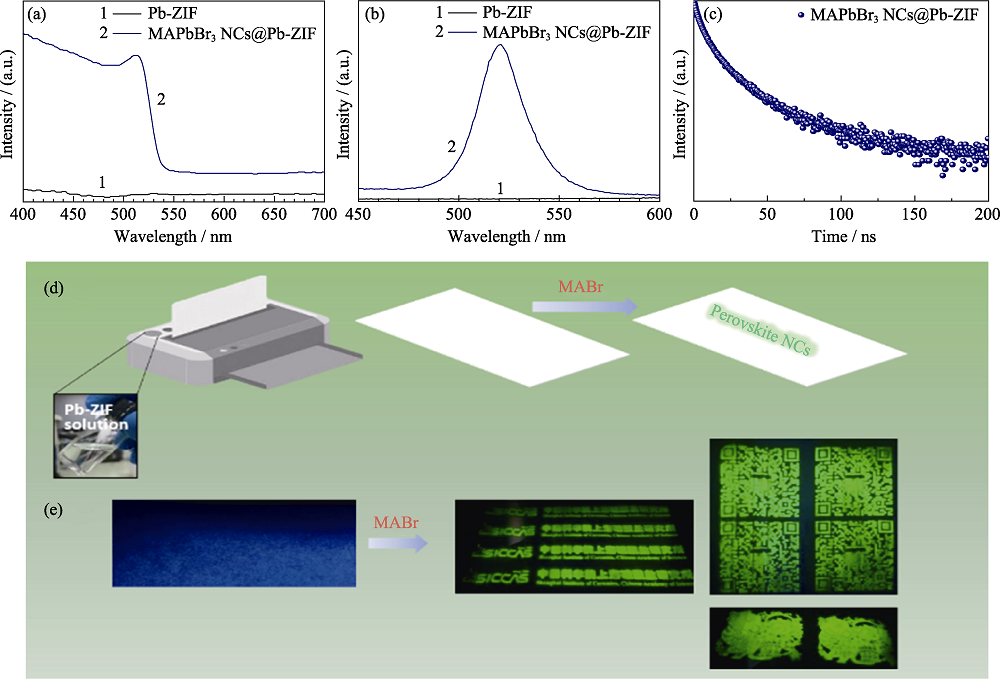

Fig. 4 (a) Absorption and (b) steady-state PL spectra of Pb-ZIF and MAPbBr3 NCs@Pb-ZIF samples; (c) PL decay kinetics of MAPbBr3 NCs@Pb-ZIF sample; (d) Schematic confidential information encryption and decryption process based on Pb-ZIF and MAPbBr3 NCs@Pb-ZIF; (e) Optical images of the printed Pb-ZIF and MAPbBr3 NCs@Pb-ZIF patterns under UV excitation

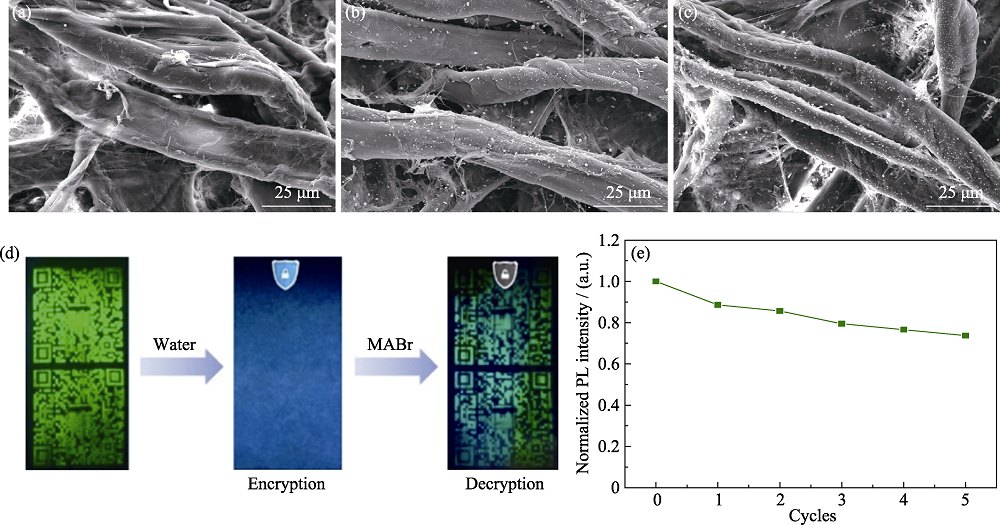

Fig. 5 SEM images of (a) pristine commercial paper, (b) commercial paper after printed with Pb-ZIF ink, (c) commercial paper with MAPbBr3 NCs@Pb-ZIF NCs, (d) representative information encryption and decryption procedure, and (e) PL intensity of the printed MAPbBr3 NCs@Pb-ZIF patterns in the five cycles of encryption and decryption measurement

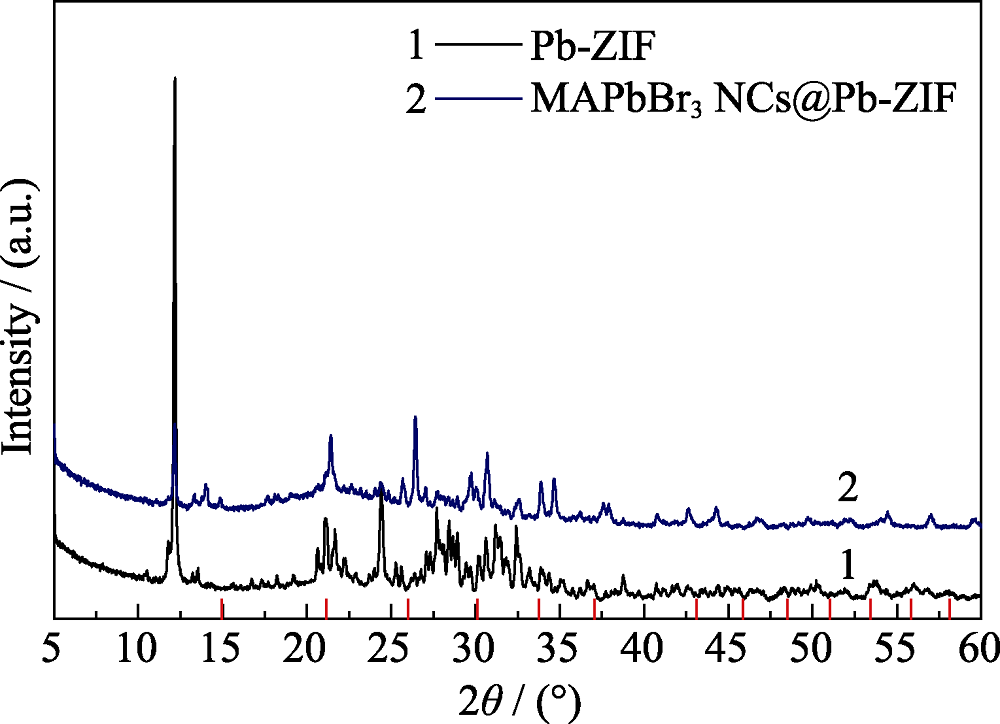

Fig. S1 X-ray diffraction patterns of Pb-ZIF and MAPbBr3 NCs@Pb-ZIF powders The ideal diffraction peaks of MAPbBr3 were presented as red vertical line

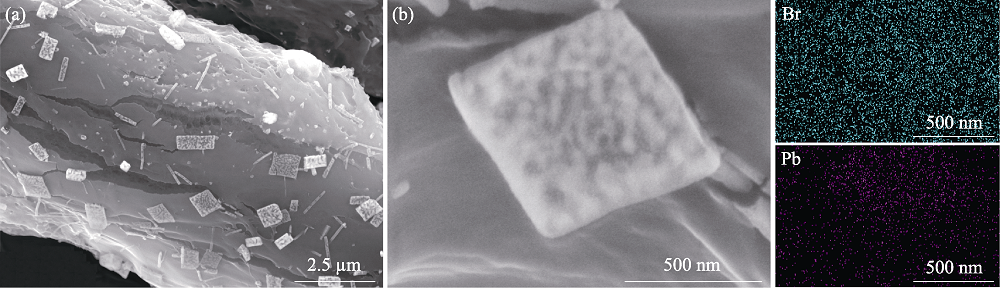

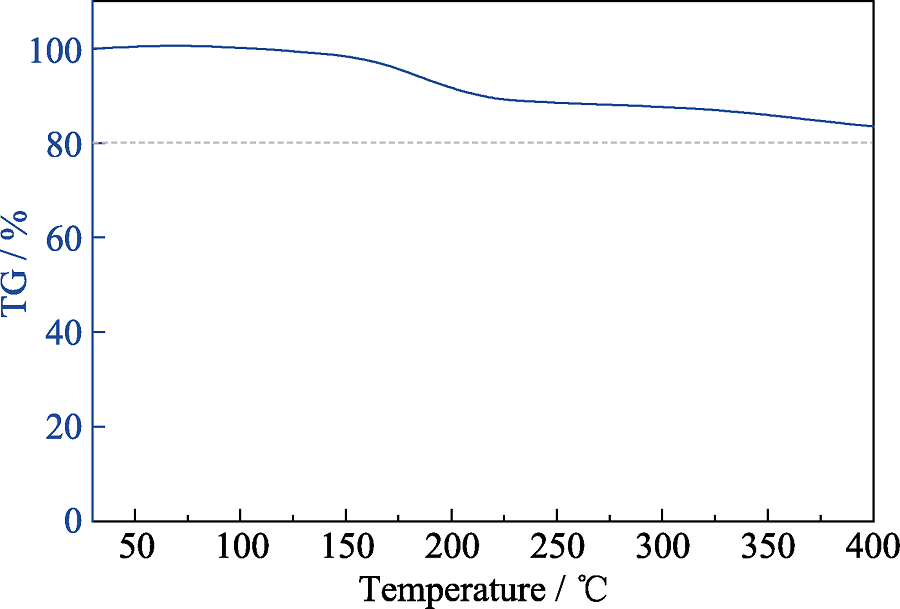

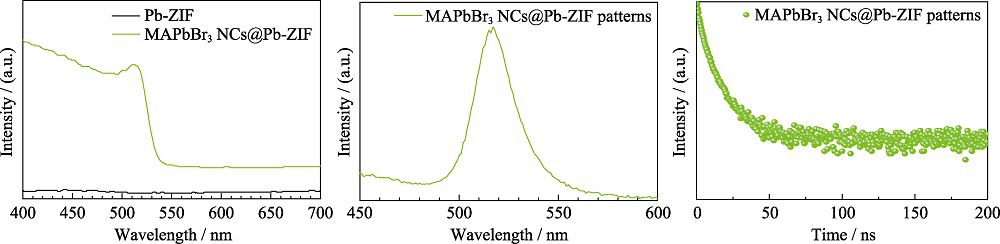

Fig. S4 (a) UV-Vis absorption spectra of the printed Pb-ZIF and MAPbBr3 NCs@Pb-ZIF patterns, (b) steady-state PL spectra and (c) PL decay kinetics of the printed MAPbBr3 NCs@Pb-ZIF patterns
τ1/ns | f1 | τ2/ns | f2 | τavg/ns | |
---|---|---|---|---|---|
Powder | 4.0 | 82.7% | 16.3 | 17.3% | 6.1 |
Table S1 PL lifetime for MAPbBr3 NCs@Pb-ZIF powders
τ1/ns | f1 | τ2/ns | f2 | τavg/ns | |
---|---|---|---|---|---|
Powder | 4.0 | 82.7% | 16.3 | 17.3% | 6.1 |
