Defect Dipole Thermal-stability to the Electro-mechanical Properties of Fe Doped PZT Ceramics

doi:10.15541/jim20240244

Abstract

Abstract:

The accepted doping ion in Ti⁴⁺-site of PbZr_yTi_1-_yO₃ (PZT)-based piezoelectric ceramics is a well-known method to increase mechanical quality factor (Q_m), since the acceptor coupled by oxygen vacancy becomes defect dipole, which prevents the domain rotation. In this field, a serious problem is that generally, Q_m decreases as the temperature (T) increases, since the oxygen vacancies are decoupled from the defect dipoles. In this work, Q_m of Pb_0.95Sr_0.05(Zr_0.53Ti_0.47)O₃ (PSZT) ceramics doped by 0.40% Fe₂O₃ (in mole) abnormally increases as T increases, of which the Q_m and piezoelectric coefficient (d₃₃) at room temperature and Curie temperature (T_C) are 507, 292 pC/N, and 345 ℃, respectively. The maximum Q_m of 824 was achieved in the range of 120-160 ℃, which is 62.52% higher than that at room temperature, while the dynamic piezoelectric constant (d₃₁) was just slightly decreased by 3.85%. X-ray diffraction (XRD) and piezoresponse force microscopy results show that the interplanar spacing and the fine domains form as temperature increases, and the thermally stimulated depolarization current shows that the defect dipoles are stable even the temperature up to 240 ℃. It can be deduced that the aggregation of oxygen vacancies near the fine domains and defect dipole can be stable up to 240 ℃, which pins domain rotation, resulting in the enhanced Q_m with the increasing temperature. These results give a potential path to design high Q_m at high temperature.

Key words: defect dipole, temperature characteristic, oxygen vacancy, electro-mechanical property, mechanical quality factor, hardening doping

CLC Number:

TQ174

SUN Yuxuan, WANG Zheng, SHI Xue, SHI Ying, DU Wentong, MAN Zhenyong, ZHENG Liaoying, LI Guorong. Defect Dipole Thermal-stability to the Electro-mechanical Properties of Fe Doped PZT Ceramics[J]. Journal of Inorganic Materials, 2025, 40(5): 545-551.

Figures/Tables 10

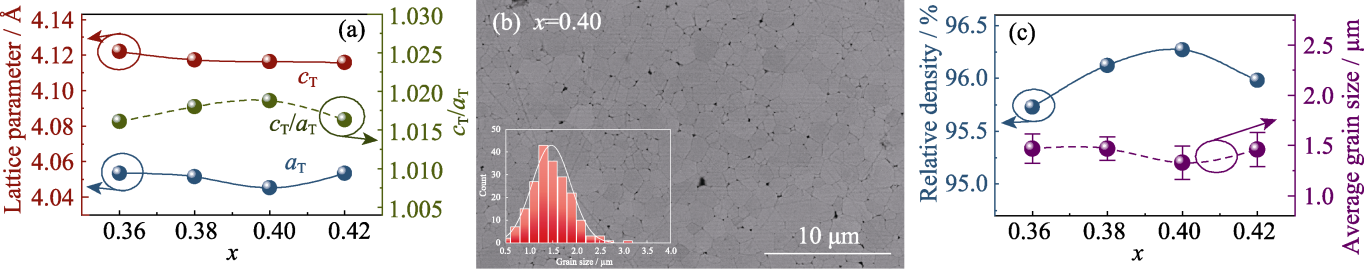

Fig. 1 Lattice, density and SEM image of PSZT-xFe ceramics (a) Lattice parameters of the T phase; (b) SEM image of PSZT-0.40Fe ceramics with inset showing the grain size distribution; (c) Relative density and average grain size

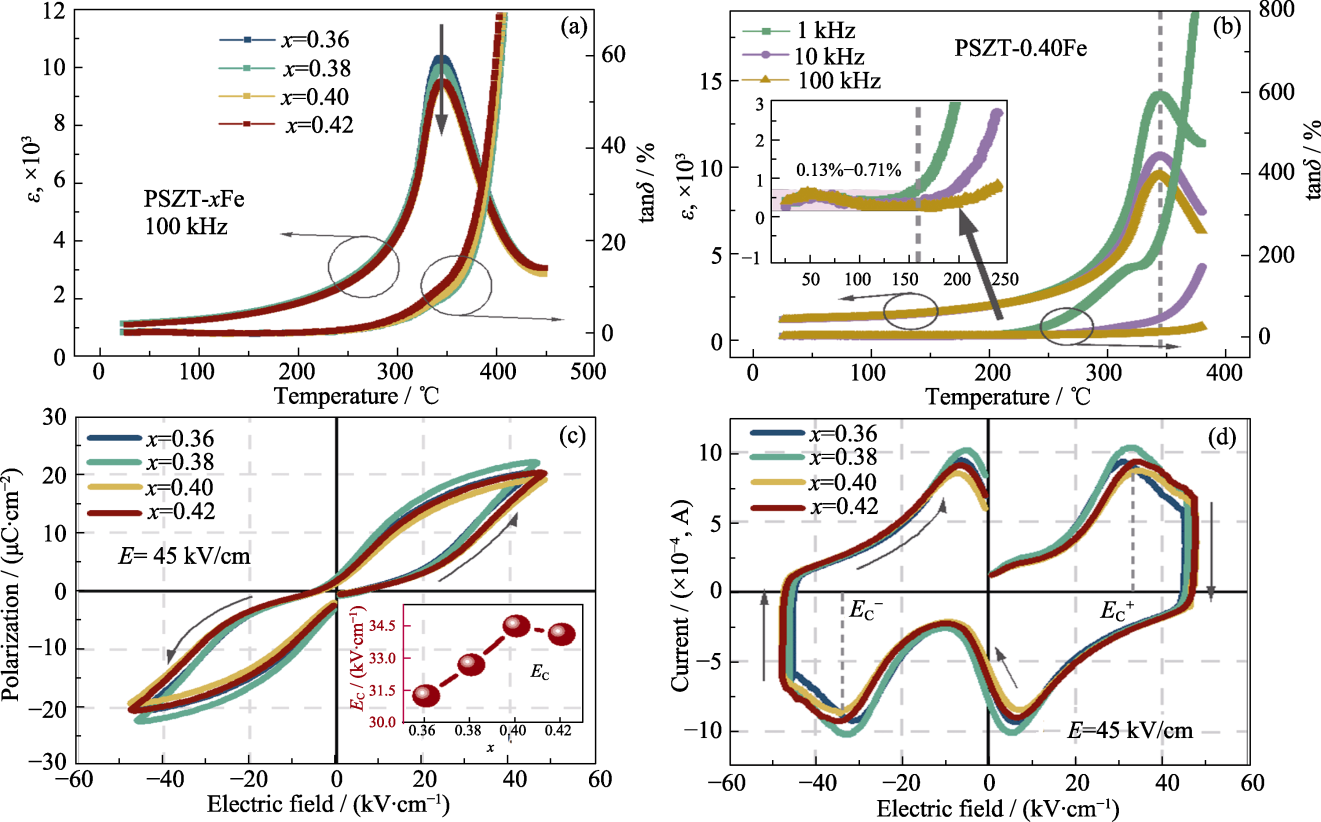

Fig. 2 Dielectric properties, P-E loops and I-E loops of PSZTs (a) ε and tanδ versus temperatures at 100 kHz of PSZT-xFe ceramics; (b) ε and tanδ versus temperatures at frequencies of 1, 10 and 100 kHz for PSZT-0.40Fe ceramic with inset showing tanδ versus temperatures in the range of 20-250 ℃; (c) P-E loops of PSZT-xFe ceramics; (d) I-E loops of PSZT-xFe ceramics. Colorful figures are available on website

Table 1 Electro-mechanical properties of PSZT-xFe ceramics

x	T_C/℃	T_θ/℃	C/(×10⁴)	E_C/(kV·cm^-1)	P_r/(μC·cm^-2)	d₃₃/(pC·N^-1)	Q_m	k_p	σ	ε(1 kHz)
0.36	343	336	7.0	31.3	1.95	300	409	0.67	0.31	1361
0.38	343	335	8.4	32.8	2.76	295	415	0.66	0.31	1253
0.40	345	333	11.3	34.5	1.65	292	507	0.64	0.32	1098
0.42	343	332	10.6	34.2	2.11	294	499	0.65	0.31	1109

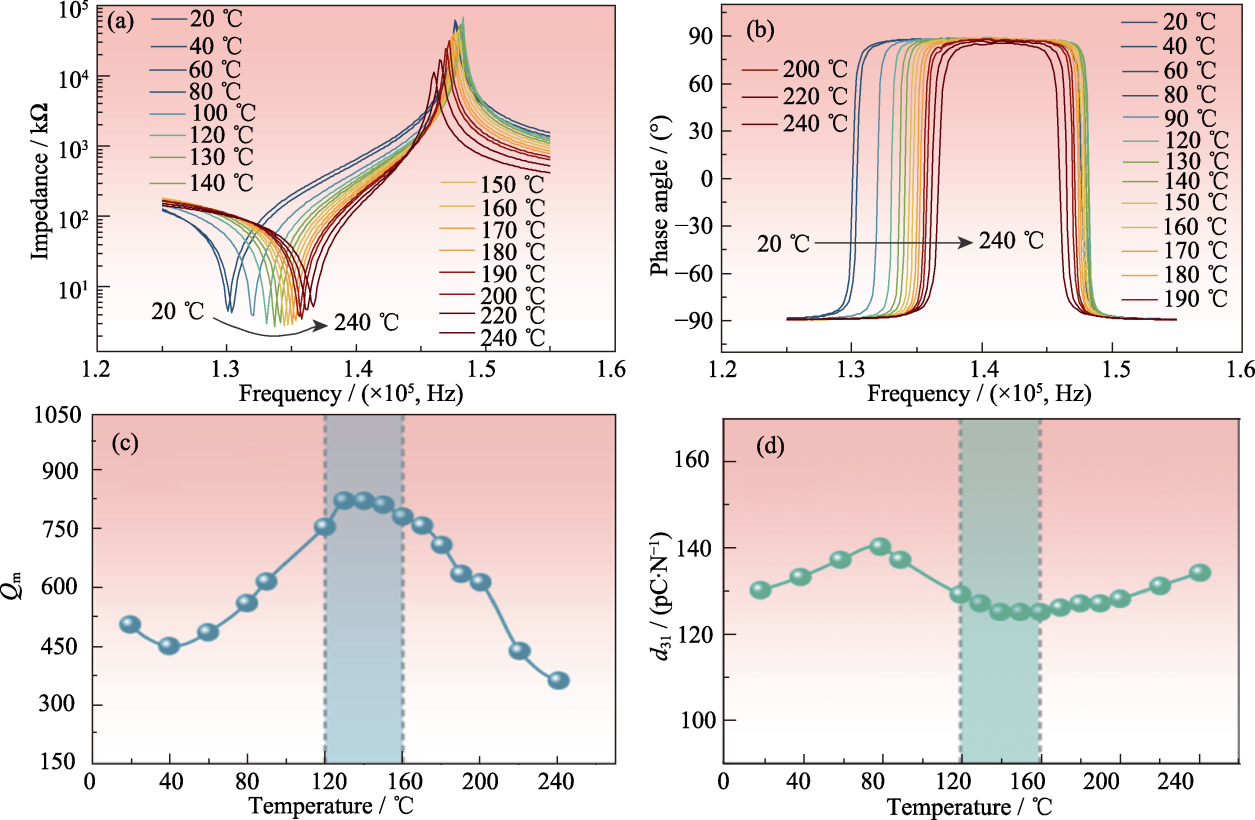

Fig. 3 Electro-mechanical properties of PSZT-0.40Fe ceramic in the range of 20-240 ℃ (a) Impedance of 120-160 kHz; (b) Phase angle of 120-160 kHz; (c) Calculated Qm; (d) Calculated d31. Colorful figures are available on website

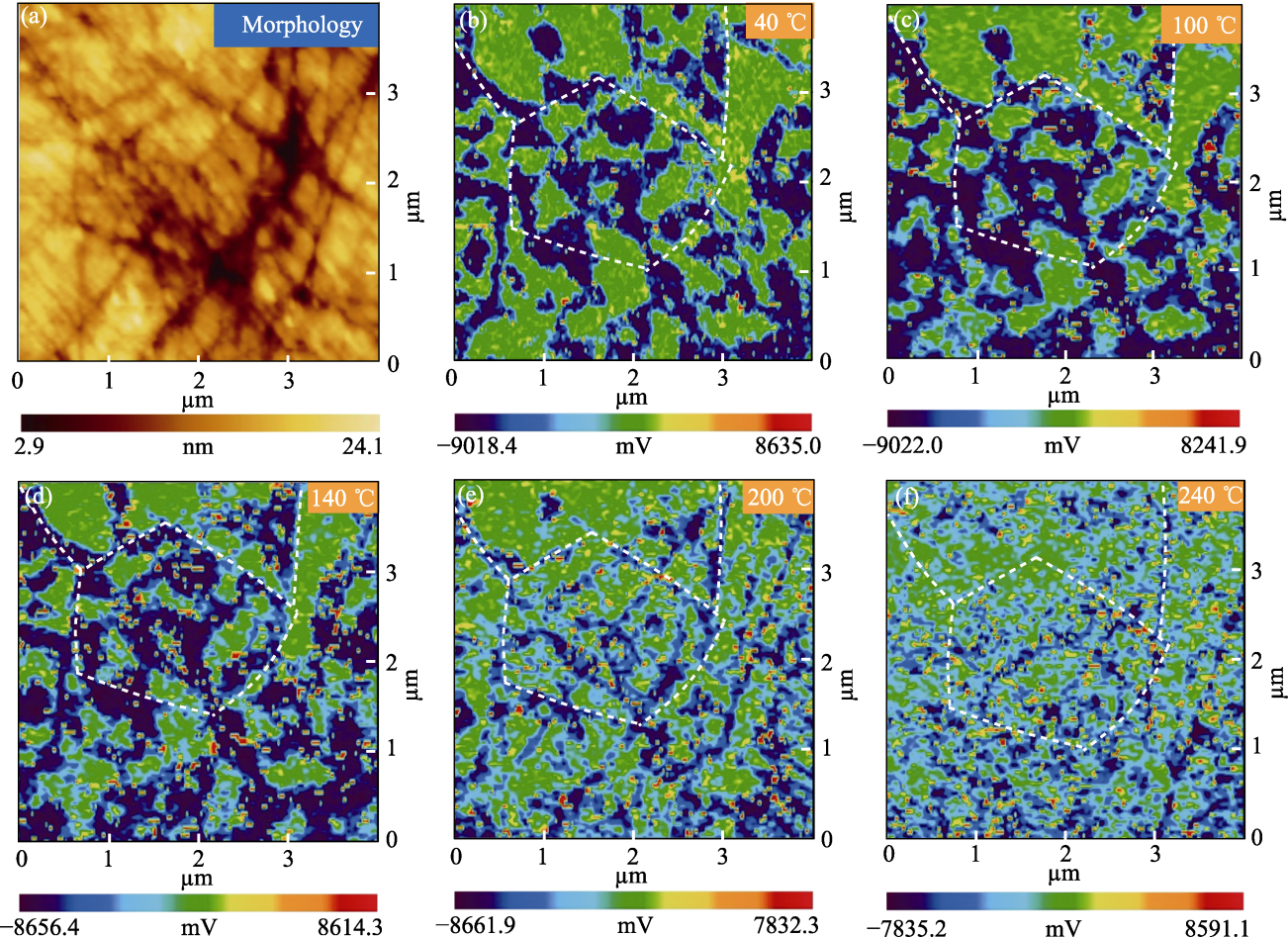

Fig. 4 Morphology and longitudinal piezoelectric response images of PSZT-0.40Fe ceramics in the same region (a) Morphology at room temperature; (b-f) Longitudinal piezoelectric response image in the range of 40-240 ℃. Colorful figures are available on website

Fig. 5 XRD patterns of PSZT-0.40Fe ceramics in the range of 20-240 ℃ (a) XRD patterns; (b) Color map. Colorful figures are available on website

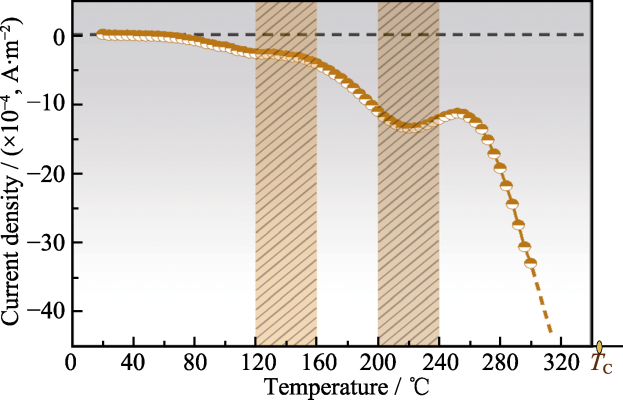

Fig. 6 TSDC curve of poled PSZT-0.40Fe ceramic

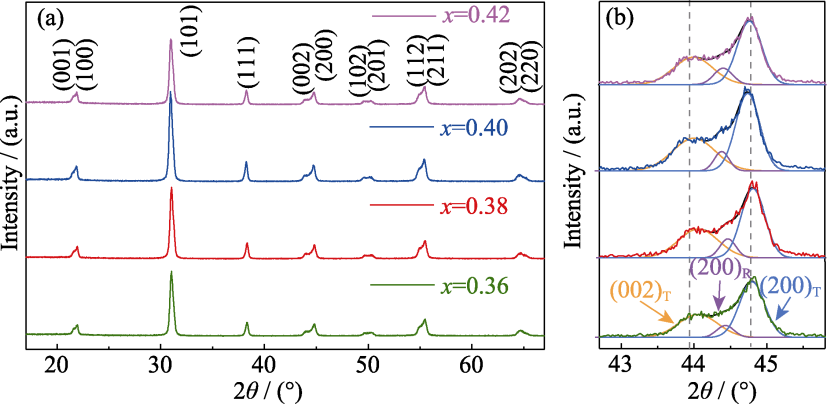

Fig. S1 XRD patterns of PSZT-xFe ceramics (a) 2θ=17.5°-67.5°; (b) 2θ=42.7°-45.8°

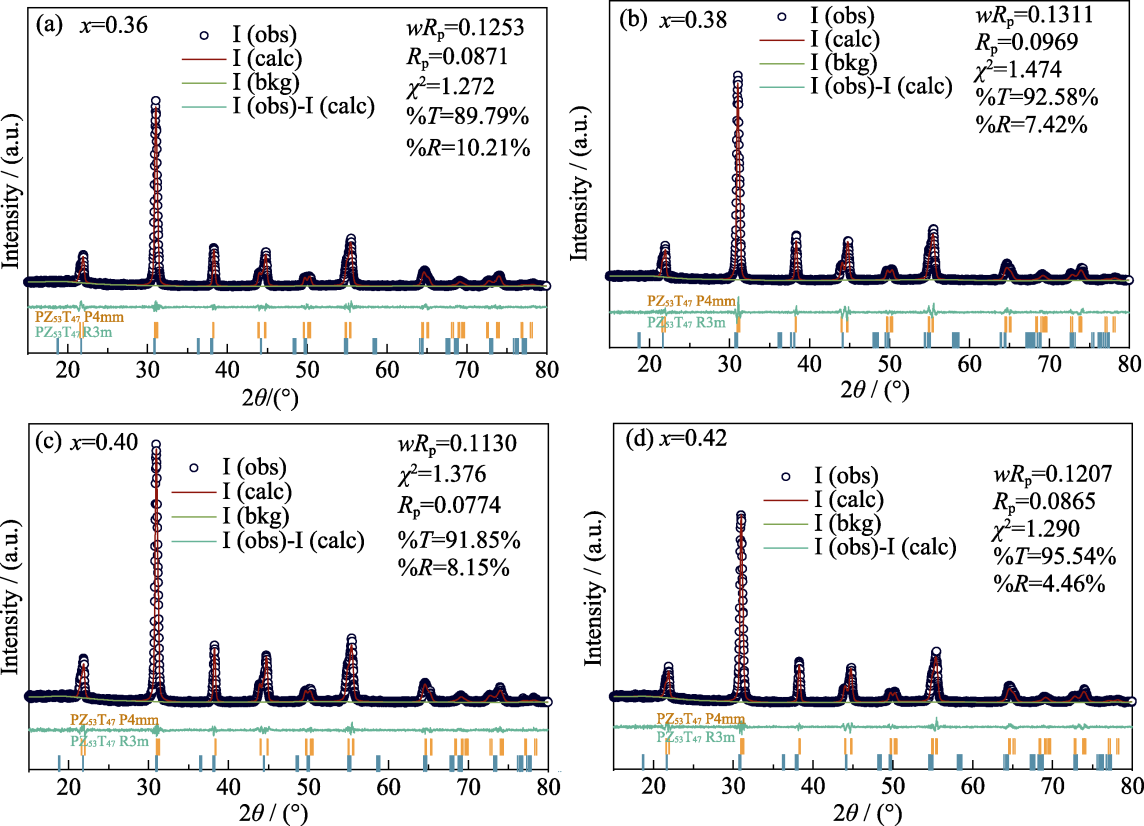

Fig. S2 Rietveld refinement results of PSZT-xFe ceramics XRD patterns (a) x=0.36; (b) x=0.38; (c) x=0.40; (d) x=0.42

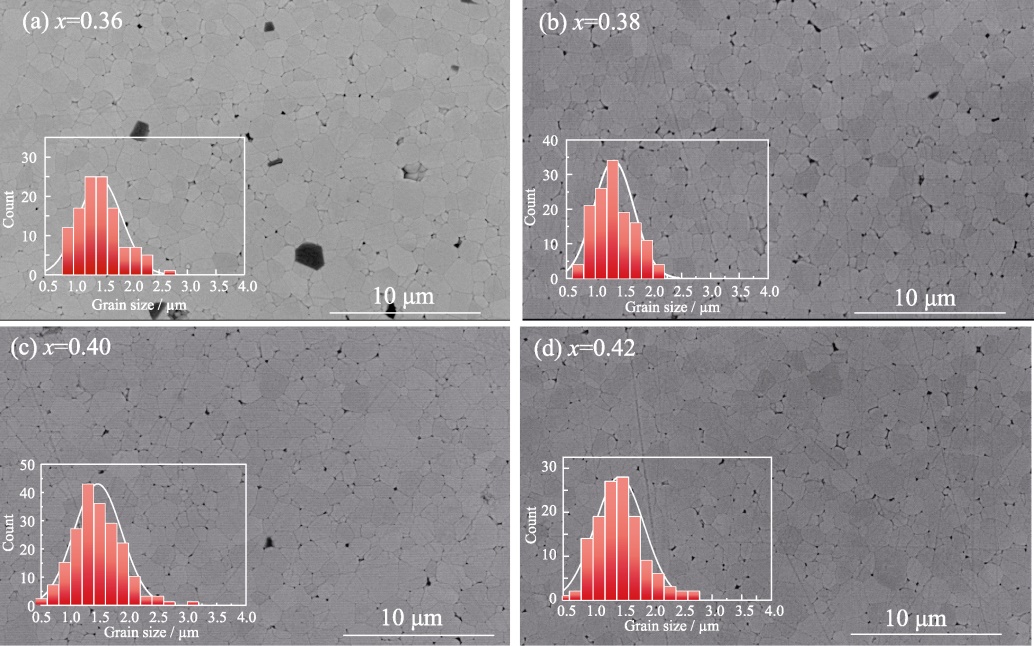

Fig. S3 SEM images of PSZT-xFe ceramics with insets showing corresponding grain size distribution (a) x=0.36; (b) x=0.38; (c) x=0.40; (d) x=0.42
