Low-temperature Sintering of LiBxAl1-xSi2O6 Microwave Dielectric Ceramics with Ultra-low Permittivity

doi:10.15541/jim20240494

Abstract

Abstract:

The lithium-based silicate microwave dielectric ceramics with ultra-low permittivity show great potential as substrate materials in the fifth-generation wireless communication technology. However, the residual stress caused by higher sintering temperatures leads to increased dielectric loss, thereby deteriorating the microwave dielectric performance. In this work, B³⁺ was introduced into LiAlSi₂O₆ ceramics to reduce Al³⁺ content, aiming to improve their sintering temperature and microwave dielectric performance. LiB_xAl_1-_xSi₂O₆ (0≤x≤0.20) microwave dielectric ceramics were prepared using a combination of solid-state reaction and cold isostatic pressing techniques. Effects of B³⁺ doping on the sintering characteristics, phase structure, microstructure, and microwave dielectric properties of the materials were characterized. The results show that with a gradual increase in the doping concentration, sintering temperature of the ceramics decreases significantly from 1400 to 1000 ℃. Meanwhile, the relative permittivity (ε_r) decreases from 3.95 to 3.69, the quality factor (Q×f) increases significantly from 24300 to 30560 GHz, and the temperature coefficient of resonant frequency (τ_f) increases from -45.9×10^-6 to -20.9×10^-6 ℃^-1. Specifically, the change in ε_r is mainly influenced by intrinsic polarization, lattice vibrations, and covalent bond strength of the material; the improvement in Q×f is closely related to the increase in packing fraction (PF) and the decrease in damping coefficient; the increase in τ_f is strongly correlated with the bond valence of oxygen (V_O). Furthermore, the composition with x = 0.20 exhibits the best microwave dielectric performance with ε_r = 3.69, Q×f = 30560 GHz, and τ_f = -20.9×10^-6 ℃^-1. Findings of this study on LiB_xAl_1-_xSi₂O₆ provide important theoretical guidance and practical insights for development and application of high-performance microwave dielectric ceramics in the future.

Key words: ultra-low permittivity, lithium aluminum silicate, microwave dielectric property

CLC Number:

TQ174

XIONG Siyu, MO Chen, ZHU Xiaowei, ZHU Guobin, CHEN Deqin, LIU Laijun, SHI Xiaodong, LI Chunchun. Low-temperature Sintering of LiB_xAl_1-_xSi₂O₆ Microwave Dielectric Ceramics with Ultra-low Permittivity[J]. Journal of Inorganic Materials, 2025, 40(5): 536-544.

Figures/Tables 10

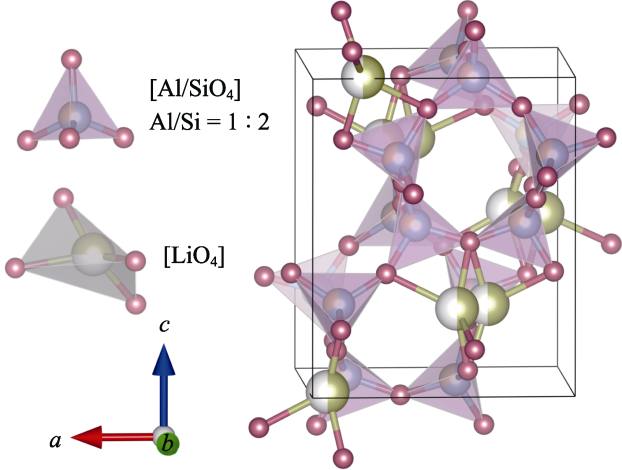

Fig. 1 Crystal structure of LiAlSi2O6

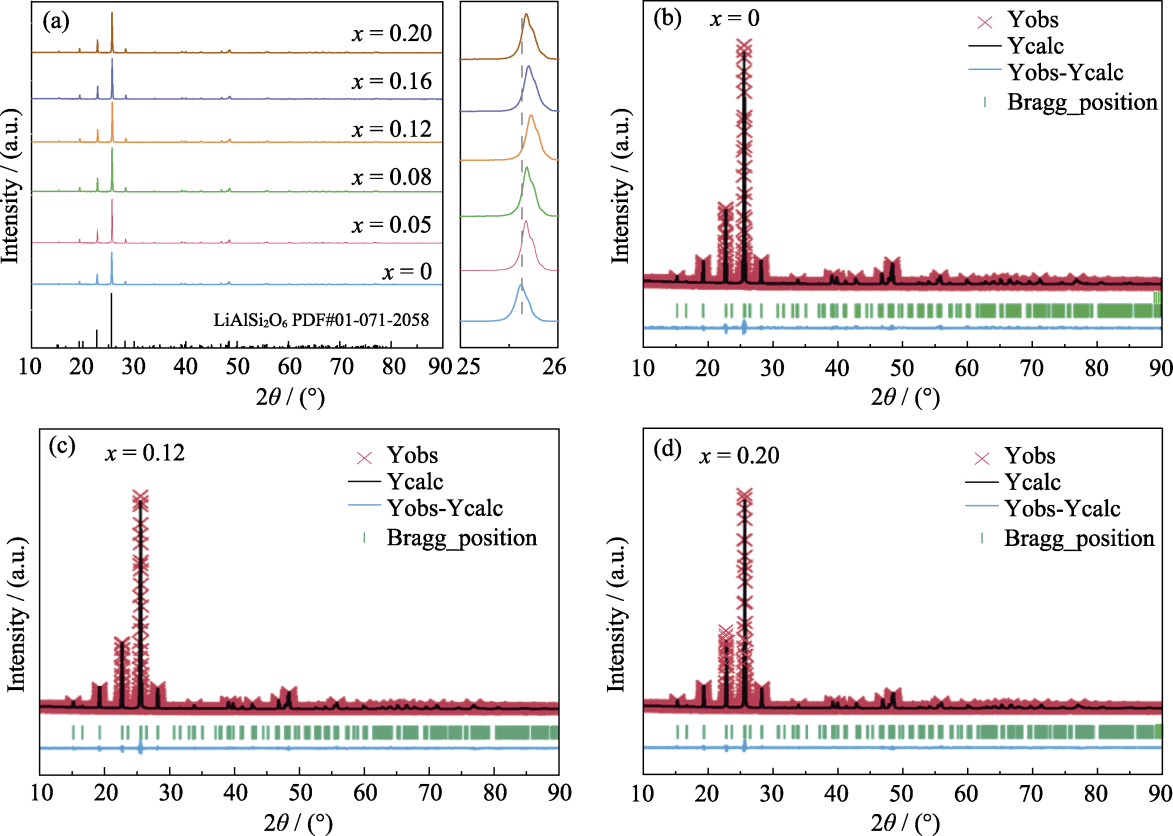

Fig. 2 XRD patterns of LiBxAl1-xSi2O6 ceramics (a) At the optimum sintering temperature; (b-d) Rietveld refinement fitting patterns at (b) x = 0, (c) x = 0.12, and (d) x = 0.20

Table 1 Rietveld refined structural parameters of LiBxAl1-xSi2O6 ceramics

x	Lattice parameter				$R p$ /%	$R wp$ /%	χ²
x	a/nm	b/nm	c/nm	V/nm³	$R p$ /%	$R wp$ /%	χ²
0	0.75380(5)	0.75380(5)	0.91556(4)	0.52024(4)	7.69	10.8	1.84
0.05	0.75346(3)	0.75346(3)	0.91533(1)	0.51963(9)	7.32	10.1	1.83
0.08	0.75320(5)	0.75320(5)	0.91494(0)	0.51906(2)	7.24	10.2	1.89
0.12	0.75286(8)	0.75286(8)	0.91434(9)	0.51826(2)	7.24	10.2	1.87
0.16	0.75246(2)	0.75246(2)	0.91332(8)	0.51712(5)	7.29	10.1	1.86
0.20	0.75206(4)	0.75206(4)	0.91257(9)	0.51615(5)	7.22	9.98	1.87

Table 1 Rietveld refined structural parameters of LiBxAl1-xSi2O6 ceramics

x	Lattice parameter				$R p$ /%	$R wp$ /%	χ²
x	a/nm	b/nm	c/nm	V/nm³	$R p$ /%	$R wp$ /%	χ²
0	0.75380(5)	0.75380(5)	0.91556(4)	0.52024(4)	7.69	10.8	1.84
0.05	0.75346(3)	0.75346(3)	0.91533(1)	0.51963(9)	7.32	10.1	1.83
0.08	0.75320(5)	0.75320(5)	0.91494(0)	0.51906(2)	7.24	10.2	1.89
0.12	0.75286(8)	0.75286(8)	0.91434(9)	0.51826(2)	7.24	10.2	1.87
0.16	0.75246(2)	0.75246(2)	0.91332(8)	0.51712(5)	7.29	10.1	1.86
0.20	0.75206(4)	0.75206(4)	0.91257(9)	0.51615(5)	7.22	9.98	1.87

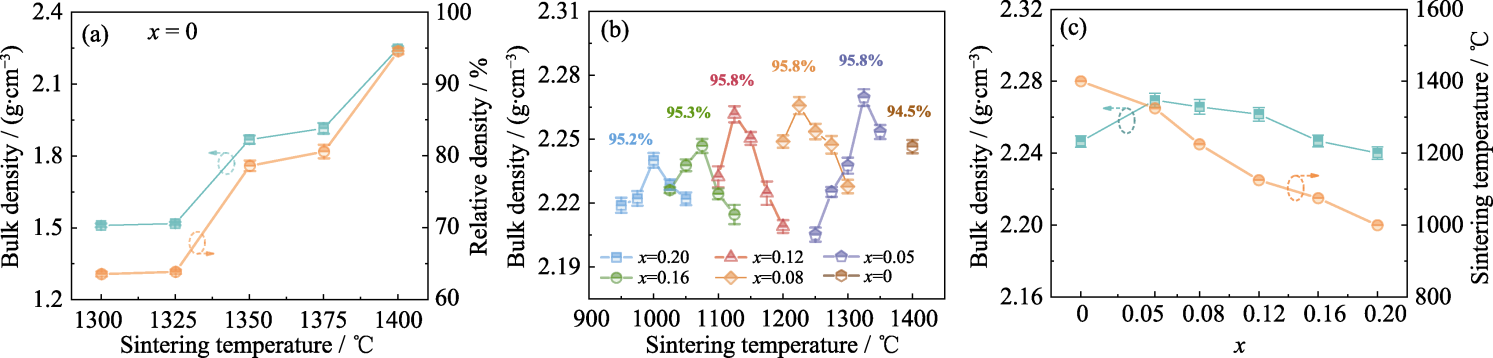

Fig. 3 Relationship between bulk density and sintering temperature of LiBxAl1-xSi2O6 ceramics (a) LiAlSi2O6 ceramic; (b) LiBxAl1-xSi2O6 ceramic; (c) Bulk density and sintering temperature varied with x

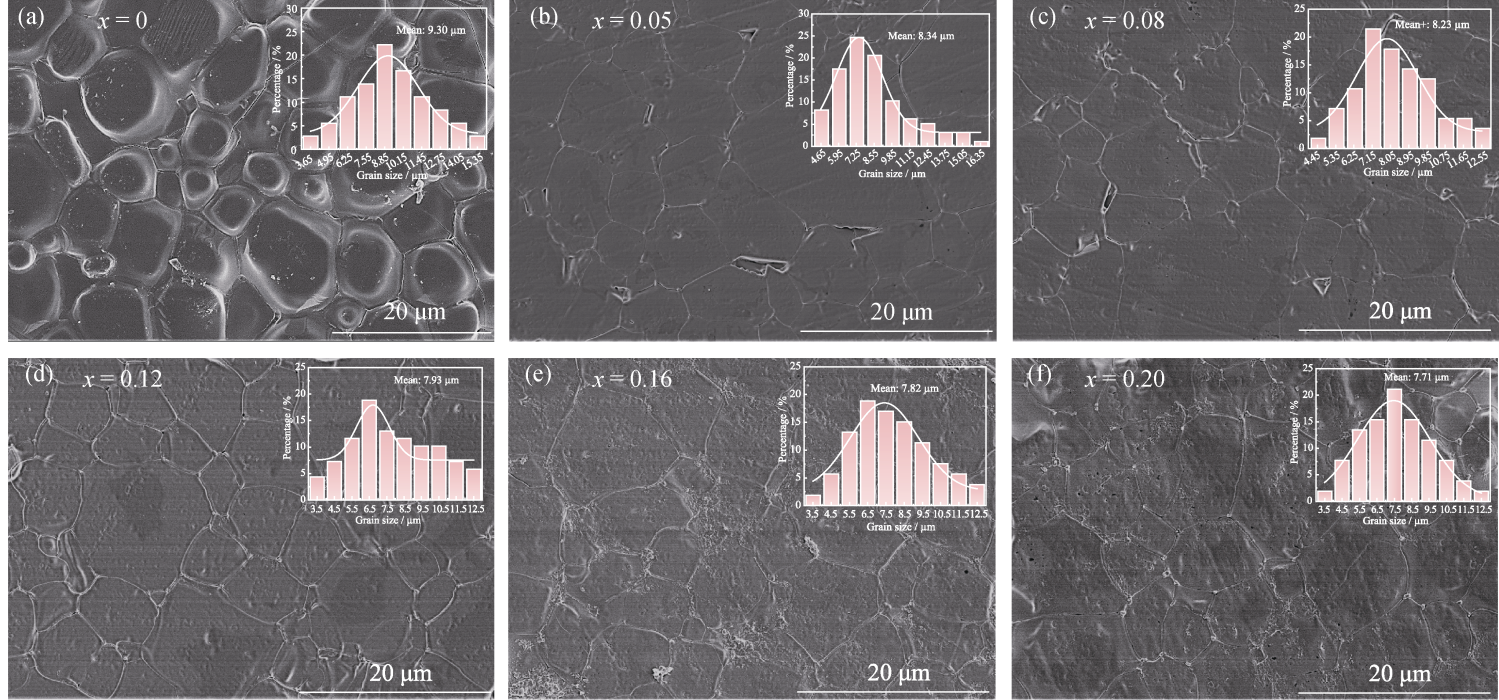

Fig. 4 SEM images and grain size distributions of LiBxAl1-xSi2O6 ceramics (a) x = 0; (b) x = 0.05; (c) x = 0.08; (d) x = 0.12; (e) x = 0.16; (f) x = 0.20

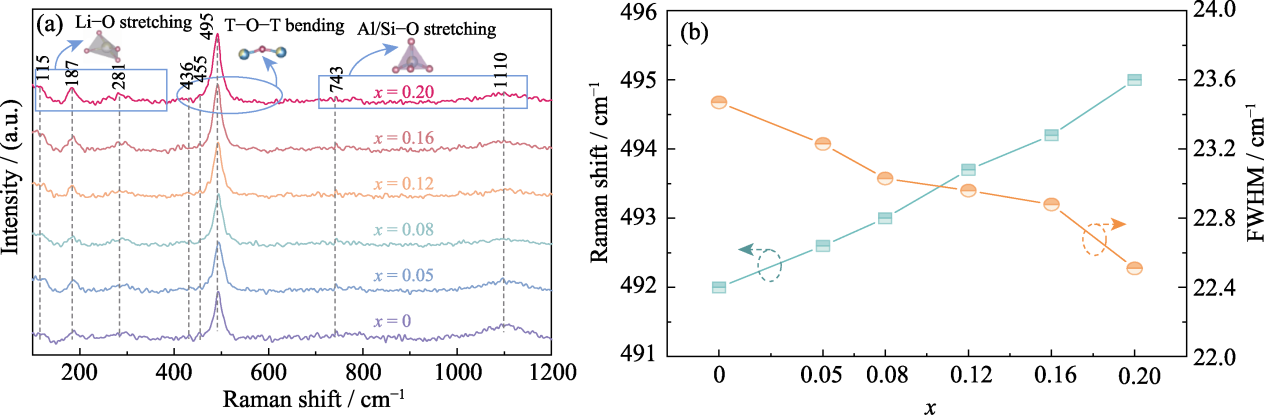

Fig. 5 Raman spectra and corresponding parameters of LiBxAl1-xSi2O6 ceramics (a) Raman spectra at different compositions; (b) Raman shift and FWHM at 493 cm-1 changed with composition

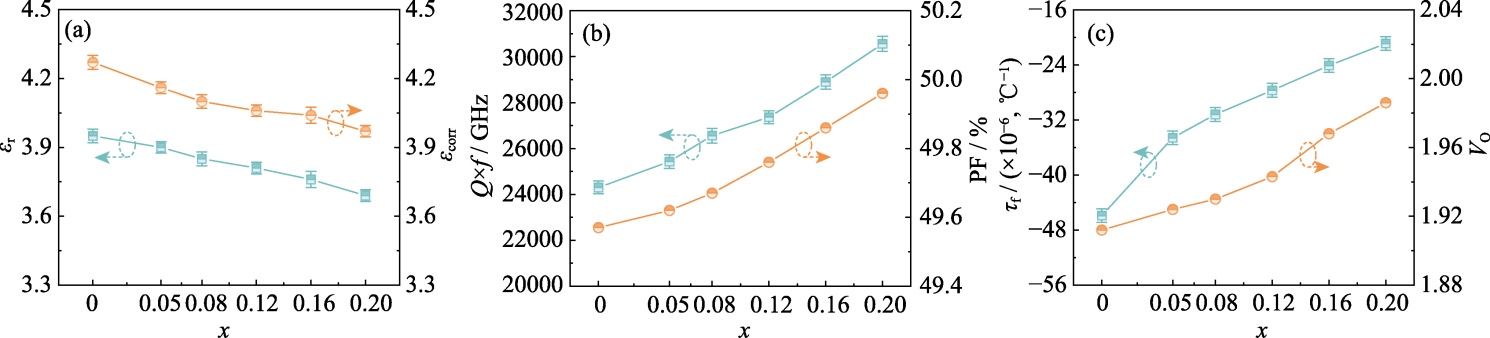

Fig. 6 Microwave dielectric properties of LiBxAl1-xSi2O6 ceramics (a) εr and εcorr; (b) Q×f and PF; (c) τf and VO

Table 2 Vm, α, εtheo, εr, and α/Vm of LiBxAl1-xSi2O6 ceramics

x	V_m / nm³	α / nm³	ε_theo	ε_r	α·V_m^-1
0	0.1300610	0.0157900	4.1042	3.95	0.121405
0.05	0.1299098	0.0157530	4.0968	3.90	0.121261
0.08	0.1297655	0.0157308	4.0949	3.85	0.121225
0.12	0.1295655	0.0157012	4.0928	3.81	0.121184
0.16	0.1292813	0.0156716	4.0947	3.76	0.121221
0.20	0.1290388	0.0156420	4.0946	3.69	0.121219

Table 3 Bond valence, covalence and average covalence of LiBxAl1-xSi2O6 ceramics

x	V_Li	V_Si/Al	V_O	C_Li-O/%	C_Si/Al-O/%	Average/%
0	0.820	3.906	1.912	18.87	53.18	36.03
0.05	0.821	3.935	1.924	18.89	53.44	36.16
0.08	0.823	3.947	1.930	18.92	53.54	36.23
0.12	0.824	3.978	1.943	18.94	53.81	36.37
0.16	0.825	4.036	1.968	18.95	54.31	36.63
0.20	0.829	4.075	1.986	19.02	54.65	36.83

Table 4 Sintering temperatures (ST) and microwave dielectric properties of several silicates compared with LiBxAl1-xSi2O6[17,19,26,28,38,41 -45]

Component	ST/℃	ε_r	Q×f/GHz	τ_f/(×10^-6, ℃^-1)	Ref.
LiAlSiO₄	1350	4.9	36000	-57.3	[17]
Li(Al_0.99Li_0.01)SiO_3.99	1250	3.49	51358	-51.48	[17]
Ca₂SiO₄	1450	8.6	26100	-89	[19]
Sr₂SiO₄	1575	9.5	19100	-205	[19]
Ba₂SiO₄	1525	13.1	17900	-17	[19]
Zn₂SiO₄	1340	5.7	53000	-16	[41]
Ba₂ZnSi₂O₇	1200	8.09	26600	-51.4	[42]
Sr₂MgSi₂O₇	1280	6.85	22530	-32	[43]
Sr₃MgSi₂O₈	1450	11.6	25375	-57.41	[44]
Li₂SiO₃	1025	6.19	30550	-40.95	[38]
Li₂ZnSiO₄	1250	5.8	14700	-96.6	[45]
Li₂MgSiO₄	1100	5.73	13570	-16.7	[26]
LiB_xAl_1-_xSiO₄(0.02≤x≤0.1)	875-1100	3.34-3.73	25770-27540	-22.85--16.5	[28]
LiB_xAl_1-_xSi₂O₆(0≤x≤0.20)	1000-1400	3.69-3.95	24300-30500	-45.9--20.9	This work
