Boron and Nitrogen Co-doped Biomass Carbon Sphere Anode Material: Preparation and Sodium Storage Properties for Sodium-ion Batteries

doi:10.15541/jim20250187

Abstract

Abstract:

Hard carbon is a promising anode material for sodium-ion batteries due to its low cost, wide source and long lifespan. However, its lower initial Coulombic efficiency (ICE) and poor capacity limit its practical applications. At present, heteroatom doping is an effective strategy to modulate the amorphous carbon microcrystalline structure and improve the sodium storage performance of carbon materials. The synergistic effect generated by combined heteroatom doping is more conducive to enhancing the electrochemical reactivity of carbon materials than single heteroatom doping. In this study, carbon spheres were synthesized by hydrothermal reaction, with waste residue extracted from potato starch processing waste liquid as precursor, based on which boron and nitrogen co-doped biomass carbon spheres were prepared by ball milling and pyrolysis using urea and sodium tetraborate as doping sources. Subsequently, the effects of B and N co-doping on the microstructure and sodium storage properties of carbon materials were investigated. The results indicated that B and N co-doping increased disorder and enlarged layer spacing of carbon materials, while forming suitable C=O bonds that were conducive to stabilizing solid electrolyte interphase film generation. The as-prepared electrode exhibited a reversible capacity of 284.3 mAh·g^-1 at a current density of 50 mA·g^-1 with an ICE of 77.0%. After 500 cycles at 2 A·g^-1, its capacity decayed to 122.5 mAh·g^-1, with 56.1% capacity retention. Therefore, boron and nitrogen co-doped biomass carbon sphere anode material is a promising one for sodium-ion batteries with superior sodium storage properties.

Key words: sodium-ion battery, anode material, potato residue, carbon nanosphere, boron and nitrogen co-doping

CLC Number:

O646

MA Xiaojia, GENG Xinyu, ZHANG Weike. Boron and Nitrogen Co-doped Biomass Carbon Sphere Anode Material: Preparation and Sodium Storage Properties for Sodium-ion Batteries[J]. Journal of Inorganic Materials, 2026, 41(4): 469-478.

Figures/Tables 12

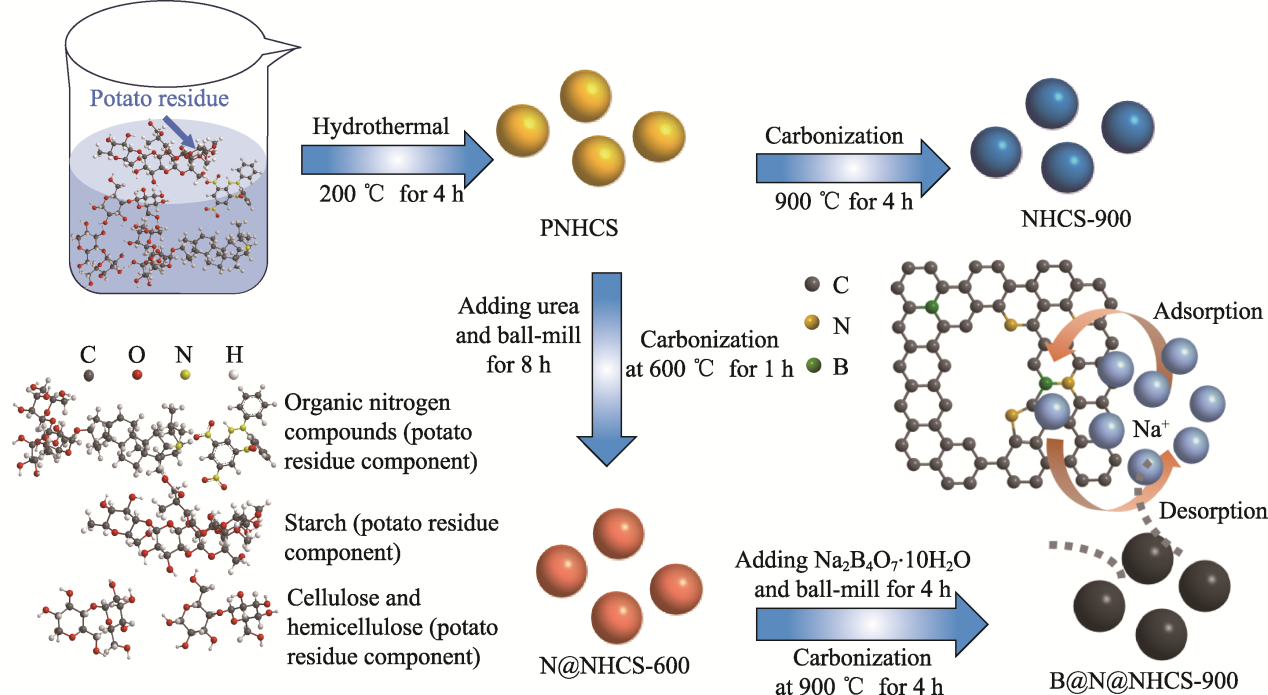

Fig. 1 Schematic diagram of synthesis process for N@NHCS-600, B@N@NHCS-900 and NHCS-900

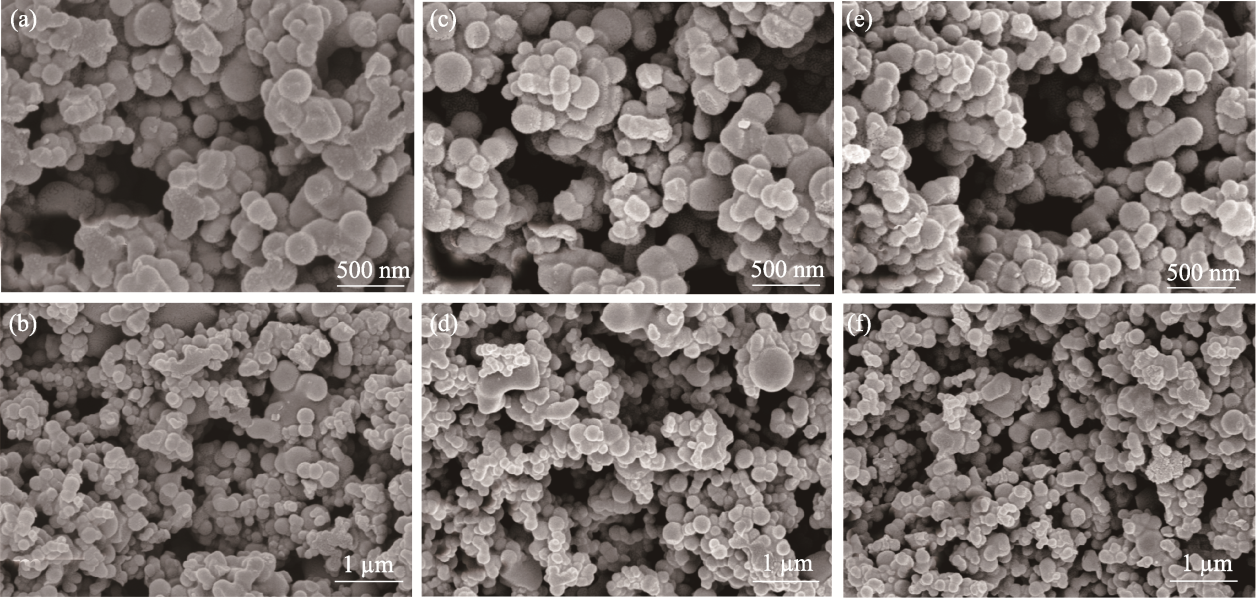

Fig. 2 SEM images of (a, b) N@NHCS-600, (c, d) B@N@NHCS-900 and (e, f) NHCS-900

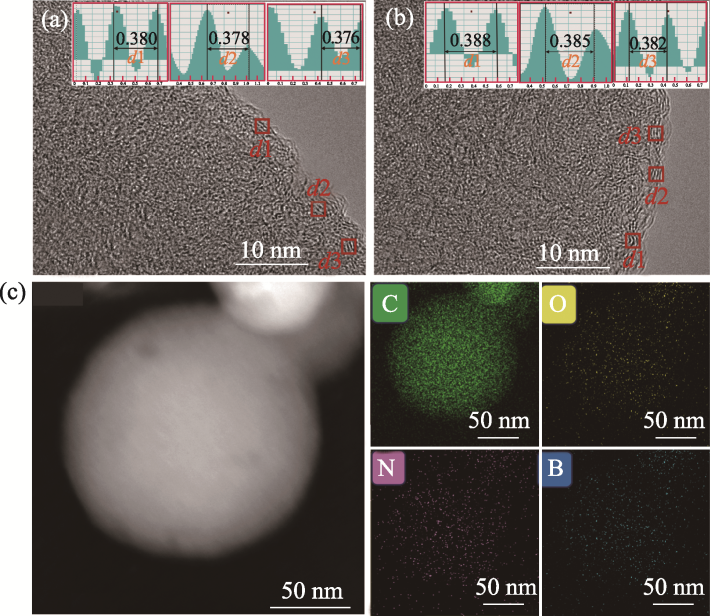

Fig. 3 (a, b) HRTEM images of (a) NHCS-900 and (b) B@N@NHCS-900 with inserts showing the corresponding FFT patterns for measuring the interlayer distance in square areas; (c) STEM image and C, O, N and B element mappings of B@N@NHCS-900

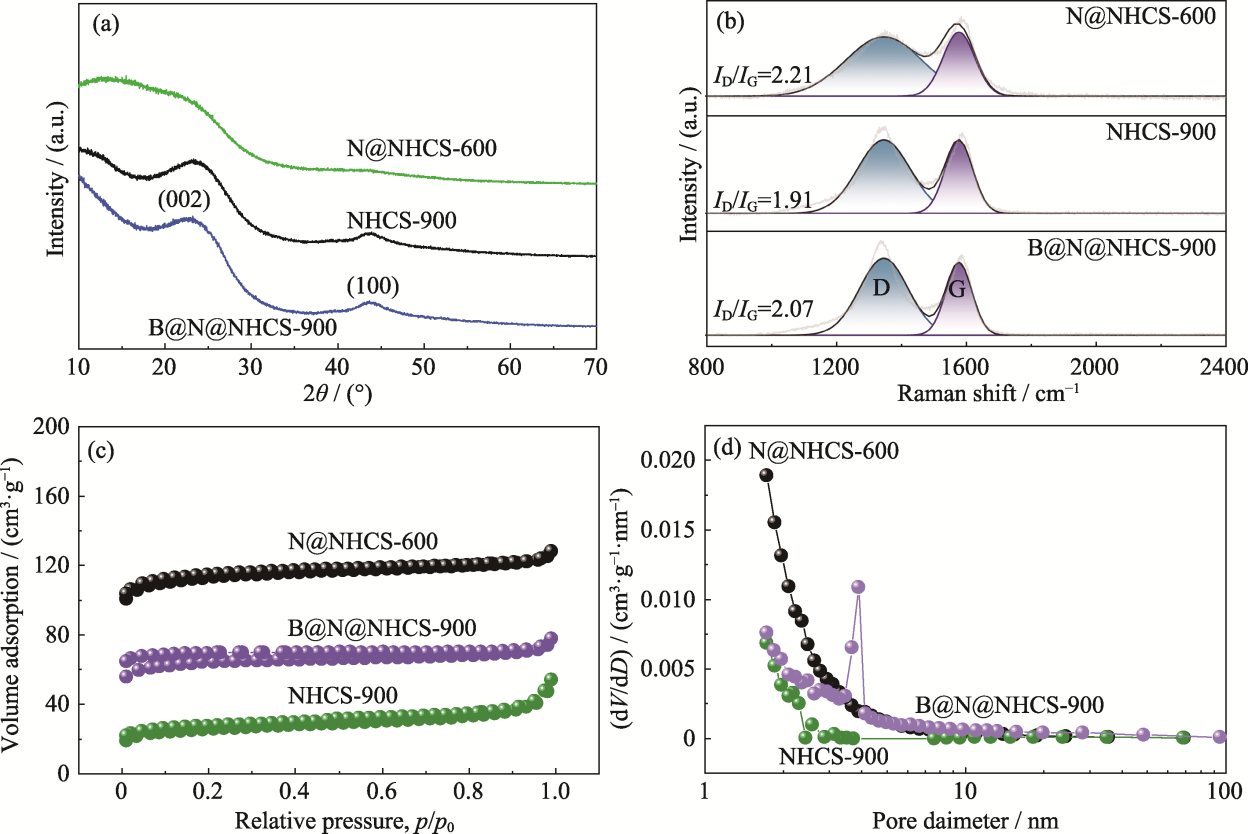

Fig. 4 (a) XRD patterns, (b) Raman spectra, (c) N2 adsorption-desorption isotherms and (d) pore size distributions of N@NHCS-600, B@N@NHCS-900 and NHCS-900

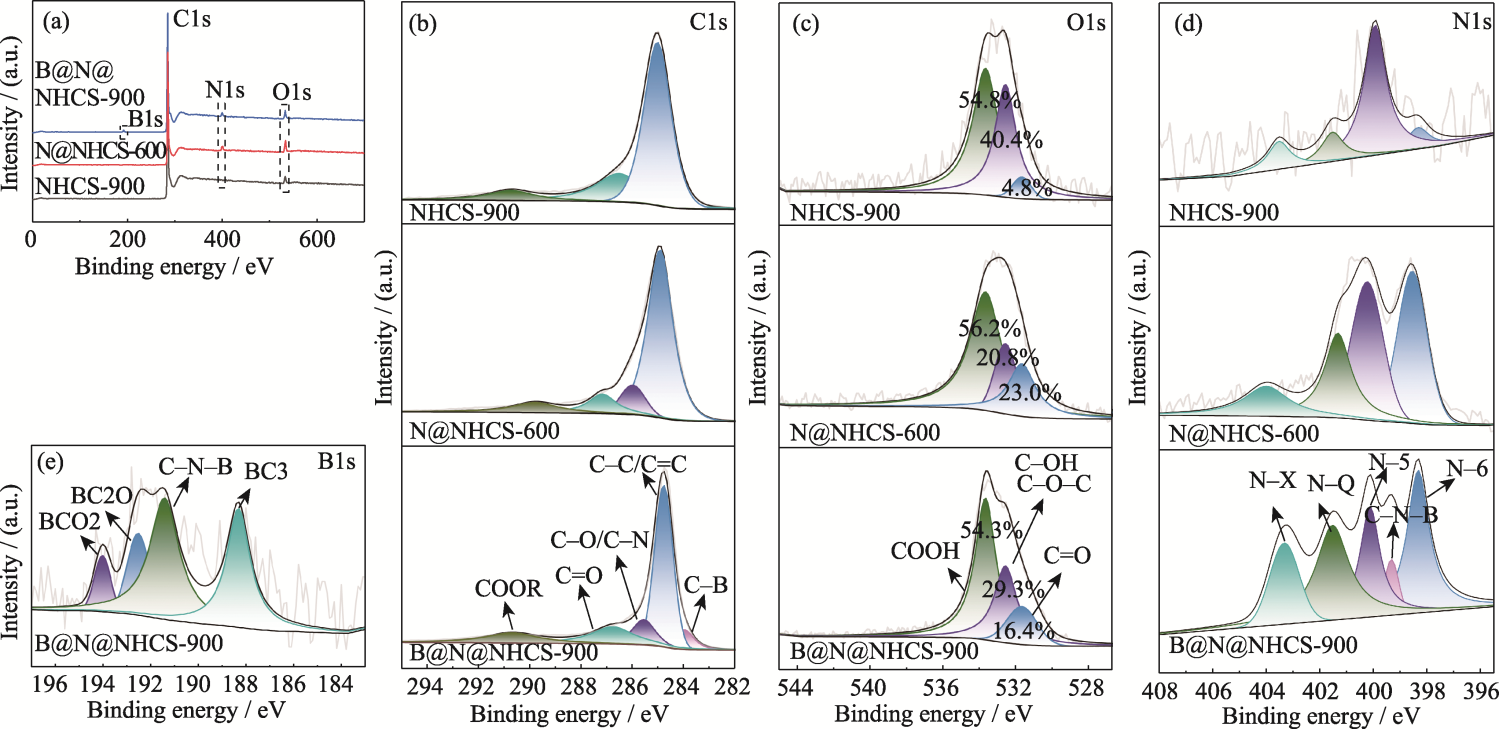

Fig. 5 (a) XPS survey spectra, high resolution (b) C1s, (c) O1s and (d) N1s XPS spectra of N@NHCS-600, B@N@NHCS-900 and NHCS-900; (e) High resolution B1s XPS spectrum of B@N@NHCS-900

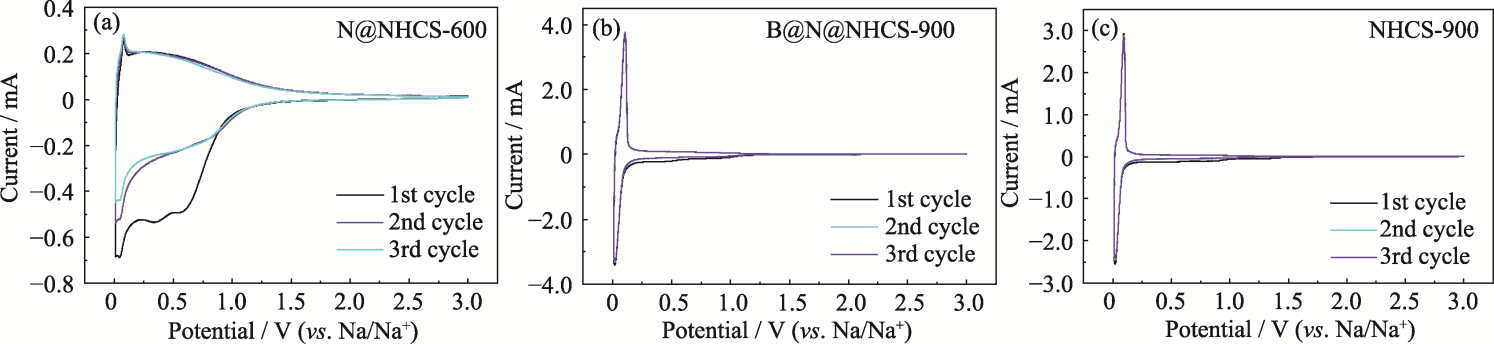

Fig. 6 CV curves of (a) N@NHCS-600, (b) B@N@NHCS-900 and (c) NHCS-900 Colorful figures are available on website

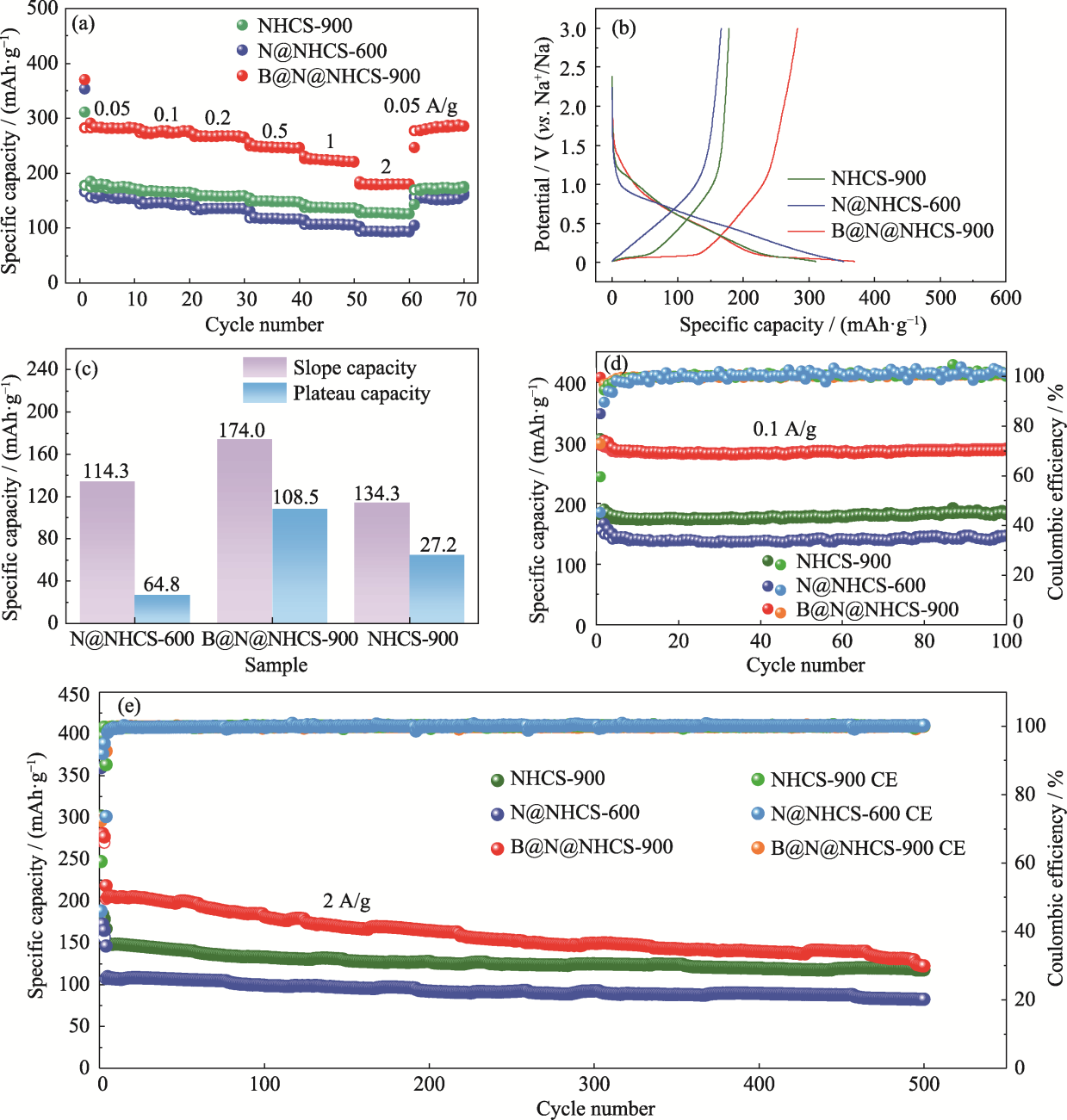

Fig. 7 Electrochemical properties of N@NHCS-600, B@N@NHCS-900 and NHCS-900 (a) Rate capability; (b) First charge-discharge curves at a current density of 0.05 A·g-1; (c) Capacity contribution of the slope/plateau region in the 2nd discharge curves; (d, e) Cycling performance at (d) 0.1 and (e) 2 A·g-1. Colorful figures are available on website

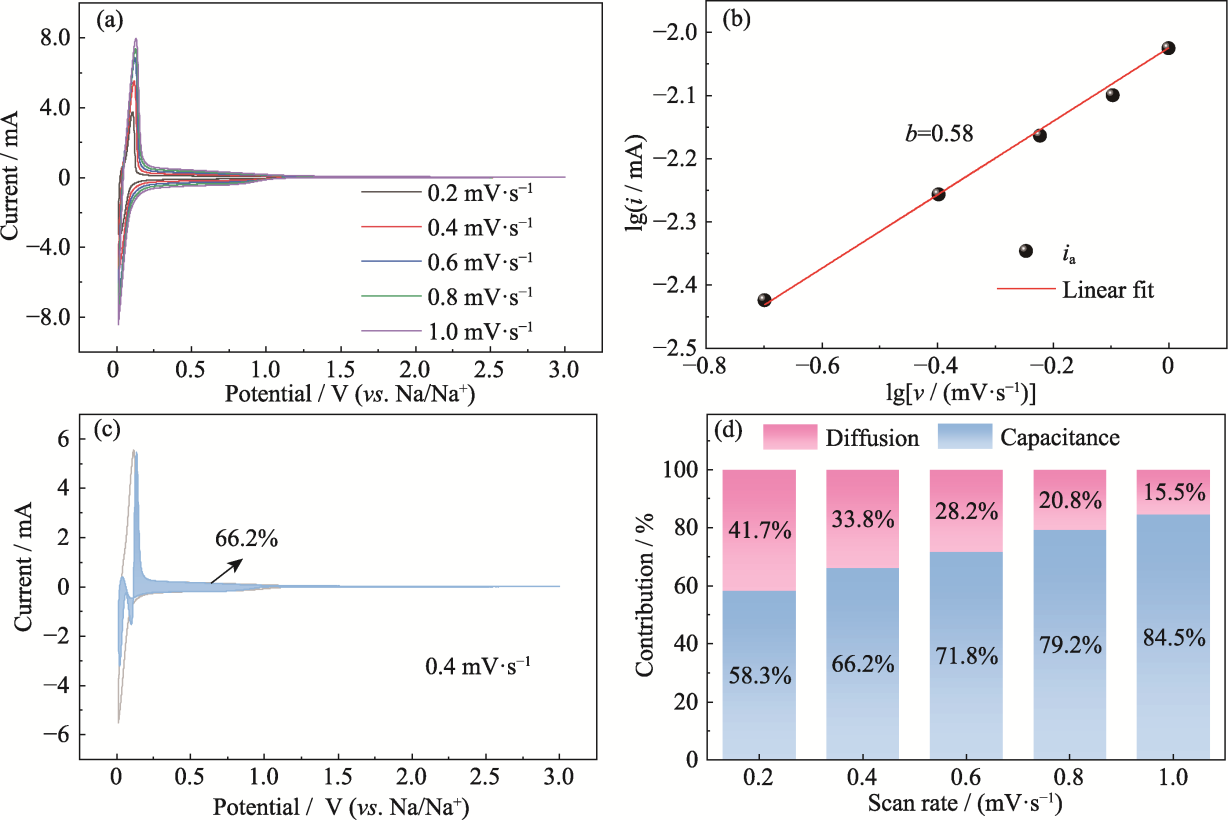

Fig. 8 Dynamic analysis of B@N@NHCS-900 (a) CV curves from 0.2 to 1.0 mV·s-1; (b) Fitting line of scan rate and peak current; (c) Capacitive contribution at 0.4 mV·s-1; (d) Ratios of diffusion and capacitance contributions at different scan rates. Colorful figures are available on website

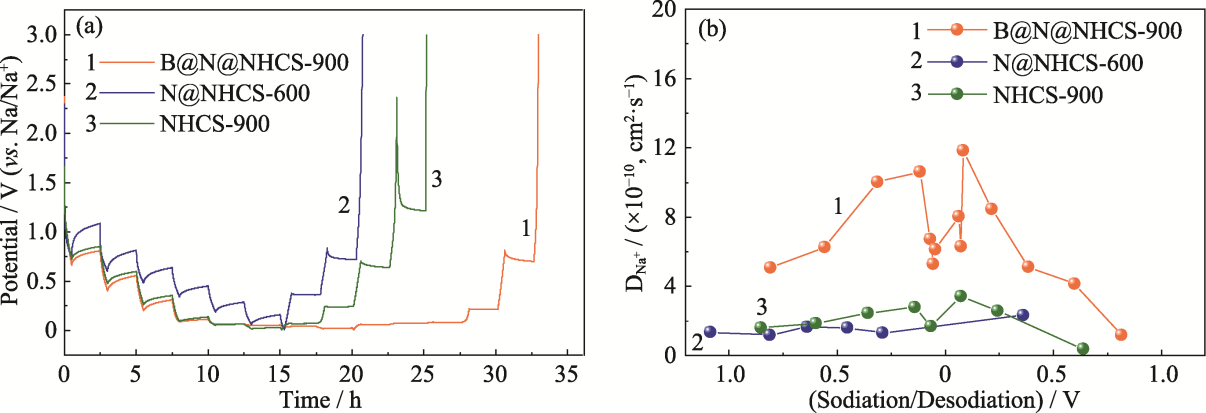

Fig. 9 (a) GITT curves and (b) corresponding diffusion coefficients of N@NHCS-600, B@N@NHCS-900 and NHCS-900

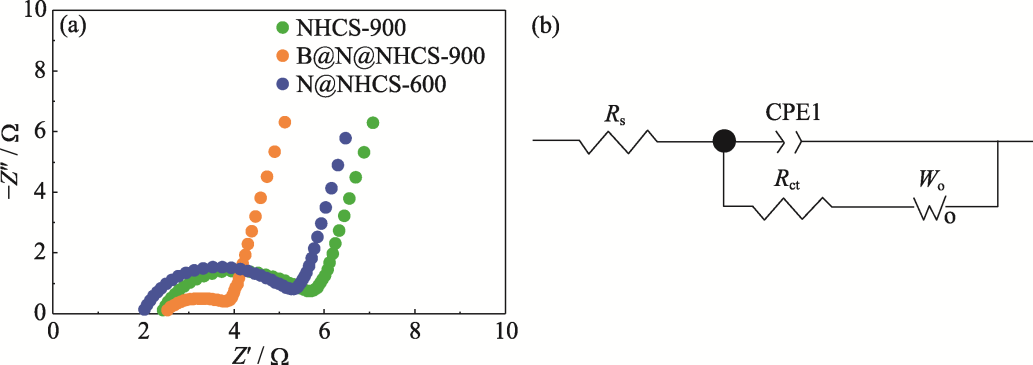

Fig. 10 (a) EIS spectra of N@NHCS-600, B@N@NHCS-900 and NHCS-900, and (b) corresponding equivalent circuit Colorful figure is available on website

Table S1 Structural parameters of different samples

Sample	d₍₀₀₂₎/nm	I_D/I_G	S_BET/(m²·g^-1)	V_total/(cm³·g^-1)	XPS content/% (in atom)
Sample	d₍₀₀₂₎/nm	I_D/I_G	S_BET/(m²·g^-1)	V_total/(cm³·g^-1)	C	O	N	B
N@NHCS-600	-	2.21	442.4	0.189	89.52	6.79	3.69	-
B@N@NHCS-900	0.385	2.07	249.1	0.109	89.49	5.89	2.98	1.64
NHCS-900	0.378	1.91	94.9	0.064	95.96	3.56	0.48	-

Table S2 Comparison of electrochemical performance of B@N@NHCS-900 anode with other carbon anode materials for sodium ion storage reported in previous literatures

Sample	Rate performance		Cycling performance			Ref.
Sample	Capacity/(mAh·g^-1)	Current density/(A·g^-1)	Capacity/(mAh·g^-1)	Current density /(A·g^-1)	Cycle number	Ref.
BHCS-1200	234	0.03	180	0.1	100	[33]
BHCS-1200	Below 100	2	180	0.1	100	[33]
NPUCS	257.7	0.1	255.1	0.1	200	[38]
NPUCS	157.0	5	110.0	5	2000	[38]
PB-1000	205	0.1	146.9	2	600	[S1]
PB-1000	136.6	2	146.9	2	600	[S1]
CPB-PL	293	0.02	193	0.1	200	[S2]
CPB-PL	77	1	193	0.1	200	[S2]
SC-800	229	0.05	189	0.05	50	[S3]
SC-800	82.0	1	81.0	0.5	2000	[S3]
SAL	285	0.02	141.6	0.2	1000	[S4]
SAL	150	0.5	141.6	0.2	1000	[S4]
HC-1000	242.1	0.025	Below 60	1	800	[S5]
HC-1000	Below 100	0.8	Below 60	1	800	[S5]
YT-1200	261	0.1	235	0.1	200	[S6]
YT-1200	206	2	235	0.1	200	[S6]
N-FLG	264.3	0.1	211.3	0.5	2000	[S7]
N-FLG	148.5	5	211.3	0.5	2000	[S7]
B@N@NHCS-900	274.8	0.1	281.8	0.1	100	This work
B@N@NHCS-900	179.4	2	122.5	2	500	This work

References 38
