Influence of Support Characteristics on the Coverage of Ionomer and Oxygen Reduction Performance on Pt/C Catalysts

doi:10.15541/jim20250004

Abstract

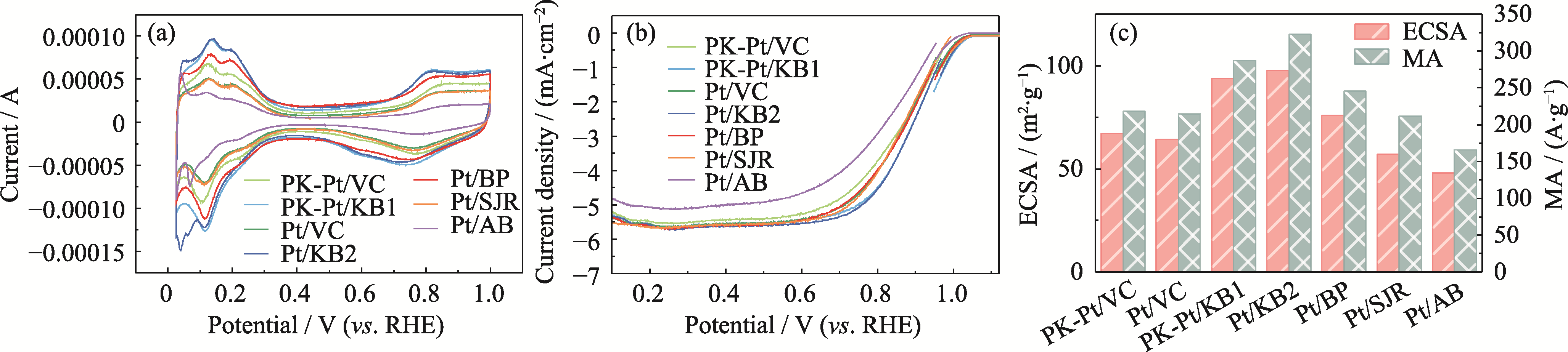

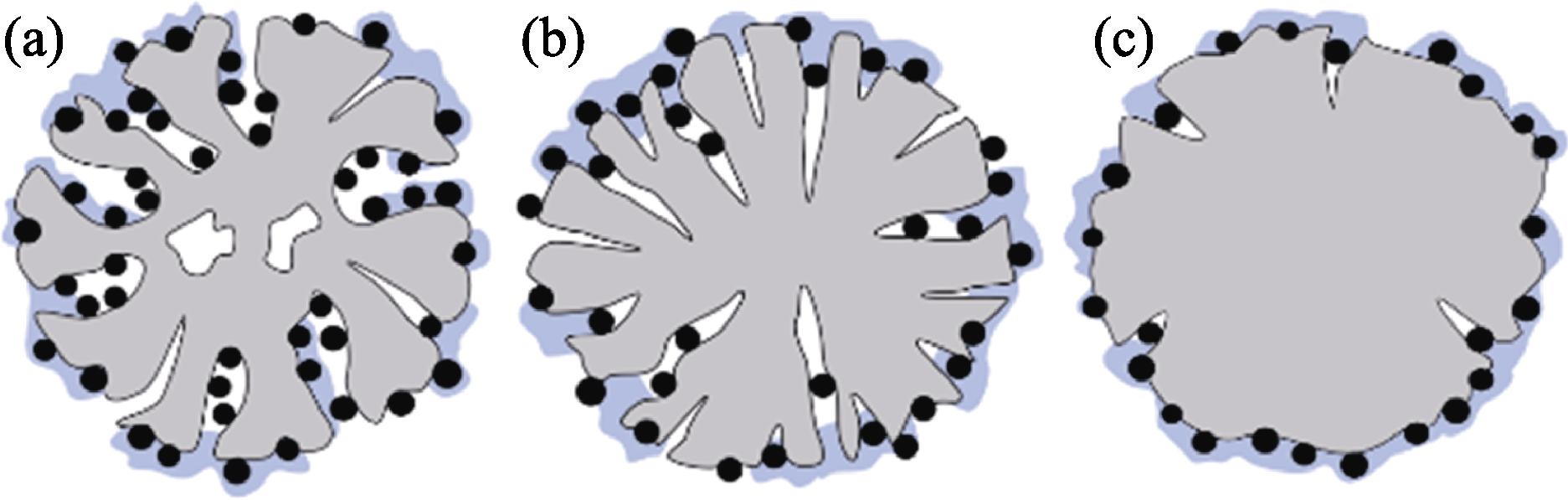

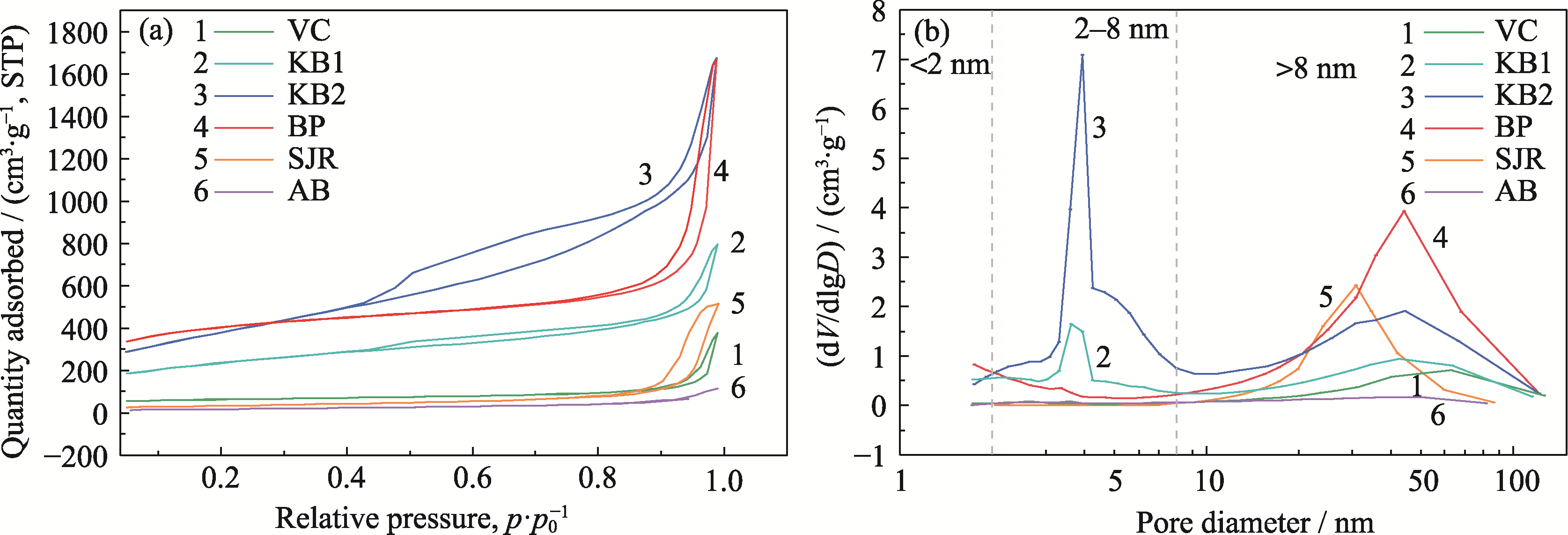

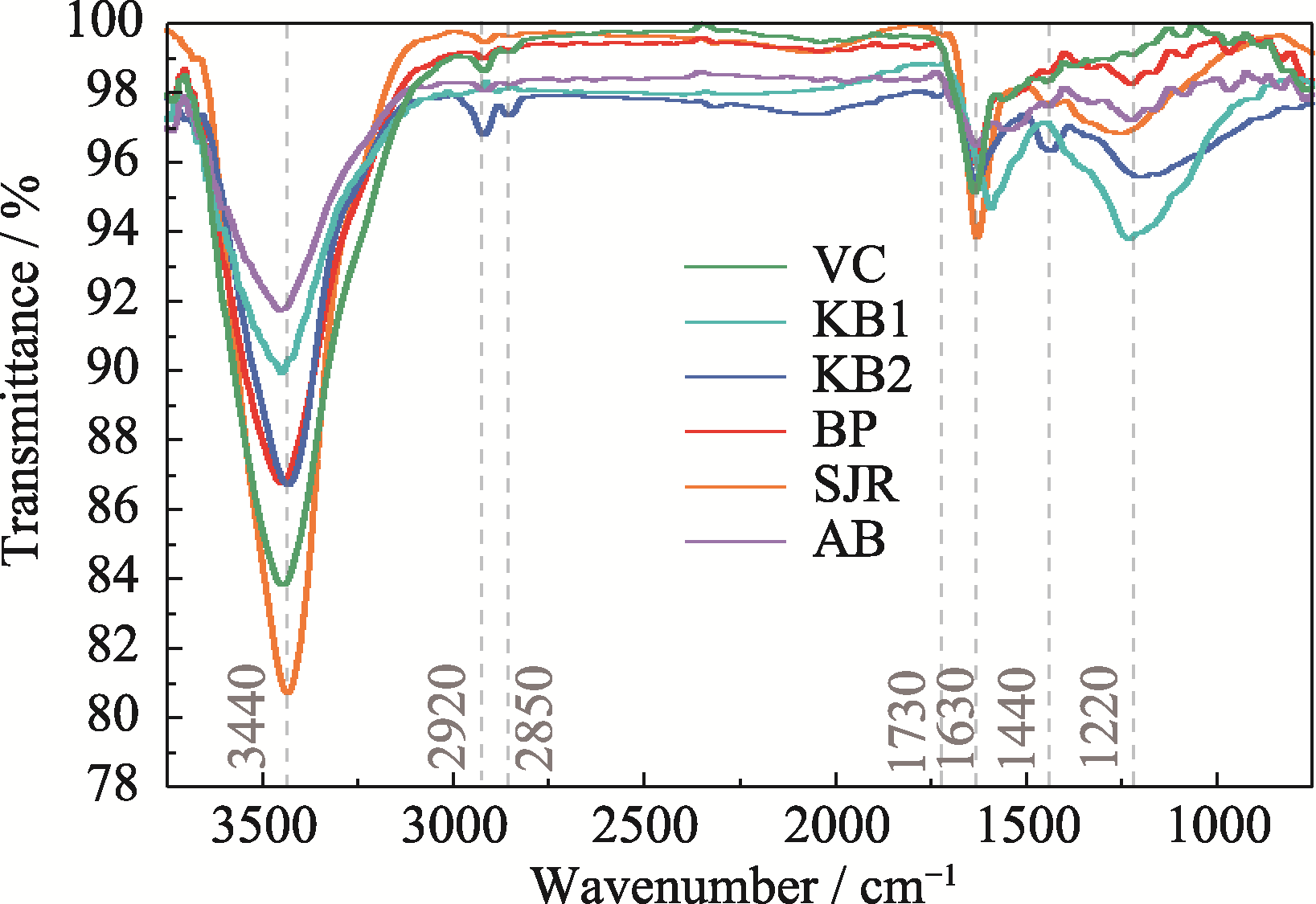

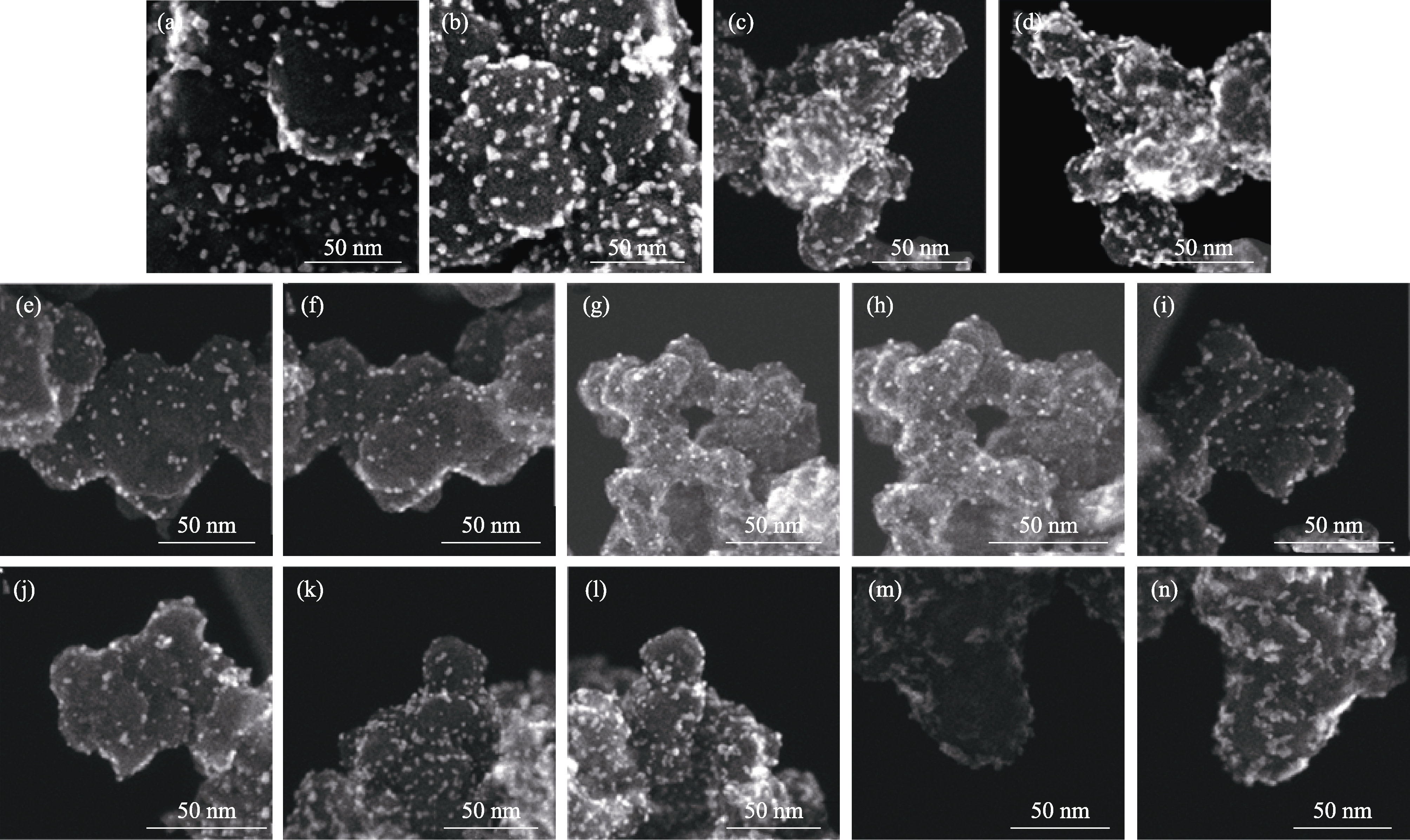

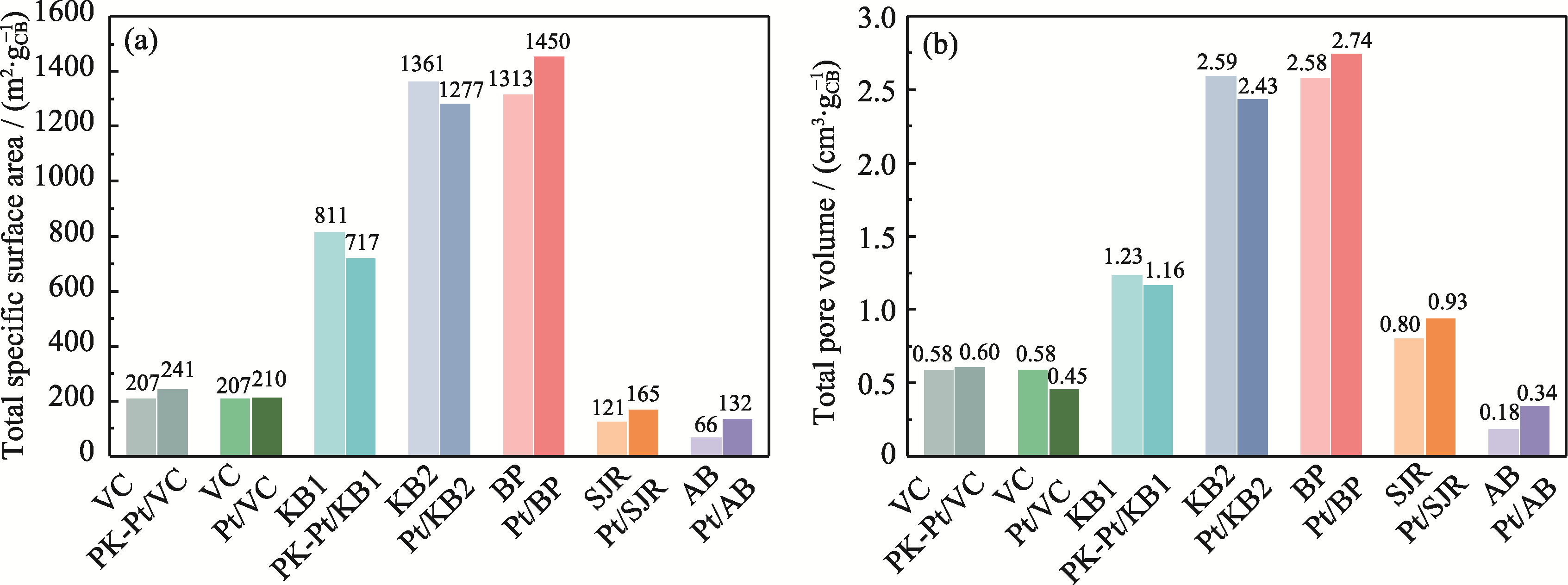

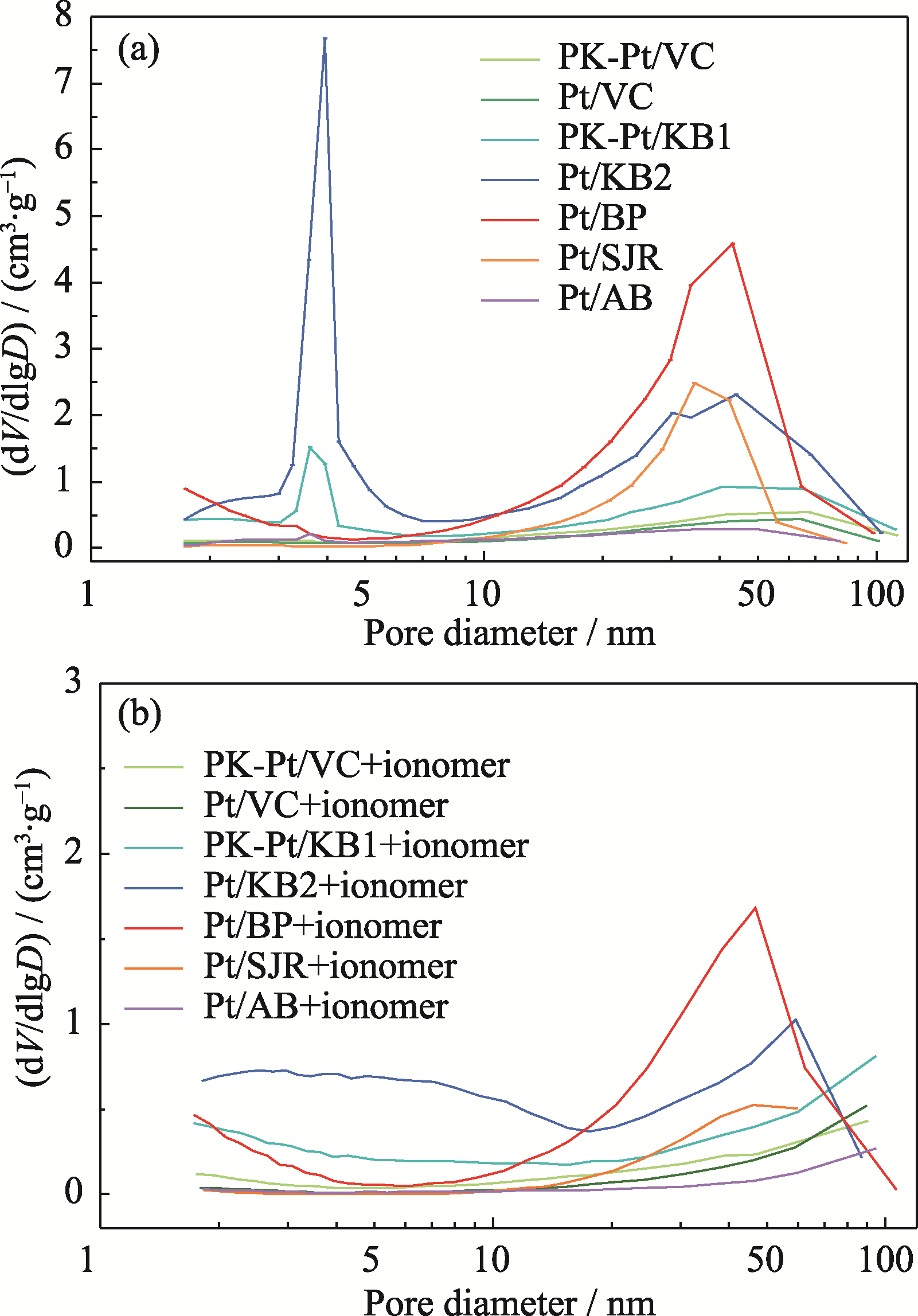

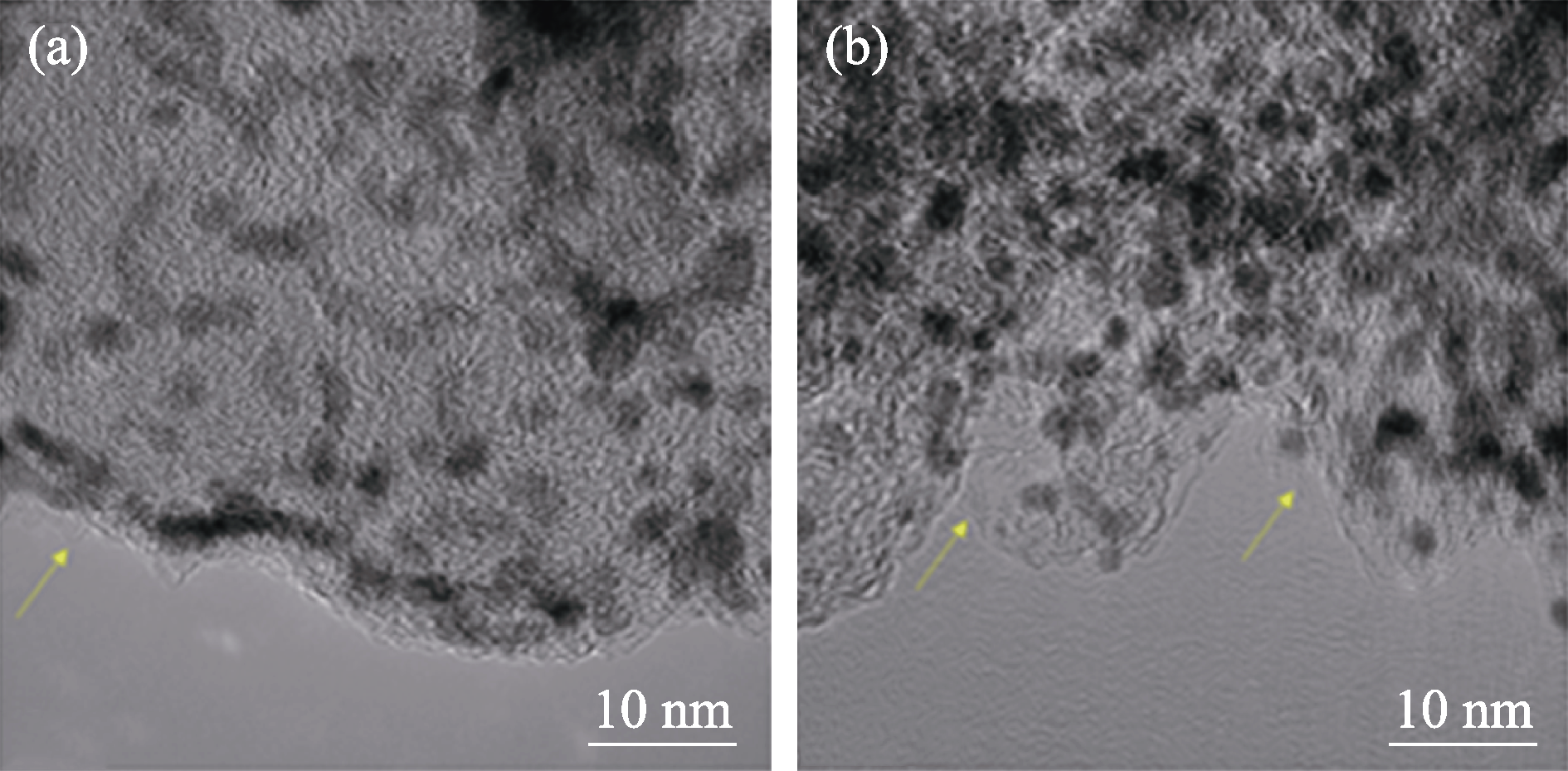

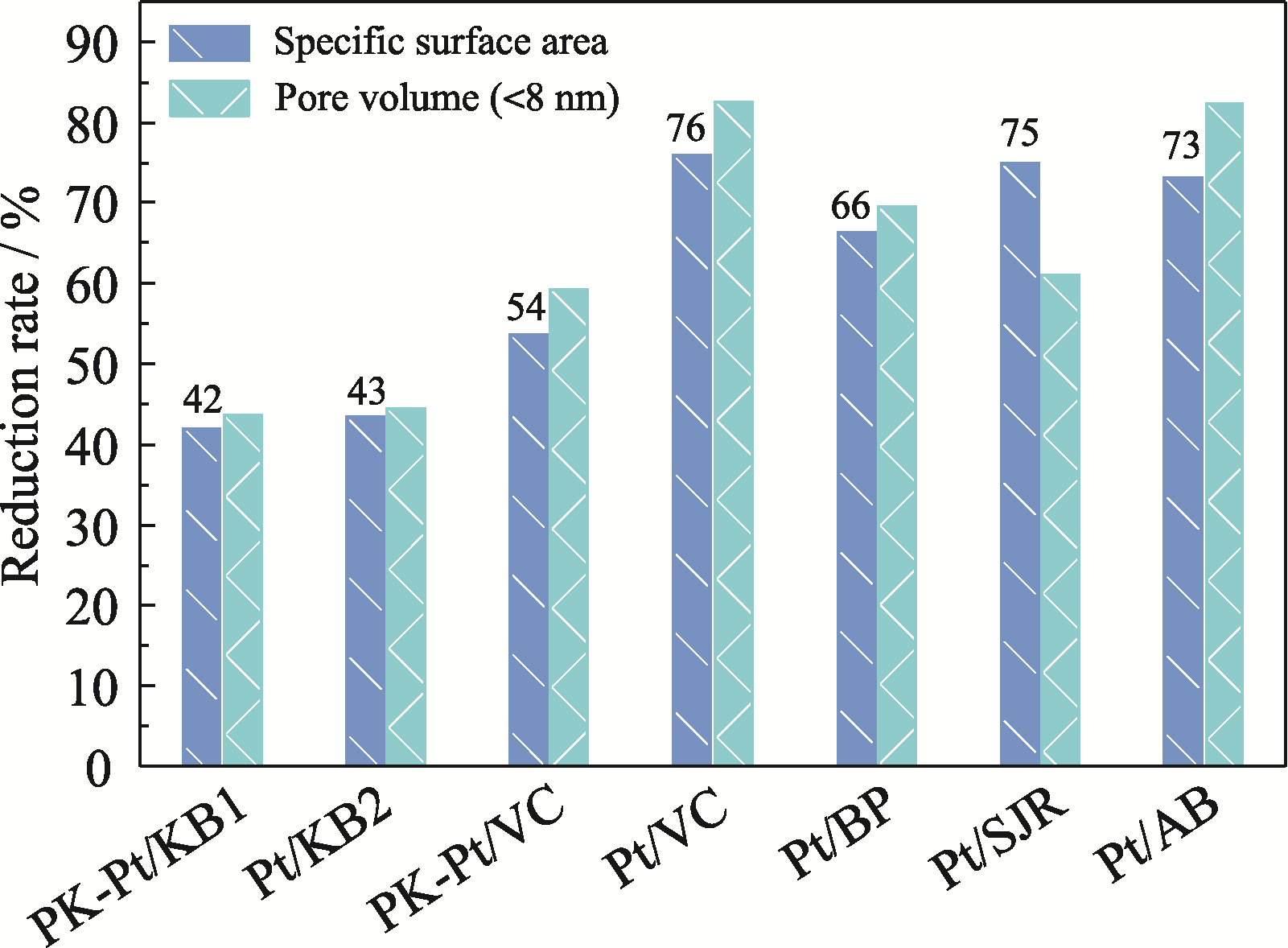

Abstract: Carbon support is an important component of Pt/C catalyst commonly used in the membrane electrodes of proton exchange membrane fuel cells, and ionomer is one of the key components that make up the catalytic layer. In the present study, six different types of commercial carbon supports (VC, KB1, KB2, BP, SJR, AB) were focused. The microstructure and surface chemical properties of the carbon supports and the Pt/C catalysts prepared pre and post the addition of ionomer were investigated using various characterization methods. The oxygen reduction reaction (ORR) performance of various Pt/C catalysts was tested to explore the electrocatalytic structure-activity relationship of representative carbon supported Pt catalysts. As revealed, carbon supports with large specific surface areas and rich pore structures, such as KB1, KB2 and BP, contributes to more uniform distribution of Pt particles and smaller particle size. The presence of oxygen-containing functional groups on solid carbon supports with strong hydrophilicity, such as VC and SJR, contributes to the dispersion of Pt particles. Meanwhile, carbon supports with abundant mesopores in the range of 2-8 nm (KB1 and KB2) are beneficial for improving the location of Pt within the pores of carbon particles, while those with high specific surface area and full of micropores (BP) and with medium or low specific surface area (VC, SJR, AB) have most Pt nano-particles distributed on the outer surface of the carbon particles. By further combining the changes in specific surface area and pore structure of various Pt/C samples before and after the addition of ionomer, the coverages of ionomer were calculated, and a distribution model of ionomer on different catalyst particles was proposed. On the solid carbon supported catalysts, a certain amount of ionomer basically covers the entire outer surface of carbon particles. On the BP supported catalyst which is dominated by micropores, ionomer can block the micropores, resulting in a significant decrease in specific surface area and pore volume; on the mesoporous carbon supported catalysts, the same amount of ionomer is hard to block all micropores and mesopores, leading to lower coverages. The ORR activity of Pt/C catalyst mainly depends on the Pt nano-particle size, and the Pt nano-particles located in the pores inside the carbon particles can be protected from the poisoning of ionomer. Therefore, Pt catalysts supported on the carbon supports of KB series exhibit excellent performance for the ORR kinetics occurring in liquid-phase.

Key words: support characteristic, Pt/C catalyst, ionomer coverage, oxygen reduction reaction, proton exchange membrane fuel cell

CLC Number:

TQ426

LI Xueru, MA Zhejie, GUO Yujie, LI Ping. Influence of Support Characteristics on the Coverage of Ionomer and Oxygen Reduction Performance on Pt/C Catalysts[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20250004.

References

[1] HAO C, LIU Z R, LIU W, et al. Research progress of carbon-supported metal single atom catalysts for oxygen reduction reaction. Journal of Inorganic Materials, 2021, 36(8): 820.
[2] YAO Y S, GUO R H, AN S L, et al. In-situ loaded Pt-Co high index facets catalysts: preparation and elec-trocatalytic performance. Journal of Inorganic Materials, 2023, 38(1): 71.
[3] 李薛茹, 马哲杰, 李平. 质子交换膜燃料电池阴极催化层微观结构表征研究进展. 储能科学与技术, 2025, 14(2): 812.
[4] NORMILE S J, ZENYUK I V.Imaging ionomer in fuel cell catalyst layers with synchrotron nano transmission X-ray microscopy.Solid State Ionics, 2019, 335: 38.
[5] MINAMI S, KAJIYA S, YAMADA H, et al. Measurement of ionomer coverage on carbon and Pt in catalyst layer of polymer electrolyte fuel cells by electrochemical impedance spectroscopy. Electrocatalysis, 2023, 14(4): 522.
[6] KODAMA K, SHINOHARA A, HASEGAWA N, et al. Catalyst poisoning property of sulfonimide acid ionomer on Pt (111) surface. Journal of The Electrochemical Society, 2014, 161(5): F649.
[7] SHINOZAKI K, MORIMOTO Y, PIVOVAR B S, et al. Suppression of oxygen reduction reaction activity on Pt-based electrocatalysts from ionomer incorporation. Journal of Power Sources, 2016, 325: 745.
[8] OTT S, ORFANIDI A, SCHMIES H, et al. Ionomer distribution control in porous carbon-supported catalyst layers for high-power and low Pt-loaded proton exchange membrane fuel cells. Nature Materials, 2020, 19(1): 77.
[9] SUN D D, WANG Z, JIN M, et al. Optimizing ionomer coverage in solid carbon-supported catalyst toward high performance for proton exchange membrane fuel cells. ACS Applied Energy Materials, 2024, 7(9): 4132.
[10] PARK Y C, TOKIWA H, KAKINUMA K, et al. Effects of carbon supports on Pt distribution, ionomer coverage and cathode performance for polymer electrolyte fuel cells. Journal of Power Sources, 2016, 315: 179.
[11] UCHIDA M, PARK Y C, KAKINUMA K, et al. Effect of the state of distribution of supported Pt nanoparticles on effective Pt utilization in polymer electrolyte fuel cells. Physical Chemistry Chemical Physics, 2013, 15(27): 11236.
[12] YARLAGADDA V, CARPENTER M K, MOYLAN T E, et al. Boosting fuel cell performance with accessible carbon mesopores. ACS Energy Letters, 2018, 3(3): 618.
[13] RAMASWAMY N, GU W B, ZIEGELBAUER J M, et al. Carbon support microstructure impact on high current density transport resistances in PEMFC cathode. Journal of the Electrochemical Society, 2020, 167(6): 064515.
[14] WANG M N, ZHANG J G, FAVERO S, et al. Resolving optimal ionomer interaction in fuel cell electrodes via operando X-ray absorption spectroscopy. Nature Communications, 2024, 15(1): 9390.
[15] 朱凤鹃, 吴爱明, 吴若飞. 催化剂中碳载体类型对燃料电池性能的影响研究. 现代工程科技, 2023, 2(2): 5.
[16] XIANG Q, JIANG S K, LIU J, et al. Probing impact of support pore diameter on three-phase interfaces of Pt/C catalysts by molecular dynamic simulation. ACS Applied Materials & Interfaces, 2025, 17(5): 7619.
[17] BERLINGER S A, GARG S, WEBER A Z.Multicomponent, multiphase interactions in fuel-cell inks.Current Opinion in Electrochemistry, 2021, 29: 100744.
[18] SCHEIBA F, BENKER N, KUNZ U, et al. Electron microscopy techniques for the analysis of the polymer electrolyte distribution in proton exchange membrane fuel cells. Journal of Power Sources, 2008, 177(2): 273.
[19] GUÉTAZ L, LOPEZ-HARO M, ESCRIBANO S, et al. Catalyst-layer ionomer imaging of fuel cells. ECS Transactions, 2015, 69(17): 455.
[20] LOPEZ-HARO M, GUÉTAZ L, PRINTEMPS T, et al. Three-dimensional analysis of Nafion layers in fuel cell electrodes. Nature Communications, 2014, 5(1): 5229.
[21] TAKESHITA T, KAMITAKA Y, SHINOZAKI K, et al. Evaluation of ionomer coverage on Pt catalysts in polymer electrolyte membrane fuel cells by CO stripping voltammetry and its effect on oxygen reduction reaction activity. Journal of Electroanalytical Chemistry, 2020, 871: 7.
[22] 刘楠, 王宏伟. 单颗粒冷冻电镜技术的研究现状和未来展望. 中国基础科学, 2019, 21(5): 1.
[23] ZHAO X K, MA Z J, LI X R, et al. Optimization of atomic layer deposited Pt-shell thickness of PtCu₃@Pt/C catalyst for oxygen reduction reaction. Materials Chemistry and Physics, 2025, 329: 130145.
[24] ITO T, MATSUWAKI U, OTSUKA Y, et al. Three-dimensional spatial distributions of Pt catalyst nanoparticles on carbon substrates in polymer electrolyte fuel cells. Electrochemistry, 2011, 79(5): 374.
[25] SING K S W. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity.Pure and Applied Chemistry, 2013, 54(11): 2201.
[26] SHIN S, JANG J, YOON S H, et al. A study on the effect of heat treatment on functional groups of pitch based activated carbon fiber using FTIR. Carbon, 1997, 35(12): 1739.
[27] LI P, ZHAO T J, ZHOU J H, et al. Characterization of carbon nanofiber composites synthesized by shaping process. Carbon, 2005, 43(13): 2701.
[28] XIA G F, SHEN S Y, ZHU F J, et al. Effect of oxygen-containing functional groups of carbon materials on the performance of Li-O₂ batteries. Electrochemistry Communications, 2015, 60: 26.
[29] VINAYAN B P, JAFRI R I, NAGAR R, et al. Catalytic activity of platinum-cobalt alloy nanoparticles decorated functionalized multiwalled carbon nanotubes for oxygen reduction reaction in PEMFC. International Journal of Hydrogen Energy, 2012, 37(1): 412.
[30] TERZYK A P.The influence of activated carbon surface chemical composition on the adsorption of acetaminophen (paracetamol) in vitro Part II. TG, FTIR, and XPS analysis of carbons and the temperature dependence of adsorption kinetics at the neutral pH.Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2001, 177(1): 23.
[31] MOHAMED E.Characterization of porous solids and powders: surface area, pore size and density.Journal of the American Chemical Society, 2005, 127(40): 14117.
[32] MA P C, SIDDIQUI N A, MÄDER E, et al. Correlation between electrokinetic potential, dispersibility, surface chemistry and energy of carbon nanotubes. Composites Science and Technology, 2011, 71(14): 1644.
[33] GIROD R, LAZARIDIS T, GASTEIGER H A, et al. Three-dimensional nanoimaging of fuel cell catalyst layers. Nature Catalysis, 2023, 6(5): 383.
[34] ZHONG G Y, XU S R, LIU L, et al. Effect of experimental operations on the limiting current density of oxygen reduction reaction evaluated by rotating-disk electrode. ChemElectroChem, 2020, 7(5): 1107.
