磁性核壳Ag/PDA@SiO2@CoFe2O4复合纳米材料的制备、表征及其抑菌性能研究

doi:10.15541/jim20160427

摘要/Abstract

摘要：

采用溶剂热法制备单分散的CoFe₂O₄亚微米球, 分别用正硅酸乙酯(TEOS)和多巴胺(DA)为前体通过溶胶-凝胶法和自聚合法对CoFe₂O₄核表面进行修饰形成具有多层核壳结构的PDA@SiO₂@CoFe₂O₄, 最外层为聚多巴胺(PDA)。采用原位还原法在PDA表面沉积均匀的银纳米粒子, 合成Ag/PDA@SiO₂@CoFe₂O₄磁性复合粒子。采用透射电子显微镜(TEM)、X射线粉末衍射(XRD)、X射线光电子能谱分析(XPS)、振动探针式磁强计(VSM)和电感耦合等离子发射光谱仪(ICP-OES)对样品的形貌、结构等进行表征, 并研究其对大肠杆菌(E.Coli)和金黄色葡萄球菌(S.Aureas)的抑菌性能。结果表明, 当Ag浓度在0.6 mg/mL时, Ag/PDA@SiO₂@CoFe₂O₄对E.Coli和S.Aureas的抑菌率均在92%以上。除了优异的抑菌性能, 它具有很强的磁性, 可以通过外加磁场回收利用。

关键词: 磁性, 聚多巴胺, 纳米复合材料, 抑菌性能

Abstract:

Monodisperse submicron CoFe₂O₄ spheres were prepared by solvothermal method. Polydopamine-coated silica@CoFe₂O₄ composite particles were synthesized by combination of Sol-Gel process and in situ self-polymerization method, in which tetraethyl orthosilicate (TEOS) and dopamine were used as the precursor for silica and polydopamine (PDA), respectively. The PDA@SiO₂@CoFe₂O₄ composites had a multilayer core-shell structure with PDA as the outermost layer shell. Then, numerous of silver nanoparticles were assembled on the surface of PDA@SiO₂@CoFe₂O₄ via the reduction of Ag⁺ by the surface PDA on the composites. The morphology, structure, and composition of the composites were characterized by transmission electron microscope (TEM), X-ray powder diffraction (XRD), X-ray photoelectron spectrometry (XPS), vibrating sample magnetometry (VSM), and inductively coupled plasma optical emission spectrometry (ICP-OES). Antibacterial experiments indicated that the as-prepared composites could restrict up to 92% Escherichia Coli (E.Coli) and Staphylococcus Aureus (S.Aureas) at 0.6 mg/mL Ag. In addition, the composites showed a strong magnetic response to an externally applied magnetic field, so it could be reused.

Key words: magnetic, polydopamine, nanocomposites, antibacterial activity

中图分类号:

O649

廖凡, 马剑琪, 葛红光. 磁性核壳Ag/PDA@SiO₂@CoFe₂O₄复合纳米材料的制备、表征及其抑菌性能研究[J]. 无机材料学报, 2017, 32(5): 523-528.

LIAO Fan, MA Jian-Qi, GE Hong-Guang. Preparation, Characterization and Antimicrobial Activity of Core-satellite Ag/PDA@SiO₂@CoFe₂O₄ Magnetic Composites[J]. Journal of Inorganic Materials, 2017, 32(5): 523-528.

图/表 7

图1 CoFe2O4(a, b), SiO2@CoFe2O4(c, d), PDA@SiO2@CoFe2O4(e,f)和Ag/PDA@SiO2@CoFe2O4(g, h)样品的透射电镜照片

Fig. 1 TEM images of magnetic nanoparticles (a, b), silica-coated magnetic nanoparticles (c, d), polydopamine coated SiO2@CoFe2O4 (e, f) and Ag/PDA@SiO2@CoFe2O4 (g, h) NPs

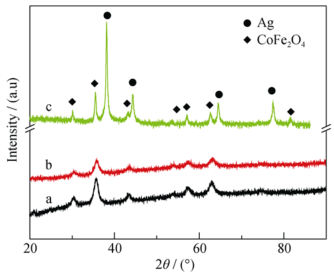

图2 CoFe2O4(a)、PDA@SiO2@CoFe2O4(b)和Ag/PDA@SiO2@CoFe2O4(c)样品的XRD图谱

Fig. 2 XRD patterns of CoFe2O4 (a), PDA@SiO2@CoFe2O4(b) and Ag/PDA@SiO2@CoFe2O4(c) particles

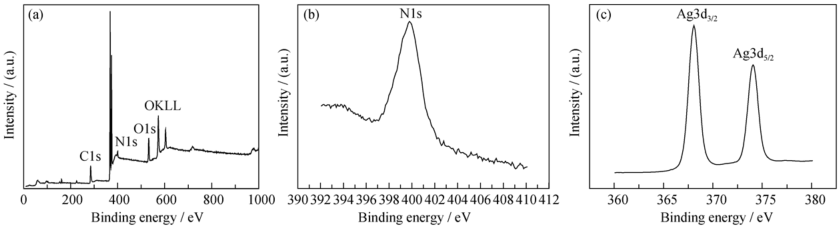

图3 Ag/PDA@SiO2@CoFe2O4样品的XPS图谱

Fig. 3 XPS spectra of the Ag/PDA@SiO2@CoFe2O4 NPs

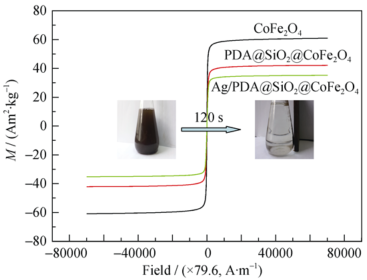

图4 CoFe2O4、PDA@SiO2@CoFe2O4和Ag/PDA@SiO2@CoFe2O4样品的饱和磁化强度

Fig. 4 Hysteresis loops of the magnetic CoFe2O4 core, PDA@SiO2@CoFe2O4 and Ag/PDA@SiO2@CoFe2O4 NPs

图5 无菌水、PDA@SiO2@CoFe2O4、Ag/PDA@SiO2@CoFe2O4 和商品 Ag滤纸片扩散抑菌图

Fig. 5 Inhibition zones of Sterile water, PDA@SiO2@CoFe2O4, Ag/PDA@SiO2@CoFe2O4 and Ag NPs against (a) E.Coli and (b) B.Subtilis (a1-a4, b1-b4 samples containing Ag at concentrations of 0.2, 0.4, 0.6, and 0.8 mg /mL)

表1 Ag/PDA@SiO2@CoFe2O4和商品Ag抑菌圈尺寸

Table 1 Inhibition zone diameters of the Ag/PDA@SiO2@CoFe2O4 and Ag NPs against E.coli and S.aureas (Diffusion (cm) = final inhibition zonediameter(cm)-initial diameter(cm)

Concentration/(mg·mL^-1)	E.coli Inhibition zones/cm		B.subtilis Inhibition zones/cm
Concentration/(mg·mL^-1)	B	C	B	C
0.2	0.5	0.3	0.2	0.1
0.4	0.7	0.5	0.4	0.2
0.6	0.8	0.6	0.8	0.5
0.8	1.0	0.8	1.1	0.7

图6 无菌水、Ag/PDA@SiO2@CoFe2O4和商品Ag菌落计数法抑菌图

Fig. 6 Images of colonies on MH agar plates cultured of E.Coli and B.Subtilis

参考文献 21

[1]	HOLMES J D, LYONS D M, ZIEGLER K J.Supercritical fluid synthesis of metal and semiconductor nanomaterials.Chemistry, 2003, 9(10): 2145-2151.
[2]	VERIANSYAH B, KIM J D, MIN B K, et al.Continuous synthesis of surface-modified zinc oxide nanoparticles in supercritical methanol.the Journal of Supercritical Fluids, 2010, 52: 76-83.
[3]	GHODAKE G, LIM S R, LEE D S.Casein hydrolytic peptides mediated green synthesis of antibacterial silver nanoparticles.Colloids & Surfaces B Biointerfaces, 2013, 108(4): 147-151.
[4]	VAIDYANATHAN R, KALISHWARALAL K, GOPALRAM S, et al.Nanosilver--the burgeoning therapeutic molecule and its green synthesis.Biotechnology Advances, 2009, 27(6): 924-937.
[5]	BORM P J, ROBBINS D, HAUBOLD S, et al.The potential risks of nanomaterials: a review carried out for ECETOC.Particle & Fibre Toxicology, 2006, 3(3): 1-35.
[6]	WANG D P, ZENG H C.Creation of interior space, architecture of shell structure, and encapsulation of functional materials for mes- oporous SiO2 spheres.Chemistry of Materials, 2011, 23(22): 4886-4899.
[7]	HOFFMANN F, CORNELIUS M, MORELL J, et al.Silica-based mesoporous organic-inorganic hybrid materials.Angew. Chem. Int. Ed., 2006, 45: 3216-3251.
[8]	YIN H, YE Y, ZHANG Y, et al.Phosphate removal from wastewaters by a naturally occurring, calcium-rich sepiolite.Journal of Hazardous Materials, 2011, 198(2): 362-369.
[9]	DONG Y, LIU T, SUN S, et al.Preparation and characterization of SiO2/polydopamine/Ag nanocomposites with long-term antibacte- rial activity.Ceramics International, 2014, 40(4): 5605-5609.
[10]	CHI Y, YUAN Q, LI Y, et al.Synthesis of Fe3O4@SiO2-Ag magnetic nanocomposite based on small-sized and highly dispersed silver nanoparticles for catalytic reduction of 4-nitrophenol.Journal of Colloid & Interface Science, 2012, 383(1): 96-102.
[11]	LV B, XU Y, TIAN H, et al.Synthesis of Fe3O4\SiO2\Ag nanoparticles and its application in surface-enhanced Raman scattering.Journal of Solid State Chemistry, 2010, 183(12): 2968-2973.
[12]	LI L, CHOO E S G, TANG X, et al. Ag/Au-decorated Fe3O4 /SiO2 composite nanospheres for catalytic applications.Acta Materialia, 2010, 58(11): 3825-3831.
[13]	LEE H, DELLATORE S M, MILLER W M, et al.Mussel-inspired surface chemistry for multifunctional coatings.Science, 2007, 318(5849): 426-430.
[14]	ZHANG L, WU J, WANG Y, et al.Combination of bioinspiration: a general route to superhydrophobic particles.Journal of the American Chemical Society, 2012, 134(24): 9879-9881.
[15]	LIU Y, AI K, LU L.Polydopamine and its derivative materials: synthesis and promising applications in energy, environmental, and biomedical fields.Chemical Reviews, 2014, 114(9): 5057-5115.
[16]	ZHANG M, ZHENG J, ZHENG Y, et al.Preparation, characterization and catalytic activity of core-satellite Au/Pdop/SiO2/Fe3O4 magnetic nanocomposites.RSC Advances, 2013, 3(33): 13818-13824.
[17]	LIU X C, WANG G C, LIANG R P, et al.Environment-friendly facile synthesis of Pt nanoparticles supported on polydopamine modified carbon materials. J.mater.chem.a, 2013, 1(1): 3945-3953.
[18]	ZHANG M, ZHANG X, HE X, et al.A self-assembled polydopamine film on the surface of magnetic nanoparticles for specific capture of protein.Nanoscale, 2012, 4(10): 3141-3147.
[19]	WANG W, JIANG Y, LIAO Y, et al.Fabrication of silver-coated silica microspheres through mussel-inspired surface functionalization.Journal of Colloid & Interface Science, 2011, 358(2): 567-574.
[20]	LI W R, XIE X B, SHI Q S, et al.Antibacterial activity and mechanism of silver nanoparticles on Escherichia coli.Applied Microbiology & Biotechnology, 2010, 85(4): 1115-1122.
[21]	SUN H, LI G, NIE X, et al.Systematic approach to in-depth understanding of photoelectrocatalytic bacterial inactivation mecha- nisms by tracking the decomposed building blocks.Environmental Science & Technology, 2014, 48(16): 9412-9419.
