基于WO3·xH2O与可逆金属电沉积的无色/黑色转换电致变色器件

doi:10.15541/jim20250017

摘要/Abstract

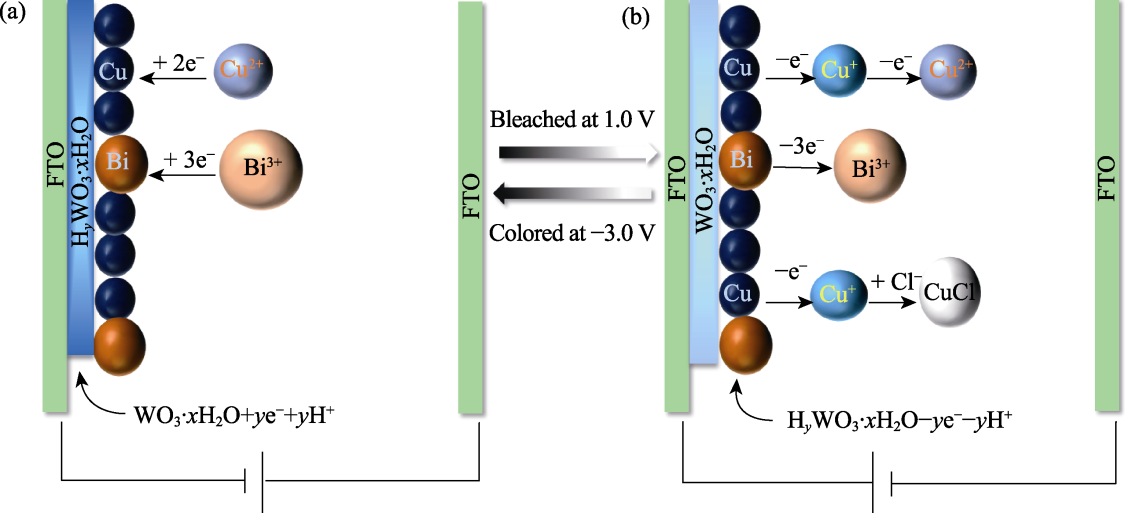

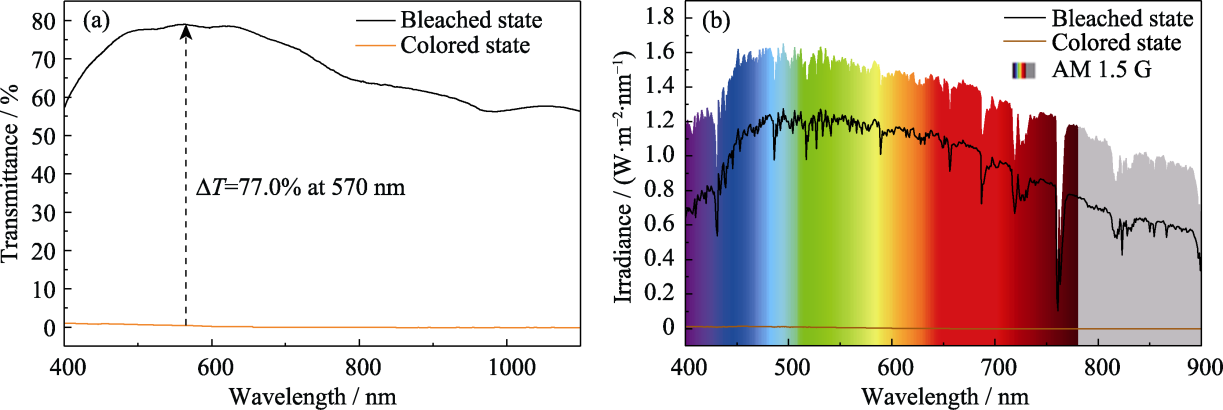

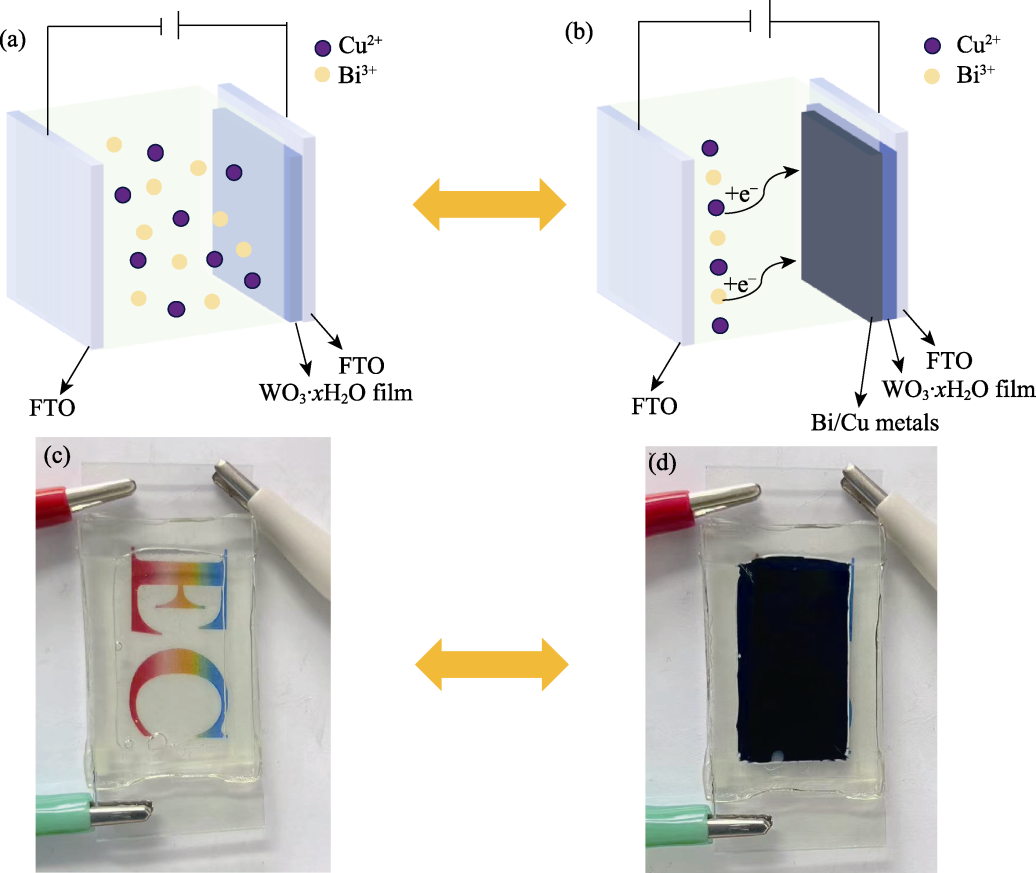

摘要： 利用可逆金属电沉积器件(Reversible metal electrodeposition device, RMED)的电致变色(Electrochromic, EC)智能窗为动态调节光和热的传输提供了一个极具吸引力的替代方案。本工作通过在氟掺杂氧化锡(Fluorine-doped tin oxide, FTO)透明导电玻璃上电沉积WO₃·xH₂O薄膜,再利用Bi/Cu的可逆金属电沉积来构建电致变色器件(Electrochromic device, ECD)。电解质由CuCl₂、BiCl₃、KCl和HCl水溶液组成,为电化学过程和电沉积过程提供必要的成分。该器件可在无色和黑色状态之间快速转换,在570 nm波长处实现了77.0%的光调制幅度。在黑色状态下,电致变色器件在 400~1100 nm范围内呈现出接近零的透过率。此外,在经历 60000 s的着色/褪色循环后,该器件能够维持其初始光调制幅度的 96.6%,展现出良好的循环稳定性。所制备的RMED在开路电压下具有相对较高的稳定性,还拥有出色的隔热性能。这些研究结果为克服循环稳定性差的RMEDs的局限性以及提高ECD的光调制幅度提供了一种解决方案。

关键词: 可逆金属电沉积, 电致变色, WO₃·xH₂O

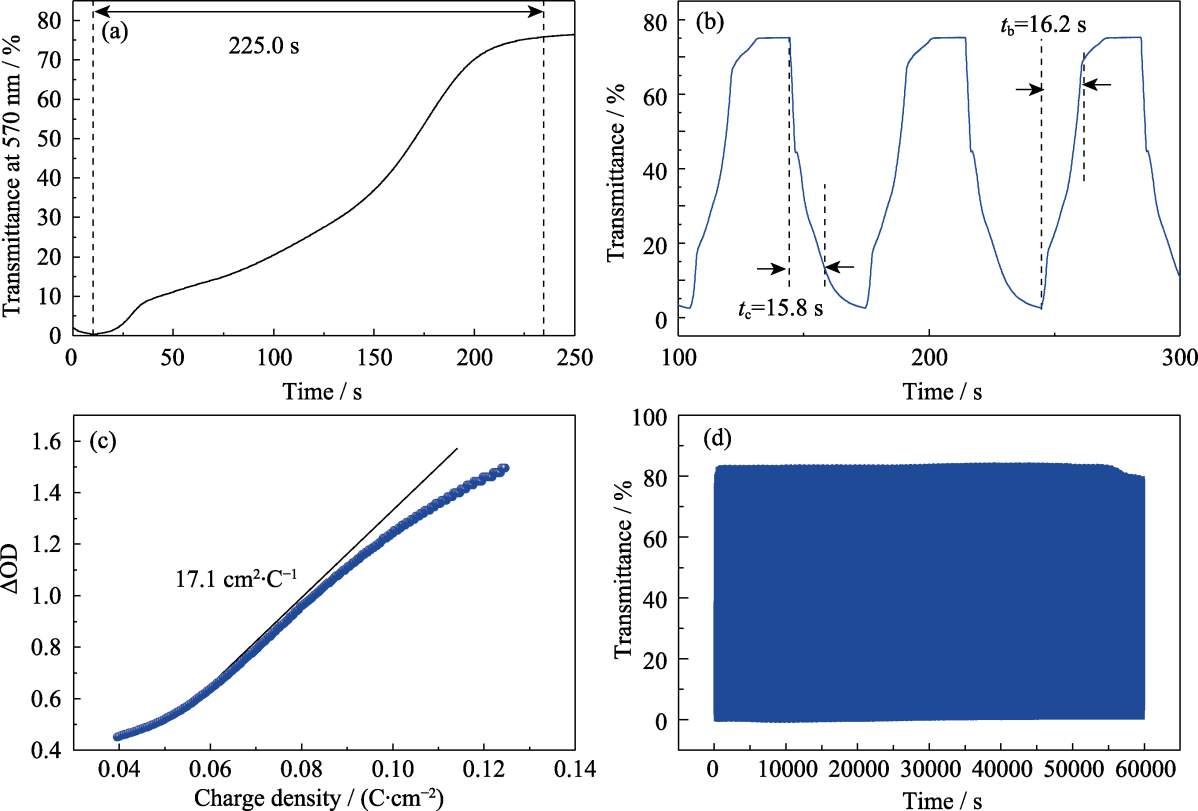

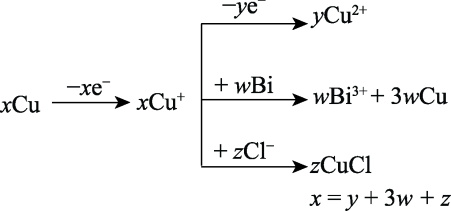

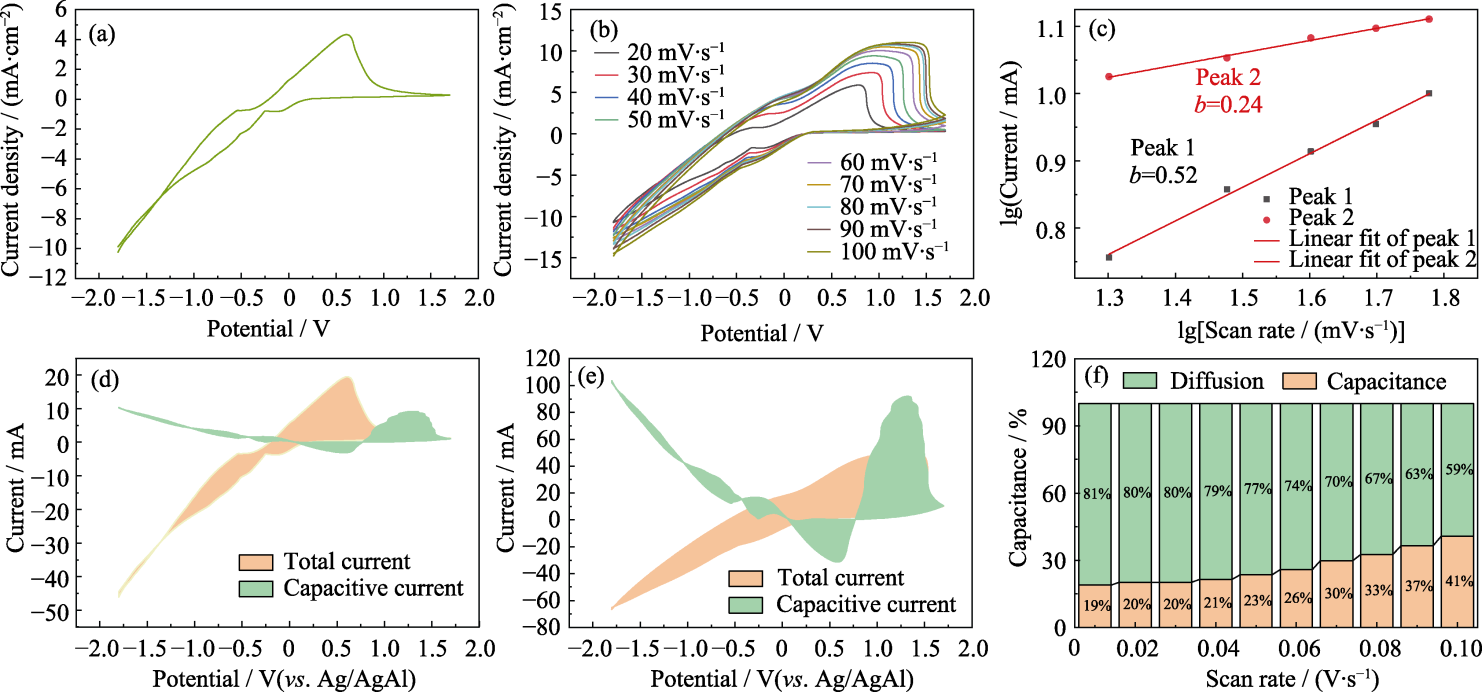

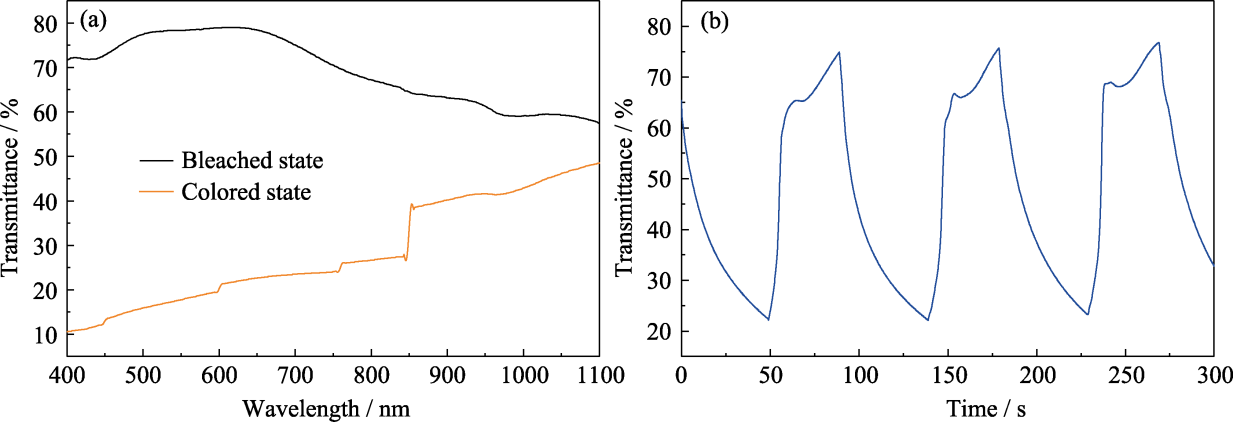

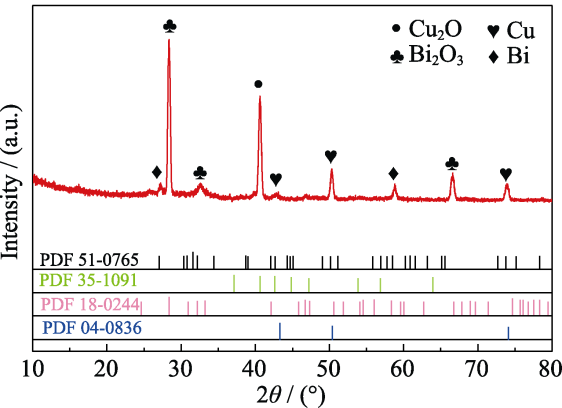

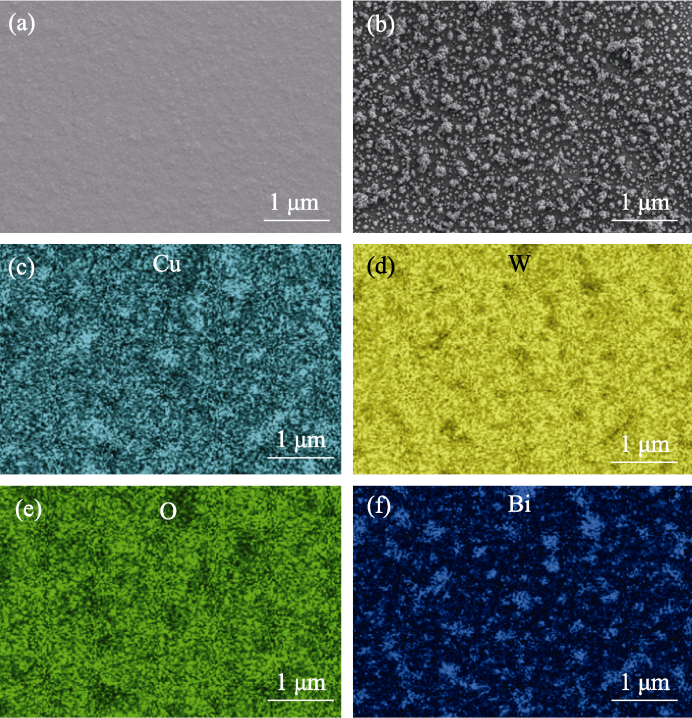

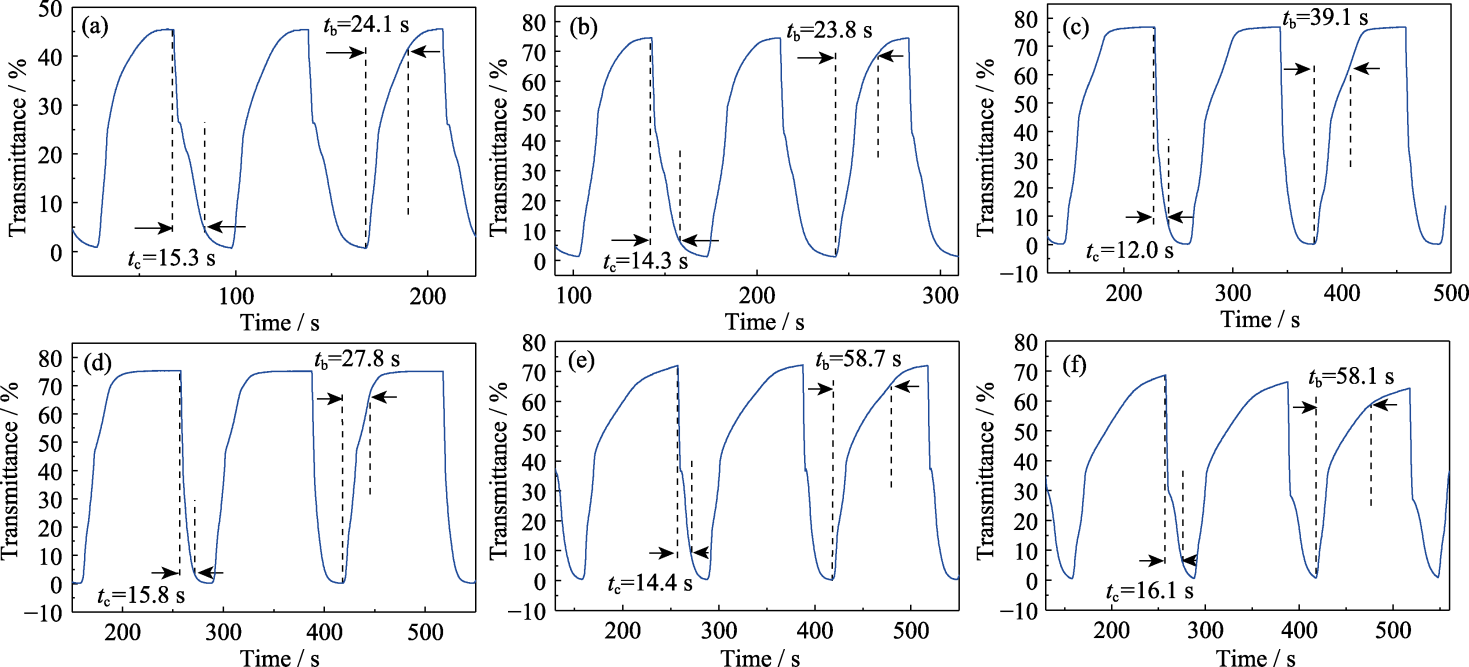

Abstract: Electrochromic (EC) smart windows utilizing reversible metal electrodeposition device (RMED) offer a compelling alternative for dynamically regulating the transmissions of optical and thermal energy. An EC device (ECD) is constructed by utilizing RME of Bi/Cu on WO₃·xH₂O film electrodeposited onto fluorine-doped tin oxide (FTO) transparent conductive glass. The electrolyte consists of CuCl₂, BiCl₃, KCl and HCl aqueous solution, supplying necessary components for both electrochemical and electrodeposition processes. The device shows the ability to rapidly transition between colorless and black states, which achieves a large optical modulation of 77.0% at 570 nm. In the black state, the ECD exhibits a near-zero transmittance in the wavelength range of 400-1100 nm. Furthermore, the device is able to maintain 96.6% of its initial optical modulation after coloration/bleaching cycling of 60,000 s, exhibiting a good cyclic stability. And this RMED has relatively high stability under open-circuit voltage and also possesses excellent heat insulation performance. The results offer a solution to overcome the limitations of RMEDs that have poor cyclic stability and improve the optical modulation of ECDs.

Key words: reversible metal electrodeposition, electrochromic, WO₃·xH₂O

宛心怡, 王文奇, 李加诚, 赵俊亮, 马董云, 王金敏. 基于WO₃·xH₂O与可逆金属电沉积的无色/黑色转换电致变色器件[J]. 无机材料学报, DOI: 10.15541/jim20250017.

WAN Xinyi, WANG Wenqi, LI Jiacheng, ZHAO Junliang, MA Dongyun, WANG Jinmin. Colorless/Black Switching Electrochromic Device Based on WO3·xH2O and Reversible Metal Electrodeposition[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20250017.

参考文献

[1] KHANDEKAR M L, MURTY T S, CHITTIBABU P.The global warming debate: a review of the state of science.Pure Appl. Geophys., 2005, 162(8/9): 1557.
[2] GRANQVIST C G.Transparent conductors as solar energy materials: a panoramic review.Sol. Energy Mater. Sol. Cells, 2007, 91(15): 1529.
[3] SUMBOJA A, LIU J M, ZHENG W G, et al. Electrochemical energy storage devices for wearable technology: a rationale for materials selection and cell design. Chem. Soc. Rev., 2018, 47(15): 5919.
[4] KIM H, SON M, AHN S H, et al. Comparison of electrochromic characteristics of electrochromic device upon various sintering methods of sol-gel based WO₃ electrode. Curr. Appl. Phys., 2020, 20(6): 782.
[5] EH A L S, TAN A W M, CHENG X,et al. Recent advances in flexible electrochromic devices: prerequisites, challenges, and prospects. Energy Technol., 2018, 6(1): 33.
[6] ZHANG R C, ZHANG Z B, HAN J C, et al. Advanced liquid crystal-based switchable optical devices for light protection applications: principles and strategies. Light Sci. Appl., 2023, 12(1): 11.
[7] GLOGIC E, FUTSCH R, THENOT V,et al. Development of eco-efficient smart electronics for anticounterfeiting and shock detection based on printable inks. ACS Sustain. Chem. Eng., 2021, 9(35): 11691.
[8] WANG J L, LIU J W, SHENG S Z, et al. Manipulating nanowire assemblies toward multicolor transparent electrochromic device. Nano Lett., 2021, 21(21): 9203.
[9] ALCARAZ G K A, JUAREZ-ROLON J S, BURPEE N A,et al. Thermally-stable dynamic windows based on reversible metal electrodeposition from aqueous electrolytes. J. Mater. Chem. C, 2018, 6(8): 2132.
[10] ARAKI S, NAKAMURA K, KOBAYASHI K, et al. Electrochemical optical‐modulation device with reversible transformation between transparent, mirror, and black. Adv. Mater., 2012, 24(23): 122.
[11] EH A L S, CHEN J, ZHOU X,et al. Robust trioptical-state electrochromic energy storage device enabled by reversible metal electrodeposition. ACS Energy Lett., 2021, 6(12): 4328.
[12] ZIEGLER J P.Status of reversible electrodeposition electrochromic devices.Sol. Energy Mater. Sol. Cells, 1999, 56(3/4): 477.
[13] LAIK B, CARRIÈRE D, TARASCON J M. Reversible electrochromic system based on aqueous solution containing silver.Electrochim. Acta, 2001, 46(13/14): 2203.
[14] BARILE C J, SLOTCAVAGE D J, HOU J Y, et al. Dynamic windows with neutral color, high contrast, and excellent durability using reversible metal electrodeposition. Joule, 2017, 1(1): 133.
[15] BARILE C J.Electrolyte dynamics in reversible metal electrodeposition for dynamic windows.J. Appl. Electrochem., 2018, 48(4): 443.
[16] HOWARD B M, ZIEGLER J P.Optical properties of reversible electrodeposition electrochromic materials.Sol. Energy Mater. Sol. Cells, 1995, 39(2/3/4): 309.
[17] ISLAM S M, FINI C N, BARILE C J.Dynamic windows based on reversible metal electrodeposition with enhanced functionality.J. Electrochem. Soc., 2019, 166(8): D333.
[18] JEONG K R, LEE I, PARK J Y,et al. Enhanced black state induced by spatial silver nanoparticles in an electrochromic device. NPG Asia Mater., 2017, 9: e362.
[19] LUO G, SHEN L Y, ZHENG J M, et al. A europium ion doped WO₃ film with the bi-functionality of enhanced electrochromic switching and tunable red emission. J. Mater. Chem. C, 2017, 5(14): 3488.
[20] DOV N E, SHANKAR S, COHEN D, et al. Electrochromic metallo-organic nanoscale films: fabrication, color range, and devices. J. Am. Chem. Soc., 2017, 139(33): 11471.
[21] ASSIS L M N, LEONES R, KANICKI J, et al. Prussian blue for electrochromic devices. J. Electroanal. Chem., 2016, 777: 33.
[22] ZHI M Y, HUANG W X, SHI Q W,et al. Enhanced electrochromic performance of vanadium pentoxide/reduced graphene oxide nanocomposite film prepared by the Sol-Gel method. J. Electrochem. Soc., 2016, 163(10): H891.
[23] QIU M J, SUN P, ZHANG B,et al. Reliable information encryption and digital display applications based on multistate smart windows. Adv. Opt. Mater., 2018, 6(22): 1800338.
[24] SUI C X, PU J K, CHEN T H, et al. Dynamic electrochromism for all-season radiative thermoregulation. Nat. Sustain., 2023, 6(4): 428.
[25] JIA Z F, SUI Y M, QIAN L, et al. Electrochromic windows with fast response and wide dynamic range for visible-light modulation without traditional electrodes. Nat. Commun., 2024, 15: 6110.
[26] ZHANG Y X, XU B, HUANG B K,et al. Color-neutral smart window enabled by gradient reversible alloy deposition. ACS Energy Lett., 2024, 9(8): 4162.
[27] NGUYEN T V, DO H, GUO W W,et al. Tungsten oxide-modified ITO electrode for electrochromic window based on reversible metal electrodeposition. Electron. Mater. Lett., 2022, 18(1): 36.
[28] SHENG K, XUE B, ZHENG J M, et al. A transparent to opaque electrochromic device using reversible Ag deposition on PProDOT-Me₂ with robust stability. Adv. Opt. Mater., 2021, 9(11): 2002149.
[29] ZHANG X Q, SUI Y M, YEASMIN S,et al. Fast-Switching electrochromic device enabled by Fe²+-mediated MnO₂/Mn²+ redox reactions. ACS Appl. Electron. Mater., 2024, 6(11): 8163.
[30] EVANS R C, AUSTIN R, MILLER R C,et al. Surface-facet-dependent electrochromic properties of WO₃ nanorod thin films: implications for smart windows. ACS Appl. Nano Mater., 2021, 4(4): 3750.
[31] LI Y Q, MCMASTER W A, WEI H,et al. Enhanced electrochromic properties of WO₃ nanotree-like structures synthesized via a two-step solvothermal process showing promise for electrochromic window application. ACS Appl. Nano Mater., 2018, 1(6): 2552.
[32] ZHOU Z Q, CHEN Z, MA D Y,et al. Porous WO₃·2H₂O film with large optical modulation and high coloration efficiency for electrochromic smart window. Sol. Energy Mater. Sol. Cells, 2023, 253: 112226.
[33] ISLAM S M, HERNANDEZ T S, MCGEHEE M D,et al. Hybrid dynamic windows using reversible metal electrodeposition and ion insertion. Nat. Energy, 2019, 4(3): 223.
[34] HERNANDEZ T S, BARILE C J, STRAND M T, et al. Bistable black electrochromic windows based on the reversible metal electrodeposition of Bi and Cu. ACS Energy Lett., 2018, 3(1): 104.
[35] EH A L S, LIN M F, CUI M Q,et al. A copper based reversible electrochemical mirror device with switchability between transparent, blue, and mirror states. J. Mater. Chem. C, 2017, 5(26): 6547.
[36] GUPTA S, SINGH R, ANOOP M D,et al. Electrochemical sensor for detection of mercury (II) ions in water using nanostructured bismuth hexagons. Appl. Phys. A, 2018, 124(11): 737.
[37] ZHANG C, LI S, WU R,et al. Robust MnO₂-WO₃ complementary electrochromic device enabled by reversible electrodeposition of MnO₂. Nano Lett., 2024 24(51): 16360.
[38] YUAN Y L, LU Y D, JIA B E, et al. Integrated system of solar cells with hierarchical NiCo₂O₄ battery-supercapacitor hybrid devices for self-driving optical-emitting diodes. Nano-Micro Lett., 2019, 11(1): 42.
[39] SUN J W, WAN X Y, YANG T, et al. High-performance tungsten-niobium bimetallic oxide films with designable electrochromic properties. Sol. Energy Mater. Sol. Cells, 2023, 256: 112318.
[40] CHO S M, KIM S, KIM T Y,et al. New switchable mirror device with a counter electrode based on reversible electrodeposition. Sol. Energy Mater. Sol. Cells, 2018, 179: 161.
[41] TAO X, LIU D Q, LIU T W, et al. A bistable variable infrared emissivity device based on reversible silver electrodeposition. Adv. Funct. Mater., 2022, 32(32): 2202661.
[42] PENG Y C, FAN L L, JIN W L,et al. Coloured low-emissivity films for building envelopes for year-round energy savings. Nat. Sustain., 2021, 5(4): 339.
